If you own more than one trailer, you know what a hassle it can be switching back and forth between ball mounts and keeping track of which ball mount fits which coupler. CURT has made things simpler with the multi-tow ball mount. These ball mounts feature two or three trailer balls mounted onto a straight shank to accommodate various coupler sizes and loads. This multi-ball ball mount features a 1-7/8", a 2" and a 2-5/16" ball. The 1-7/8" trailer ball can tow up 5,000 lbs. of gross trailer weight and 500 lbs. of tongue weight. The 2" ball can handle 10,000 lbs. of GTW and 1,000 lbs. of TW, and the 2-5/16" ball accepts loads up to 14,000 lbs. with 1,400 lbs. of TW. This multipurpose ball mount also features a dual-length option and has a hollow shank to accept an anti-rattle kit. All of our multi-use ball mounts come with a gloss black powder coat finish and a 2-1/2" x 2-1/2" shank. CURT multi-tow ball mounts are an obvious choice for anyone who tows more than one trailer on a regular basis. The multiple-ball design allows for quick changes between ball sizes without needing to install or own an entirely different ball mount. Because the balls are permanently welded to the shank, these ball mounts are also very secure, eliminating the possibility of a ball coming loose and deterring any potential theft.
| Box Height in Inches - XA |
6 |
| Box Length in Inches - XA |
13 |
| Box Width in Inches - XA |
9 |
| Container Cases Qty - XA |
1200 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
20 |
| Container Type - XA |
20GP |
| Container Unit Qty - XA |
2400 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
32000 |
| Finish - XA |
BLACK POWDER COAT |
| GTW/TW Ball 1 |
5,000 LB / 500 LB |
| GTW/TW Ball 2 |
10,000 LB / 1,000 LB |
| GTW/TW Ball 3 |
14,000 LB / 1,400 LB |
| Item Class - XA |
OBS |

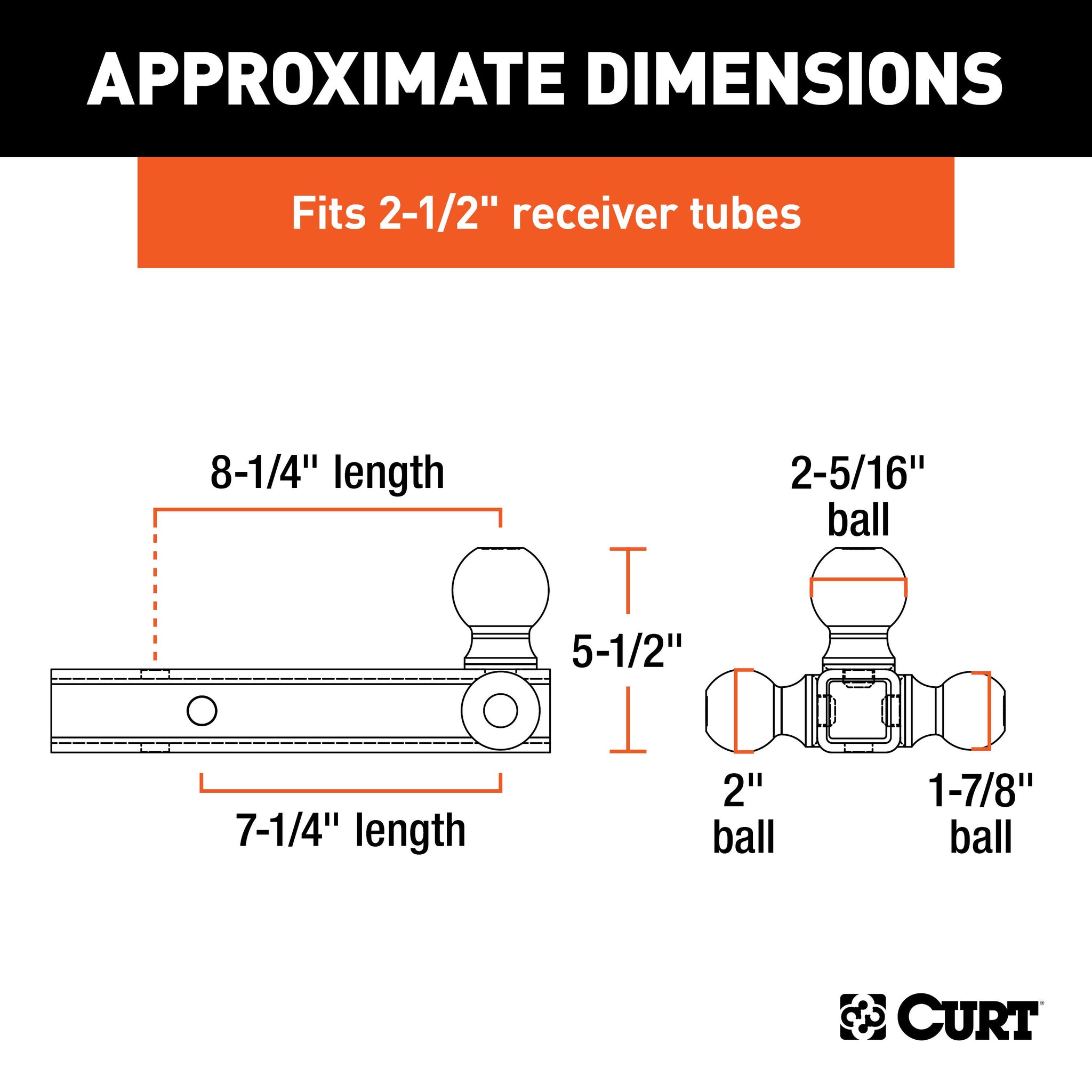

| Item Height - XA |
5.500 |
| Item Length - XA |
12.000 |
| Item Width - XA |
7.750 |
| Master Case Height Inches - XA |
6.000 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
20612314456516 |
| Master Case ITF14 - XA |
20612314456516 |
| Master Case Length Inches - XA |
15.750 |
| Master Case Qty - XA |
2 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
26.000 |
| Master Case Width Inches - XA |
9.000 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Not Applicable |
| Pallet Case Per - XA |
60 |
| Pallet Case Per Layer - XA |
12 |
| Pallet Cases Per - XA |
60 |
| Pallet Cases Per Layer - XA |
12 |
| Pallet Layer of Cases - XA |
5 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
43.550 |
| Pallet Total Weight Per - XA |
1600.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
2-1/2 IN |
| Retail Height - XA |
5.500 |
| Retail Length - XA |
12.000 |
| Retail Width - XA |
7.750 |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
BALL MOUNT |
| Shipping Weight - XA |
12.500 |
| Side Application Type Description - XA |
Not Applicable |
| Tariff 301 - XA |
Yes |
| Title |

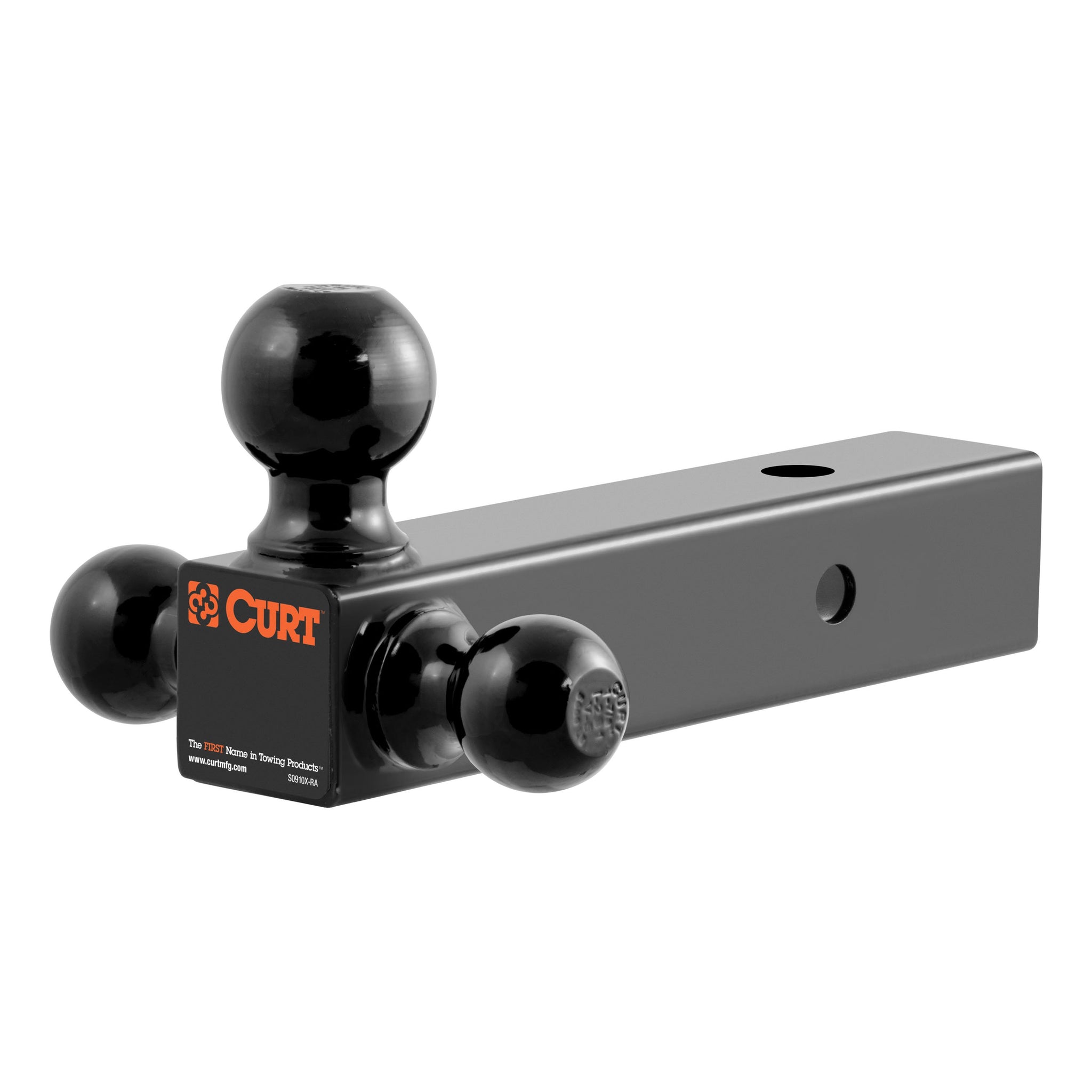

Multi-Ball Mount (2-1/2" Hollow Shank, 1-7/8", 2" & 2-5/16" Black Balls) |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
MOUNT |
| Description_SHO |
Multi-Ball Mount |
| Description_INV |
Multi-Ball Mount |
| Description_ASC |

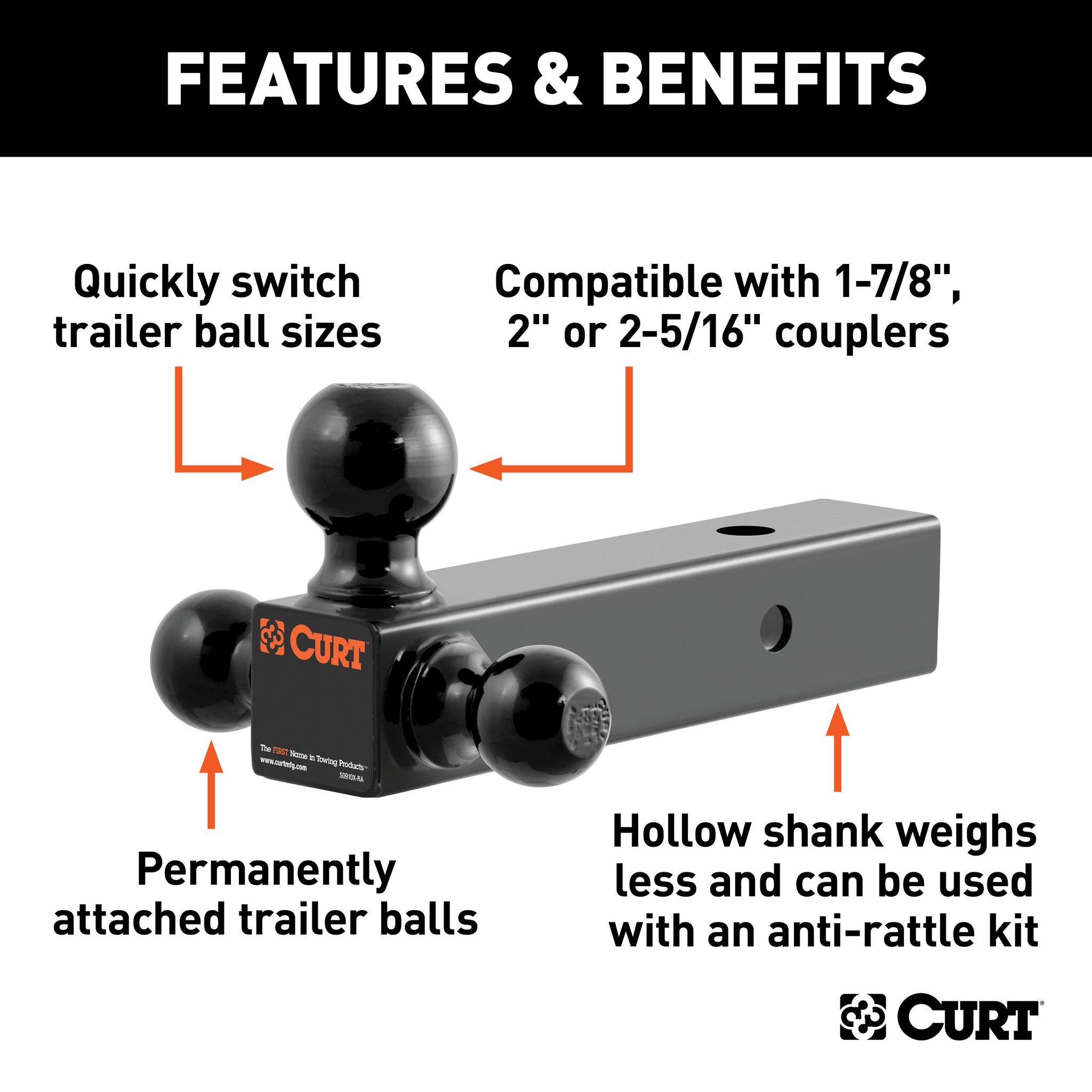

Features three welded trailer balls on a hollow shank |
| Description_ASC |

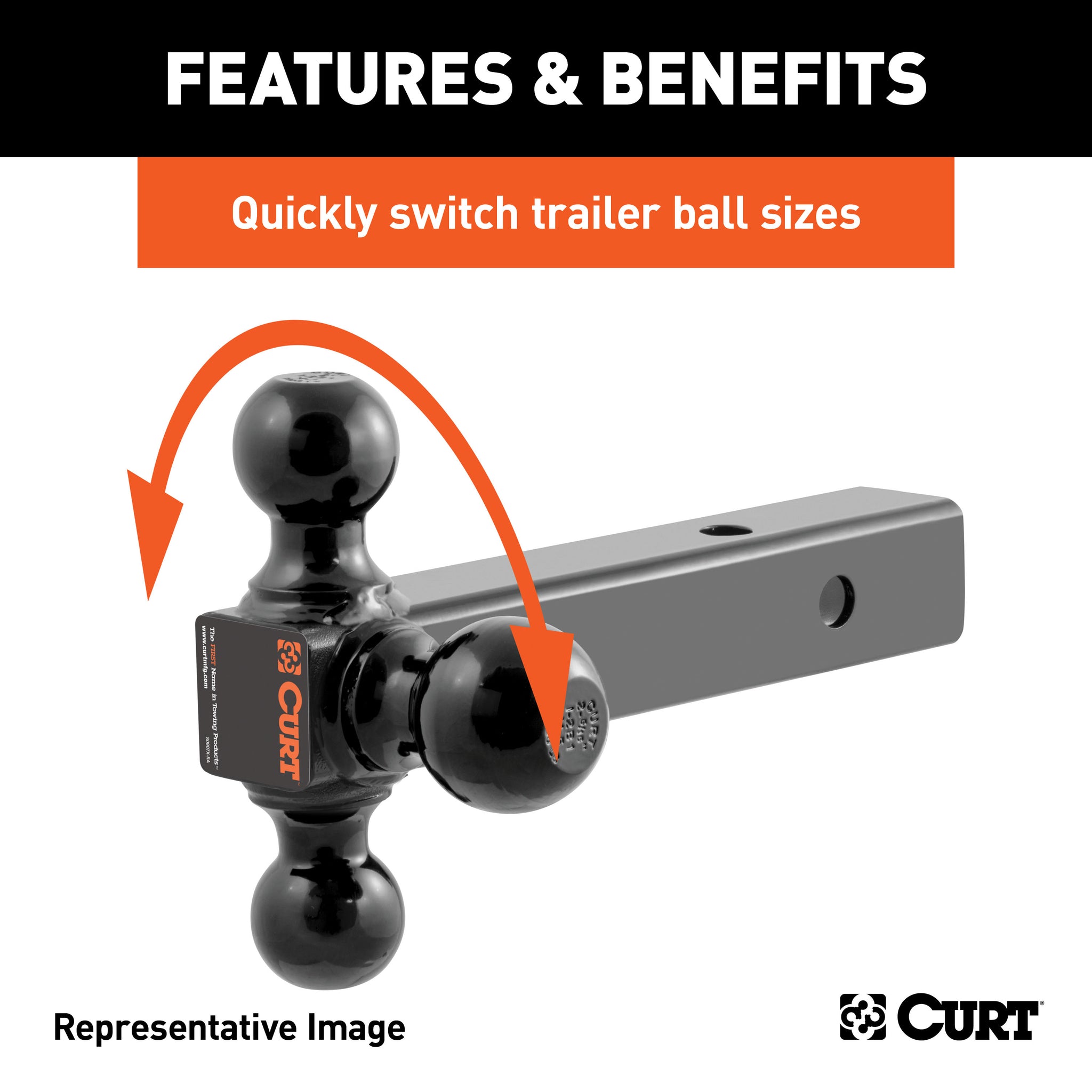

Allows for quick switching between trailer ball sizes |
| Description_ASC |
Mounts on trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening |
| Description_ASC |
Fits 1-7/8", 2" or 2-5/16" couplers |
| Description_ASC |
Permanently attached trailer balls cannot be loosened or stolen |
| Description_ASC |
Hollow shank weighs less and can be used with an anti-rattle kit |
| Description_ASC |
Protected by a durable black powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Multi-Ball Mount (2-1/2" Hollow Shank, 1-7/8", 2" & 2-5/16" Black Balls) |
| Description_EXT |
CURT 45651 Multi-Ball Trailer Hitch Ball Mount, 1-7/8, 2, 2-5/16-Inch Balls, Fits 2-1/2-Inch Receiver, 14,000 lbs |
| Description_MKT |
If you own more than one trailer, you know what a hassle it can be switching back and forth between ball mounts and keeping track of which ball mount fits which coupler. CURT has made things simpler with the multi-tow ball mount. These ball mounts feature two or three trailer balls mounted onto a straight shank to accommodate various coupler sizes and loads. This multi-ball ball mount features a 1-7/8", a 2" and a 2-5/16" ball. The 1-7/8" trailer ball can tow up 5,000 lbs. of gross trailer weight and 500 lbs. of tongue weight. The 2" ball can handle 10,000 lbs. of GTW and 1,000 lbs. of TW, and the 2-5/16" ball accepts loads up to 14,000 lbs. with 1,400 lbs. of TW. This multipurpose ball mount also features a dual-length option and has a hollow shank to accept an anti-rattle kit. All of our multi-use ball mounts come with a gloss black powder coat finish and a 2-1/2" x 2-1/2" shank. CURT multi-tow ball mounts are an obvious choice for anyone who tows more than one trailer on a regular basis. The multiple-ball design allows for quick changes between ball sizes without needing to install or own an entirely different ball mount. Because the balls are permanently welded to the shank, these ball mounts are also very secure, eliminating the possibility of a ball coming loose and deterring any potential theft. |
| Description_FAB |
Features three welded trailer balls on a hollow shank |
| Description_FAB |
Allows for quick switching between trailer ball sizes |
| Description_FAB |
Mounts on trailer hitches with a 2-1/2" x 2-1/2" receiver tube opening |
| Description_FAB |
Fits 1-7/8", 2" or 2-5/16" couplers |
| Description_FAB |
Permanently attached trailer balls cannot be loosened or stolen |
| Description_FAB |
Hollow shank weighs less and can be used with an anti-rattle kit |
| Description_FAB |
Protected by a durable black powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 45651 Multi-Ball Trailer Hitch Ball Mount, 1-7/8, 2, 2-5/16-Inch Balls, Fits 2-1/2-Inch Receiver, 14,000 lbs |
| Description_DEF |
Trailer Hitch Ball Mount |
