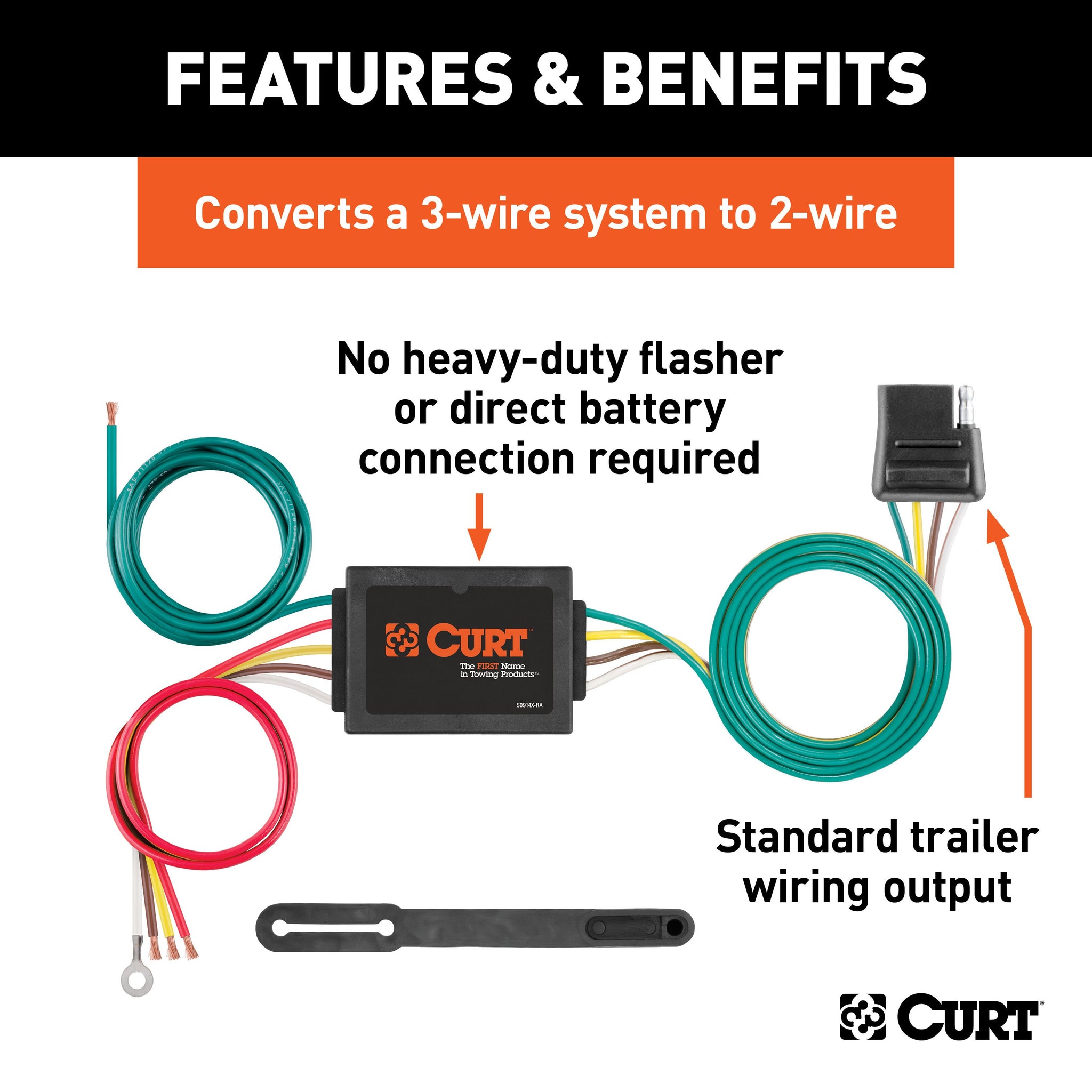

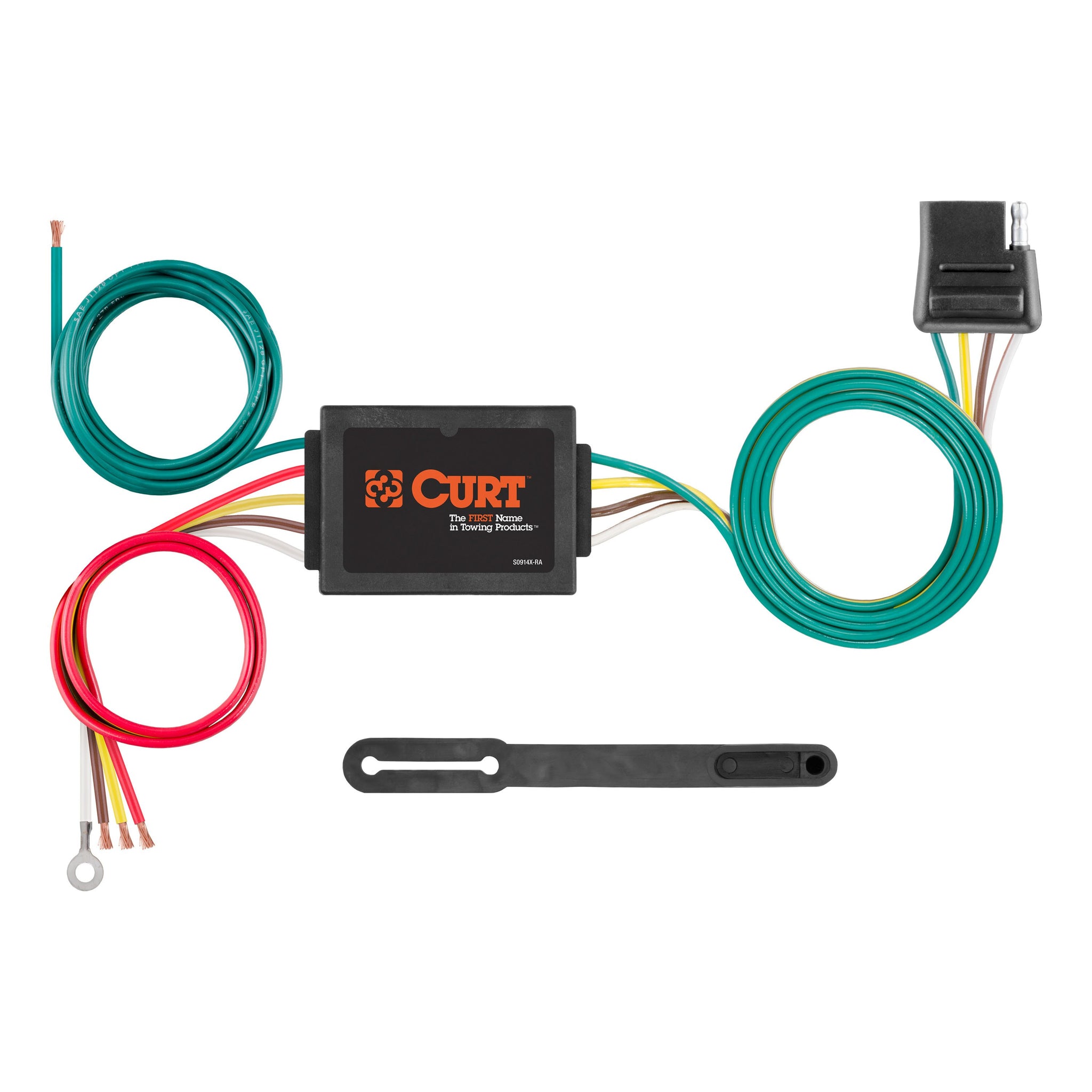

When your vehicle does not readily provide an electrical connection for hooking up your trailer, CURT electrical converts offer the solution. Working tail lights on your trailer are absolutely essential any time you tow, and a converter provides an effective way to properly equip your vehicle for safe towing. A CURT electrical converter, much like our custom vehicle-to-trailer wiring harnesses, provides a trailer connector on your vehicle by splicing into the vehicle's electrical system. Electrical converters are designed to splice directly into the taillight wiring, rather than plugging into various sockets, giving them the nickname "taillight converters". Though it requires a little extra work compared to a custom wiring harness, a tail light converter offers a reliable, long-term connector solution. This CURT electrical converter is designed to convert a 3-wire system to a 2-wire system and provides a standard 4-way flat connector socket to plug in your trailer. This converter is made with cutting-edge surface-mount technology (SMT) circuitry, featuring electrical components that are mounted directly to the surface of the board rather than being inserted into a series of holes. SMT circuits have longer life cycles, lower resistance, reduced heat generation and are more reliable than through-hole-mounted components.
| Box Height in Inches - XA |
6 |
| Box Length in Inches - XA |
9 |
| Box Width in Inches - XA |
8 |
| Class ID |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
N/A |
| Item Class - XA |
CME |
| Item Height - XA |
2.000 |
| Item Length - XA |
9.000 |
| Item Width - XA |
4.000 |
| Master Case Height Inches - XA |
10.750 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
20612314561302 |
| Master Case Length Inches - XA |
18.500 |
| Master Case Qty - XA |
18 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
11.620 |
| Master Case Width Inches - XA |
8.500 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |
| Output Type |
4-Way Flat |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
40 |
| Pallet Cases Per Layer - XA |
10 |
| Pallet Layer of Cases - XA |
4 |
| Pallet Qty - XA |
720.000 |
| Pallet Total Height Inches - XA |
47.500 |
| Pallet Total Weight Per - XA |
489.800 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.590 |
| Prop 65 Label Text - XA |
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer, and Di-n-butyl phthalate, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Prop 65 Material - XA |
Di(2-ethylhexyl) phthalate/Di-n-butyl phthalate |
| Prop 65 Reason - XA |
PVC Coated Wire |
| Prop 65 Warning Label Type - XA |
Cancer and Birth Defect Causing |
| Prop 65 Warning Y/N - XA |
YES |
| Rate Class - XA |
70.0 |
| Retail Height - XA |
2.000 |
| Retail Length - XA |
9.000 |
| Retail Width - XA |
4.000 |
| Sales Family Code - XA |
ELECT |
| Sales Family Description - XA |
ELECTRICAL COMPONENTS |
| Sales Group Description - XA |
CNVRT |
| Shipping Weight - XA |
0.590 |
| Side Application Type Description - XA |
Blank |
| Tail Light Circuits |
5.0 Amps Per Circuit |
| Tariff 301 - XA |
Yes |
| Title |
Non-Powered 3-to-2-Wire Taillight Converter |
| Truckload Cases Qty - XA |
1600 |
| Truckload Pallets Qty - XA |
40 |
| Truckload Units Qty - XA |
28800 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
19592 |
| Turn and Brake Circuits |
3.0 Amps Per Circuit |
| Warranty |
One-Year Limited Warranty |
| Description_ABR |
CNVRT |
| Description_SHO |
Taillight Converter |
| Description_INV |
Non-Powered 3-to-2 Taillight Converter |
| Description_ASC |

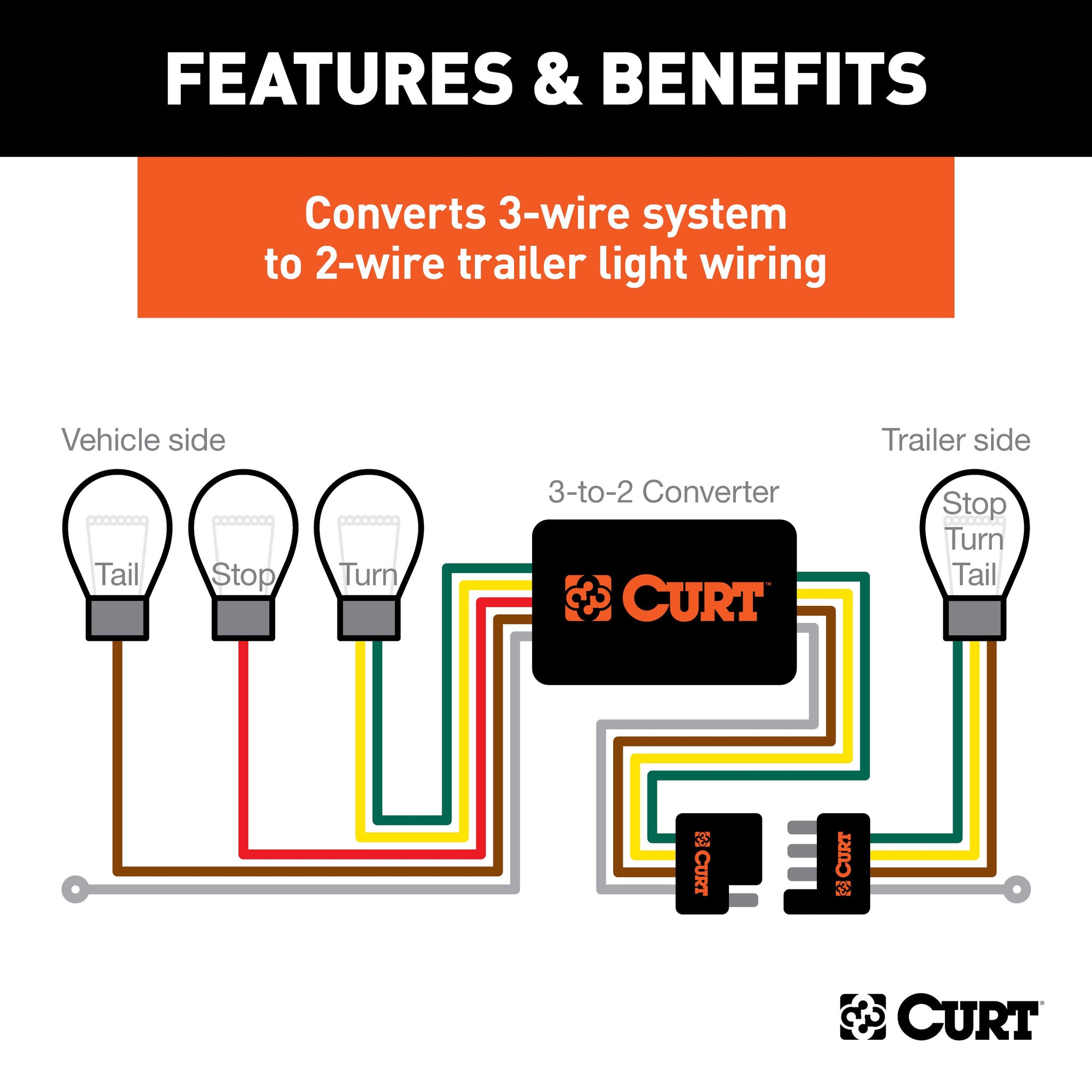

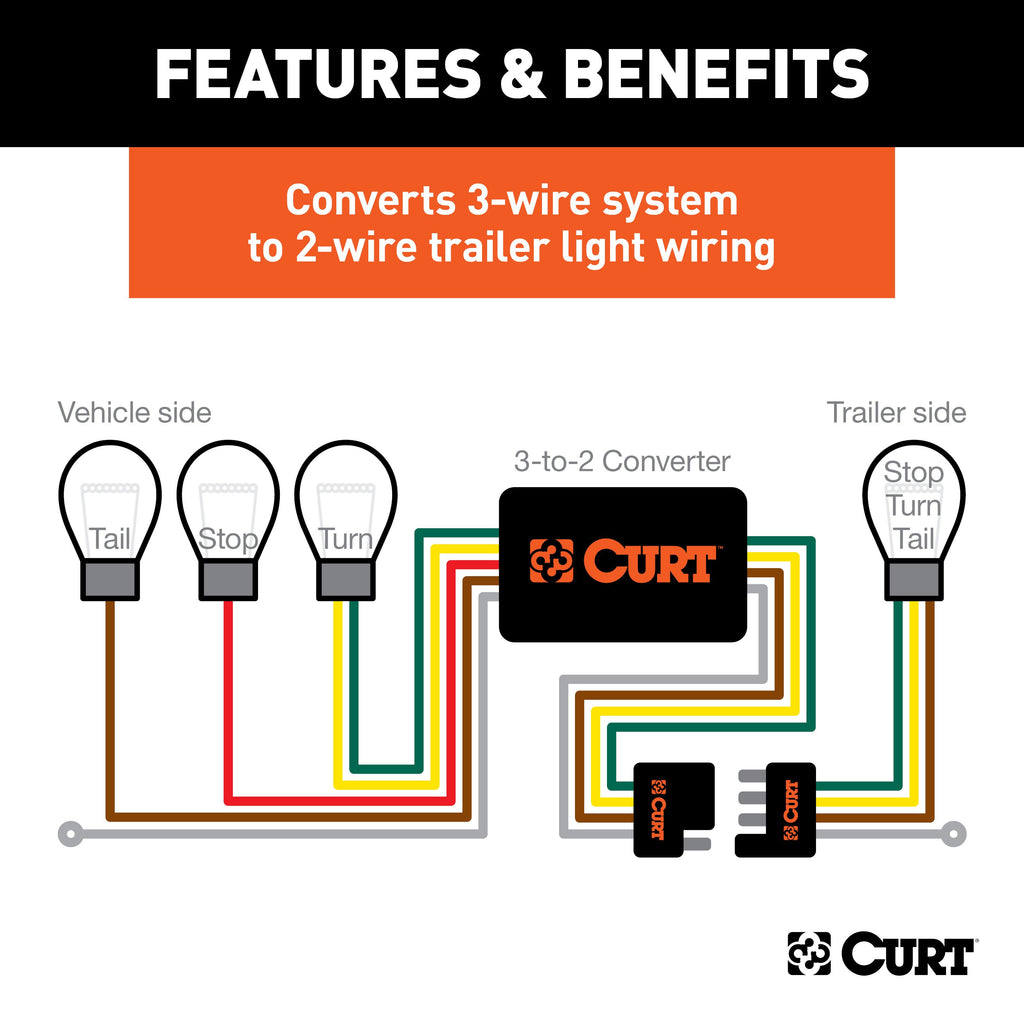

Converts 3-wire vehicle electrical system to standard 2-wire trailer wiring |
| Description_ASC |
4-way flat output connects tail lights, brake lights and turn signals |
| Description_ASC |
Constructed with SMT circuitry for better performance and durability |
| Description_ASC |
Color-coded wires for easier installation |
| Description_ASC |

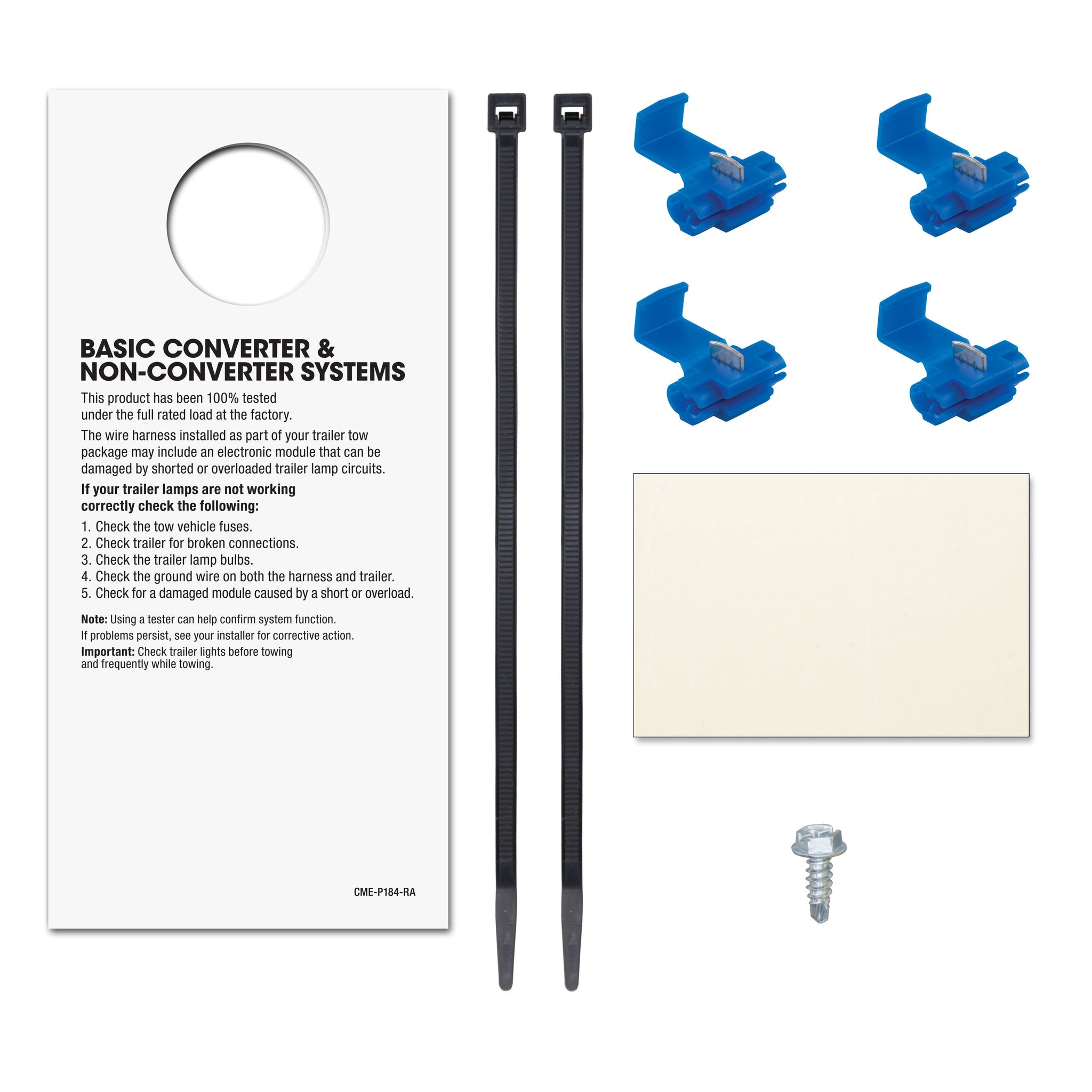

Snap locks included for fast, secure splicing |
| Description_ASC |
No heavy-duty flasher or direct battery connection required |
| Description_ASC |
Dust cover included to keep connector clean when not in use |
| Description_DES |
Non-Powered 3-to-2-Wire Taillight Converter |
| Description_EXT |
CURT 56130 Non-Powered 3-to-2-Wire Splice-in Trailer Tail Light Converter, 4-Pin Wiring Harness |
| Description_MKT |
When your vehicle does not readily provide an electrical connection for hooking up your trailer, CURT electrical converts offer the solution. Working tail lights on your trailer are absolutely essential any time you tow, and a converter provides an effective way to properly equip your vehicle for safe towing. A CURT electrical converter, much like our custom vehicle-to-trailer wiring harnesses, provides a trailer connector on your vehicle by splicing into the vehicle's electrical system. Electrical converters are designed to splice directly into the taillight wiring, rather than plugging into various sockets, giving them the nickname "taillight converters". Though it requires a little extra work compared to a custom wiring harness, a tail light converter offers a reliable, long-term connector solution. This CURT electrical converter is designed to convert a 3-wire system to a 2-wire system and provides a standard 4-way flat connector socket to plug in your trailer. This converter is made with cutting-edge surface-mount technology (SMT) circuitry, featuring electrical components that are mounted directly to the surface of the board rather than being inserted into a series of holes. SMT circuits have longer life cycles, lower resistance, reduced heat generation and are more reliable than through-hole-mounted components. |
| Description_FAB |
Converts 3-wire vehicle electrical system to standard 2-wire trailer wiring |
| Description_FAB |
4-way flat output connects tail lights, brake lights and turn signals |
| Description_FAB |
Constructed with SMT circuitry for better performance and durability |
| Description_FAB |
Color-coded wires for easier installation |
| Description_FAB |
Snap locks included for fast, secure splicing |
| Description_FAB |
No heavy-duty flasher or direct battery connection required |
| Description_FAB |
Dust cover included to keep connector clean when not in use |
| Description_TLE |
CURT 56130 Non-Powered 3-to-2-Wire Splice-in Trailer Tail Light Converter, 4-Pin Wiring Harness |
| Description_DEF |
Trailer Wire Converter |
