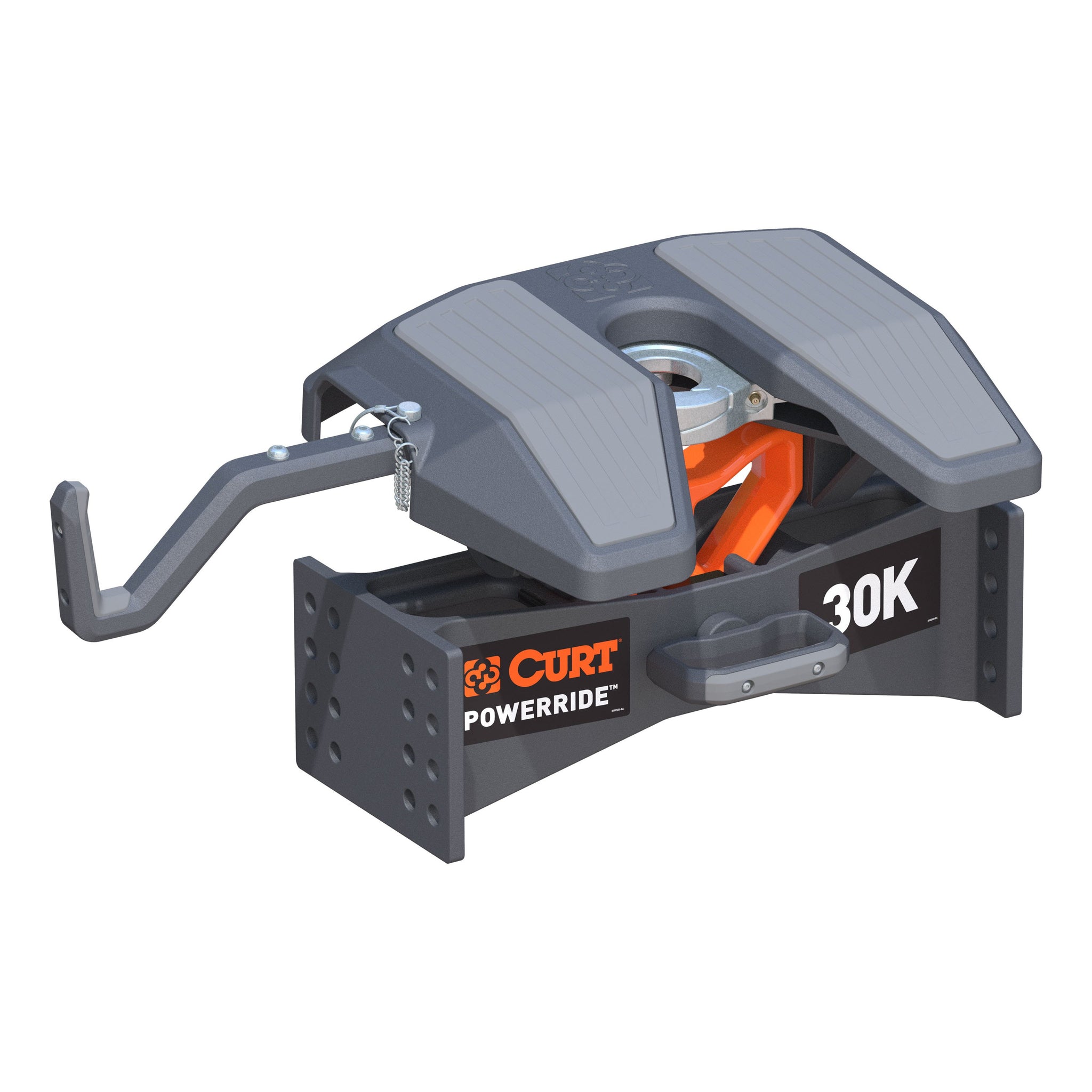

The CURT PowerRide 30K 5th wheel hitch equips your pickup truck with a profession-grade solution for 5th wheel towing. It features a 30,000-pound, fully tested rating, a cast head with multi-directional tilt, an easy-to-use self-resetting handle, enhanced portability and no welding or fabricating required for installation. This CURT 5th wheel hitch offers exceptional towing power with its 30K gross trailer weight rating and 7,500-pound vertical load limit. It is constructed with a cast steel main body for dependable strength, and it is thoroughly tested to SAE J2638 specs for safety. It's ideal for towing the largest RV trailers, camper motorhomes and other 5th wheel trailers. The PowerRide 5th wheel trailer hitch also features a cast yoke head that tilts in multiple directions -- not just forward and backward -- to promote a smooth ride. PowerRide is very easy to operate. It is engineered with a self-resetting handle, a simple mechanism that resets the jaws to the ready-to-couple position after uncoupling, saving you an extra step in the hookup process. The handle is easy to reach and operate from the side of the truck, and the hitch is also equipped with a three-position coupling indicator to further streamline the process. For installation and removal, PowerRide is unique with a one-pin head removal system. The central pin can be removed as needed, breaking the hitch down into smaller, easier-to-lift pieces. Strategically placed grips also offer a comfortable handhold. The CURT PowerRide 5th wheel hitch installs without any welding or fabricating required. It easily drops into any industry-standard 5th wheel rails. This kit comes with the hitch head only. Legs or a roller, rails and brackets must be purchased separately.
| Retail Length - XA |
24.800 |
| Retail Width - XA |
16.150 |
| Sales Family Code - XA |
FIFTH |
| Sales Family Description - XA |
FIFTH WHEEL |
| Sales Group Description - XA |
30K FIFTH WHEEL |
| Shipping Weight - XA |
120.000 |
| Side Application Type Description - XA |
Not Applicable |
| Tariff 301 - XA |
Yes |
| Title |
PowerRide 30K 5th Wheel Hitch Head |
| Truckload Cases Qty - XA |
320 |
| Truckload Pallets Qty - XA |
20 |
| Truckload Units Qty - XA |
320 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
38820 |
| Vertical Load |
7,500 LBS |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Container Cases Qty - XA |
320 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
20 |
| Container Type - XA |
40GP |
| Container Unit Qty - XA |
320 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
38820 |
| Finish - XA |
DARK GREY TERIDIUM |
| Gross Trailer Weight (GTW) |
30,000 LBS |
| Item Class - XA |
OBS |
| Item Height - XA |
14.380 |
| Item Length - XA |
24.800 |
| Item Width - XA |
16.150 |
| Master Case Height Inches - XA |
14.380 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
24.800 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
121.000 |
| Master Case Width Inches - XA |
16.150 |
| Material - XA |
CAST STEEL |
| Mount Type Description - XA |
Not Applicable |
| Pallet Case Per - XA |
16 |
| Pallet Case Per Layer - XA |
4 |
| Pallet Cases Per - XA |
16 |
| Pallet Cases Per Layer - XA |
4 |
| Pallet Layer of Cases - XA |
4 |
| Pallet Qty - XA |
16.000 |
| Pallet Total Height Inches - XA |
62.800 |
| Pallet Total Weight Per - XA |
1941.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer, and Di-n-butyl phthalate, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Prop 65 Material - XA |
Di(2-ethylhexyl) phthalate/Di-n-butyl phthalate |
| Prop 65 Reason - XA |
Phthalates |
| Prop 65 Warning Label Type - XA |
Cancer and Birth Defect Causing |
| Prop 65 Warning Y/N - XA |
YES |
| Rate Class - XA |
60.0 |
| Retail Height - XA |
14.380 |
| Description_ABR |
30K |
| Description_SHO |
PowerRide Head |
| Description_INV |
PowerRide 30K 5th Wheel Hitch Head |
| Description_ASC |
Requires CURT 5th wheel roller or legs for installation |
| Description_ASC |
Tough, professional-grade capacity and enhanced functionality |
| Description_ASC |
Ergonomic, self-resetting handle for easier use from the side of the truck bed |
| Description_ASC |
Multi-directional, cast yoke head for a smooth ride and less strain on the truck |
| Description_ASC |
Constructed with a cast steel main body for dependable strength |
| Description_ASC |
Tested and rated to 30,000 lbs. GTW / 7,500 lbs. vertical load per SAE J2638 |
| Description_ASC |
Integrated polyethylene plates for smooth operation, reduced wear and no grease |
| Description_ASC |
Fast, one-pin head removal makes moving easy with smaller, lighter pieces |
| Description_ASC |
Strategic grip points for ergonomic moving and handling |
| Description_ASC |
Three-position coupling indicator clearly shows coupling status |
| Description_ASC |
Patented interlocking jaws for full kingpin contact and coupling security |
| Description_ASC |
Premium, textured, dark grey teridium finish for lasting rust resistance |
| Description_ASC |
No welding or fabrication required for installation |
| Description_DES |
PowerRide 30K 5th Wheel Hitch Head |
| Description_EXT |
CURT 16315 PowerRide 30K 5th Wheel Hitch Head, Legs or Roller Required, 30,000 lbs |
| Description_MKT |
The CURT PowerRide 30K 5th wheel hitch equips your pickup truck with a profession-grade solution for 5th wheel towing. It features a 30,000-pound, fully tested rating, a cast head with multi-directional tilt, an easy-to-use self-resetting handle, enhanced portability and no welding or fabricating required for installation. This CURT 5th wheel hitch offers exceptional towing power with its 30K gross trailer weight rating and 7,500-pound vertical load limit. It is constructed with a cast steel main body for dependable strength, and it is thoroughly tested to SAE J2638 specs for safety. It's ideal for towing the largest RV trailers, camper motorhomes and other 5th wheel trailers. The PowerRide 5th wheel trailer hitch also features a cast yoke head that tilts in multiple directions -- not just forward and backward -- to promote a smooth ride. PowerRide is very easy to operate. It is engineered with a self-resetting handle, a simple mechanism that resets the jaws to the ready-to-couple position after uncoupling, saving you an extra step in the hookup process. The handle is easy to reach and operate from the side of the truck, and the hitch is also equipped with a three-position coupling indicator to further streamline the process. For installation and removal, PowerRide is unique with a one-pin head removal system. The central pin can be removed as needed, breaking the hitch down into smaller, easier-to-lift pieces. Strategically placed grips also offer a comfortable handhold. The CURT PowerRide 5th wheel hitch installs without any welding or fabricating required. It easily drops into any industry-standard 5th wheel rails. This kit comes with the hitch head only. Legs or a roller, rails and brackets must be purchased separately. |
| Description_FAB |
Requires CURT 5th wheel roller or legs for installation |
| Description_FAB |
Tough, professional-grade capacity and enhanced functionality |
| Description_FAB |
Ergonomic, self-resetting handle for easier use from the side of the truck bed |
| Description_FAB |
Multi-directional, cast yoke head for a smooth ride and less strain on the truck |
| Description_FAB |
Constructed with a cast steel main body for dependable strength |
| Description_FAB |
Tested and rated to 30,000 lbs. GTW / 7,500 lbs. vertical load per SAE J2638 |
| Description_FAB |
Integrated polyethylene plates for smooth operation, reduced wear and no grease |
| Description_FAB |
Fast, one-pin head removal makes moving easy with smaller, lighter pieces |
| Description_FAB |
Strategic grip points for ergonomic moving and handling |
| Description_FAB |
Three-position coupling indicator clearly shows coupling status |
| Description_FAB |
Patented interlocking jaws for full kingpin contact and coupling security |
| Description_FAB |
Premium, textured, dark grey teridium finish for lasting rust resistance |
| Description_FAB |
No welding or fabrication required for installation |
| Description_TLE |
CURT 16315 PowerRide 30K 5th Wheel Hitch Head, Legs or Roller Required, 30,000 lbs |
| Description_DEF |
Fifth Wheel Trailer Hitch |
