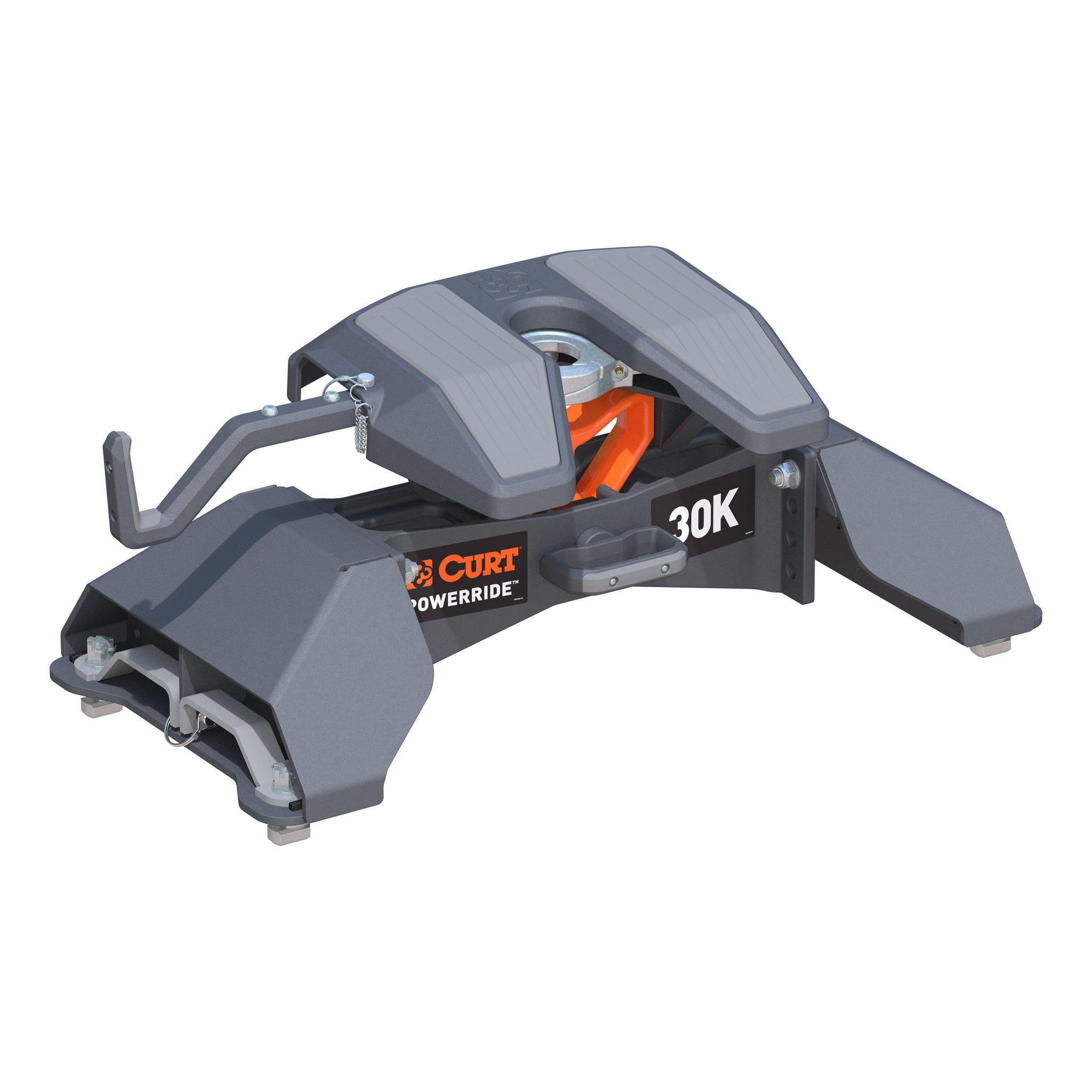

The CURT PowerRide 5th wheel hitch equips your pickup truck with a profession-grade solution for 5th wheel towing. It features a fully tested 30K rating, a cast head with multi-directional tilt, an easy-to-use self-resetting handle, enhanced portability and no welding or fabricating required for installation. This CURT 5th wheel hitch offers exceptional towing power with its 30K gross trailer weight rating and 7,500-pound vertical load limit. It is constructed with a cast steel main body for dependable strength, and it is thoroughly tested to SAE J2638 specs for safety. It's ideal for towing the largest RV trailers, camper motorhomes and other 5th wheel trailers. The PowerRide 5th wheel trailer hitch also features a cast yoke head that tilts in multiple directions -- not just forward and backward -- to promote a smooth ride. PowerRide is very easy to operate. It is engineered with a self-resetting handle, a simple mechanism that resets the jaws to the ready-to-couple position after uncoupling, saving you an extra step in the hookup process. The handle is easy to reach and operate from the side of the truck, and the hitch is also equipped with a three-position coupling indicator to further streamline the process. For installation and removal, PowerRide is unique with a one-pin head removal system. The central pin can be removed as needed, breaking the hitch down into smaller, easier-to-lift pieces. Strategically placed grips also offer a comfortable handhold. The CURT PowerRide 5th wheel hitch installs without any welding or fabricating required. This model comes with a set of CURT OEM puck system 5th wheel legs designed to be mounted on select models of the Ford F-250 Super Duty, F-350 Super Duty and F-450 Super Duty with 8-foot bed and with the truck bed puck system (year range specific). The legs mount directly into the four-point mounting system, allowing the hitch to be installed quickly and easily. This kit comes with the hitch head and puck system legs.
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Finish - XA |
DARK GREY TERIDIUM |
| Gross Trailer Weight (GTW) |
30,000 LBS |
| Item Class - XA |
OBS |
| Item Height - XA |
14.380 |
| Item Length - XA |
35.650 |
| Item Width - XA |
24.800 |
| Master Case Height Inches - XA |
0.000 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Qty - XA |
0 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
CAST STEEL |
| Mount Type Description - XA |
Not Applicable |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
No |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate, which is known to the State of California to cause cancer, and Di-n-butyl phthalate, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Prop 65 Material - XA |
Di(2-ethylhexyl) phthalate/Di-n-butyl phthalate |
| Prop 65 Reason - XA |
Phthalates |
| Prop 65 Warning Label Type - XA |
Cancer and Birth Defect Causing |
| Prop 65 Warning Y/N - XA |
YES |
| Rate Class - XA |
70.0 |
| Retail Height - XA |
14.000 |
| Retail Length - XA |
36.000 |
| Retail Width - XA |
25.000 |
| Sales Family Code - XA |
FIFTH |
| Sales Family Description - XA |
FIFTH WHEEL |
| Sales Group Description - XA |
30K FIFTH WHEEL |
| Shipping Weight - XA |
172.900 |
| Side Application Type Description - XA |
Not Applicable |
| Tariff 301 - XA |
Yes |
| Title |
PowerRide 30K 5th Wheel Hitch, Select Ford F-250, F-350, F-450, 8' Bed |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Vertical Load |
7,500 LBS |
| Warranty |
Limited Lifetime |
| Description_ABR |
30K |
| Description_SHO |
PowerRide 5th Wheel |
| Description_INV |
PowerRide 30K 5th Wheel Hitch |
| Description_ASC |
Fits Ford Super Duty long-bed pickups with the OEM truck bed puck system |
| Description_ASC |
Tough, professional-grade capacity and enhanced functionality |
| Description_ASC |
Ergonomic, self-resetting handle for easier use from the side of the truck bed |
| Description_ASC |
Multi-directional, cast yoke head for a smooth ride and less strain on the truck |
| Description_ASC |
Constructed with a cast steel main body for dependable strength |
| Description_ASC |
Tested and rated to 30,000 lbs. GTW / 7,500 lbs. vertical load per SAE J2638 |
| Description_ASC |
Integrated wear plates for smooth operation, extended longevity and no grease |
| Description_ASC |
Fast, one-pin head removal makes moving easy with smaller, lighter pieces |
| Description_ASC |
Strategic grip points for ergonomic moving and handling |
| Description_ASC |
Three-position coupling indicator clearly shows coupling status |
| Description_ASC |
Patented interlocking jaws for full kingpin contact and coupling security |
| Description_ASC |
Premium, textured, dark grey teridium finish for lasting rust resistance |
| Description_ASC |
4" height adjustment for greater versatility versus 3" options |
| Description_ASC |
No welding or fabrication required for installation |
| Description_DES |
PowerRide 30K 5th Wheel Hitch, Select Ford F-250, F-350, F-450, 8' Bed |
| Description_EXT |
CURT 16594 PowerRide 30K 5th Wheel Hitch, 30,000 lbs, Select Ford F-250, F-350, F-450 Super Duty, 8-Foot Bed Puck System |
| Description_MKT |
The CURT PowerRide 5th wheel hitch equips your pickup truck with a profession-grade solution for 5th wheel towing. It features a fully tested 30K rating, a cast head with multi-directional tilt, an easy-to-use self-resetting handle, enhanced portability and no welding or fabricating required for installation. This CURT 5th wheel hitch offers exceptional towing power with its 30K gross trailer weight rating and 7,500-pound vertical load limit. It is constructed with a cast steel main body for dependable strength, and it is thoroughly tested to SAE J2638 specs for safety. It's ideal for towing the largest RV trailers, camper motorhomes and other 5th wheel trailers. The PowerRide 5th wheel trailer hitch also features a cast yoke head that tilts in multiple directions -- not just forward and backward -- to promote a smooth ride. PowerRide is very easy to operate. It is engineered with a self-resetting handle, a simple mechanism that resets the jaws to the ready-to-couple position after uncoupling, saving you an extra step in the hookup process. The handle is easy to reach and operate from the side of the truck, and the hitch is also equipped with a three-position coupling indicator to further streamline the process. For installation and removal, PowerRide is unique with a one-pin head removal system. The central pin can be removed as needed, breaking the hitch down into smaller, easier-to-lift pieces. Strategically placed grips also offer a comfortable handhold. The CURT PowerRide 5th wheel hitch installs without any welding or fabricating required. This model comes with a set of CURT OEM puck system 5th wheel legs designed to be mounted on select models of the Ford F-250 Super Duty, F-350 Super Duty and F-450 Super Duty with 8-foot bed and with the truck bed puck system (year range specific). The legs mount directly into the four-point mounting system, allowing the hitch to be installed quickly and easily. This kit comes with the hitch head and puck system legs. |
| Description_FAB |
Fits Ford Super Duty long-bed pickups with the OEM truck bed puck system |
| Description_FAB |
Tough, professional-grade capacity and enhanced functionality |
| Description_FAB |
Ergonomic, self-resetting handle for easier use from the side of the truck bed |
| Description_FAB |
Multi-directional, cast yoke head for a smooth ride and less strain on the truck |
| Description_FAB |
Constructed with a cast steel main body for dependable strength |
| Description_FAB |
Tested and rated to 30,000 lbs. GTW / 7,500 lbs. vertical load per SAE J2638 |
| Description_FAB |
Integrated wear plates for smooth operation, extended longevity and no grease |
| Description_FAB |
Fast, one-pin head removal makes moving easy with smaller, lighter pieces |
| Description_FAB |
Strategic grip points for ergonomic moving and handling |
| Description_FAB |
Three-position coupling indicator clearly shows coupling status |
| Description_FAB |
Patented interlocking jaws for full kingpin contact and coupling security |
| Description_FAB |
Premium, textured, dark grey teridium finish for lasting rust resistance |
| Description_FAB |
4" height adjustment for greater versatility versus 3" options |
| Description_FAB |
No welding or fabrication required for installation |
| Description_TLE |
CURT 16594 PowerRide 30K 5th Wheel Hitch, 30,000 lbs, Select Ford F-250, F-350, F-450 Super Duty, 8-Foot Bed Puck System |
| Description_DEF |
Fifth Wheel Trailer Hitch |
