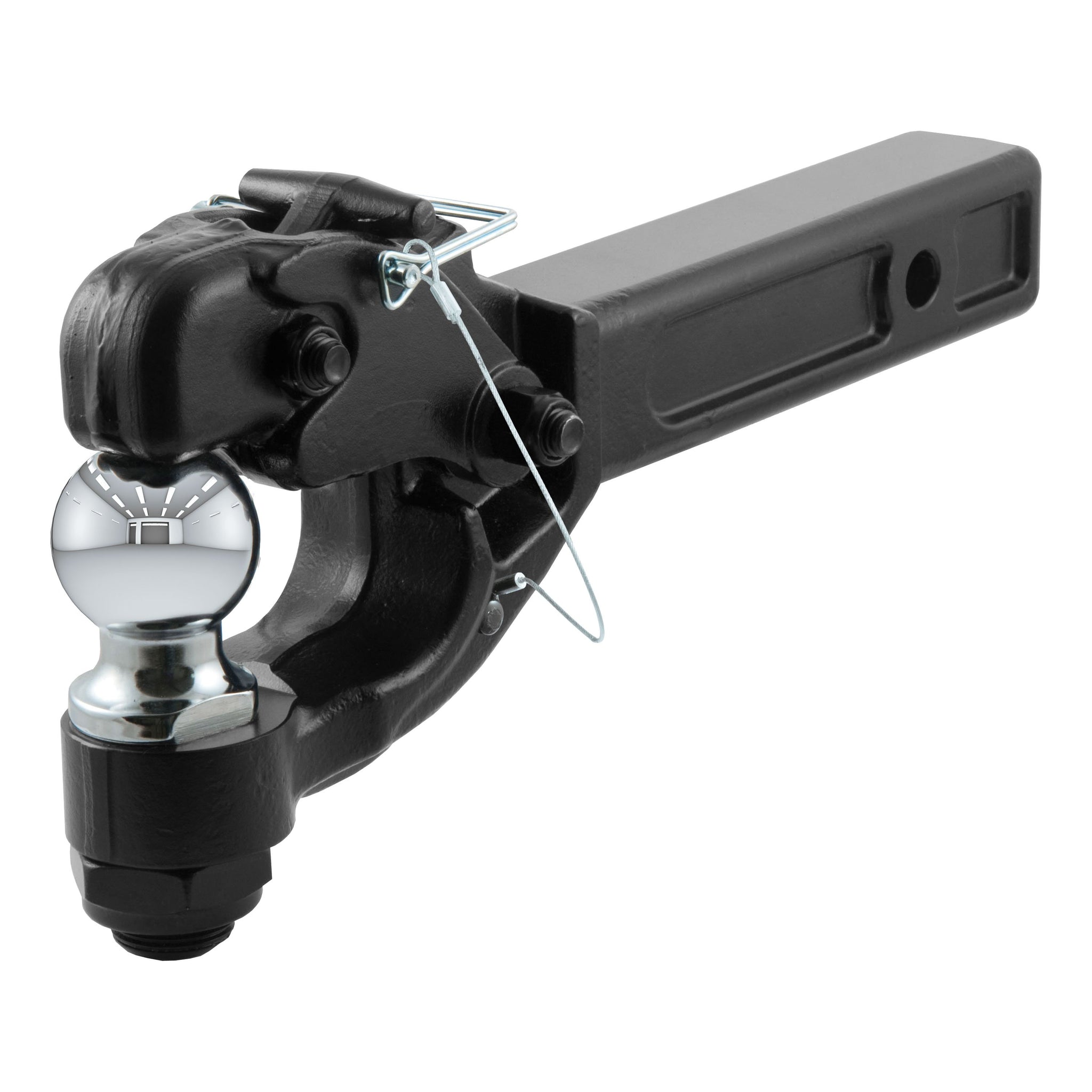

In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT combination ball and pintle hitches combine both a pintle hook and a standard trailer ball to give you a more complete towing option on your heavy-duty truck or SUV. This particular receiver-mount ball and pintle hook is designed to insert into any 2" x 2" receiver tube. With a trailer ball capacity of 10,000 lbs. and a pintle capacity of 16,000 lbs., it offers a solid complement to most class 4 and class 5 trailer hitches (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). The pintle hook fits any lunette ring with a 2-1/2" or 3" inside eye diameter, while the trailer ball can be coupled to any 2" coupler. The heavy-duty towing done with pintle hitches brings with it a certain amount of wear and tear on your towing equipment, and to prepare for this, CURT uses a quality finish on all of our pintle mounts, lunette eyes and combination pintle hitches. This hitch-mounted ball and pintle combo is coated in a black powder coat finish with a chrome plating on the trailer ball, providing the perfect amount of rust and scratch resistance needed to face the heavy-duty towing you do every day.
| Ball Capacity |
10,000 LBS |
| Ball Diameter |
2 IN |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Container Cases Qty - XA |
1440 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
10 |
| Container Type - XA |
20GP |
| Container Unit Qty - XA |
1440 |
| Container Volume Cubic Feet - XA |
526.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
32282 |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
3.540 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
16.340 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
22.000 |
| Master Case Width Inches - XA |
8.660 |
| Material - XA |
Blank |
| Mount Type Description - XA |
Blank |

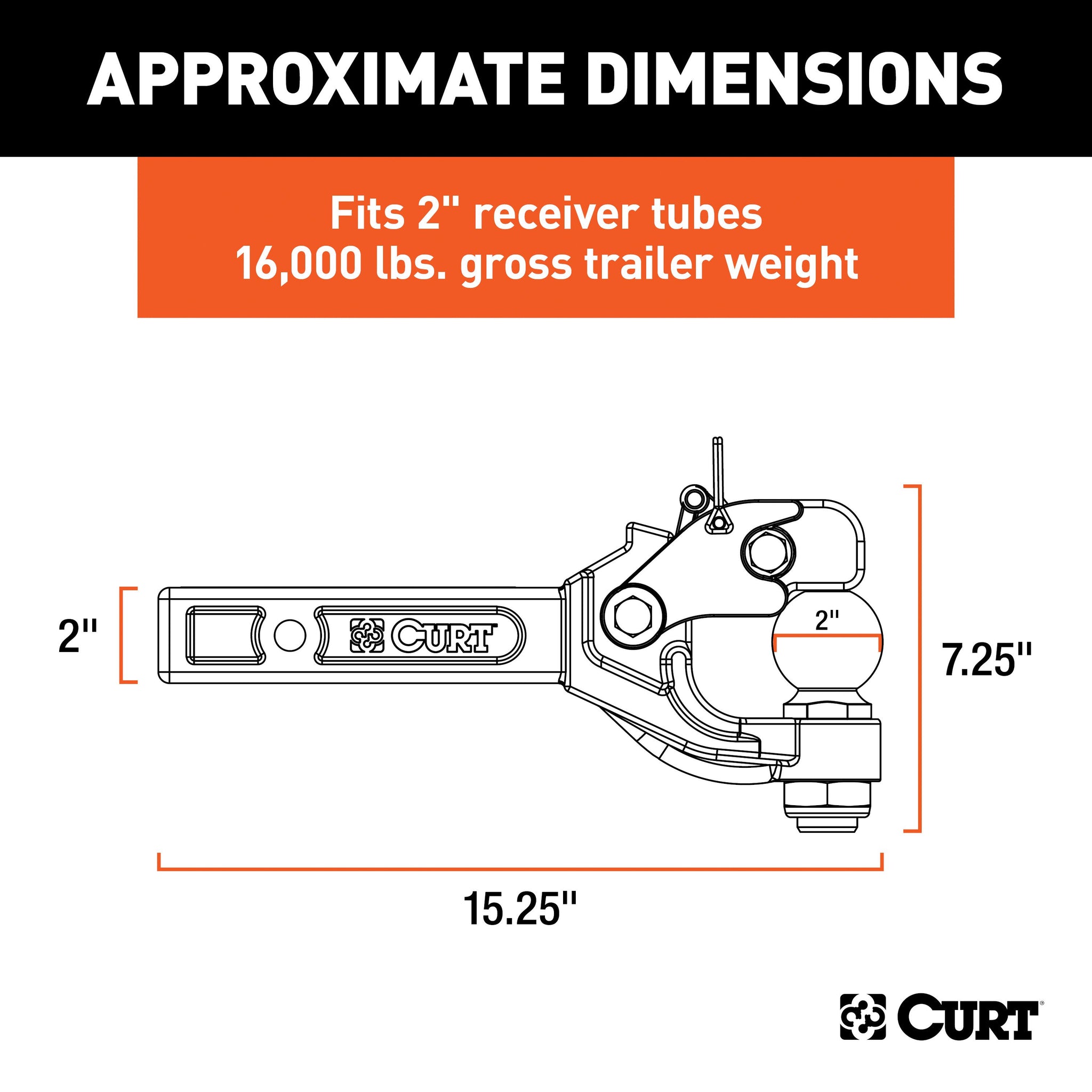

| Overall Length |
15 1/4 IN |
| Pallet Case Per - XA |
144 |
| Pallet Case Per Layer - XA |
12 |
| Pallet Cases Per - XA |
144 |
| Pallet Cases Per Layer - XA |
12 |
| Pallet Layer of Cases - XA |
12 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
48.000 |
| Pallet Total Weight Per - XA |
3228.000 |
| Parcel Allowed - XA |
Yes |
| Pintle Capacity |
16,000 LB |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Retail Height - XA |
3.500 |
| Retail Length - XA |
15.250 |
| Retail Width - XA |
7.250 |
| Sales Family Code - XA |
ACCES |
| Sales Family Description - XA |
ACCESSORIES |
| Sales Group Description - XA |
PINTLE MOUNT |
| Shipping Weight - XA |
22.000 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
Receiver-Mount Ball & Pintle Hitch (2" Shank, 2" Ball, 10,000 lbs.) |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
PINTL |
| Description_SHO |
Ball & Pintle Combo |
| Description_INV |
Receiver-Mount Ball & Pintle Combination |
| Description_ASC |

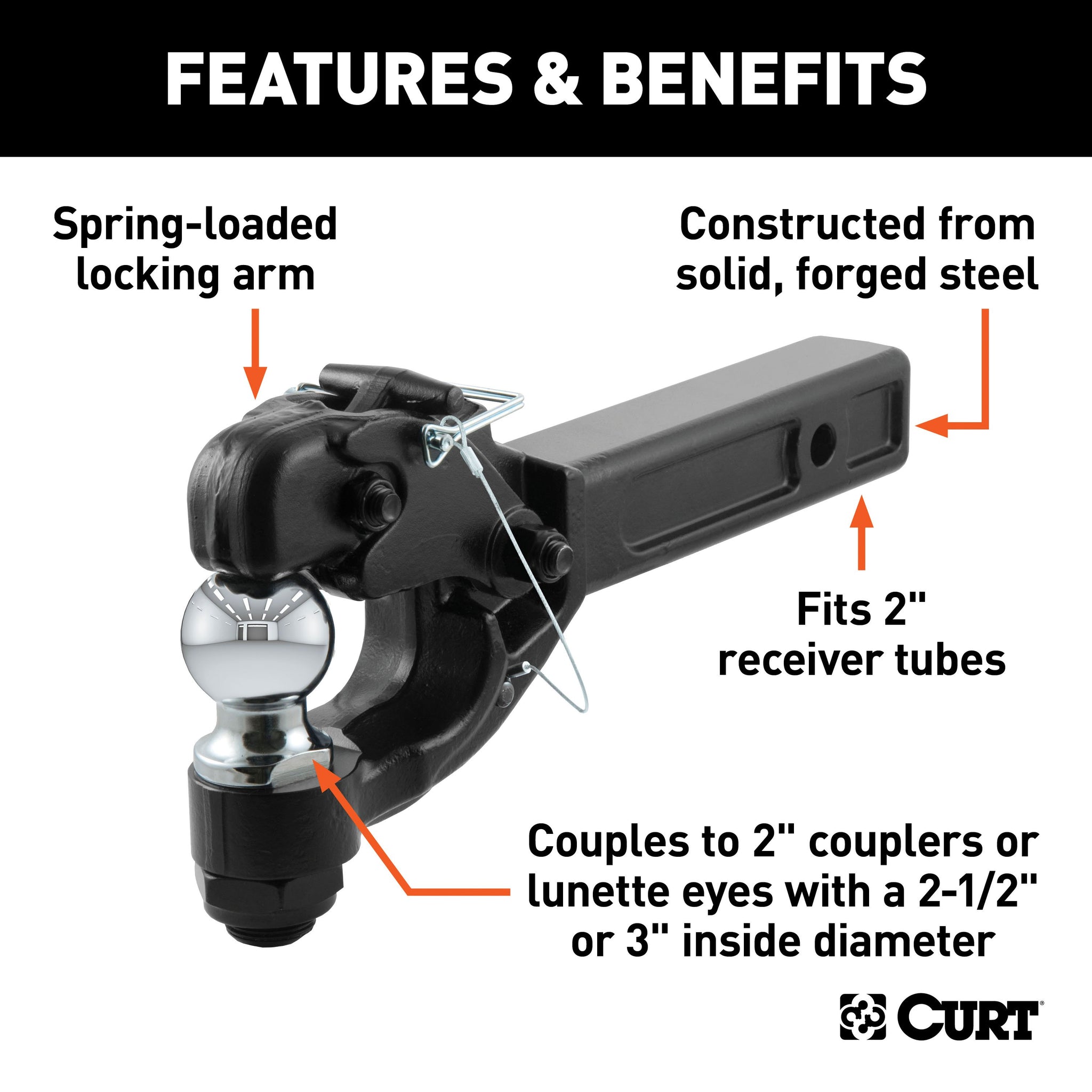

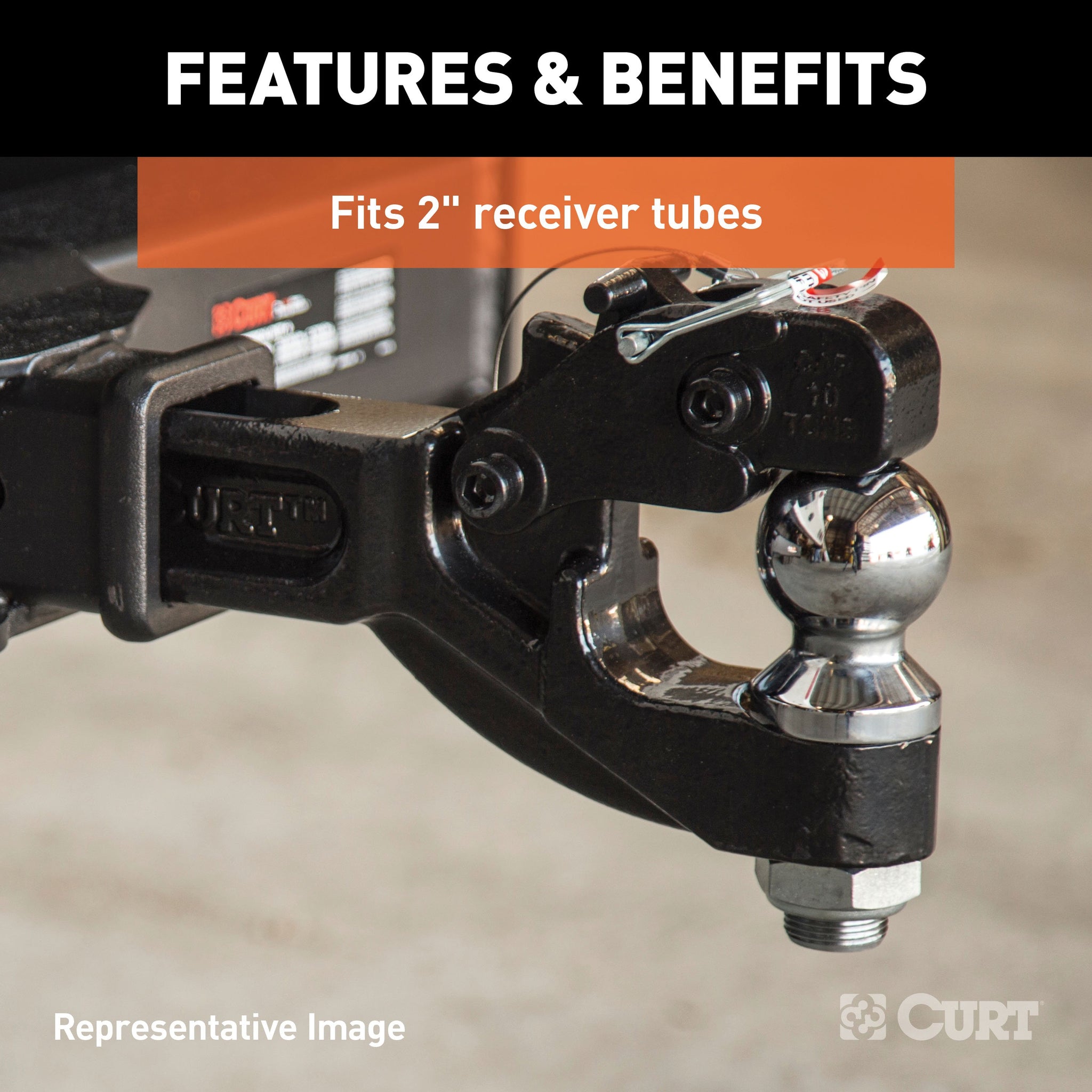

Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_ASC |
Couples to 2" couplers or lunette eyes with a 2-1/2" or 3" inside diameter |
| Description_ASC |
Spring-loaded locking arm for secure coupling |
| Description_ASC |
Constructed from solid, forged steel for superior strength |
| Description_ASC |
Protected by a durable powder coat finish |
| Description_ASC |
Changeable trailer ball features a hard chrome finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Receiver-Mount Ball & Pintle Hitch (2" Shank, 2" Ball, 10,000 lbs.) |
| Description_EXT |
CURT 48007 Pintle Hitch with 2-Inch Trailer Ball, Fits 2-Inch Receiver, 16,000 lbs, 15-1/4-Inch Length |
| Description_MKT |
In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT combination ball and pintle hitches combine both a pintle hook and a standard trailer ball to give you a more complete towing option on your heavy-duty truck or SUV. This particular receiver-mount ball and pintle hook is designed to insert into any 2" x 2" receiver tube. With a trailer ball capacity of 10,000 lbs. and a pintle capacity of 16,000 lbs., it offers a solid complement to most class 4 and class 5 trailer hitches (NOTE: Never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). The pintle hook fits any lunette ring with a 2-1/2" or 3" inside eye diameter, while the trailer ball can be coupled to any 2" coupler. The heavy-duty towing done with pintle hitches brings with it a certain amount of wear and tear on your towing equipment, and to prepare for this, CURT uses a quality finish on all of our pintle mounts, lunette eyes and combination pintle hitches. This hitch-mounted ball and pintle combo is coated in a black powder coat finish with a chrome plating on the trailer ball, providing the perfect amount of rust and scratch resistance needed to face the heavy-duty towing you do every day. |
| Description_FAB |
Fits trailer hitches with a 2" x 2" receiver tube opening |
| Description_FAB |
Couples to 2" couplers or lunette eyes with a 2-1/2" or 3" inside diameter |
| Description_FAB |
Spring-loaded locking arm for secure coupling |
| Description_FAB |
Constructed from solid, forged steel for superior strength |
| Description_FAB |
Protected by a durable powder coat finish |
| Description_FAB |
Changeable trailer ball features a hard chrome finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 48007 Pintle Hitch with 2-Inch Trailer Ball, Fits 2-Inch Receiver, 16,000 lbs, 15-1/4-Inch Length |
| Description_DEF |
Trailer Hitch Pintle Hook Mount |
