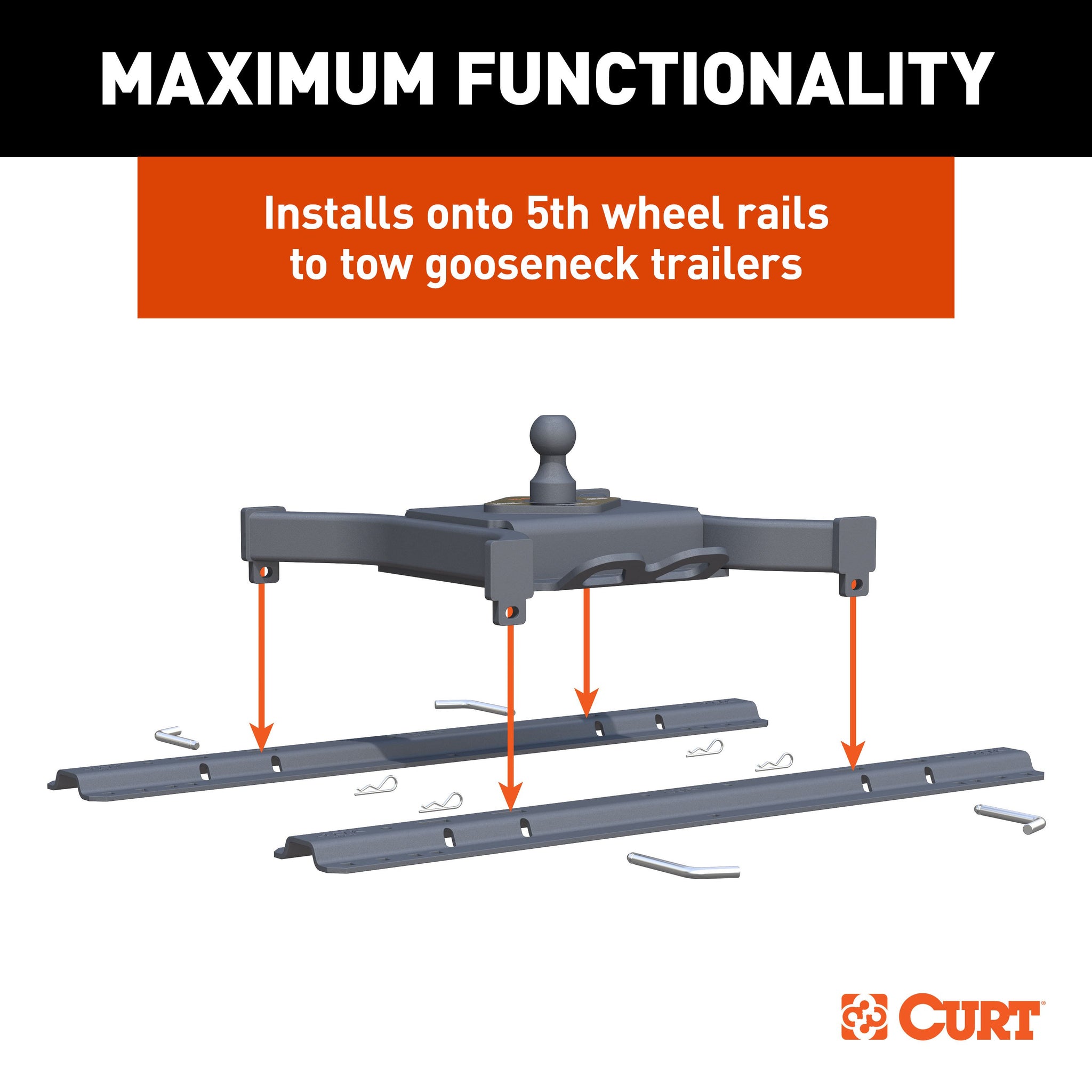

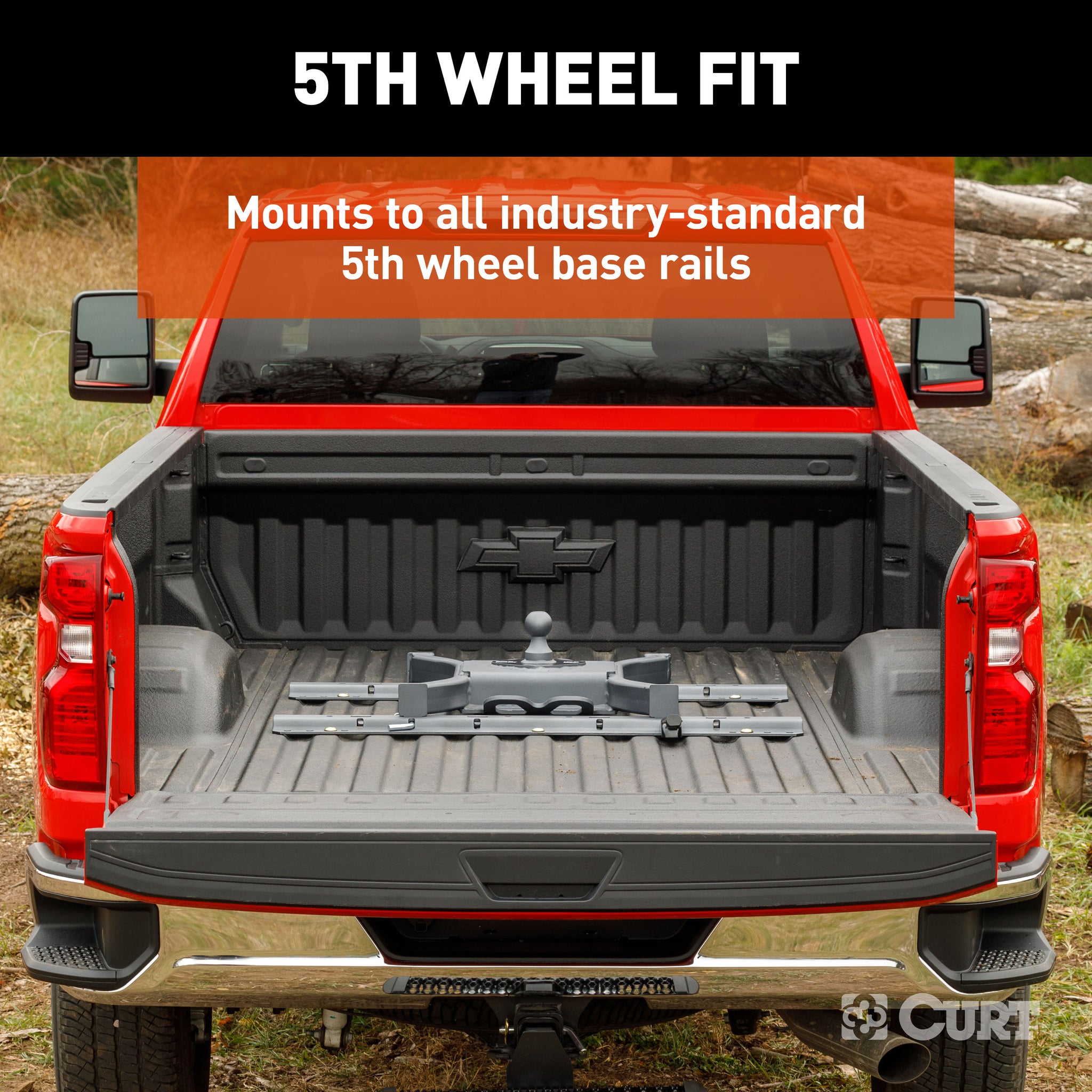

Just because you install 5th wheel brackets and rails in your truck bed does not mean your truck is limited to one type of towing. To give your truck the tools it needs to be the ultimate towing machine, CURT offers a gooseneck adapter for a 5th wheel setup. A 5th wheel / gooseneck plate is essentially a gooseneck hitch that mounts into a set of 5th wheel rails just like a 5th wheel trailer hitch. This allows you to pull both 5th wheel trailers and gooseneck trailers with the same pickup truck. CURT 5th wheel gooseneck hitches feature four pin-and-clip attachment points for a solid installation and quick removal when necessary, giving you full access and full use of your truck bed for hauling other loads. Best of all, our gooseneck adapter plates mount onto all industry standard rails (40K base rails #16205 required to reach 30K capacity). This particular 5th wheel to gooseneck adapter plate, the Spyder gooseneck, features an impressive gross trailer weight capacity of 30,000 lbs., a tongue weight capacity of 7,500 lbs. and offers a 2-5/16" trailer ball for pulling most types of gooseneck trailers, including livestock trailers, chopper boxes, gravity boxes, industrial equipment haulers, flatbeds and more. CURT 5th wheel gooseneck plates and gooseneck 5th wheel adapters are the ultimate versatility tools in heavy-duty towing. We coat our 5th wheel gooseneck hitches in a black carbide powder coat to ensure that they are highly resistant to rust, scratching and UV damage.
| Ball Diameter |
2-5/16 IN |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Container Cases Qty - XA |
200 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
20 |
| Container Type - XA |
40GP |
| Container Unit Qty - XA |
200 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
10080 |
| Finish - XA |
DARK GREY TERIDIUM |
| Gooseneck Hitch Type |
Flat Plate with Fixed Ball |
| Gross Trailer Weight (GTW) |
30,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
9.875 |
| Item Length - XA |
23.750 |
| Item Width - XA |
23.500 |
| Master Case Height Inches - XA |
10.200 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
25.700 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
46.000 |
| Master Case Width Inches - XA |
25.700 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Not Applicable |
| Pallet Case Per - XA |
10 |
| Pallet Case Per Layer - XA |
2 |
| Pallet Cases Per - XA |
10 |
| Pallet Cases Per Layer - XA |
2 |
| Pallet Layer of Cases - XA |
5 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
56.700 |
| Pallet Total Weight Per - XA |
504.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
76.200 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
70.0 |
| Retail Height - XA |
10.200 |
| Retail Length - XA |
25.700 |
| Retail Width - XA |
25.700 |
| Sales Family Code - XA |
GOOSE |
| Sales Family Description - XA |
GOOSENECK |
| Sales Group Description - XA |
GOOSENECK HITCH |
| Shipping Weight - XA |
76.200 |
| Side Application Type Description - XA |
Not Applicable |
| Tariff 301 - XA |
Yes |
| Title |

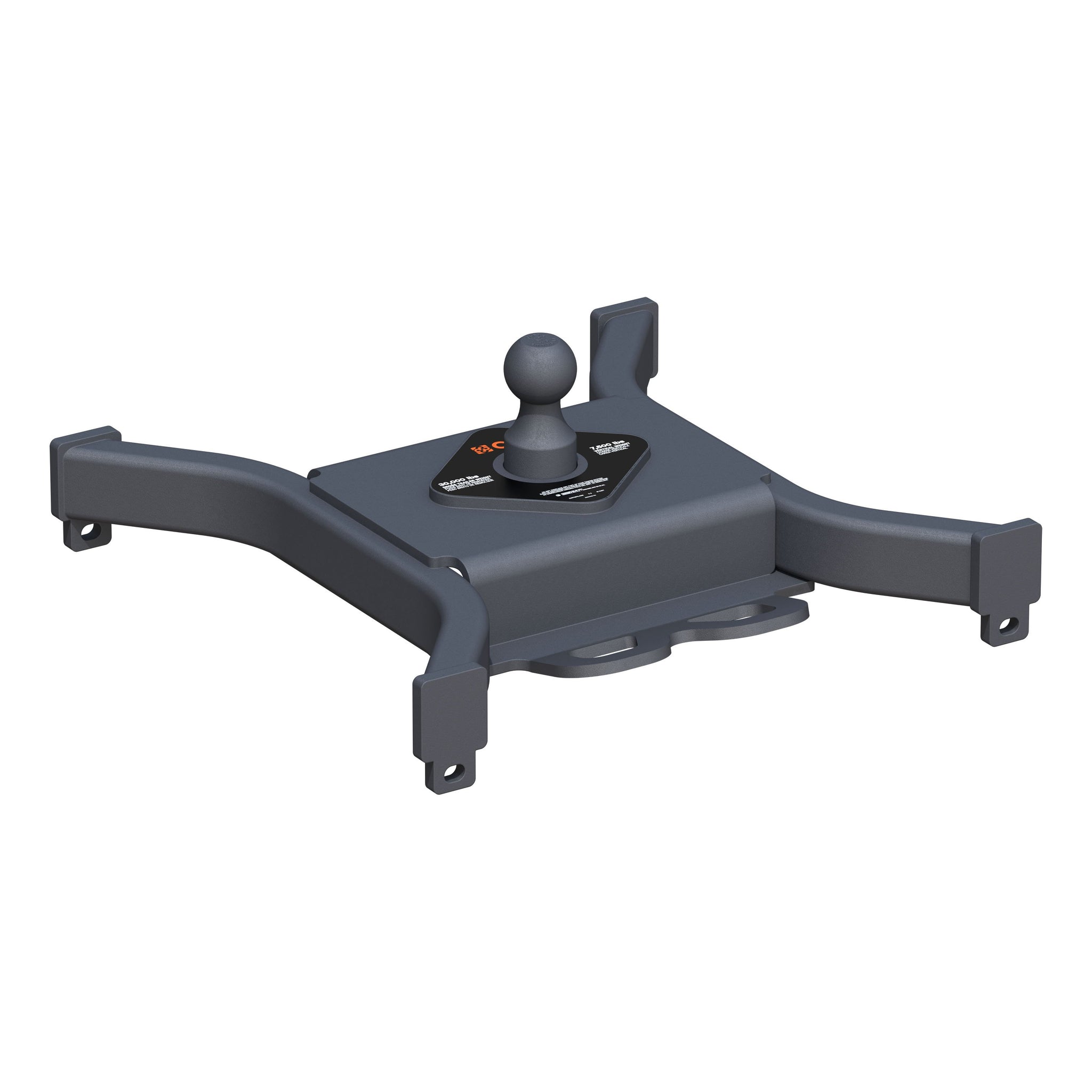

Spyder 5th Wheel Rail Gooseneck Hitch with 2-5/16" Ball, 30K |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Vertical Load Capacity |
7,500 LB |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Description_ABR |
GOOHT |
| Description_SHO |
Spyder 30K Gooseneck |
| Description_INV |
Spyder 30K 5th Wheel Gooseneck Hitch |
| Description_ASC |

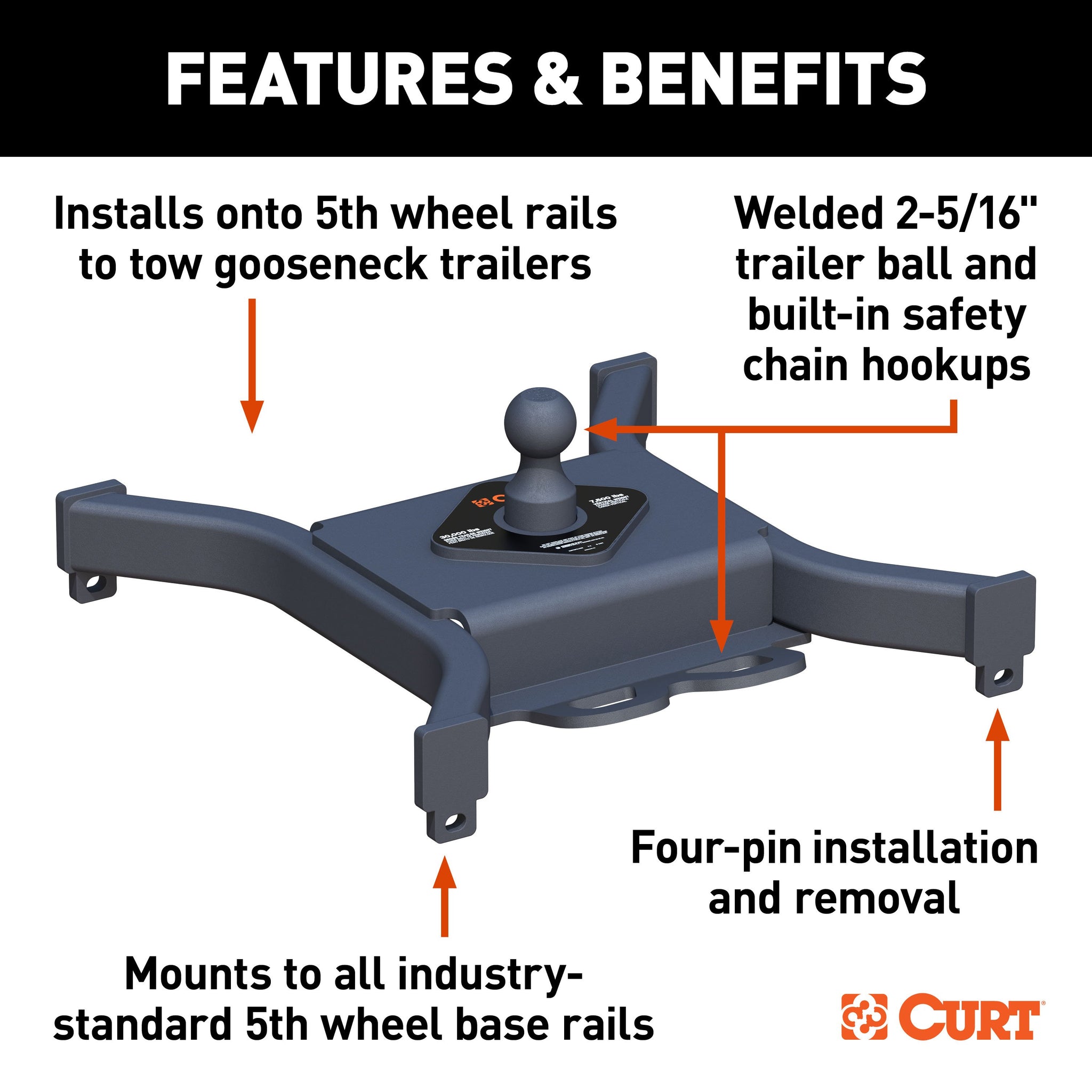

Allows pickup trucks equipped with 5th wheel rails to tow gooseneck trailers |
| Description_ASC |
Rated for up to 30,000 lbs. gross trailer weight |
| Description_ASC |
40K base rails #16205 required to reach 30K capacity |
| Description_ASC |

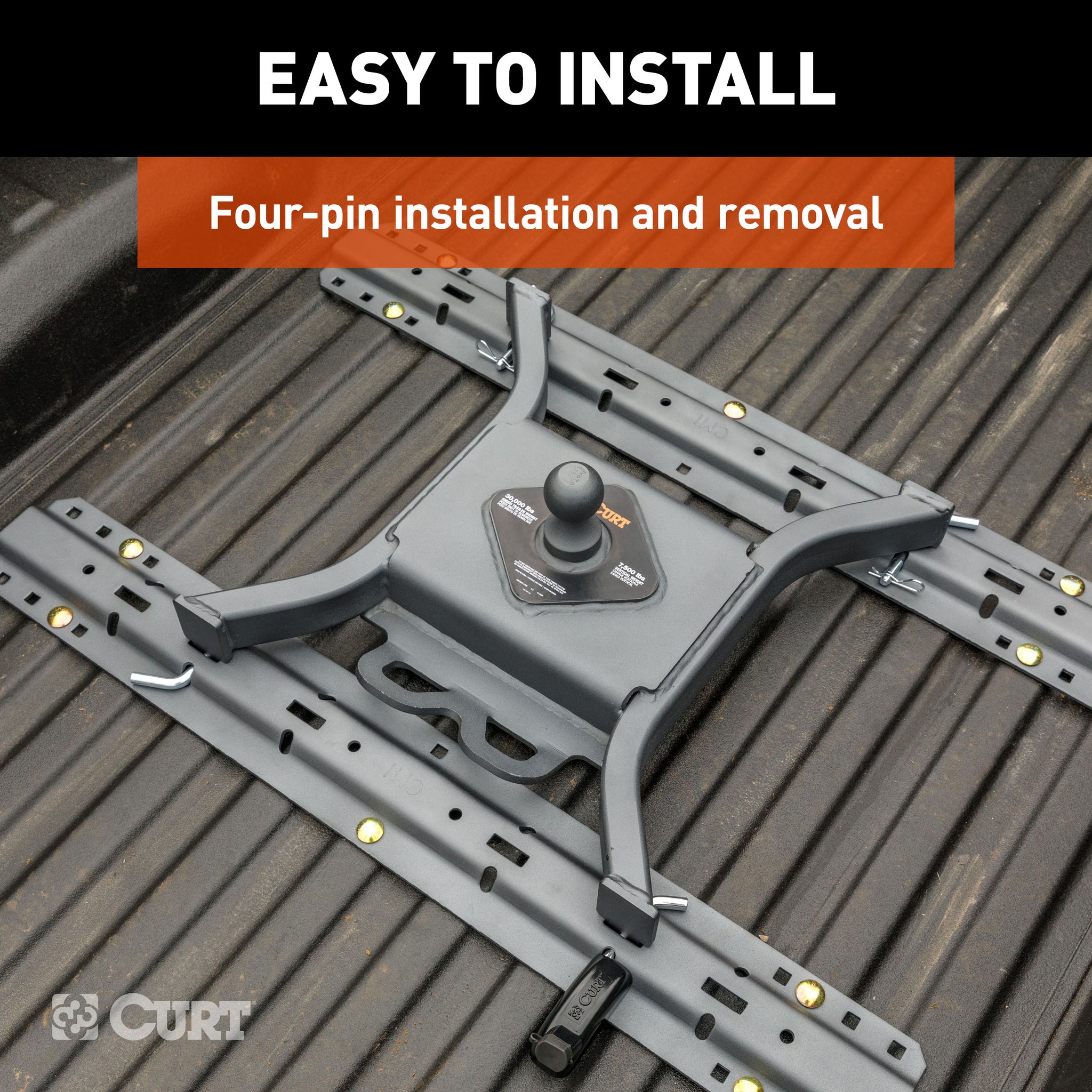

Four-pin installation and removal for easy truck bed access |
| Description_ASC |

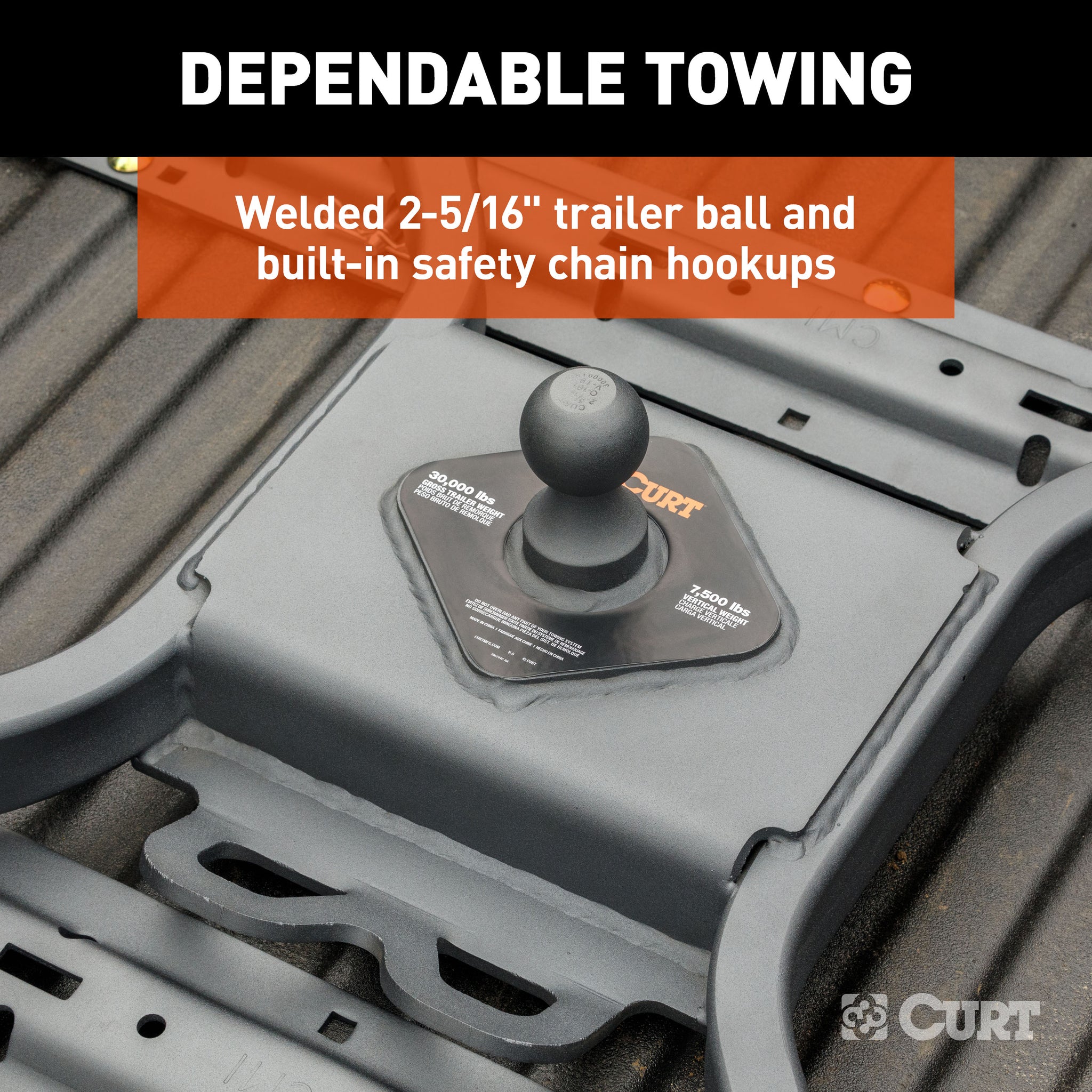

Features a welded 2-5/16" trailer ball |
| Description_ASC |
Protected by a highly durable carbide powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Spyder 5th Wheel Rail Gooseneck Hitch with 2-5/16" Ball, 30K |
| Description_EXT |
CURT 16090 Spyder 5th Wheel to Gooseneck Adapter Hitch, Fits Industry-Standard Rails, 30,000 lbs, 2-5/16-Inch Ball |
| Description_MKT |
Just because you install 5th wheel brackets and rails in your truck bed does not mean your truck is limited to one type of towing. To give your truck the tools it needs to be the ultimate towing machine, CURT offers a gooseneck adapter for a 5th wheel setup. A 5th wheel / gooseneck plate is essentially a gooseneck hitch that mounts into a set of 5th wheel rails just like a 5th wheel trailer hitch. This allows you to pull both 5th wheel trailers and gooseneck trailers with the same pickup truck. CURT 5th wheel gooseneck hitches feature four pin-and-clip attachment points for a solid installation and quick removal when necessary, giving you full access and full use of your truck bed for hauling other loads. Best of all, our gooseneck adapter plates mount onto all industry standard rails (40K base rails #16205 required to reach 30K capacity). This particular 5th wheel to gooseneck adapter plate, the Spyder gooseneck, features an impressive gross trailer weight capacity of 30,000 lbs., a tongue weight capacity of 7,500 lbs. and offers a 2-5/16" trailer ball for pulling most types of gooseneck trailers, including livestock trailers, chopper boxes, gravity boxes, industrial equipment haulers, flatbeds and more. CURT 5th wheel gooseneck plates and gooseneck 5th wheel adapters are the ultimate versatility tools in heavy-duty towing. We coat our 5th wheel gooseneck hitches in a black carbide powder coat to ensure that they are highly resistant to rust, scratching and UV damage. |
| Description_FAB |
Allows pickup trucks equipped with 5th wheel rails to tow gooseneck trailers |
| Description_FAB |
Rated for up to 30,000 lbs. gross trailer weight |
| Description_FAB |
40K base rails #16205 required to reach 30K capacity |
| Description_FAB |
Four-pin installation and removal for easy truck bed access |
| Description_FAB |
Features a welded 2-5/16" trailer ball |
| Description_FAB |
Protected by a highly durable carbide powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 16090 Spyder 5th Wheel to Gooseneck Adapter Hitch, Fits Industry-Standard Rails, 30,000 lbs, 2-5/16-Inch Ball |
| Description_DEF |
Gooseneck Trailer Hitch |
