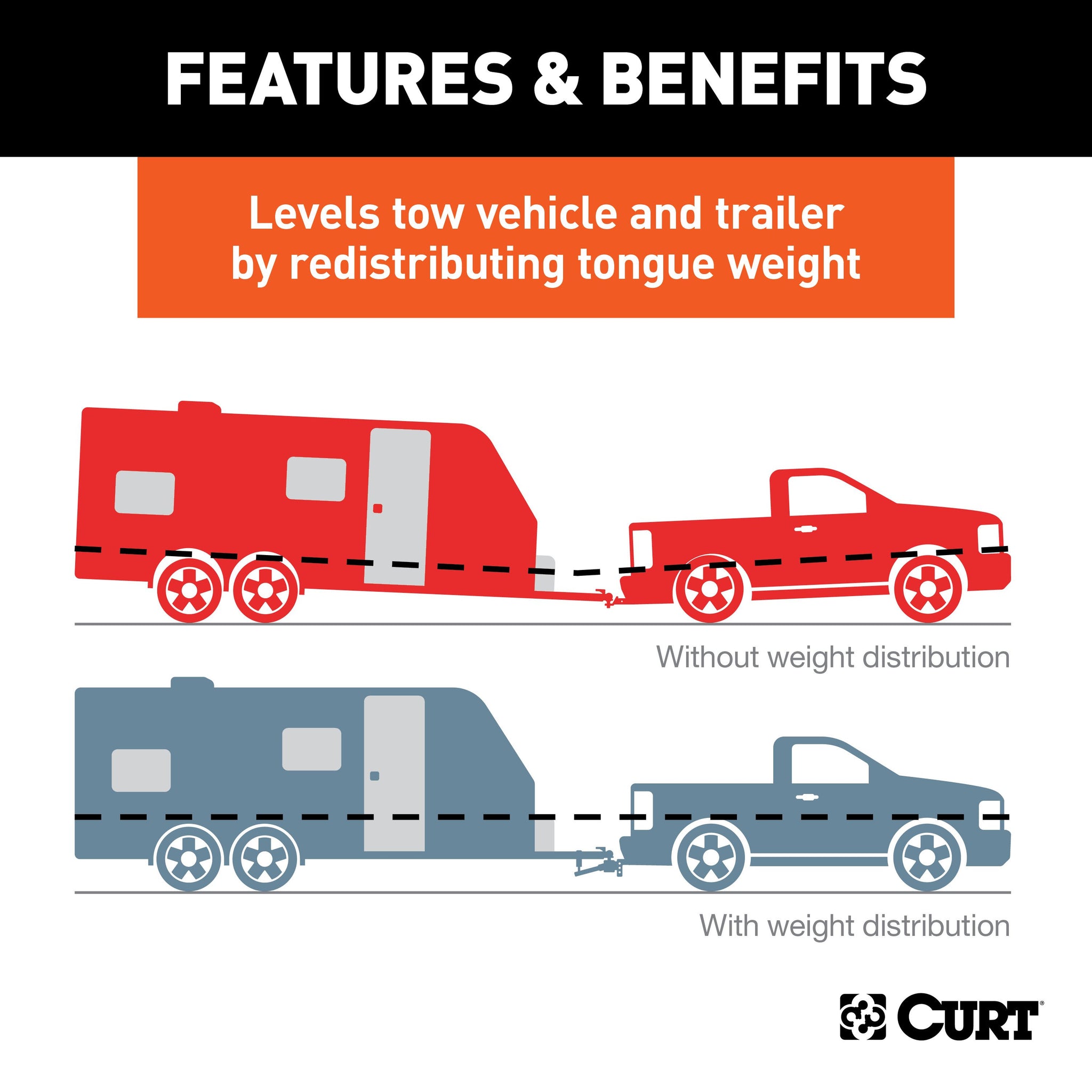

While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. The TruTrack 4P features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty.
| Pallet Case Per - XA |
15 |
| Pallet Case Per Layer - XA |
3 |
| Pallet Cases Per - XA |
15 |
| Pallet Cases Per Layer - XA |
3 |
| Pallet Layer of Cases - XA |
5 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
63.400 |
| Pallet Total Weight Per - XA |
1859.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
123.600 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Retail Height - XA |
38.000 |
| Retail Length - XA |
11.500 |
| Retail Width - XA |
13.800 |
| Rise |
5.75 IN |
| Sales Family Code - XA |
WDIST |
| Sales Family Description - XA |
WEIGHT DISTRIBUTION |
| Sales Group Description - XA |
TRUTRACK WD SYSTEM |
| Shipping Weight - XA |
123.600 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K |
| Tongue Weight (TW) |
1,000 LB - 1,500 LB |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Class ID |
0 |
| Container Cases Qty - XA |
300 |
| Container Load Type - XA |
PALLETS |
| Container Pallet Qty - XA |
20 |
| Container Type - XA |
40GP |
| Container Unit Qty - XA |
300 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
37180 |
| Drop |
0 IN |
| Finish - XA |
CARBIDE BLACK POWDER COAT |

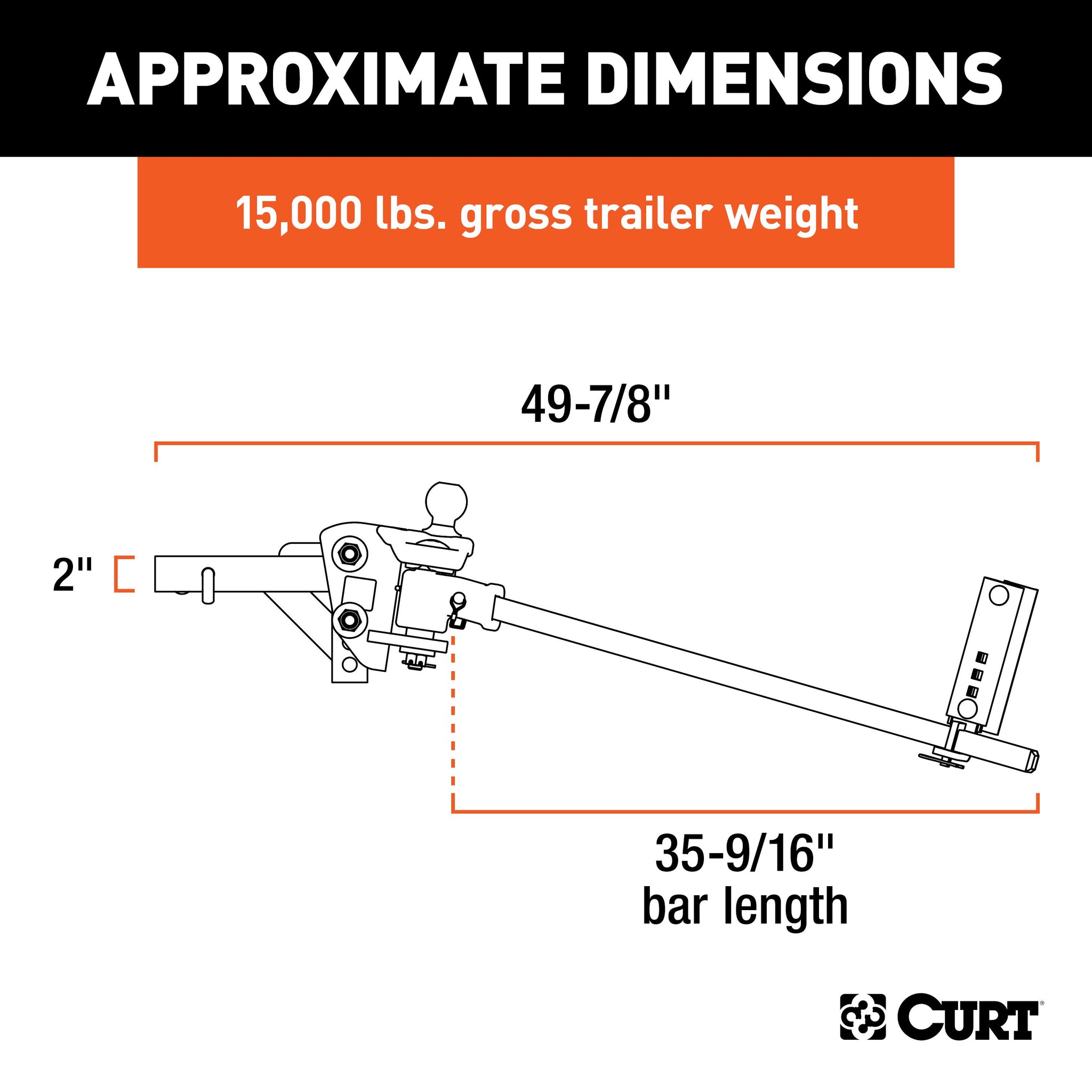

| Gross Trailer Weight (GTW) |
10,000 LB - 15,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
11.600 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
13.800 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
121.000 |
| Master Case Width Inches - XA |
37.400 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Blank |
| Description_ABR |
TRACK |
| Description_SHO |
TruTrack 4P WD Hitch |
| Description_INV |
TruTrack 4P WD Hitch with Sway Control |
| Description_ASC |

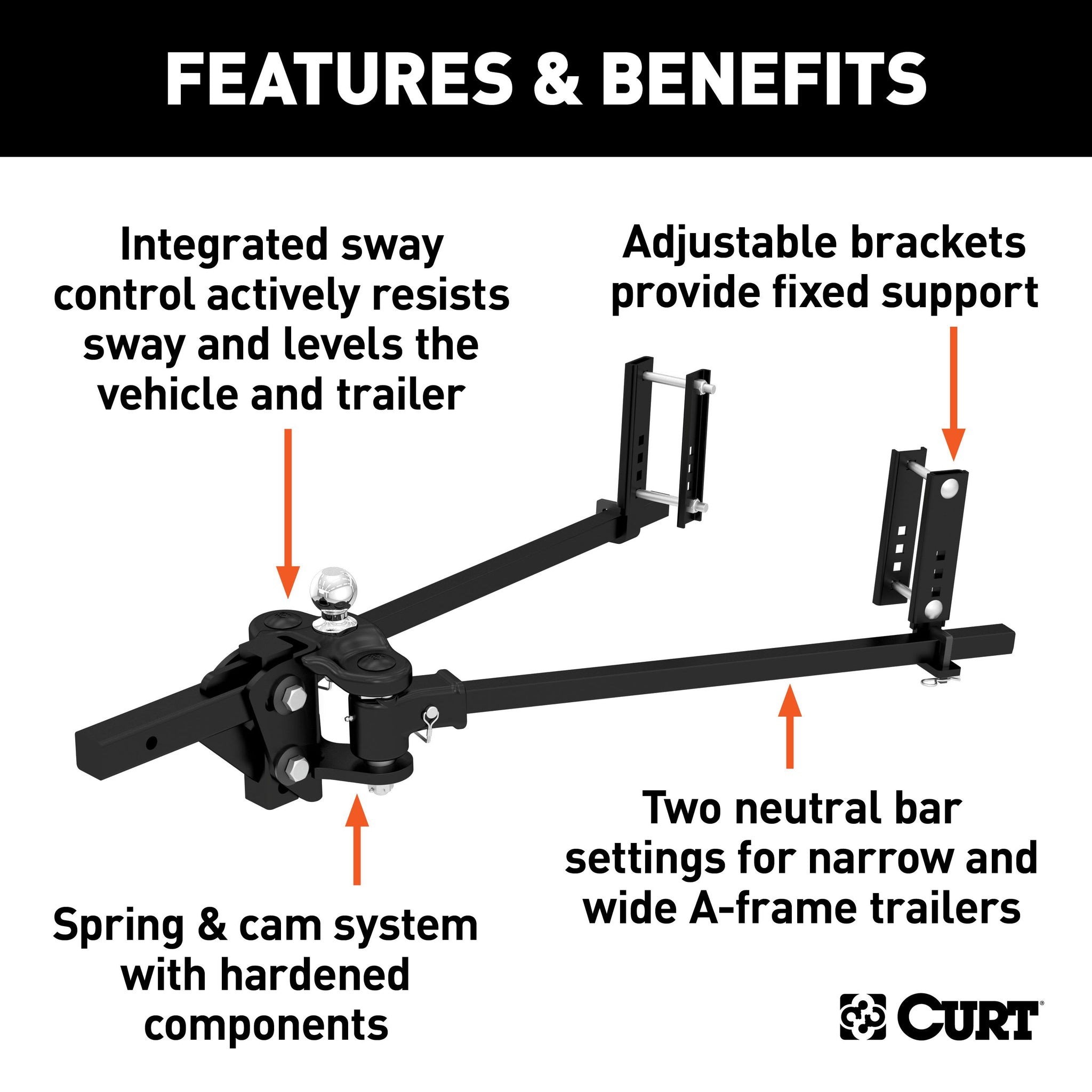

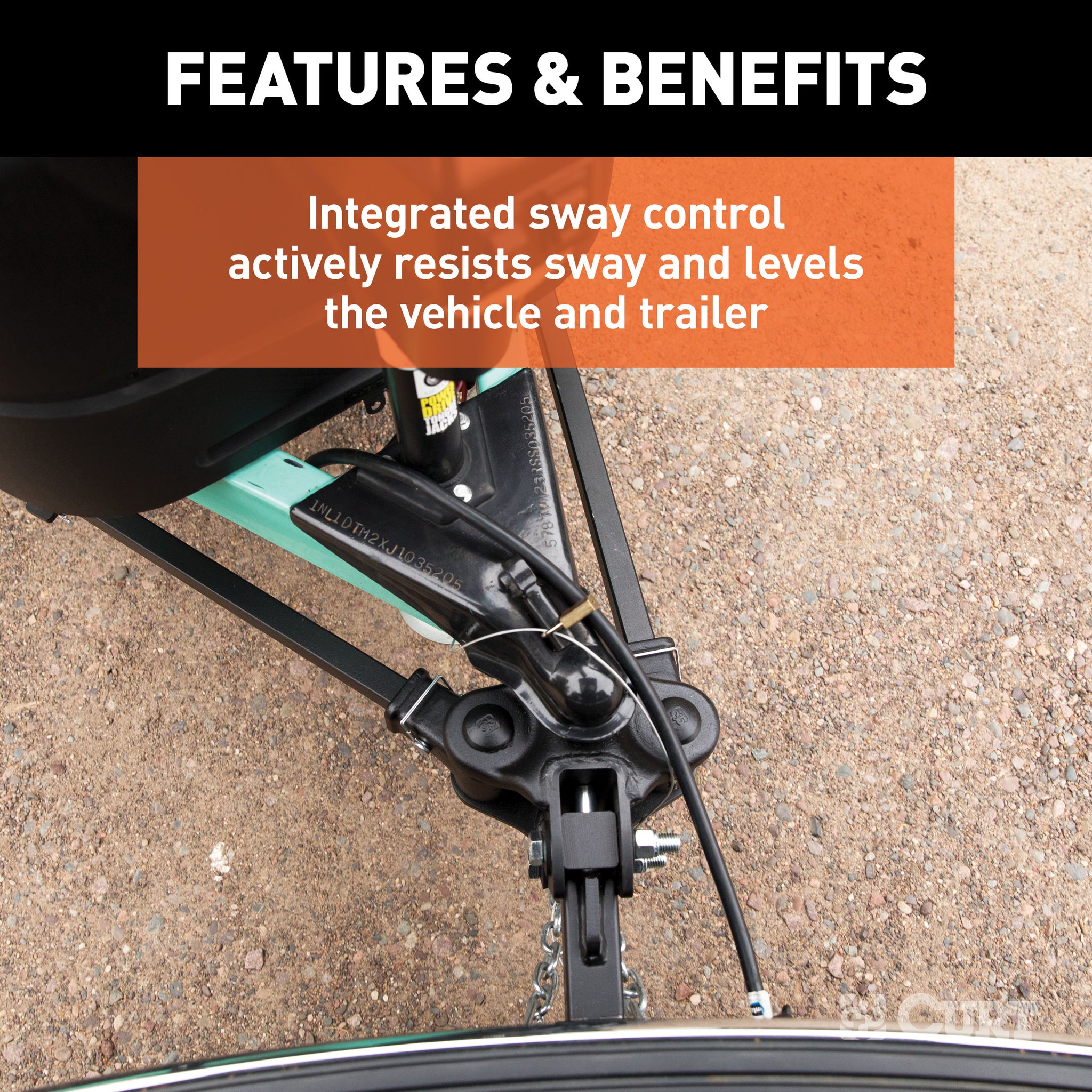

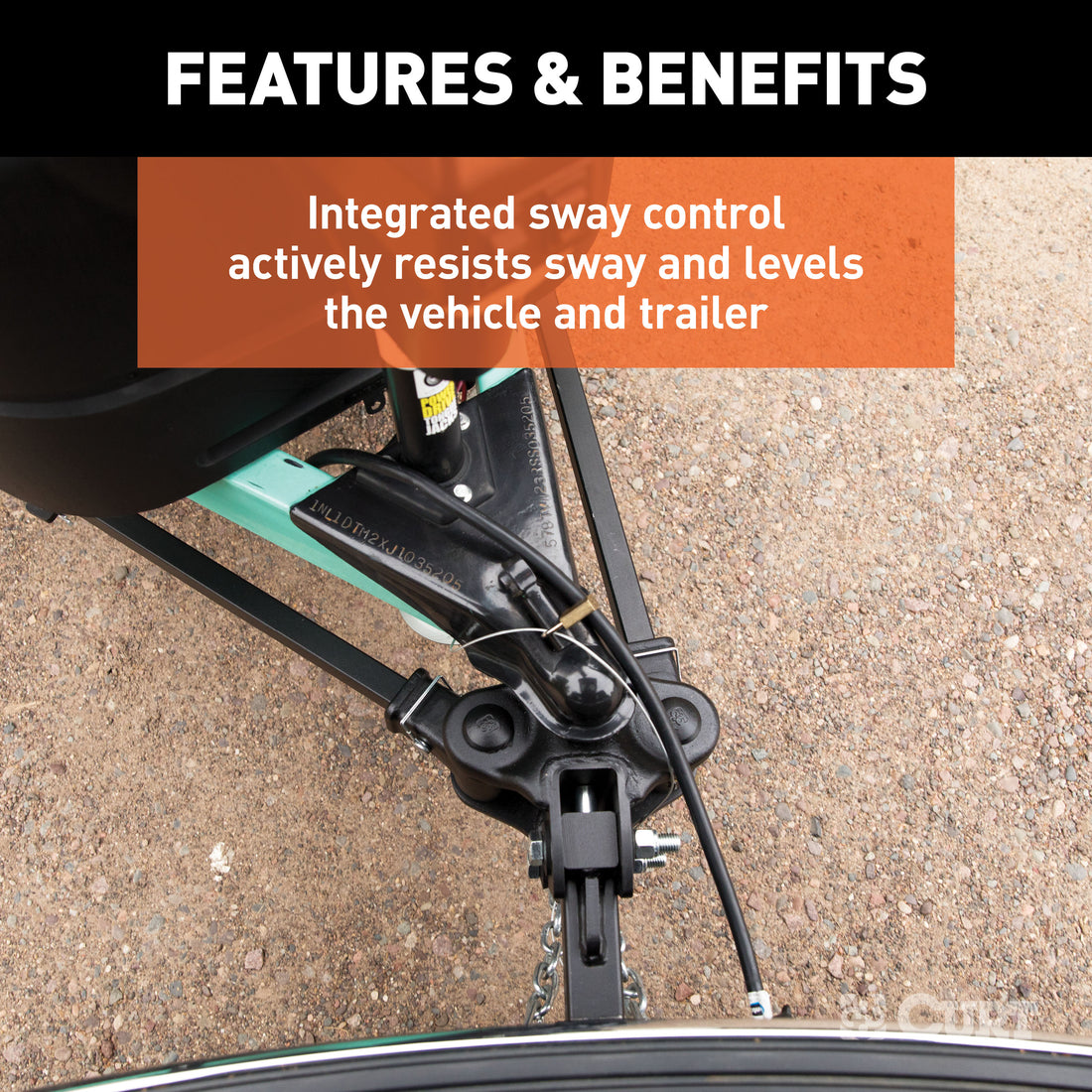

Integrated sway control actively resists sway and levels the vehicle and trailer |
| Description_ASC |
Four points of sway control work together to keep trailer aligned |
| Description_ASC |
Welded head with cast pieces and trunnion-style forged steel spring bars |
| Description_ASC |

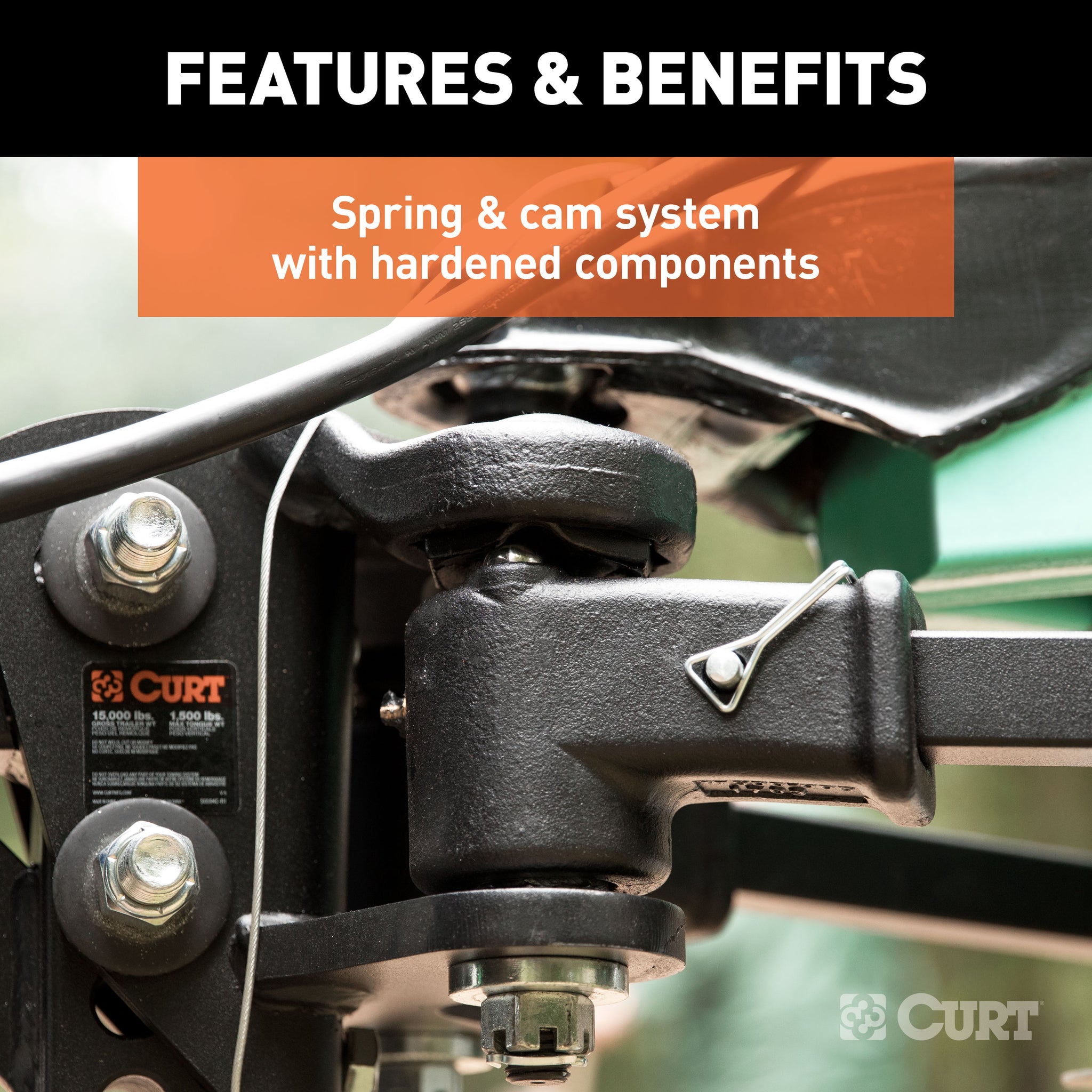

Uses spring & cam system with hardened components, instead of friction alone |
| Description_ASC |

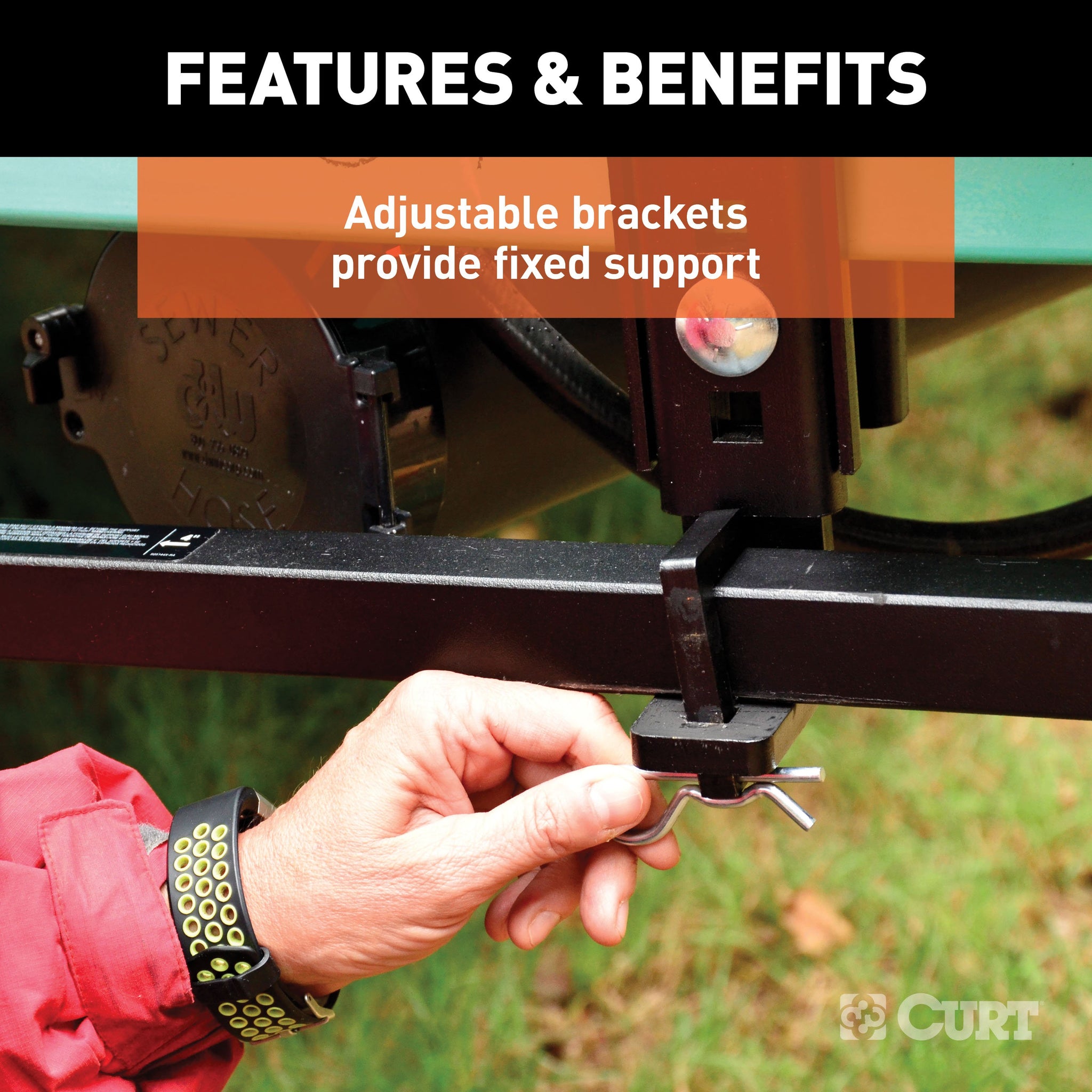

Adjustable brackets provide fixed support unlike spring bar chain models |
| Description_ASC |

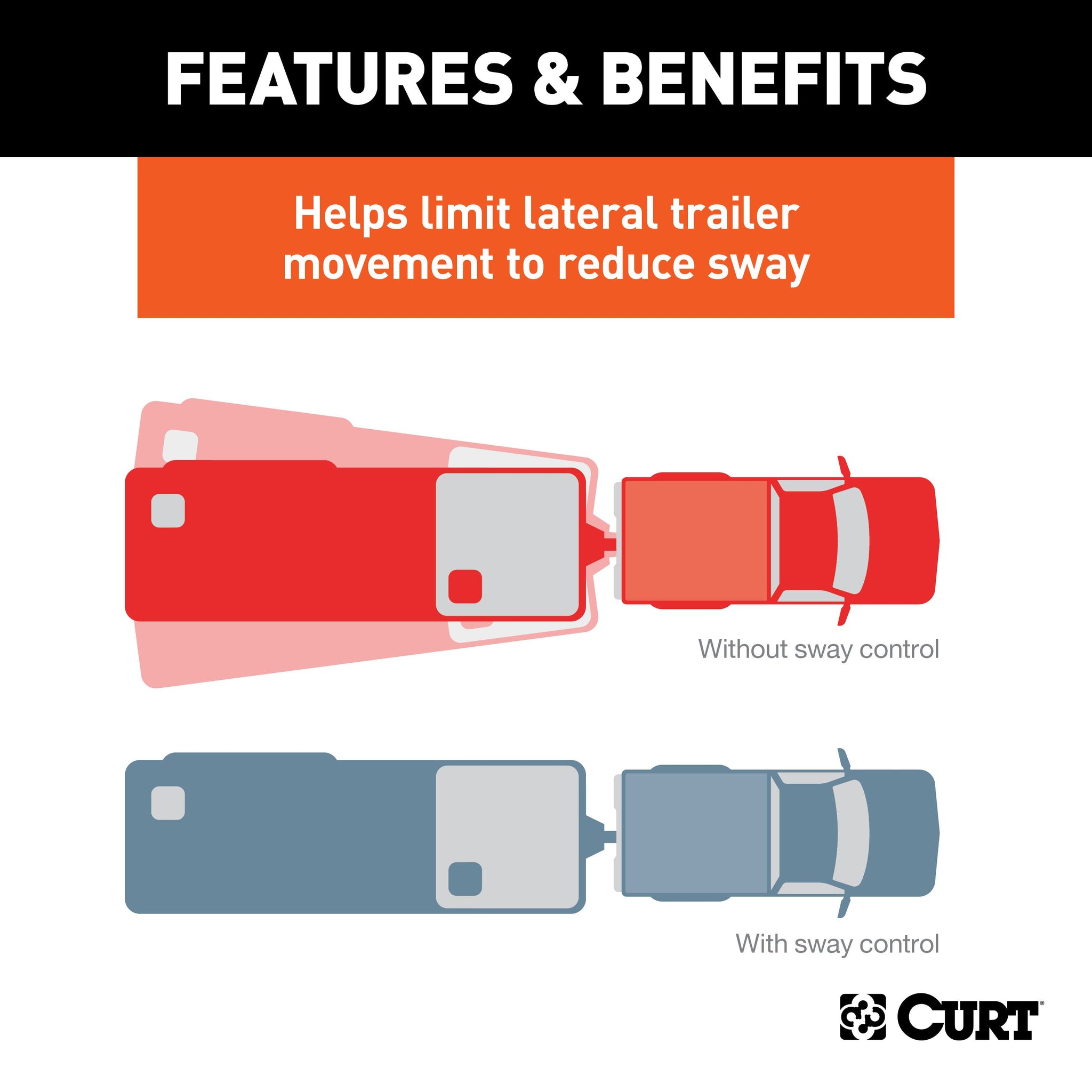

Brackets use friction to resist lateral movement, replacing a sway control |
| Description_ASC |
2" shank can be flipped to provide necessary drop or rise |
| Description_ASC |
Hex castle nut allows for easy adjustment for different trailers |
| Description_ASC |

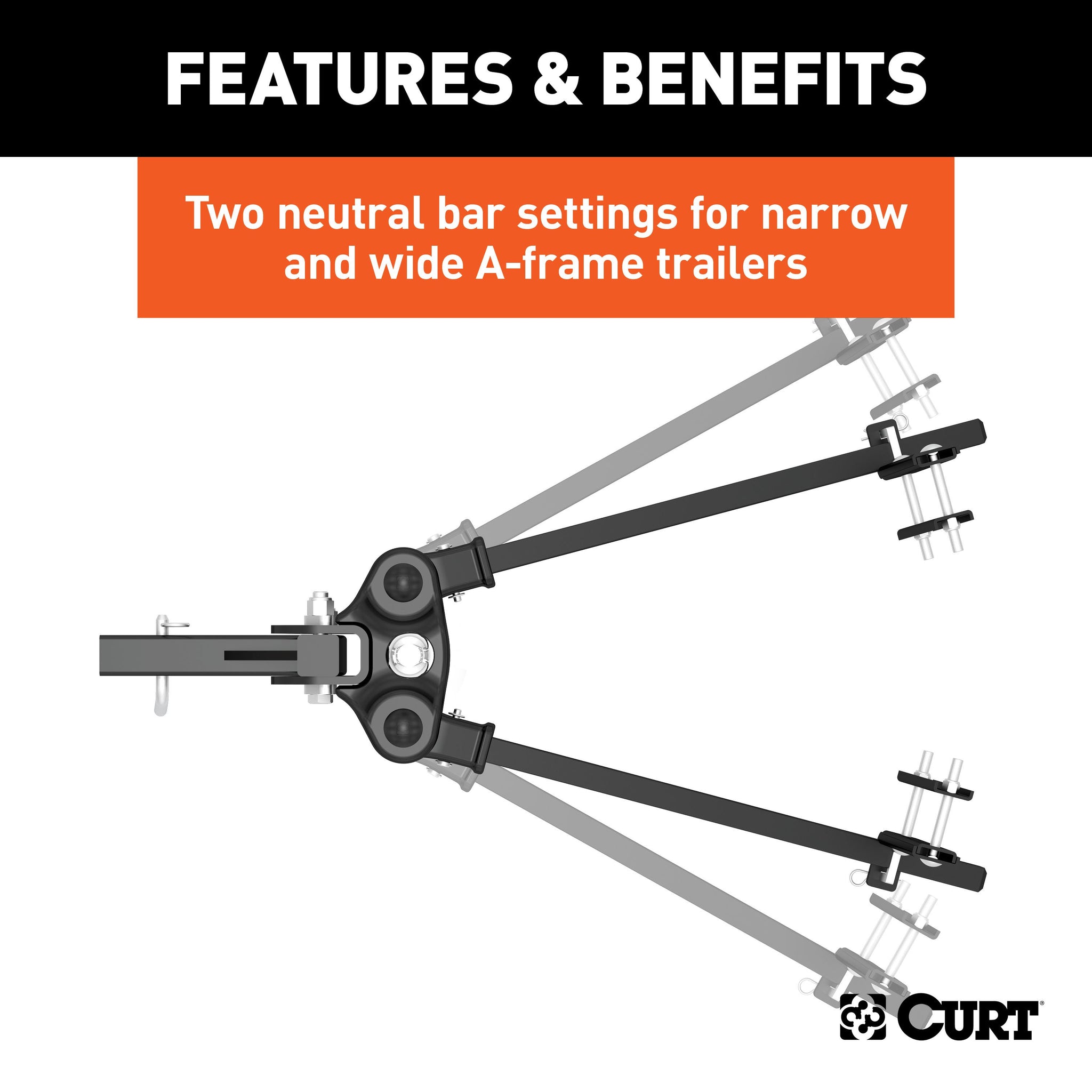

Fits virtually all A-frame trailers, featuring two neutral spring bar settings |
| Description_ASC |
Carbide black powder coat, black-oxide-plated cams and stainless steel balls |
| Description_ASC |
Includes a pre-torqued 2-5/16" trailer ball |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |

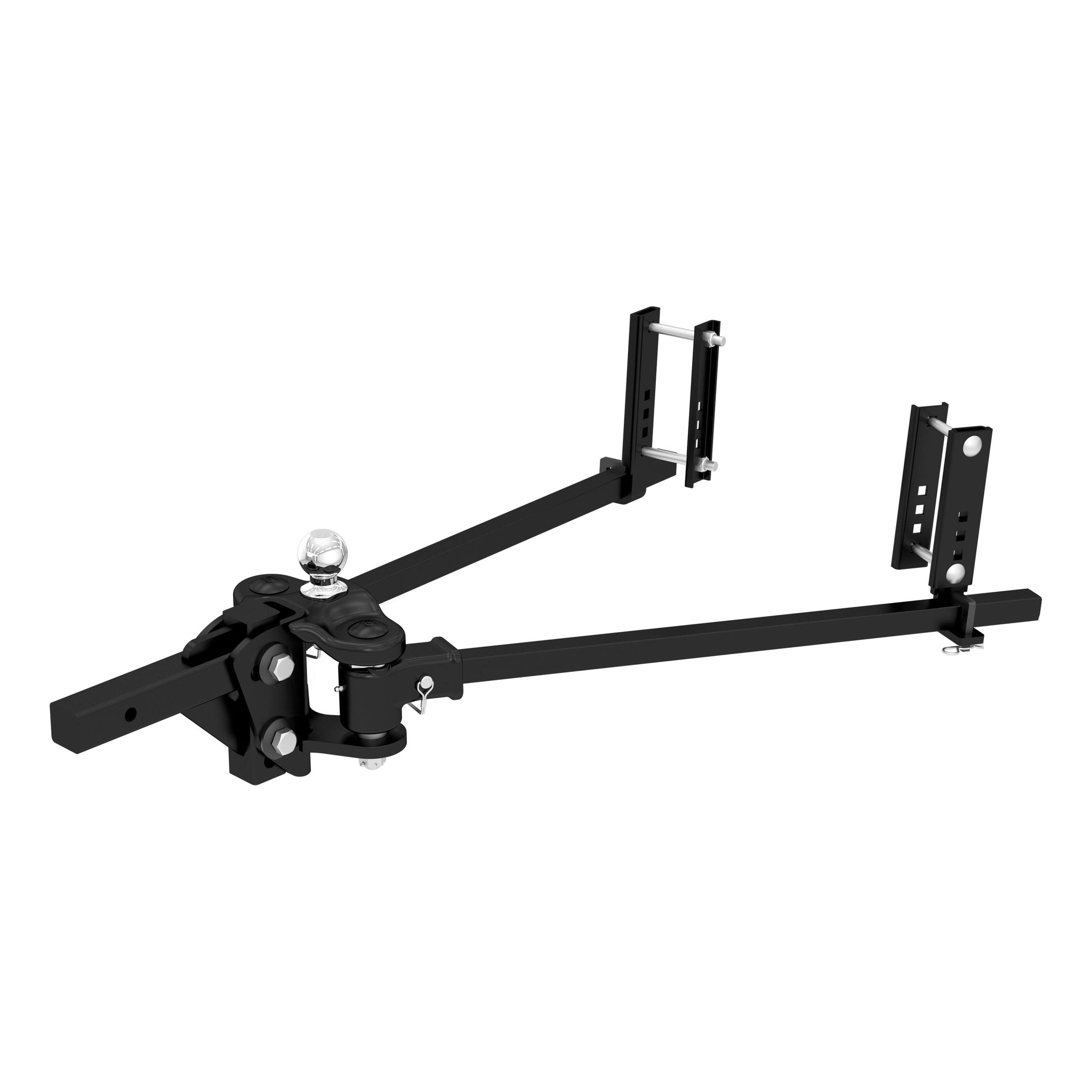

TruTrack 4P Weight Distribution Hitch with 4x Sway Control, 10-15K |
| Description_EXT |
CURT 17501 TruTrack 4P Weight Distribution Hitch with 4x Sway Control, Up to 15K, 2-In Shank, 2-5/16-Inch Ball |
| Description_MKT |
While many weight distribution hitches are made to be compatible with a sway control attachment, the CURT TruTrack is an advanced WD system that integrates the sway control function into the design of the hitch. It combines precise weight distributing with active sway control to deliver the smoothest, safest ride possible. The TruTrack 4P features a unique spring and cam system within the hitch head that builds up pressure to actively stop sway and then relaxes to make smooth turns. The hardened cam components are less subject to wear and last longer than competitor models. The TruTrack also features unique spring bars. Like all WD hitches, it uses a pair of spring bars to leverage the trailer tongue weight and spread it across all axles of the vehicle-trailer combination. However, instead of using spring bar chains, the TruTrack connects to the trailer frame using heavy-duty, adjustable support brackets that hold the spring bars in place laterally and vertically. While regular spring bars angle from side to side, the integrated sway control arms resist this movement and keep the trailer better aligned. In addition to its integrated sway control, the CURT TruTrack offers the same great quality as our other WD hitches, making it the perfect choice for campers, livestock trailers and other heavy-duty trailers. We stand behind this uncompromising hitch, and to prove it, we back it up with a limited lifetime warranty. |
| Description_FAB |
Integrated sway control actively resists sway and levels the vehicle and trailer |
| Description_FAB |
Four points of sway control work together to keep trailer aligned |
| Description_FAB |
Welded head with cast pieces and trunnion-style forged steel spring bars |
| Description_FAB |
Uses spring & cam system with hardened components, instead of friction alone |
| Description_FAB |
Adjustable brackets provide fixed support unlike spring bar chain models |
| Description_FAB |
Brackets use friction to resist lateral movement, replacing a sway control |
| Description_FAB |
2" shank can be flipped to provide necessary drop or rise |
| Description_FAB |
Hex castle nut allows for easy adjustment for different trailers |
| Description_FAB |
Fits virtually all A-frame trailers, featuring two neutral spring bar settings |
| Description_FAB |
Carbide black powder coat, black-oxide-plated cams and stainless steel balls |
| Description_FAB |
Includes a pre-torqued 2-5/16" trailer ball |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 17501 TruTrack 4P Weight Distribution Hitch with 4x Sway Control, Up to 15K, 2-In Shank, 2-5/16-Inch Ball |
