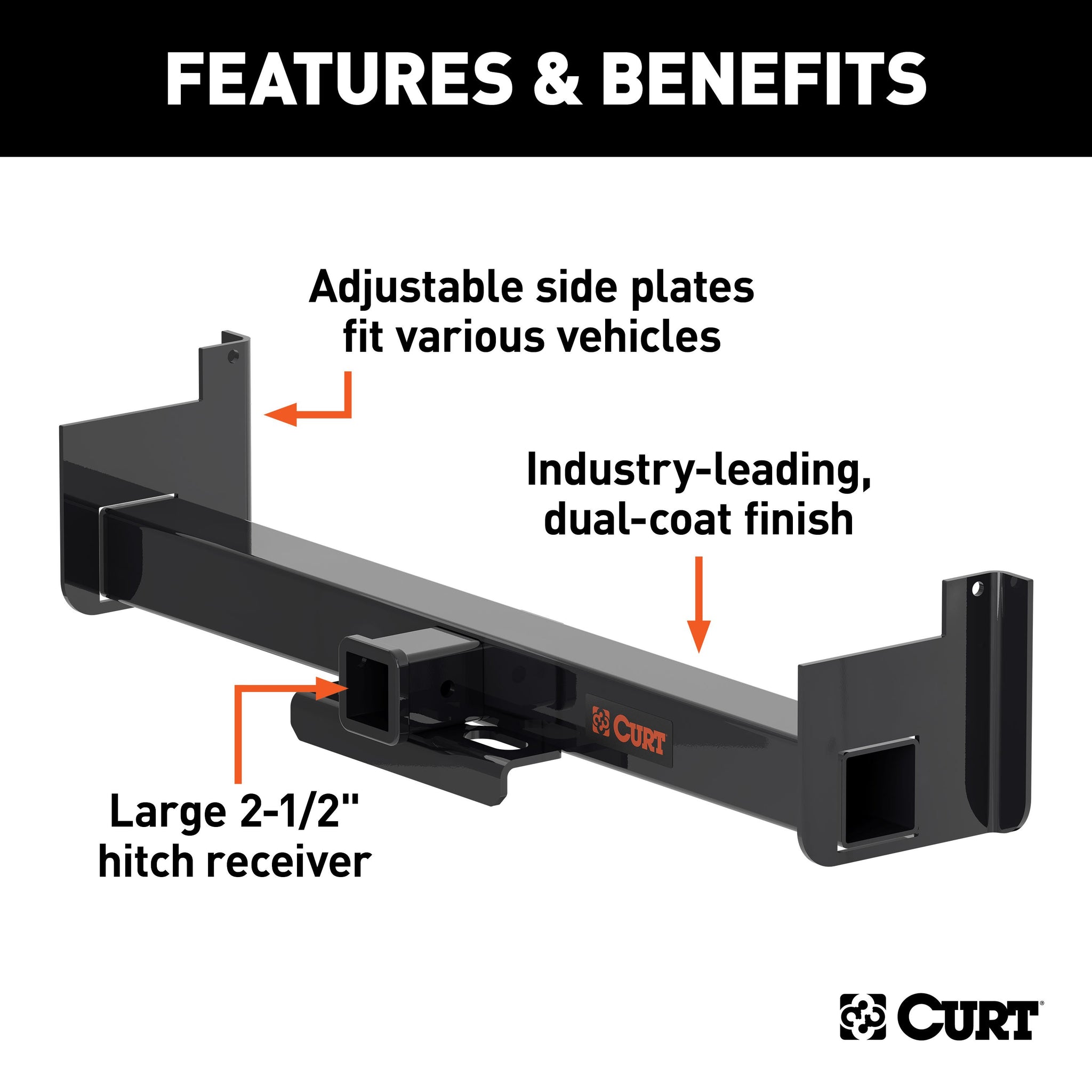

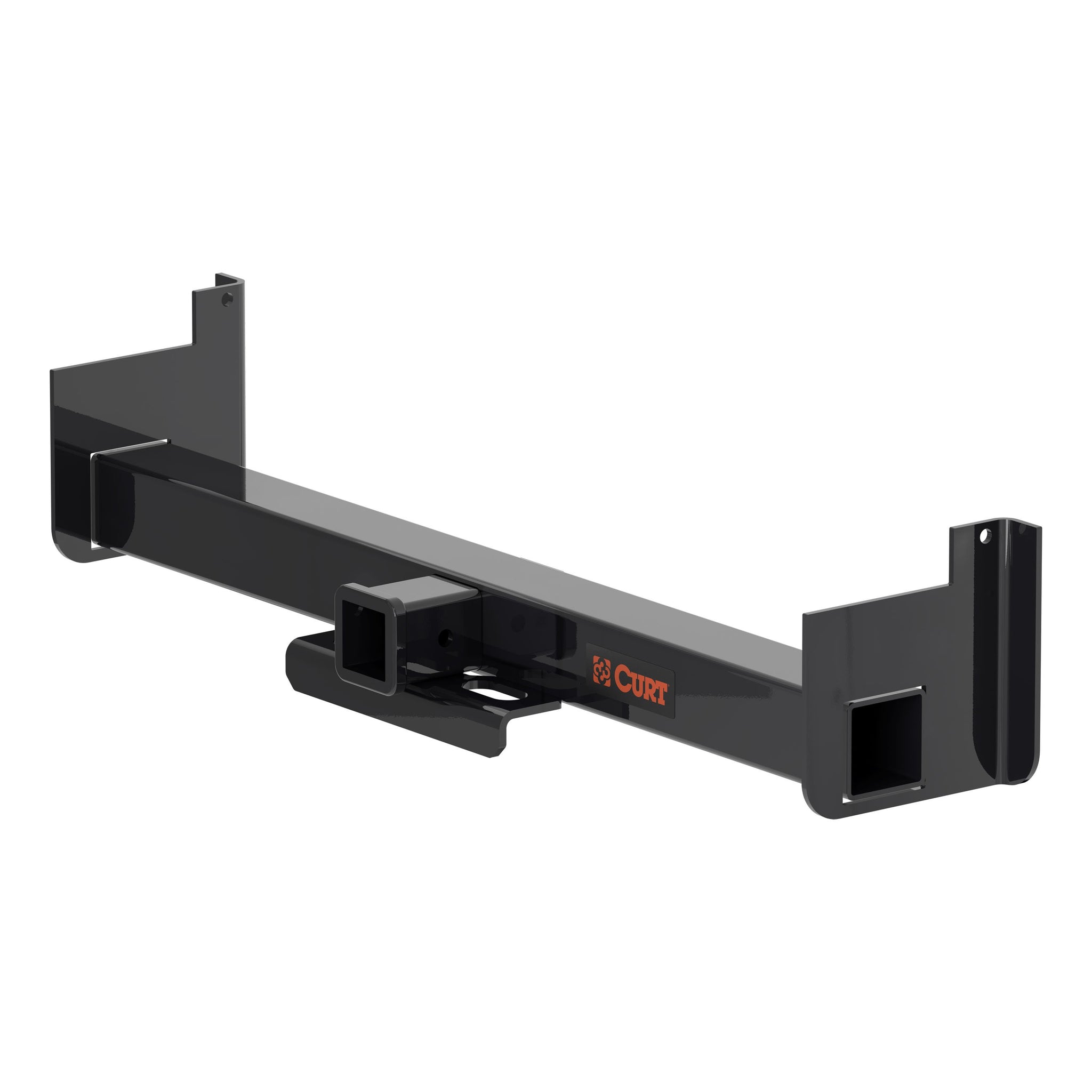

CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on receiver hitch features a 2-1/2-inch receiver with a 9-inch drop. It fits frames up to 44 inches wide. The side plates ship unattached from the center section, allowing for a flexible, adjustable installation and a custom fit. No installation hardware required! This welded universal hitch is also rated as a class 5 hitch, being fully tested to SAE J684 specifications for a gross trailer weight capacity of up to 20,000 pounds (NOTE: To achieve 20K rating, side plates must be welded 42 inches wide or less). To protect this weld on receiver hitch from corrosion, it comes shielded with a co-cured finish of liquid A-coat and durable black powder coat.
| Retail Length - XA |
46.500 |
| Retail Width - XA |
10.500 |
| Sales Family Code - XA |
HITCH |
| Sales Family Description - XA |
HITCH |
| Sales Group Description - XA |
CL 5 |
| Shipping Weight - XA |
59.000 |
| Side Application Type Description - XA |
Not Applicable |
| Tariff 301 - XA |
No |
| Title |
Universal Weld-On Trailer Hitch, 2-1/2" Receiver (Up to 44" Frames, 9" Drop) |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime |
| Weight Carrying Capacity (WC) |
20,000 LB |
| Box Height in Inches - XA |
13 |
| Box Length in Inches - XA |
46 |
| Box Width in Inches - XA |
10 |
| Class ID |
7 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Drop |
9 IN |
| Finish - XA |
GLOSS BLACK POWDER COAT |
| Item Class - XA |
MFH |

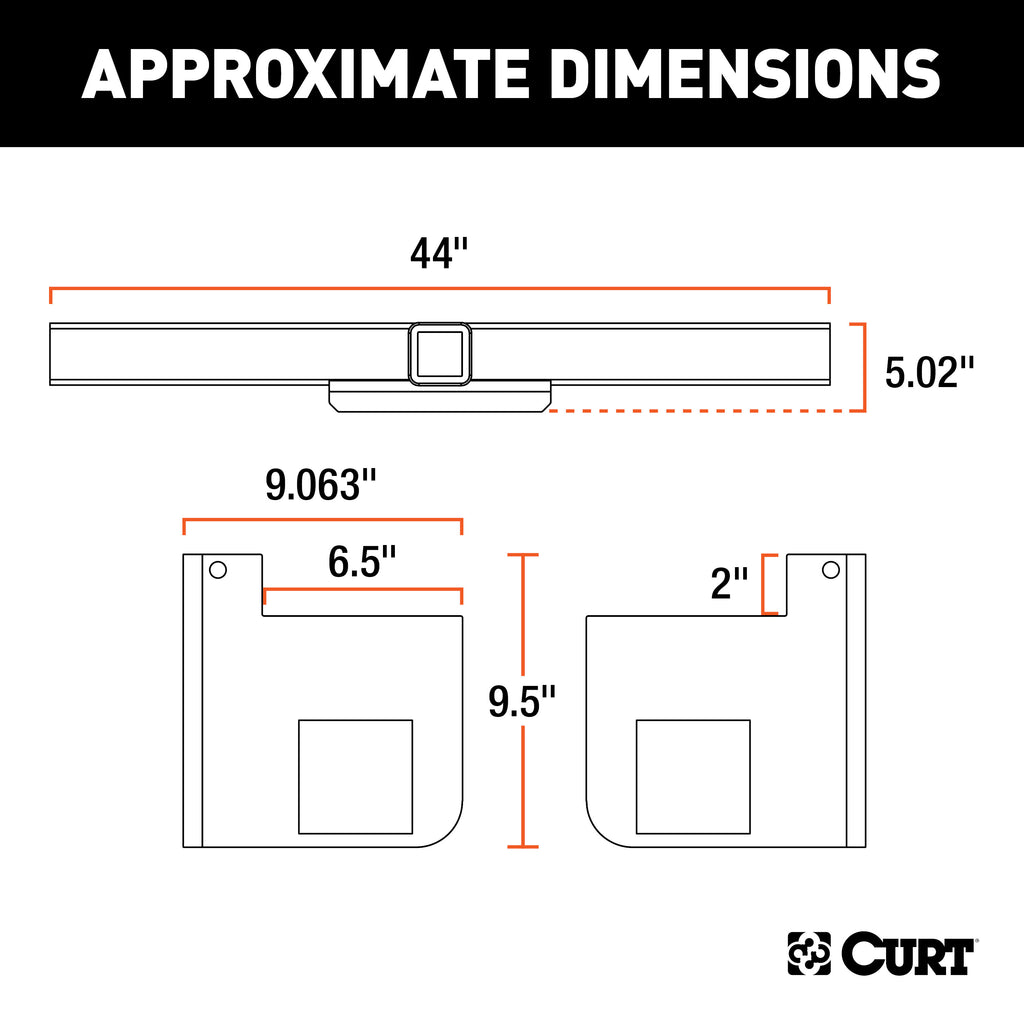

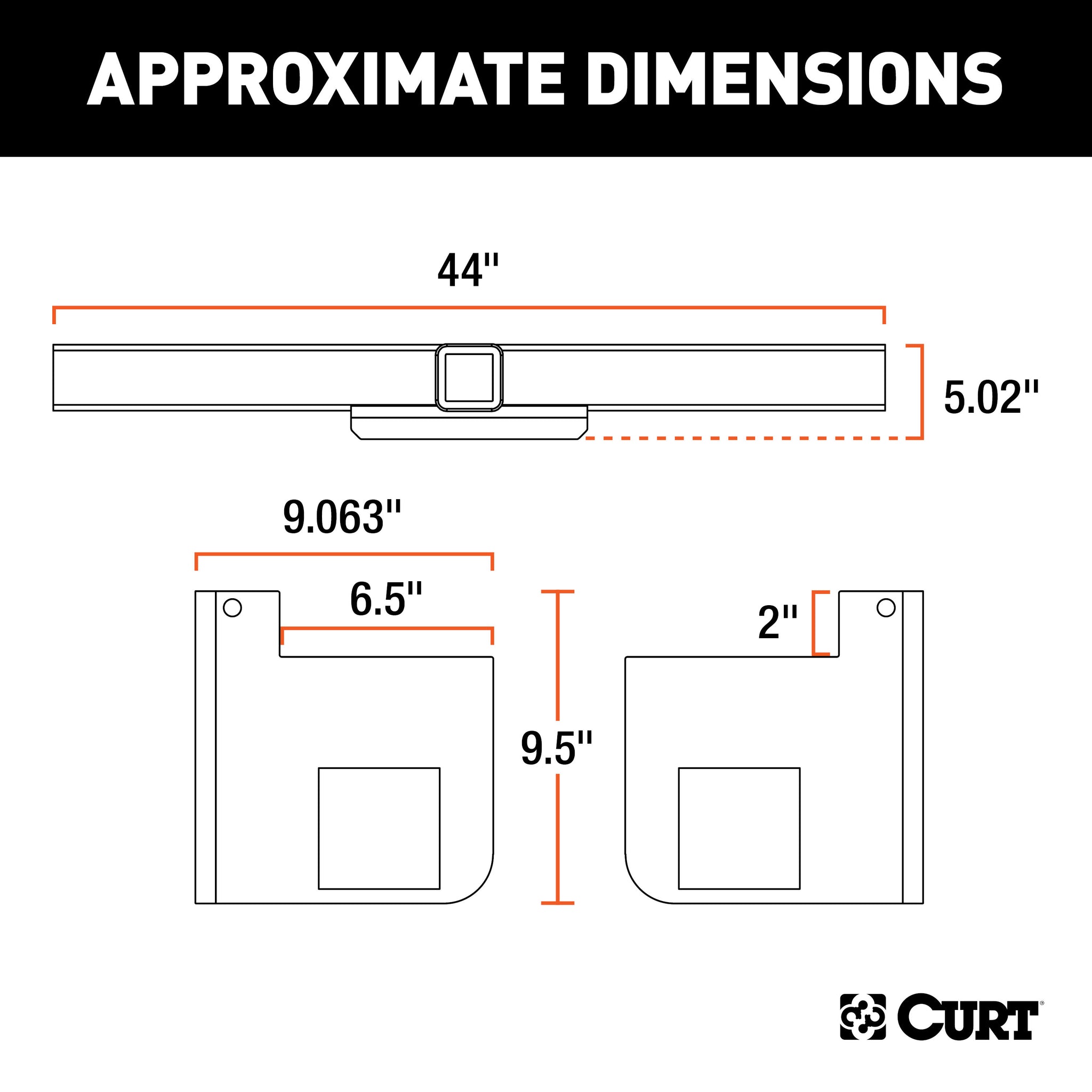

| Item Height - XA |
5.020 |
| Item Length - XA |
44.000 |
| Item Width - XA |
8.000 |
| Main Body Shape |
Square |
| Master Case Height Inches - XA |
0.000 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
0.000 |
| Master Case Qty - XA |
0 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
0.000 |
| Master Case Width Inches - XA |
0.000 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Not Applicable |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
20.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Price Code - XA |
35 |
| Product Weight - XA |
49.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
70.0 |

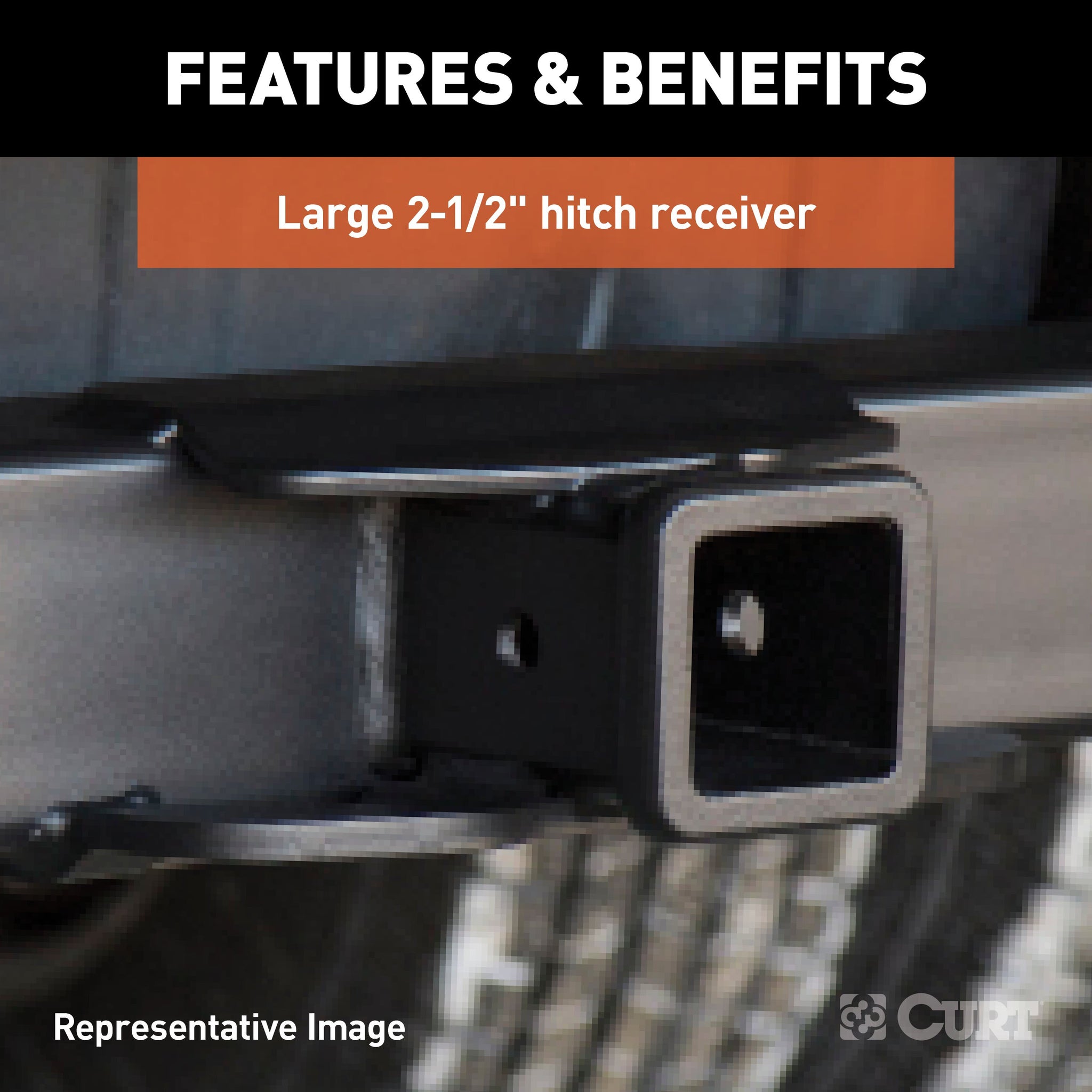

| Receiver Tube Size |
2-1/2 IN |
| Retail Height - XA |
13.630 |
| Description_ABR |
CL 5 |
| Description_SHO |
Weld-On Hitch |
| Description_INV |
Universal Weld-On Trailer Hitch |
| Description_ASC |

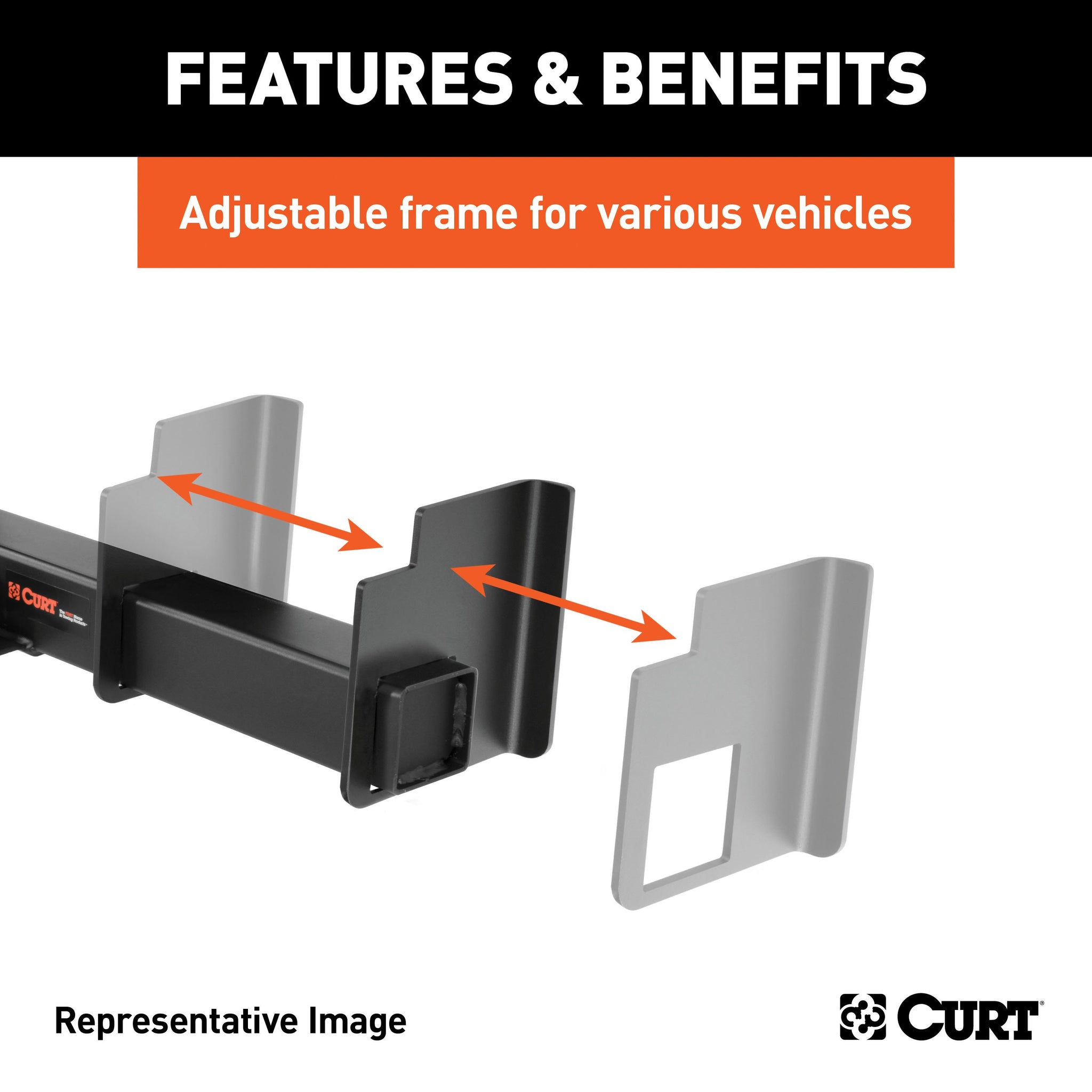

Adjustable frame fits a variety of vehicles (side plates do not come pre-welded) |
| Description_ASC |
Fits truck frames up to 44" wide |
| Description_ASC |
Rated as a class 5 hitch |
| Description_ASC |
Tested for safety in accordance with SAE J684 |
| Description_ASC |
Great for use with utility boxes |
| Description_ASC |
Protected by a highly durable black powder coat finish |
| Description_ASC |

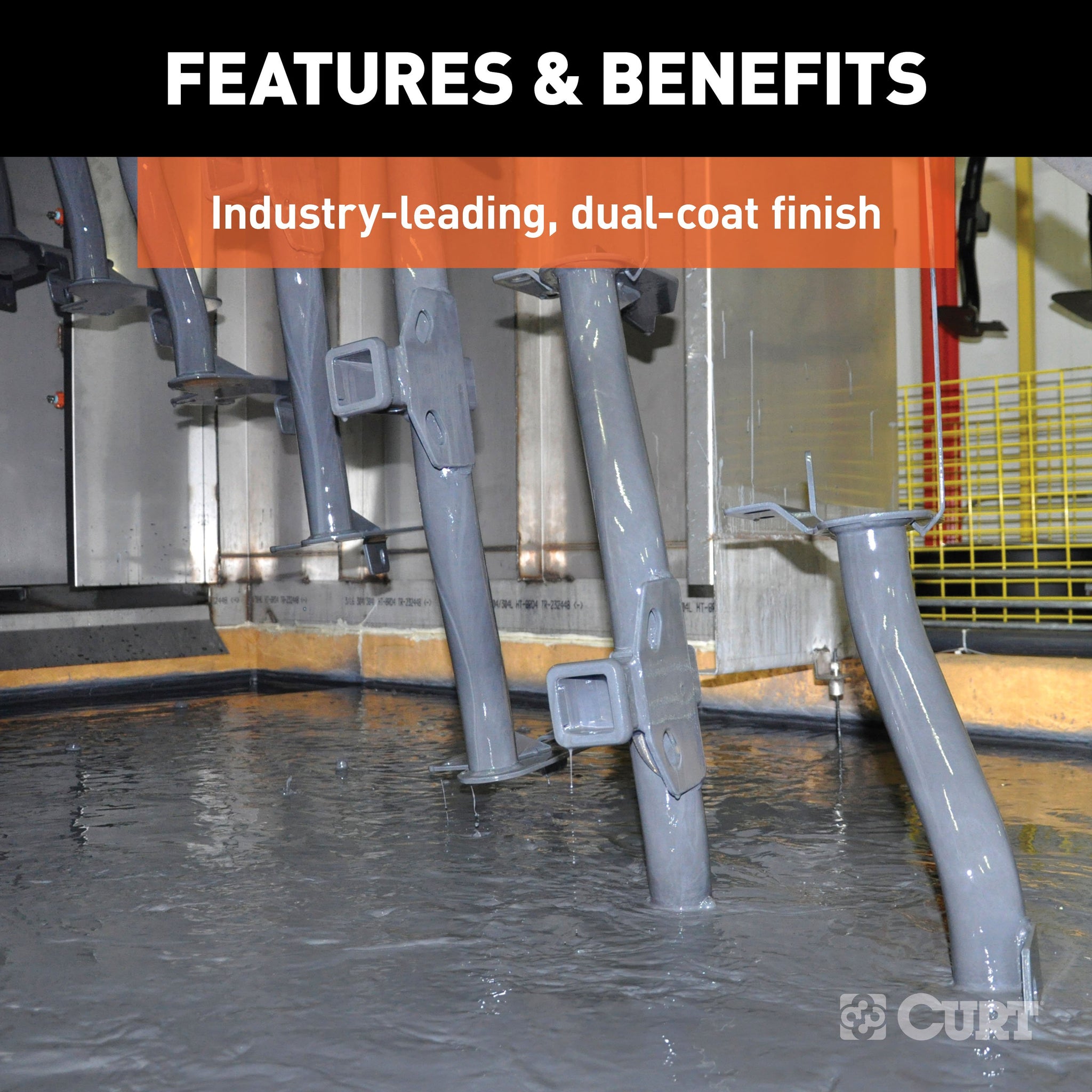

Co-cured in a rust-resistant liquid A-coat, inside and out |
| Description_ASC |
Made in USA |
| Description_DES |
Universal Weld-On Trailer Hitch, 2-1/2" Receiver (Up to 44" Frames, 9" Drop) |
| Description_EXT |
CURT 15923 Class 5 Weld-On Hitch, 2-1/2-Inch Receiver, Up to 20,000 lbs, 44-In Frames, 9" Drop |
| Description_MKT |
CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on receiver hitch features a 2-1/2-inch receiver with a 9-inch drop. It fits frames up to 44 inches wide. The side plates ship unattached from the center section, allowing for a flexible, adjustable installation and a custom fit. No installation hardware required! This welded universal hitch is also rated as a class 5 hitch, being fully tested to SAE J684 specifications for a gross trailer weight capacity of up to 20,000 pounds (NOTE: To achieve 20K rating, side plates must be welded 42 inches wide or less). To protect this weld on receiver hitch from corrosion, it comes shielded with a co-cured finish of liquid A-coat and durable black powder coat. |
| Description_FAB |
Adjustable frame fits a variety of vehicles (side plates do not come pre-welded) |
| Description_FAB |
Fits truck frames up to 44" wide |
| Description_FAB |
Rated as a class 5 hitch |
| Description_FAB |
Tested for safety in accordance with SAE J684 |
| Description_FAB |
Great for use with utility boxes |
| Description_FAB |
Protected by a highly durable black powder coat finish |
| Description_FAB |
Co-cured in a rust-resistant liquid A-coat, inside and out |
| Description_FAB |
Made in USA |
| Description_TLE |
CURT 15923 Class 5 Weld-On Hitch, 2-1/2-Inch Receiver, Up to 20,000 lbs, 44-In Frames, 9" Drop |
| Description_DEF |
Trailer Hitch |
