When it comes to enjoying your passion, we think towing equipment should never be the limiting factor. This CURT weight distribution replacement shank is designed for heavy-duty towing, versatile adjustment of your weight distribution hitch and long-lasting reliability. Made from high-strength steel and tested for safety, this WD replacement shank is perfect for a variety of tough jobs and long journeys. It is compatible with all CURT weight distribution hitches and has a 2-1/2" shank with a 5/8" hitch pin hole to fit any 2-1/2" x 2-1/2" receiver tube opening with a 5/8" hitch pin hole, including CURT Commercial Duty class 5 trailer hitches. While the receiver tube shank measures 2-1/2" x 2-1/2", the vertical shank offers a universal fit to be compatible with all CURT weight distribution hitches. Holes in the vertical shank are spaced 1-1/4" center-to-center and have a 3/4" diameter, allowing for flexible adjustment of the WD head for precise leveling of the vehicle-trailer combination. This weight distribution shank can be positioned in the rise position for a maximum rise of 6" or flipped into the drop position for a maximum drop of 2". To ensure durability and long-lasting use, CURT weight distribution replacement shanks are constructed from solid steel and shielded with a highly durable carbide black powder coat finish. This protects them from rain, snow, dirt, road salt and much more for lasting corrosion resistance.
| Master Case Width Inches - XA |
9.875 |
| Material - XA |
Carbon Steel |
| Mount Type Description - XA |
Blank |
| Pallet Case Per - XA |
0 |
| Pallet Case Per Layer - XA |
0 |
| Pallet Cases Per - XA |
0 |
| Pallet Cases Per Layer - XA |
0 |
| Pallet Layer of Cases - XA |
0 |
| Pallet Qty - XA |
0.000 |
| Pallet Total Height Inches - XA |
0.000 |
| Pallet Total Weight Per - XA |
0.000 |
| Parcel Allowed - XA |
Yes |
| Product Weight - XA |
0.000 |
| Prop 65 Label Text - XA |
Blanks |
| Prop 65 Material - XA |
Unknown |
| Prop 65 Reason - XA |
Unknown |
| Prop 65 Warning Label Type - XA |
Unknown |
| Prop 65 Warning Y/N - XA |
NO |
| Rate Class - XA |
60.0 |
| Receiver Tube Size |
2-1/2 IN |
| Retail Height - XA |
4.000 |
| Retail Length - XA |
13.000 |
| Retail Width - XA |
10.000 |
| Rise |
6 IN |
| Sales Family Code - XA |
WDIST |
| Sales Family Description - XA |
WEIGHT DISTRIBUTION |
| Sales Group Description - XA |
WD SHANKS |
| Shipping Weight - XA |
24.000 |
| Side Application Type Description - XA |
Blank |
| Tariff 301 - XA |
Yes |
| Title |
Weight Distribution Shank (2-1/2" Shank, 2" Drop, 6" Rise) |
| Tongue Weight (TW) |
1,500 LB |
| Truckload Cases Qty - XA |
0 |
| Truckload Pallets Qty - XA |
0 |
| Truckload Units Qty - XA |
0 |
| Truckload Volume Cubic Feet - XA |
0.00000 |
| Truckload Weight - XA |
0 |
| Warranty |
Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Box Height in Inches - XA |
0 |
| Box Length in Inches - XA |
0 |
| Box Width in Inches - XA |
0 |
| Container Cases Qty - XA |
0 |
| Container Pallet Qty - XA |
0 |
| Container Unit Qty - XA |
0 |
| Container Volume Cubic Feet - XA |
0.00000 |
| Container Volume Cubic Meter - XA |
0.00000 |
| Container Weight KG - XA |
0 |
| Container Weight Lbs - XA |
0 |
| Drop |
2 IN |
| Finish - XA |
CARBIDE BLACK POWDER COAT |
| Gross Trailer Weight (GTW) |
15,000 LB |
| Item Class - XA |
OBS |
| Item Height - XA |
0.000 |
| Item Length - XA |
0.000 |
| Item Width - XA |
0.000 |
| Master Case Height Inches - XA |
3.500 |
| Master Case Inner Pack Qty - XA |
0 |
| Master Case ITF14 |
0 |
| Master Case ITF14 - XA |
0 |
| Master Case Length Inches - XA |
13.000 |
| Master Case Qty - XA |
1 |
| Master Case Volume Cubic Feet - XA |
0.00000 |
| Master Case Weight Lbs - XA |
24.000 |
| Description_ABR |
SHANK |
| Description_SHO |
WD Shank |
| Description_INV |
Weight Distribution Shank |
| Description_ASC |

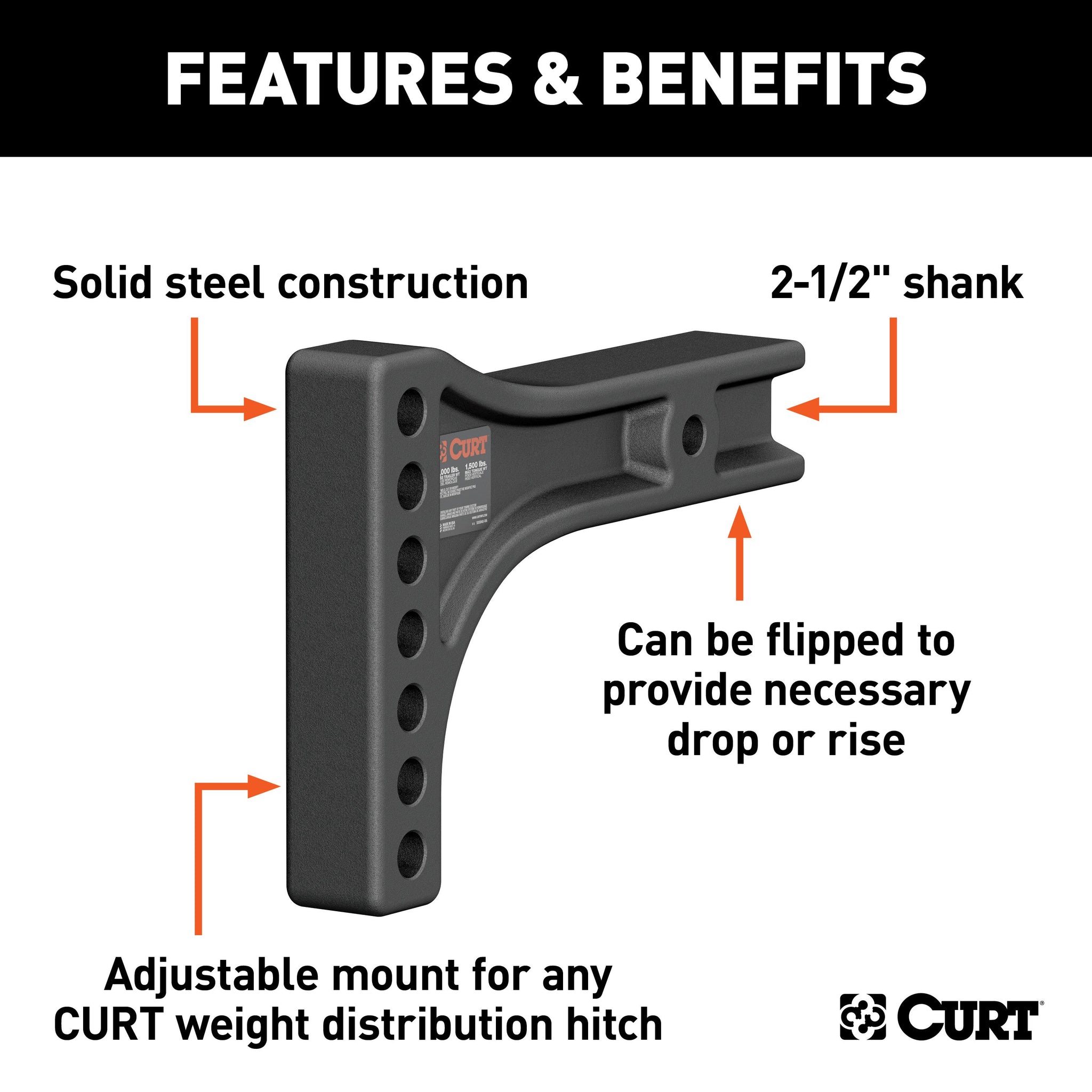

Provides an adjustable mount for any CURT weight distribution hitch |
| Description_ASC |
Rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight |
| Description_ASC |
Features multiple holes for adjustable head height |
| Description_ASC |

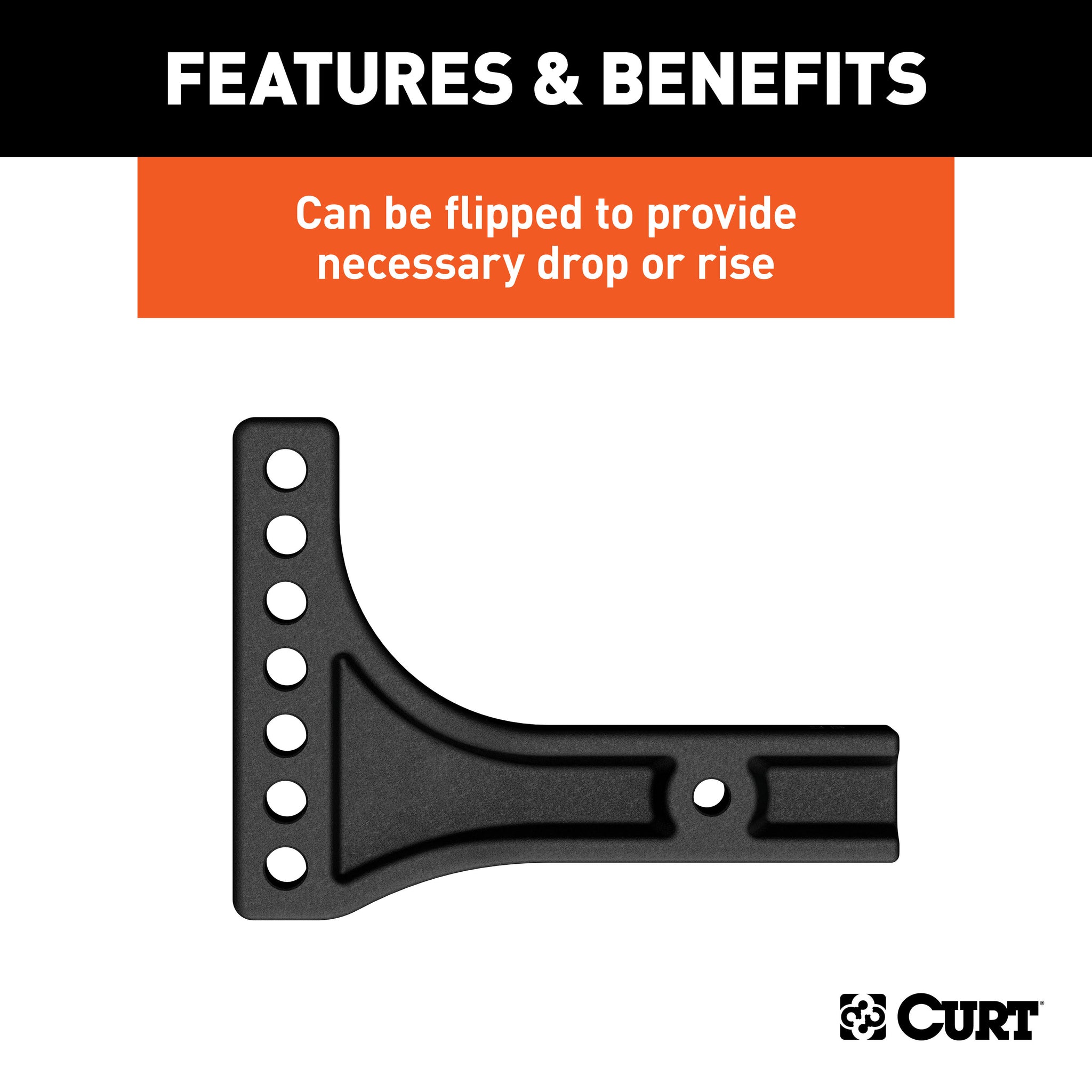

Can be flipped to provide necessary drop or rise |
| Description_ASC |
3/4" diameter holes are spaced 1-1/4" from center to center |
| Description_ASC |

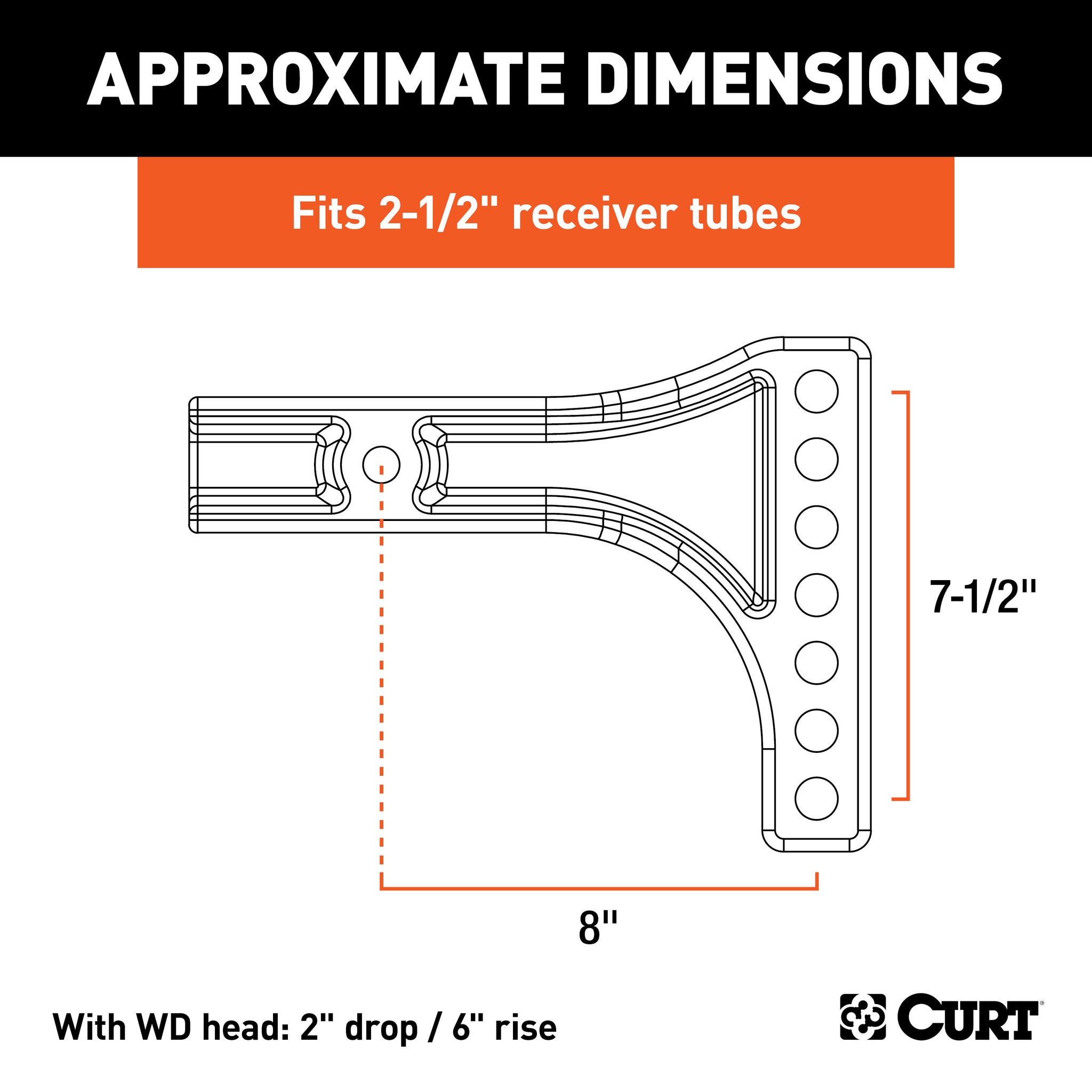

Fits 2-1/2" x 2-1/2" hitch receiver tube opening with 5/8" hitch pin hole |
| Description_ASC |
Constructed from solid steel for reliable strength |
| Description_ASC |
Protected by a highly durable carbide black powder coat finish |
| Description_ASC |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_DES |
Weight Distribution Shank (2-1/2" Shank, 2" Drop, 6" Rise) |
| Description_EXT |
CURT 17131 Replacement Weight Distribution Hitch Shank, 2-1/2-Inch Receiver, 2-Inch Drop, 6-Inch Rise |
| Description_MKT |
When it comes to enjoying your passion, we think towing equipment should never be the limiting factor. This CURT weight distribution replacement shank is designed for heavy-duty towing, versatile adjustment of your weight distribution hitch and long-lasting reliability. Made from high-strength steel and tested for safety, this WD replacement shank is perfect for a variety of tough jobs and long journeys. It is compatible with all CURT weight distribution hitches and has a 2-1/2" shank with a 5/8" hitch pin hole to fit any 2-1/2" x 2-1/2" receiver tube opening with a 5/8" hitch pin hole, including CURT Commercial Duty class 5 trailer hitches. While the receiver tube shank measures 2-1/2" x 2-1/2", the vertical shank offers a universal fit to be compatible with all CURT weight distribution hitches. Holes in the vertical shank are spaced 1-1/4" center-to-center and have a 3/4" diameter, allowing for flexible adjustment of the WD head for precise leveling of the vehicle-trailer combination. This weight distribution shank can be positioned in the rise position for a maximum rise of 6" or flipped into the drop position for a maximum drop of 2". To ensure durability and long-lasting use, CURT weight distribution replacement shanks are constructed from solid steel and shielded with a highly durable carbide black powder coat finish. This protects them from rain, snow, dirt, road salt and much more for lasting corrosion resistance. |
| Description_FAB |
Provides an adjustable mount for any CURT weight distribution hitch |
| Description_FAB |
Rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight |
| Description_FAB |
Features multiple holes for adjustable head height |
| Description_FAB |
Can be flipped to provide necessary drop or rise |
| Description_FAB |
3/4" diameter holes are spaced 1-1/4" from center to center |
| Description_FAB |
Fits 2-1/2" x 2-1/2" hitch receiver tube opening with 5/8" hitch pin hole |
| Description_FAB |
Constructed from solid steel for reliable strength |
| Description_FAB |
Protected by a highly durable carbide black powder coat finish |
| Description_FAB |
Limited lifetime warranty (one-year finish, one-year parts) |
| Description_TLE |
CURT 17131 Replacement Weight Distribution Hitch Shank, 2-1/2-Inch Receiver, 2-Inch Drop, 6-Inch Rise |
| Description_DEF |
Trailer Hitch |
