Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro!
| Brand |
Earl's |
| Carbon Lined |
Yes |
| Category |
Air and Fuel Delivery |
| Compatible Hose Ends |
UltraPro - Twist On |
| Compatible Hose Ends |
UltraPro - Crimp On |
| Crimping Die |
29MM - D10029BERL |
| Emission Code |
5 |
| Final Crimp O.D. Range |
1.179"-1.183" |
| Fluid Type |
Diesel |
| Fluid Type |
Coolant |
| Fluid Type |
Methanol/Alcohol |
| Fluid Type |
E85 |
| Fluid Type |
Oil |
| Fluid Type |
Race Gas |
| Fluid Type |
Automatic Transmission Fluid |
| Fluid Type |
Bio-Fuels |
| Fluid Type |
Pump Gas |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Hose Family |
UltraPro |
| Hose Length |
6 Feet |
| Hose Outer Material |
Black Polyester |
| Hose Size |
16 AN |
| Inside Diameter |
.855" |
| Max Vacuum |
10 in Hg |
| Max Working PSI |
250 PSI |
| Min. Bend Radius |
3.5" |
| Outside Diameter |
1.110" |
| part type |
Fuel Hose |
| Product Type |
UltraPro Black Polyester Braided |
| Sub Category |
Fuel Storage |
| Submersible in Fuel |
No |
| Temperature Range |
-67° F to 257° F |
| Warning |
California Proposition 65 |
| Brand |
Earl's |
| Carbon Lined |
Yes |
| Category |
Air and Fuel Delivery |
| Compatible Hose Ends |
UltraPro - Twist On |
| Compatible Hose Ends |
UltraPro - Crimp On |
| Crimping Die |
29MM - D10029BERL |
| Emission Code |
5 |
| Final Crimp O.D. Range |
1.179"-1.183" |
| Fluid Type |
Diesel |
| Fluid Type |
Coolant |
| Fluid Type |
Methanol/Alcohol |
| Fluid Type |
E85 |
| Fluid Type |
Oil |
| Fluid Type |
Race Gas |
| Fluid Type |
Automatic Transmission Fluid |
| Fluid Type |
Bio-Fuels |
| Fluid Type |
Pump Gas |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Hose Family |
UltraPro |
| Hose Length |
6 Feet |
| Hose Outer Material |
Black Polyester |
| Hose Size |
16 AN |
| Inside Diameter |
.855" |
| Max Vacuum |
10 in Hg |
| Max Working PSI |
250 PSI |
| Min. Bend Radius |
3.5" |
| Outside Diameter |
1.110" |
| part type |
Fuel Hose |
| Product Type |
UltraPro Black Polyester Braided |
| Sub Category |
Fuel Storage |
| Submersible in Fuel |
No |
| Temperature Range |
-67° F to 257° F |
| Warning |
California Proposition 65 |
| Description_INV |
6 FT. -16 ULTRAPRO POLYESTER BRAIDED HOS |
| Description_ASC |
Note: All UltraPro Hose Ends must be crimped using the Earl's D105M1101ERL Crimping Machine and D10029BERL Crimp Die. All UltraPro hose assemblies must be pressure tested prior to use. |
| Description_DES |

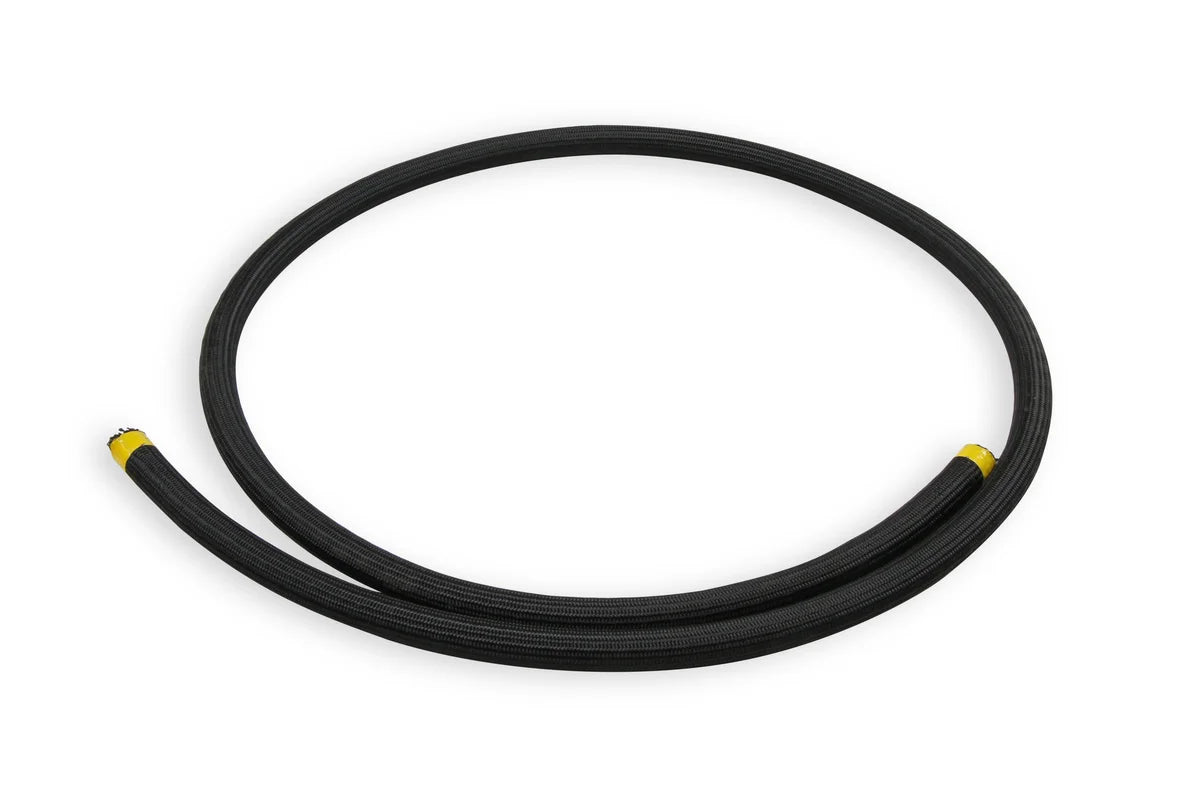

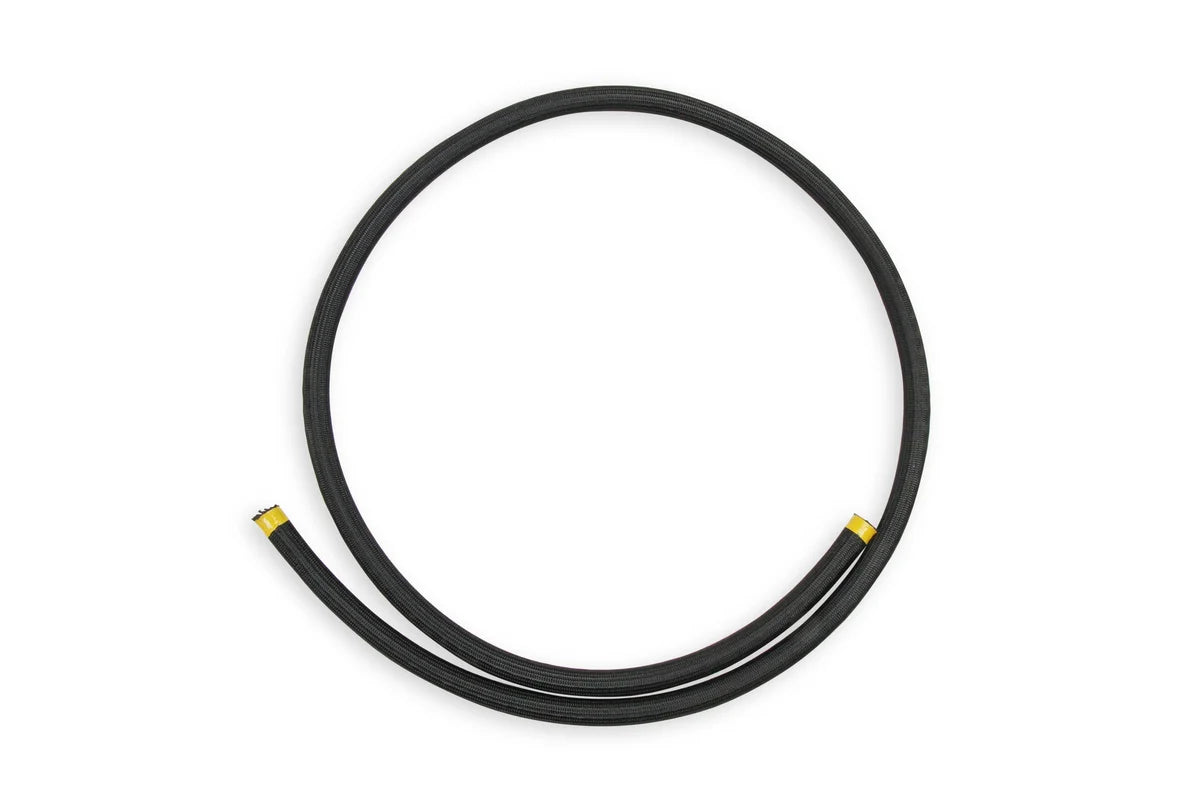

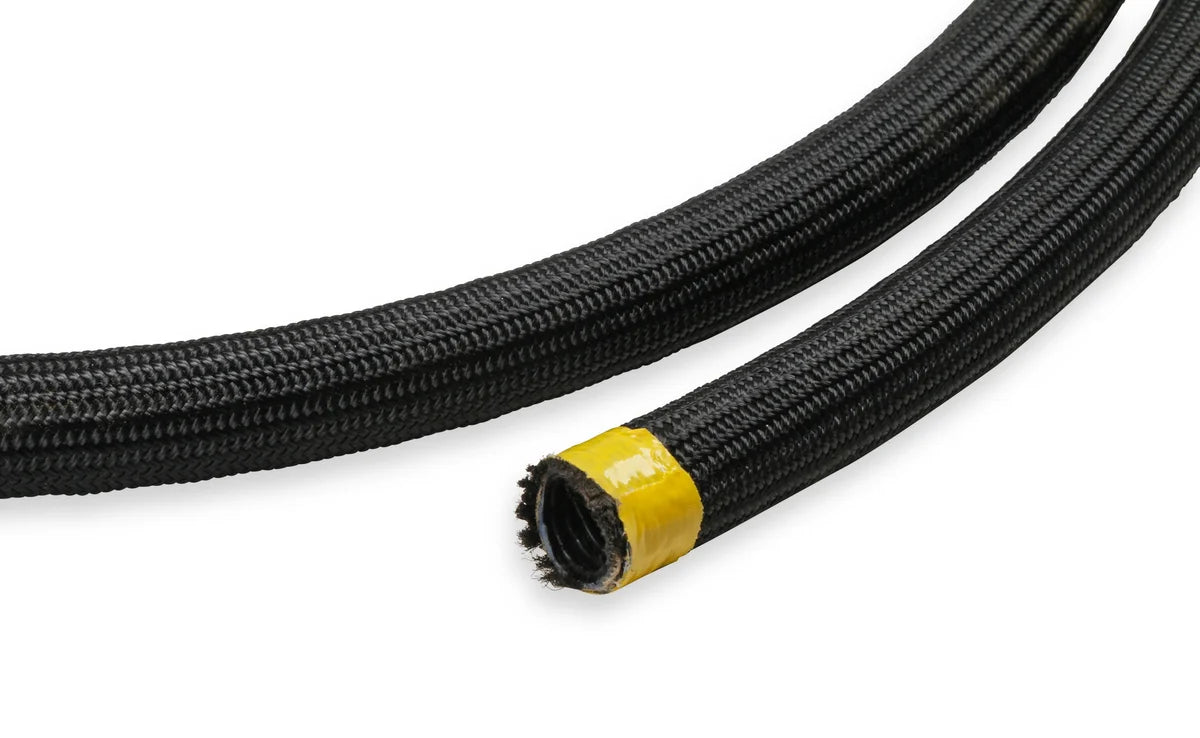

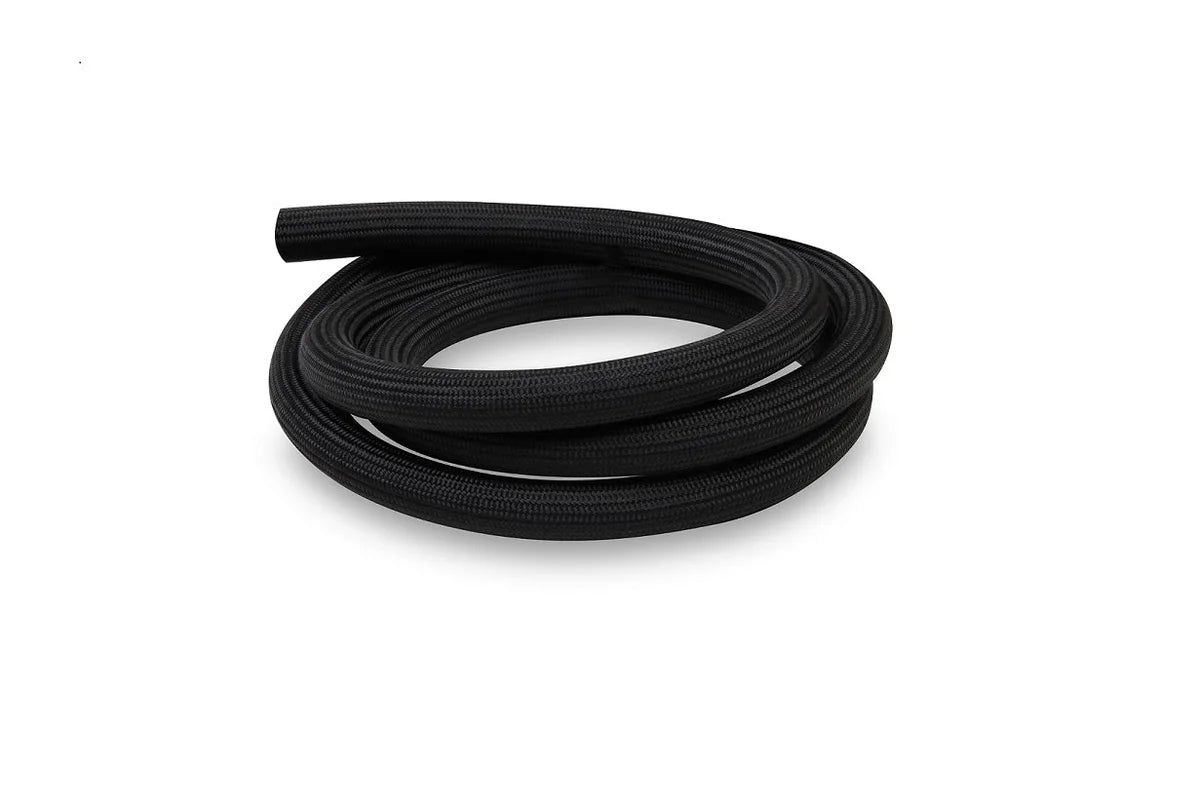

Earl's UltraPro Series Hose - Size 16 - 6 Ft |
| Description_EXT |
-16 Double-Helix Ribbed PTFE Hose, Black Polyester Braided, 250 PSI6FT |
| Description_MKT |
Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro! |
| Description_FAB |
PTFE inner liner impervious to all known fuels, oils and coolants used in automotive applications |
| Description_FAB |
Designed to withstand harsh environments, brutal vibrations, high flow requirements and extreme pressures |
| Description_FAB |
Double-helix ribbed inner hose liner offers extreme‚exibility and full flow making tough plumbing jobs a snap with less hard connections! |
| Description_FAB |
Liner is reinforced with an outside glass fiber wrap for additional strength and integrity! |
| Description_FAB |
PTFE inner liner is carbon infused for static dissipation |
| Description_FAB |
PTFE inner liner has ultra low coefïcient of friction to promote maximum flow |
| Description_FAB |
Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends |
| Description_FAB |
Available in popular -6, -8, -10, -12, -16, and -20 sizes in both woven polyester braid and stainless steel braid |
| Description_FAB |
UltraPro Polyester Braid hose is up to 67% lighter than traditional rubber hose with stainless steel braid |
| Description_FAB |
UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid |
| Description_INV |
6 FT. -16 ULTRAPRO POLYESTER BRAIDED HOS |
| Description_ASC |
Note: All UltraPro Hose Ends must be crimped using the Earl's D105M1101ERL Crimping Machine and D10029BERL Crimp Die. All UltraPro hose assemblies must be pressure tested prior to use. |
| Description_DES |
Earl's UltraPro Series Hose - Size 16 - 6 Ft |
| Description_EXT |
-16 Double-Helix Ribbed PTFE Hose, Black Polyester Braided, 250 PSI6FT |
| Description_MKT |
Modern day high performance vehicles require a plumbing system designed to withstand today's fuids, harsh environments, brutal vibration, flow requirements & extreme pressures. UltraPro from Earl's was engineered as a system to exceed the rigorous demands of even the most extreme forms of racing. Don't settle for good enough. Go UltraPro! |
| Description_FAB |
PTFE inner liner impervious to all known fuels, oils and coolants used in automotive applications |
| Description_FAB |
Designed to withstand harsh environments, brutal vibrations, high flow requirements and extreme pressures |
| Description_FAB |
Double-helix ribbed inner hose liner offers extreme‚exibility and full flow making tough plumbing jobs a snap with less hard connections! |
| Description_FAB |
Liner is reinforced with an outside glass fiber wrap for additional strength and integrity! |
| Description_FAB |
PTFE inner liner is carbon infused for static dissipation |
| Description_FAB |
PTFE inner liner has ultra low coefïcient of friction to promote maximum flow |
| Description_FAB |
Assembled with an olive that threads onto the double-helix ribbed inner liner of the hose for positive engagement and retention of the hose-ends |
| Description_FAB |
Available in popular -6, -8, -10, -12, -16, and -20 sizes in both woven polyester braid and stainless steel braid |
| Description_FAB |
UltraPro Polyester Braid hose is up to 67% lighter than traditional rubber hose with stainless steel braid |
| Description_FAB |
UltraPro Stainless Steel Braid is up to 37% lighter than traditional rubber hose with stainless steel braid |
