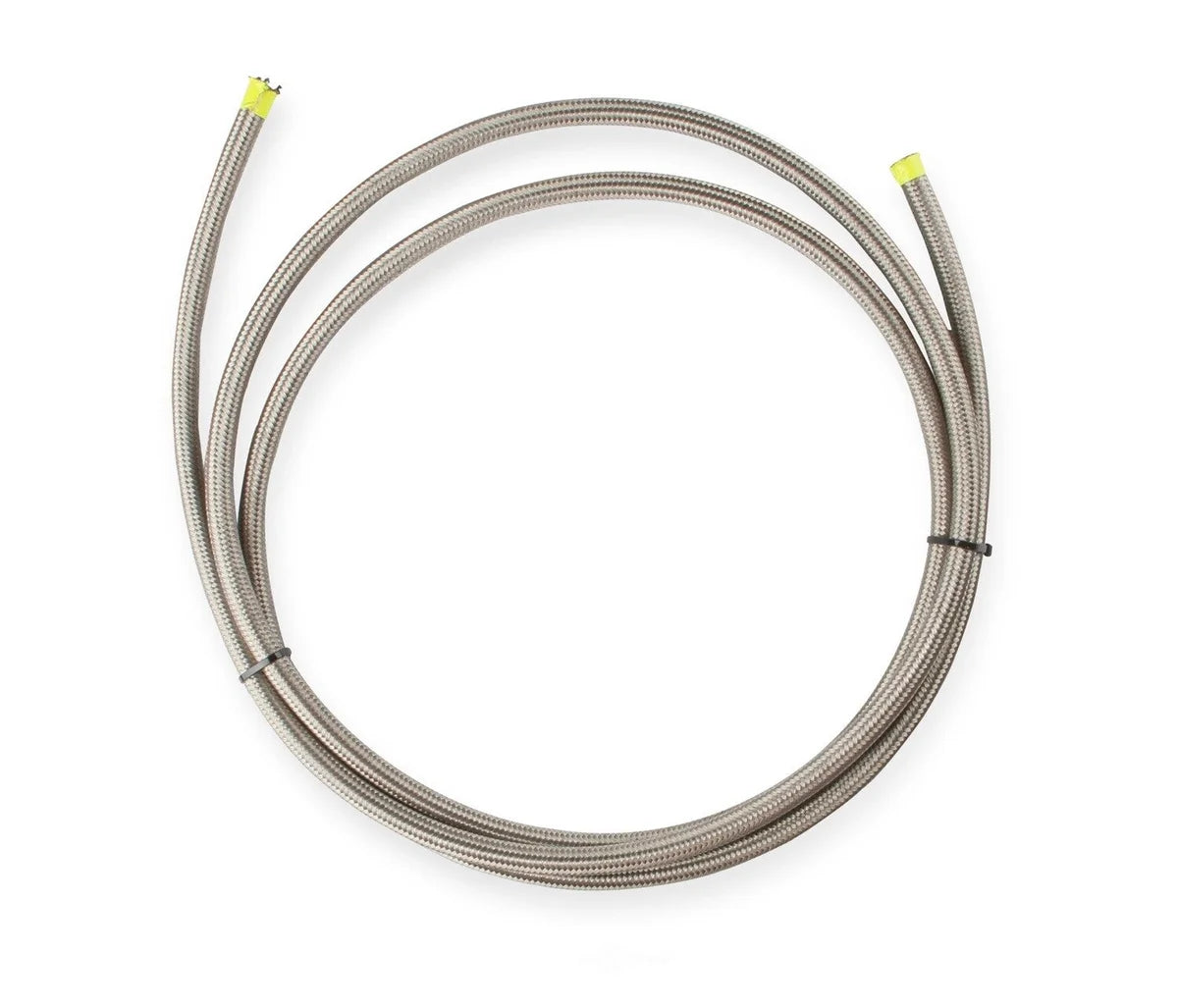

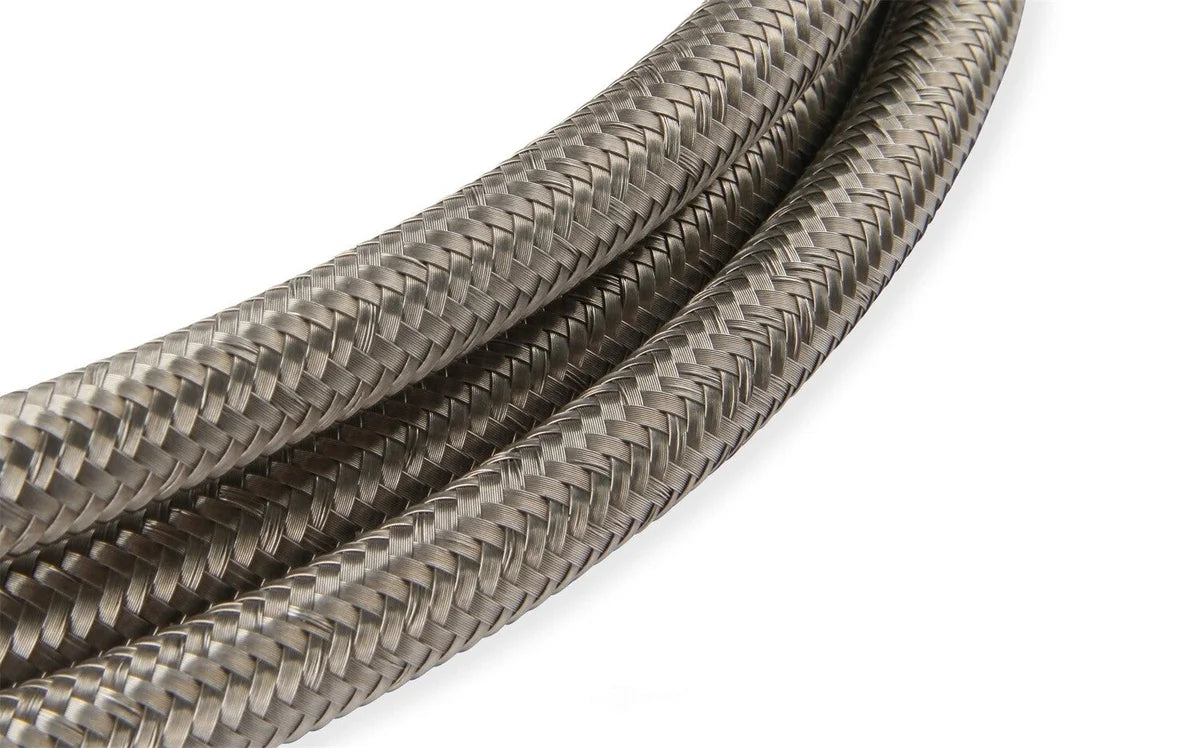

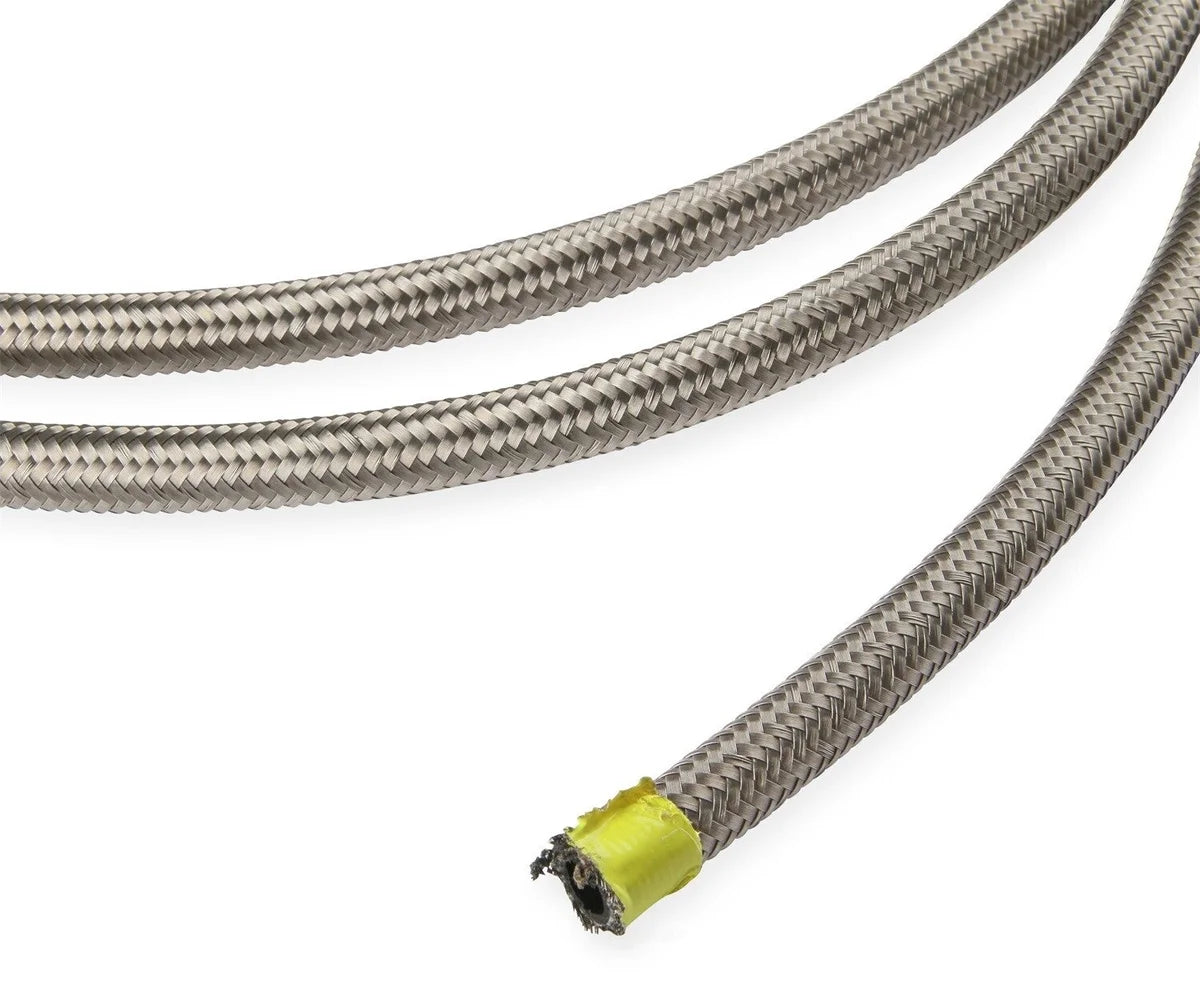

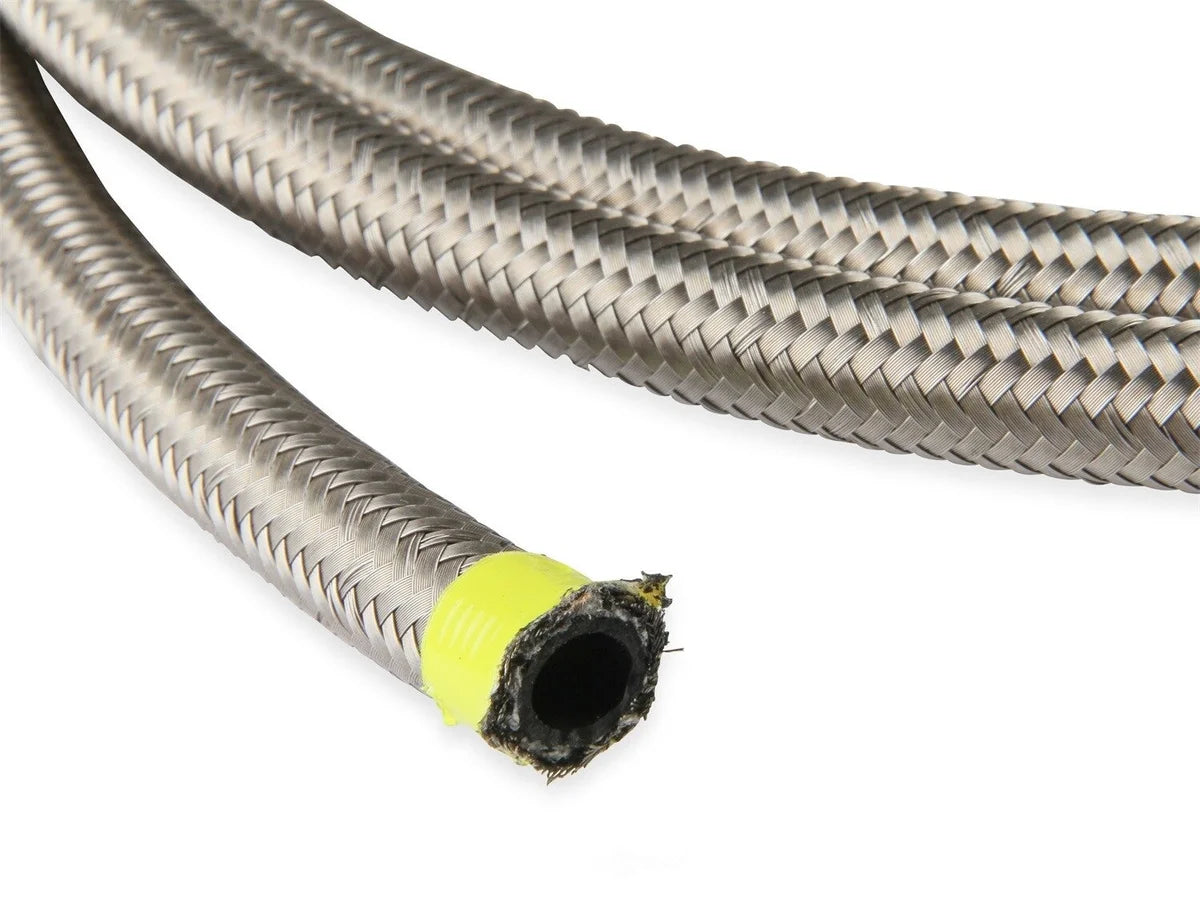

Earl's Performance Earl's Auto-Flex Hose - Size 4 - 10 Ft. Length 310004ERL
$111.95
$100.99
A high quality stainless steel braided hose at a price competitive with the imports. Earl's AUTO-FLEX stainless steel braid-protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's AUTO-FLEX hose features a recommended temperature range and maximum operating pressure equal to our racing premium quality Perform-O-Flex hose...at a much better price. A partial coverage textile inner braid is imbedded in the liner during manufacture. The hose is finished with a full coverage stainless steel braid which is bonded to the reinforced liner. The liner is known as H.T.E ( not to be confused with PTFE ) and it is the highest quality of synthetic neoprene liner on the market. Continuous use temperature rating is - 40 to + 350 degrees F. Auto-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Auto-Flex hose. The use of other manufacturers hose ends is also not recommended with this hose as it does not work with lower quality import fittings. PSI rating is determined by many factors including hose end in use and assembly method.
Specifications:
| Brand | Earl's |
| Category | Plumbing AN Fittings and Hose |
| Compatible Hose Ends | Swivel-Seal |
| Compatible Hose Ends | Econ-O-Fit |
| Compatible Hose Ends | Auto-Crimp |
| Compatible Hose Ends | Auto-Fit |
| Emission Code | 5 |
| Fluid Type | Automatic Transmission Fluid |
| Fluid Type | Oil |
| Fluid Type | Coolant |
| Fluid Type | Race Gas |
| Fluid Type Rating - Automatic Transmission Fluid | 5 out of 5 Rating |
| Fluid Type Rating - Coolant | 5 out of 5 Rating |
| Fluid Type Rating - Diesel | 2 out of 5 Rating |
| Fluid Type Rating - E85 | 2 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol | 1 out of 5 Rating |
| Fluid Type Rating - Oil | 5 out of 5 Rating |
| Fluid Type Rating - Pump Gas | 2 out of 5 Rating |
| Fluid Type Rating - Race Gas | 3 out of 5 Rating |
| Fluid Type Rating - Vacuum | 5 out of 5 Rating |
| Hose Family | Auto-Flex |
| Hose Length | 10 Feet |
| Hose Outer Material | Stainless Steel |
| Hose Size | 4 AN |
| I.D. to O.D. Concentricity Range | .020" |
| Inside Diameter | .204" TO .244" |
| Max Vacuum | 27 in Hg |
| Max Working PSI | 1500 PSI |
| Min. Bend Radius | 2" |
| Outside Diameter | .418" TO .461" |
| Product Type | Hose |
| Submersible in Fuel | No |
| Temperature Range | -40° to 350° F |
| Warning | California Proposition 65 |
| Description_INV | OBS 10 Ft. -4 Auto-Flex CHECK 300004ERL |
| Description_DES | Earl's Auto-Flex Hose - Size 4 - 10 Ft. Length |
| Description_EXT | CLEARANCE ITEM / ALL SALES FINAL - Tough Stainless Steel Wire Braid-Protected Synthetic Rubber Hose. Easy to Cut and Assemble. Accepts Swivel-Seal, Auto Fit & Auto-Crimp Hose Ends. |
| Description_MKT | A high quality stainless steel braided hose at a price competitive with the imports. Earl's AUTO-FLEX stainless steel braid-protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's AUTO-FLEX hose features a recommended temperature range and maximum operating pressure equal to our racing premium quality Perform-O-Flex hose...at a much better price. A partial coverage textile inner braid is imbedded in the liner during manufacture. The hose is finished with a full coverage stainless steel braid which is bonded to the reinforced liner. The liner is known as H.T.E ( not to be confused with PTFE ) and it is the highest quality of synthetic neoprene liner on the market. Continuous use temperature rating is - 40 to + 350 degrees F. Auto-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Auto-Flex hose. The use of other manufacturers hose ends is also not recommended with this hose as it does not work with lower quality import fittings. PSI rating is determined by many factors including hose end in use and assembly method. |
| Description_FAB | Textile Braid In Hose Liner |
