Earl's Performance Earl's Breather Tank / Catch Can CT100ERL
$133.95
$119.99

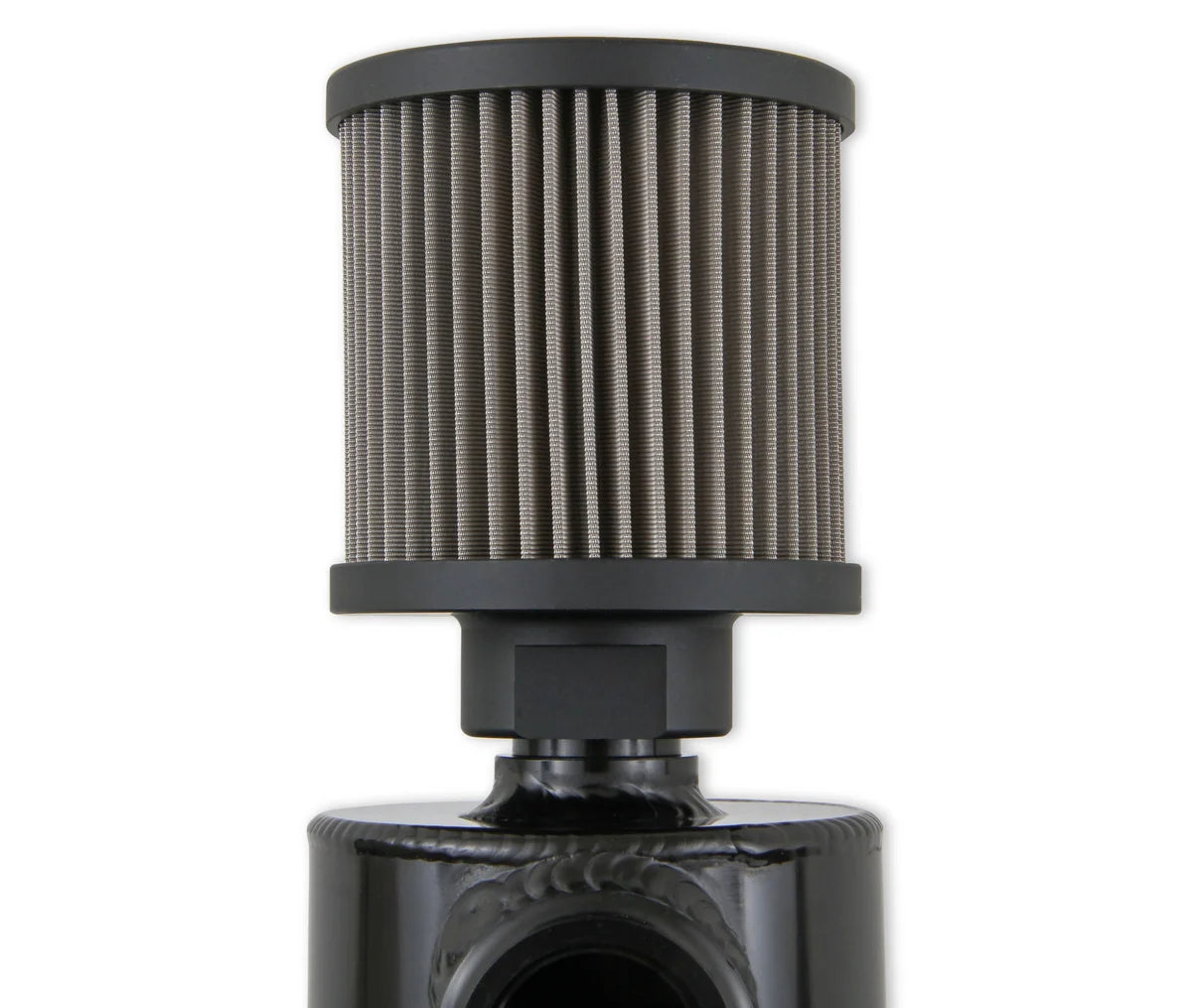

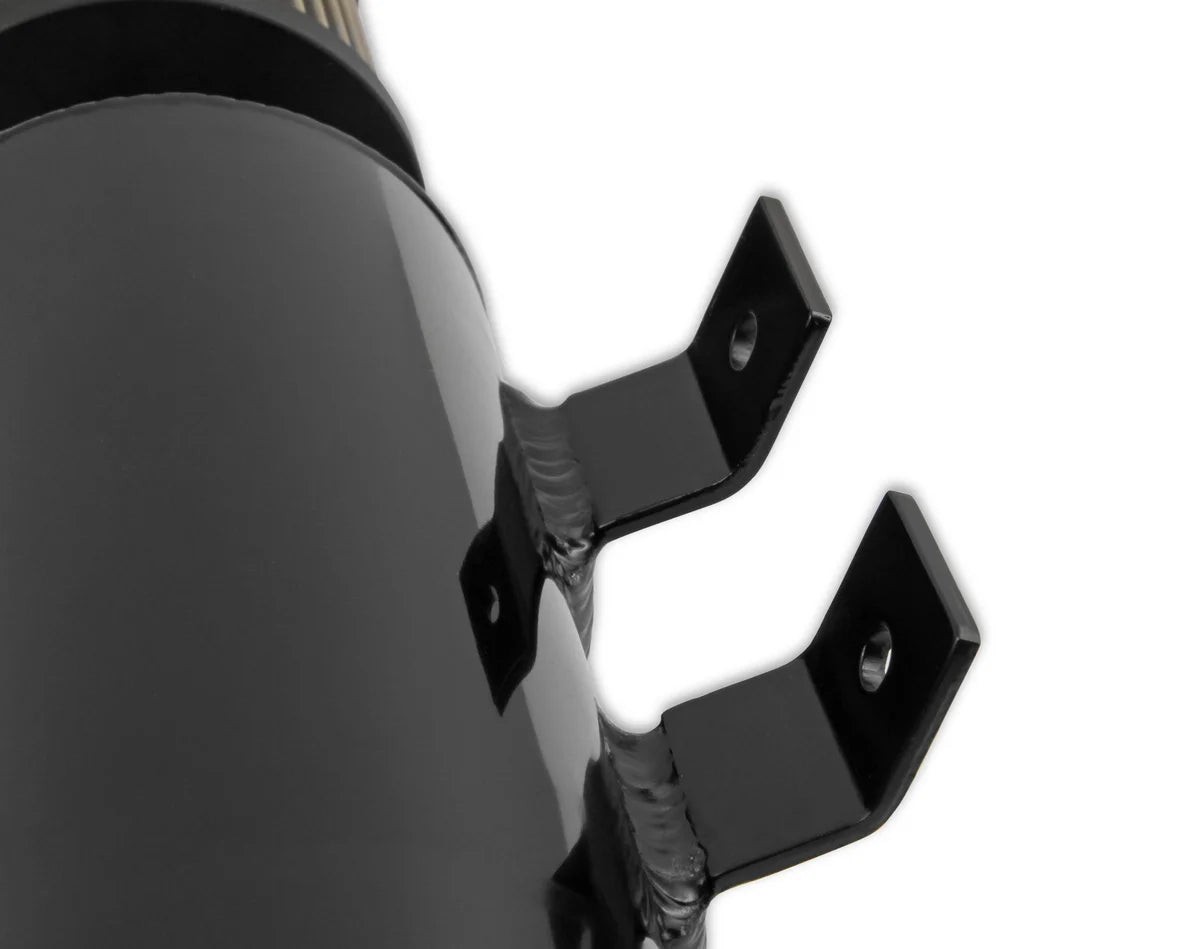

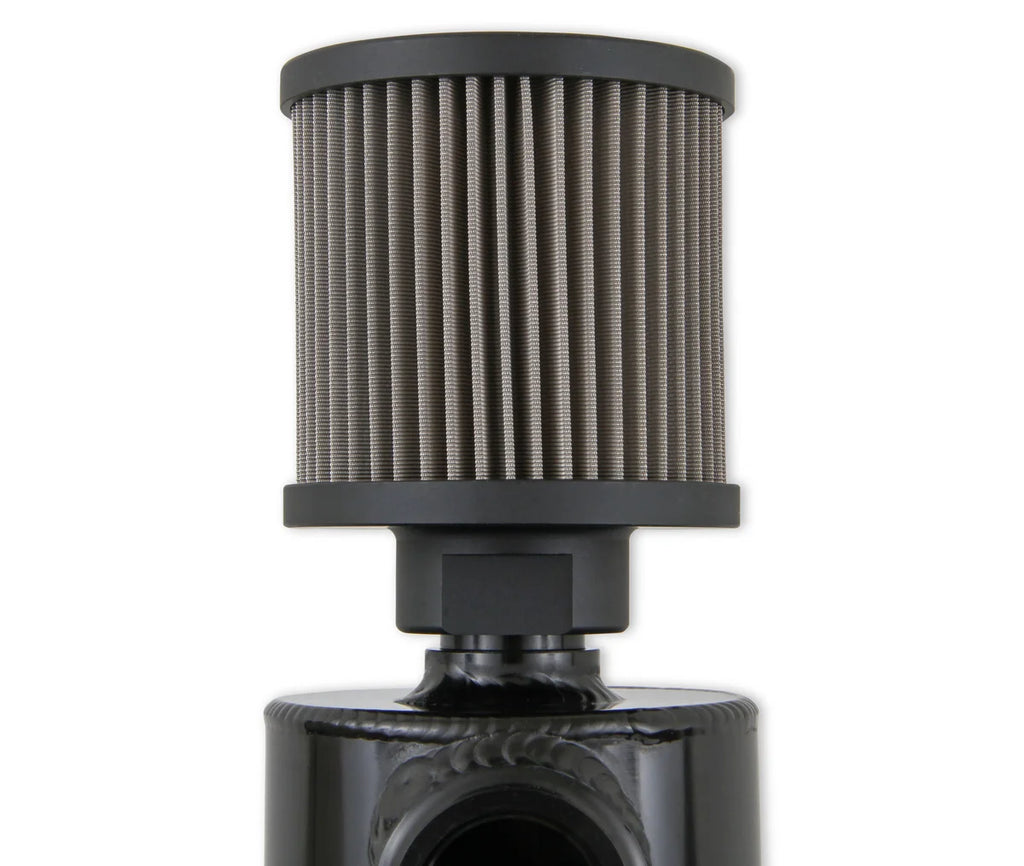

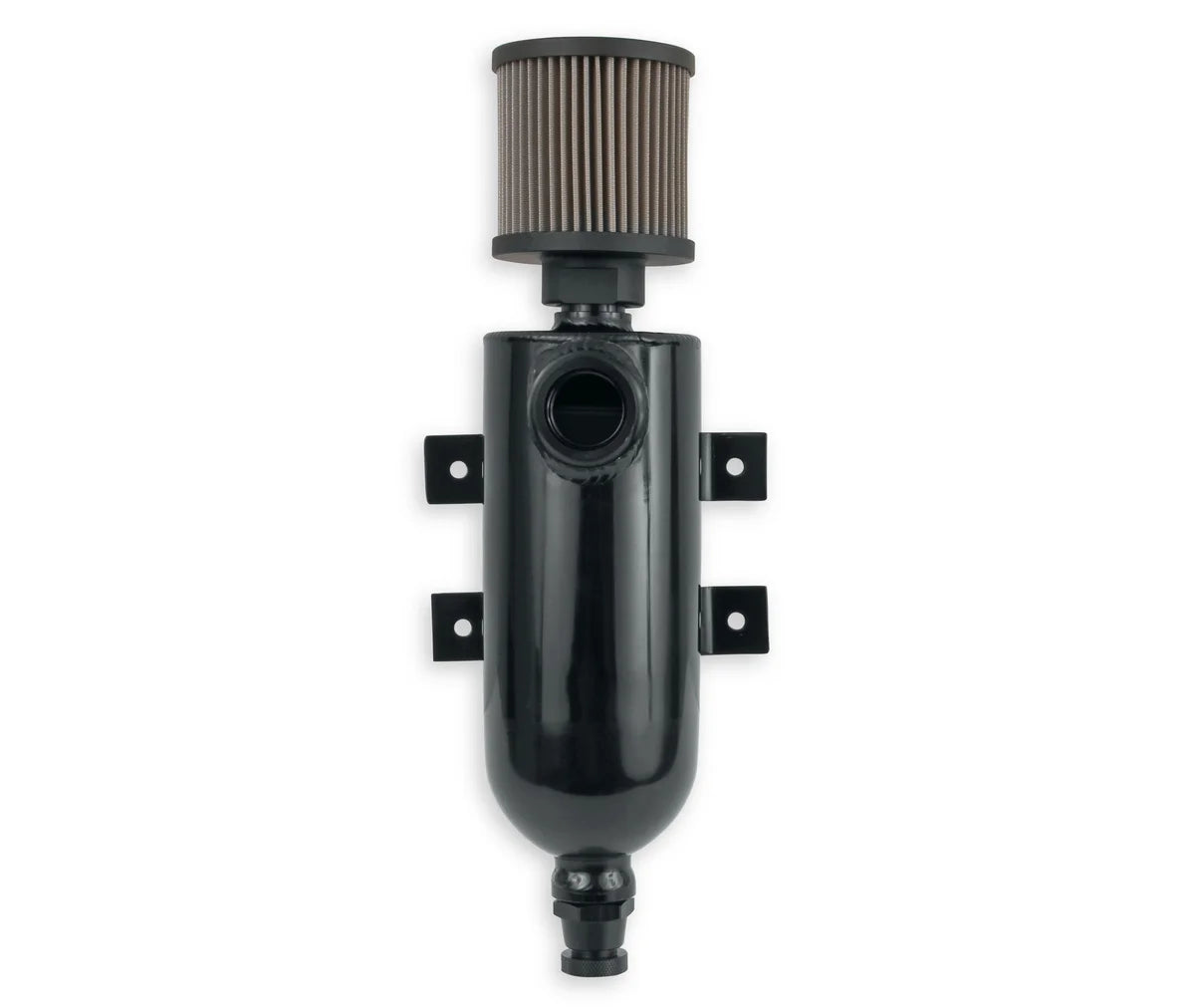

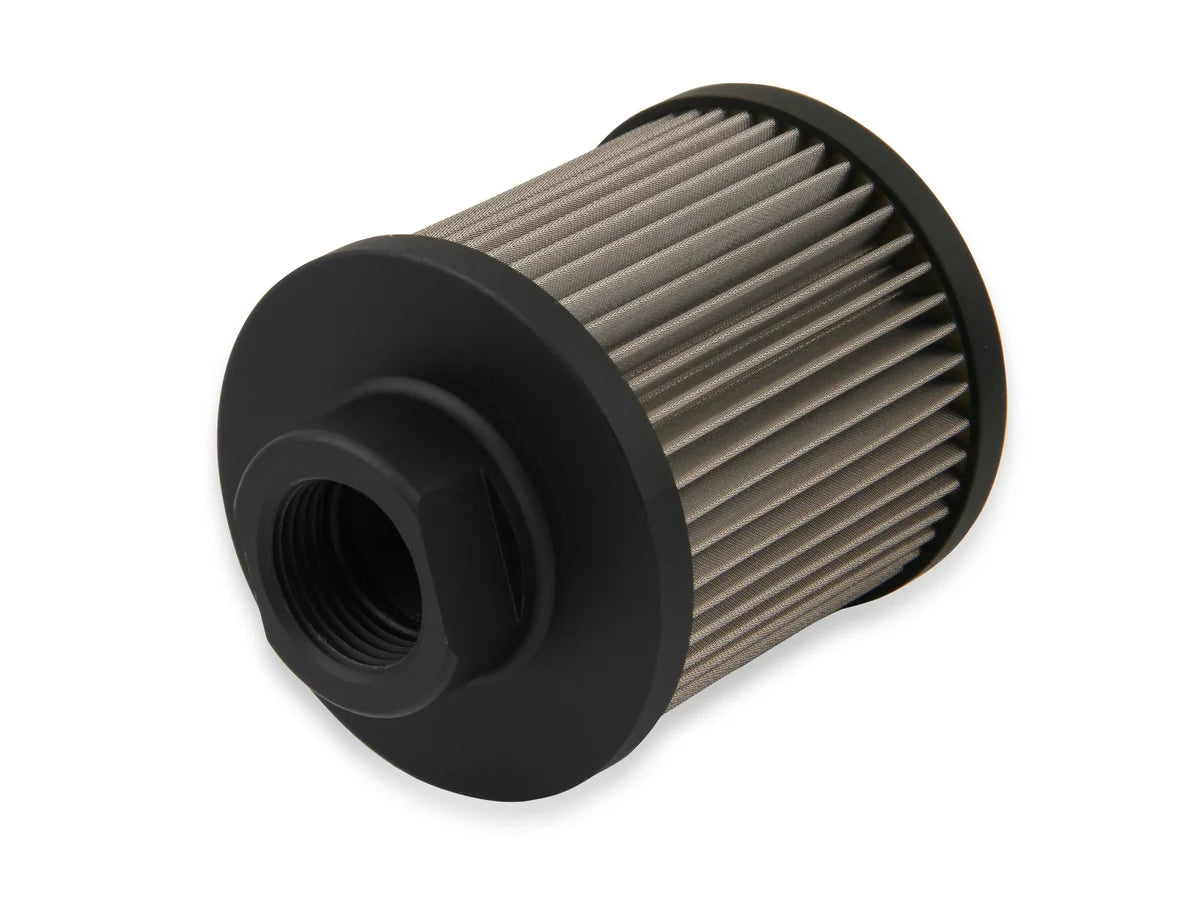

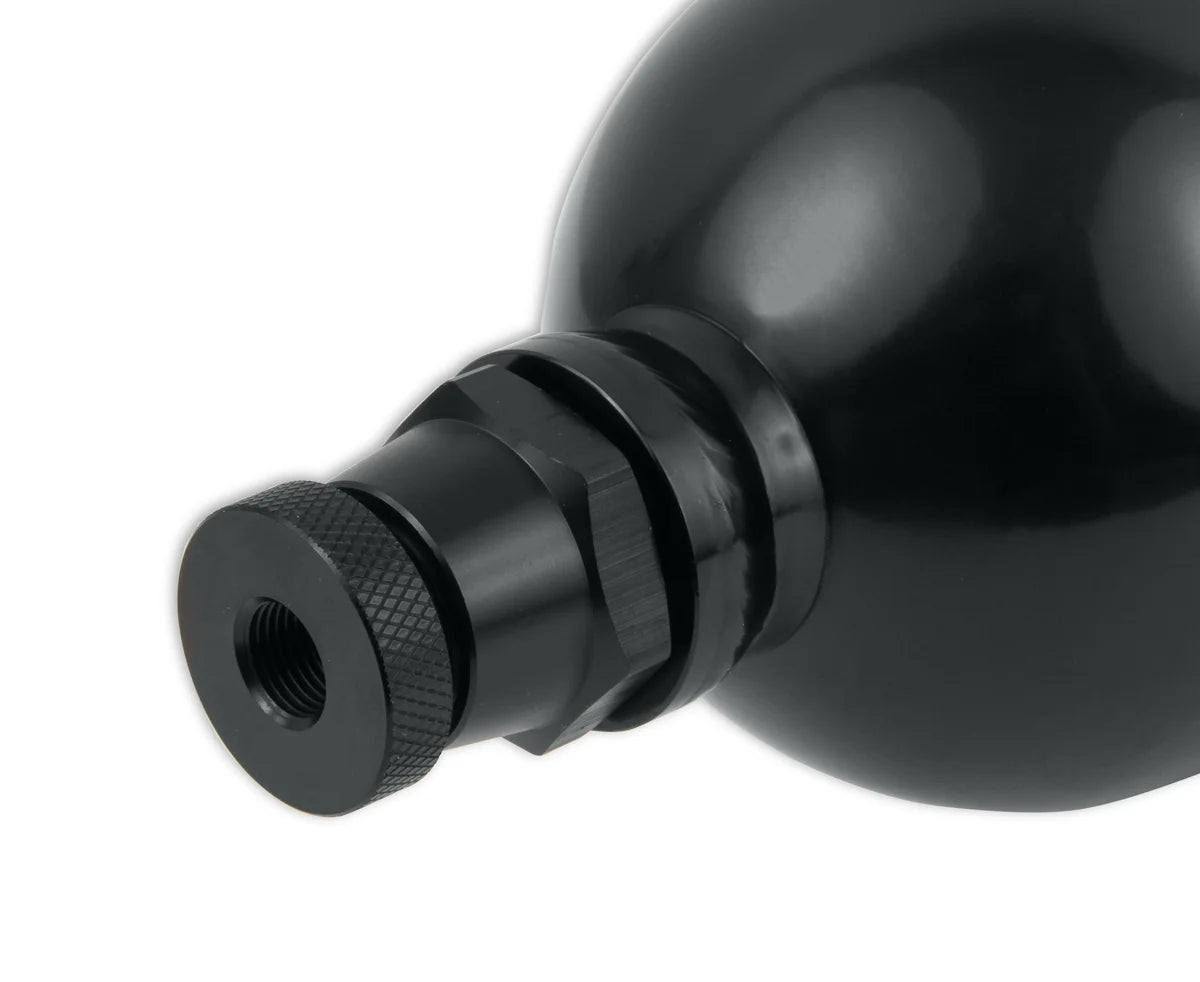

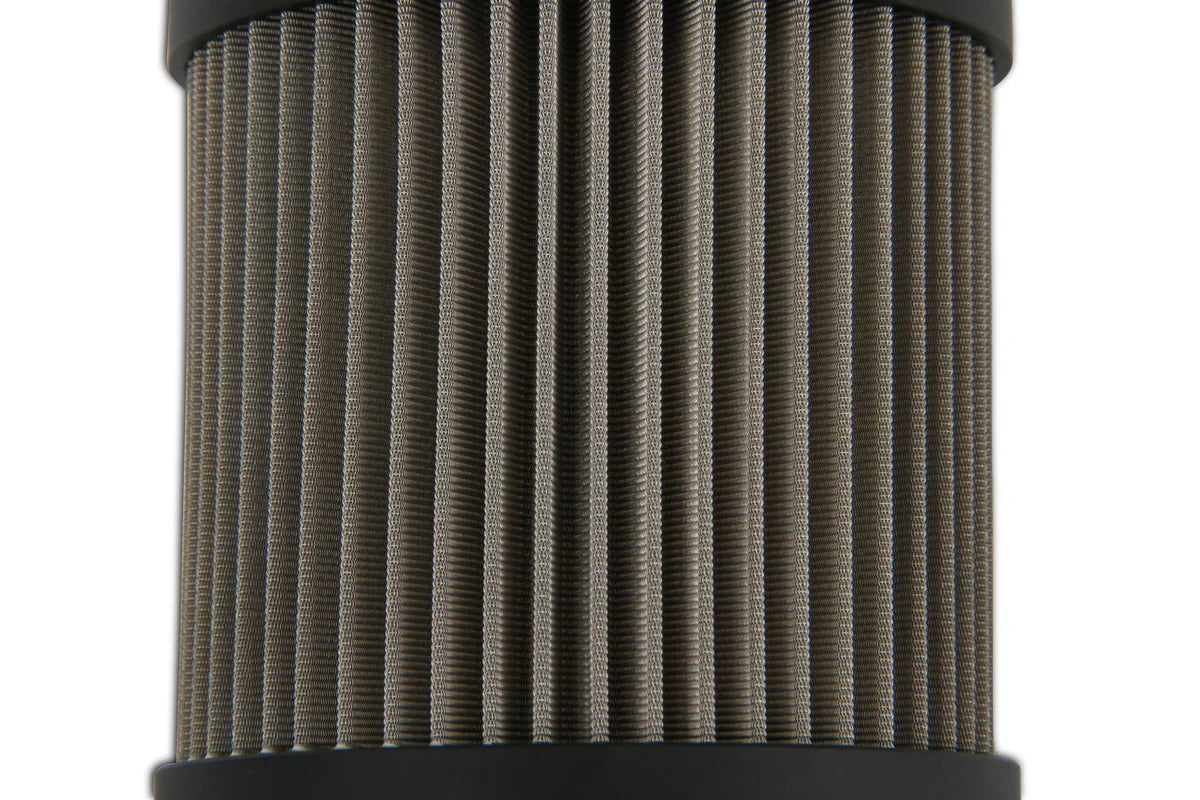

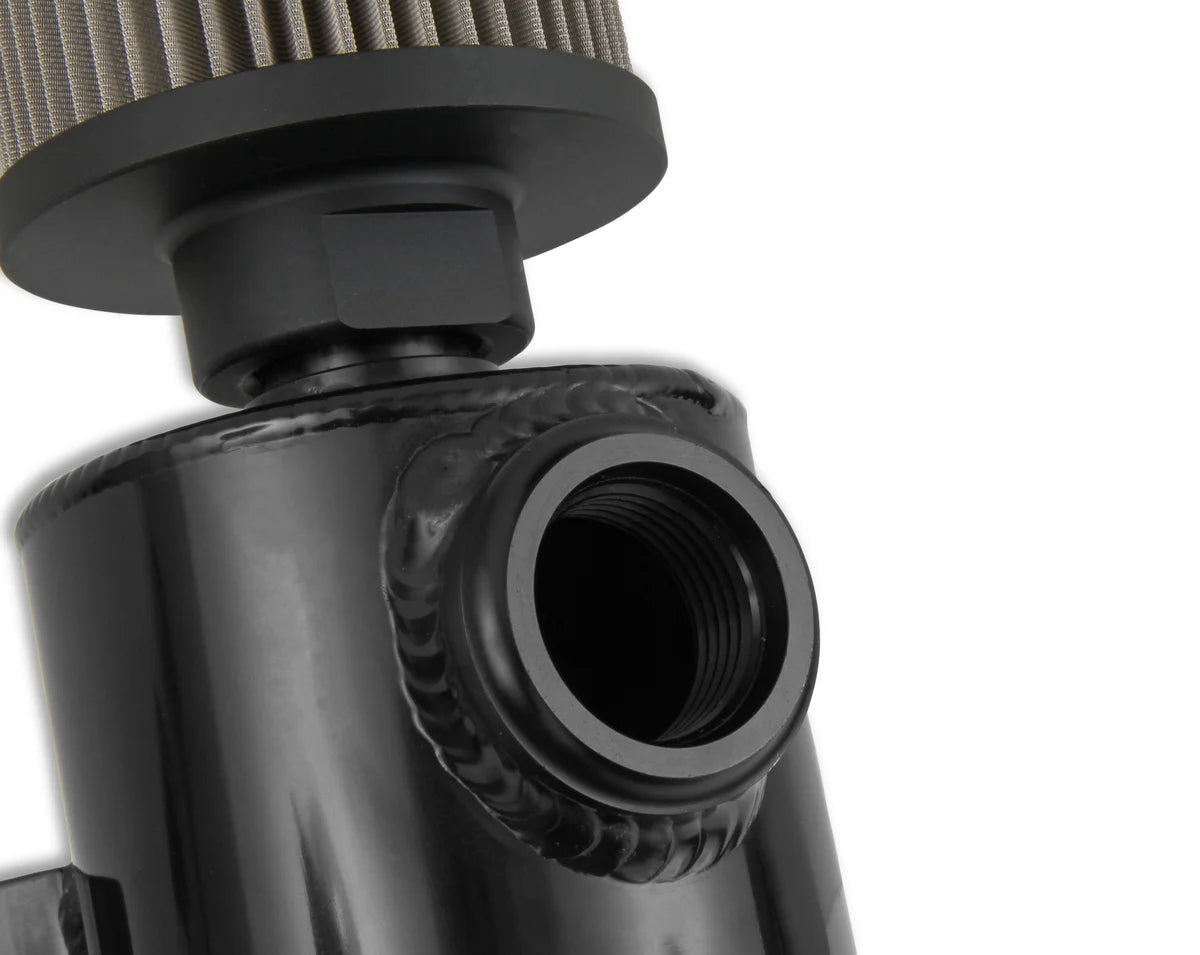

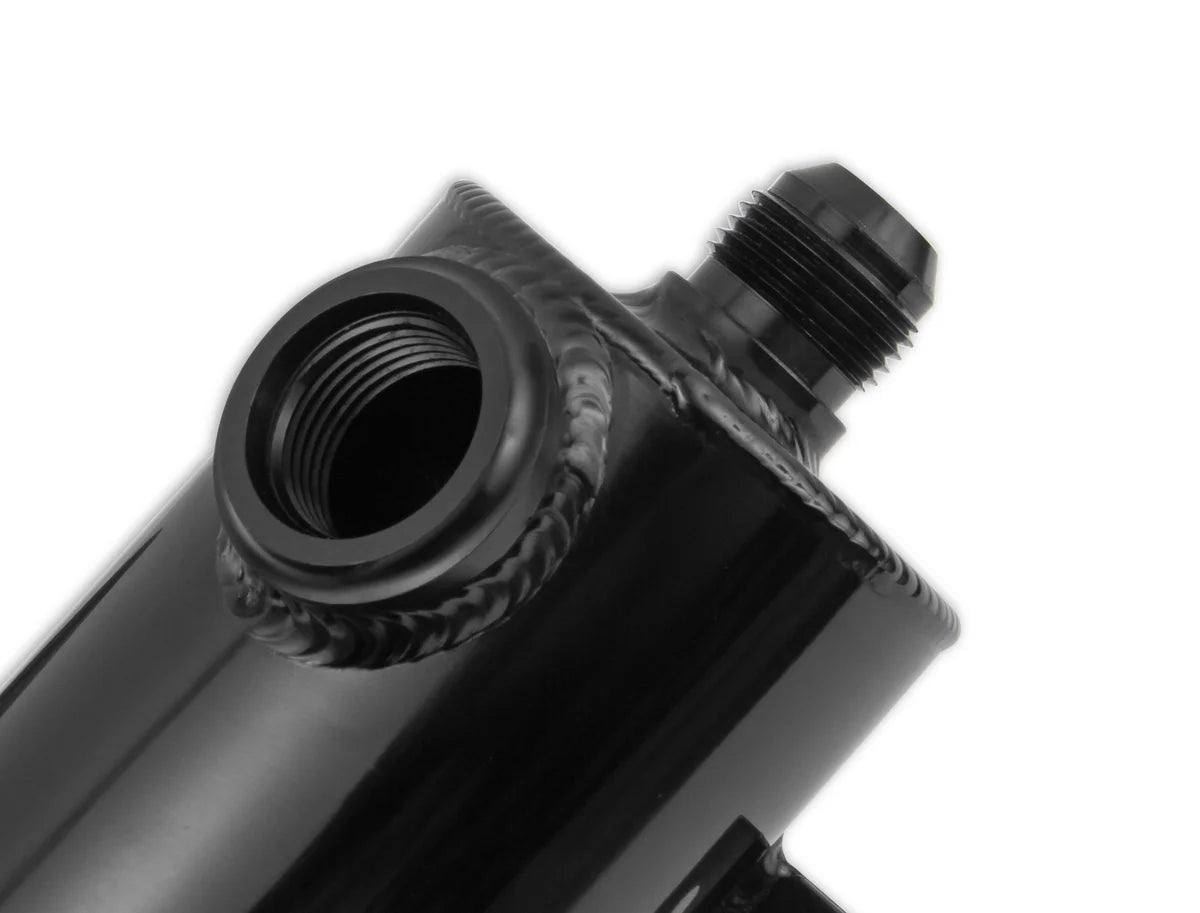

Earl's breather tanks are made from 6061 aluminum and have internal oil baffling. These tanks feature a -12 AN O-ring inlet port, knurled drain valve with an optional 1/8" NPT outlet port for use with a remote drain (or to drain back to the oil pan), w/ 4-bolt mounting brackets. Includes a heavy duty stainless steel mesh filter which has a billet aluminum housing to reduce weight. The filter may be removed to expose a -12AN Male. Ideal for use in all racing applications (i.e. engine PCV, dry sump tanks, transmissions, and rear-end venting). Black anodized finish.
Specifications:
| Adapter NPT Size ( B ) | 1/8 NPT MALE |
| Adapter Port Size (A) | 1-1/16-12 (AN 12) |
| Application | Universal |
| Brand | Earl's |
| Capacity | .75L |
| Category | Air and Fuel Delivery |
| Depth | 3.20" |
| Diameter | 3.15" |
| Emission Code | 4 |
| Filter Type | Steel Mesh |
| Finish | Anodized Black |
| 10 | 6061 Aluminum |
| Overall Height | 13.25" |
| part type | Fuel Catch Can |
| Product Type | Catch Tanks |
| Sub Category | Fuel Storage |
| Warning | California Proposition 65 |
| Width | 5.07" |
| Description_INV | CATCH CAN W/AN O-RING INLET & FILTER-BLK |
| Description_DES | Earl's Breather Tank / Catch Can |
| Description_EXT | Black w/ Billet Filter, Drain Valve, -12 AN O-Ring Port (Inlet) & Mounting Brackets. 1/8" NPT on Drain Valve for Optional Remote Outlet Hose |
| Description_MKT | Earl's breather tanks are made from 6061 aluminum and have internal oil baffling. These tanks feature a -12 AN O-ring inlet port, knurled drain valve with an optional 1/8" NPT outlet port for use with a remote drain (or to drain back to the oil pan), w/ 4-bolt mounting brackets. Includes a heavy duty stainless steel mesh filter which has a billet aluminum housing to reduce weight. The filter may be removed to expose a -12AN Male. Ideal for use in all racing applications (i.e. engine PCV, dry sump tanks, transmissions, and rear-end venting). Black anodized finish. |
| Description_FAB | Pressure Tested to 75psi |
