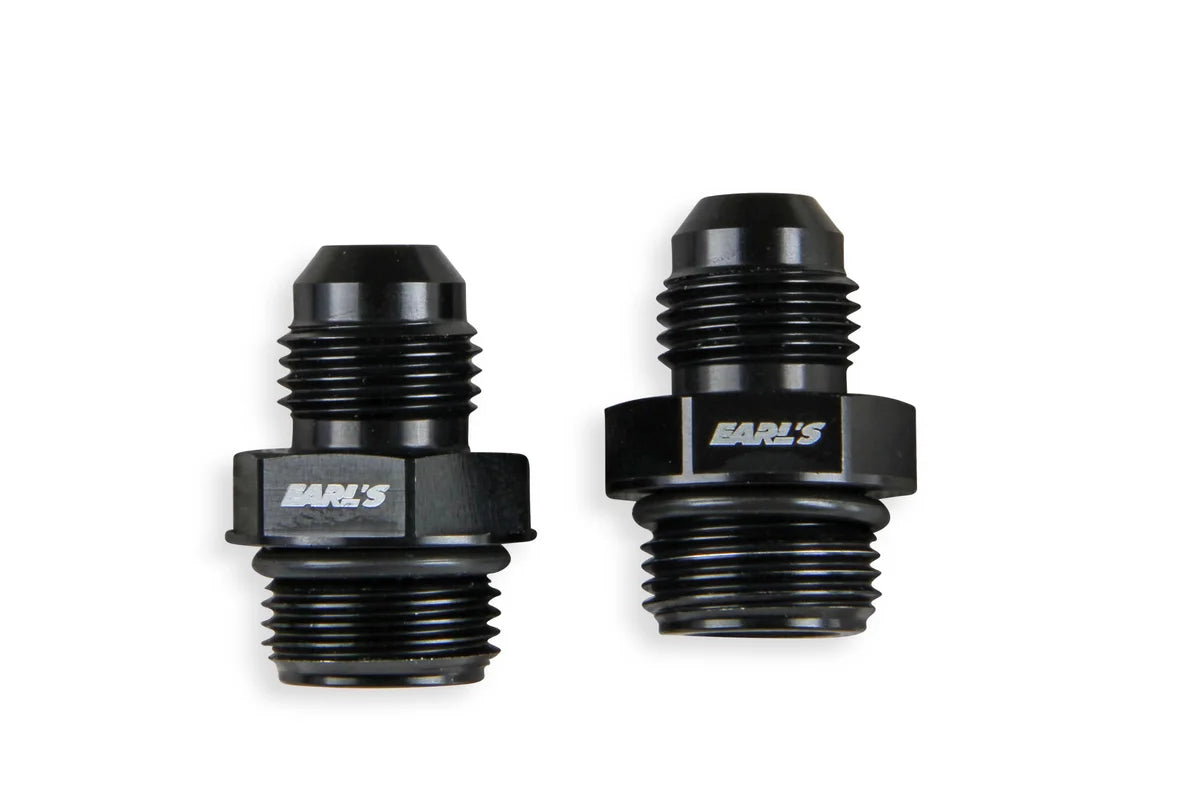

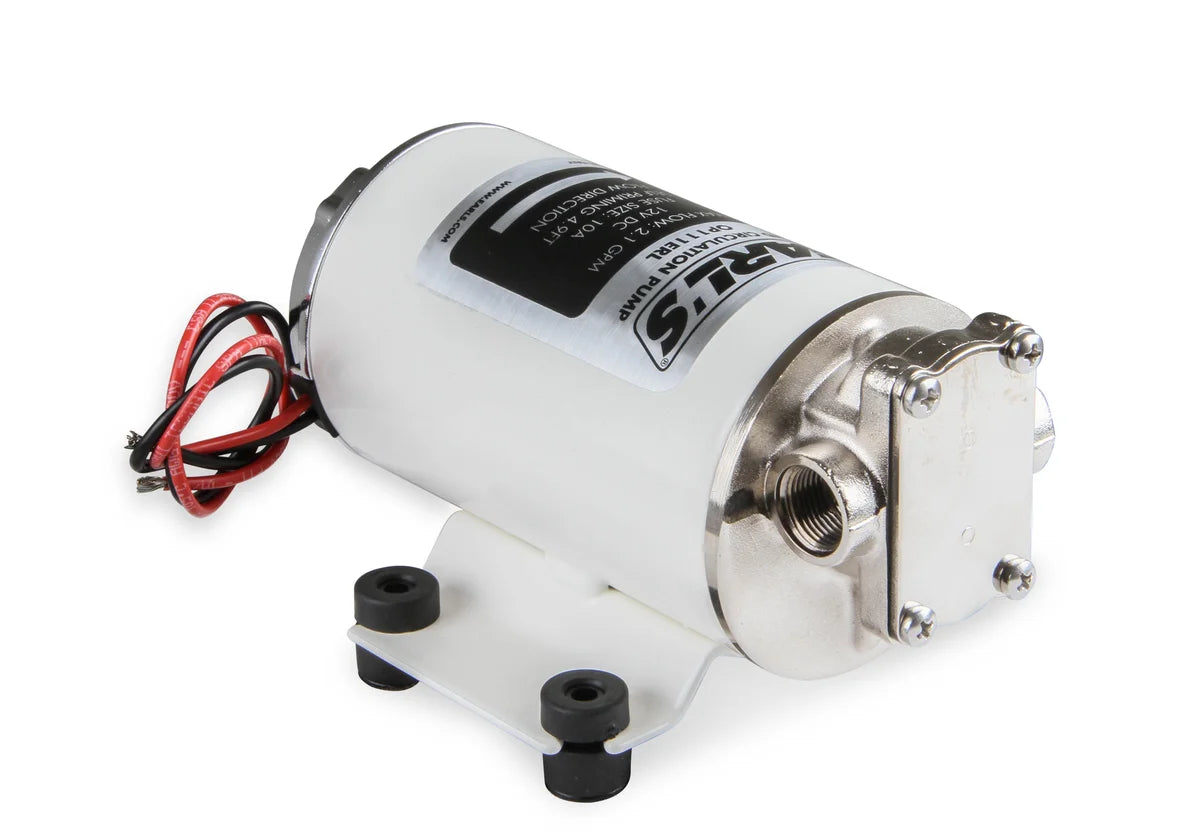

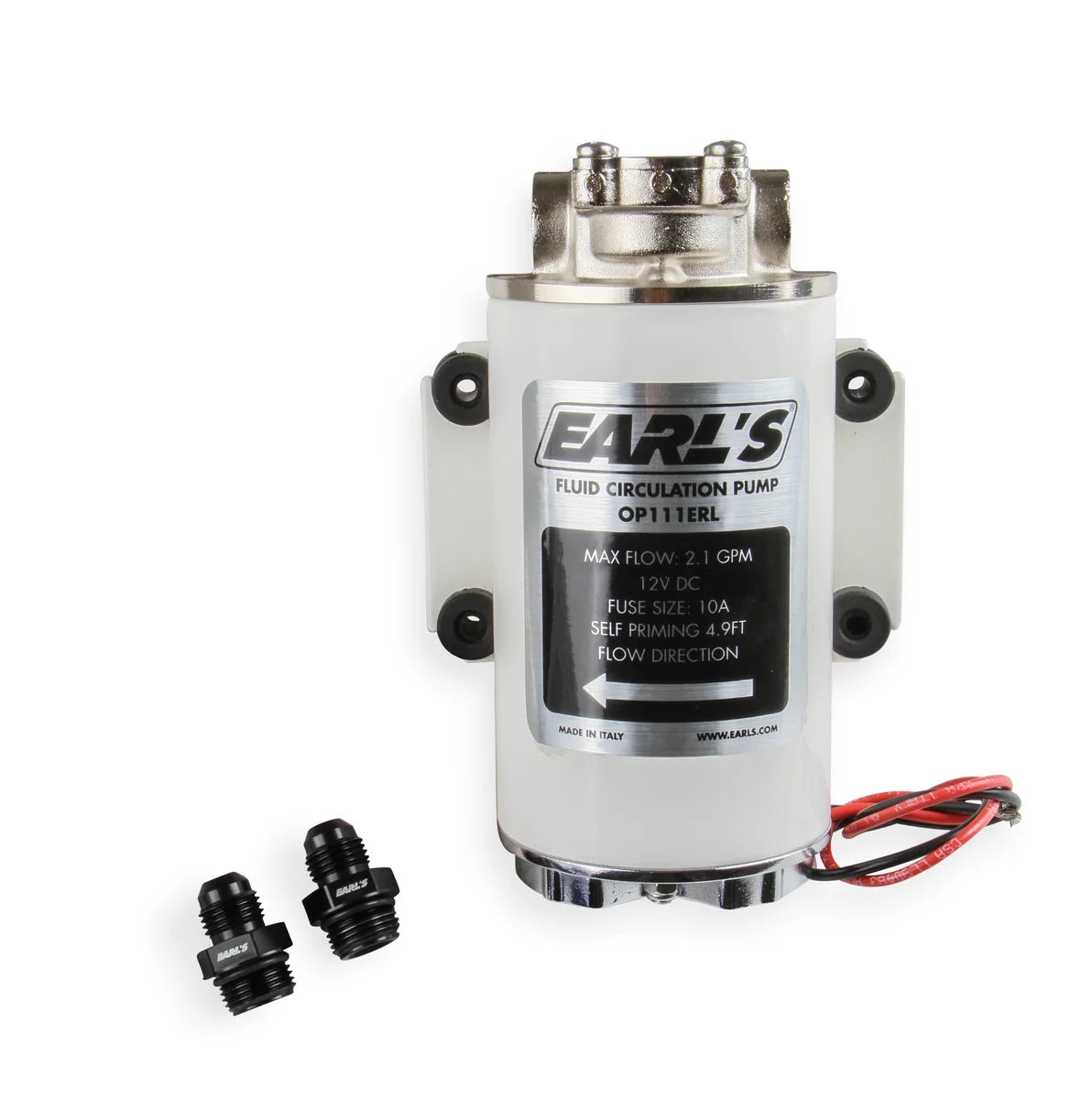

Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends.
Specifications:
| Adapter AN Size ( A ) |
6 AN MALE |
| Adapter Port Size ( B ) |
3/8 BSPP MALE |
| AMP DRAW |
10 |
| Brand |
Earl's |
| Category |
Plumbing AN Fittings and Hose |
| Depth |
3.75" |
| Emission Code |
5 |
| Finish |
White w/ Nickel Plating |
| Free Flow GPM (12v) |
Up to 2.1 |
| Height |
6.5" |
| Material |
Steel Pump w/ Brass Housing |
| Max Pressure |
72.5 PSI |
| Mounting Bolt Pattern |
4-Bolt 2.25" x 3.75" |
| Product Type |
Oil Pump |
| Seal Material |
FKM |
| Temperature Range |
14 to 265° F |
| Voltage |
12 VDC |
| Warning |
California Proposition 65 |
| Weight |
5.5 lb |
| Width |
4.625" |
| Adapter AN Size ( A ) |
6 AN MALE |
| Adapter Port Size ( B ) |
3/8 BSPP MALE |
| AMP DRAW |
10 |
| Brand |
Earl's |
| Category |
Plumbing AN Fittings and Hose |
| Depth |
3.75" |
| Emission Code |
5 |
| Finish |
White w/ Nickel Plating |
| Free Flow GPM (12v) |
Up to 2.1 |
| Height |
6.5" |
| Material |
Steel Pump w/ Brass Housing |
| Max Pressure |
72.5 PSI |
| Mounting Bolt Pattern |
4-Bolt 2.25" x 3.75" |
| Product Type |
Oil Pump |
| Seal Material |
FKM |
| Temperature Range |
14 to 265° F |
| Voltage |
12 VDC |
| Warning |
California Proposition 65 |
| Weight |
5.5 lb |
| Width |
4.625" |
| Description_INV |
EARLS DIFF/TRANS FLUID CIRCULATION PUMP |
| Description_ASC |
Allow oil to warm up before turning on pump, or wire with temperature switch. |
| Description_DES |
Earl's Electric Oil Pump - 12 VDC |
| Description_EXT |
12-Volt DC Electric Oil Circulation Pump w/ 3/8" BSPP (British Standard Pipe Parallel) straight thread Female Ports |
| Description_MKT |
Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends. |
| Description_FAB |
Use w/ Relay & Fuse (available separately) |
| Description_INV |
EARLS DIFF/TRANS FLUID CIRCULATION PUMP |
| Description_ASC |
Allow oil to warm up before turning on pump, or wire with temperature switch. |
| Description_DES |
Earl's Electric Oil Pump - 12 VDC |
| Description_EXT |
12-Volt DC Electric Oil Circulation Pump w/ 3/8" BSPP (British Standard Pipe Parallel) straight thread Female Ports |
| Description_MKT |
Earls electric oil pump is ideal for circulating the gear oil through an external oil cooler - for cooling the differential or manual transmission. This heavy duty pump features a metal housing & is self-priming w/ a flow rate of up to 2.1 gallons per minute. The compact design is durable and has a continuous duty rating (see temperature range shown below). This pump includes (2) -6 AN Male to BSPP adapter fittings. Ideal for use with Earl's UltraPro oil cooler along w/ AN hose & hose ends. |
| Description_FAB |
Use w/ Relay & Fuse (available separately) |
