Our factory assembled hoses are made from the same SPEED-FLEX stainless steel braid protected hose of extruded PTFE that is the world standard of the racing industry for flexible brake, clutch and instrument hoses. Hoses are assembled with Earl''s SPEED-FLEX crimp or swaged permanently installed hose ends. Each hose is pressure tested to 4,000 psi.
| Description_INV |
-3 St./90 Deg. 28 Hose |
| Description_ASC |
We have independent test lab reports on file showing that prototype assemblies exceeded D.O.T. recommendations in all categories. The only continuing test program however, is a 4000 P.S.I. hydrostatic pressure test of every hose assembly that we make. We do not claim that any individual hose assembly is certifiable to D.O.T. standards, and we therefore must advise you that they are sold for off-road applications only. We make no claim of usability or suitability for highway or road use. PTFE brake hoses must be installed by an experienced professional mechanic. After installation each hose must be clean and free flowing. There must be no possibility that the installed hose assemblies can be stretched, crimped, or kinked under any conditions of wheel travel and steering angle. As with any hose installation, periodic inspection of hose condition is essential. |
| Description_DES |

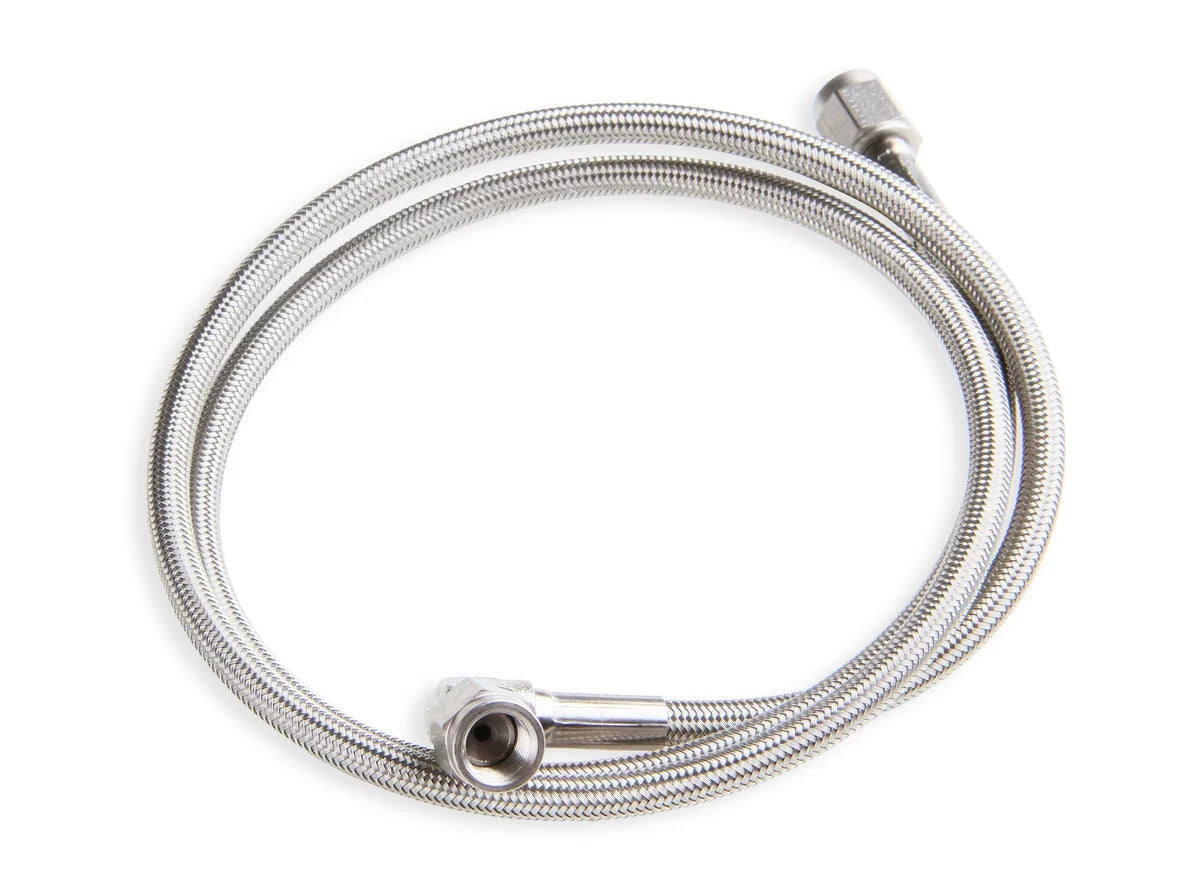

Earl's Speed-Flex Hyperfirm® Pre-Made Hose |
| Description_EXT |
Speed-Flex Line 3 AN Female Swivel Straight To 3 Female Swivel 90 Hose Size 3 Length 28. |
| Description_MKT |
Our factory assembled hoses are made from the same SPEED-FLEX stainless steel braid protected hose of extruded PTFE that is the world standard of the racing industry for flexible brake, clutch and instrument hoses. Hoses are assembled with Earl''s SPEED-FLEX crimp or swaged permanently installed hose ends. Each hose is pressure tested to 4,000 psi. |
| Description_FAB |
Pressure Tested To 4000 PSI |
| Description_INV |
-3 St./90 Deg. 28 Hose |
| Description_ASC |
We have independent test lab reports on file showing that prototype assemblies exceeded D.O.T. recommendations in all categories. The only continuing test program however, is a 4000 P.S.I. hydrostatic pressure test of every hose assembly that we make. We do not claim that any individual hose assembly is certifiable to D.O.T. standards, and we therefore must advise you that they are sold for off-road applications only. We make no claim of usability or suitability for highway or road use. PTFE brake hoses must be installed by an experienced professional mechanic. After installation each hose must be clean and free flowing. There must be no possibility that the installed hose assemblies can be stretched, crimped, or kinked under any conditions of wheel travel and steering angle. As with any hose installation, periodic inspection of hose condition is essential. |
| Description_DES |
Earl's Speed-Flex Hyperfirm® Pre-Made Hose |
| Description_EXT |
Speed-Flex Line 3 AN Female Swivel Straight To 3 Female Swivel 90 Hose Size 3 Length 28. |
| Description_MKT |
Our factory assembled hoses are made from the same SPEED-FLEX stainless steel braid protected hose of extruded PTFE that is the world standard of the racing industry for flexible brake, clutch and instrument hoses. Hoses are assembled with Earl''s SPEED-FLEX crimp or swaged permanently installed hose ends. Each hose is pressure tested to 4,000 psi. |
| Description_FAB |
Pressure Tested To 4000 PSI |
| Brand |
Earl's |
| Category |
Air and Fuel Delivery |
| Emission Code |
5 |
| Fluid Type |
Oil |
| Fluid Type |
Brake Fluid |
| Fluid Type |
Methanol/Alcohol |
| Fluid Type |
E85 |
| Fluid Type |
Bio-Fuels |
| Fluid Type |
Automatic Transmission Fluid |
| Fluid Type |
Coolant |
| Fluid Type |
Race Gas |
| Fluid Type |
Diesel |
| Fluid Type |
Pump Gas |
| Fluid Type Rating - Automatic Transmission Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Bio-Fuels |
5 out of 5 Rating |
| Fluid Type Rating - Brake Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Diesel |
5 out of 5 Rating |
| Fluid Type Rating - E85 |
5 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
5 out of 5 Rating |
| Fluid Type Rating - Oil |
5 out of 5 Rating |
| Fluid Type Rating - Power Steering Fluid |
5 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
5 out of 5 Rating |
| Fluid Type Rating - Race Gas |
5 out of 5 Rating |
| Fluid Type Rating - Vacuum |
1 out of 5 Rating |
| Hose End #1 |
3 AN FEMALE |
| Hose End #2 |
3 AN FEMALE 90 DEG |
| Hose End Finish |
Electroless Nickel Plated |
| Hose End Material |
Steel |
| Hose Outer Material |
Stainless Steel |
| Hose Size |
3 AN |
| Inside Diameter |
.120"-.143" |
| Length |
28 In. |
| Max Working PSI |
2000 PSI |
| Min. Bend Radius |
1.5" |
| Outside Diameter |
.214"-.258" |
| part type |
Fuel Hose |
| Product Type |
Hose Assembly |
| PTFE Wall Thickness |
.040" |
| Sub Category |
Fuel Storage |
| Submersible in Fuel |
Yes |
| Temperature Range |
-65⁰ to 450⁰ F |
| Warning |
California Proposition 65 |
