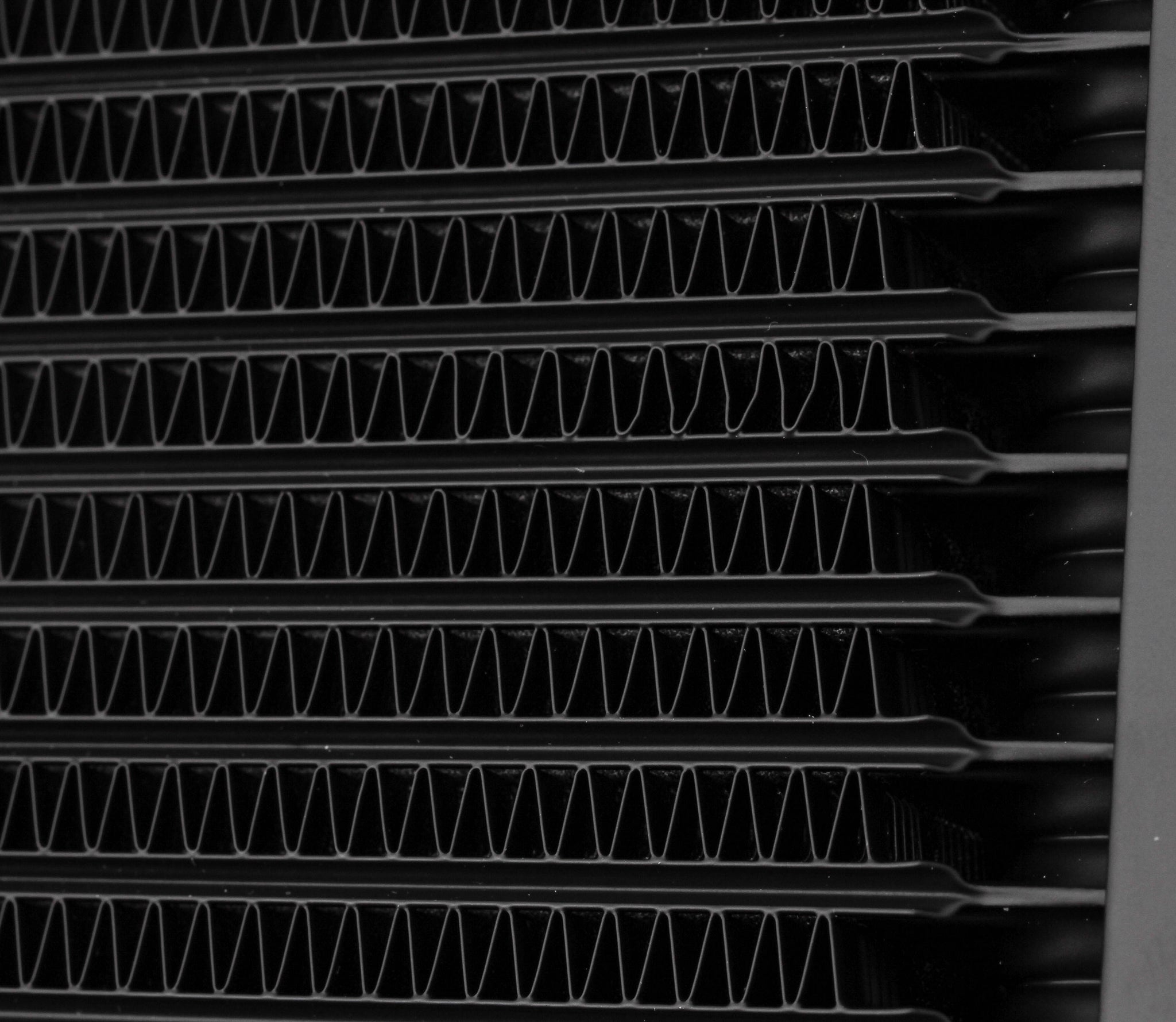

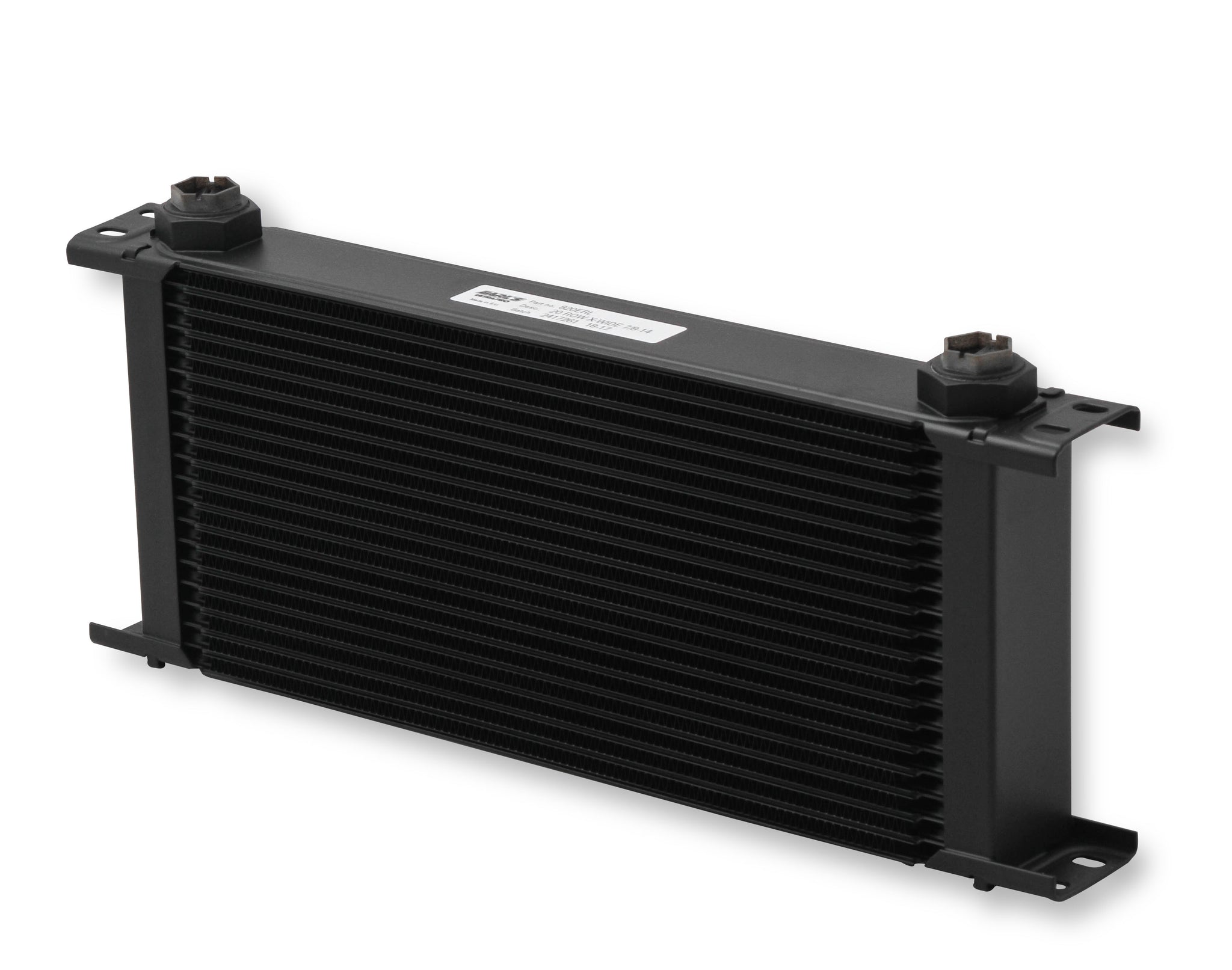

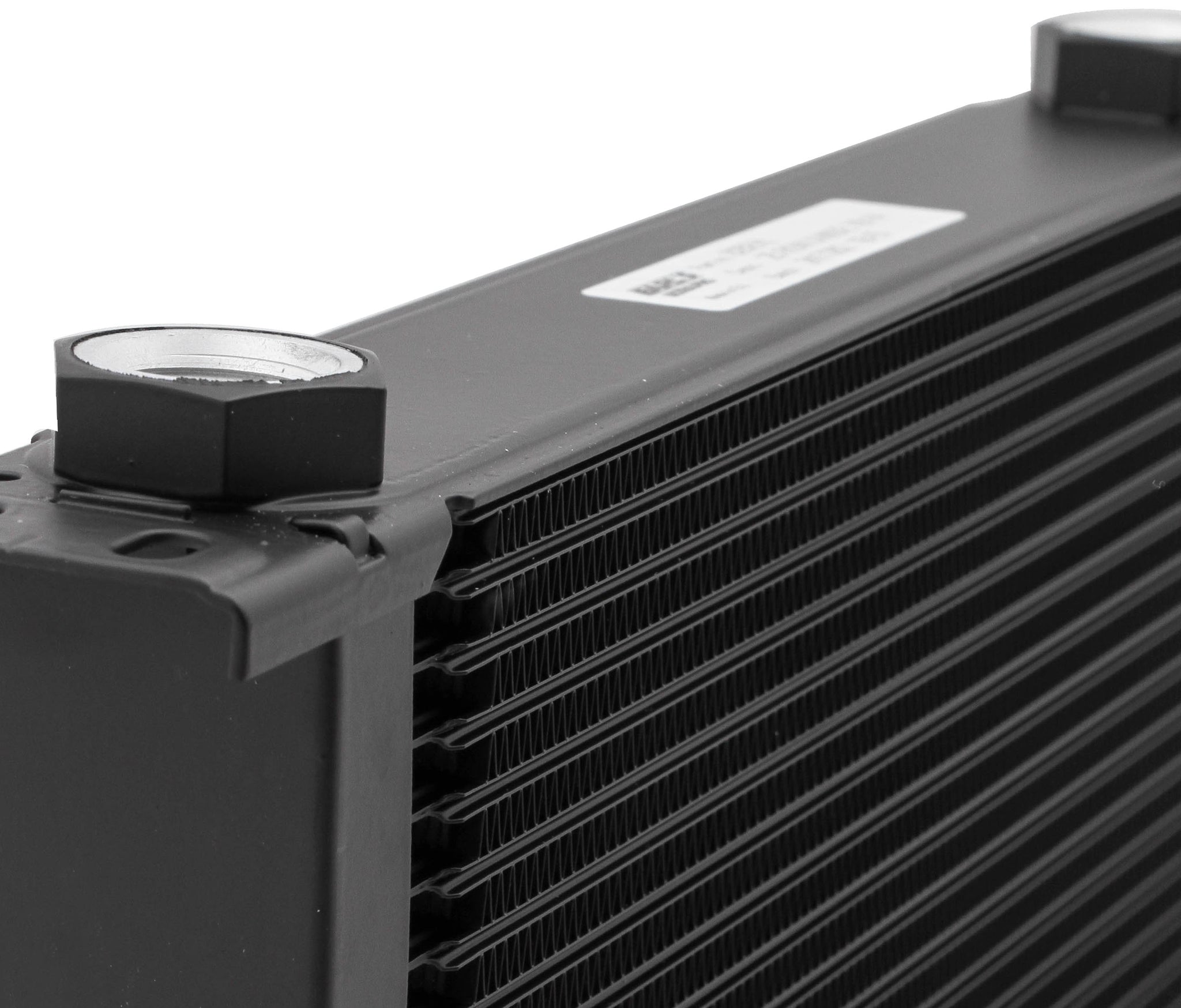

Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish.
Specifications:
| Application |
Engine Oil Cooler |
| Application |
Transmission Cooler |
| Application |
Differential Cooler |
| Body Width (Overall) |
16.000" |
| Brackets Included |
No |
| Brand |
Earl's |
| Category |
Belts and Cooling |
| Construction |
Stacked Plate - Brazed |
| Cooler Fittings |
AT585112ERL |
| Cooler Fittings |
585112ERL |
| Cooler Fittings |
AT585110ERL |
| Cooler Fittings |
585110ERL |
| Cooler Fittings |
585108ERL |
| Cooler Fittings |
AT585108ERL |
| Cooler Fittings |
585106ERL |
| Cooler Fittings |
AT585106ERL |
| Cooler Fittings Included |
No |
| Emission Code |
5 |
| Engine HP Range |
300-400 HP |
| Engine Oil BTU Range |
35,000-50,000 |
| 200 |
Black |
| Fitting Centers |
12.480" |
| Height |
6.060" |
| Material |
Aluminum |
| Mounting Bracket Width |
15.160" |
| Mounting Brackets |
800ERL |
| part type |
Engine Oil Cooler |
| Port Size |

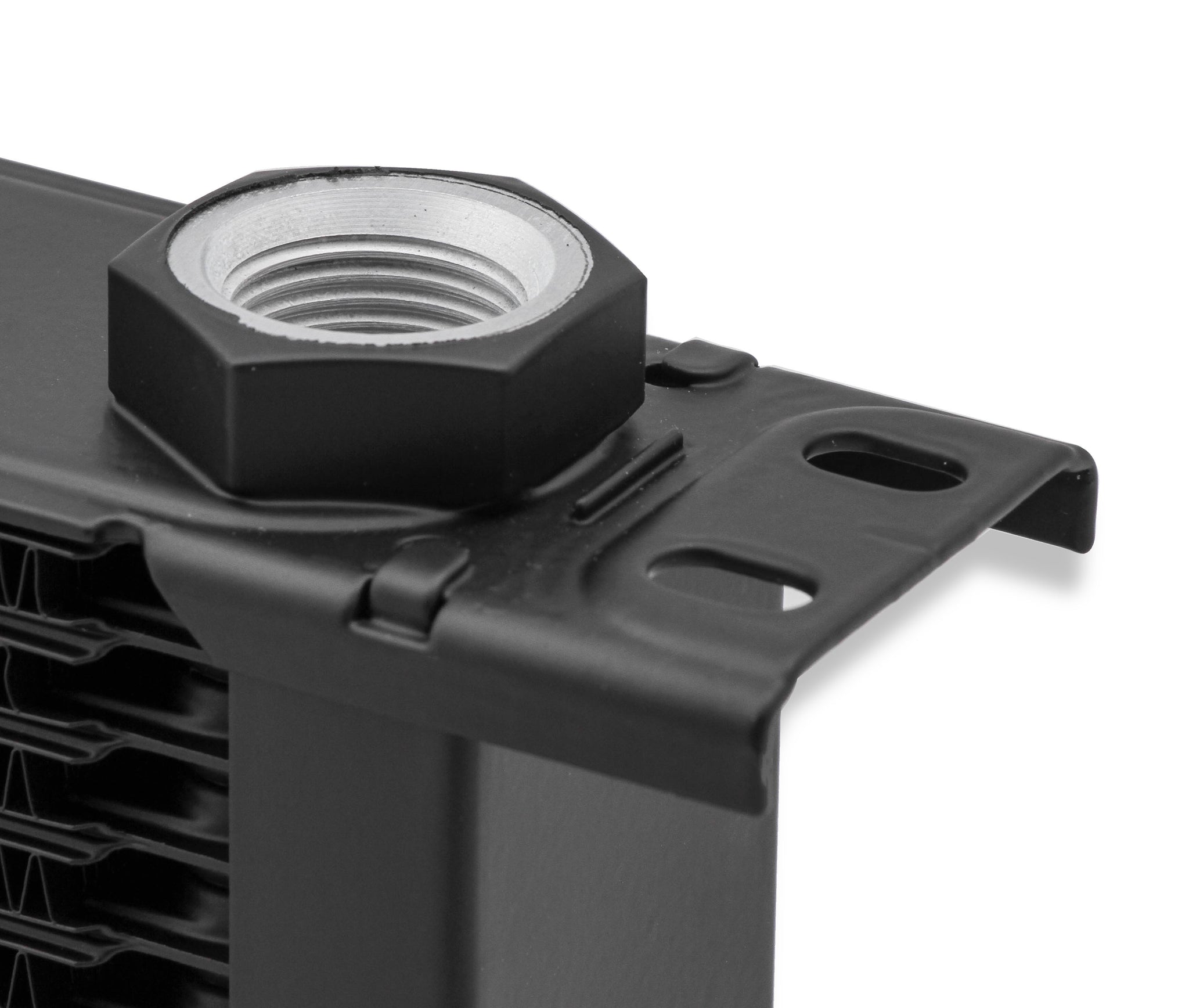

7/8-14 Female (-10 O-Ring Boss) |
| Product Line |
UltraPro |
| Product Type |
Oil Cooler |
| ROWS |
20 Rows |
| Sub Category |
Radiators, Coolers and Related Components |
| Temperature Range |
-40° F to 302° F |
| Thickness |
2.000" |
| Transmission Fluid BTU Range |
16,500-29,500 |
| Volume |
.55 Quarts |
| Warranty |
Manufacturer’s Limited 90 Day Warranty |
| Weight |
3.55 Lbs |
| Width |
Extra-Wide Cooler |
| Width (Less Mounting Ears) |
14.125" |
| Description_ABR |
ESPEOC |
| Description_SHO |
Ultrapro Oil Cooler |
| Description_INV |
20 ROW COOLER ULTRAPRO XWIDE BLACK |
| Description_DES |
Earl's UltraPro Oil Cooler - 20 Rows - Extra-Wide Cooler |
| Description_EXT |
20 Row Oil Cooler Core Black |
| Description_MKT |
Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish. |
| Description_FAB |
Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers Made Using State of the Art Brazing Technology Highly Efficient Design w/ Minimal Pressure Drop Extremely Durable Lightweight Aluminum Construction w/Black Finish (3) Width Options - Narrow 8.25, Wide 12.99, and Extra Wide 15.94 Overall Width (10) Height Options - w/ 7 to 60 Rows (2.09 to 18.31 Tall) (3) Fan Pack Style Coolers Include the Oil Cooler, Spal Cooling Fan(s) & Shroud Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings) or 16 AN Male Ports (10) Select Sizes w/ 16 AN Male Ports Will Be Stocked (no longer special order) Optional Mounting Brackets – Sold Separately |
