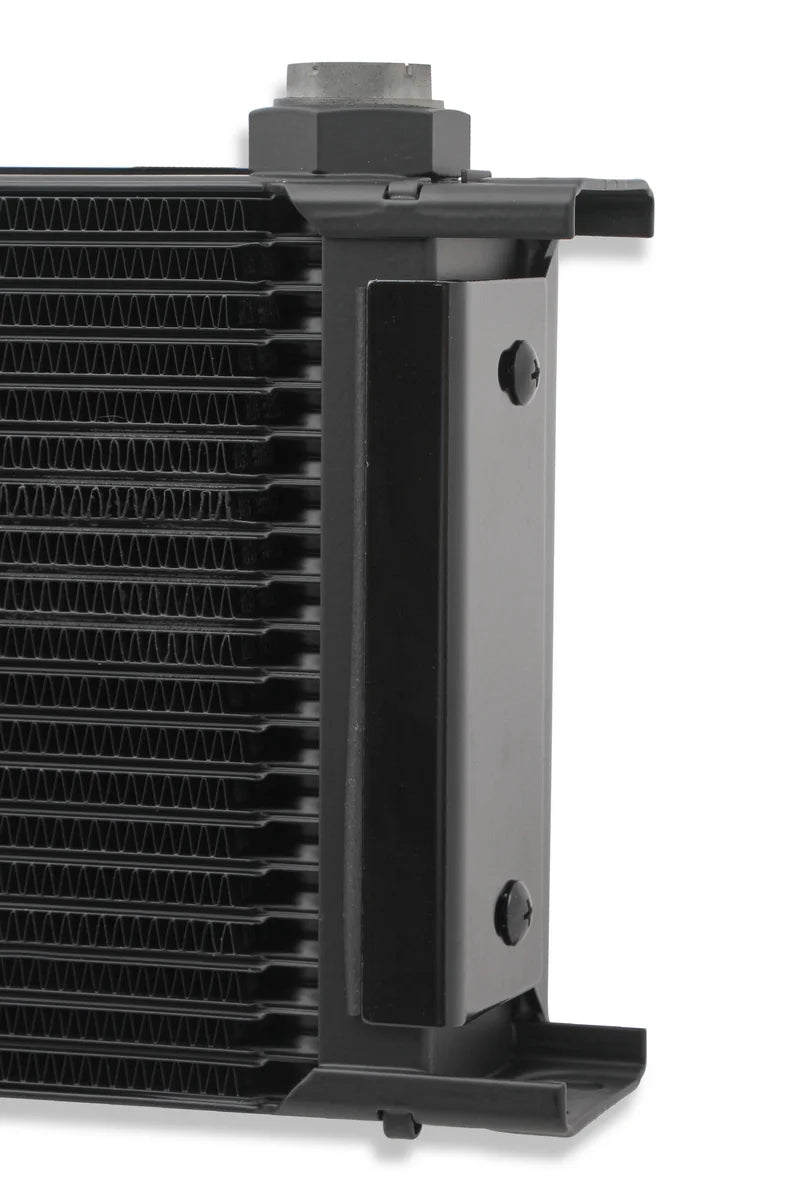

Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These fan coolers are available in 3 sizes & feature a premium cooling fan & aluminum shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Black Finish.
Specifications:
| Description_INV |
20 ROW X-WIDE COOLER AND FAN PACK BLACK |
| Description_DES |

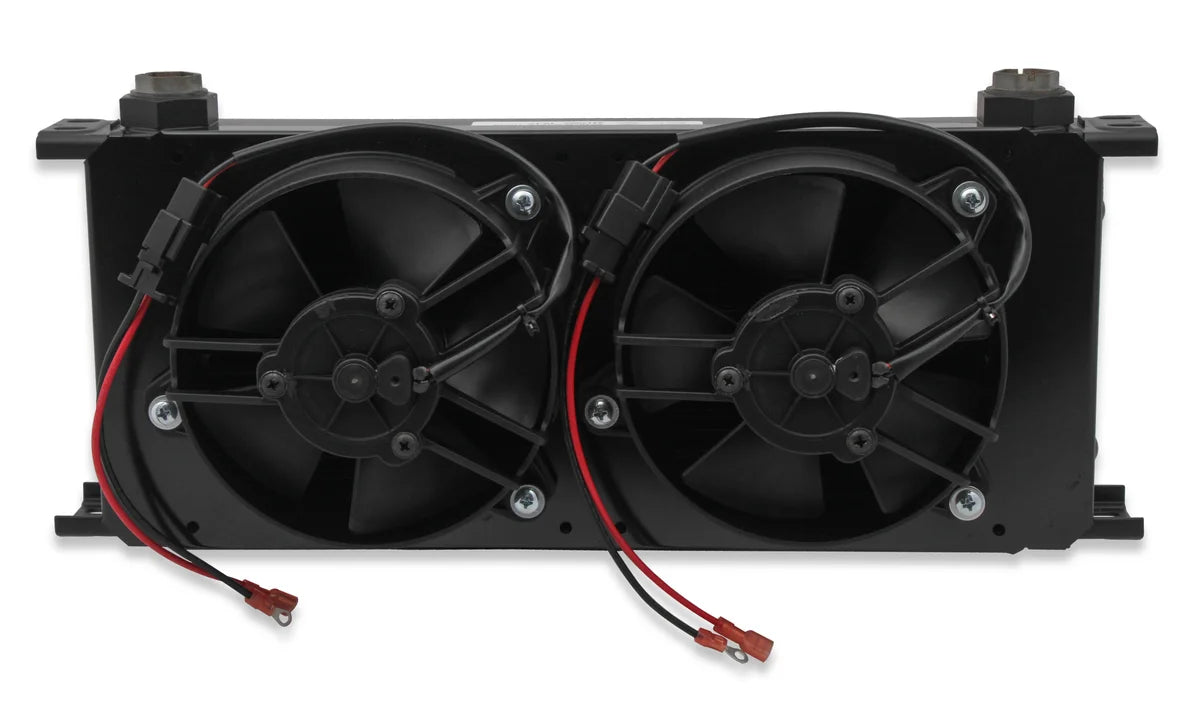

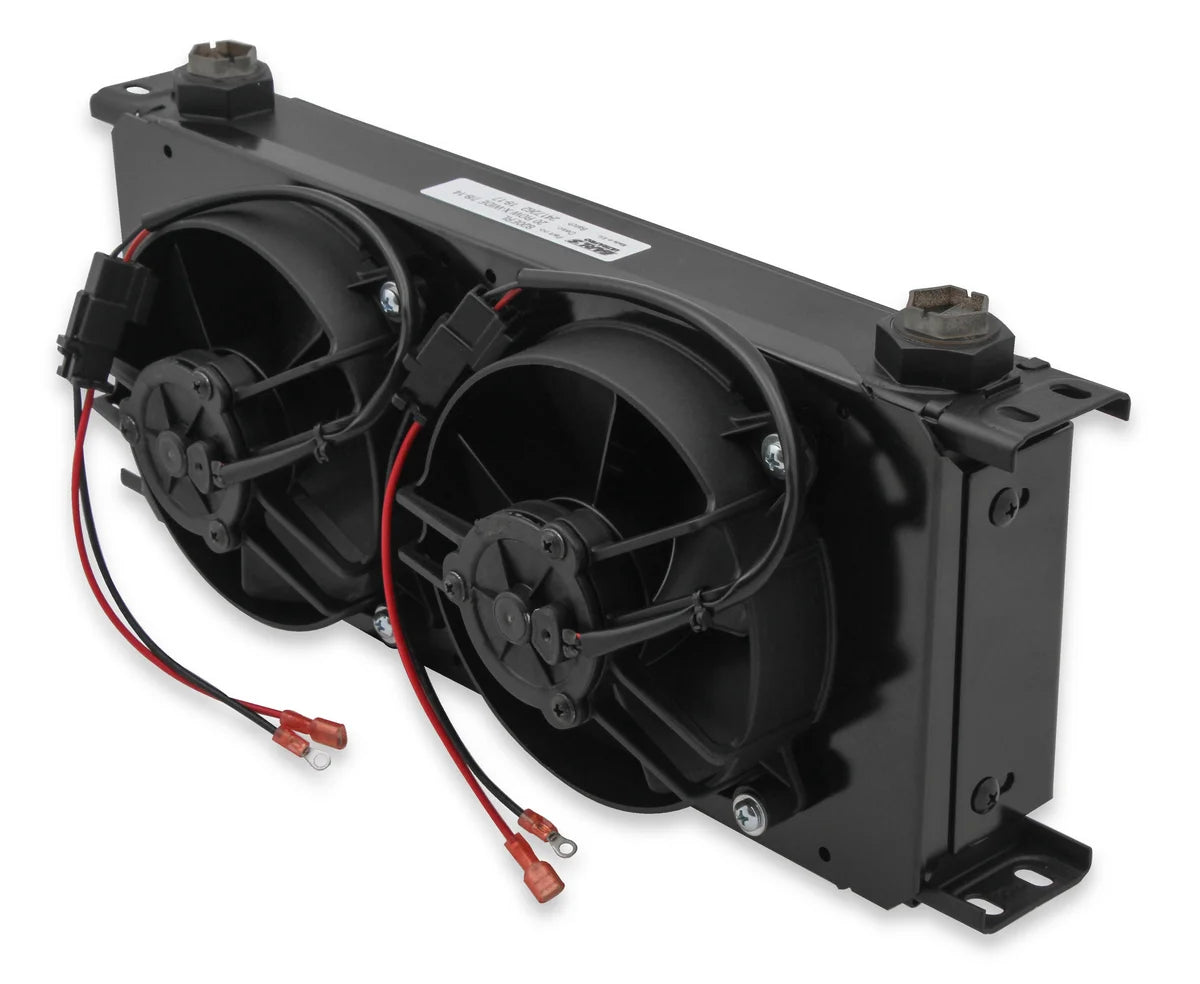

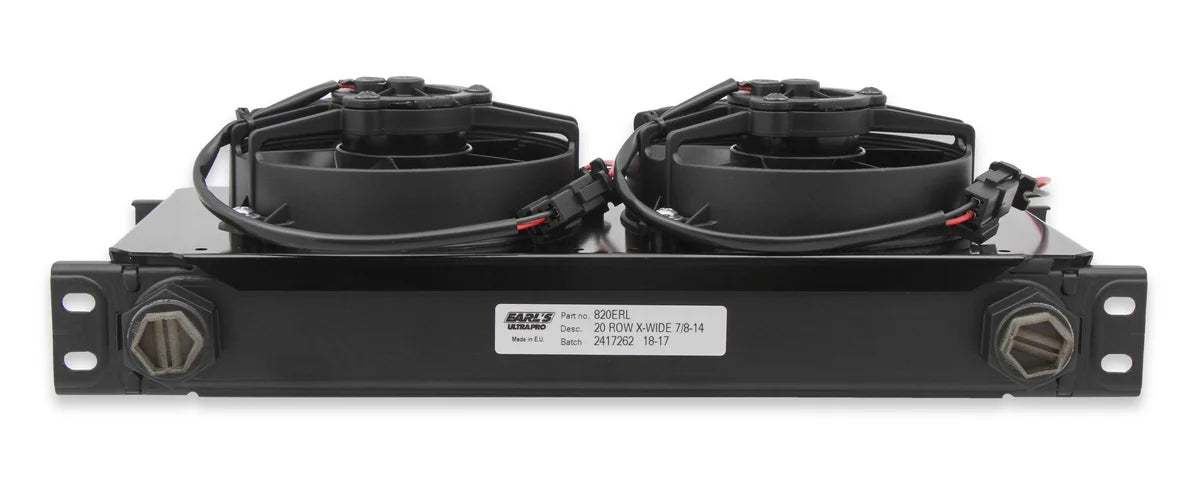

Earl's UltraPro Oil Cooler w/ Dual Fan Pack - 20 Rows - Extra-Wide Cooler |
| Description_EXT |
20 Row Oil Cooler and Fan Pack |
| Description_MKT |
Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These fan coolers are available in 3 sizes & feature a premium cooling fan & aluminum shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Black Finish. |
| Description_FAB |
Optional Mounting Brackets – Sold Separately |
| Description_INV |
20 ROW X-WIDE COOLER AND FAN PACK BLACK |
| Description_DES |
Earl's UltraPro Oil Cooler w/ Dual Fan Pack - 20 Rows - Extra-Wide Cooler |
| Description_EXT |
20 Row Oil Cooler and Fan Pack |
| Description_MKT |
Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These fan coolers are available in 3 sizes & feature a premium cooling fan & aluminum shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Black Finish. |
| Description_FAB |
Optional Mounting Brackets – Sold Separately |
| AMP DRAW |
4.8 |
| Application |
Transmission Cooler |
| Application |
Engine Oil Cooler |
| Application |
Differential Cooler |
| Blade Style |
Paddle |
| Body Width (Overall) |
16.000" |
| Brackets Included |
No |
| Brand |
Earl's |
| Category |
Belts and Cooling |
| Construction |

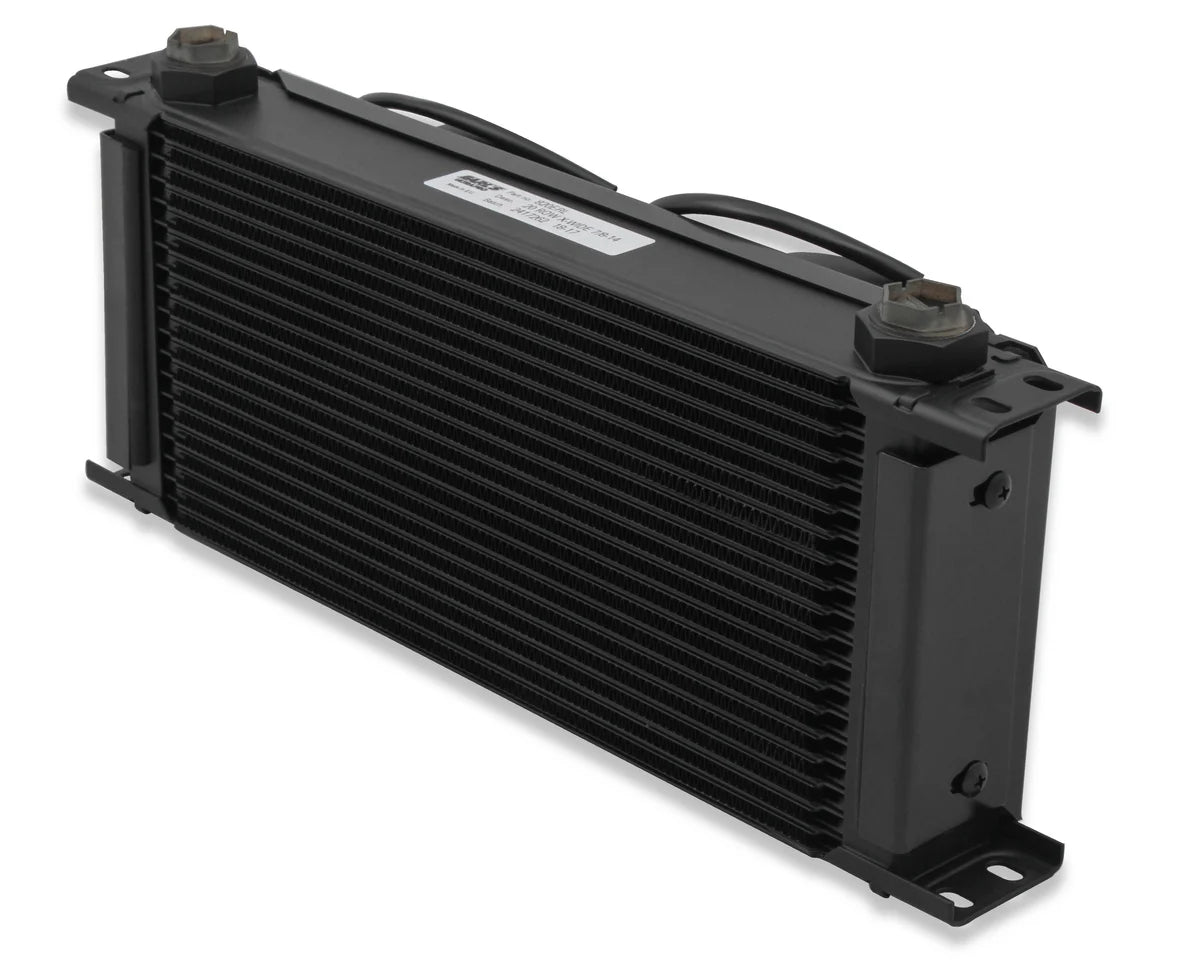

Stacked Plate - Brazed |
| Cooler Fittings |
AT585110ERL |
| Cooler Fittings |
AT585108ERL |
| Cooler Fittings |
585110ERL |
| Cooler Fittings |
AT585106ERL |
| Cooler Fittings |
585106ERL |
| Cooler Fittings |
AT585112ERL |
| Cooler Fittings |
585108ERL |
| Cooler Fittings |
585112ERL |
| Cooler Fittings Included |
No |
| Emission Code |
5 |
| Engine HP Range |
300-400 HP |
| Engine Oil BTU Range |
35,000-50,000 |

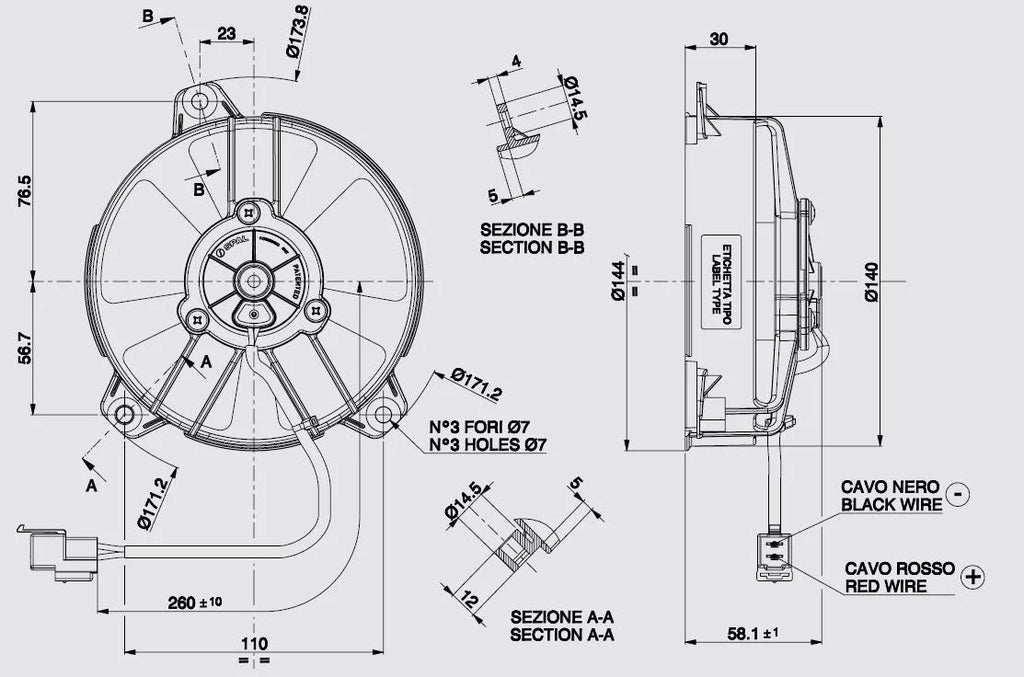

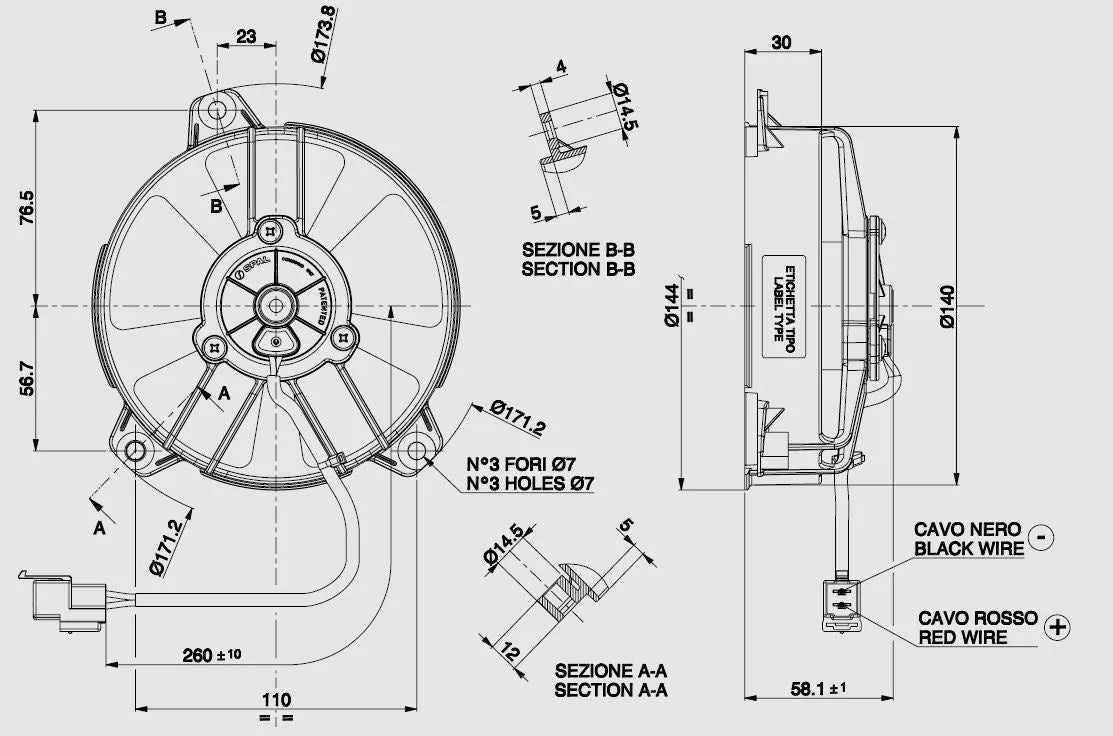

| Fan Diameter |
4.800 |
| Fan Style |
Puller |
| Fan Type |
Electric |
| 200 |
Black |
| Fitting Centers |
12.480" |
| Height |
6.060" |
| Material |
Aluminum |
| Max Fan CFM |
342 |
| Mounting Bracket Width |
15.160" |
| Mounting Brackets |
800ERL |
| Number Of Blades |
5 |
| part type |
Engine Oil Cooler |
| Port Size |
7/8-14 Female (-10 O-Ring Boss) |
| Product Line |
UltraPro w/ Fan Pack |
| Product Type |
Oil Cooler |
| ROWS |
20 Rows |
| Shroud Material |
Aluminum |
| Sub Category |
Radiators, Coolers and Related Components |
| Temperature Range |
-40° F to 302° F |
| Thickness |
5.500" |
| Transmission Fluid BTU Range |
16,500-29,500 |
| Voltage |
12V |
| Volume |
.55 Quarts |
| Warning |
California Proposition 65 |
| Weight |
7.20 Lbs |
| Width |
Extra-Wide Cooler |
| Width (Less Mounting Ears) |
14.125" |
