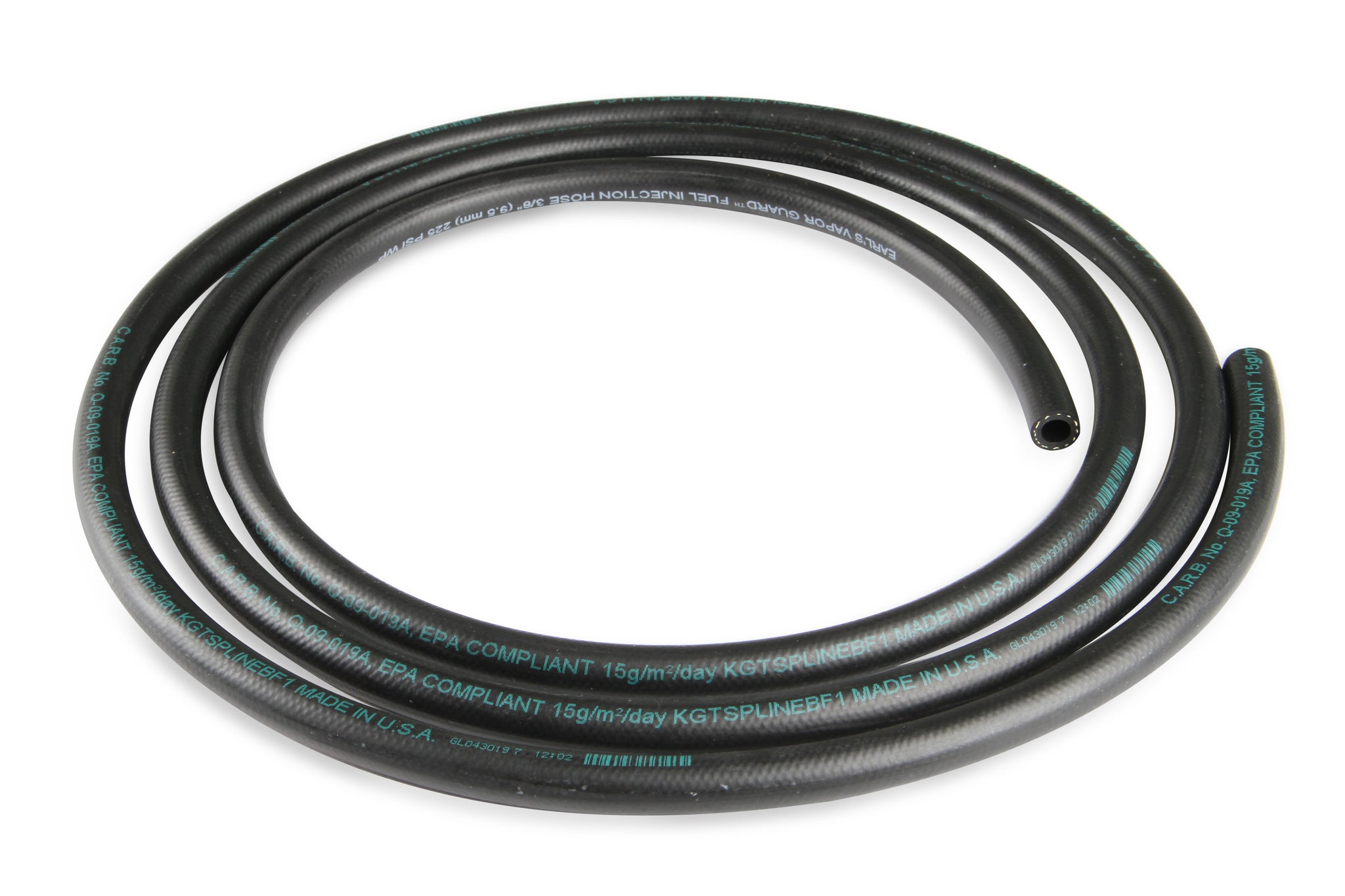

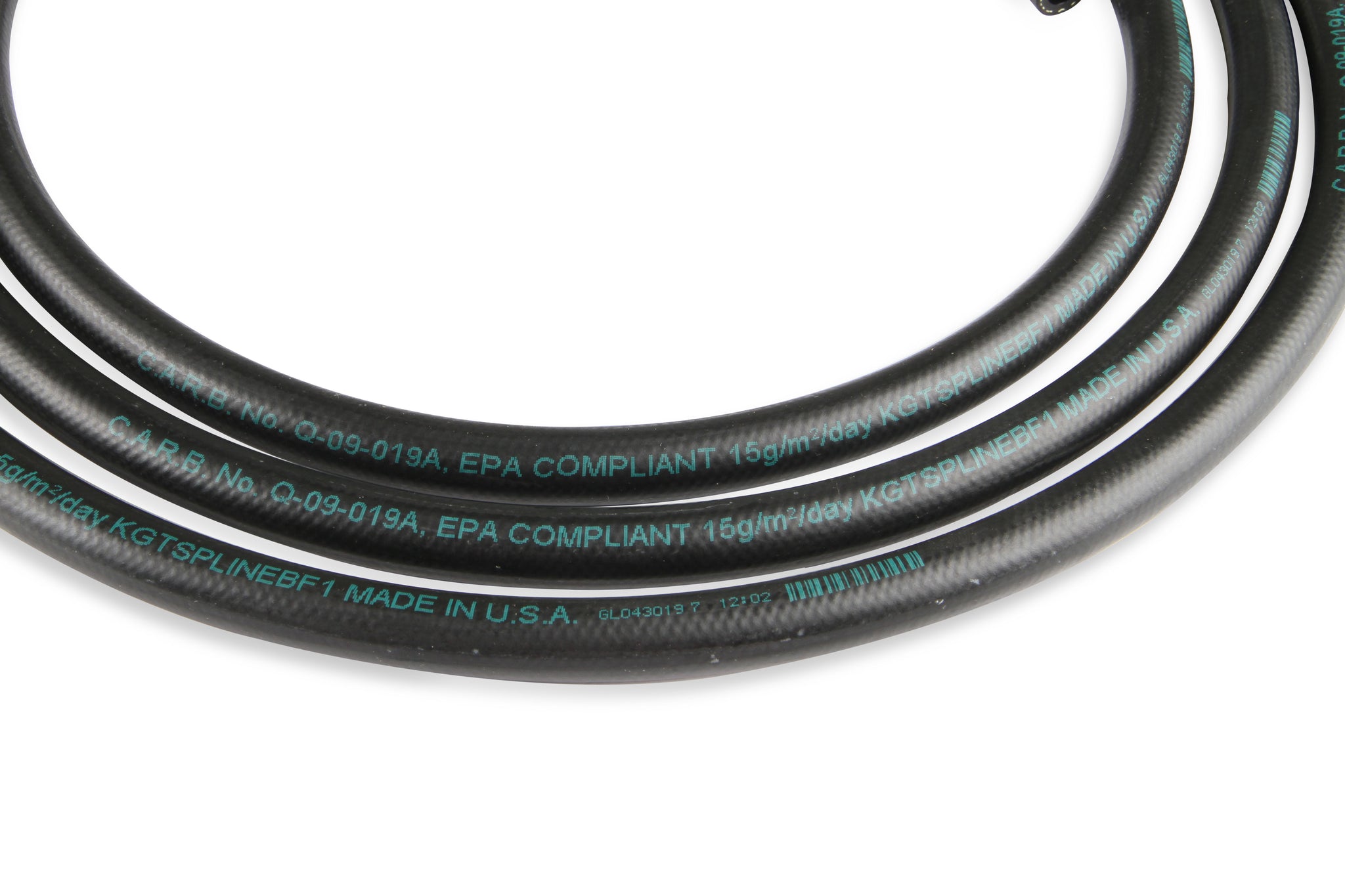

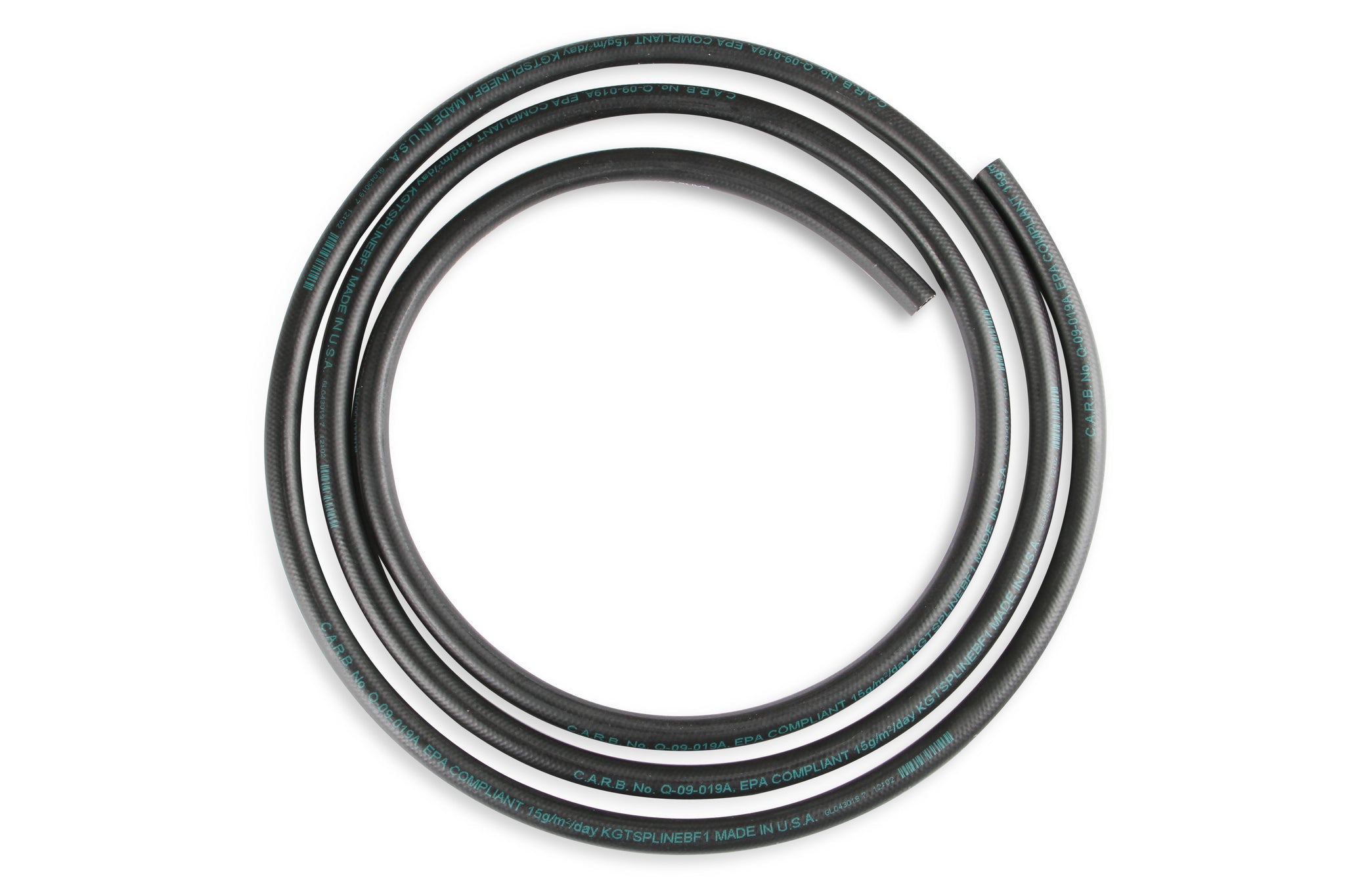

Modern fuels are at war with your fuel system. Modern fuels (more than 40 EPA-approved fuel blends in the US alone) include additives that break down traditional rubber hose. This breakdown leads to potentially dangerous leaks & weeping as well as vapors that waste fuel and leave unwanted odors in your shop. Once fuel lines are degraded, hose particles can contaminate and obstruct fuel injectors and carburetor passages. Earl's Vapor Guard hose and hose ends provide a complete, economical solution that virtually eliminates these fuel permeation issues common with most rubber fuel lines. The secret to Earl's Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl's Vapor Guard™ Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl's Vapor Guard a three way shield against hose deterioration.
| Brand |
Earl's |
| Category |
Air and Fuel Delivery |
| Compatible Hose Ends |
Vapor Guard |
| Emission Code |
5 |
| Fluid Type |
Bio-Fuels |
| Fluid Type |
Diesel |
| Fluid Type |
Race Gas |
| Fluid Type |
E85 |
| Fluid Type |
Coolant |
| Fluid Type |
Pump Gas |
| Fluid Type Rating - Bio-Fuels |
4 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Diesel |
4 out of 5 Rating |
| Fluid Type Rating - E85 |
3 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
2 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
4 out of 5 Rating |
| Fluid Type Rating - Race Gas |
4 out of 5 Rating |
| Fuel System Type |
EFI |
| Hose Family |
Vapor Guard |
| Hose Length |
BULK |
| Hose Size |
5/16 |
| Max PSI |
225 |
| Max Vacuum |
10 inHg |
| Maximum Continuous Length |
50 Feet |
| Min. Bend Radius |
2.5 in. |
| Outside Diameter |
.585 in. |
| part type |
Fuel Hose |
| Product Type |
Hose |
| Sub Category |
Fuel Storage |
| Submersible in Fuel |
No |
| Temperature Range |
-40°F to 275°f |
| Warning |
California Proposition 65 |
| Brand |
Earl's |
| Category |
Air and Fuel Delivery |
| Compatible Hose Ends |
Vapor Guard |
| Emission Code |
5 |
| Fluid Type |
Bio-Fuels |
| Fluid Type |
Diesel |
| Fluid Type |
Race Gas |
| Fluid Type |
E85 |
| Fluid Type |
Coolant |
| Fluid Type |
Pump Gas |
| Fluid Type Rating - Bio-Fuels |
4 out of 5 Rating |
| Fluid Type Rating - Coolant |
5 out of 5 Rating |
| Fluid Type Rating - Diesel |
4 out of 5 Rating |
| Fluid Type Rating - E85 |
3 out of 5 Rating |
| Fluid Type Rating - Methanol/Alcohol |
2 out of 5 Rating |
| Fluid Type Rating - Pump Gas |
4 out of 5 Rating |
| Fluid Type Rating - Race Gas |
4 out of 5 Rating |
| Fuel System Type |
EFI |
| Hose Family |
Vapor Guard |
| Hose Length |
BULK |
| Hose Size |
5/16 |
| Max PSI |
225 |
| Max Vacuum |
10 inHg |
| Maximum Continuous Length |
50 Feet |
| Min. Bend Radius |
2.5 in. |
| Outside Diameter |
.585 in. |
| part type |
Fuel Hose |
| Product Type |
Hose |
| Sub Category |
Fuel Storage |
| Submersible in Fuel |
No |
| Temperature Range |
-40°F to 275°f |
| Warning |
California Proposition 65 |
| Description_INV |
5/16 I.D. EFI VAPOR GUARD HOSE - BULK |
| Description_ASC |
Vapor Guard hose must be used with Vapor Guard hose ends and clamps (other hose barb style fittings or hose ends may damage the inner liner on the hose) *Quantity ordered of bulk hose (one foot) determines quantity. (Example: Quantity 24 = 24 foot of hose) Vapor Guard is not Recommended for Vacuum applications. Bulk hose takes about 3-4 days for processing. Each bulk order must be created, scheduled at the production facility, cut to length, packaged, shipped to the warehouse, and received by the warehouse (before it can be shipped to the customer). Pre-cut boxed hose (i.e. 3 to 33 foot lengths) ship directly from the warehouse. |
| Description_DES |
Earl's Vapor Guard™ Hose |
| Description_EXT |
Earl's Vapor Guard™ - 5/16" EFI Hose - Bulk Hose Sold by the Foot in Continuous Length up to 50' |
| Description_MKT |
Modern fuels are at war with your fuel system. Modern fuels (more than 40 EPA-approved fuel blends in the US alone) include additives that break down traditional rubber hose. This breakdown leads to potentially dangerous leaks & weeping as well as vapors that waste fuel and leave unwanted odors in your shop. Once fuel lines are degraded, hose particles can contaminate and obstruct fuel injectors and carburetor passages. Earl's Vapor Guard hose and hose ends provide a complete, economical solution that virtually eliminates these fuel permeation issues common with most rubber fuel lines. The secret to Earl's Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl's Vapor Guard™ Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl's Vapor Guard a three way shield against hose deterioration. |
| Description_FAB |
Fuel Injection Hose – Rated Maximum 225 PSI |
| Description_INV |
5/16 I.D. EFI VAPOR GUARD HOSE - BULK |
| Description_ASC |
Vapor Guard hose must be used with Vapor Guard hose ends and clamps (other hose barb style fittings or hose ends may damage the inner liner on the hose) *Quantity ordered of bulk hose (one foot) determines quantity. (Example: Quantity 24 = 24 foot of hose) Vapor Guard is not Recommended for Vacuum applications. Bulk hose takes about 3-4 days for processing. Each bulk order must be created, scheduled at the production facility, cut to length, packaged, shipped to the warehouse, and received by the warehouse (before it can be shipped to the customer). Pre-cut boxed hose (i.e. 3 to 33 foot lengths) ship directly from the warehouse. |
| Description_DES |
Earl's Vapor Guard™ Hose |
| Description_EXT |
Earl's Vapor Guard™ - 5/16" EFI Hose - Bulk Hose Sold by the Foot in Continuous Length up to 50' |
| Description_MKT |
Modern fuels are at war with your fuel system. Modern fuels (more than 40 EPA-approved fuel blends in the US alone) include additives that break down traditional rubber hose. This breakdown leads to potentially dangerous leaks & weeping as well as vapors that waste fuel and leave unwanted odors in your shop. Once fuel lines are degraded, hose particles can contaminate and obstruct fuel injectors and carburetor passages. Earl's Vapor Guard hose and hose ends provide a complete, economical solution that virtually eliminates these fuel permeation issues common with most rubber fuel lines. The secret to Earl's Vapor Guard hose is in its layers. The innermost Primary Barrier Layer offers high resistance to heat and aggressive fuels. The middle Earl's Vapor Guard™ Barrier is a Thermoplastic layer that provides superior fuel isolation and virtually eliminates vapors from escaping through the hose. The Exterior Cover Barrier provides extreme tolerance to heat and ozone giving Earl's Vapor Guard a three way shield against hose deterioration. |
| Description_FAB |
Fuel Injection Hose – Rated Maximum 225 PSI |
