1970-1987 General Motors (1970-1981 Camaro, 1973-1980 Chevy-GMC C15/C1500, C10/C20, Blazer, C25/C2500, 1975 Buick Apollo, 1977-1980 Olds 98, 1978-1987 GM "G" Body, 1980-1986 Bonneville (2-Row) equipped w/ 26" wide core
| # of Passes |
Single |
| Brand |
Frostbite Cooling |
| Category |
Belts and Cooling |
| Cooling Row Diameter |
3/4" |
| Core Dimension |
17 x 26 1/4 |
| Core Thickness |
1.57" |
| Emission Code |
5 |
| Flow Style |
Cross Flow |
| Heater Return Port Size |
1/8" NPT |
| Hose Location Inlet |
Driver |
| Hose Location Outlet |
Passenger |
| Inlet Diameter |
1-1/2 in. |
| Inlet Location |
Driver |
| Inlet Size |
1-1/2 in. |
| 90 |
Saddle Mount |
| Outlet Diameter |
1-1/2 in. |
| Outlet Location |
Passenger |
| Outlet Size |
1-1/2 in. |
| Overall Dimension |
18 1/2 x 31 |
| part type |
Radiator |
| Product Type |
Radiator |
| Row Quantity |
2 |
| ROWS |
2 |
| Sub Category |
Radiators, Coolers and Related Components |
| Transcooler Provision |
1/2-20 Straight Thread G 1/4 |
| Transmission Oil Cooler Included |
1/2-20 Straight Thread G 1/4 |
| # of Passes |
Single |
| Brand |
Frostbite Cooling |
| Category |
Belts and Cooling |
| Cooling Row Diameter |
3/4" |
| Core Dimension |
17 x 26 1/4 |
| Core Thickness |
1.57" |
| Emission Code |
5 |
| Flow Style |
Cross Flow |
| Heater Return Port Size |
1/8" NPT |
| Hose Location Inlet |
Driver |
| Hose Location Outlet |
Passenger |
| Inlet Diameter |
1-1/2 in. |
| Inlet Location |
Driver |
| Inlet Size |
1-1/2 in. |
| 90 |
Saddle Mount |
| Outlet Diameter |
1-1/2 in. |
| Outlet Location |
Passenger |
| Outlet Size |
1-1/2 in. |
| Overall Dimension |
18 1/2 x 31 |
| part type |
Radiator |
| Product Type |
Radiator |
| Row Quantity |
2 |
| ROWS |
2 |
| Sub Category |
Radiators, Coolers and Related Components |
| Transcooler Provision |
1/2-20 Straight Thread G 1/4 |
| Transmission Oil Cooler Included |
1/2-20 Straight Thread G 1/4 |
| Description_INV |

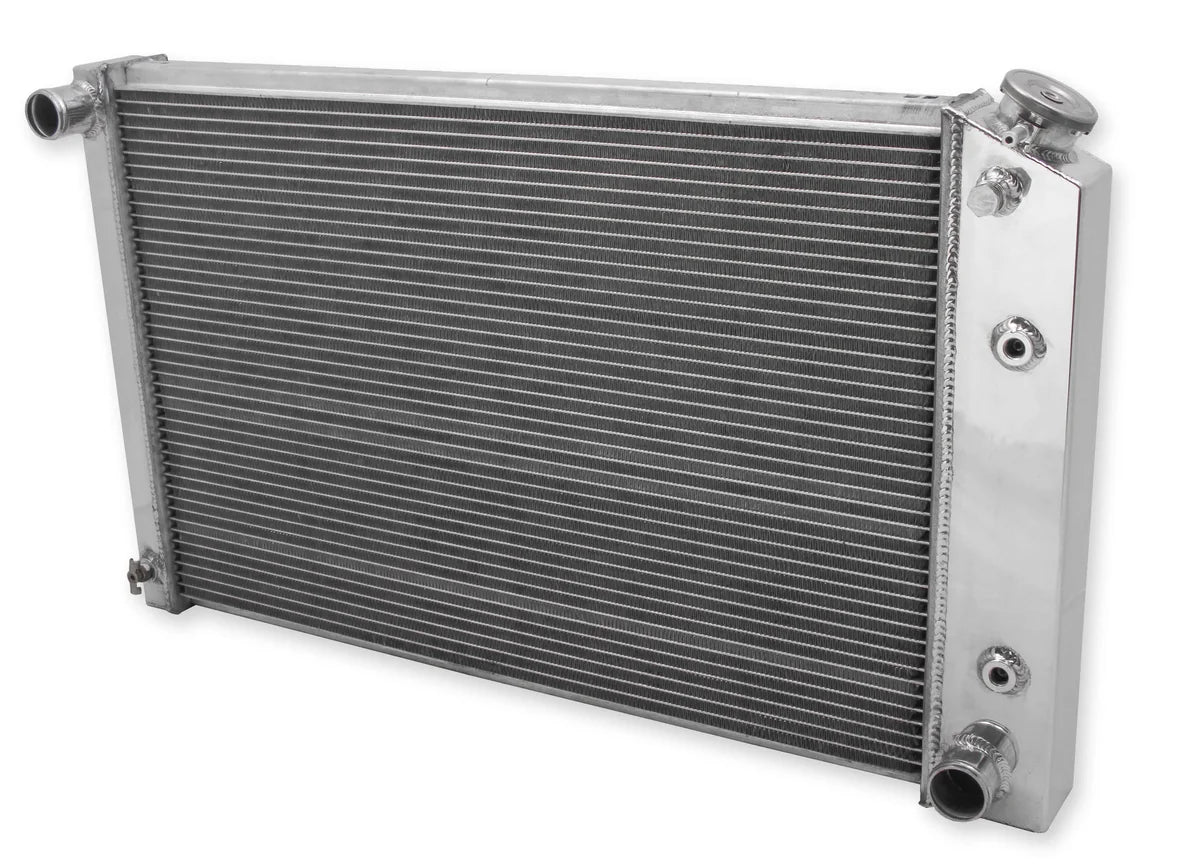

FROSTBITE ALUM RADTR 2-ROW 70/87 L6/V6/V |
| Description_DES |
Frostbite Aluminum Radiator- 2 Row |
| Description_EXT |
1970-1987 General Motors (1970-1981 Camaro, 1973-1980 Chevy-GMC C15/C1500, C10/C20, Blazer, C25/C2500, 1975 Buick Apollo, 1977-1980 Olds 98, 1978-1987 GM "G" Body, 1980-1986 Bonneville (2-Row) equipped w/ 26" wide core |
| Description_MKT |
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. |
| Description_MKT |
Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products. |
| Description_MKT |
Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications. |
| Description_MKT |
When it comes to keeping your ride cool, Make it Frostbite! |
| Description_FAB |

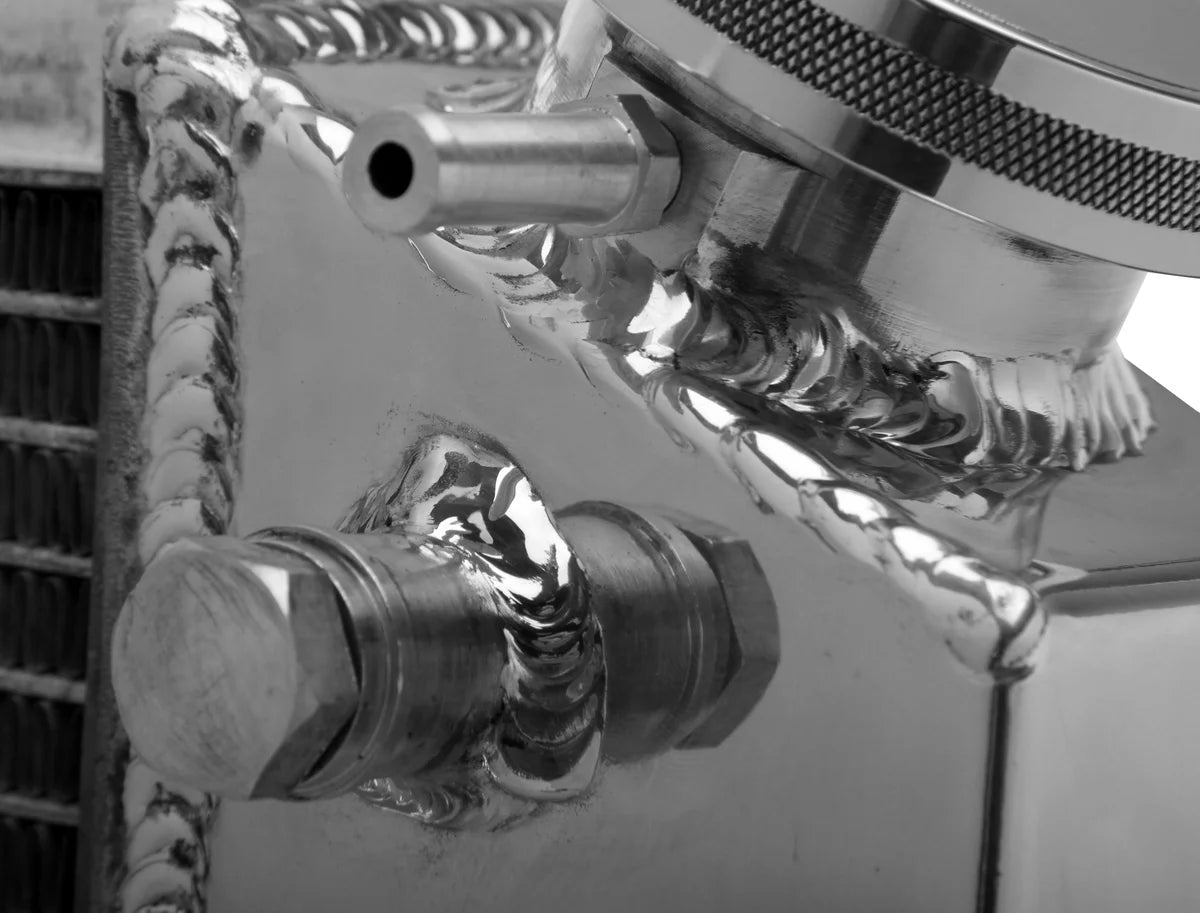

100% TIG welded (brazed) seams |
| Description_FAB |
Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings) |
| Description_FAB |

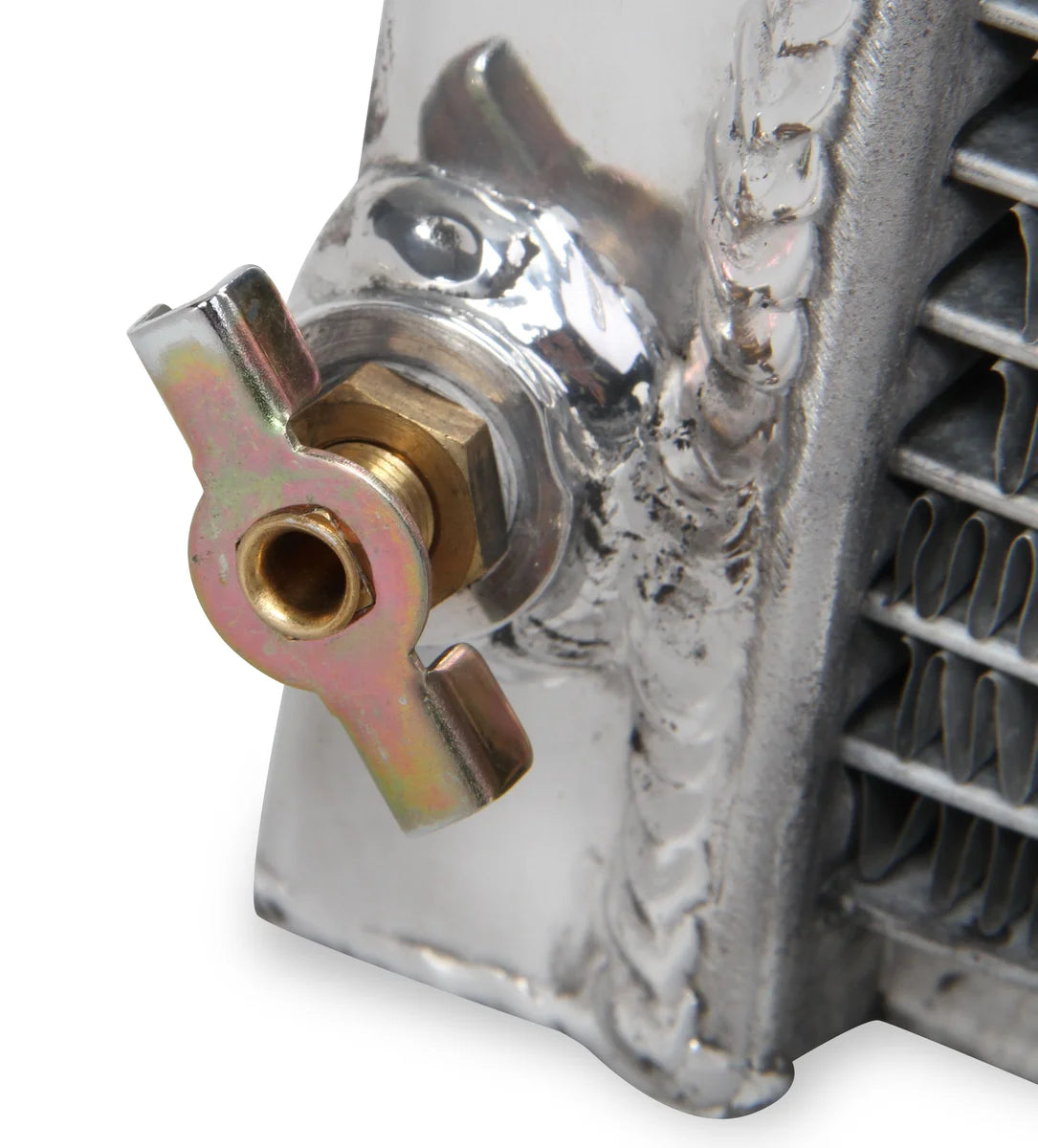

Billet Aluminum Filler Neck and OEM style Brass Petcock |
| Description_FAB |
More cooling fins per inch for more efficient cooling |
| Description_FAB |
Custom Frostbite High Performance 16lb. radiator cap |
| Description_FAB |
Polished top and tanks for custom show appearance |
| Description_FAB |
2-Row Radiators supporting applications with 300-500 horsepower |
| Description_FAB |
Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available |
| Description_FAB |
Manufacturer’s 1-year Limited Warranty |
| Description_INV |
FROSTBITE ALUM RADTR 2-ROW 70/87 L6/V6/V |
| Description_DES |
Frostbite Aluminum Radiator- 2 Row |
| Description_EXT |
1970-1987 General Motors (1970-1981 Camaro, 1973-1980 Chevy-GMC C15/C1500, C10/C20, Blazer, C25/C2500, 1975 Buick Apollo, 1977-1980 Olds 98, 1978-1987 GM "G" Body, 1980-1986 Bonneville (2-Row) equipped w/ 26" wide core |
| Description_MKT |
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. |
| Description_MKT |
Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products. |
| Description_MKT |
Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications. |
| Description_MKT |
When it comes to keeping your ride cool, Make it Frostbite! |
| Description_FAB |
100% TIG welded (brazed) seams |
| Description_FAB |
Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings) |
| Description_FAB |
Billet Aluminum Filler Neck and OEM style Brass Petcock |
| Description_FAB |
More cooling fins per inch for more efficient cooling |
| Description_FAB |
Custom Frostbite High Performance 16lb. radiator cap |
| Description_FAB |
Polished top and tanks for custom show appearance |
| Description_FAB |
2-Row Radiators supporting applications with 300-500 horsepower |
| Description_FAB |
Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available |
| Description_FAB |
Manufacturer’s 1-year Limited Warranty |
