1967-1972 Chevy/GMC P/U V8 (283/307/327/350/396/402) (4-Row) equipped with 28" wide core
| # of Passes |
Single |
| Brand |
Frostbite Cooling |
| Category |
Belts and Cooling |
| Cooling Row Diameter |
11/16" |
| Core Dimension |
17 x 28 1/4 |
| Core Thickness |
2.76" |
| Emission Code |
5 |
| Flow Style |
Cross Flow |
| Heater Return Port Size |
1/8" NPT |
| Hose Location Inlet |
Driver |
| Hose Location Outlet |
Passenger |
| Inlet Diameter |
1-1/2 in. |
| Inlet Location |
Driver |
| Inlet Size |
1-1/2 in. |
| 90 |
Saddle Mount |
| Outlet Diameter |
1-3/4 in. |
| Outlet Location |
Passenger |
| Outlet Size |
1-3/4 in. |
| Overall Dimension |
18-1/2 x 33 |
| part type |
Radiator |
| Product Type |
Radiator |
| Row Quantity |
4 |
| ROWS |
4 |
| Sub Category |
Radiators, Coolers and Related Components |
| Transcooler Provision |
1/2-20 Straight Thread G 1/4 |
| Transmission Oil Cooler Included |
1/2-20 Straight Thread G 1/4 |
| # of Passes |
Single |
| Brand |
Frostbite Cooling |
| Category |
Belts and Cooling |
| Cooling Row Diameter |
11/16" |
| Core Dimension |
17 x 28 1/4 |
| Core Thickness |
2.76" |
| Emission Code |
5 |
| Flow Style |
Cross Flow |
| Heater Return Port Size |
1/8" NPT |
| Hose Location Inlet |
Driver |
| Hose Location Outlet |
Passenger |
| Inlet Diameter |
1-1/2 in. |
| Inlet Location |
Driver |
| Inlet Size |
1-1/2 in. |
| 90 |
Saddle Mount |
| Outlet Diameter |
1-3/4 in. |
| Outlet Location |
Passenger |
| Outlet Size |
1-3/4 in. |
| Overall Dimension |
18-1/2 x 33 |
| part type |
Radiator |
| Product Type |
Radiator |
| Row Quantity |
4 |
| ROWS |
4 |
| Sub Category |
Radiators, Coolers and Related Components |
| Transcooler Provision |
1/2-20 Straight Thread G 1/4 |
| Transmission Oil Cooler Included |
1/2-20 Straight Thread G 1/4 |
| Description_INV |
FROSTBITE ALUM RADTR 4-ROW 67/72 P/U V8 |
| Description_ASC |
Note: Frostbite 3 and 4 row radiators will be thicker than stock and can extend into engine bay further interfering with some stock fan/clutch applications. Existing cooling fan modifications may be required during installation. Electric fan and shroud options are available to eliminate stock clutch/fan. |
| Description_DES |

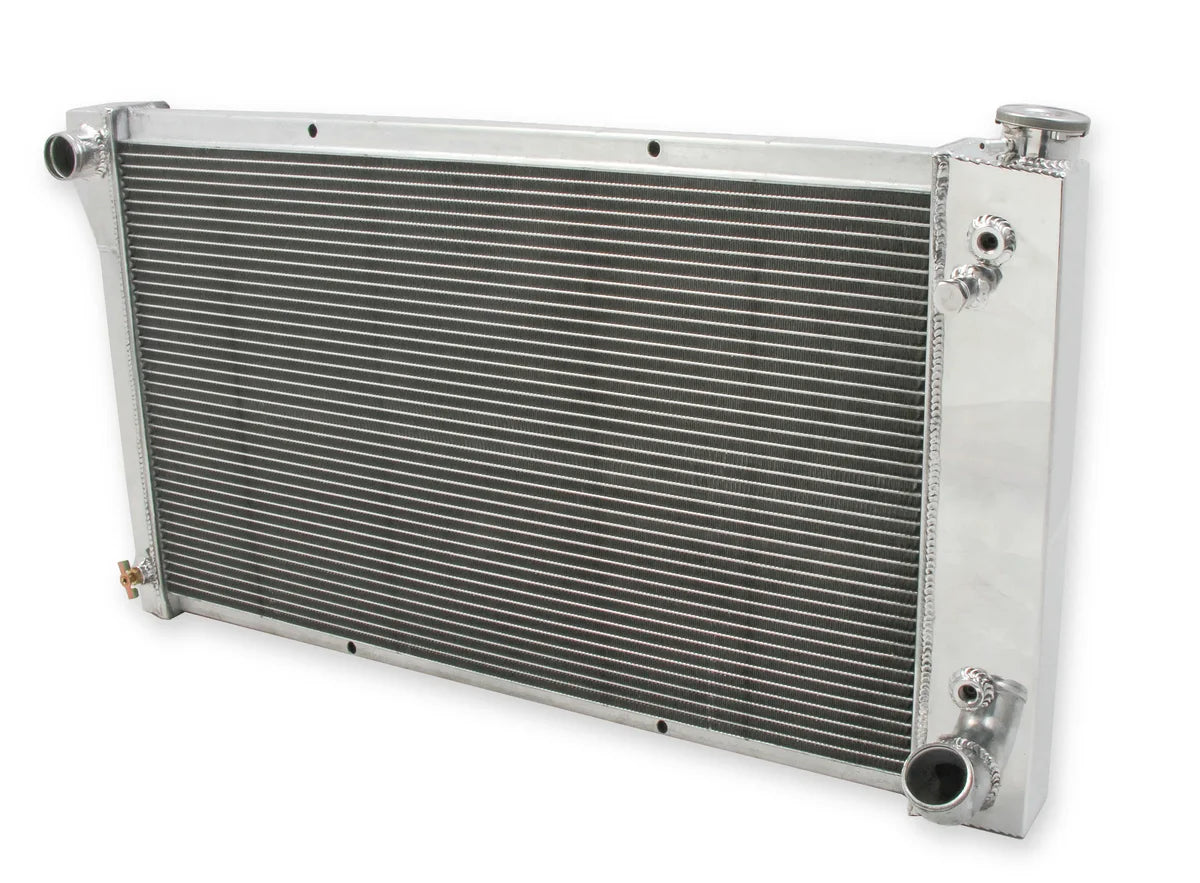

Frostbite Aluminum Radiator- 4 Row |
| Description_EXT |
1967-1972 Chevy/GMC P/U V8 (283/307/327/350/396/402) (4-Row) equipped with 28" wide core |
| Description_MKT |
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. |
| Description_MKT |
Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products. |
| Description_MKT |
Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications. |
| Description_MKT |
When it comes to keeping your ride cool, Make it Frostbite! |
| Description_FAB |

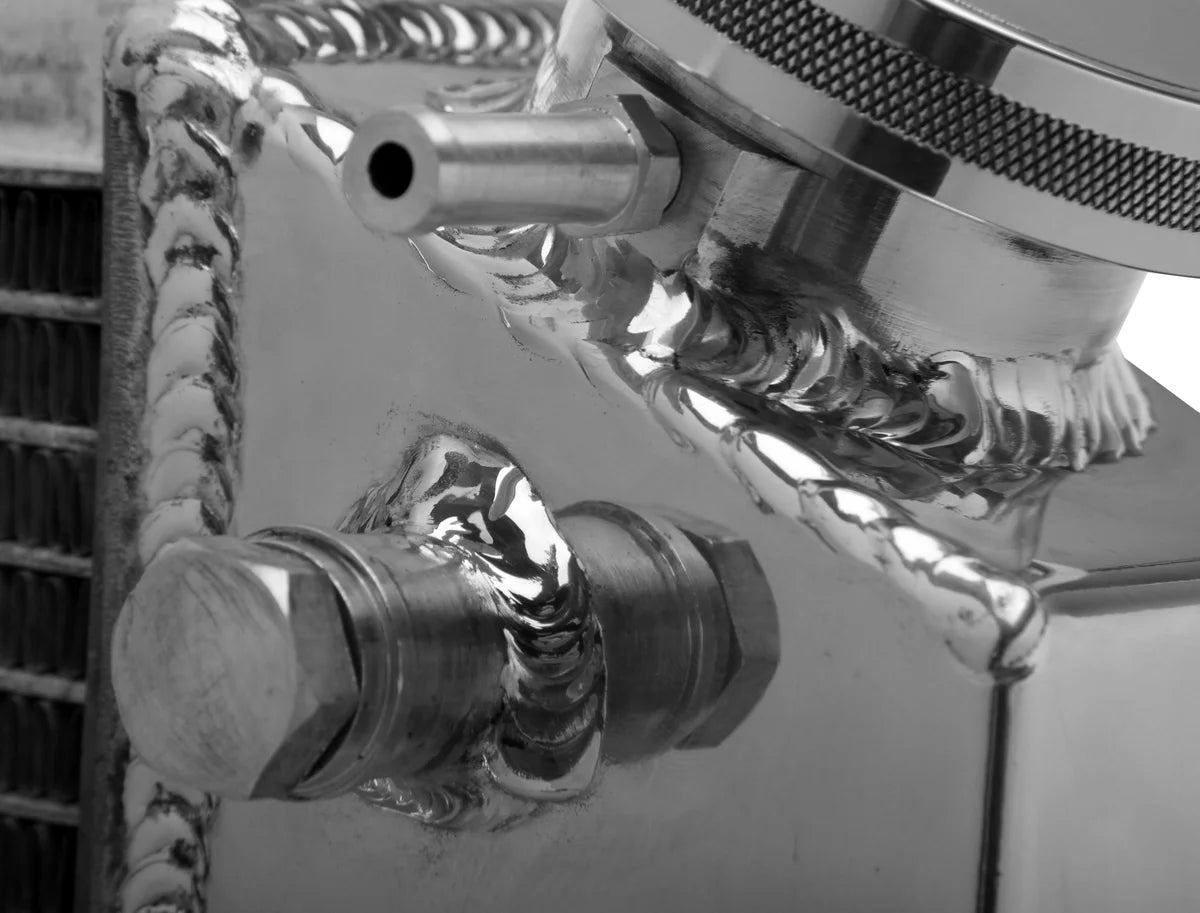

100% TIG welded (brazed) seams |
| Description_FAB |
Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings) |
| Description_FAB |

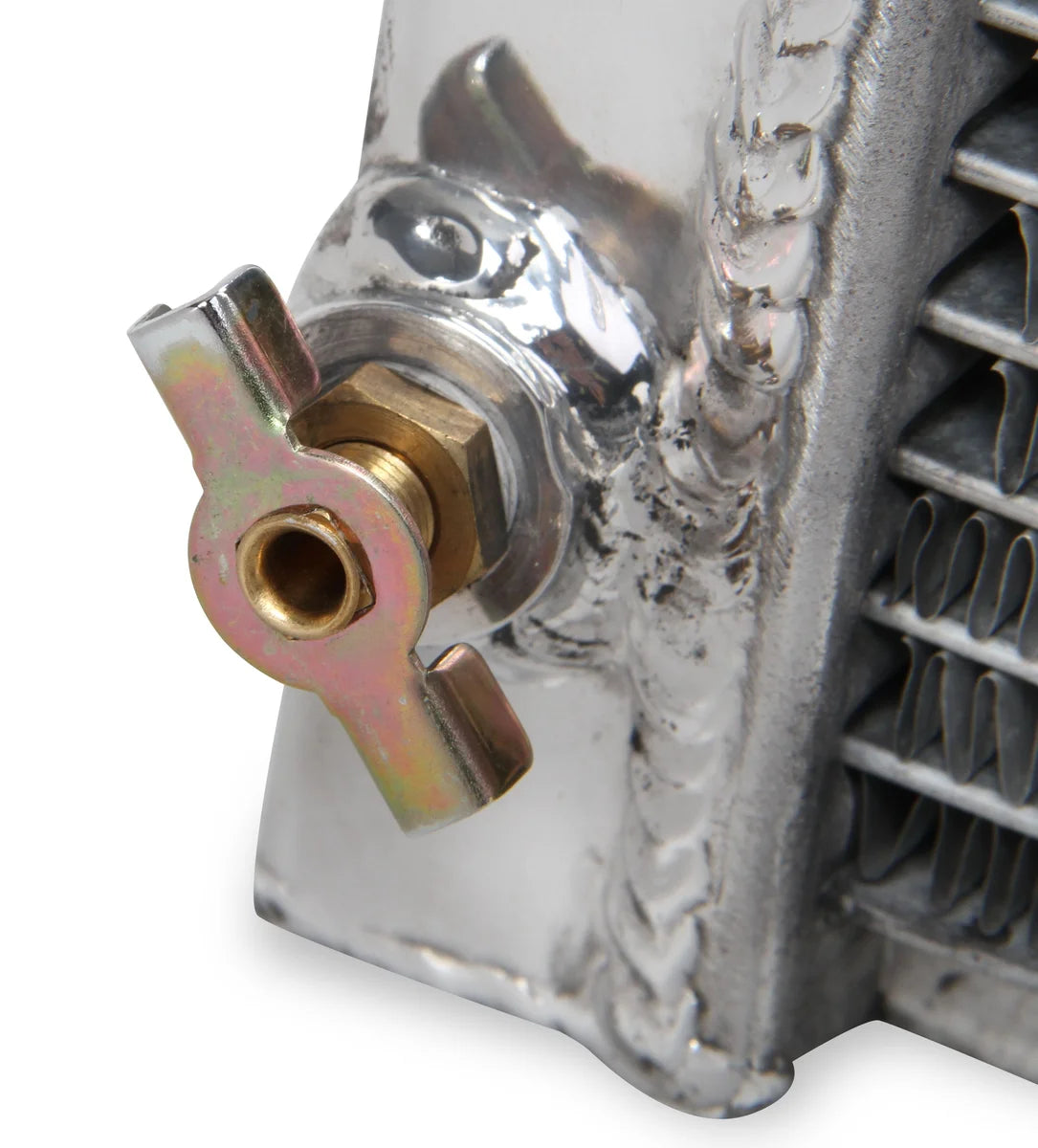

Billet Aluminum Filler Neck and OEM style Brass Petcock |
| Description_FAB |
More cooling fins per inch for more efficient cooling |
| Description_FAB |
Custom Frostbite High Performance 16lb. radiator cap |
| Description_FAB |
Polished top and tanks for custom show appearance |
| Description_FAB |
4-Row Radiators supporting applications with 550-1000 horsepower |
| Description_FAB |
Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available |
| Description_FAB |
Manufacturer’s 1-year Limited Warranty |
| Description_INV |
FROSTBITE ALUM RADTR 4-ROW 67/72 P/U V8 |
| Description_ASC |
Note: Frostbite 3 and 4 row radiators will be thicker than stock and can extend into engine bay further interfering with some stock fan/clutch applications. Existing cooling fan modifications may be required during installation. Electric fan and shroud options are available to eliminate stock clutch/fan. |
| Description_DES |
Frostbite Aluminum Radiator- 4 Row |
| Description_EXT |
1967-1972 Chevy/GMC P/U V8 (283/307/327/350/396/402) (4-Row) equipped with 28" wide core |
| Description_MKT |
High-Horsepower street cars and trucks can be a challenge to keep cool. A proper cooling system starts with the right radiator. Aluminum Radiators cool more effectively and weigh less than older OEM style brass units. Choose from a variety of popular application specific fitments. |
| Description_MKT |
Holley is proud to introduce its latest offering - Frostbite Performance Cooling Products. |
| Description_MKT |
Our line of Performance Aluminum Radiators will be available in 2, 3, and 4-row sizes as well as an extensive offering of LS-Swap specific platform applications. |
| Description_MKT |
When it comes to keeping your ride cool, Make it Frostbite! |
| Description_FAB |
100% TIG welded (brazed) seams |
| Description_FAB |
Aircraft quality aluminum core, fittings, and tanks (up to 30% weight savings) |
| Description_FAB |
Billet Aluminum Filler Neck and OEM style Brass Petcock |
| Description_FAB |
More cooling fins per inch for more efficient cooling |
| Description_FAB |
Custom Frostbite High Performance 16lb. radiator cap |
| Description_FAB |
Polished top and tanks for custom show appearance |
| Description_FAB |
4-Row Radiators supporting applications with 550-1000 horsepower |
| Description_FAB |
Applications for GM, Ford, Dodge/Chrysler/Jeep and LS-Swap available |
| Description_FAB |
Manufacturer’s 1-year Limited Warranty |
