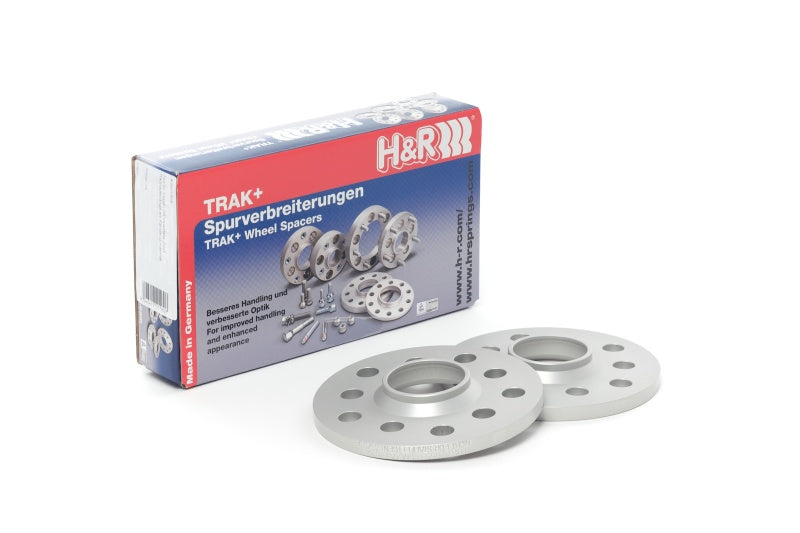

H&R Trak+ 15mm DR Wheel Adaptor 5x120 BP 66.5 CB 14x1.25 Bolt Thread - Black fits 2023-2025 BMW Xm / 2024-2025 BMW Xm Label
H&R Trak+ 15mm DR Wheel Adaptor 5x120 BP 66.5 CB 14x1.25 Bolt Thread - Side View
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

H&R Trak+ 15mm DR Wheel Adaptor 5x120 BP 66.5 CB 14x1.25 Bolt Thread - Black fits 2023-2025 BMW Xm / 2024-2025 BMW Xm Label

H&R
3075664SW
In stock
$149.95 USD $134.99 USD
$134.99 USD

H&R Trak+ 15mm DR Wheel Adaptor 5x120 BP 66.5 CB 14x1.25 Bolt Thread - Black fits 2023-2025 BMW Xm / 2024-2025 BMW Xm Label
All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a)If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. The bolt head must be identical to the existing bolt: Taper 60: End digit 01 Round head for M12/d24 mm, M14/d28 mm: End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels): End digit 03 Flat head for Porsche original wheels M14 x 1.5: End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

This Part Fits:

Year Make Model Submodel
2023-2025 BMW XM Base
2024-2025 BMW XM Label
