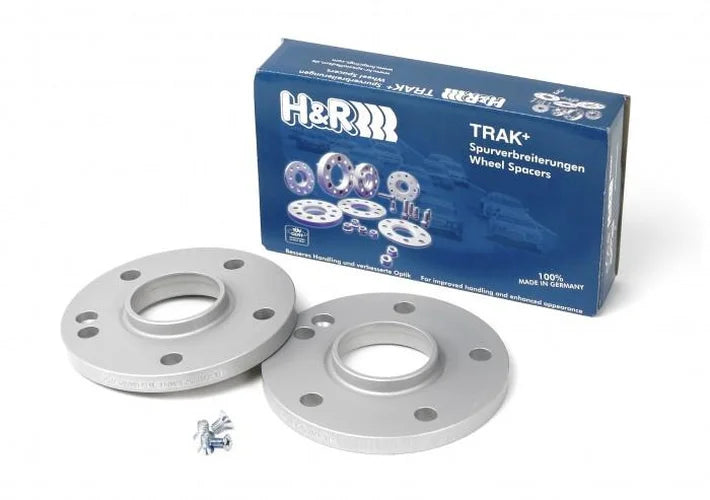

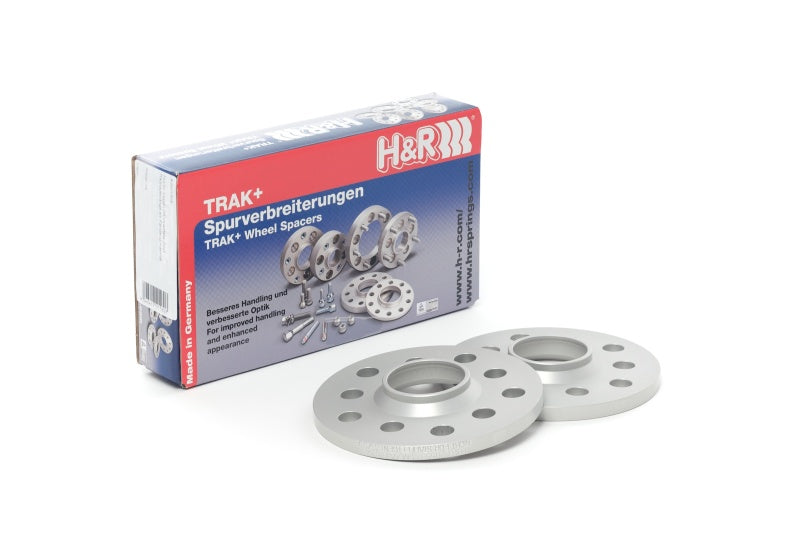

H&R Trak+ 15mm DR Wheel Adaptor Bolt 5/114.3 Center Bore 60.1 Stud Thread 12x1.5 fits 2007-2012 Suzuki SX4
H&R Trak+ 15mm DR Wheel Adaptor Bolt 5/114.3 Center Bore 60.1 Stud Thread 12x1.5 fits 2007-2012 Suzuki SX4 - Side View

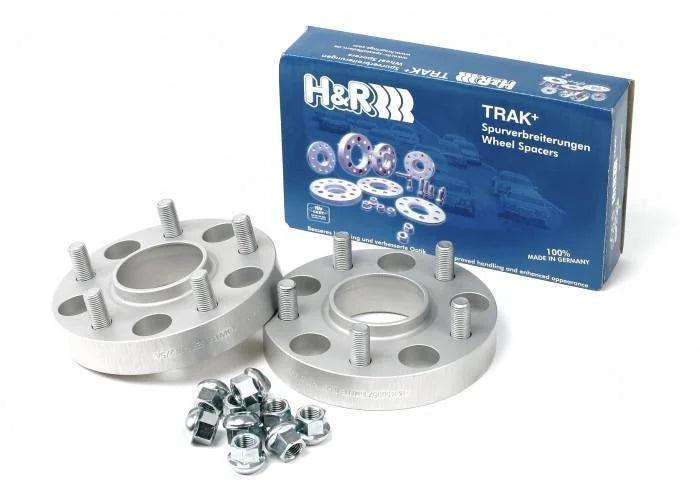

H&R Trak+ 15mm DR Wheel Adaptor Bolt 5/114.3 Center Bore 60.1 Stud Thread 12x1.5 fits 2007-2012 Suzuki SX4 - Back View
H&R Trak+ 15mm DR Wheel Adaptor Bolt 5/114.3 Center Bore 60.1 Stud Thread 12x1.5 fits 2007-2012 Suzuki SX4 - Installation ...
Click to zoom in
  • Guaranteed Fitment

    Always the correct part

  • In-House Experts

    We know our products

  • Technical Support

    We help with any installation questions

  • Wordwide Delivery

    Fast shipping times from USA warehouses

H&R Trak+ 15mm DR Wheel Adaptor Bolt 5/114.3 Center Bore 60.1 Stud Thread 12x1.5 fits 2007-2012 Suzuki SX4

H&R
30365601
In stock
$159.95 USD $143.99 USD
$143.99 USD

H&R Trak+ 15mm DR Wheel Adaptor Bolt 5/114.3 Center Bore 60.1 Stud Thread 12x1.5 fits 2007-2012 Suzuki SX4

All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60 End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

Installation Instructions
User 1

This Part Fits:

Year Make Model Submodel
2007-2010 Suzuki SX4 Base
2010-2012 Suzuki SX4 Crossover
2010-2012 Suzuki SX4 LE
2011 Suzuki SX4 LE Anniversary Edition
2007-2009 Suzuki SX4 Sport
2010-2011 Suzuki SX4 Sport GTS
2010-2011 Suzuki SX4 Sport S
2010-2012 Suzuki SX4 Sport SE
2010-2012 Suzuki SX4 Sportback
