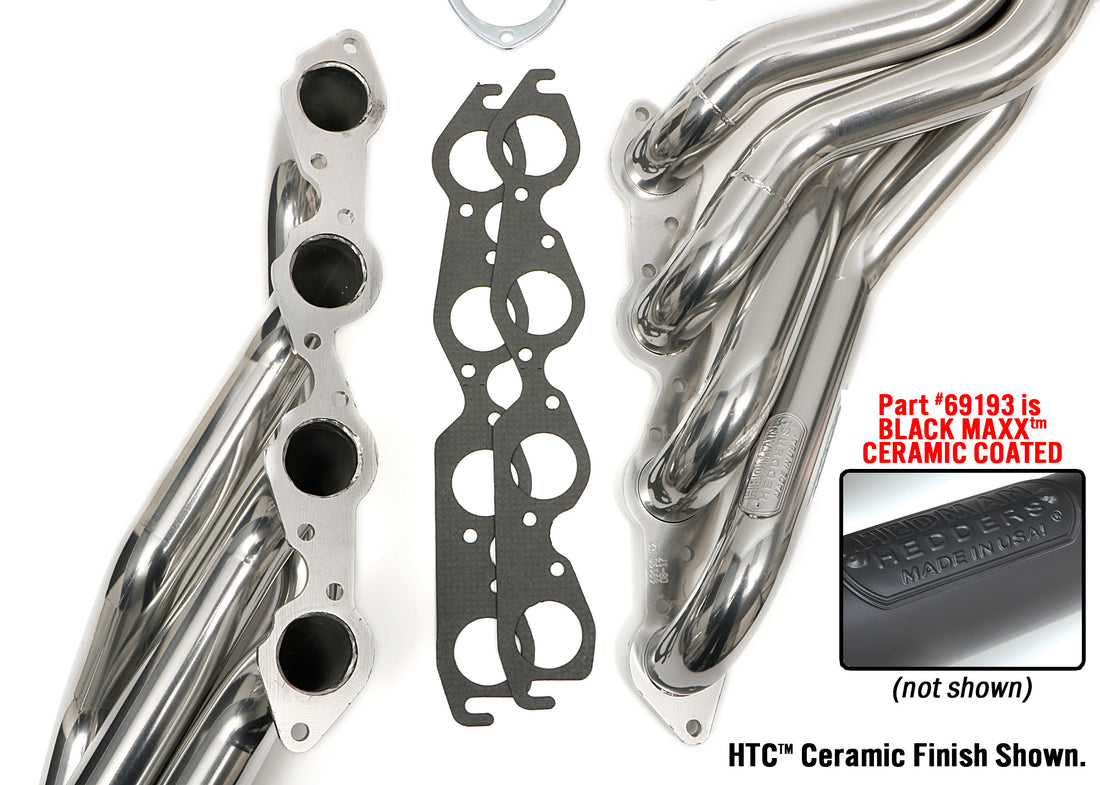

Black-Maxx Black Ceramic Coated, Mid-Length Headers For 1967-87 CHEVY/GM C10/C20/C30/SUV with 396-502 BB Chevy (Centered Engine Chassis Only); 2 in. Mid-Length Tubes; 3 in. Ball/Socket Collector
| Description_DEF |
[B@4aa44285 |
| Description_DES |
[B@4468789a |
| Description_EXT |
[B@7e7e74d6 |
| Description_FAB |
[B@4efe0256 |
| Description_FAB |
[B@26a6d166 |
| Description_FAB |
[B@210dc180 |
| Description_FAB |
[B@2cd8c9b3 |
| Description_FAB |
[B@128a82cc |
| Description_FAB |
[B@2374c1a |
| Description_INV |
[B@4df99c1d |
| Description_SHO |
[B@27065140 |
| Title |
HEDMAN HEDDERS CHEVY/GMC 1967-87 BBC 2WD TRUCK 2 IN. PRIMARY TUBES 3 IN. COLLECTORS- BLACK MAXX |
| Tube Diameter |
2 in. |
| Header Construction |
MILD STEEL- Standard-Duty |
| Replacement Gasket |
27540 |
| Replacement Head Flange Gasket |
27540 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Tube Style |
Mid-Length |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
Yes |
| Automatic Transmission - Floor |
Yes |
| Manual Transmission - Column |
Yes |
| Manual Transmission - Floor |
Yes |
| Transmission Compatibility |
Automatic Transmission |
| Power Steering |
Yes |
| Bolts/Studs Included |
Yes |
| Catalytic Converter(s) Included |
No |
| Collector Bolts Included |
Yes |
| Crossover Pipe Included |
No |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| Installation Hardware Included |
Yes |
| Motor Mounts Included |
No |
| Reducers Included |
Yes |
| Tube Material Thickness |
16g |
| Y-Pipe Included |
No |
| Quantity |
Sold as a pair. |
| Primary Tube Gauge |
16g |
| Primary Tube Diameter (in) |
2 in. |

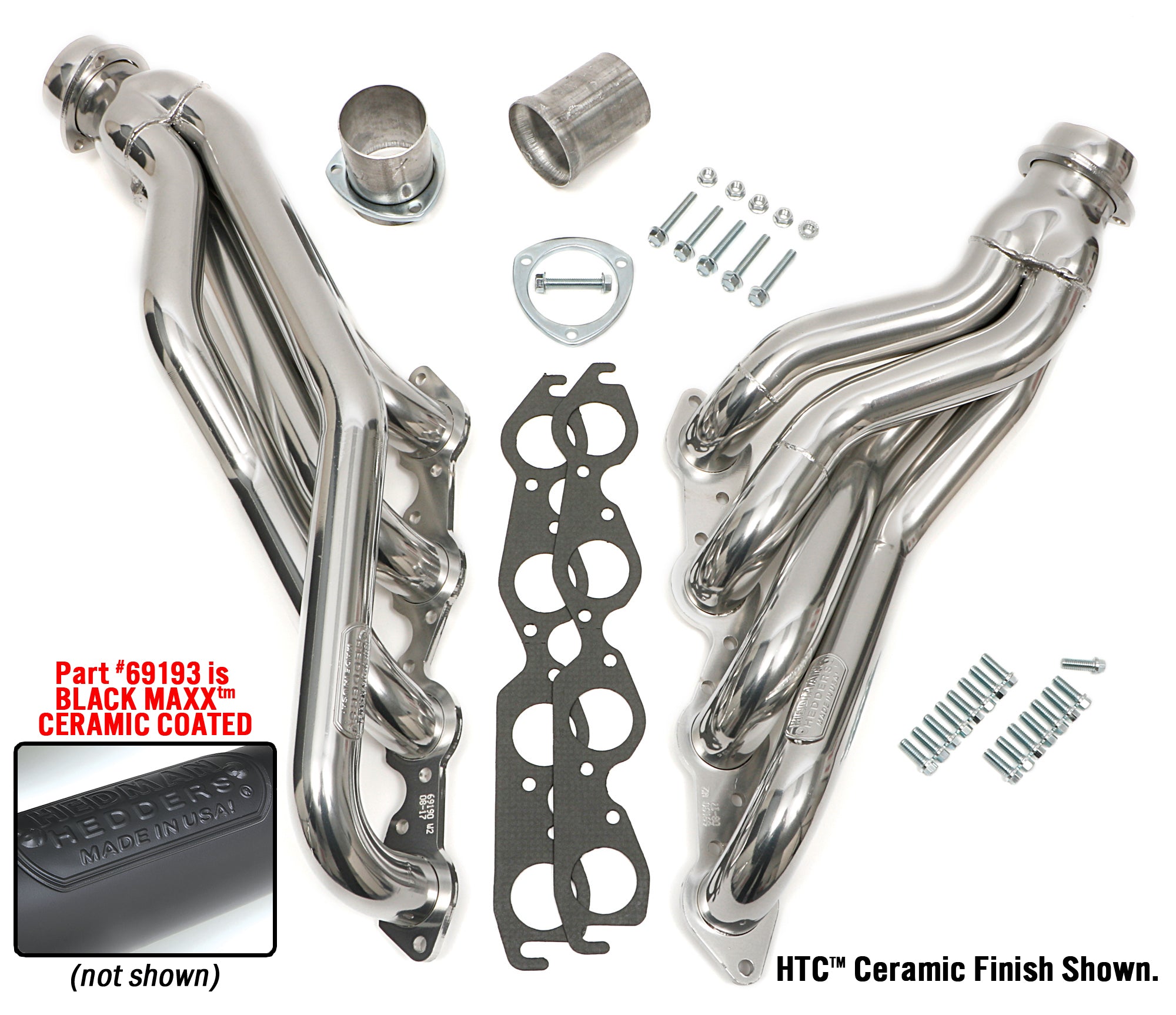

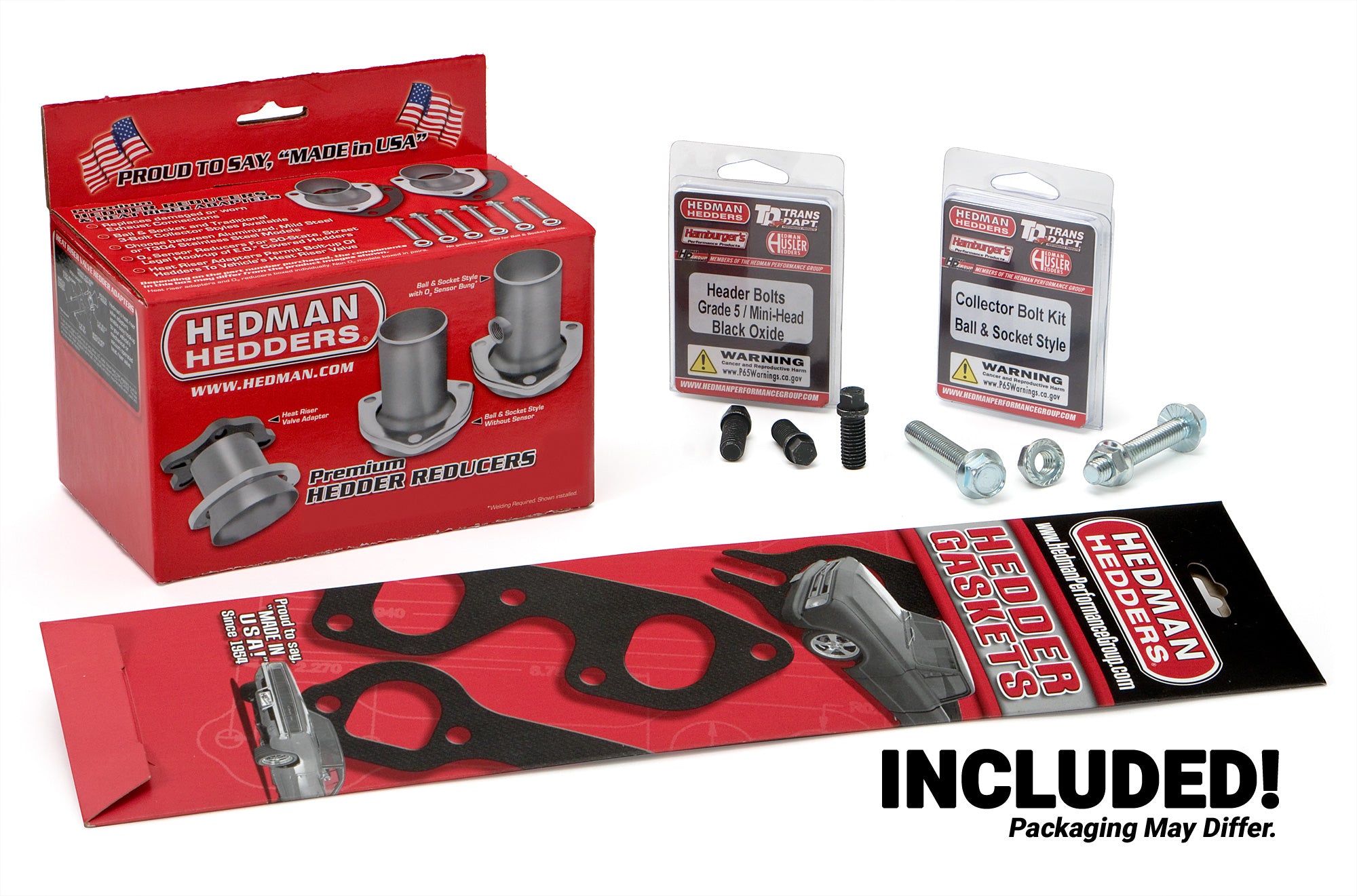

| Package Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material |
Mild Steel |

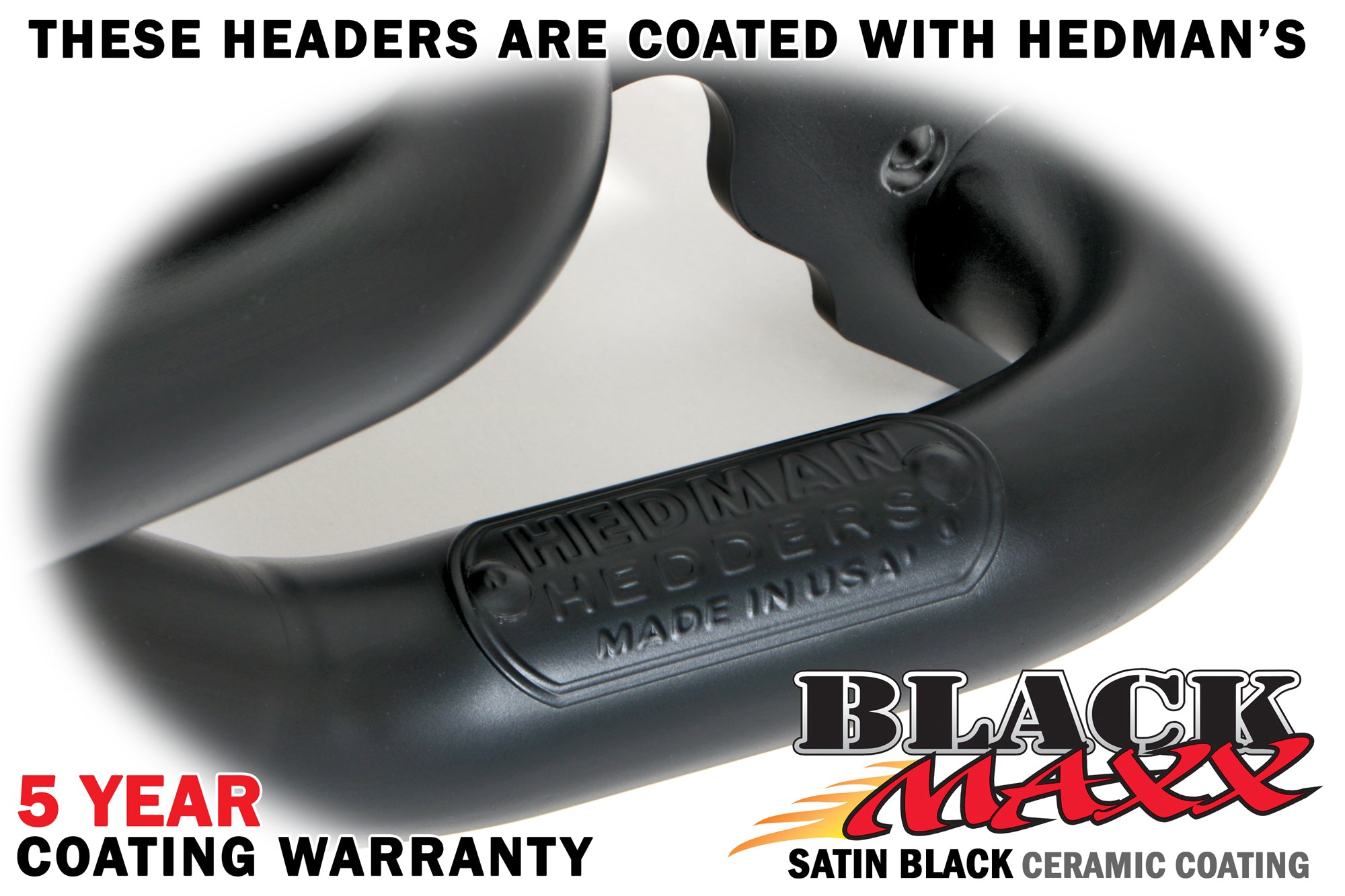

| Header Finish |
BLACK MAXX Satin Black Ceramic-Metallic |
| Cylinder Head Port Shape |
Round |
| Cylinder Head |
Stock Profile Heads |
| Tube Size |
2 in. |
| Tube Length |
Mid-Length Tubes |
| Reducer Outlet Size |
2-1/2 in. |
| Clutch Notes |
NOT For Use With factory Hydraulic Clutch/Slave Cylinder. Z-Bar Linkage OK |
| Chassis Compatibility |
NOT For Vehicles With Offset (right) Engine Position! |
| Collector Attachment |
3 in. |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Exhaust System Dia |
2-1/2 in. |
| Tube Design |
Standard |
| Contents |
headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| E.O. # |
No |
| Emissions Notes |
Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Finish |
BLACK MAXX Satin Black Ceramic-Metallic |
| Finish Type |
BLACK MAXX- Black Ceramic-Metallic Coating |
| Flange Style |
Standard |
| Flange Thickness |
0.375 in. |
| Header Port Shape |
Round |
| Header Style |
Mid-Length Tube |
| IMPORTANT! |
Vehicle must be setup as if came from the factory with a Big Block Chevy engine. |
| Port Shape |
Round |
| Material |
Mild Steel |
| Transmission Notes |
TAILSHAFT Style Crossmember Only. Not for Bellhousing Style Crossmember. (14) |
| Mounting Hardware Included |
Yes |
| Installation Notes |
Must Use Factory BB Chevy engine mounts and hardware. (112) |
| with A.I.R. System |
No |
| with EGR |
No |
| Weld-Up |
No |
| Tuned |
No |
