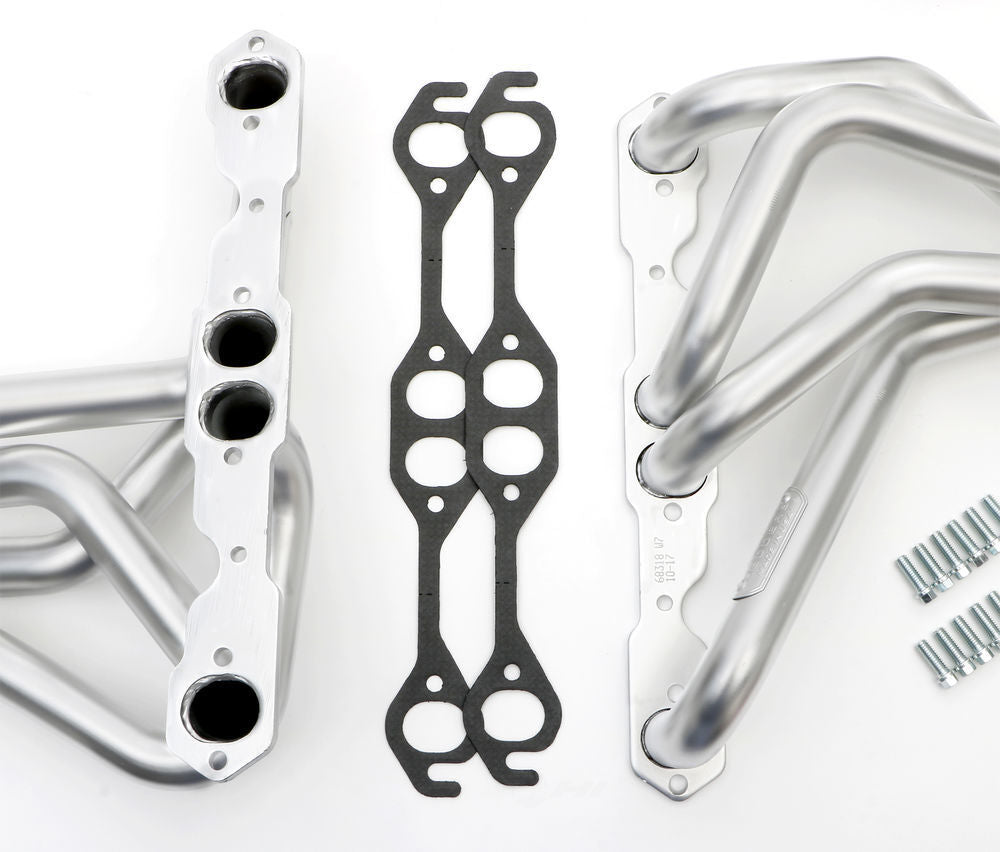

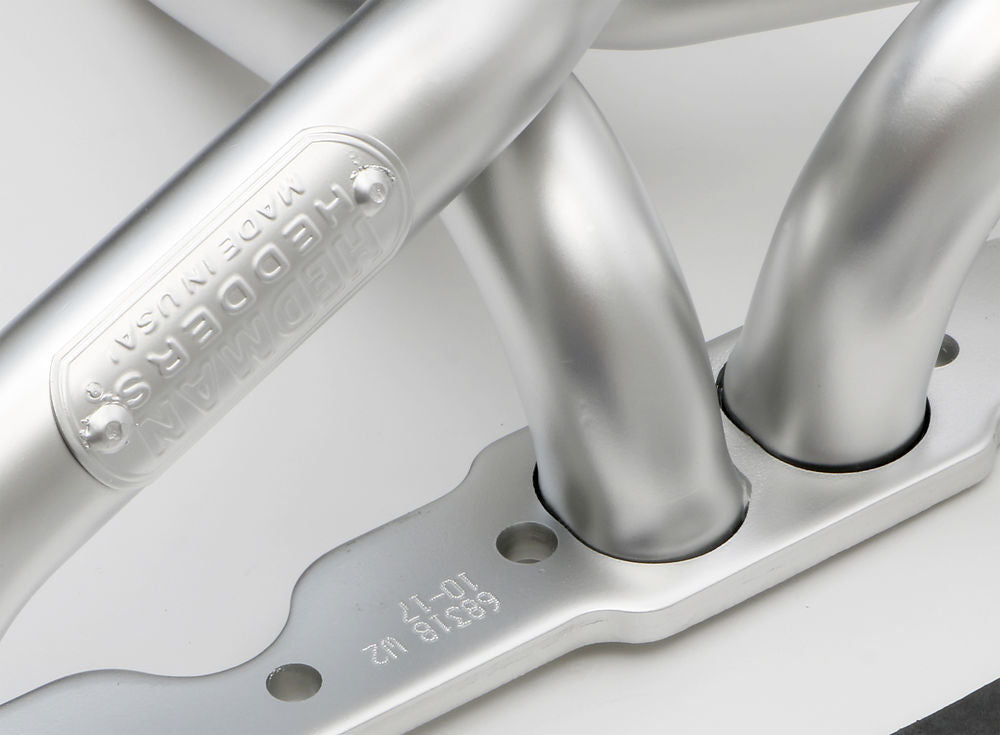

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing long and MID-LENGTH tube headers for Chevy passenger cars for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures. ELITE models have a MATTE-SILVER ceramic finish that looks great and keeps more heat in the tubes, and underhood temperatures down.
These LONG-TUBE headers fit a variety of 1978-1987 GM A-Body and G-Body vehicles, including Buick Regal, Chevy Chevelle, El Camino, Monte Carlo, and Pontiac Grand Prix models fitted with a SB Chevy (Gen 1) engine. The smooth 1-1/2 in. tube design provides ample exhaust flow to let your 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

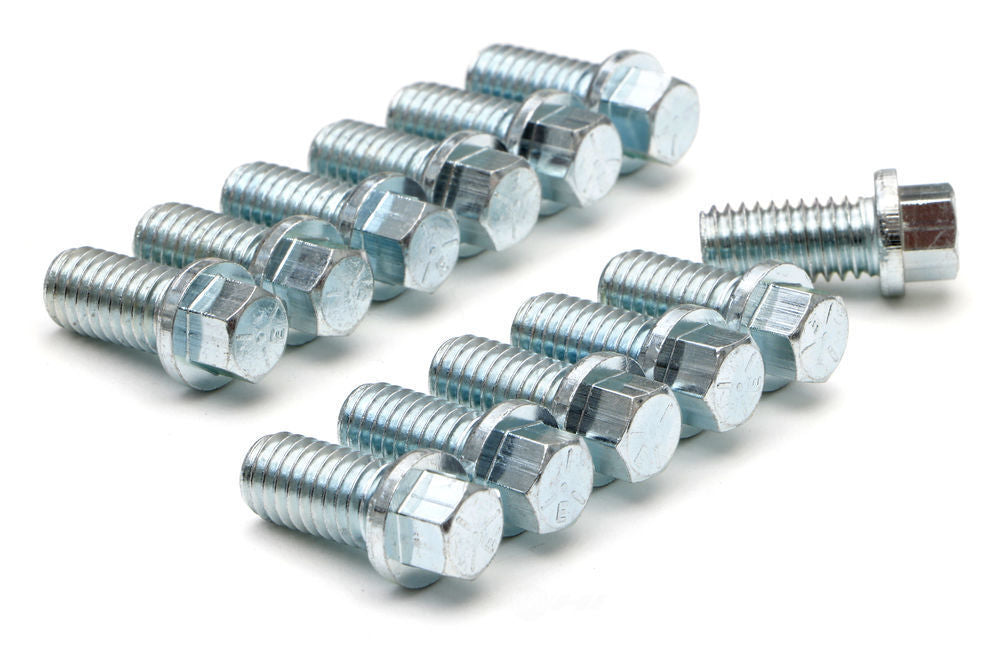

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed. Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, MATTE-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.
Specifications:
| Description_DEF |
[B@11f05c45 |
| Description_DES |
[B@6e3d2270 |
| Description_EXT |
[B@4a76772e |
| Description_FAB |
[B@21de477c |
| Description_FAB |
[B@325f3576 |
| Description_FAB |
[B@3576bfef |
| Description_FAB |
[B@4cc07168 |
| Description_FAB |
[B@1f763a2b |
| Description_FAB |
[B@54494836 |
| Description_INV |
[B@54401c97 |
| Description_MKT |
[B@1b446c46 |
| Description_SHO |
[B@354daa67 |
| LS SWAP |
NO |
| Title |
HEDMAN HEDDERS ELITE HEADERS; 1-1/2 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Variations |
68310, 68316, 68313, 68318 & 63318. |
| Tube Material Thickness |
14g |
| Tube Diameter |
1-1/2 in. |
| Tube Style |
Long Tubes |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
Yes |
| Automatic Transmission - Floor |
Yes |
| Manual Transmission - Column |
No |
| Manual Transmission - Floor |
Yes |
| Tube Length |
Long Tubes |
| Material |
Mild Steel |
| Tube Design |
Standard |
| Mounting Hardware Included |
Yes |
| Installation Notes |
Must modify rotary A/C bracket. |
| with A.I.R. System |
No |
| with EGR |
No |
| Weld-Up |
No |
| Tuned |
No |
| Catalytic Converter(s) Included |
No |
| Collector Bolts Included |
Yes |
| Crossover Pipe Included |
No |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| Installation Hardware Included |
Yes |
| Motor Mounts Included |
No |
| Reducers Included |
Yes |
| Tube Size |
1-1/2 in. |
| Y-Pipe Included |
No |
| Quantity |
Sold as a pair. |
| Primary Tube Gauge |
14g |
| Primary Tube Diameter (in) |
1.50 in. |

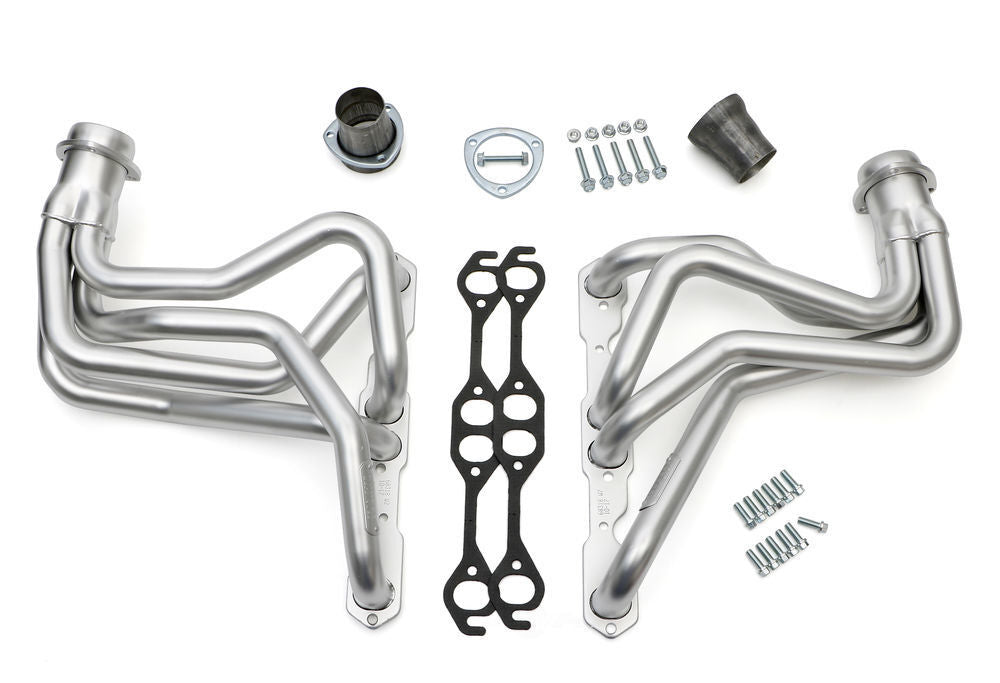

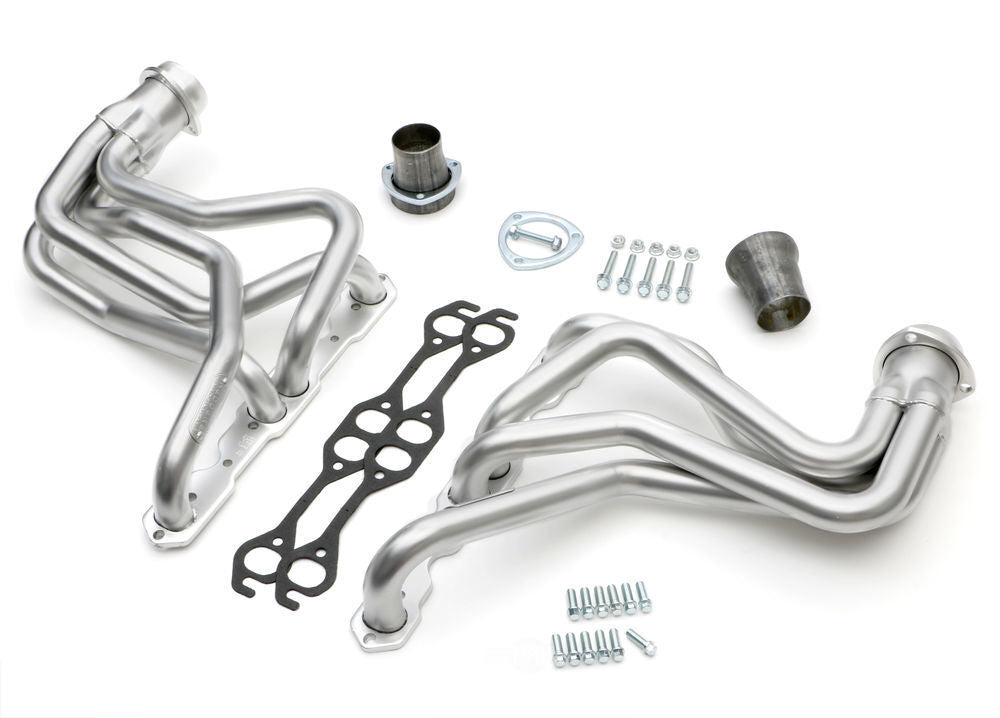

| Package Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material |
Mild Steel |
| Header Finish |
Matte Silver Ceramic-Metallic |
| Cylinder Head Port Shape |
Oval |
| Cylinder Head |
Stock Profile Heads |
| Header Construction |
MILD STEEL- ELITE Heavy-Duty |
| Replacement Gasket |
27520 |
| Replacement Head Flange Gasket |
27520 |
| Flange Thickness |
0.375 in. |
| Exhaust System Dia |
2-1/2 in. |
| Reducer Outlet Size |
2-1/2 in. |
| Collector Attachment |
3 in. |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Engine Notes |
CHEVROLET ENGINES Only! |
| Engine |
Chevy SB 283-400 (Gen 1) 1958-86 |
| Flange Style |
ELITE |
| Contents |
headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Header Style |
Long Tube |
| Finish |
Matte Silver Ceramic-Metallic |
| Finish Type |
MATTE SILVER Ceramic-metallic coated |
| E.O. # |
No |
| Emissions Notes |
Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Port Shape |
Oval |
| Header Port Shape |
Round |
| Key Feature |
Without A.I.R. |
| Power Steering |
Yes |
This Part Fits:
| Year |
Make |
Model |
Submodel |
Engine |
| 1978,1980 |
Chevrolet |
Monte Carlo |
Landau Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978,1980-1981 |
Chevrolet |
Malibu |
Base Wagon 4-Door |
5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978,1980-1981 |
Chevrolet |
Malibu |
Base Wagon 4-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1979 |
Buick |
Skylark |
Base Coupe 2-Door |
5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1979 |
Buick |
Skylark |
Base Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1979 |
Buick |
Skylark |
Base Hatchback 2-Door |
5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1979 |
Buick |
Skylark |
Base Hatchback 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1979 |
Buick |
Skylark |
Base Sedan 4-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1979 |
Buick |
Skylark |
Base Sedan 4-Door |
5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1979 |
Oldsmobile |
Cutlass |
Vista Cruiser Wagon 4-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1979,1981 |
Chevrolet |
Malibu |
Base Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1980 |
Buick |
Regal |
Base Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1980 |
Pontiac |
Grand Prix |
SJ Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1980,1983 |
Pontiac |
Grand Prix |
LJ Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1980,1983-1987 |
Pontiac |
Grand Prix |
Base Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1981 |
Chevrolet |
Malibu |
Base Coupe 2-Door |
5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1981 |
Chevrolet |
Malibu |
Base Sedan 4-Door |
5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1981 |
Chevrolet |
Malibu |
Base Sedan 4-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1978-1987 |
Chevrolet |
El Camino |
Base Standard Cab Pickup 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1979 |
Oldsmobile |
Cutlass |
Vista Cruiser Brougham Wagon 4-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1979,1981-1987 |
Chevrolet |
Monte Carlo |
Base Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1980 |
Oldsmobile |
Cutlass |
Base Sedan 4-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1980 |
Oldsmobile |
Cutlass |
Brougham Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1980 |
Oldsmobile |
Cutlass |
Brougham Sedan 4-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1980 |
Oldsmobile |
Cutlass |
LS Sedan 4-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1982-1983 |
Chevrolet |
Malibu |
Classic Sedan 4-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1982-1983 |
Chevrolet |
Malibu |
Classic Wagon 4-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1983-1987 |
Pontiac |
Grand Prix |
Brougham Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1984-1987 |
Pontiac |
Grand Prix |
LE Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
| 1985-1987 |
Oldsmobile |
Cutlass |
Salon Coupe 2-Door |
5.0L 305Cu. In. V8 GAS OHV Naturally Aspirated |
