Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Headers for Chevy Corvettes for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.

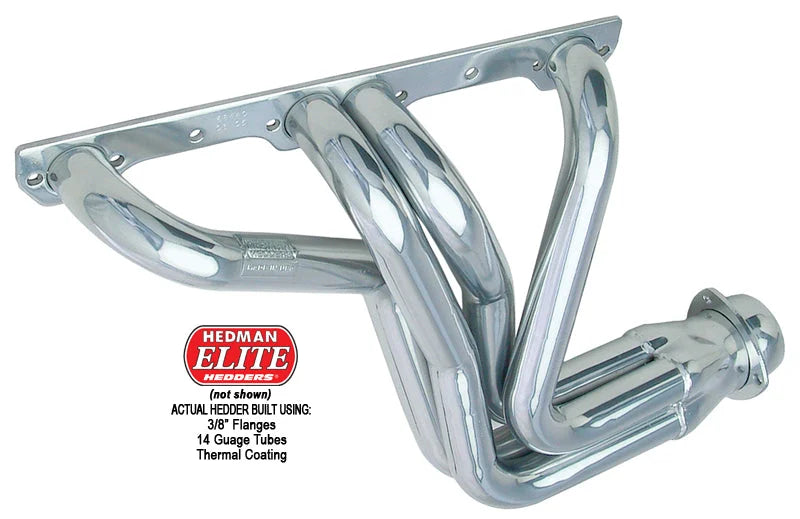

This set is part of Hedman's ELITE line of headers. Hedman ELITE headers have a heavy-duty design that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavier-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines and tow vehicles, both of which produce higher exhaust temperatures.

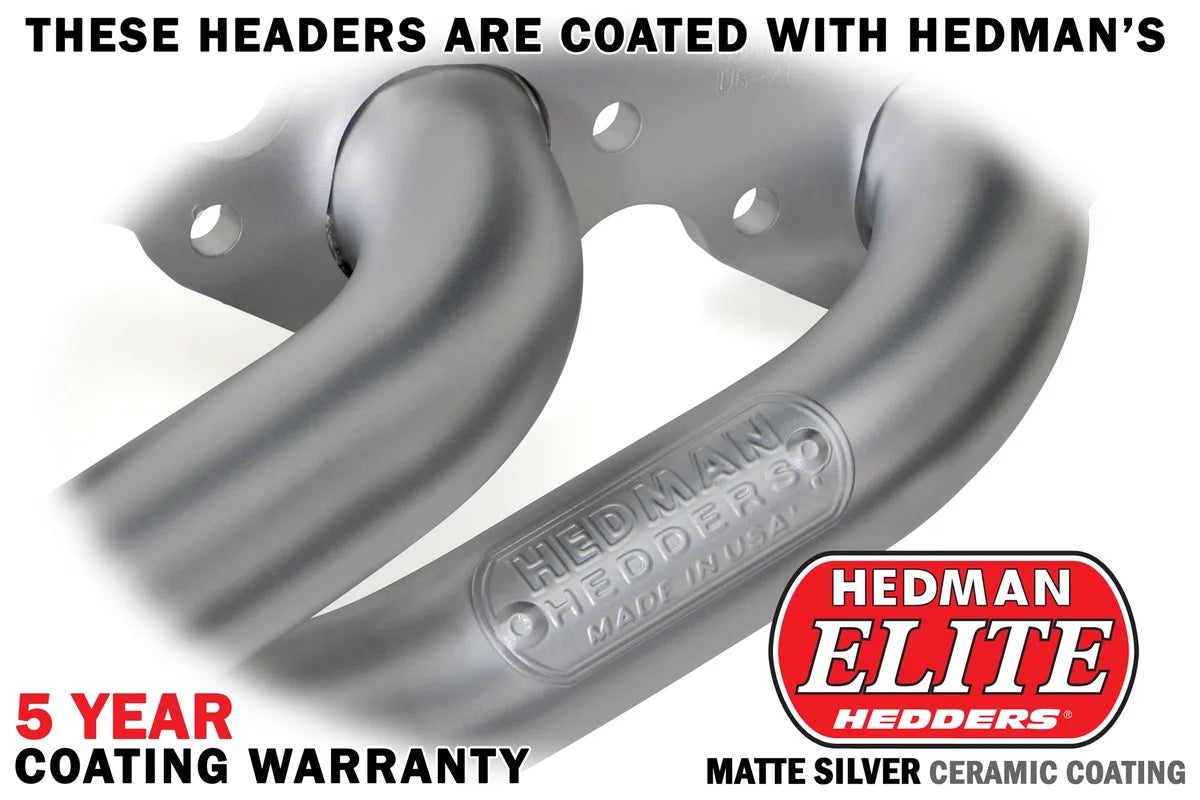

ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great and keeps more heat in the tubes. This results in faster exhaust speeds for improved exhaust scavenging, and reduced underhood temperatures.
These LONG-TUBE headers fit 1984-1991 Chevy Corvettes powered by a SB Chevy (Gen 1) engine. The smooth 1-5/8 in tube design provides ample exhaust flow to let your Vette's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

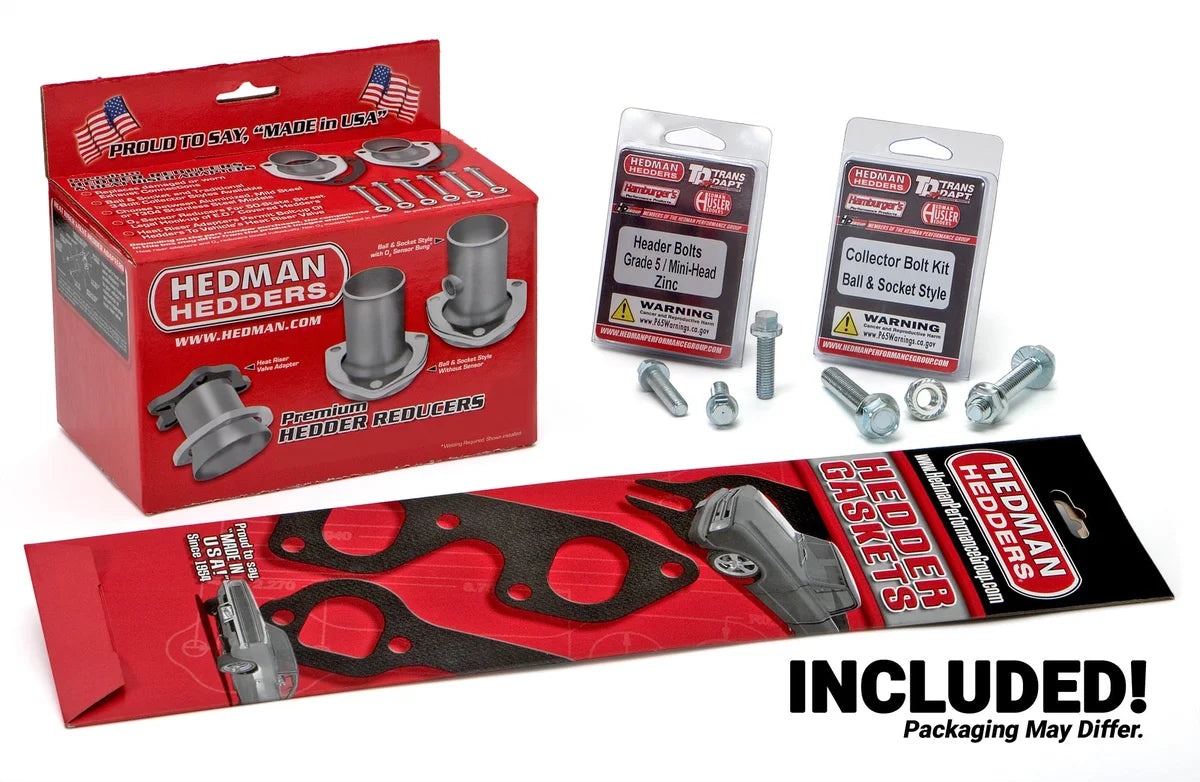

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
Specifications:
| Description_DEF |
[B@12da672f |
| Description_DES |
[B@3728741 |
| Description_EXT |
[B@14ceac6c |
| Description_FAB |
[B@23b1a918 |
| Description_FAB |
[B@6293415e |
| Description_FAB |
[B@754c8ac2 |
| Description_FAB |
[B@1480f5cb |
| Description_FAB |
[B@3a57772a |
| Description_FAB |
[B@4236488f |
| Description_INV |
[B@53bdc091 |
| Description_MKT |
[B@40005980 |
| Description_SHO |
[B@41ef988d |
| Title |
HEDMAN HEDDERS ELITE HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Manual Transmission - Column |
No |
| Manual Transmission - Floor |
Yes |
| Tube Material Thickness |
14g |
| Material |
Mild Steel |
| Tube Design |
Standard |
| Tube Length |
Long Tubes |
| Tube Diameter |
1-5/8 in. |
| Reducers Included |
Yes |
| with EGR |
No |
| Weld-Up |
No |
| Tuned |
No |
| Bolts/Studs Included |
Yes |
| Catalytic Converter(s) Included |
No |
| Collector Bolts Included |
Yes |
| Crossover Pipe Included |
No |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| Installation Hardware Included |
Yes |
| Motor Mounts Included |
No |
| Mounting Hardware Included |
Yes |
| Y-Pipe Included |
No |
| Variations |
68446, 68448 |
| Quantity |
Sold as a pair. |
| Primary Tube Gauge |
14g |
| Primary Tube Diameter (in) |
1.625 in. |
| Package Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material |
Mild Steel |
| Header Finish |
Matte Silver Ceramic-Metallic |
| Cylinder Head Port Shape |
Oval |
| Cylinder Head |
Stock Profile Heads |
| Header Construction |
MILD STEEL- ELITE Heavy-Duty |
| Replacement Gasket |
27520 |
| Replacement Head Flange Gasket |
27520 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| with A.I.R. System |
No |
| Tube Size |
1-5/8 in. |
| Tube Style |
Long Tubes |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
No |
| Automatic Transmission - Floor |
Yes |
| Flange Thickness |
0.375 in. |
| Exhaust System Dia |
2-1/2 in. |
| Reducer Outlet Size |
2-1/2 in. |
| Collector Attachment |
3 in. |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| Notes |
84-91 Chevrolet Corvette 283-400 |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Contents |
Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
| Header Style |
Long Tube |
| Finish |
Matte Silver Ceramic-Metallic |
| Finish Type |
MATTE SILVER Ceramic-metallic coated |
| E.O. # |
No |
| Key Feature |
Non-EGR |
| Emissions Notes |
Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Port Shape |
Oval |
| Header Port Shape |
Oval Port |
| Flange Style |
Standard |
| Power Steering |
Yes |
This Part Fits:
| Year |
Make |
Model |
Submodel |
Engine |
| 1988 |
Chevrolet |
Corvette |
35th Anniversary Edition Hatchback 2-Door |
5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated |
| 1989-1991 |
Chevrolet |
Corvette |
Base Convertible 2-Door |
5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated |
| 1989-1991 |
Chevrolet |
Corvette |
Base Hatchback 2-Door |
5.7L 350Cu. In. V8 GAS OHV Naturally Aspirated |
