H.D. Black Long-Tube Headers For '64-77 Chevelle 283-400 w/A.I.R.
| Description_DEF |
[B@39704aee |
| Description_DES |
[B@22fdb01 |
| Description_EXT |
[B@4e4895d5 |
| Description_FAB |
[B@478ee830 |
| Description_FAB |
[B@7c92fd15 |
| Description_FAB |
[B@19d655 |
| Description_FAB |
[B@af50dbe |
| Description_FAB |
[B@3a0aabb8 |
| Description_FAB |
[B@519b83b9 |
| Description_INV |
[B@1ffe4ca1 |
| Description_SHO |
[B@3dc42a1d |
| Tube Diameter |
1-5/8 in. |
| Reducers Included |
Yes |
| Installation Hardware Included |
Yes |
| Motor Mounts Included |
No |
| Mounting Hardware Included |
Yes |
| Y-Pipe Included |
No |
| Tube Size |
1-5/8 in. |
| Quantity |
Sold as a pair. |
| Primary Tube Gauge |
14g |
| Primary Tube Diameter (in) |
1.625 in. |
| Package Contents |

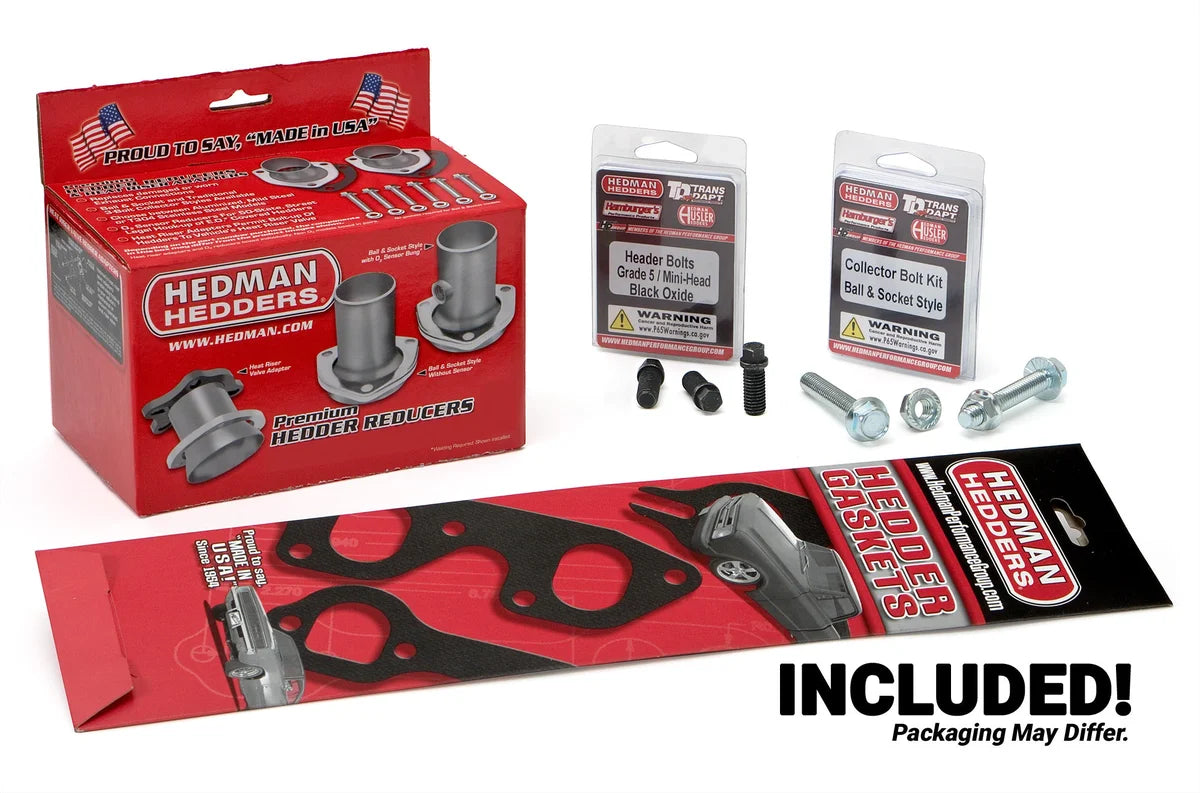

Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material |
Mild Steel |
| Header Finish |
BLACK MAXX Satin Black Ceramic-Metallic |
| Cylinder Head Port Shape |
Oval |
| Cylinder Head |
Stock Profile Heads |
| Header Construction |
MILD STEEL- ELITE Heavy-Duty |
| Replacement Gasket |
27520 |
| Replacement Head Flange Gasket |
27520 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Variations |
66291, 61298 |
| Tube Material Thickness |
14g |
| Tube Style |
Long Tubes |
| Exhaust System Dia |
2-1/2 in. |
| Air Conditioning |
Yes |
| Air Conditioning Notes |
70-Up: LARGE compressor use Hedman 20110; SMALL compressor, modify OE bracket. |
| Automatic Transmission - Column |
Yes |
| Automatic Transmission - Floor |
Yes |
| Manual Transmission - Column |
No |
| Manual Transmission - Floor |
Yes |
| Power Steering |
Yes |
| Collector Attachment |
3 in. |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Reducer Outlet Size |
2-1/2 in. |
| Contents |
headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Tube Length |
Long Tubes |
| E.O. # |
No |
| Emissions Notes |
Not currently legal for sale or use in California. Please call for status update |
| Engine |
Chevy SB 283-400; No close ratio steering |
| Finish |
BLACK MAXX Satin Black Ceramic-Metallic |
| Finish Type |
BLACK MAXX- Black Ceramic-Metallic Coating |
| Flange Style |
Standard |
| Flange Thickness |
0.375 in. |
| Header Style |
Long Tube |
| Notes |
Various 1964-93 Chevy Passenger Cars with 283-400 |
| Key Feature |
With A.I.R. |
| Material |
Mild Steel |
| Tube Design |
Standard |
| Title |
HEDMAN HEDDERS ELITE HEADERS FOR VARIOUS 1964-93 CHEVY PASSENGER CARS WITH 283-400- ELITE BLACK MAXX FINISH |
| with EGR |
No |
| Weld-Up |
No |
| Tuned |
No |
| Bolts/Studs Included |
Yes |
| Catalytic Converter(s) Included |
No |
| Crossover Pipe Included |
No |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| with A.I.R. System |
Yes |
| Year |
Make |
Model |
Submodel |
Notes |
| 1971 |
Chevrolet |
Bel Air |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1972 |
Chevrolet |
Bel Air |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1973 |
Chevrolet |
Bel Air |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1974 |
Chevrolet |
Bel Air |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1975 |
Chevrolet |
Bel Air |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1971 |
Chevrolet |
Biscayne |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1972 |
Chevrolet |
Biscayne |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1971 |
Chevrolet |
Brookwood |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1972 |
Chevrolet |
Brookwood |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1968 |
Chevrolet |
Chevelle |
300 |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1969 |
Chevrolet |
Chevelle |
300 Deluxe |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1973 |
Chevrolet |
Chevelle |
Deluxe |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1964 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1965 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1966 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1967 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1968 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1969 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1970 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1971 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1972 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1973 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1974 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1975 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1976 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1977 |
Chevrolet |
El Camino |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1971 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1972 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1973 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1974 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1975 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1976 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1977 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1978 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1979 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1980 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1981 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1982 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1983 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1984 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1985 |
Chevrolet |
Impala |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1975 |
Chevrolet |
Malibu |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (49) Will not fit (Saginaw) close ratio P/S with 825 power steering box, 1967-69.; Footnotes: (5) With A.I.R. system.; Emissions Notes: NOT LEGAL FOR STREET USE! Not currently applicable or intended for street or highway use. Call for up-to-date status.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1970 |
Chevrolet |
Monte Carlo |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1971 |
Chevrolet |
Monte Carlo |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1972 |
Chevrolet |
Monte Carlo |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1973 |
Chevrolet |
Monte Carlo |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1974 |
Chevrolet |
Monte Carlo |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1976 |
Chevrolet |
Monte Carlo |
Landau |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Emissions Notes: NOT LEGAL FOR STREET USE! Not currently applicable or intended for street or highway use. Call for up-to-date status.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1975,1977 |
Chevrolet |
Monte Carlo |
S |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: Yes; Footnotes: (5) With A.I.R. system.; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Emissions Notes: NOT LEGAL FOR STREET USE! Not currently applicable or intended for street or highway use. Call for up-to-date status.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1971 |
Chevrolet |
Townsman |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
| 1972 |
Chevrolet |
Townsman |
Base |
Air Conditioning: Not for '67-69 with A/C! 1970 and later with Large Piston A/C need bracket 20110; Power Steering: Yes; Auto Transmission - Column: Yes; Auto Transmission - Floor: Yes; Manual Transmission - Column: No; Manual Transmission - Floor: No; Footnotes: (6) Modification to stock exhaust required to retain catalytic converter.; Footnotes: (103) Will fit with angle plug heads (Chevy aluminum only, L98).; Footnotes: (121) Must modify rotary A/C bracket.; Footnotes: (5) With A.I.R. system.; Emissions Notes: 1974 and earlier vehicles WITH A.I.R.: Does not require EO if existing emission controls are not removed.; Engine Family: SB Chevy 283-400 (Gen 1) |
