Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these Ford 352-427 FE headers, even if it is not perfectly aligned with the header collectors.
This set is part of Hedman's ELITE line that uses stout 3/8" flanges, and thicker 14 gauge primary tubes. The heavy-duty construction of HEDMAN ELITE Hedders makes them ideal for high-performance engines, which produce higher exhaust temperatures.
ELITE models have a MATTE-SILVER ceramic finish that can withstand temperatures up to 1400 degrees F. The coating looks great, and keeps more heat in the tubes, resulting in faster exhaust speeds for improved scavenging, and reduced underhood temperatures.

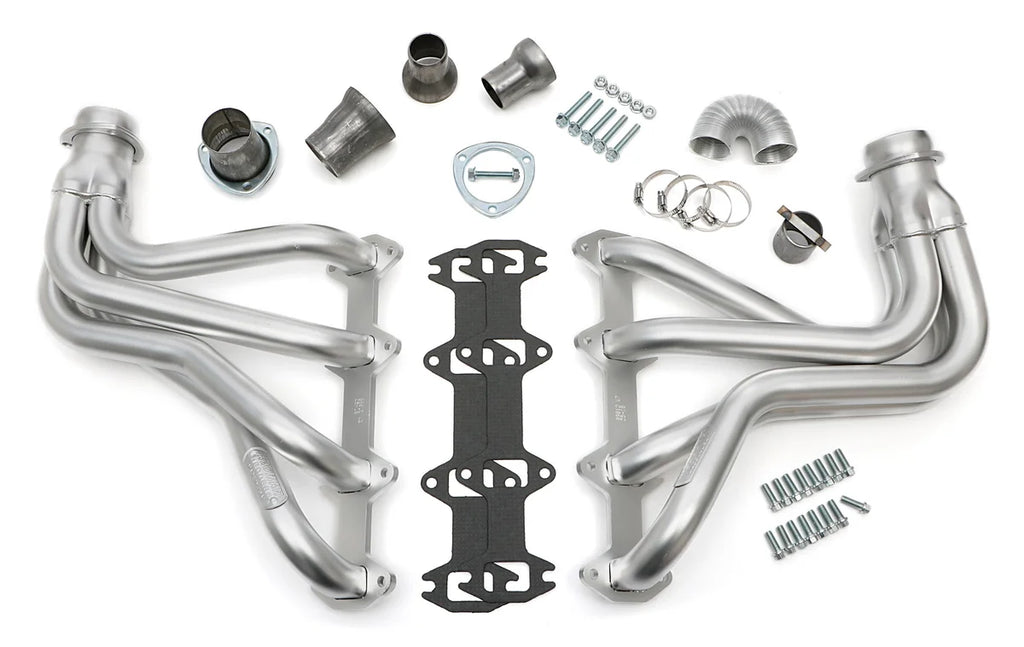

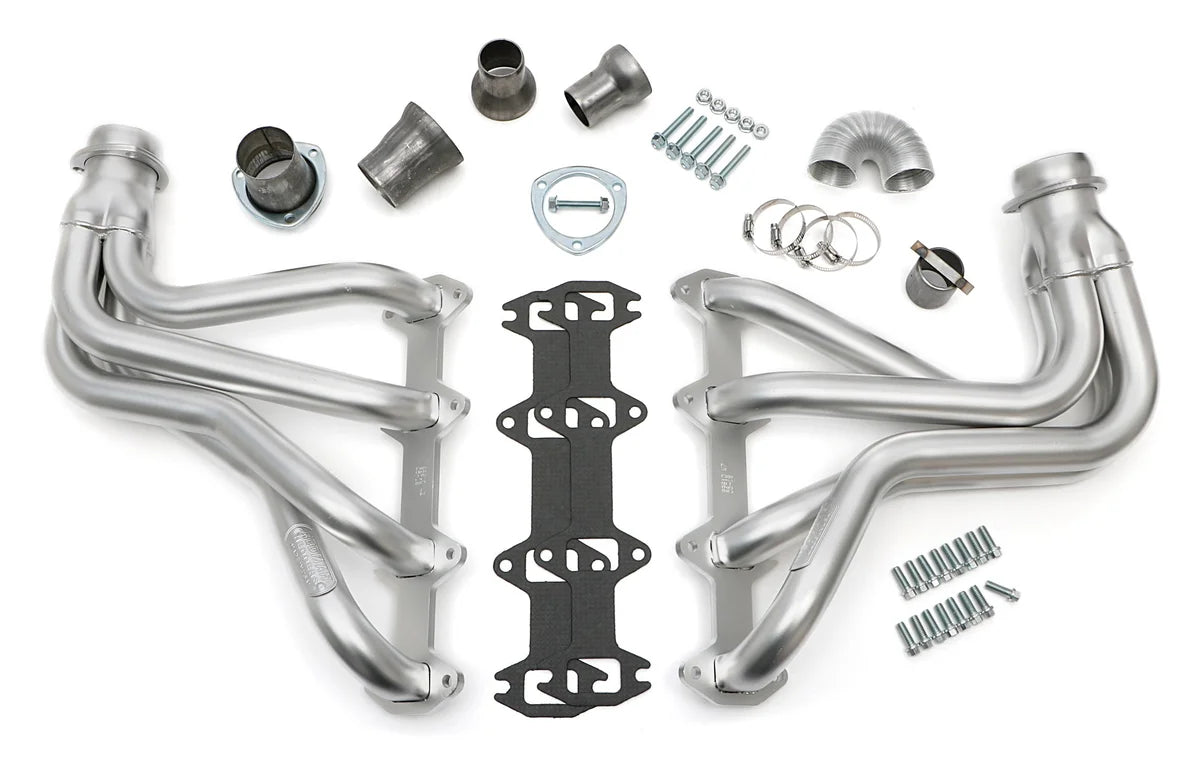

These LONG-TUBE headers fit 1965-1976 Ford 1/2, 3/4 and 1, ton 2WD Trucks with a 352-427 FE engine.These headers have been successfully tested and assigned E.O. number D167-9 by C.A.R.B., making these headers 50-state legal on the emissions-controlled 1975-1976 models without A.I.R. System. The long, smooth-flowing 1-3/4 in. tube design provides excellent exhaust flow to let your F-Series Ford truck's factory FE engine breathe easy, and produce loads of horsepower and torque. They fit manual and auto transmissions, but will not install on Camper Special or front swaybar equipped models.

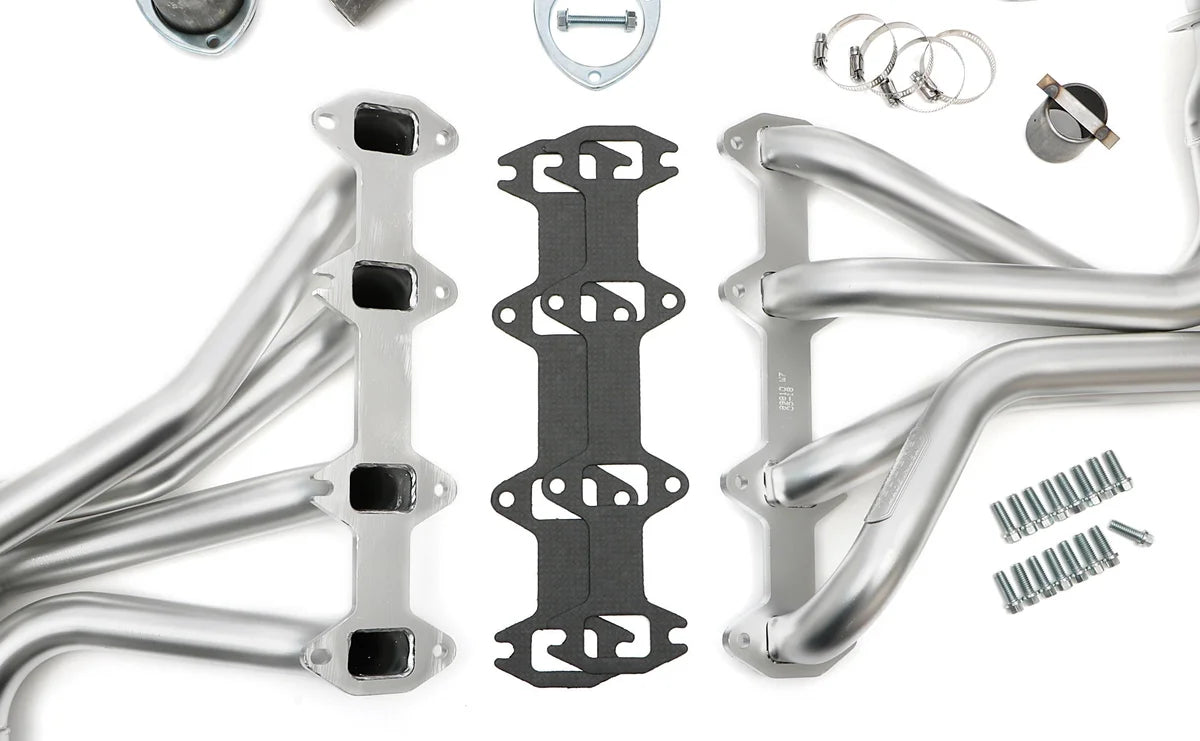

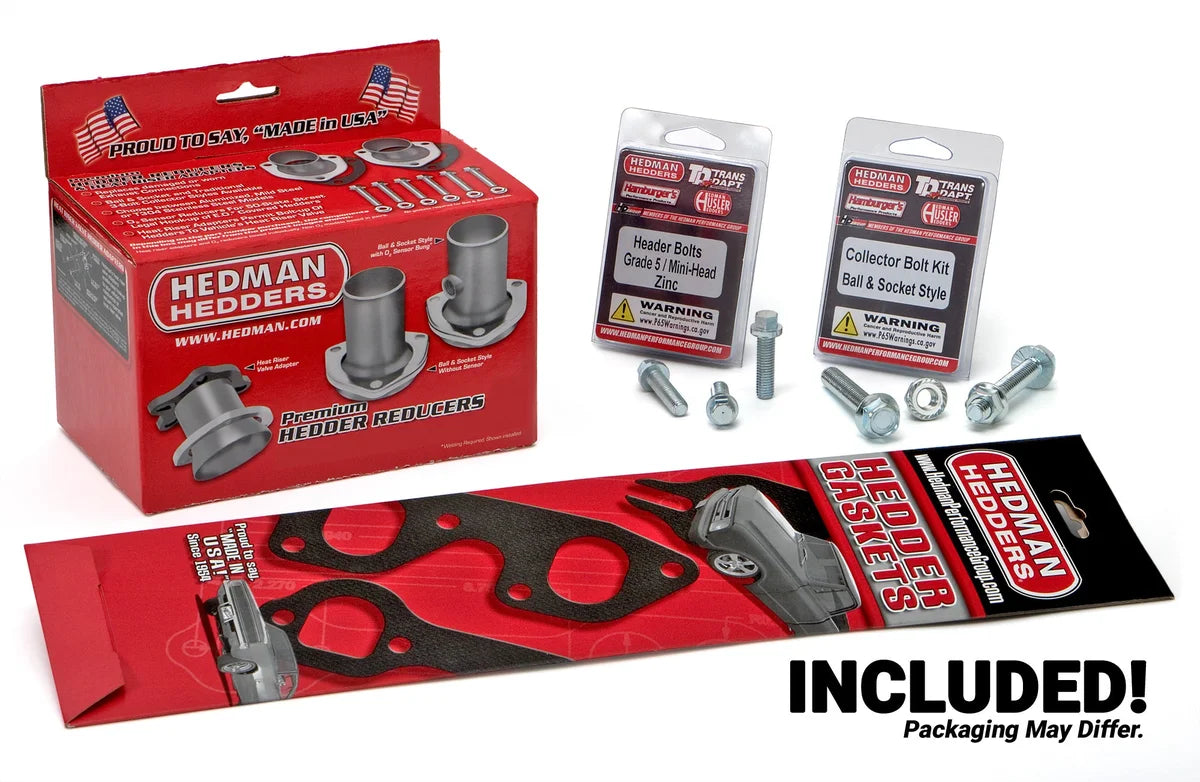

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. The ceramic-metallic coating is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
Specifications:
| Description_DEF |
[B@3d06ec63 |
| Description_DES |
[B@74220b06 |
| Description_EXT |
[B@5c82cf10 |
| Description_FAB |
[B@63accbb6 |
| Description_FAB |
[B@69435654 |
| Description_FAB |
[B@d5d0a41 |
| Description_FAB |
[B@476daeb5 |
| Description_FAB |
[B@42992c95 |
| Description_FAB |
[B@319b2364 |
| Description_INV |
[B@54f13814 |
| Description_MKT |
[B@7ec33c39 |
| Description_SHO |
[B@75b55af0 |
| Cylinder Head |
Stock Profile Heads |
| Title |
HEDMAN HEDDERS ELITE HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Cylinder Head Port Shape |
Rectangle |
| Header Construction |
MILD STEEL- ELITE Heavy-Duty |
| Replacement Gasket |
27740 |
| Replacement Head Flange Gasket |
27740 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| with A.I.R. System |
No |
| Tube Size |
1-3/4 in. |
| Tube Style |
Long Tubes |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
Yes |
| Automatic Transmission - Floor |
Yes |
| Manual Transmission - Column |
Yes |
| Manual Transmission - Floor |
Yes |
| Tube Material Thickness |
14g |
| Material |
Mild Steel |
| Tube Design |
Standard |
| Tube Length |
Long Tubes |
| Tube Diameter |
1-3/4 in. |
| Reducers Included |
Yes |
| with EGR |
No |
| Weld-Up |
No |
| Tuned |
No |
| Bolts/Studs Included |
Yes |
| Catalytic Converter(s) Included |
No |
| Collector Bolts Included |
Yes |
| Crossover Pipe Included |
No |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| Installation Hardware Included |
Yes |
| Motor Mounts Included |
No |
| Mounting Hardware Included |
Yes |
| Y-Pipe Included |
No |
| Variations |
89100 (standard uncoated), 89106 (standard HTC Coated) |
| Quantity |
Sold as a pair. |
| Primary Tube Gauge |
14g |
| Primary Tube Diameter (in) |
1.75 in. |
| Package Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material |
Mild Steel |
| Header Finish |
Matte Silver Ceramic-Metallic |
| Flange Thickness |
0.375 in. |
| Exhaust System Dia |
2-1/2 in. |
| Reducer Outlet Size |
2-1/2 in. |
| Drivetrain |
2WD Only! |
| Collector Attachment |
3 in. |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| Notes |
65-76 Ford 1/2, 3/4, 1 Ton Trucks; 2WD 352-427 |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Emissions Notes |
EO# D167-9 (click here for covered vehicles in document on ARB.CA.GOV website) |
| Contents |
headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Header Style |
Long Tube |
| Finish |
Matte Silver Ceramic-Metallic |
| Finish Type |
MATTE SILVER Ceramic-metallic coated |
| Header Port Shape |
Rectangle |
| Port Shape |
Rectangle |
| Flange Style |
Standard |
| E.O. # |
Yes |
| Power Steering |
Yes |
