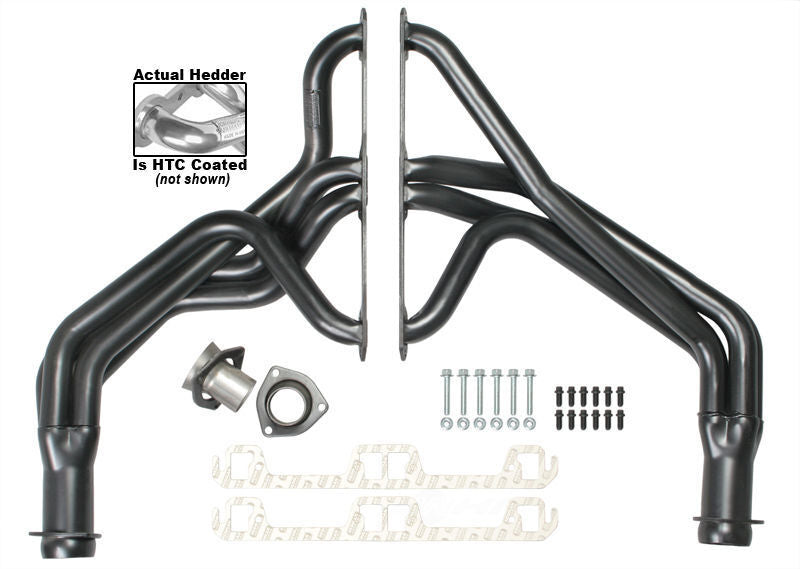

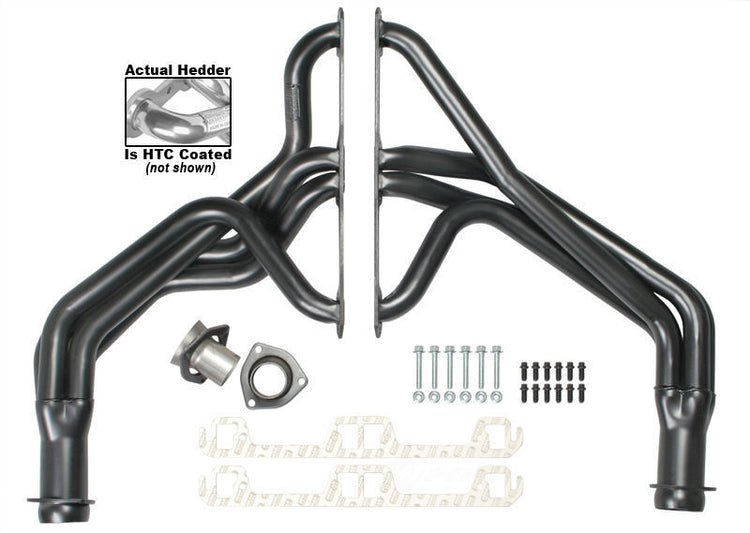

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Jeep headers for decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these GEN-3 AMC V8 headers, even if it is not perfectly aligned with the header collectors.
These HTC coated,LONG-TUBE, Fenderwell-Exit headers fit 1972-1986 Jeep CJ5, CJ6 and CJ7 models with a 304-401 AMC V8. They are compatible with both manual and automatic transmission setups, and the long, smooth 1-3/4 in. tube, Dog-Leg port design provides excellent exhaust flow to let your CJ's Tall-Deck, AMC V8 engine breathe freely, and produce maximum torque to power you through virtually any trail.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
Specifications:
| Description_DEF |
[B@48655b4b |
| Description_DES |
[B@3a08b85b |
| Description_EXT |
[B@2c37c694 |
| Description_FAB |
[B@29dc9548 |
| Description_FAB |
[B@4b812c3b |
| Description_FAB |
[B@34b49f70 |
| Description_FAB |
[B@2625fc14 |
| Description_FAB |
[B@6b9e4b4d |
| Description_FAB |
[B@29bc52f1 |
| Description_INV |
[B@396317a9 |
| Description_MKT |
[B@302f89cd |
| Description_SHO |
[B@297278a6 |
| Title |
HEDMAN HEDDERS HTC COATED HEADERS; 1-3/4 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Tube Diameter |
1-3/4 in. |
| Reducers Included |
Yes |
| with EGR |
No |
| Weld-Up |
No |
| Tuned |
No |
| Bolts/Studs Included |
Yes |
| Catalytic Converter(s) Included |
No |
| Collector Bolts Included |
Yes |
| Crossover Pipe Included |
No |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| Installation Hardware Included |
Yes |
| Motor Mounts Included |
No |
| Mounting Hardware Included |
Yes |
| Y-Pipe Included |
No |
| Variations |
99190, 99198 |
| Quantity |
Sold as a pair. |
| Primary Tube Gauge |
16g |
| Primary Tube Diameter (in) |
1.75 in. |
| Package Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material |
Mild Steel |
| Header Finish |
HTC Polished Silver Ceramic-Metallic |
| Cylinder Head Port Shape |
Dog Leg |
| Cylinder Head |
Stock Profile Heads |
| Header Construction |
MILD STEEL- Standard-Duty |
| Replacement Gasket |
27850 |
| Replacement Head Flange Gasket |
27850 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| with A.I.R. System |
No |
| Tube Size |
1-3/4 in. |
| Tube Style |
Long Tubes |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
Yes |
| Automatic Transmission - Floor |
Yes |
| Manual Transmission - Column |
Yes |
| Manual Transmission - Floor |
Yes |
| Tube Material Thickness |
16g |
| Material |
Mild Steel |
| Tube Design |
Standard |
| Tube Length |
Long Tubes |
| Flange Thickness |
0.3125 in. |
| Exhaust System Dia |
2-1/2 in. |
| Reducer Outlet Size |
2-1/2 in. |
| Collector Attachment |
3 in. |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| Notes |
72-86 Jeep CJ5, CJ6, CJ7 304-401 |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Header Port Shape |
Dog Leg |
| Port Shape |
Dog Leg |
| Contents |
headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Finish |
HTC Polished Silver Ceramic-Metallic |
| Finish Type |
HTC SILVER (polished) Ceramic-metallic Coating |
| Header Style |
Long Tube- Fenderwell Exit |
| E.O. # |
No |
| Emissions Notes |
Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Flange Style |
Standard |
| Power Steering |
Yes |
This Part Fits:
| Year |
Make |
Model |
Submodel |
Engine |
| 1972 |
Jeep |
CJ5 |
Base Sport Utility 2-Door |
5.0L 4982CC 304Cu. In. V8 GAS OHV Naturally Aspirated |
| 1972-1973 |
Jeep |
CJ6 |
Base Sport Utility 2-Door |
5.0L 4982CC 304Cu. In. V8 GAS OHV Naturally Aspirated |
