Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford truck headers decades. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these SB Ford, Ranger swap headers, even if it is not perfectly aligned with the header collectors.
These HTC coated, MID-LENGTH TUBE headers are designed specifically for swapping a Ford Small Block 260-302W engine into a 1982-1997 Ford Ranger 2WD (only) truck. These headers fit both automatic and manual, floor-shift transmissions. The smooth 1-1/2 in. tube design provides good exhaust flow to let your Ford Windsor Block engine breathe better, and produce excellent low-end torque and horsepower.

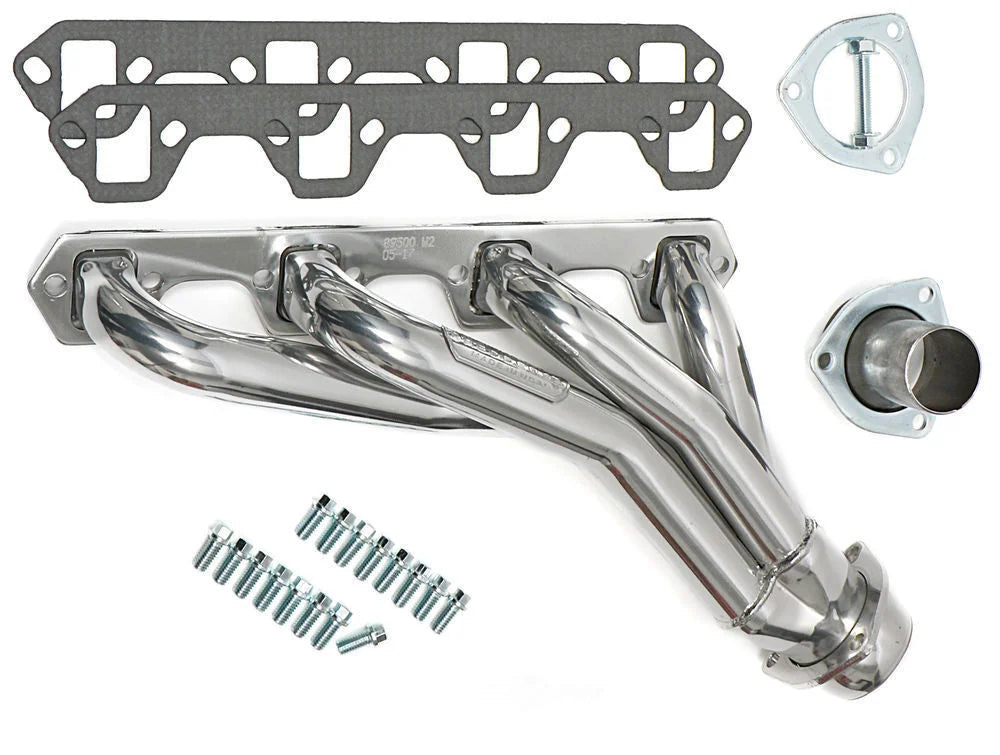

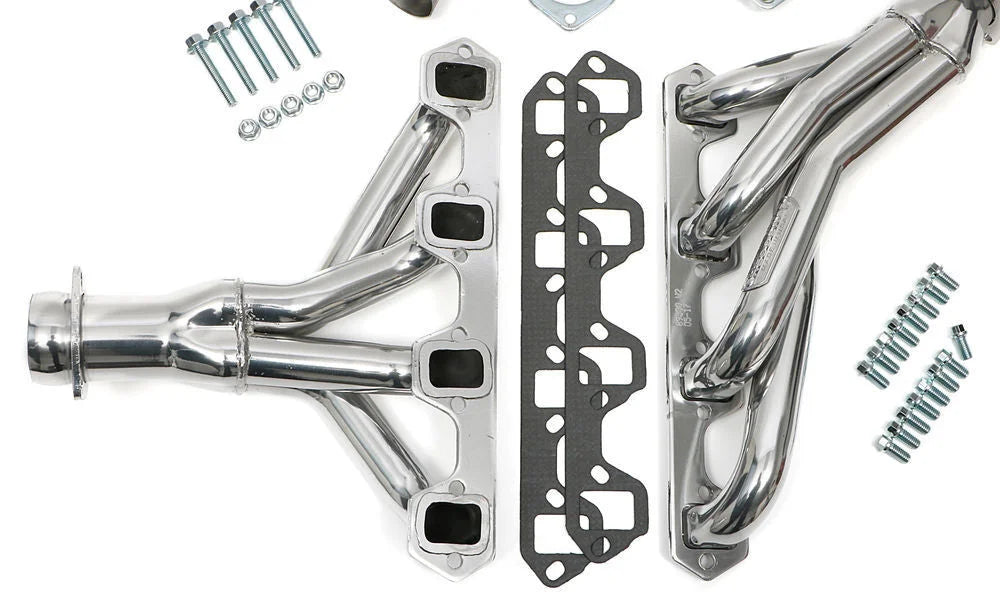

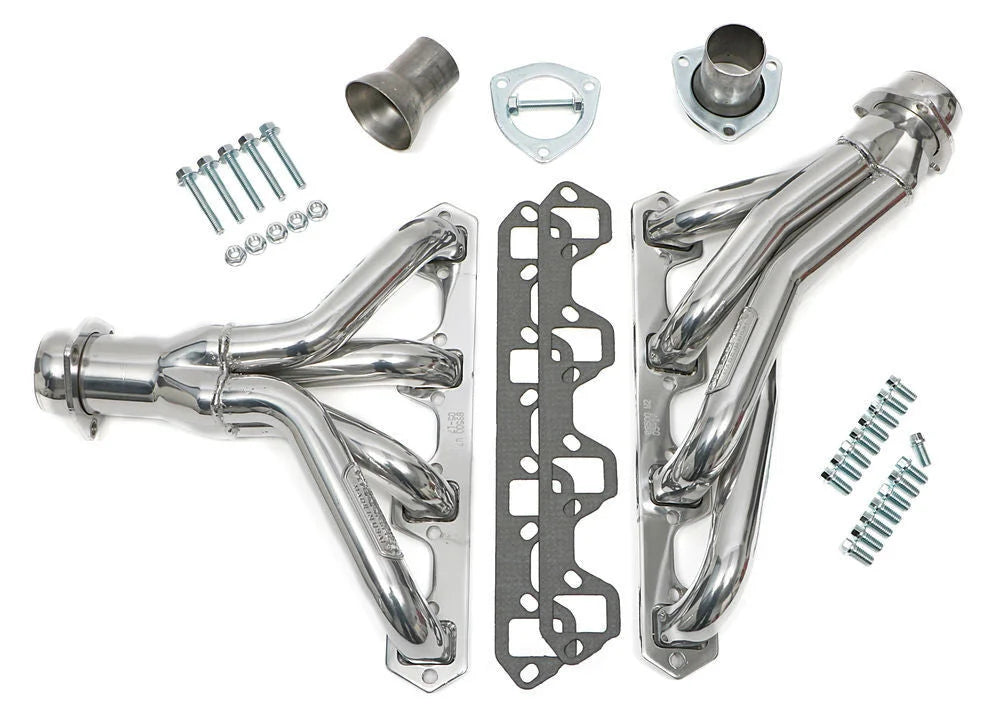

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
Specifications:
| Description_DEF |
[B@43e468c3 |
| Description_DES |
[B@21bc3e90 |
| Description_EXT |
[B@4c1db4a4 |
| Description_FAB |
[B@d152adf |
| Description_FAB |
[B@6d57f9ce |
| Description_FAB |
[B@2d5f124a |
| Description_FAB |
[B@c462bd1 |
| Description_FAB |
[B@28a1bb54 |
| Description_FAB |
[B@7a6abe07 |
| Description_INV |
[B@2ff22e42 |
| Description_MKT |
[B@12d780ce |
| Description_SHO |
[B@3709f2db |
| Tube Diameter |
1-1/2 in. |
| Mounting Hardware Included |
Yes |
| with A.I.R. System |
No |
| with EGR |
No |
| Weld-Up |
No |
| Tuned |
No |
| Bolts/Studs Included |
Yes |
| Catalytic Converter(s) Included |
No |
| Collector Bolts Included |
Yes |
| Crossover Pipe Included |
No |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| Installation Hardware Included |
Yes |
| Motor Mounts Included |
No |
| Reducers Included |
Yes |
| Tube Size |
1-1/2 in. |
| Y-Pipe Included |
No |
| Quantity |
Sold as a pair. |
| Primary Tube Gauge |
16g |
| Primary Tube Diameter (in) |
1.50 in. |
| Package Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material |
Mild Steel |
| Header Finish |
HTC Polished Silver Ceramic-Metallic |
| Cylinder Head Port Shape |
Square |
| Cylinder Head |
Stock Profile Heads |
| Header Construction |
MILD STEEL- Standard-Duty |
| Replacement Gasket |
27340 |
| Replacement Head Flange Gasket |
27340 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Variations |
89500, 89508 |
| Tube Material Thickness |
16g |
| Tube Style |
Mid-Length |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
No |
| Automatic Transmission - Floor |
Yes |
| Manual Transmission - Column |
No |
| Manual Transmission - Floor |
Yes |
| Exhaust System Dia |
2 in. |
| Reducer Outlet Size |
2 in. |
| Collector Attachment |
2-1/2 in. |
| Collector Diameter |
2-1/2 in. |
| Collector Size |
2-1/2 in. |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Power Steering |
Yes |
| Drivetrain |
2WD |
| Contents |
headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| E.O. # |
No |
| Tube Length |
Mid-Length Tubes |
| Emissions Notes |
Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Engine Version |
Ford Windsor Block (W) |
| Finish |
HTC Polished Silver Ceramic-Metallic |
| Finish Type |
HTC SILVER (polished) Ceramic-metallic Coating |
| Flange Style |
Standard |
| Flange Thickness |
1/4 in. with 5/16 in. collector ring flange. |
| Header Port Shape |
Square |
| Header Style |
Engine Swap |
| Notes |
82-97 Ford Ranger V8 Swap 2WD 260-302 |
| Port Shape |
Square |
| Product Info |
Not for use with Smog Injection or Injection Heads |
| Material |
Mild Steel |
| Tube Design |
Standard |
| Title |
HEDMAN HEDDERS HTC COATED HEADERS; 1-1/2 IN. TUBE DIA.; 2-1/2 IN. COLL.; MID-LENGTH DESIGN |
