Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing LONG and MID-LENGTH tube headers for Chevy trucks for nearly as long. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your Small Block Chevy exhaust system to bolt up, even if it is not perfectly aligned with the header collectors.
These HTC™ coated, LONG-TUBE headers use one of Hedman's best selling Chevy truck header tube configurations. They fit a wide range of early to mid-year 1967-1987 2WD & 4WD Chevy/GMC 1/2 Ton and 3/4 ton trucks, Blazers and Suburbans (check the application listings for exact fitment), powered by a Small Block Chevy engine (without A.I.R. system). They are covered by CARB E.O. (Executive Order) Numbers D167-9, D167-27 and D167-33, making them 50-State Legal for the vehicles listed on the official arb.ca.gov website. The smooth 1-5/8 in. tube design provides ample exhaust flow to let your truck's 283-400 SB Chevy engine breathe easy, and produce maximum horsepower and torque.

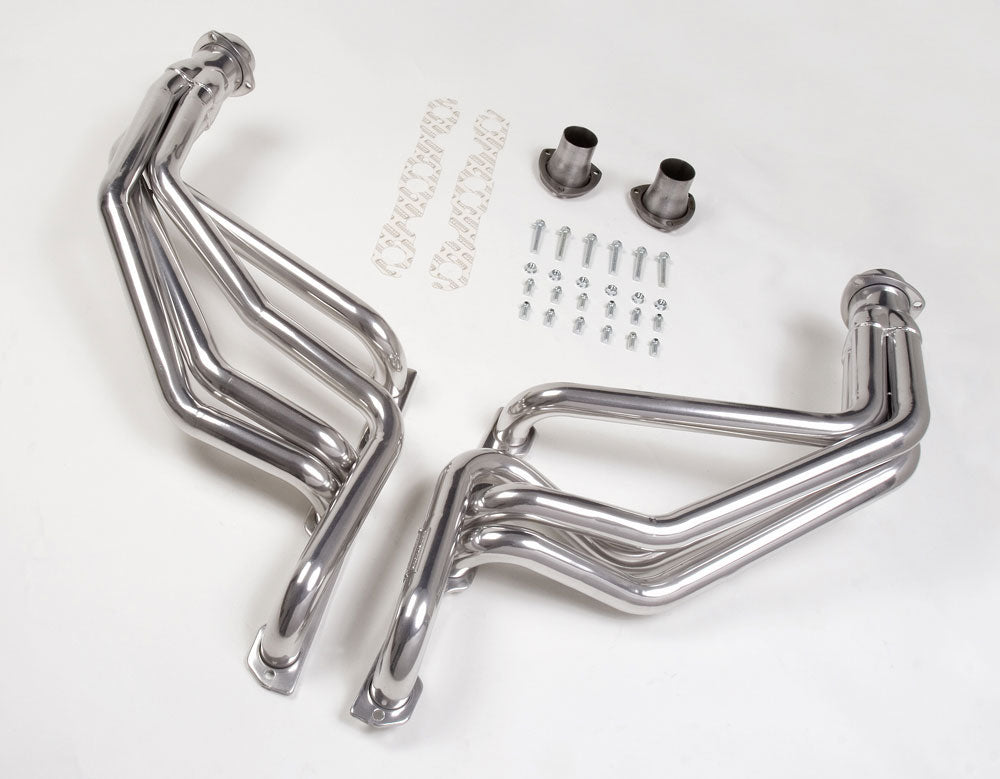

Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.

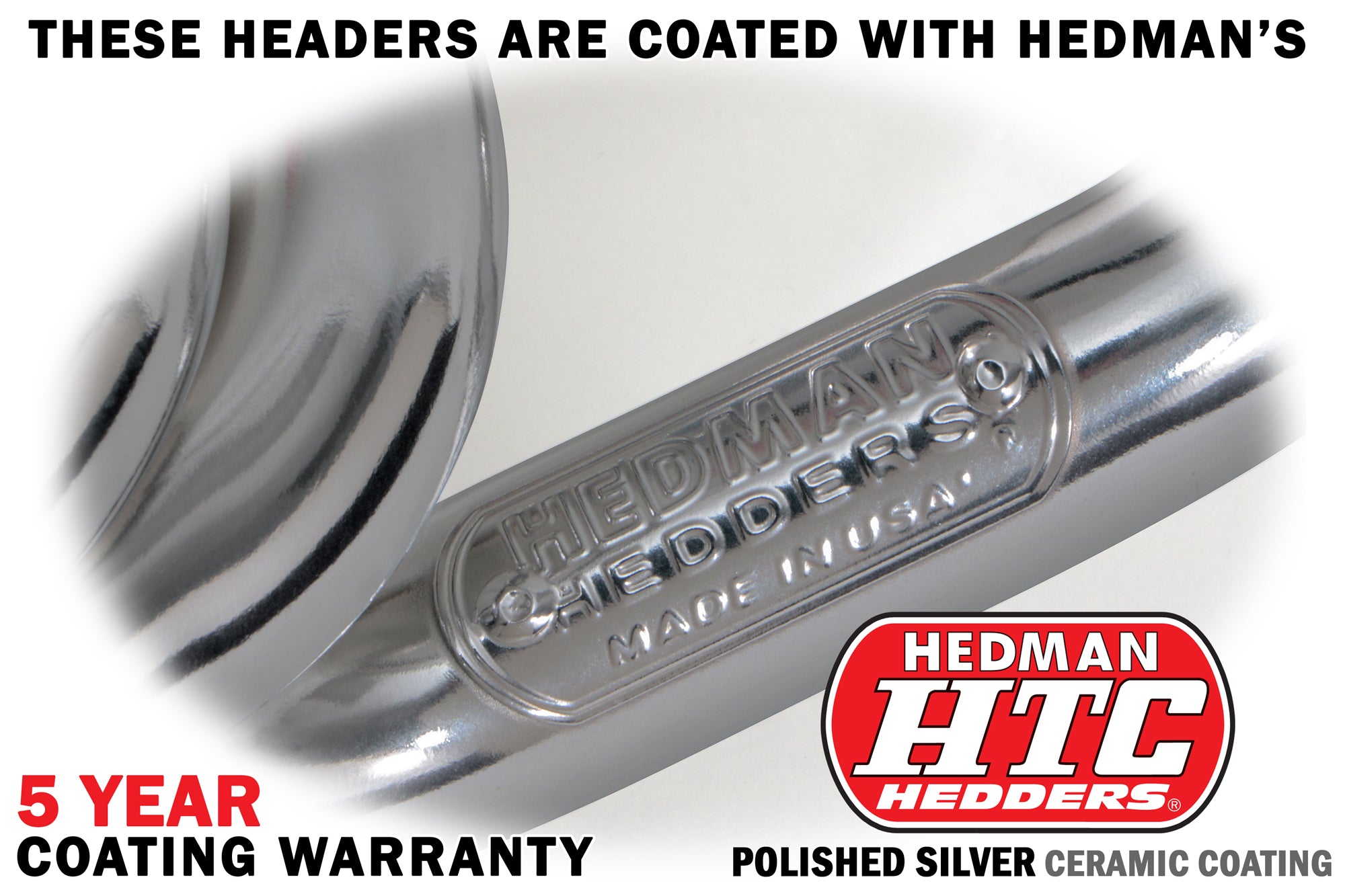

Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, HTC™ POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5 year factory warranty, in addition to Hedman's standard lifetime header warranty.
Specifications:
| Description_DEF |
[B@3227665d |
| Description_DES |
[B@101079d8 |
| Description_EXT |
[B@1fc0c3e8 |
| Description_FAB |
[B@7a6b80aa |
| Description_FAB |
[B@73f70434 |
| Description_FAB |
[B@60ba6d2b |
| Description_FAB |
[B@79fc2d57 |
| Description_FAB |
[B@5f349c12 |
| Description_FAB |
[B@1429f564 |
| Description_INV |
[B@27c911ff |
| Description_MKT |
[B@3fc716c4 |
| Description_SHO |
[B@4468d922 |
| Tube Diameter |
1-5/8 in. |
| Mounting Hardware Included |
Yes |
| with A.I.R. System |
No |
| with EGR |
No |
| Weld-Up |
No |
| Tuned |
No |
| Bolts/Studs Included |
Yes |
| Catalytic Converter(s) Included |
No |
| Collector Bolts Included |
Yes |
| Crossover Pipe Included |
No |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| Installation Hardware Included |
Yes |
| Motor Mounts Included |
No |
| Reducers Included |
Yes |
| Tube Size |
1-5/8 in. |
| Y-Pipe Included |
No |
| Quantity |
Sold as a pair. |
| Primary Tube Gauge |
16g |
| Primary Tube Diameter (in) |
1.625 in. |
| Package Contents |

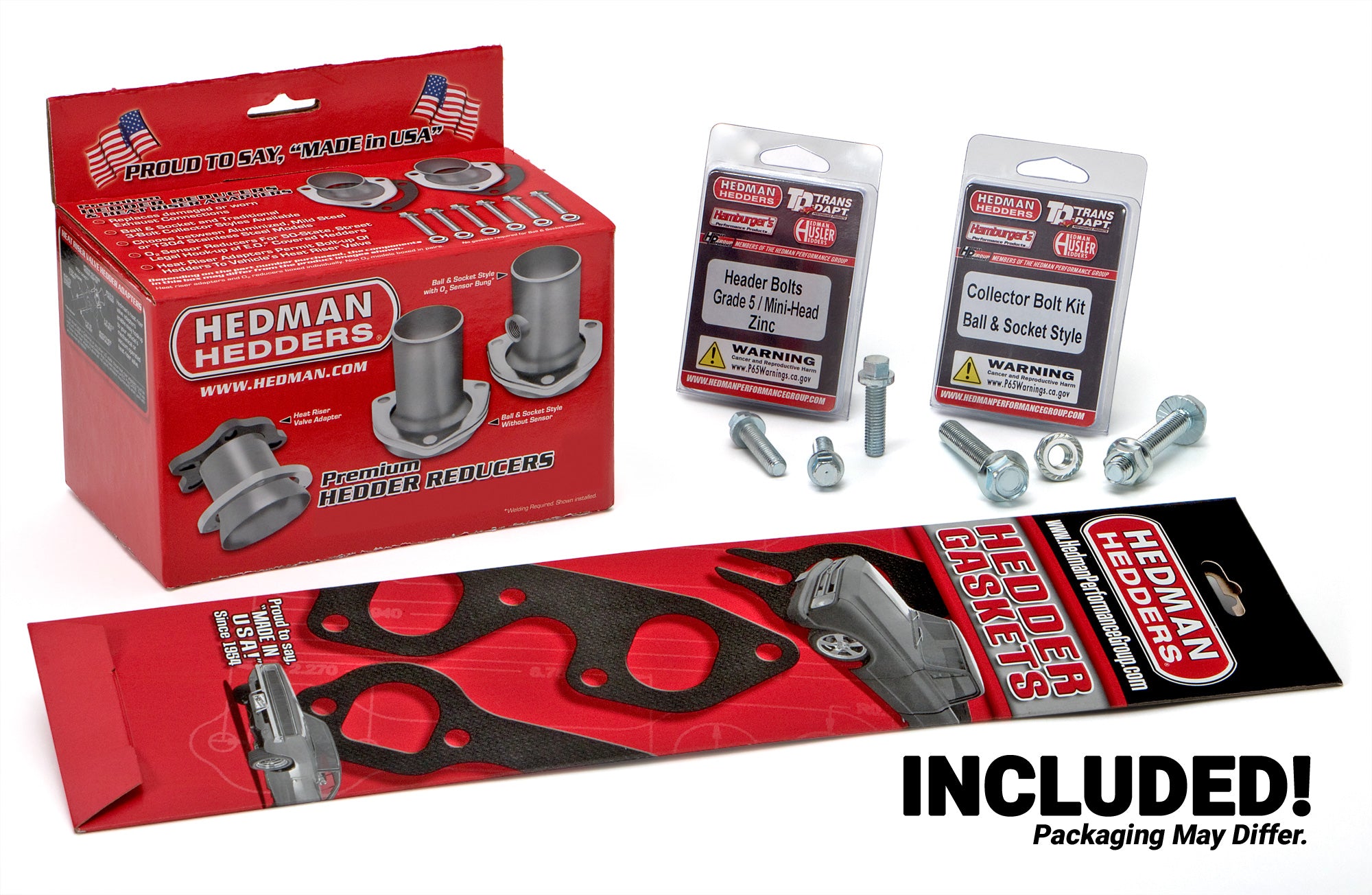

Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material |
Mild Steel |
| Header Finish |
HTC Polished Silver Ceramic-Metallic |
| Cylinder Head Port Shape |
Round |
| Cylinder Head |
Fits Factory GM Aluminum Angle Plug and Straight Plug Heads. |
| Header Construction |
MILD STEEL- Standard-Duty |
| Replacement Gasket |
27500 |
| Replacement Head Flange Gasket |
27500 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Variations |
69097, 69897 |
| Tube Material Thickness |
16g |
| Tube Style |
Long Tubes |
| Contents |
headers, gaskets (when applicable), 3-bolt exhaust adapters, hardware |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
Yes |
| Automatic Transmission - Floor |
Yes |
| Manual Transmission - Column |
No |
| Manual Transmission - Floor |
Yes |
| Power Steering |
Yes |
| Collector Attachment |
3 in. |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Reducer Outlet Size |
2-1/2 in. |
| Exhaust System Dia |
2-1/2 in. |
| Drivetrain |
2WD |
| Tube Length |
Long Tubes |
| E.O. # |
Yes |
| Emissions Notes |
EO# D167-27 (click here for covered vehicles in document on ARB.CA.GOV website) |
| Finish |
HTC Polished Silver Ceramic-Metallic |
| Finish Type |
HTC SILVER (polished) Ceramic-metallic Coating |
| Flange Style |
Standard |
| Flange Thickness |
0.3125 in. |
| Header Port Shape |
Round |
| Header Style |
Long Tube |
| Notes |
67-91 GM 1/2, 3/4, 1 Ton Truck/SUV/Class A 2-4WD SBC |
| Port Shape |
Round |
| Material |
Mild Steel |
| Transmission Notes |
May encounter clutch shaft interference. If so, use 69092, 69093 or 69892 |
| Tube Design |
Standard |
| Title |
HEDMAN HEDDERS HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
