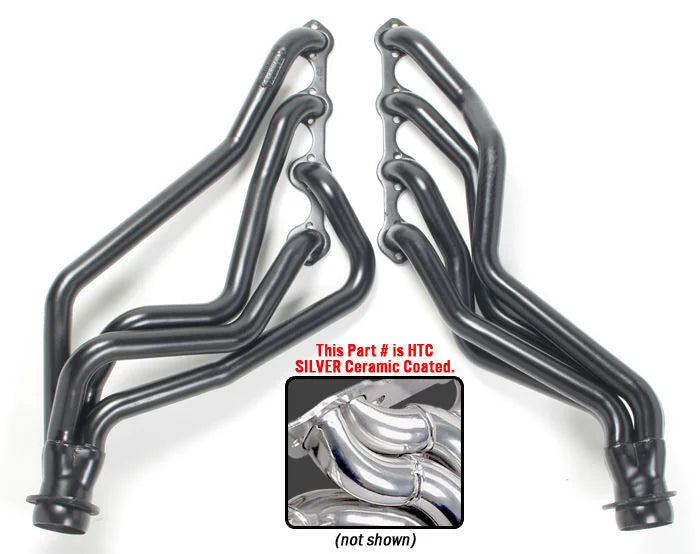

Hedman Hedders has been manufacturing quality headers in the USA since 1954, and they've been manufacturing Ford Mustang headers for nearly as long as Mustangs have been on the road. Each set uses mild steel, smooth flowing, CNC mandrel bent tubes, that are hand-welded to ensure each pair is identical to the next. Hedman's unique, gasketless ball and socket collector design allows your exhaust system to bolt up to these 351W engine swap headers, even if it is not perfectly aligned with the header collectors.
These HTC coated, LONG-TUBE headers are designed specifically for swapping a 351W engine into (non-factory 351W equipped) 1964-73 Ford Mustang, Falcon, or '66-73 Ranchero, Torino. The engine must be centered between the framerails. These headers fit both automatic and manual transmissions, but won't work with 4 speed top-loader tranmissions, and clutch and shift linkage may be required. The smooth 1-5/8 in., oval port tube design tucks in tight to clear shock towers, and provide excellent flow to let your 351W engine breathe better, and produce excellent low-end torque and horsepower.
Each set includes a pair of gaskets, header flange bolts and collector bolts. No collector gasket is needed.
Hedman Hedders is so confident in the quality of its headers that these headers are factory backed by a Limited Lifetime Warranty. These headers have a high temperature, POLISHED-SILVER ceramic finish that resists corrosion, and can withstand temperatures up to 1400 degree F. This finish is covered by a 5-year factory warranty, in addition to Hedman's standard lifetime header warranty.
Specifications:
| Description_DEF |
[B@4907e966 |
| Description_DES |
[B@3117d211 |
| Description_EXT |
[B@121523c0 |
| Description_FAB |
[B@719a59d3 |
| Description_FAB |
[B@7a0d25f |
| Description_FAB |
[B@8281fe0 |
| Description_FAB |
[B@33982606 |
| Description_FAB |
[B@10efb567 |
| Description_FAB |
[B@115caf0f |
| Description_INV |
[B@594375db |
| Description_MKT |
[B@2b19c0e3 |
| Description_SHO |
[B@46301c6a |
| Title |
HEDMAN HEDDERS HTC COATED HEADERS; 1-5/8 IN. TUBE DIA.; 3 IN. COLL.; FULL LENGTH DESIGN |
| Tube Diameter |
1-5/8 in. |
| Mounting Hardware Included |
Yes |
| with A.I.R. System |
No |
| with EGR |
No |
| Weld-Up |
No |
| Tuned |
No |
| Bolts/Studs Included |
Yes |
| Catalytic Converter(s) Included |
No |
| Collector Bolts Included |
Yes |
| Crossover Pipe Included |
No |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| Installation Hardware Included |
Yes |
| Motor Mounts Included |
No |
| Reducers Included |
Yes |
| Tube Size |
1-5/8 in. |
| Y-Pipe Included |
Yes |
| Quantity |
Sold as a pair. |
| Primary Tube Gauge |
16g |
| Primary Tube Diameter (in) |
1.625 in. |
| Package Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material |
Mild Steel |
| Header Finish |
HTC Polished Silver Ceramic-Metallic |
| Cylinder Head Port Shape |
Oval |
| Cylinder Head |
Stock Profile Heads |
| Header Construction |
MILD STEEL- Standard-Duty |
| Replacement Gasket |
27700 |
| Replacement Head Flange Gasket |
27700 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Variations |
88660, 88668 |
| Tube Material Thickness |
16g |
| Tube Style |
Long Tubes |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
No |
| Automatic Transmission - Floor |
Yes |
| Manual Transmission - Column |
No |
| Manual Transmission - Floor |
Yes |
| Tube Length |
Long Tubes |
| Material |
Mild Steel |
| Tube Design |
Standard |
| Flange Thickness |
1/4 in. with 5/16 in. collector ring flange. |
| Exhaust System Dia |
2-1/2 in. |
| Reducer Outlet Size |
2-1/2 in. |
| Footnotes |
221. Engine must be centered between frame rails. |
| Collector Attachment |
3 in. |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| Notes |
64-73 Ford Mustang 351W |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Key Feature |
Engine Swap |
| Engine Version |
Ford Windsor Block (W) |
| Contents |
Header(s), new bolts, gasket(s) to head, reducer(s) and hardware, instructions |
| Finish |
HTC Polished Silver Ceramic-Metallic |
| Finish Type |
HTC SILVER (polished) Ceramic-metallic Coating |
| Header Style |
Long Tube |
| E.O. # |
No |
| Emissions Notes |
Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Port Shape |
Oval |
| Header Port Shape |
Oval Port |
| Flange Style |
Standard |
| Power Steering |
Yes |
