Poished Silver Ceramic-Coated Mid-Length Headers For 1988-98 CHEVY/GMC 2WD/4WD 1/2-3/4 Ton Pick-Up Truck, Full-Size Blazer with 5.0-5.7L Engine (Engine OFFSET to Passenger Side); 1-5/8 in. Long Tubes; 3 in. Ball/Socket Collector- NO Y-Pipe
| Description_DEF |
[B@114e4f8e |
| Description_DES |
[B@de12d39 |
| Description_EXT |
[B@d608ab2 |
| Description_FAB |
[B@52cd5be5 |
| Description_FAB |
[B@319c5c0d |
| Description_FAB |
[B@351037e2 |
| Description_FAB |
[B@3cac1ee8 |
| Description_FAB |
[B@48668eb |
| Description_FAB |
[B@57293042 |
| Description_INV |
[B@6332b262 |
| Description_SHO |
[B@3fb5abb2 |
| Title |
HEDMAN HEDDERS; MID-LENGTH HEADERS WITHOUT Y-PIPE FOR 1988-98 5.0L-5.7L CHEVY/GMC 1500-2500 (1/2 and 3/4 TON) PICKUP TRUCKS & SUVS, 2WD & 4WD MODELS; 1-5/8 IN. TUBE DIAMETER; 3 IN. BALL & SOCKET STYLE COLLECTOR; STANDARD-DUTY MILD-STEEL WITH HTC POLISHED-SILVER CERAMIC-METALLIC FINISH |
| Manual Transmission - Floor |
Yes |
| Tube Length |
Mid-Length Tubes |
| Material |
Mild Steel |
| Tube Design |
Standard |
| Tube Diameter |
1-5/8 in. |
| Y-Pipe Included |
No |
| with A.I.R. System |
No |
| with EGR |
No |
| Weld-Up |
No |
| Tuned |
No |
| Bolts/Studs Included |
Yes |
| Catalytic Converter(s) Included |
No |
| Crossover Pipe Included |
No |
| Gasket Or Seal Included |
Yes |
| Header Fasteners Included |
Yes |
| Installation Hardware Included |
Yes |
| Mounting Hardware Included |
Yes |
| Reducers Included |
Yes |
| Quantity |
Sold as a set. |
| Tube Size |
1-5/8 in. |
| Primary Tube Gauge |
16g |
| Primary Tube Diameter (in) |
1.625 in. |

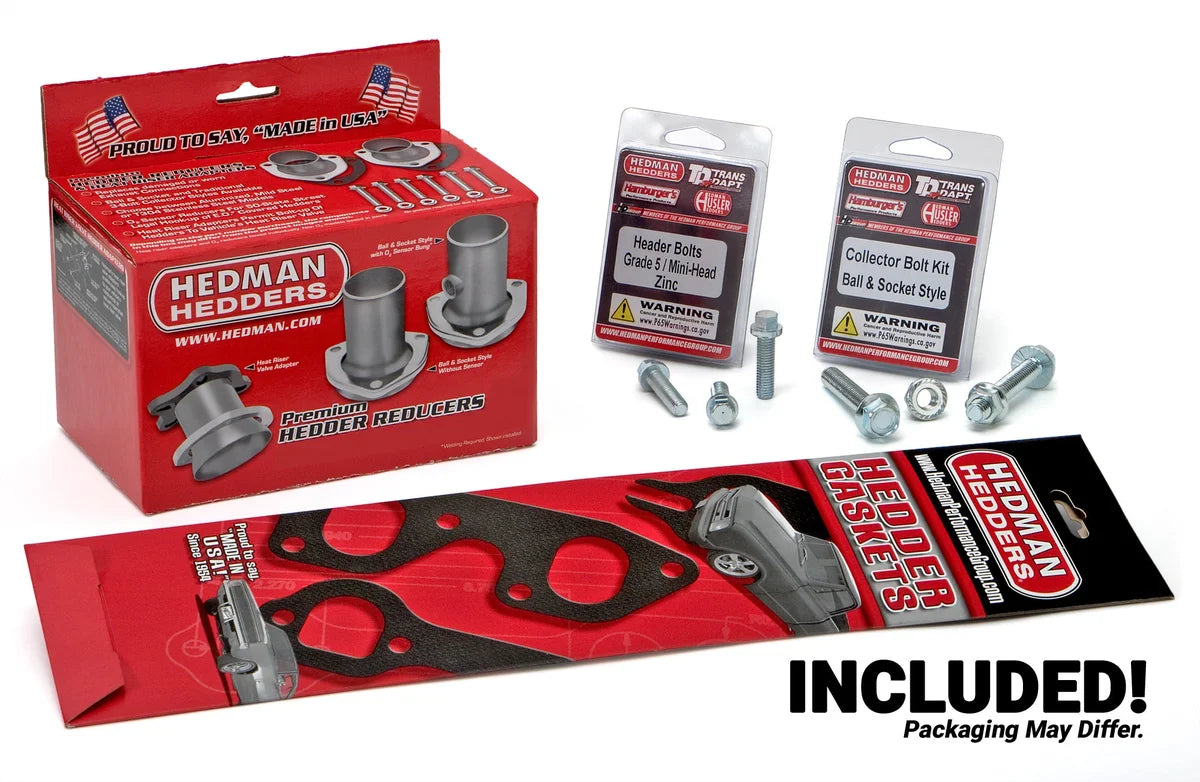

| Package Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Header Material |
Mild Steel |

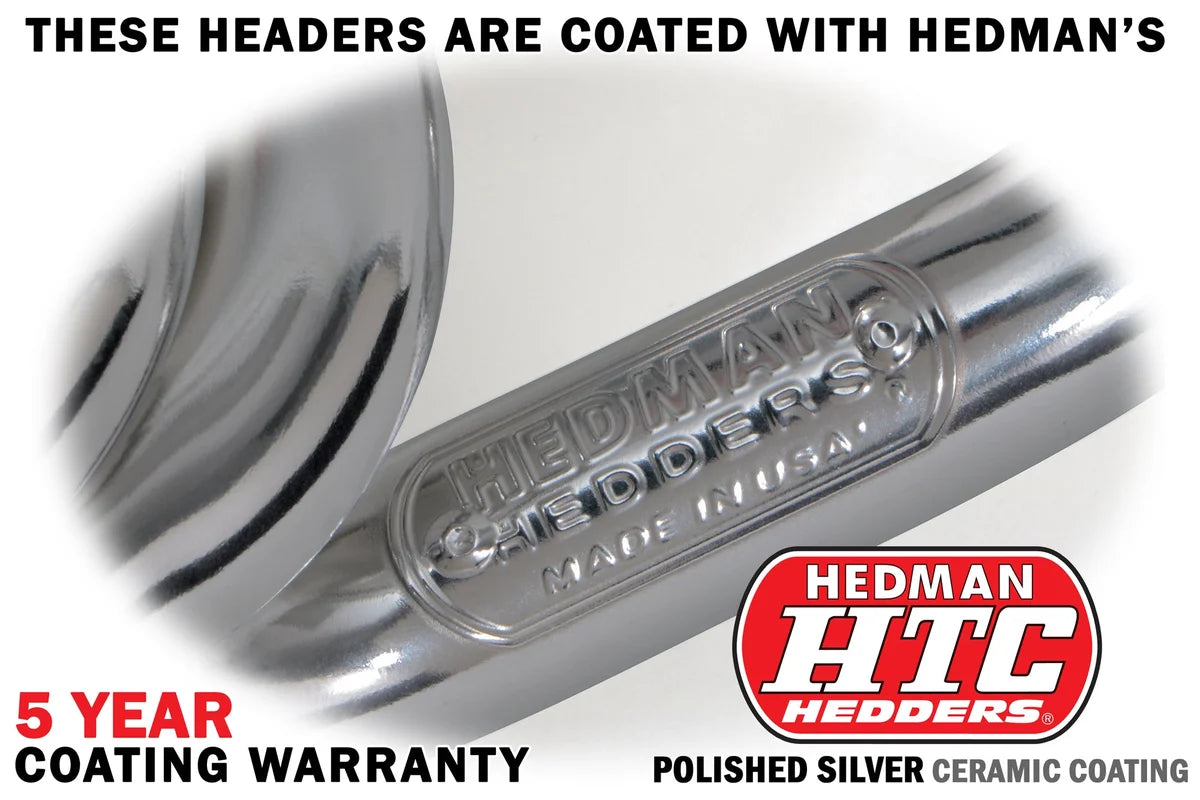

| Header Finish |
HTC Polished Silver Ceramic-Metallic |
| Cylinder Head Port Shape |
Oval |
| Cylinder Head |
Stock Profile Heads |
| O2 Provision |
No |
| Header Construction |
MILD STEEL- Standard-Duty |
| Replacement Gasket |
27520 |
| Replacement Head Flange Gasket |
27520 |
| California Proposition 65 |
WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |
| Variations |
69436, 69433, 69470, 69476, 69478, 69471, 61476 & 63471. |
| Tube Material Thickness |
16g |
| Tube Style |
Mid-Length |
| Air Conditioning |
Yes |
| Automatic Transmission - Column |
Yes |
| Automatic Transmission - Floor |
Yes |
| Manual Transmission - Column |
No |
| Flange Thickness |
0.3125 in. |
| Footnotes |
121. Must modify rotary A/C bracket. |
| Exhaust System Dia |
2-1/2 in. |
| Reducer Outlet Size |
2-1/2 in. |
| Collector Attachment |
3 in. |
| Collector Diameter |
3 in. |
| Collector Size |
3 in. |
| IMPORTANT! |
4X4, Manual trans. models w/ Hydraulic clutch. Doesn't work with Slave cylinder. |
| Notes |
88-98 1/2, 3/4 Ton Truck/SUV 5.0-5.7L 2-4WD |
| Collector Style |
BALL and SOCKET Style (Gasketless) |
| Contents |
Headers, ball and socket reducers (exhaust adapters), gaskets, mounting hardware |
| Finish |
HTC Polished Silver Ceramic-Metallic |
| Finish Type |
HTC SILVER (polished) Ceramic-metallic Coating |
| Header Style |
Mid-Length Tube |
| E.O. # |
No |
| Emissions Notes |
Not Legal For Street Use on '75-Later Model Years! Legal for off-road use only. |
| Port Shape |
Oval |
| Header Port Shape |
Oval Port |
| Power Steering |
Yes |
