Holley 100 GPH Universal In-line Electric Fuel Pump 12-170
$272.43
$230.99

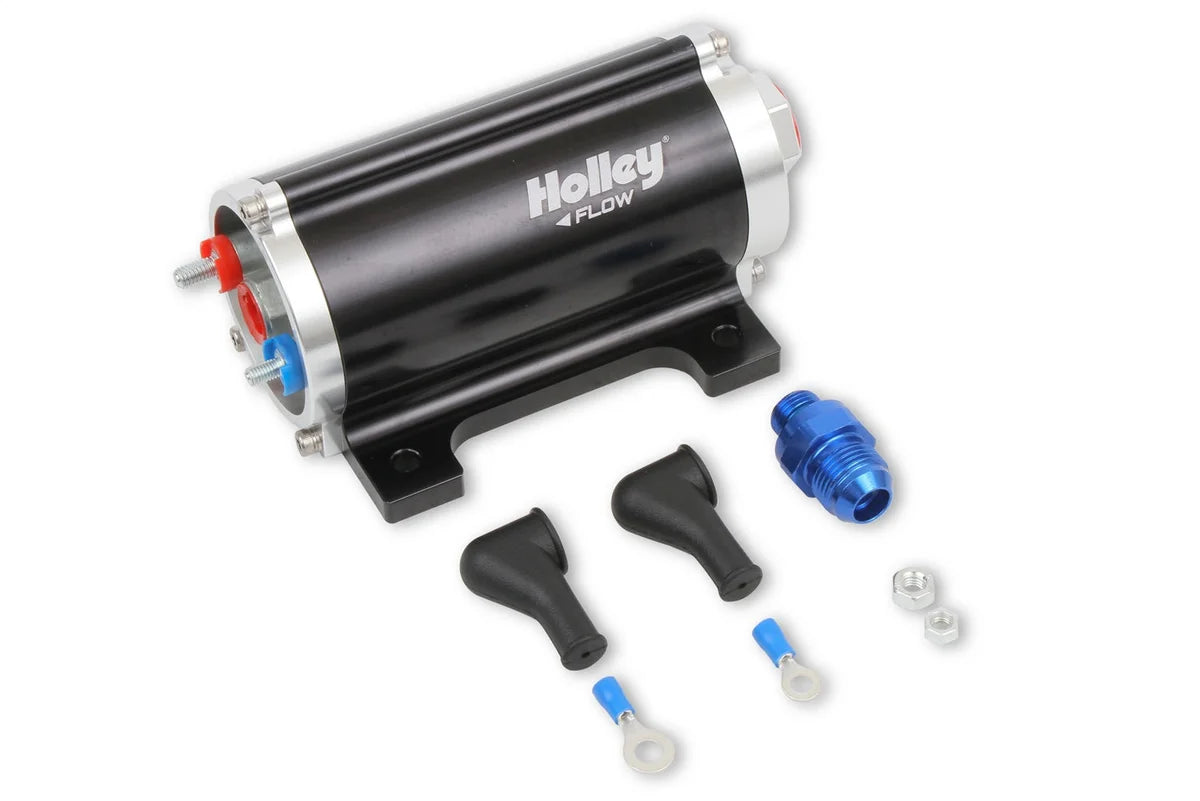

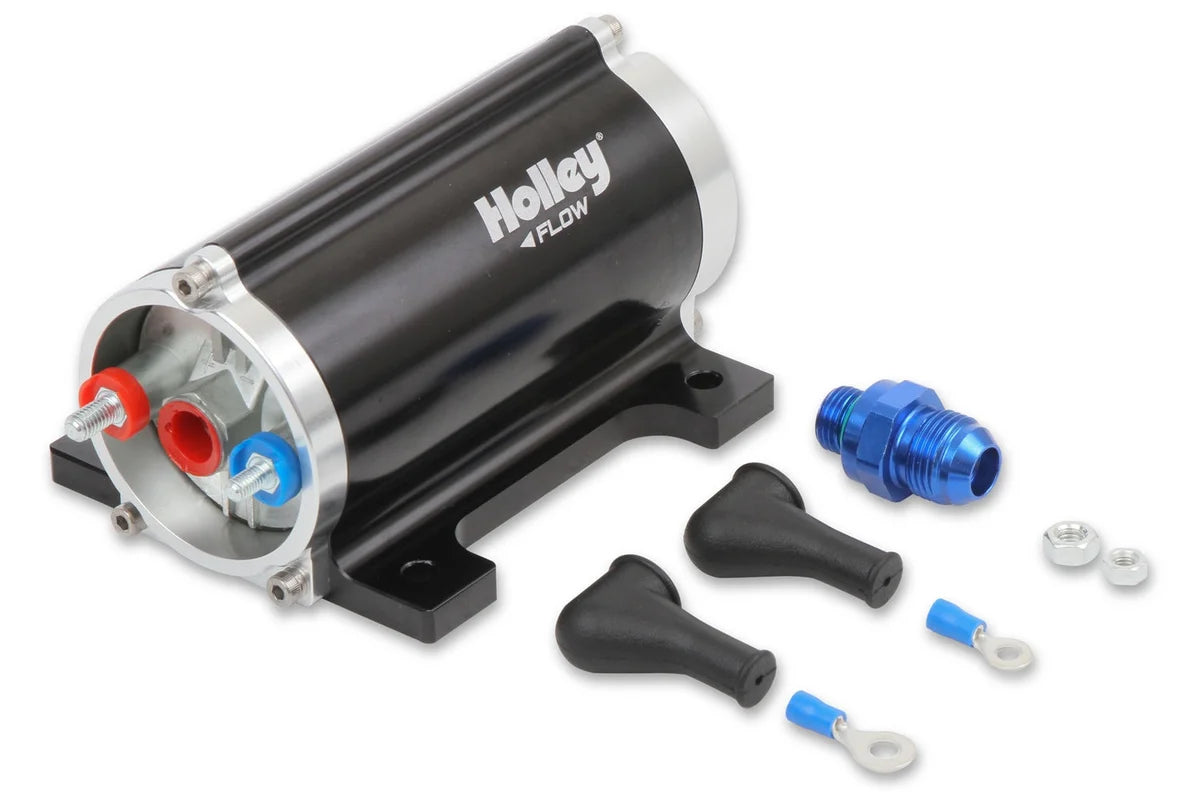

A male -6 to -8 AN discharge fitting with integral high-pressure check valve, terminal nuts, terminal boots and installation instructions are included.
Specifications:
| Application | Universal |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Forced Induction HP@43PSI | 750 |
| Forced Induction HP@60PSI | 700 |
| Forced Induction HP@8PSI | 800 |
| Free Flow GPH | 105 |
| Free Flow LPH | 400 |
| 6806 | Fuel Injection |
| 6806 | Carburetor |
| 1153 | No |
| Fuel System | EFI |
| Fuel System | Carbureted |
| Fuel Type | Gasoline / Diesel / E85 |
| 353 | No |
| GPH@43PSI | 96 |
| GPH@60PSI | 91 |
| GPH@8PSI | 105 |
| 3390 | Performance |
| Inlet Fitting Thread Size | 3/4-16 |
| Inlet Size | 8 AN O-Ring - 3/4-16 SAE |
| 596 | 8 AN ORB |
| 2183 | External |

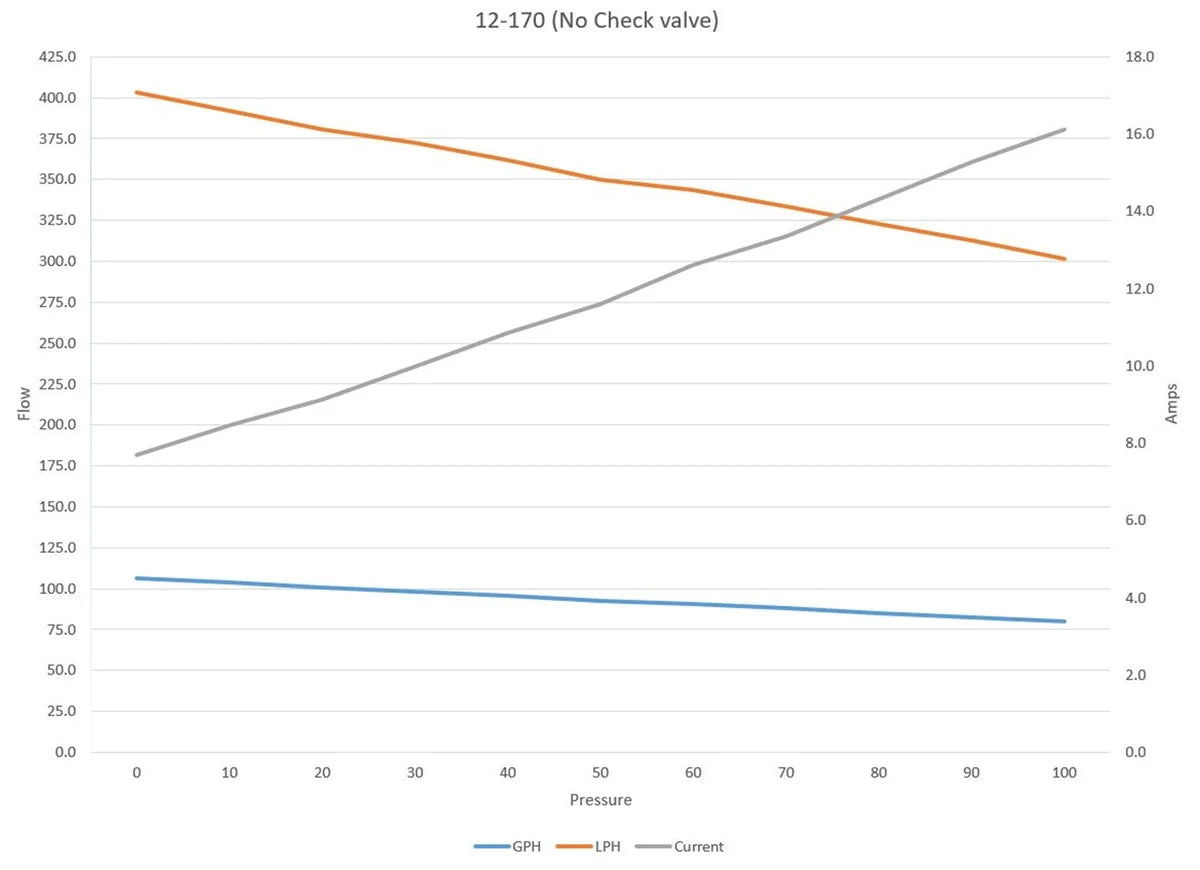

| LPH@43PSI | 364.7 without check valve |
| LPH@60PSI | 343.6 without check valve |
| LPH@8PSI | 390 |
| Material | Aluminum |
| 517 | 100 |
| 280 | 60 |
| Naturally Aspirated HP@43PSI | 950 |
| Naturally Aspirated HP@60PSI | 900 |
| Naturally Aspirated HP@8PSI | 1050 |
| 1154 | Yes |
| Outlet Fitting Thread Size | 9/16-18 |
| 623 | 1 |
| Outlet Size | 6AN |
| 598 | 6 AN ORB |
| part type | Electric Fuel Pump |
| Product Type | Fuel Pump |
| Pump Body Color | Black Anodized |
| 235 | No |
| Sub Category | Fuel Pumps and Related Components |
| 3145 | Universal |
| 123 | 12 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| 338 | 2 |
| Description_INV | ELEC PUMP, 400 LPH |
| Description_ASC | Proper fuel system engineering is critical for maximum performance. Please see Holley Fuel System Chart for information about proper installation of your fuel system. |
| Description_DES | 100 GPH Universal In-line Electric Fuel Pump |
| Description_EXT | Supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas*, Race gas, Diesel or E85 |
| Description_MKT | Holley's 100 GPH (gallons per hour) fuel pump is designed for high performance naturally aspirated and forced induction EFI vehicles It utilizes -8 AN female inlet and -6 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. |
| Description_MKT | The pump supports up to 900 EFI or 1050 Carb HP Compatible with Pump Gas, Race gas, Diesel or E85. The 12-170 fuel pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100% ethanol fuels. The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting). |
| Description_MKT | A male -6 to -8 AN discharge fitting with integral high-pressure check valve, terminal nuts, terminal boots and installation instructions are included. |
| Description_FAB | Designed for high output naturally aspirated and forced induction EFI and carbureted vehicles. The roller vane design pump provides fuel pressure and volume to support up to 900 EFI N/A or 700 EFI Boosted horsepower. |
| Description_FAB | The 12-170 pump is compatible with Pwm |
| Description_FAB | Compatible with Flex Fuel (E85/E90) and all types of gasoline (100% Alcohol fuels may diminish fuel pump life) |
| Description_FAB | The inlet thread is a -8 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting) |
| Description_FAB | Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions |
