Holley engineers have designed 12-1600 to feature improved hot fuel handling capabilities. It was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is available for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Holley has still got you covered with the 12-1800 Dominator Fuel Pump. At only 5.1 lbs, they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features!
| Description_ABR |
160 GPH Dom |
| Description_SHO |
160 GPH Dom Inline |
| Description_INV |
FUEL PUMP, DOMINATOR GAS ONLY |
| Description_ASC |
These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! Will not work with E-85 or Diesel! This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981510ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as : Part # AT985010ERL. |
| Description_DES |

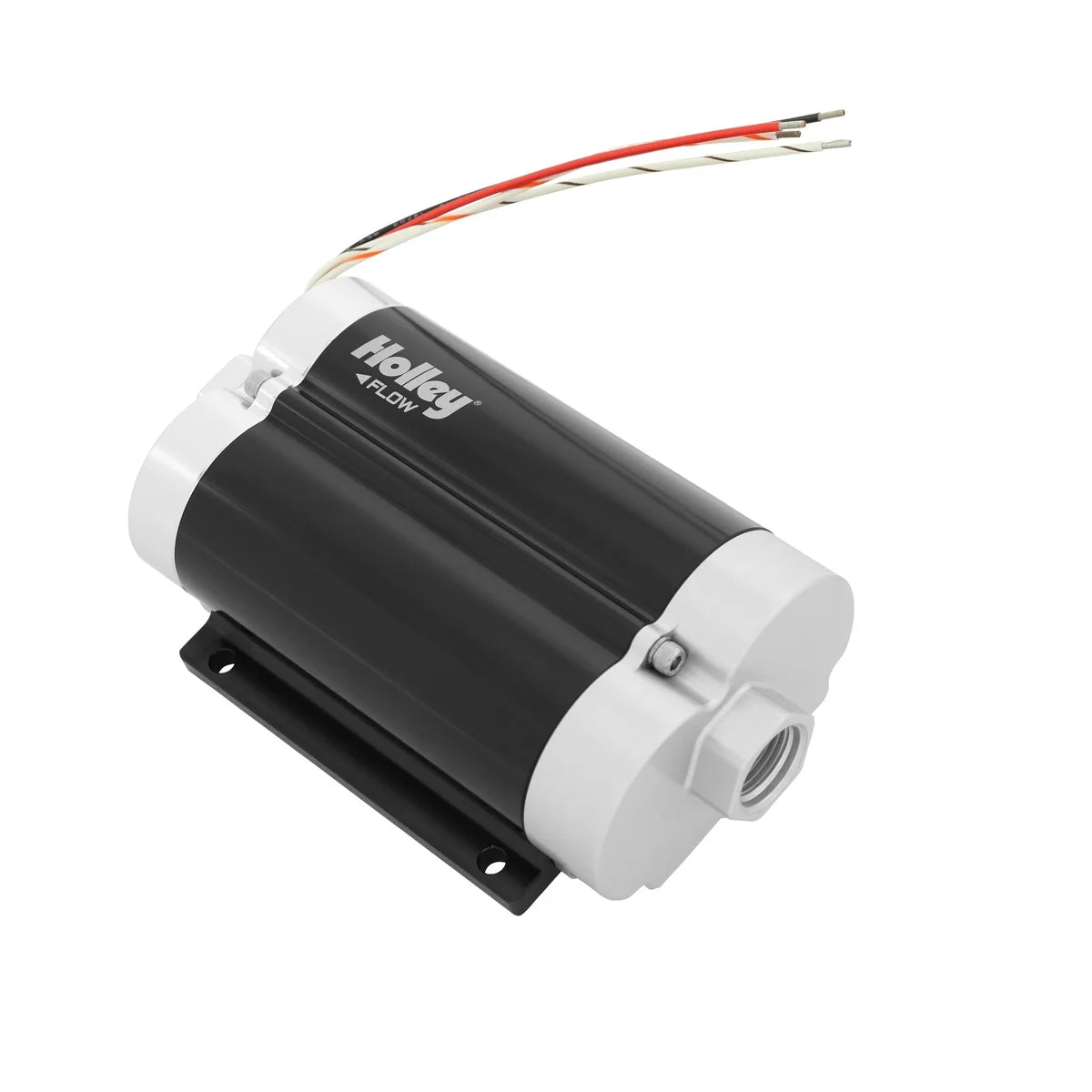

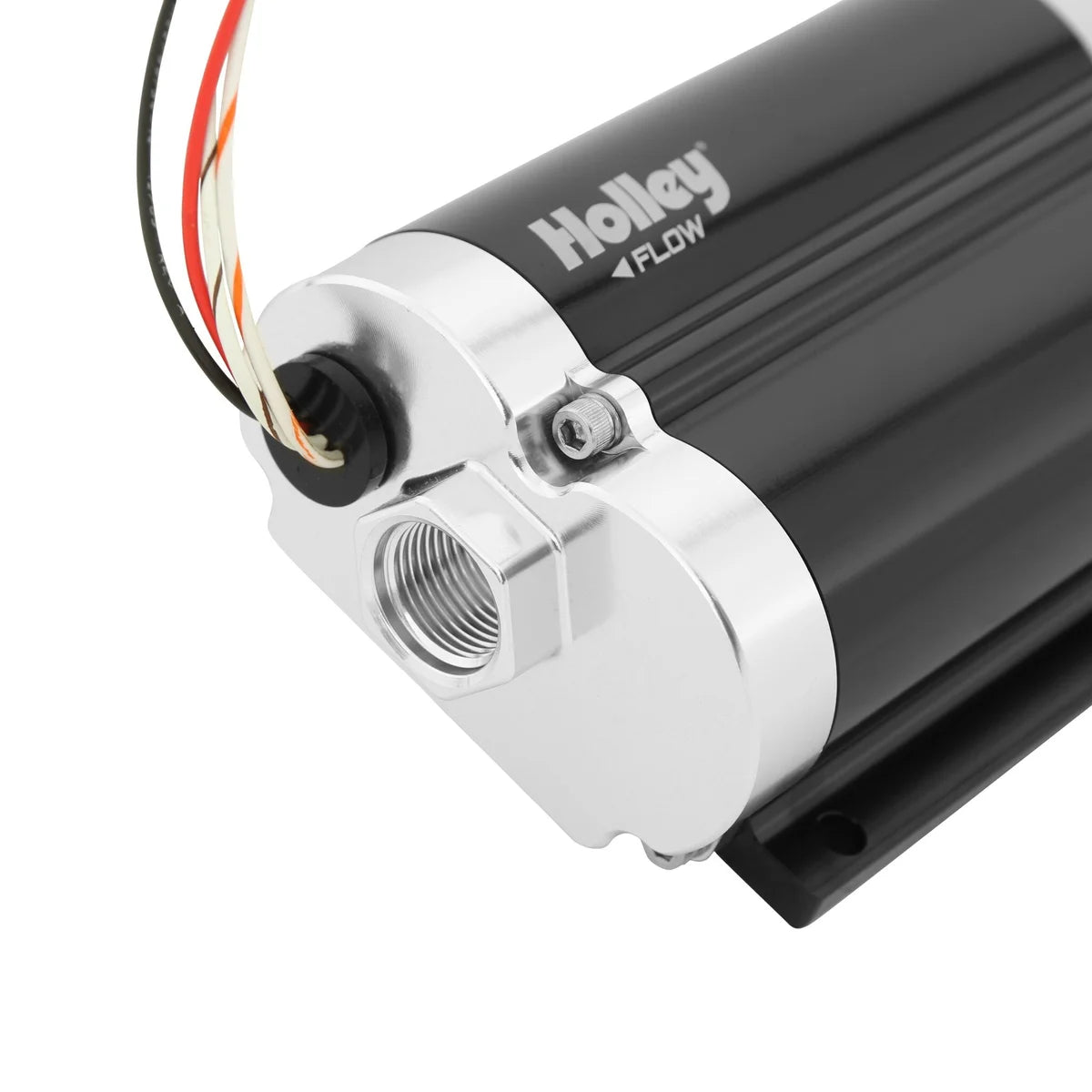

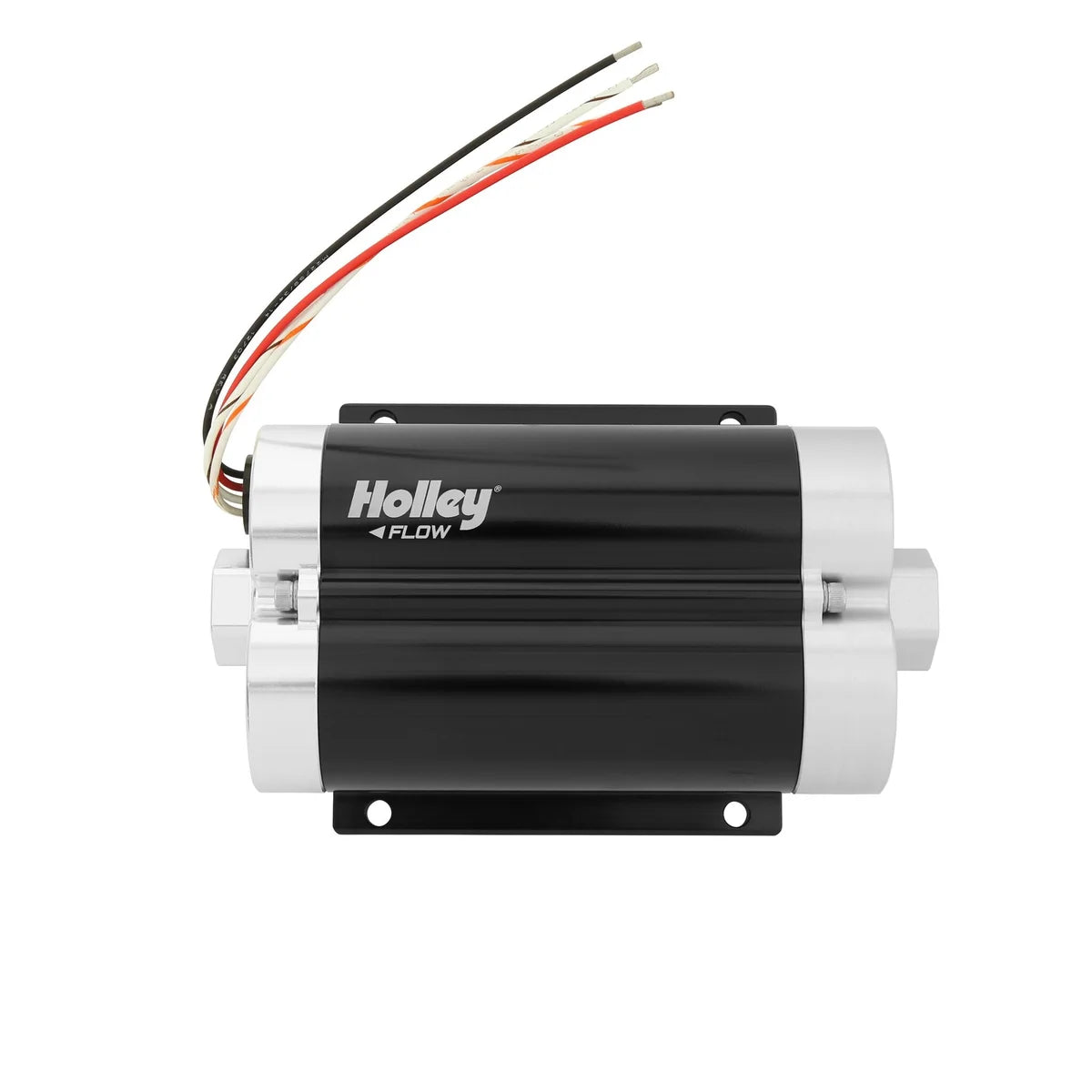

160 GPH Dominator In-Line Billet Fuel Pump |
| Description_EXT |
Street/Strip Carb or EFI ApplicationsSupports up to 1600 EFI or 1800 Carb HPCompatible with Pump Gas and Race Gas |
| Description_MKT |
Need to feed some serious horsepower? Have a nitrous or forced induction powerplant that also sees street duty? Holley's Dominator™ in-line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. |
| Description_MKT |
As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. |
| Description_MKT |
Holley engineers have designed 12-1600 to feature improved hot fuel handling capabilities. It was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is available for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Holley has still got you covered with the 12-1800 Dominator Fuel Pump. At only 5.1 lbs, they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features! |
| Description_FAB |
Improved hot fuel handling |
| Description_FAB |
Billet aluminum construction for durability and good looks |
| Description_FAB |

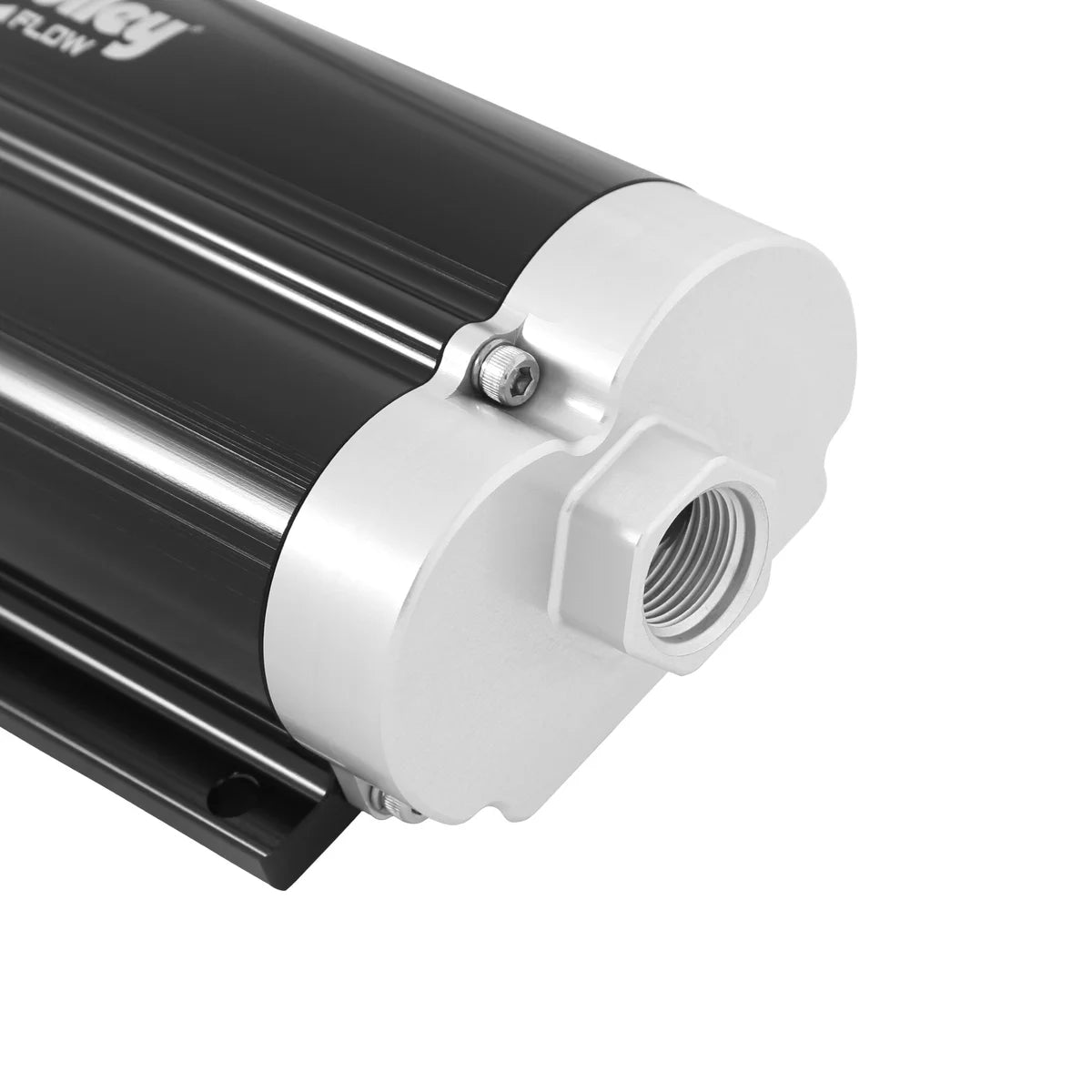

10 AN O-ring inlet/outlet for high flow and superior sealing |
| Description_FAB |
Excellent for use with carbureted or EFI applications |
| Description_FAB |
Fully submersible in-tank for custom applications, space savings and less plumbing |
| Description_FAB |
Compatible with 12v to 18.5v systems for street or race use |
| Description_FAB |
Compact (7.66” Long x 5” Wide x 2.5” Tall) for easy installation on frame rails or other tight areas |
| Description_FAB |
Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost |
| Description_FAB |
Patent pending dual pump technology |
| Description_FAB |
Proven durability beyond 3,000 hours in gasoline |
| Description_FAB |
Weighs only 5.1 lbs. |
| Description_FAB |
Max Current draw is 28 Amps |
| Description_FAB |
Not designed for use on aircraft of any type. |
| Description_ABR |
160 GPH Dom |
| Description_SHO |
160 GPH Dom Inline |
| Description_INV |
FUEL PUMP, DOMINATOR GAS ONLY |
| Description_ASC |
These pumps do not have an internal bypass. A bypass style regulator and return line are required. NOT FOR USE WITH METHANOL! Will not work with E-85 or Diesel! This pump is not designed to use a standard conical seat style union in the inlet or outlet of the pump. Example: Part # AT981510ERL. Use of this style fitting will block flow and WILL lead to poor performance and pump failure. The ONLY correct fitting to use is a contoured port fitting with an O-ring seal such as : Part # AT985010ERL. |
| Description_DES |
160 GPH Dominator In-Line Billet Fuel Pump |
| Description_EXT |
Street/Strip Carb or EFI ApplicationsSupports up to 1600 EFI or 1800 Carb HPCompatible with Pump Gas and Race Gas |
| Description_MKT |
Need to feed some serious horsepower? Have a nitrous or forced induction powerplant that also sees street duty? Holley's Dominator™ in-line fuel pumps are the answer! The patent pending twin pump design allows you to use one pump for cruising and both pumps when you activate the nitrous switch or start building boost! By staging the second pump, you eliminate the unnecessary recirculating and heating of extra fuel which can lead to poor performance and hot fuel issues. |
| Description_MKT |
As an added benefit for the hard core enthusiasts that run events like Hot Rod Power Tour and the Baja 1000, the extra pump offers the peace of mind that you will always finish what you start! For hard core race vehicles, both pumps can be wired for full time duty to get maximum performance and are proven with 18.5 volt compatibility at pressures up to 80 psi. |
| Description_MKT |
Holley engineers have designed 12-1600 to feature improved hot fuel handling capabilities. It was designed to greatly reduce the negative effects of heated fuel now common with many of today's pump gas blends. It is available for use with pump gas or race gas. If you are using E-85 or diesel, no need to worry, Holley has still got you covered with the 12-1800 Dominator Fuel Pump. At only 5.1 lbs, they weigh half a pound less than competitive 1000+ horsepower pumps yet have twice the features! |
| Description_FAB |
Improved hot fuel handling |
| Description_FAB |
Billet aluminum construction for durability and good looks |
| Description_FAB |
10 AN O-ring inlet/outlet for high flow and superior sealing |
| Description_FAB |
Excellent for use with carbureted or EFI applications |
| Description_FAB |
Fully submersible in-tank for custom applications, space savings and less plumbing |
| Description_FAB |
Compatible with 12v to 18.5v systems for street or race use |
| Description_FAB |
Compact (7.66” Long x 5” Wide x 2.5” Tall) for easy installation on frame rails or other tight areas |
| Description_FAB |
Twin pump design allows the use of both pumps simultaneously or independently - second pump can be activated on demand for power adders such as nitrous or boost |
| Description_FAB |
Patent pending dual pump technology |
| Description_FAB |
Proven durability beyond 3,000 hours in gasoline |
| Description_FAB |
Weighs only 5.1 lbs. |
| Description_FAB |
Max Current draw is 28 Amps |
| Description_FAB |
Not designed for use on aircraft of any type. |
| 1153 |
No |
| 3390 |
Performance |
| 353 |
No |
| Application |
Universal |
| Brand |
Holley |
| Category |
Air and Fuel Delivery |
| Emission Code |
5 |
| Forced Induction HP@43PSI |
1150 |
| Forced Induction HP@60PSI |
1050 |
| Forced Induction HP@8PSI |
1430 |
| Free Flow GPH |
160 |
| 6806 |
Carburetor |
| 6806 |
Fuel Injection |
| Fuel System |
EFI |
| Fuel System |
Carbureted |
| Fuel Type |
Gasoline |

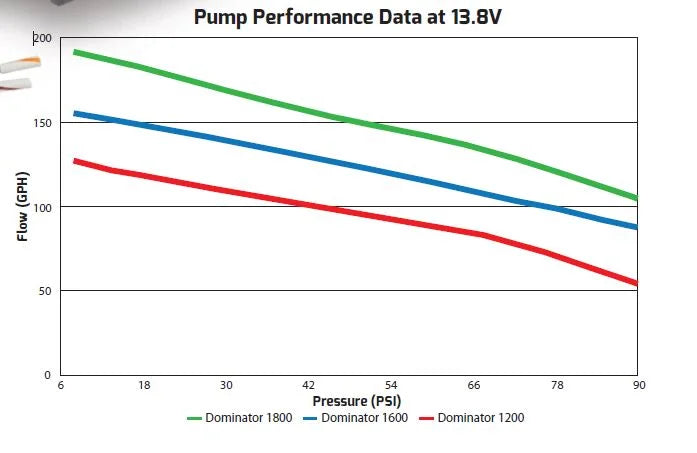

| GPH@43PSI |
127 |
| GPH@60PSI |
113 |
| GPH@8PSI |
155 |
| Inlet Fitting Thread Size |
7/8-14 |
| Inlet Size |
10 AN O-Ring - 7/8-14 SAE |
| 596 |
10 AN ORB |
| 2183 |
Internal External |
| LPH@43PSI |
480 |
| LPH@60PSI |
427 |
| LPH@8PSI |
587 |
| Material |
Aluminum |
| 9050 |
28 |
| 517 |
160 |
| 280 |
80 |
| Naturally Aspirated HP@43PSI |
1600 |
| Naturally Aspirated HP@60PSI |
1330 |
| Naturally Aspirated HP@8PSI |
1800 |
| 1154 |
Yes |
| Outlet Fitting Thread Size |
7/8-14 |
| 623 |
1 |
| Outlet Size |
10 AN O-Ring - 7/8-14 SAE |
| 598 |
10 AN ORB |
| part type |
Electric Fuel Pump |
| Product Type |
Fuel Pump |
| Pump Body Color |
Black Anodized |
| 235 |
No |
| Sub Category |
Fuel Pumps and Related Components |
| 3145 |
Universal |
| Voltage |
12-18.5 |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| 338 |
4 |
| 1153 |
No |
| 3390 |
Performance |
| 353 |
No |
| 30 |
No |
| 518 |
No |
| 488 |
No |
| Application |
Universal |
| Brand |
Holley |
| Category |
Air and Fuel Delivery |
| Emission Code |
5 |
| Forced Induction HP@43PSI |
1150 |
| Forced Induction HP@60PSI |
1050 |
| Forced Induction HP@8PSI |
1430 |
| Free Flow GPH |
160 |
| 6806 |
Fuel Injection |
| 6806 |
Carburetor |
| Fuel System |
EFI |
| Fuel System |
Carbureted |
| Fuel Type |
Gasoline |
| GPH@43PSI |
127 |
| GPH@60PSI |
113 |
| GPH@8PSI |
155 |
| Inlet Fitting Thread Size |
7/8-14 |
| Inlet Size |
10 AN O-Ring - 7/8-14 SAE |
| 596 |
10 AN ORB |
| 2183 |
Internal External |
| LPH@43PSI |
480 |
| LPH@60PSI |
427 |
| LPH@8PSI |
587 |
| Material |
Aluminum |
| 9050 |
28 |
| 517 |
160 |
| 280 |
80 |
| Naturally Aspirated HP@43PSI |
1600 |
| Naturally Aspirated HP@60PSI |
1330 |
| Naturally Aspirated HP@8PSI |
1800 |
| 1154 |
Yes |
| Outlet Fitting Thread Size |
7/8-14 |
| 623 |
1 |
| Outlet Size |
10 AN O-Ring - 7/8-14 SAE |
| 598 |
10 AN ORB |
| part type |
Electric Fuel Pump |
| Product Type |
Fuel Pump |
| Pump Body Color |
Black Anodized |
| 235 |
No |
| Sub Category |
Fuel Pumps and Related Components |
| 3145 |
Universal |
| Voltage |
12-18.5 |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| 338 |
4 |
