• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
| Basic Operating RPM Range |
1500-7000 |
| Brand |
Holley |
| Carburetor Flange |
N/A |
| Carburetor Quantity |
N/A |
| 10652 |
No |
| Category |
Engine |
| 9063 |
No |
| Color |
Natural |
| 158 |
Cast |
| 5337 |
Rectangle |
| 6621 |
9.5 |
| 8095 |
No |
| Emission Code |
3 |
| Engine |
Ford 351W |
| Flange Style |
EFI |
| 906 |
No |
| 10644 |
Yes |
| Fuel System Type |
EFI |
| 353 |
Yes |
| 3390 |
Performance |
| 10651 |
No |
| Manifold Type |
Hi-Ram |
| 10 |
Aluminum |
| 10648 |
No |
| part type |
Engine Intake Manifold |
| Plenum Finish |
Natural |
| Port Size |

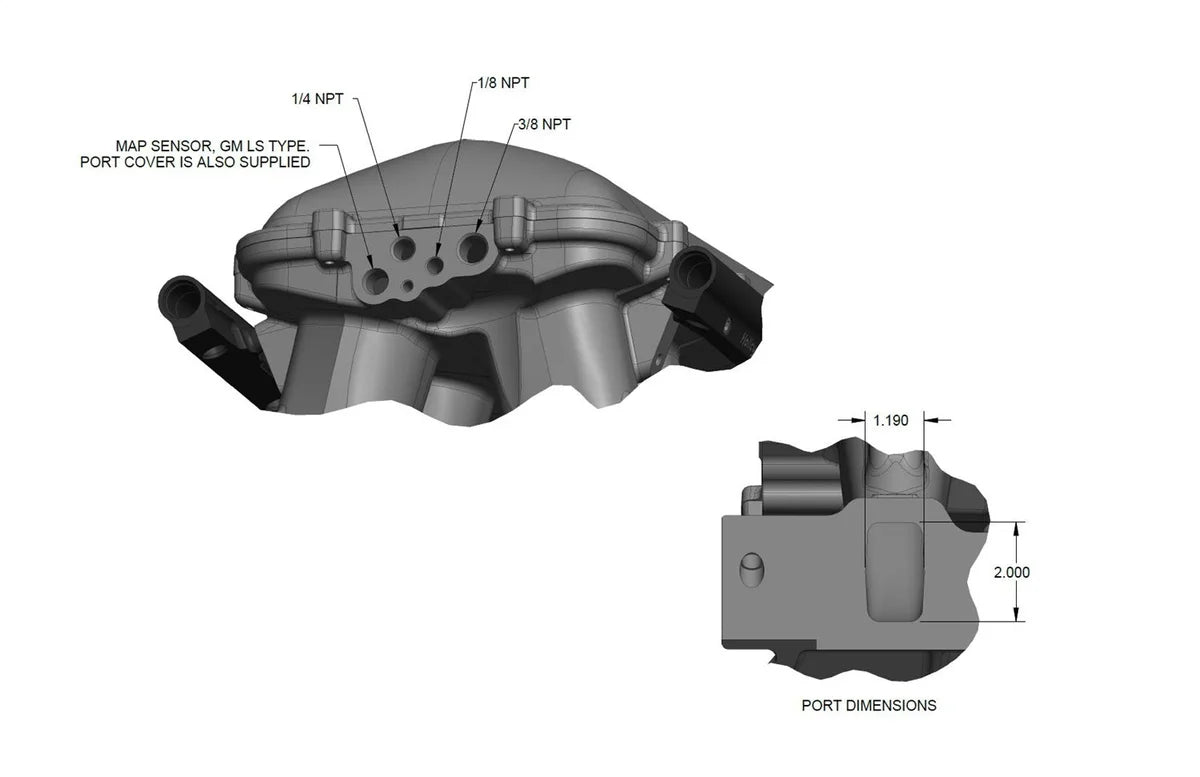

2.00" x 1.190" |
| Product Type |
Intake Manifold |
| 10645 |
No |
| 10649 |
Yes |
| 6642 |
Single Plane |
| Sub Category |
Cylinder Block Components |
| Throttle Body Bore Diameter |
95 |
| Throttle Body Gasket Included |
No |
| 10626 |
No |
| Throttle Bore |
95mm |
| Vacuum Ports |
Yes |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| Basic Operating RPM Range |
1500-7000 |
| Brand |
Holley |
| Carburetor Flange |
N/A |
| Carburetor Quantity |
N/A |
| 10652 |
No |
| Category |
Engine |
| 9063 |
No |
| Color |
Natural |
| 158 |
Cast |
| 5337 |
Rectangle |
| 6621 |
9.5 |
| 8095 |
No |
| Emission Code |
3 |
| Engine |
Ford 351W |
| Flange Style |
EFI |
| 906 |
No |
| 10644 |
Yes |
| Fuel System Type |
EFI |
| 353 |
Yes |
| 3390 |
Performance |
| 10651 |
No |
| Manifold Type |
Hi-Ram |
| 10 |
Aluminum |
| 10648 |
No |
| part type |
Engine Intake Manifold |
| Plenum Finish |
Natural |
| Port Size |
2.00" x 1.190" |
| Product Type |
Intake Manifold |
| 10645 |
No |
| 10649 |
Yes |
| 6642 |
Single Plane |
| Sub Category |
Cylinder Block Components |
| Throttle Body Bore Diameter |
95 |
| Throttle Body Gasket Included |
No |
| 10626 |
No |
| Throttle Bore |
95mm |
| Vacuum Ports |
Yes |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| Description_ABR |
MFLD KIT FOR |
| Description_SHO |
351W FORD HI RAM EFI |
| Description_INV |
MFLD KIT, FORD 351W HI-RAM 95MM SIDE |
| Description_ASC |

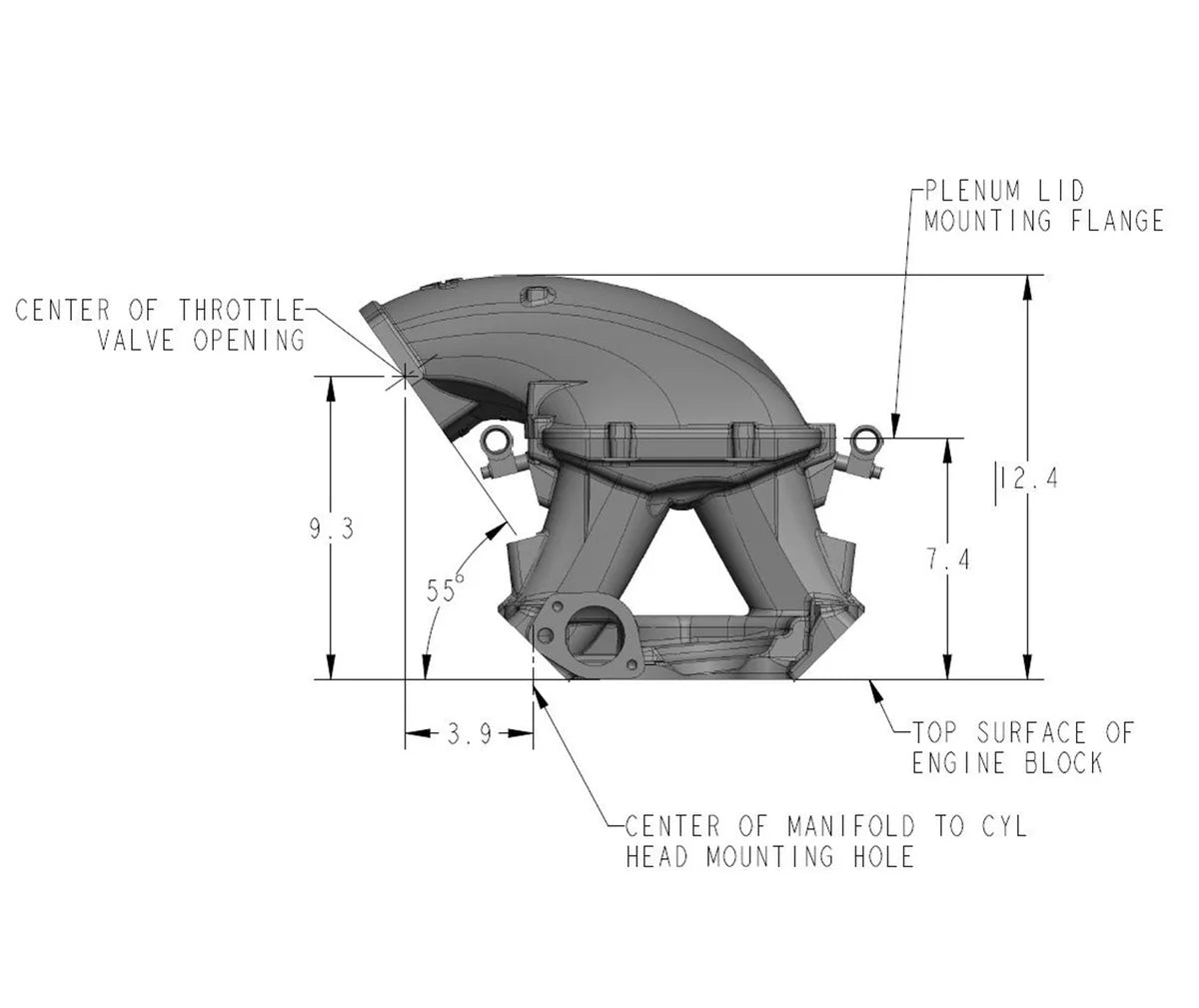

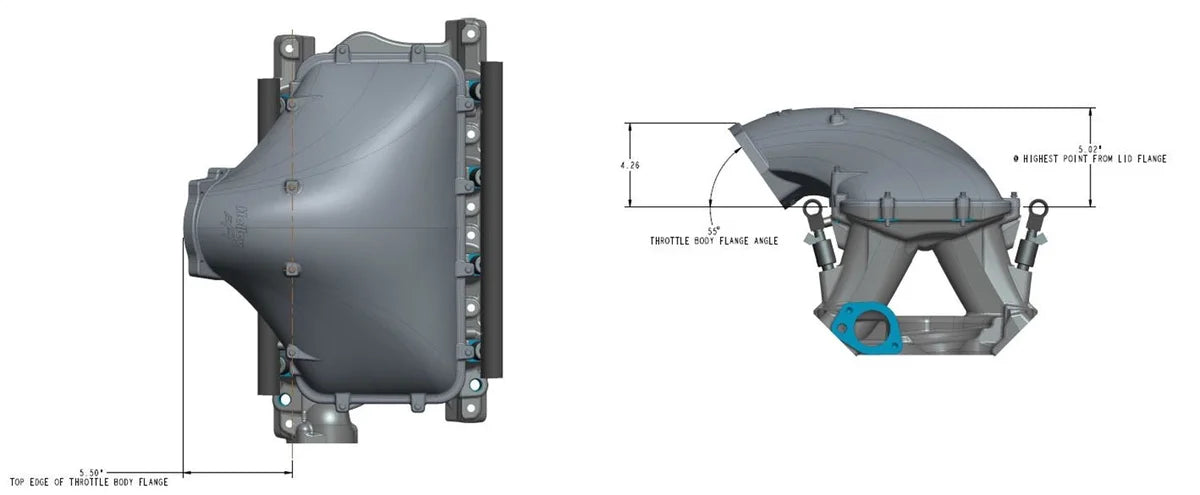

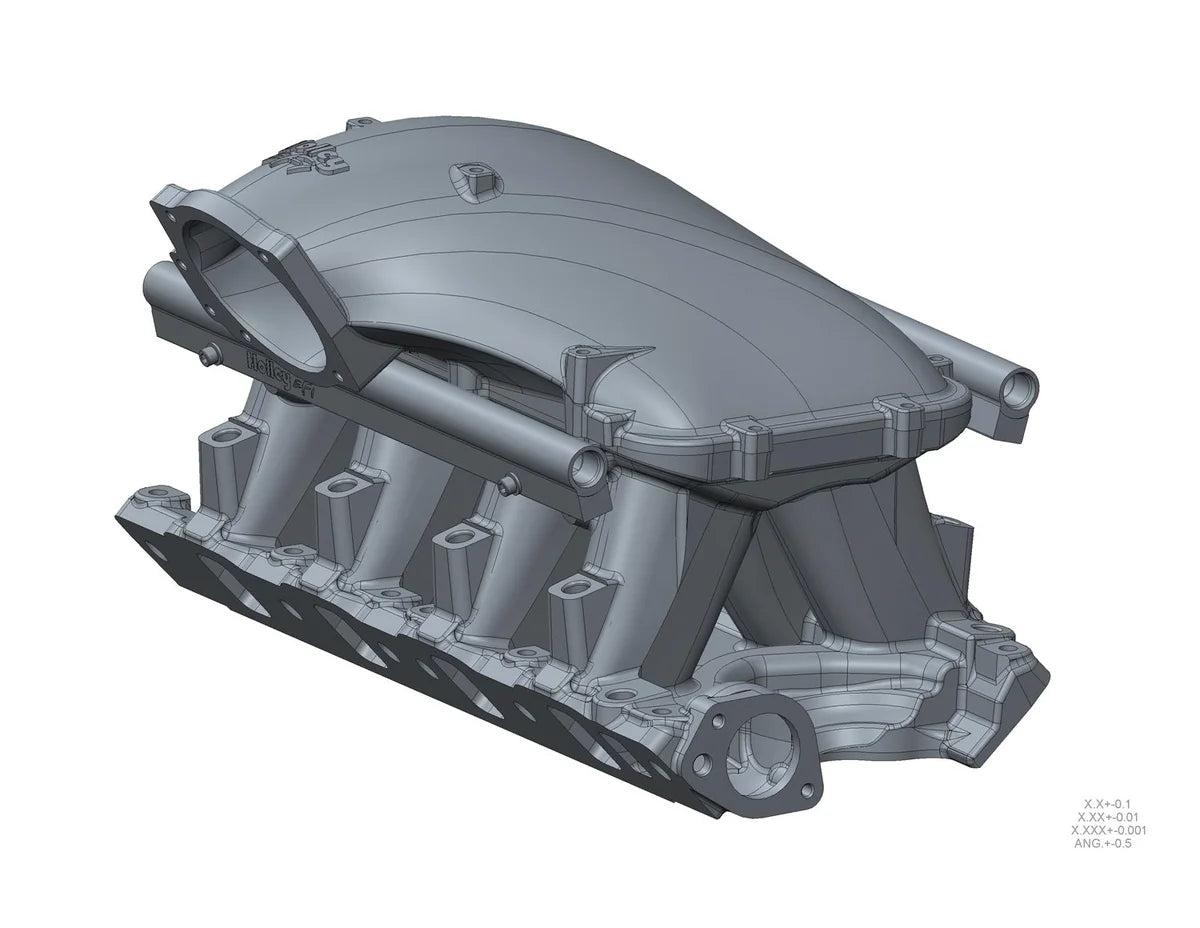

*** Please see the diagrams in the product images for other dimensions. *** A low profile distributor will be needed when using this manifold. *** Requires the Use of Holley EFI Dual Sync Distributor - 565-111 Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core. |
| Description_DES |
351W Ford Hi-Ram EFI Manifold with Side Mount Top |
| Description_EXT |

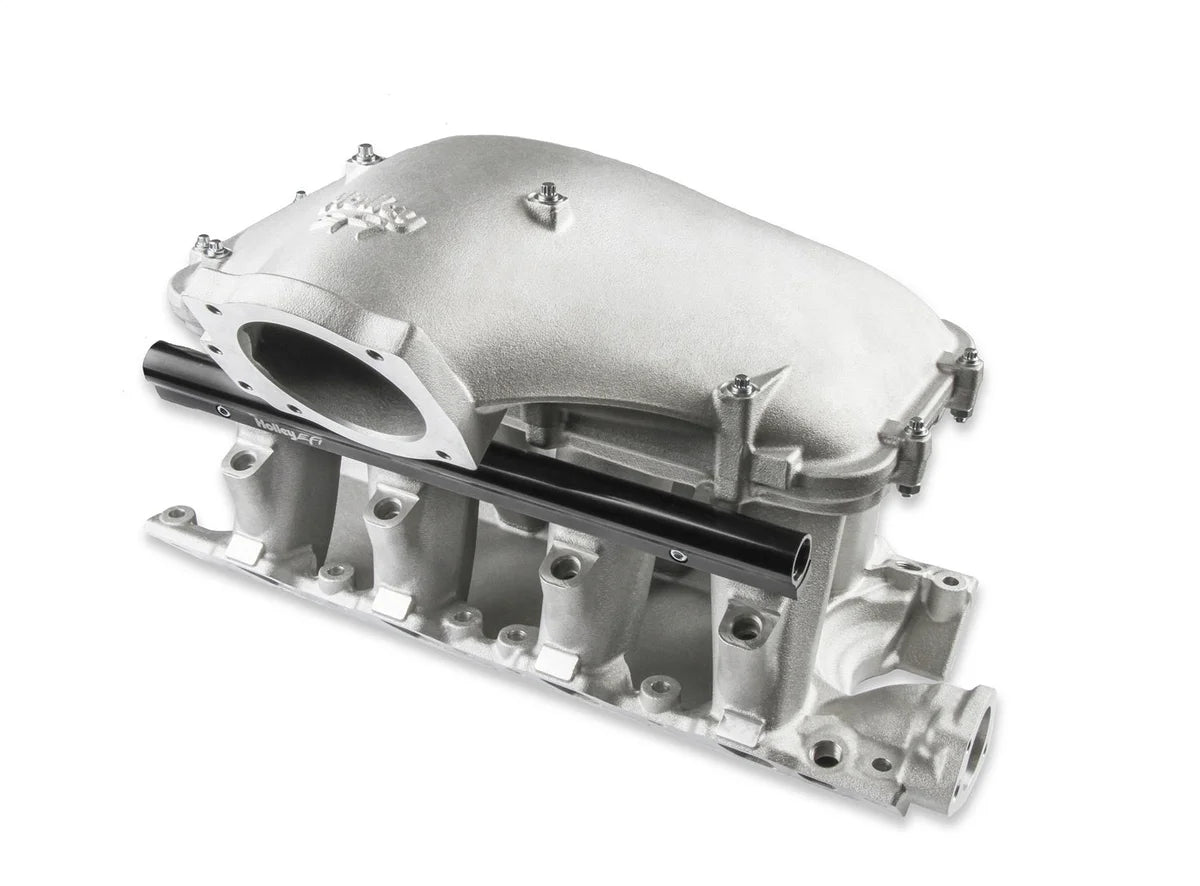

351W Ford Hi-Ram Intake Manifold with 95mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top. |
| Description_MKT |
• Cast aluminum construction. |
| Description_MKT |

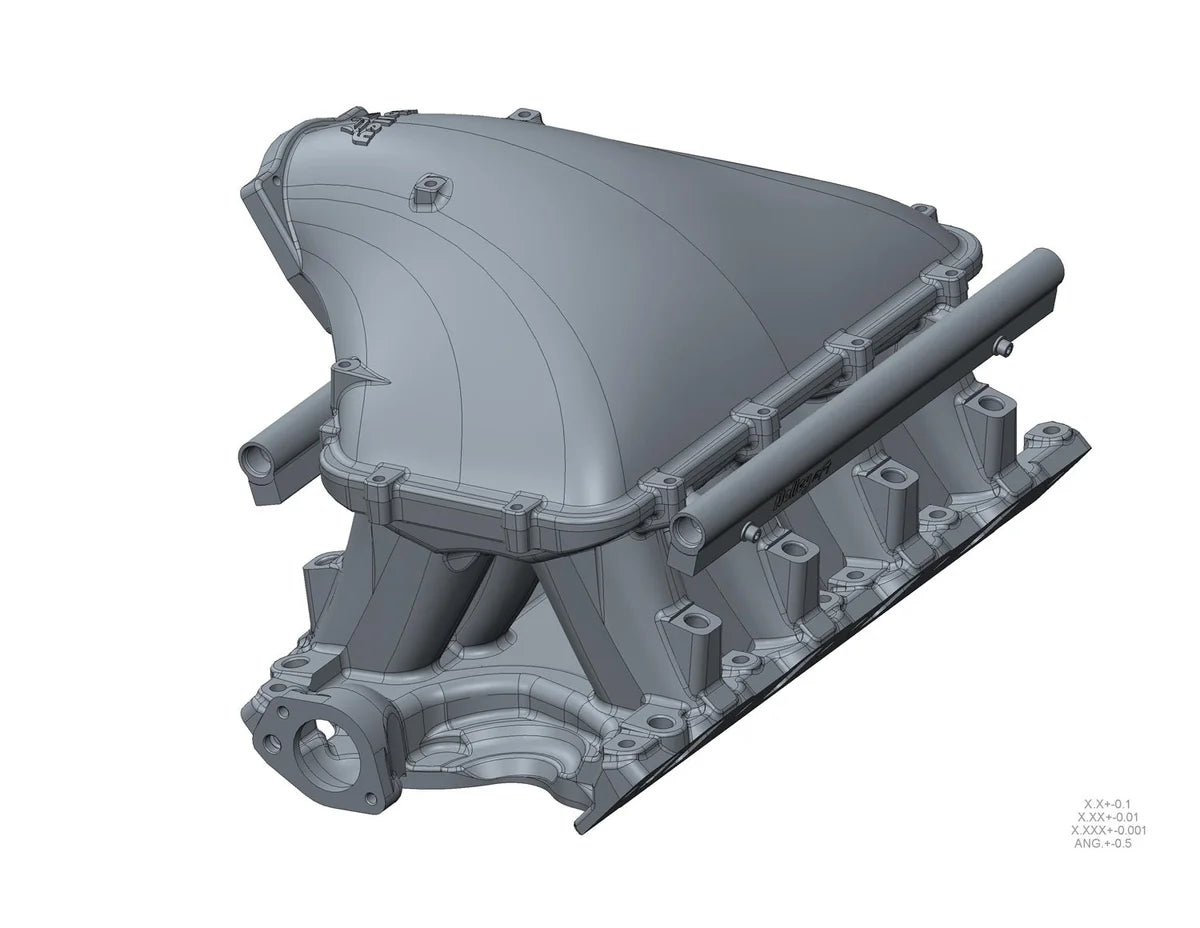

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations |
| Description_MKT |

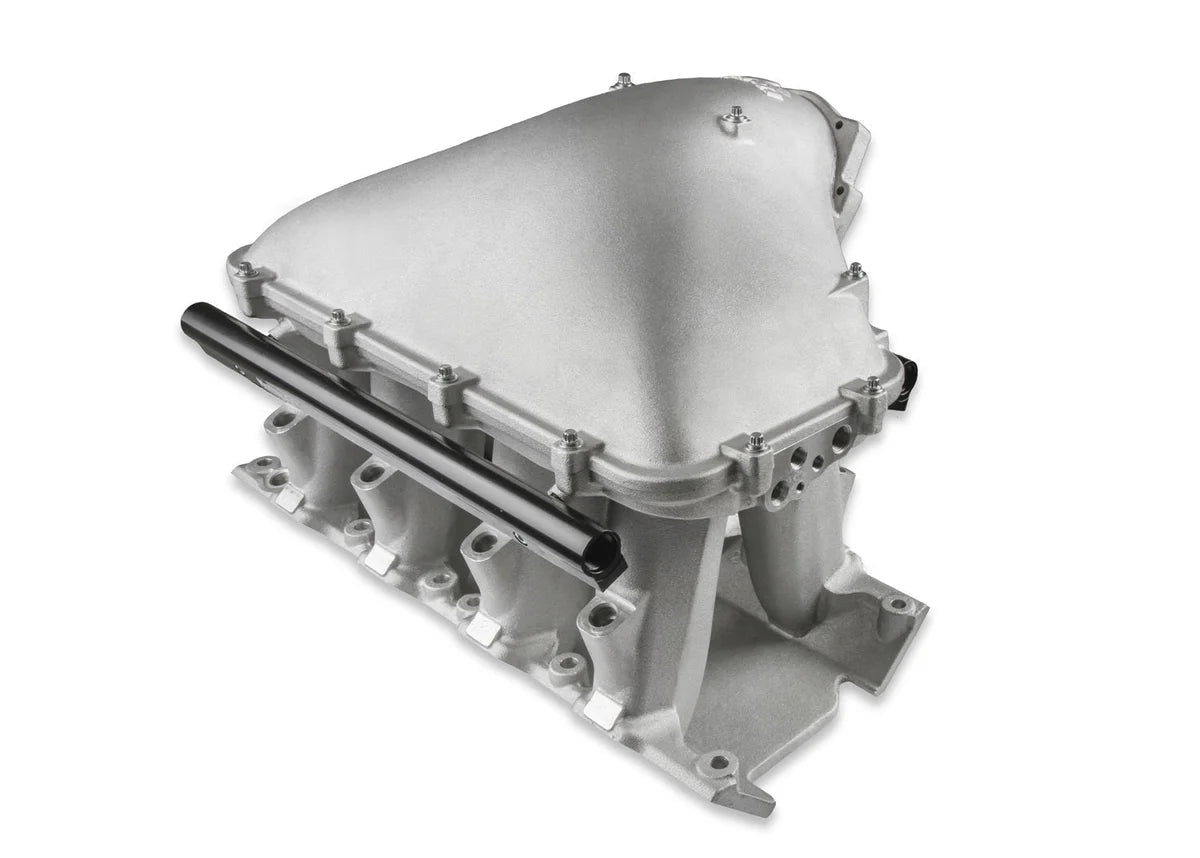

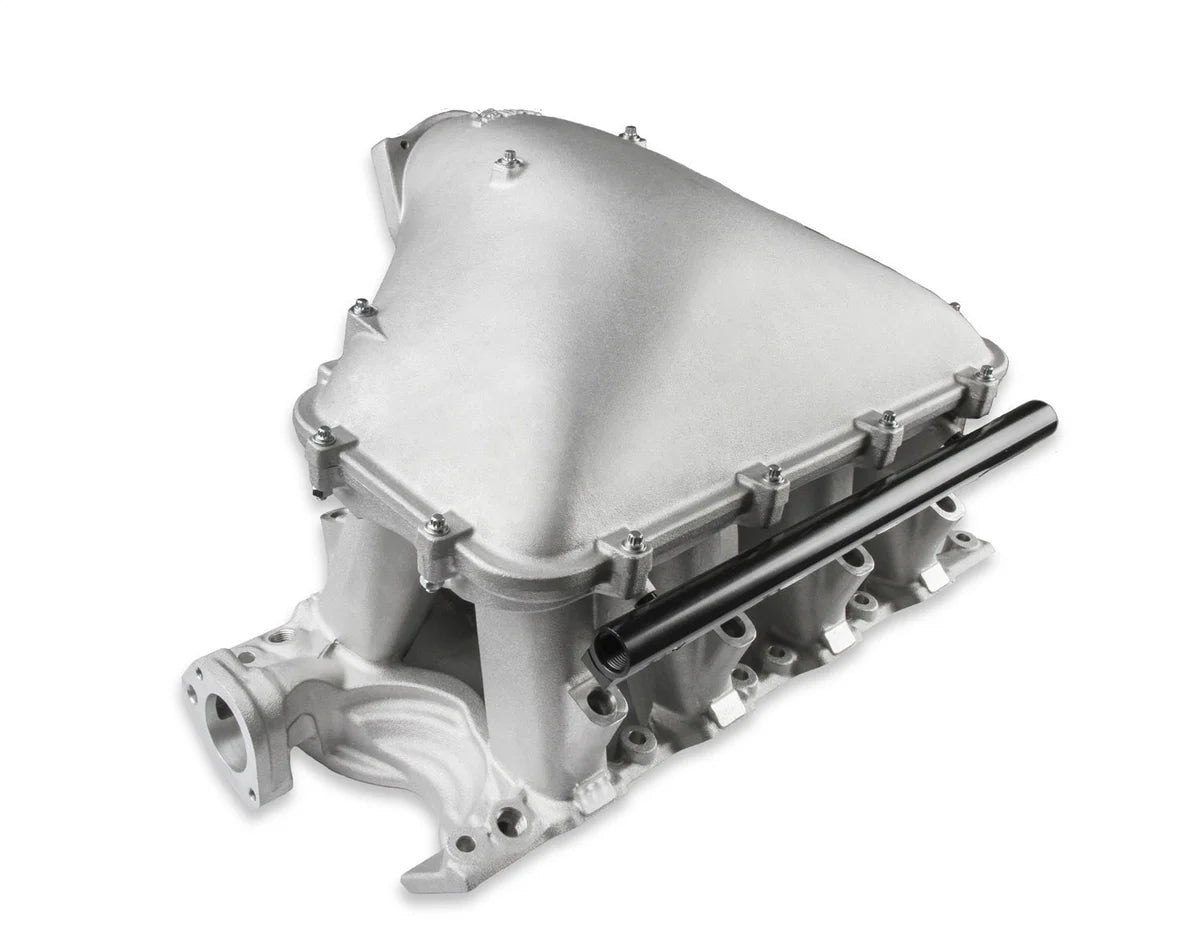

This EFI 351W Hi-Ram manifold comes with a 95MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! |
| Description_MKT |
Manifold is designed for a 9.5" deck height. |
| Description_MKT |
*** Requires the Use of Holley EFI Dual Sync Distributor - 565-111 |
| Description_MKT |

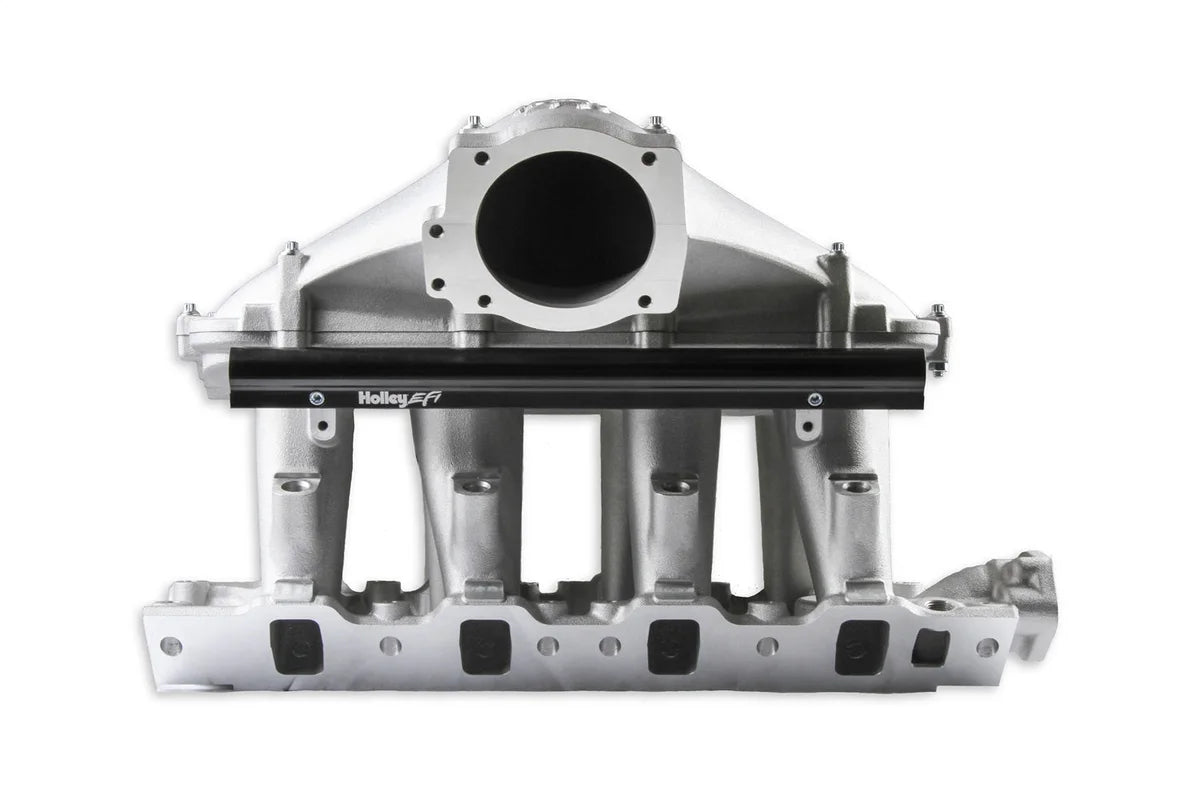

• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
| Description_FAB |

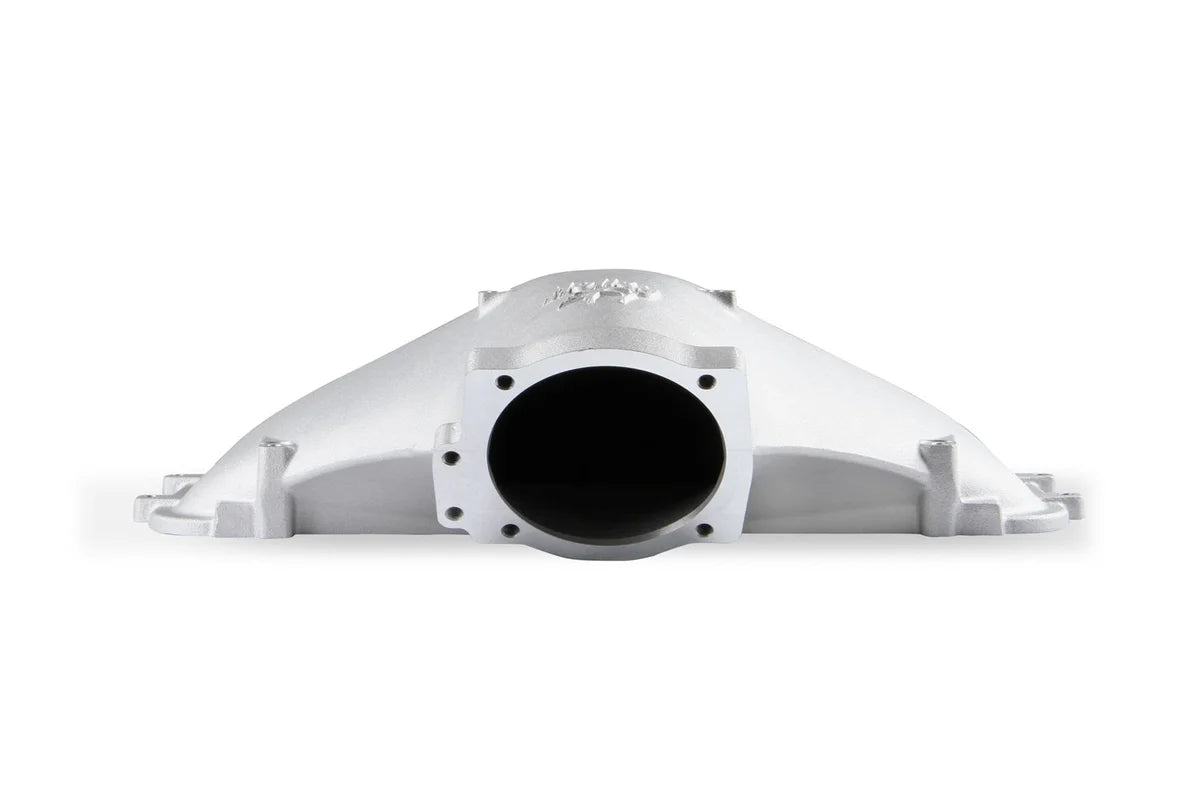

Designed for side mounted throttle bodies |
| Description_FAB |
EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
| Description_FAB |

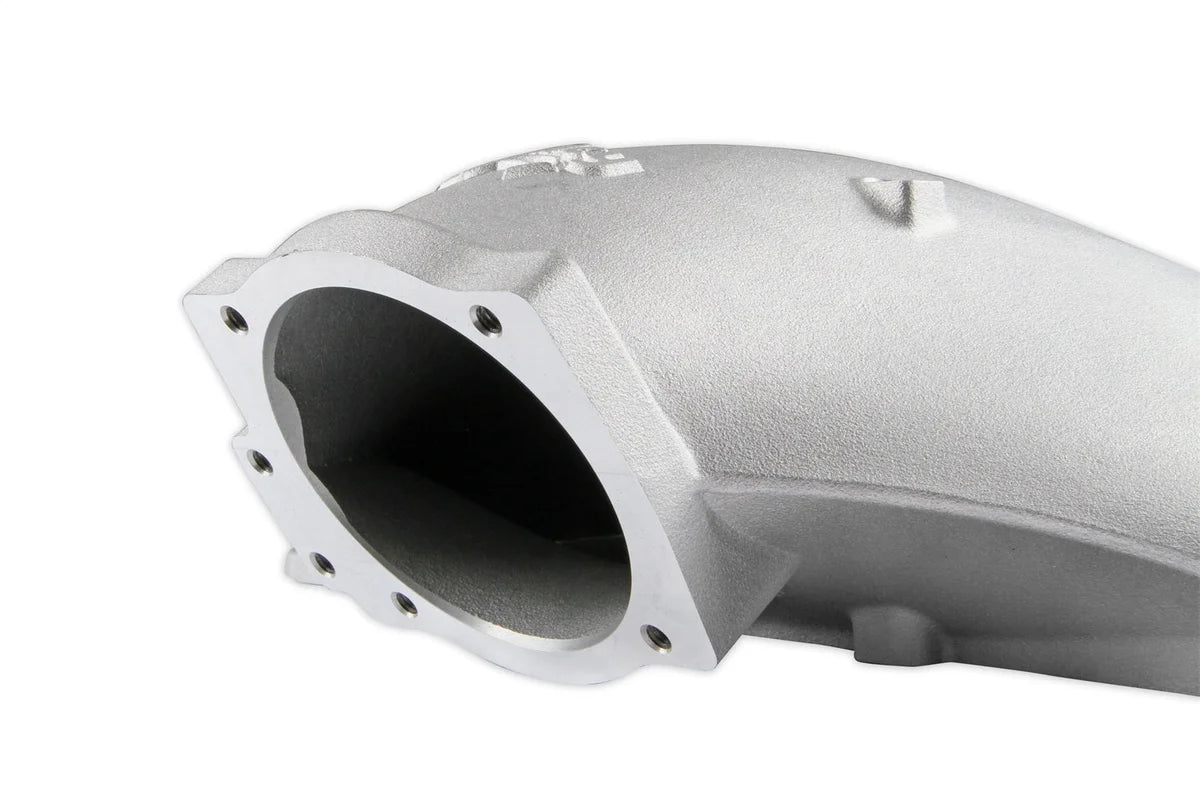

Ford 5.0 throttle body fitment |
| Description_FAB |
Plenum Top Gasket Type – 3/32” Round O-ring Cord |
| Description_FAB |
Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations. |
| Description_FAB |
The 351W manifold is available to work with 95MM throttle bodies |
| Description_FAB |
Manifold is designed for a 9.5" deck height. |
| Description_FAB |
Requires the Use of Holley EFI Dual Sync Distributor - 565-111 |
| Description_FAB |
Allows room for designing boosted applications |
| Description_ABR |
MFLD KIT FOR |
| Description_SHO |
351W FORD HI RAM EFI |
| Description_INV |
MFLD KIT, FORD 351W HI-RAM 95MM SIDE |
| Description_ASC |
*** Please see the diagrams in the product images for other dimensions. *** A low profile distributor will be needed when using this manifold. *** Requires the Use of Holley EFI Dual Sync Distributor - 565-111 Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core. |
| Description_DES |
351W Ford Hi-Ram EFI Manifold with Side Mount Top |
| Description_EXT |
351W Ford Hi-Ram Intake Manifold with 95mm 1986-95 Ford 5.0 Throttle Body Flange Side Mount Top. |
| Description_MKT |
• Cast aluminum construction. |
| Description_MKT |
• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations |
| Description_MKT |
This EFI 351W Hi-Ram manifold comes with a 95MM 1986-95 Ford 5.0 throttle body flange side mount top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! |
| Description_MKT |
Manifold is designed for a 9.5" deck height. |
| Description_MKT |
*** Requires the Use of Holley EFI Dual Sync Distributor - 565-111 |
| Description_MKT |
• EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
| Description_FAB |
Designed for side mounted throttle bodies |
| Description_FAB |
EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. |
| Description_FAB |
Ford 5.0 throttle body fitment |
| Description_FAB |
Plenum Top Gasket Type – 3/32” Round O-ring Cord |
| Description_FAB |
Lid has been verified to fit under Cervinis 2.5” cowl hood on 1979-1993 Mustangs with 351W & 302W Hi-Ram bases when using motor mounts that retain stock engine locations. |
| Description_FAB |
The 351W manifold is available to work with 95MM throttle bodies |
| Description_FAB |
Manifold is designed for a 9.5" deck height. |
| Description_FAB |
Requires the Use of Holley EFI Dual Sync Distributor - 565-111 |
| Description_FAB |
Allows room for designing boosted applications |
