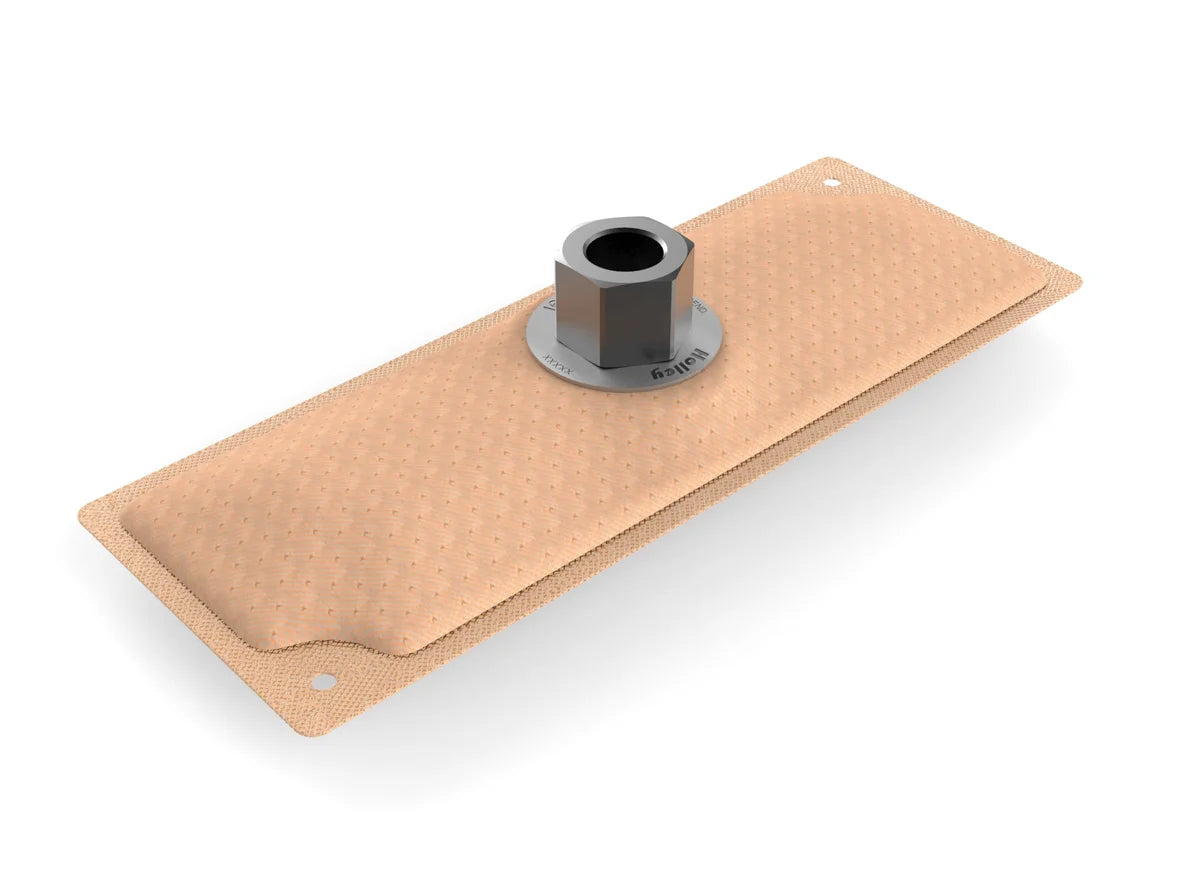

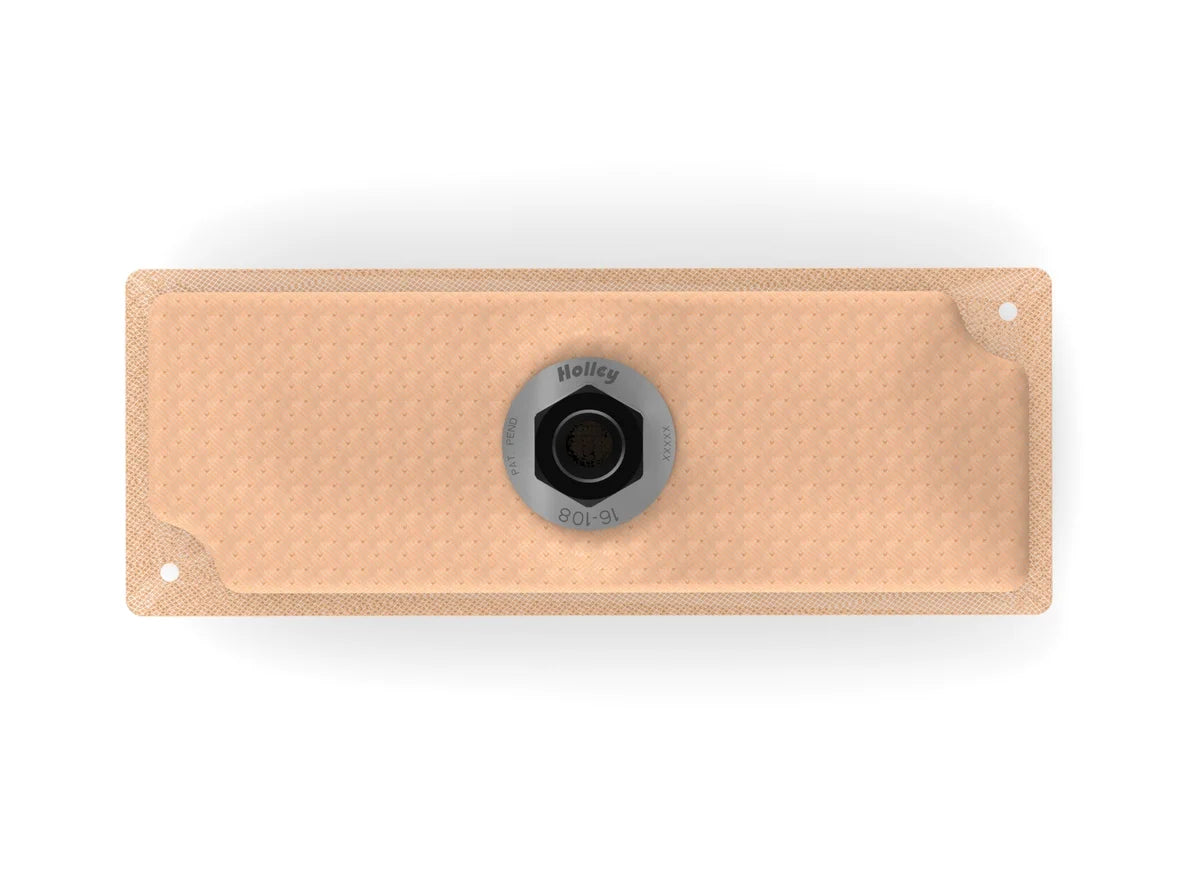

The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution!Surface tension and fluid wicking are the secrets of the HydraMat, giving it the amazing ability to draw from nearly any area that has contact with fuel and then store it in its internal reservoir. As an area of the HydraMat is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells.
Specifications:
| Brand |
Holley |
| Category |
Air and Fuel Delivery |
| 17 |
Beige |
| Emission Code |
5 |
| Fitting Size |
3/8" NPT |
| 3390 |
Performance |
| Length |
8 inches |
| Micron |
15 |
| part type |
Fuel Tank Pickup |
| Product Type |
HydraMats |
| 3744 |
15 |
| Sub Category |
Fuel Pumps and Related Components |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| Width |
3 inches |
| Brand |
Holley |
| Category |
Air and Fuel Delivery |
| 17 |
Beige |
| Emission Code |
5 |
| Fitting Size |
3/8" NPT |
| 3390 |
Performance |
| Length |
8 inches |
| Micron |
15 |
| part type |
Fuel Tank Pickup |
| Product Type |
HydraMats |
| 3744 |
15 |
| Sub Category |
Fuel Pumps and Related Components |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| Width |
3 inches |
| Description_INV |
HYDRAMAT (3X8 RECT) - CENTER OUT - 3/8 |
| Description_ASC |
Fitting location designed for unviversal useDesigned to fit flat bottom rectangular style fuel cells with minimum dimensions of 8" long and 3" wideFor best performance, the return fuel should be discharged near the pick-up of the HydraMat at a minimum distance of 1 inch above the mat.HydraMats with a female NPT thread do not require the use of a sealing paste or tape. Use of a sealing paste or tape could result in fuel pump failure. |
| Description_DES |
8" x 3" HydraMat®, Rectangle |
| Description_EXT |
Center outlet pick-up with -3/8" NPT fitting.Fitting location designed for universal use. |
| Description_MKT |
The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution!Surface tension and fluid wicking are the secrets of the HydraMat, giving it the amazing ability to draw from nearly any area that has contact with fuel and then store it in its internal reservoir. As an area of the HydraMat is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells. |
| Description_FAB |
HydraMats are also available in other sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells |
| Description_INV |
HYDRAMAT (3X8 RECT) - CENTER OUT - 3/8 |
| Description_ASC |
Fitting location designed for unviversal useDesigned to fit flat bottom rectangular style fuel cells with minimum dimensions of 8" long and 3" wideFor best performance, the return fuel should be discharged near the pick-up of the HydraMat at a minimum distance of 1 inch above the mat.HydraMats with a female NPT thread do not require the use of a sealing paste or tape. Use of a sealing paste or tape could result in fuel pump failure. |
| Description_DES |
8" x 3" HydraMat®, Rectangle |
| Description_EXT |
Center outlet pick-up with -3/8" NPT fitting.Fitting location designed for universal use. |
| Description_MKT |
The amazing HydraMat® is Holley's patent pending design that solves the problems associated with traditional fuel pick-ups in stock fuel tanks as well as racing fuel cells. During hard cornering, acceleration, stopping, inclines, and low fuel conditions fuel runs away from the fuel pick up which introduces air into the system resulting in poor engine performance and even stalling. HydraMat is the solution!Surface tension and fluid wicking are the secrets of the HydraMat, giving it the amazing ability to draw from nearly any area that has contact with fuel and then store it in its internal reservoir. As an area of the HydraMat is uncovered, the tiny pores of the media seal off through surface tension, forcing fuel to be contained in the reservoir and drawn from other areas of the mat where fuel continues to be available. The sheer size and coverage area of the HydraMat allows it to pull fuel from virtually any area in the tank or cell eliminating the need for specialty reservoirs and pick up pumps saving cost and greatly reducing complexity. HydraMats are available in various sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells. |
| Description_FAB |
HydraMats are also available in other sizes and shapes to fit a variety of stock fuel tanks and/or race fuel cells |
