• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.
| Basic Operating RPM Range |
3500-8000 |
| Brand |
Holley |
| 10653 |
Square/4150 |
| 10650 |
2 |
| 10652 |
No |
| Category |
Engine |
| 9063 |
No |
| Color |
Natural |
| 158 |
Cast |
| 5337 |
Rectangle |
| 6621 |
9.24 |
| 8095 |
No |
| Emission Code |
4 |
| Engine |
GM LS3/L92 |
| Flange Style |
4150 Square Bore |
| 6643 |
11.08 |
| 906 |
No |
| 10644 |
No |
| Fuel System Type |
Carb |
| 353 |
No |
| 3390 |
Performance |
| 10651 |
No |
| Manifold Type |
Hi-Ram |
| 10 |
Aluminum |
| 10648 |
No |
| part type |
Engine Intake Manifold |
| Plenum Finish |
Natural |
| Product Type |
Intake Manifold |
| 6645 |
11.08 |
| 10645 |
No |
| 10649 |
Yes |
| 6642 |
Single Plane |
| Sub Category |
Cylinder Block Components |
| Throttle Body Bore Diameter |
3.6 |
| Throttle Body Gasket Included |
No |
| 10626 |
No |
| Vacuum Ports |
Yes |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| Description_ABR |
LS3 HI RAM I |
| Description_SHO |
HOLLEY HI RAM INTAKE |
| Description_INV |
LS3 HI-RAM, INTAKE MANIFOLD CARB, 2 X 41 |
| Description_ASC |
*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. |
| Description_DES |

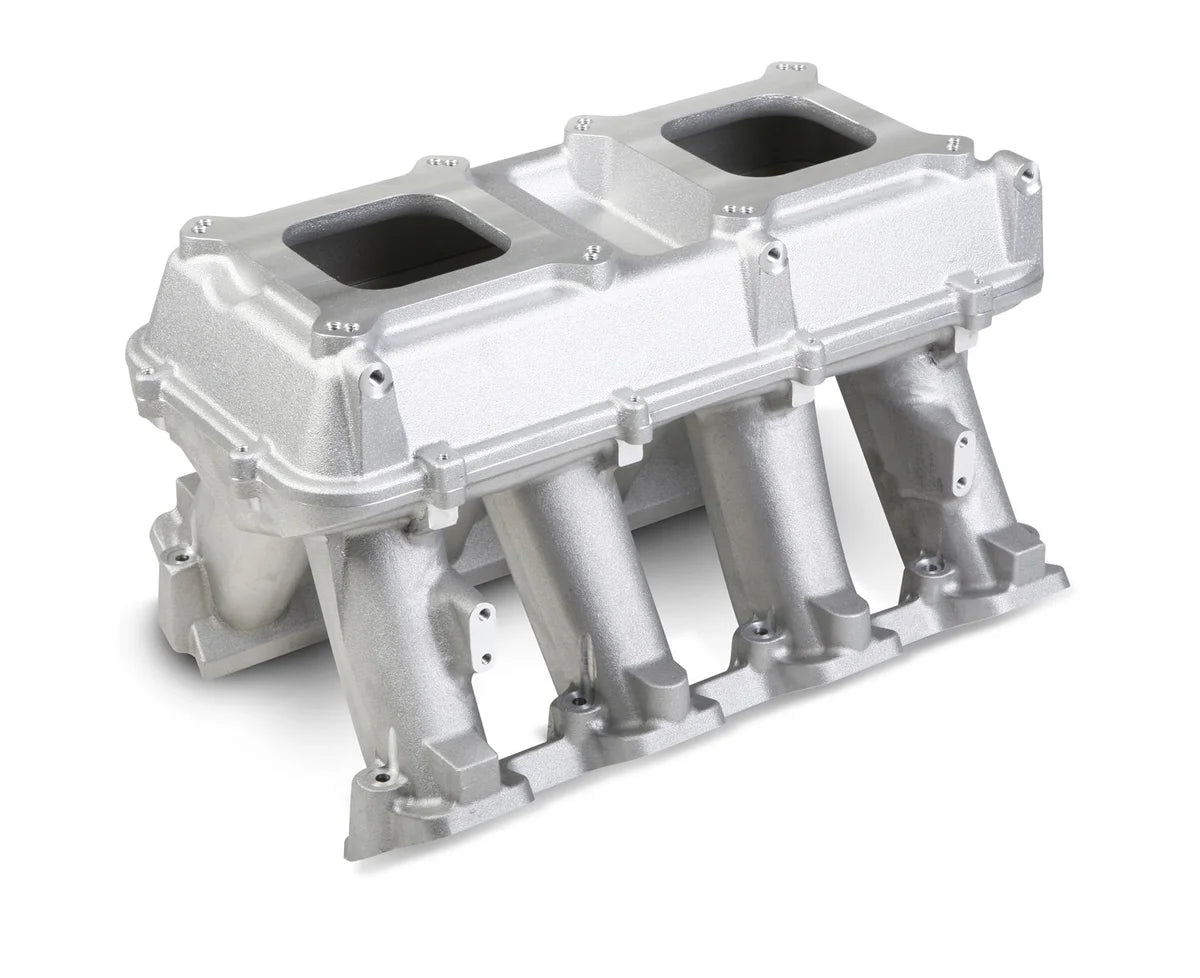

Holley Hi-Ram Intake - GM LS3/L92 |
| Description_EXT |
Carbureted Hi-Ram Intake, 2 x 4150™ (sideways and inline mounting) |
| Description_MKT |
The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost-effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications, and more! |
| Description_MKT |
• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM. |
| Description_MKT |
• Cast aluminum construction. |
| Description_MKT |
• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations |
| Description_MKT |
• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. |
| Description_FAB |
Mounting Flange Gasket Type – Standard LS3 Molded O-Ring |
| Description_FAB |

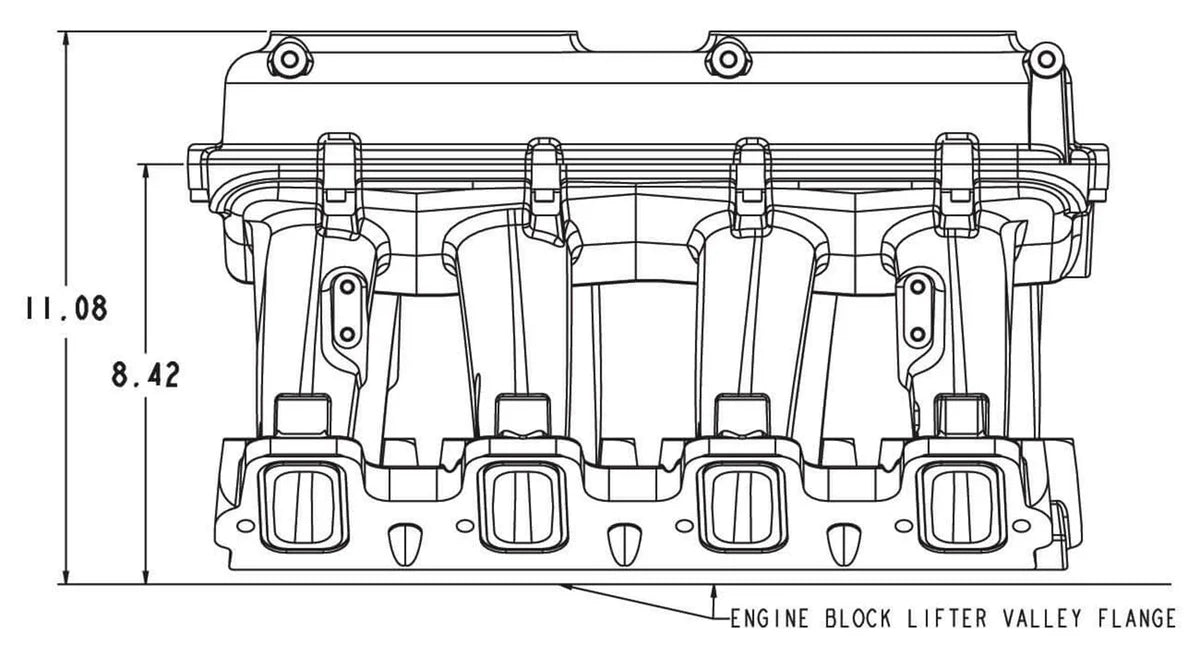

Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block. |
| Description_FAB |
Port Size – 2.49” Height x 1.21” Wide |
| Description_FAB |
Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08” to the lifter valley cover flange on engine block. |
| Description_FAB |
Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in² |
| Description_FAB |
Plenum Top Gasket Type – 3/32” Round O-ring Cord |
| Description_ABR |
LS3 HI RAM I |
| Description_SHO |
HOLLEY HI RAM INTAKE |
| Description_INV |
LS3 HI-RAM, INTAKE MANIFOLD CARB, 2 X 41 |
| Description_ASC |
*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. |
| Description_DES |
Holley Hi-Ram Intake - GM LS3/L92 |
| Description_EXT |
Carbureted Hi-Ram Intake, 2 x 4150™ (sideways and inline mounting) |
| Description_MKT |
The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost-effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications, and more! |
| Description_MKT |
• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM. |
| Description_MKT |
• Cast aluminum construction. |
| Description_MKT |
• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations |
| Description_MKT |
• The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. |
| Description_FAB |
Mounting Flange Gasket Type – Standard LS3 Molded O-Ring |
| Description_FAB |
Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block. |
| Description_FAB |
Port Size – 2.49” Height x 1.21” Wide |
| Description_FAB |
Height (Carbureted or EFI, 2x4V Top Mount & Blank) – 11.08” to the lifter valley cover flange on engine block. |
| Description_FAB |
Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in² |
| Description_FAB |
Plenum Top Gasket Type – 3/32” Round O-ring Cord |
