Holley Complete Transmission Installation Kit 319-502
$2,866.60
$2,607.99

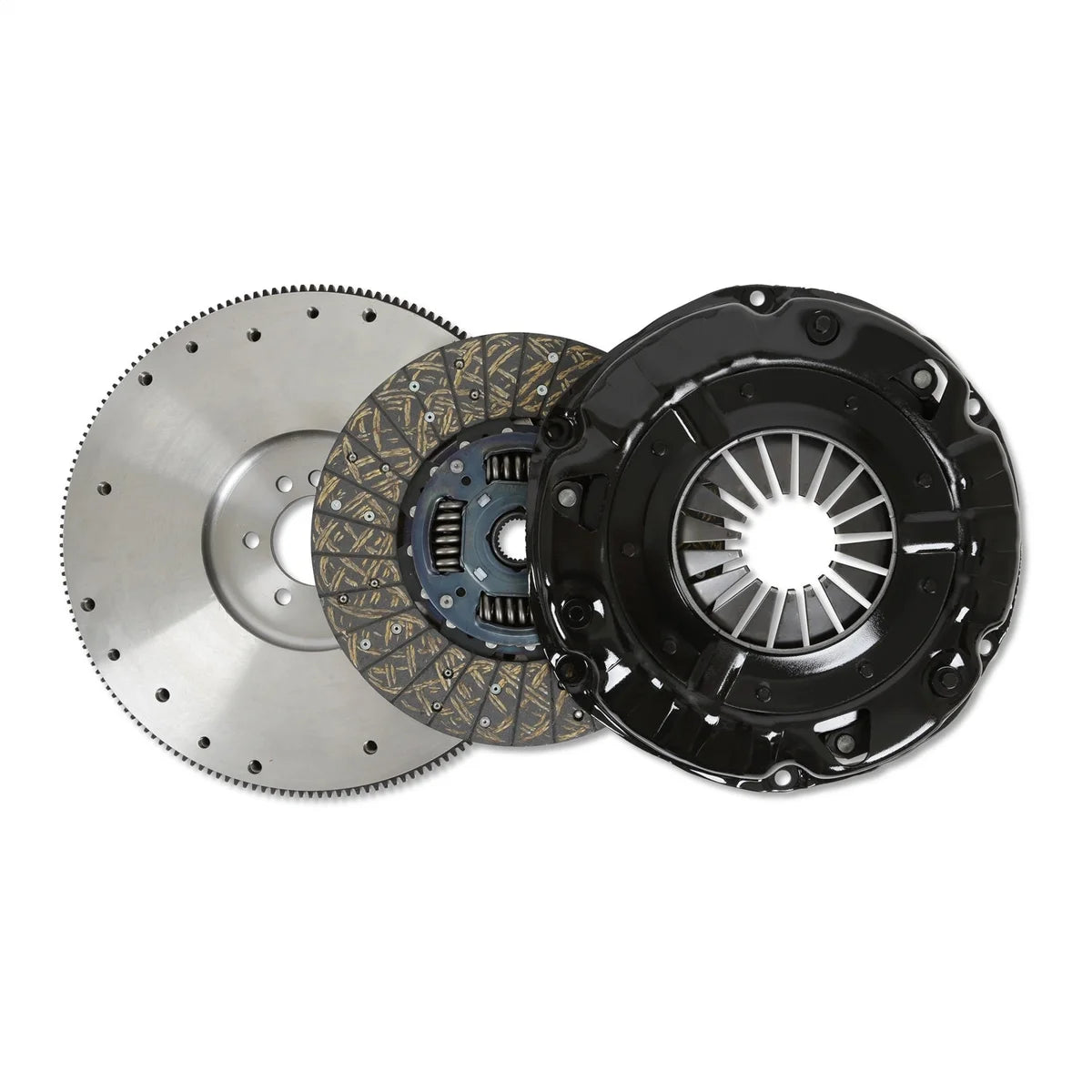

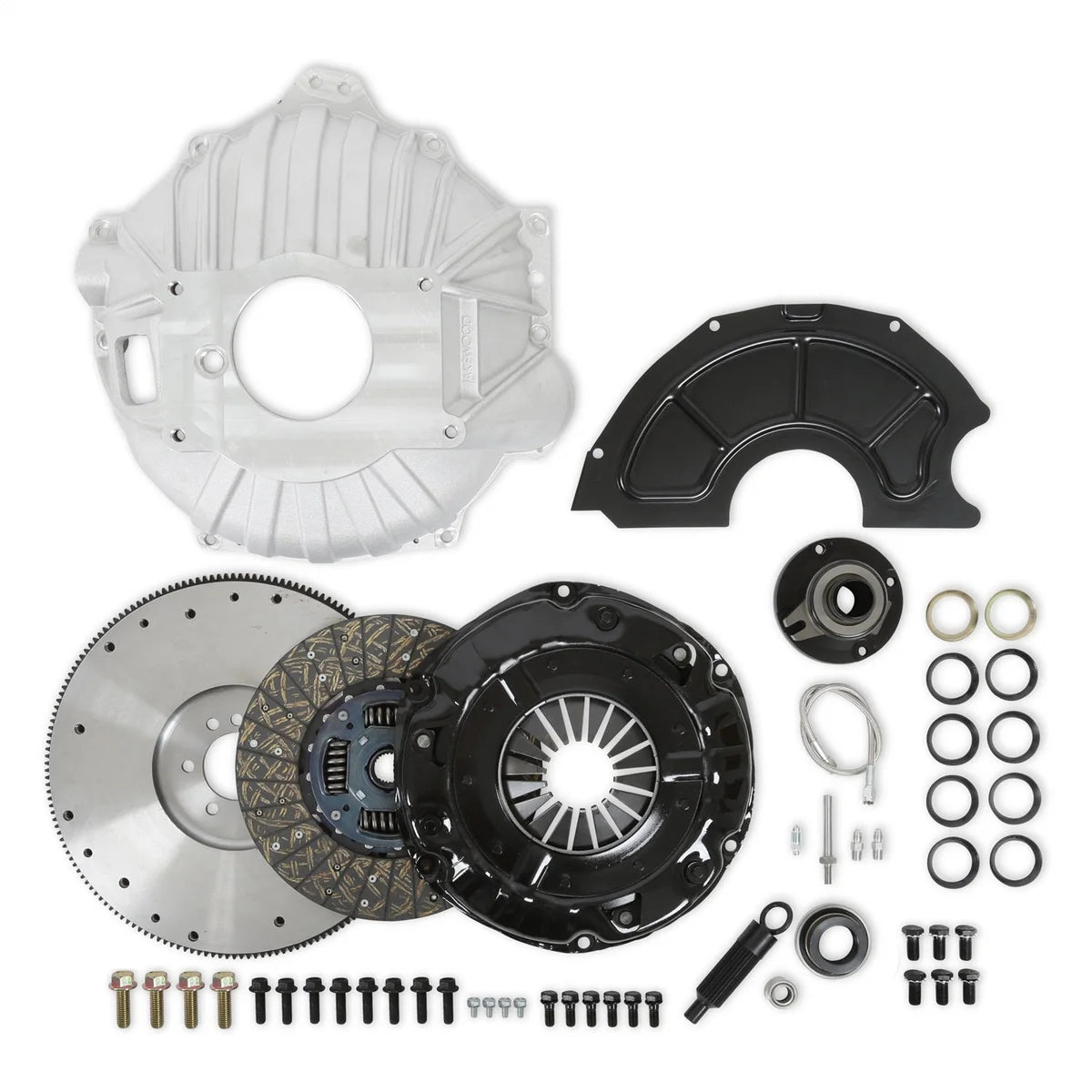

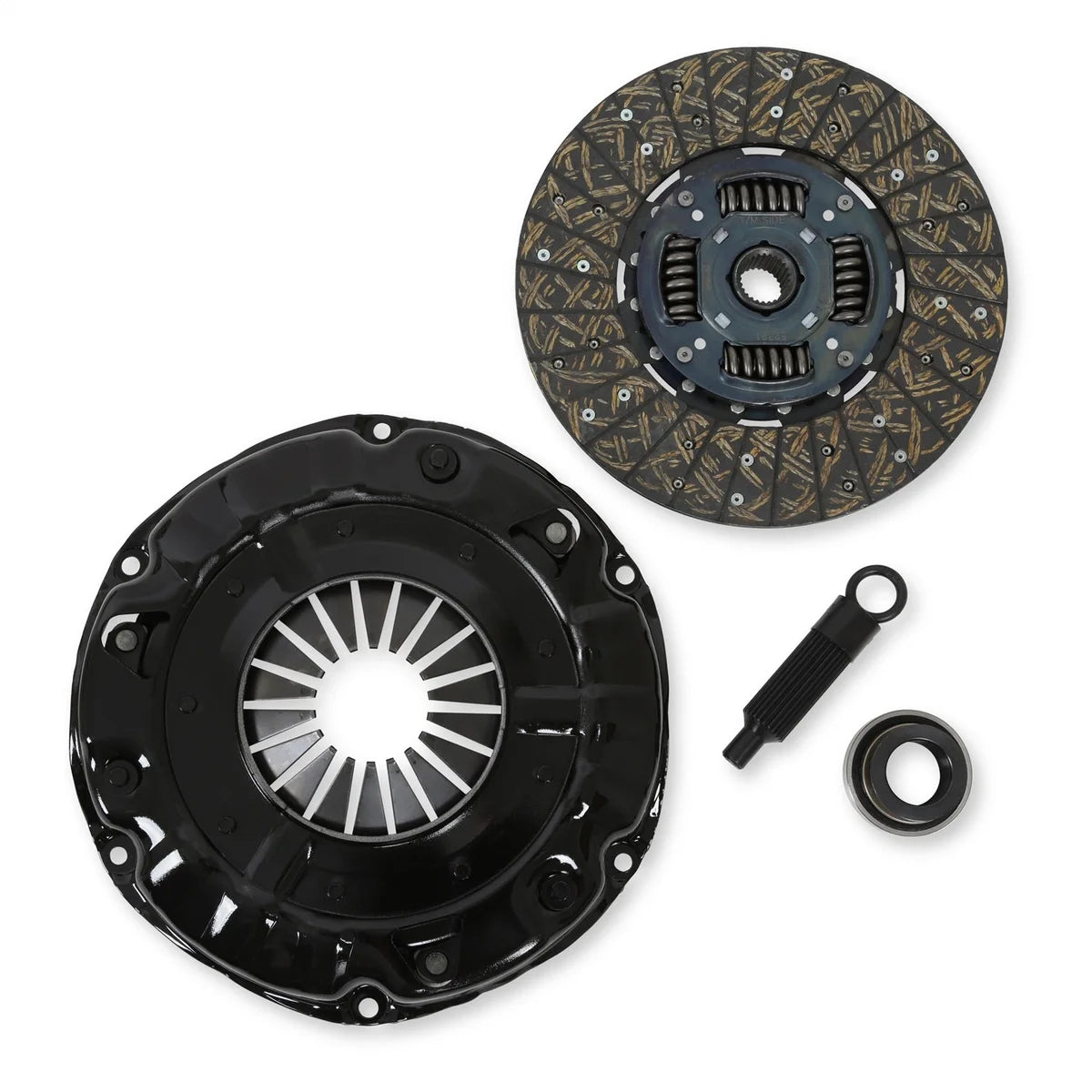

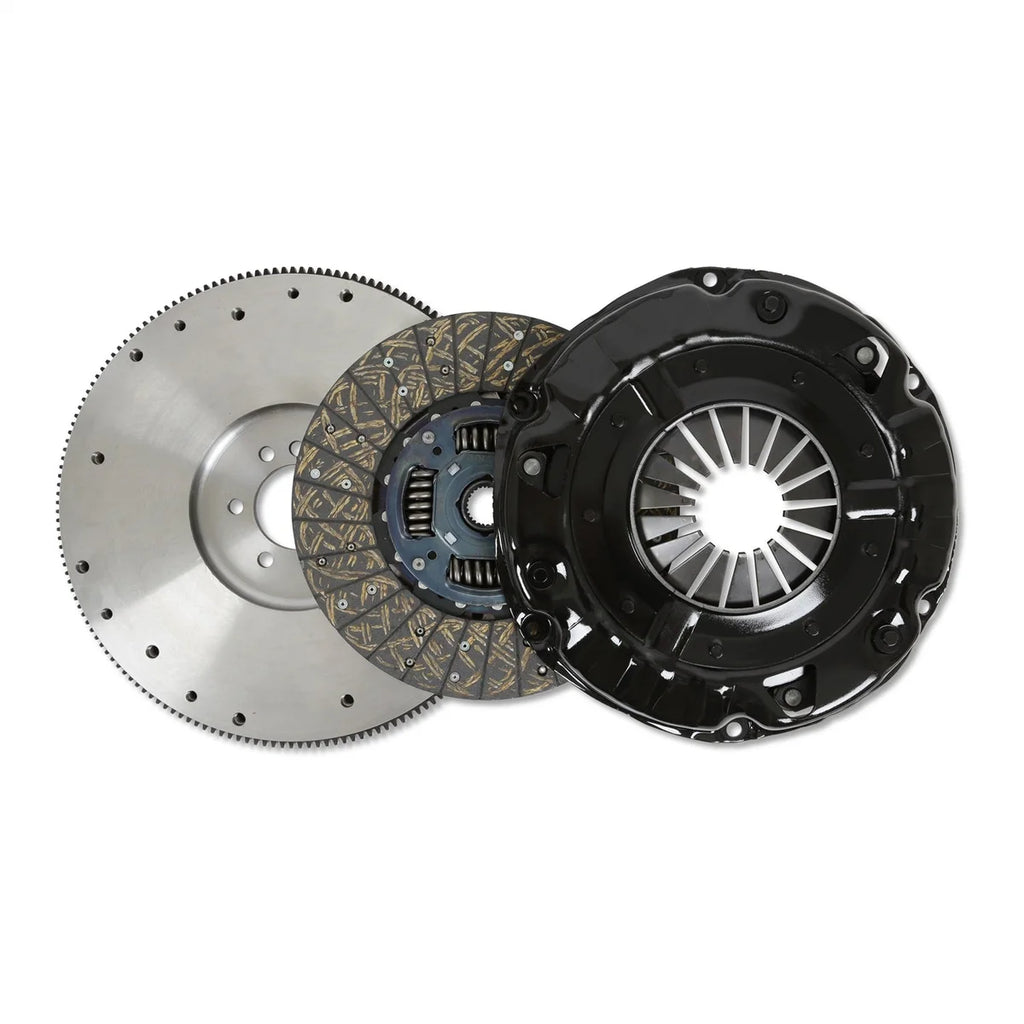

These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 1970-1990 454 big-block Chevrolet engine. Built with a mixture of our best brands including Lakewood, Hays and Mr. Gasket. Kit includes: A roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components.
Specifications:
| Bellhousing Material | Aluminum |
| Brand | Holley |
| Category | Transmission |
| Disc Diameter | 11 |
| Disc Material | Organic |
| Disc Style | Spring Hub |
| Emission Code | 6 |
| Engine | GM Big Block |
| Engine Balance | External |
| Engine Make | GM |
| Flywheel Balance | External |
| Flywheel Material | Billet Steel |
| 3390 | Performance |
| Hardware | Steel |
| Input Shaft Diameter | 1-1/8 in. |
| Input Spline | 26 |
| part type | Transmission Installation Kit |
| PILOT BEARING | Roller |

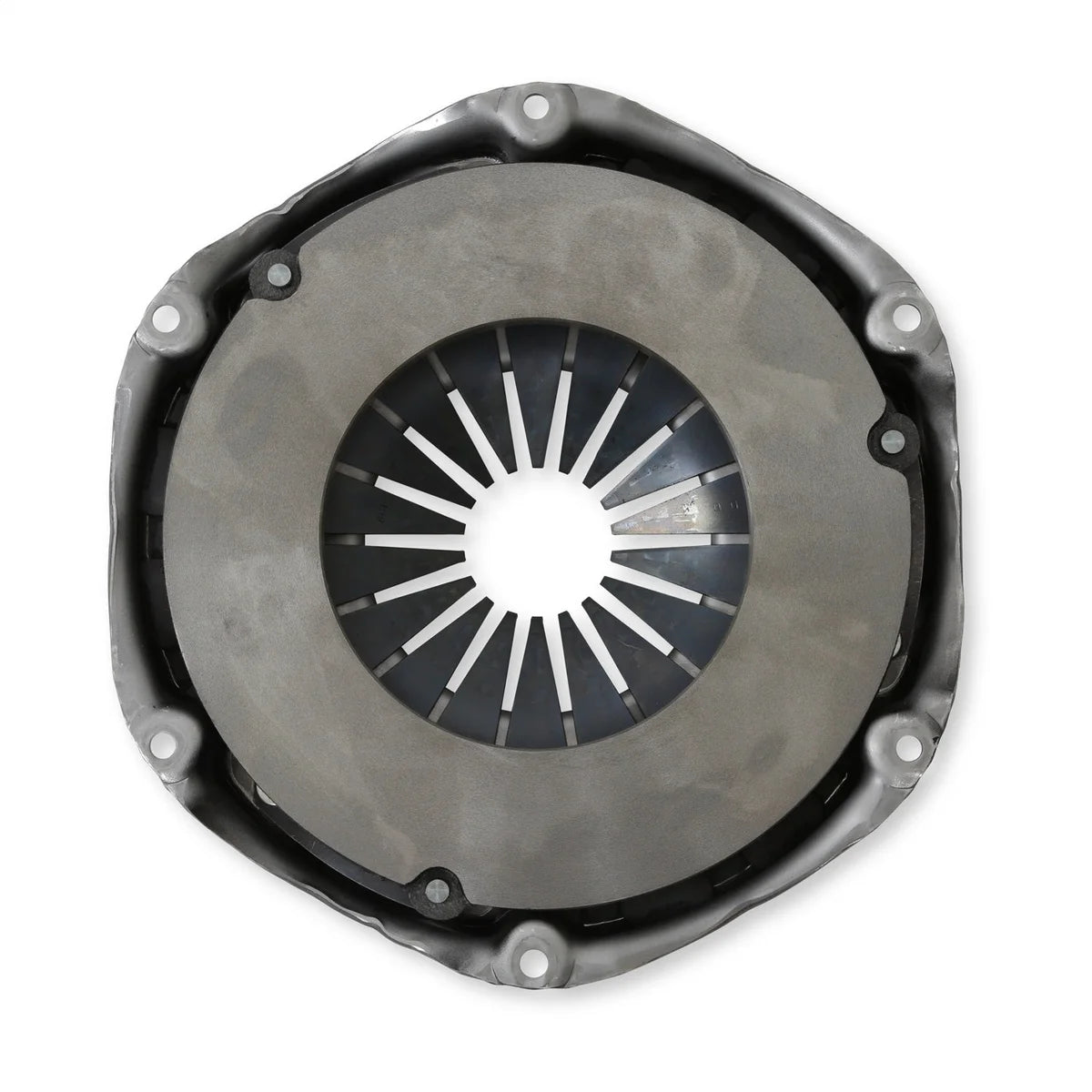

| Pressure Plate Style | Diaphragm |
| Product Type | Installation Kit |
| RELEASE BEARING | Hydraulic |
| Sub Category | Manual Transmission Components |
| Transmission | TKX GM |
| Transmission | TKO GM |
| Warning | California Proposition 65 |
| Description_INV | GM TKX/TKO INSTALLATION KIT BBC |
| Description_ASC | Designed for externally balanced big block 454 Chevy engines with 2-pc rear main seal and a 2.485-inch crank register diameter. |
| Description_DES | Complete Transmission Installation Kit |
| Description_EXT | GM TKO/TKX Installation kit for 1970-1990 externally balanced 454 Big Block Chevrolet Engines |
| Description_MKT | These Holley Transmission Installation Kits come complete with everything you need to bolt a TKX or TKO transmission to a 1970-1990 454 big-block Chevrolet engine. Built with a mixture of our best brands including Lakewood, Hays and Mr. Gasket. Kit includes: A roller pilot bearing, bellhousing with dust shield, billet steel flywheel, clutch and pressure plate, hydraulic release bearing, and all hardware needed to install these components. |
| Description_FAB | Designed for 1970-1990 454 Big Block Chevrolet Engines using a TKX or TKO transmission |

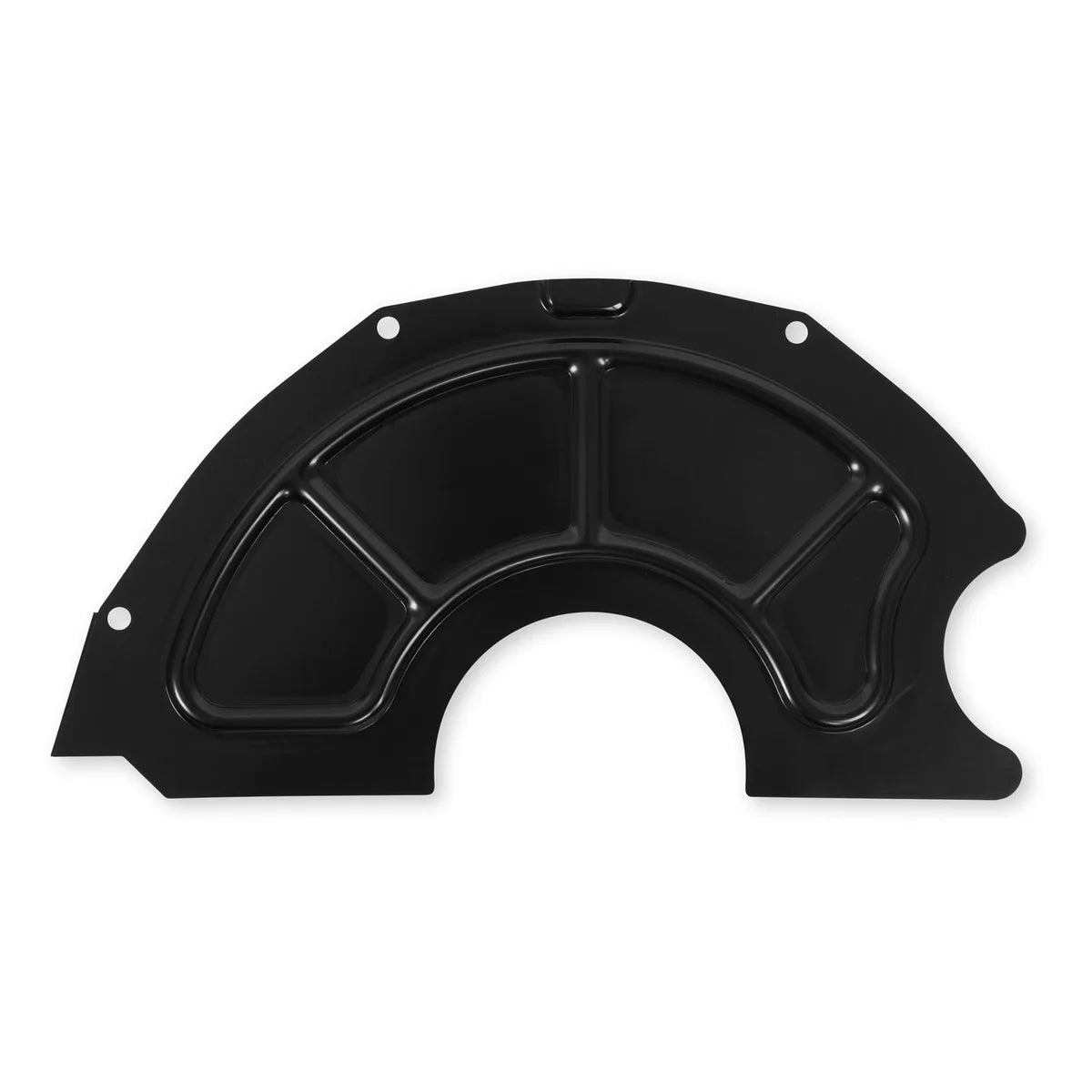

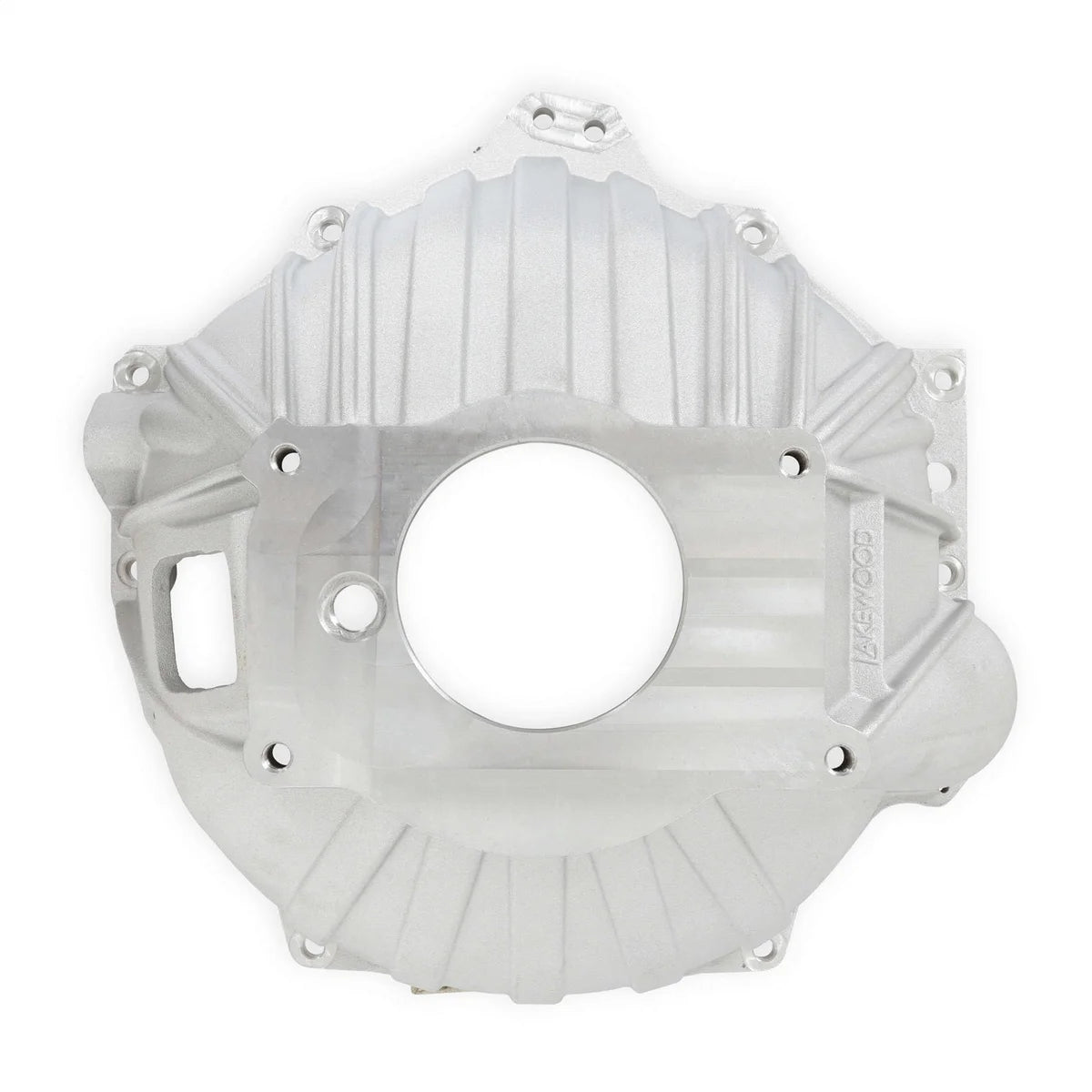

| Description_FAB | Light weight cast aluminum bellhousing and stamped steel dust cover provides factory-like installation and appearance |

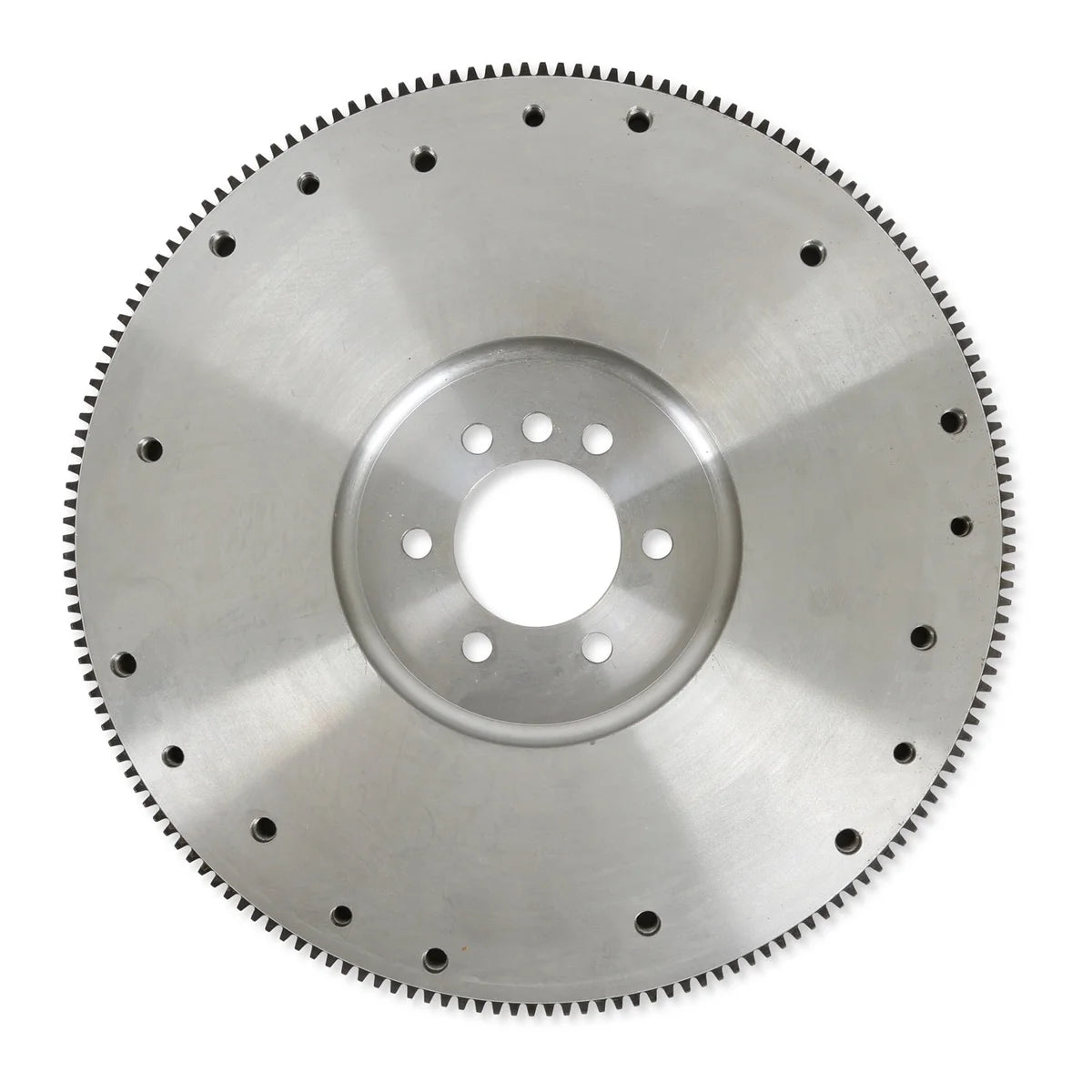

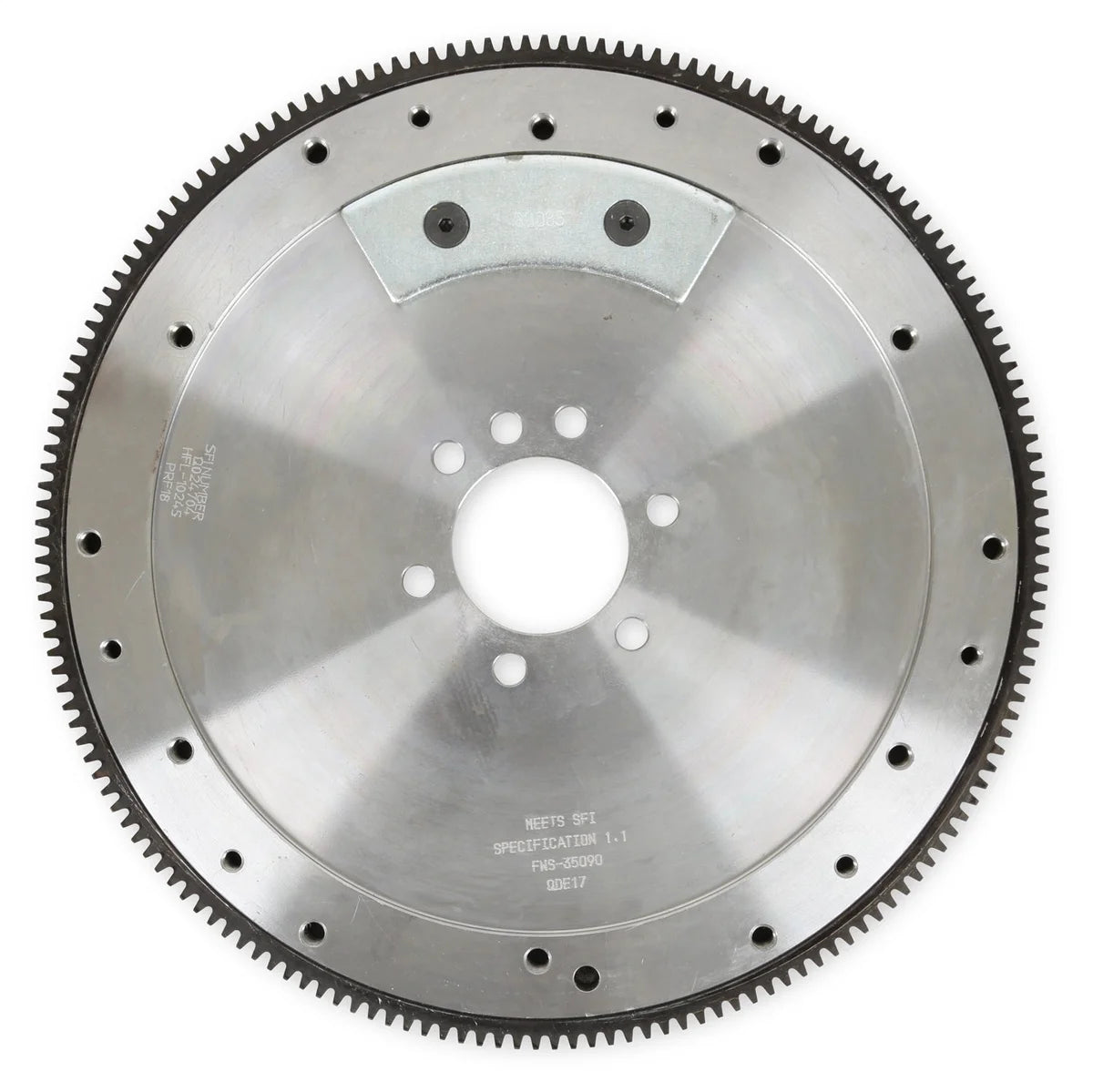

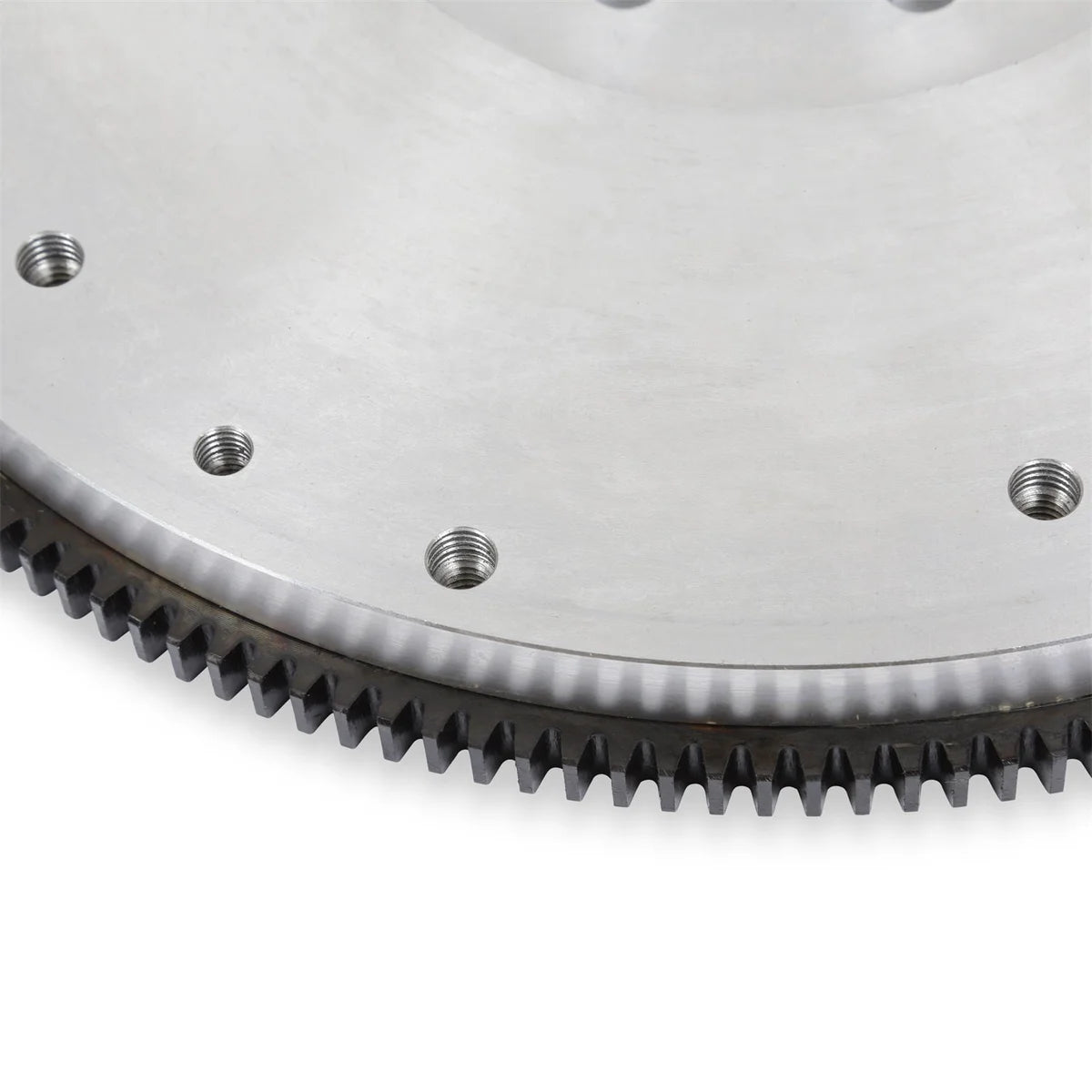

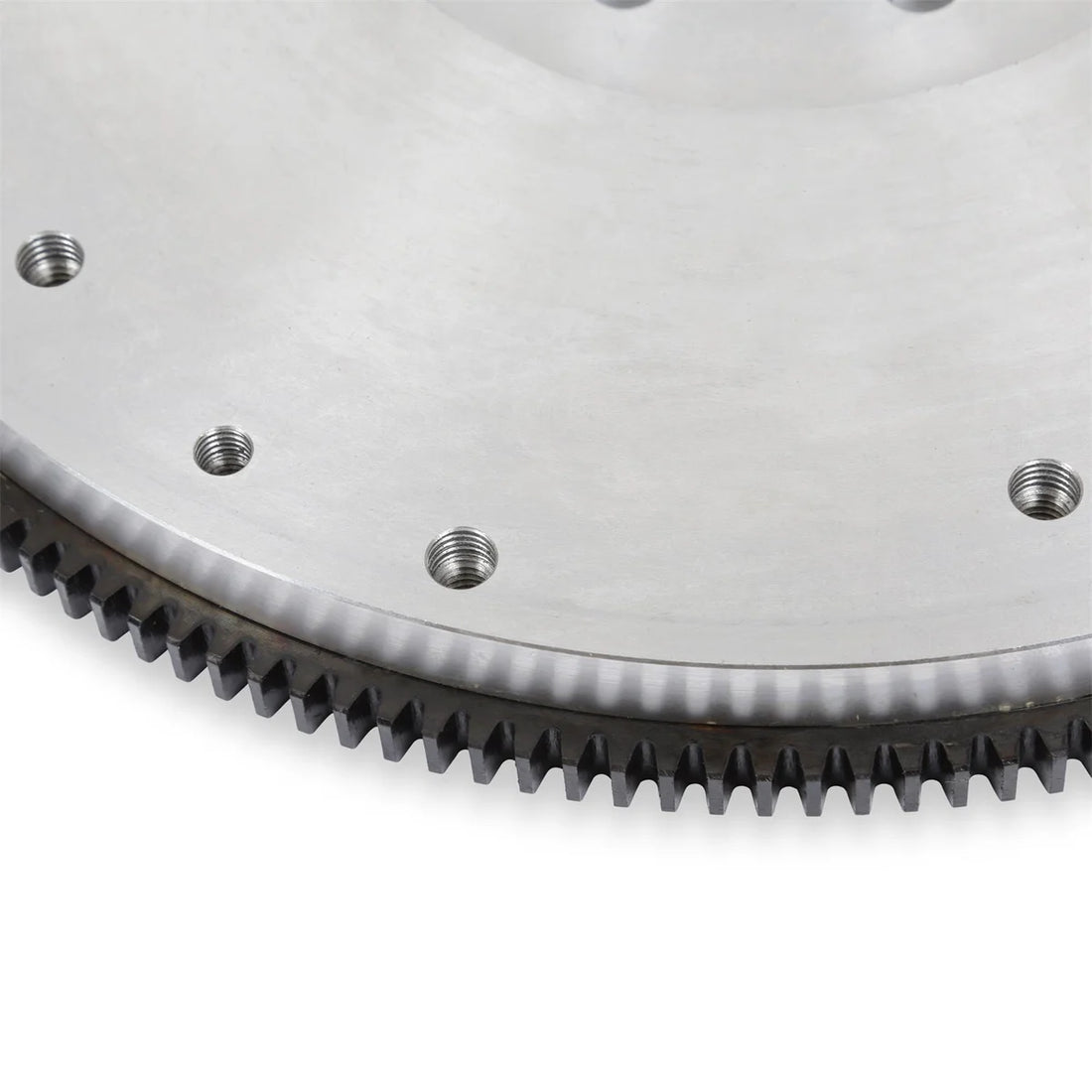

| Description_FAB | Billet steel 36 lb, 168 tooth externally balanced flywheel for light weight and strength |
| Description_FAB | Roller style pilot bearing offers improved shifting by reducing parasitic drag and transmission wear |
| Description_FAB | 26 spline, 11-inch clutch disk offers superior clamping force for engines up to 500 hp |

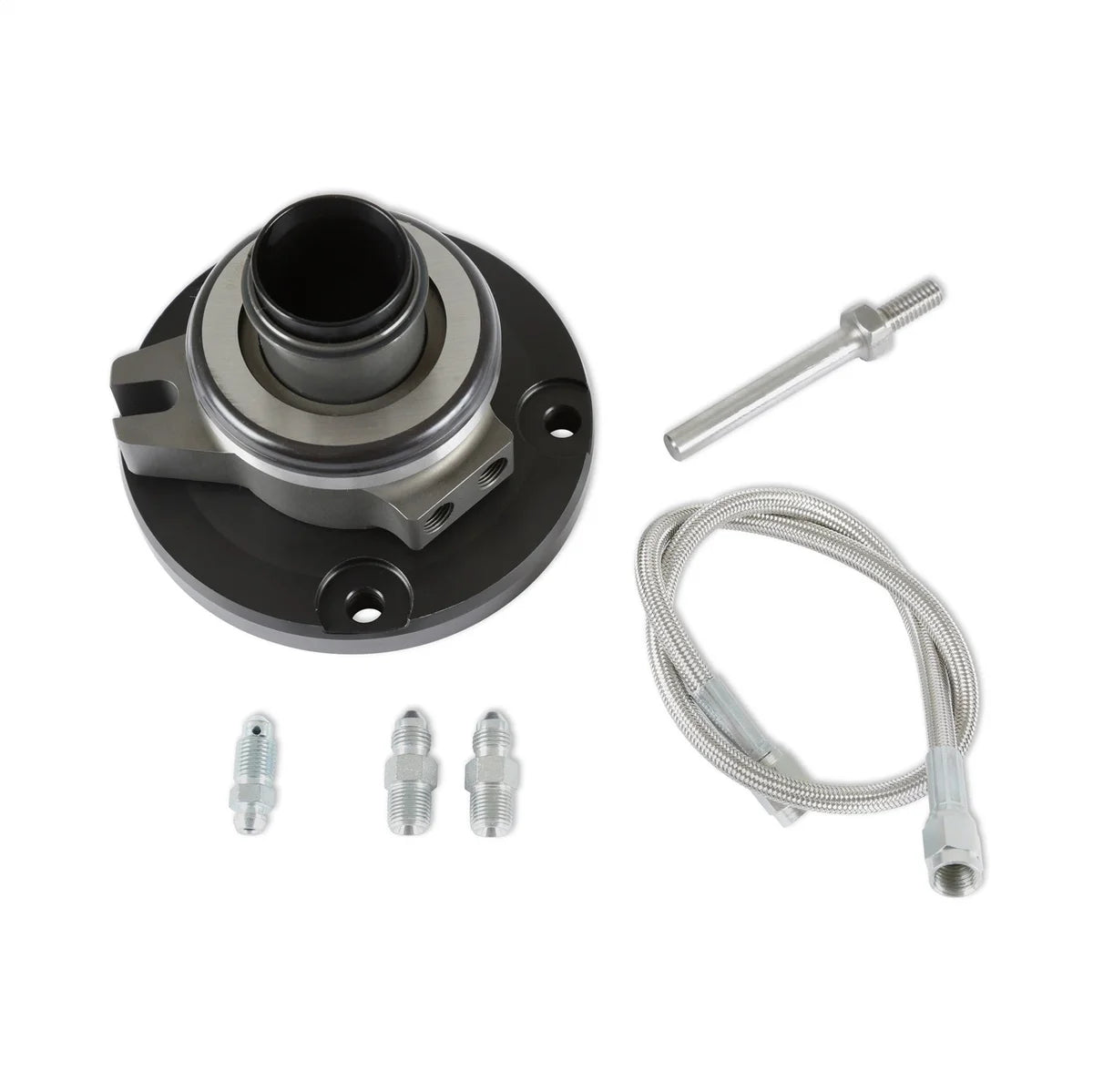

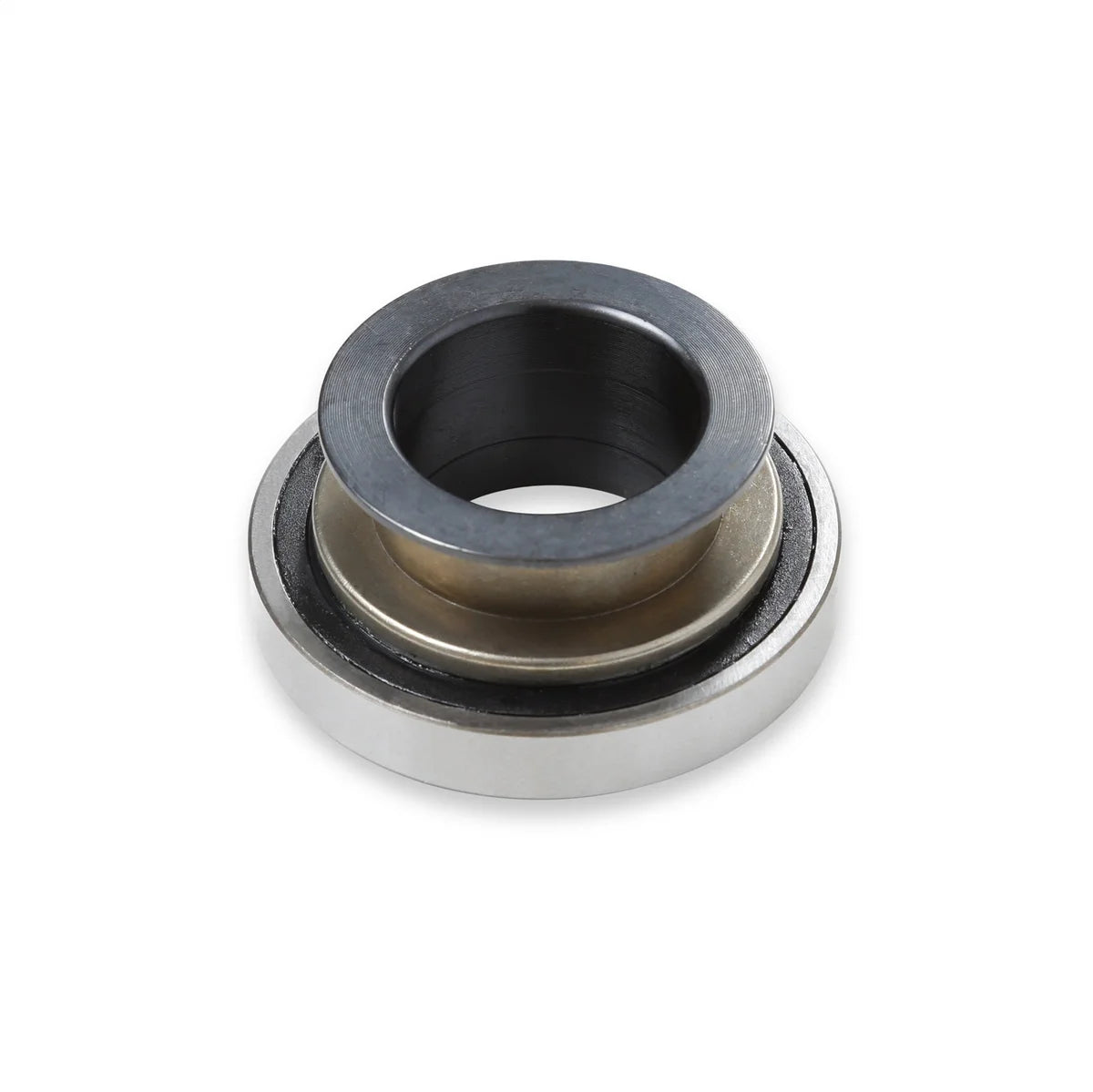

| Description_FAB | Adjustable Hydraulic Release Bearing offers reduced pedal effort and easy installation |

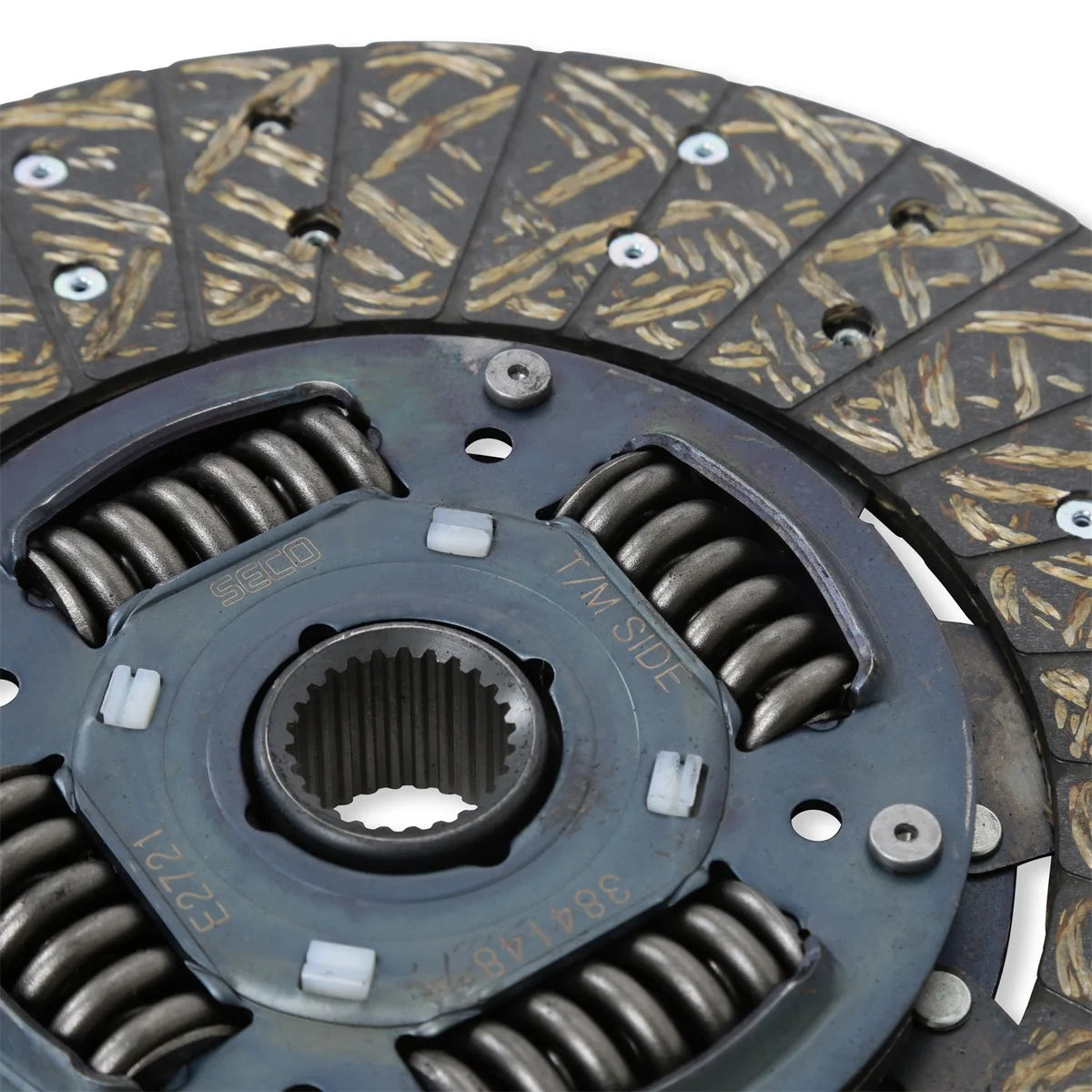

| Description_FAB | Organic clutch disc features heavy-duty hub spring assembly for increased load capacity |
| Description_FAB | Works with OE (original equipment) or MSD High Torque starters |
| Description_FAB | All hardware included |
