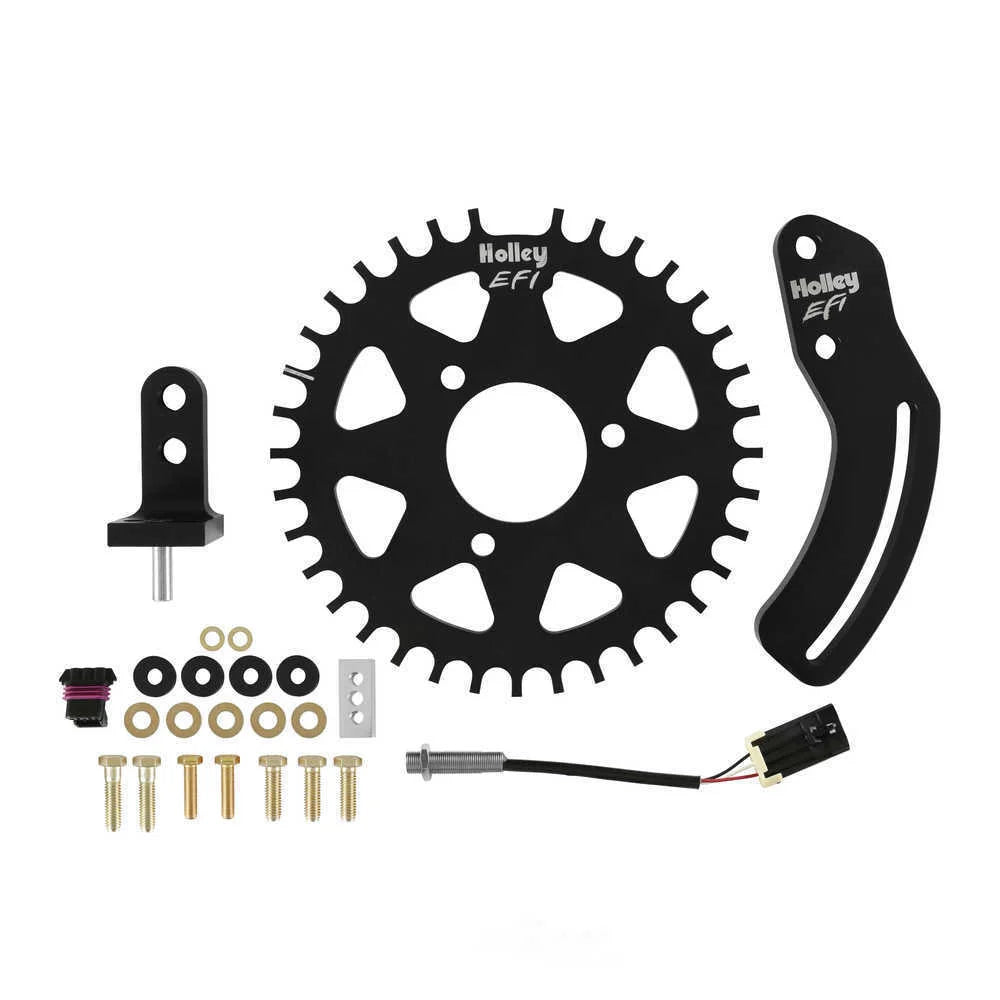

Holley EFI 36-1 Tooth Crank Trigger System for Small Block Chevy 556-116
$843.95
$771.99
Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on early model small block Chevy applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter.
Specifications:
| 2202 | Black |
| 732 | Aluminum |
| Brand | Holley EFI |
| Category | Ignition |
| Color | Black |
| Diameter | 8 in., 8" |
| Emission Code | 4 |
| Finish | Black Zinc Oxide |
| 3390 | Performance |
| Make | Chevrolet |
| part type | Ignition Crank Trigger Kit |
| 1953 | Yes |
| Product Type | Crank Trigger Kit |
| Sensor Dimensions | 12mm x 50mm |
| Sensor Type | Hall Effect |
| Sub Category | Sensors |
| Trigger Type | 36-1 |
| 5233 | Black |
| 5232 | Steel |
| 5234 | 3 |
| Trigger Wheel Outside Diameter | 8 IN |
| Trigger Wheel Thickness | 1/4 IN |
| Warning | California Proposition 65 |
| Wheel Width | 1/4" |
| Description_INV | CRANK TRIGGER KIT, 8 INCH SBC 36-1 |
| Description_ASC | Will not work on balancers which do not have a center-hub extrusion (i.e.: Innovators West, etc.). Not for use with Holley EFI with a 4x LSx or Chyrsler V8 NGC cam sensor |
| Description_DES | Holley EFI Crank Trigger System - SBC |
| Description_EXT | 36-1 Tooth Crank Trigger System for Small Block Chevy |
| Description_MKT | Holley's EFI Crank Trigger Kit is engineered to provide an accurate crank speed & position signal to Holley EFI systems in the most-demanding, high horsepower, racing applications. Crank position is measured every 10 degrees as opposed to every 45 degrees for a standard 4-Magnet, MSD "style" Crank trigger. It is designed for use on early model small block Chevy applications using a standard ATI or Fluidamper "style" balancer up to 7-1/4" in diameter. |

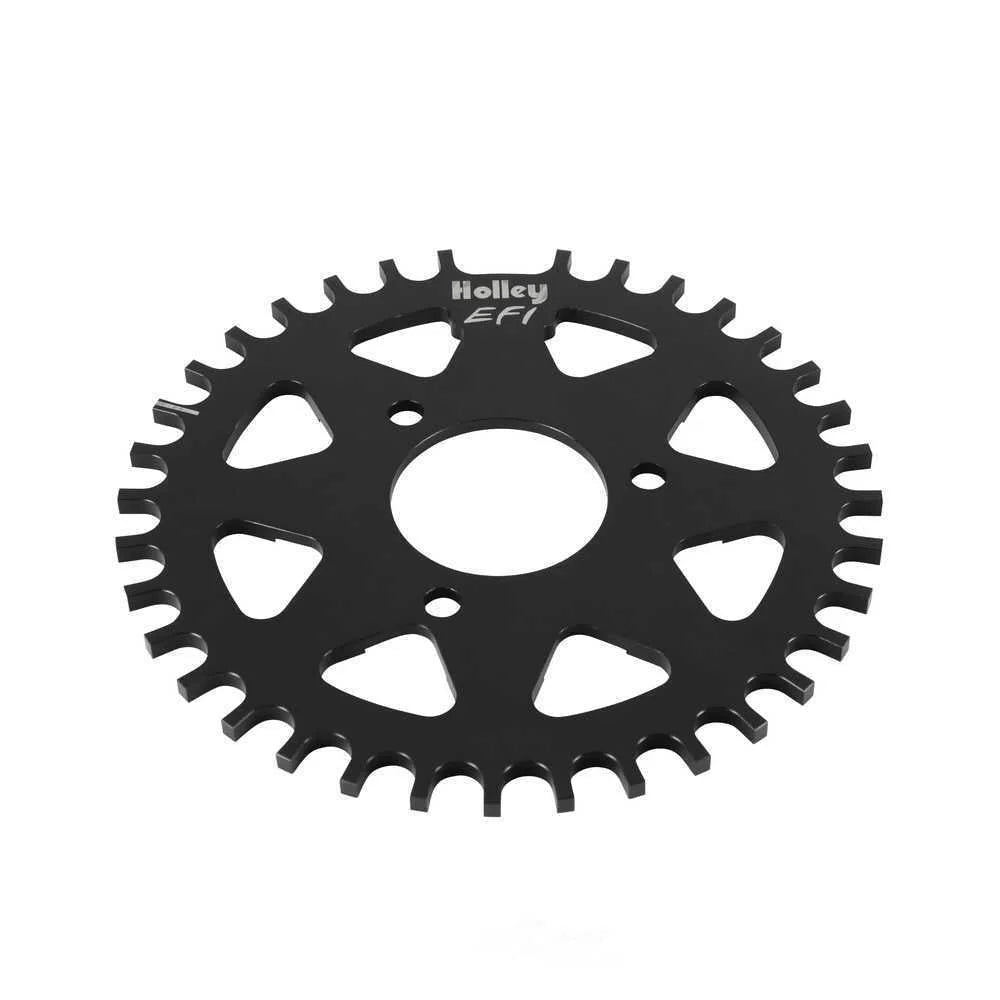

| Description_FAB | 8” diameter, 1/4” thick, billet steel, 36-1 tooth, crank wheel with Black Zinc Oxide finish for superior corrosion resistance & striking good looks. |
| Description_FAB | Crank wheel centers off of the balancer’s hub, eliminating the need for a centering ring |

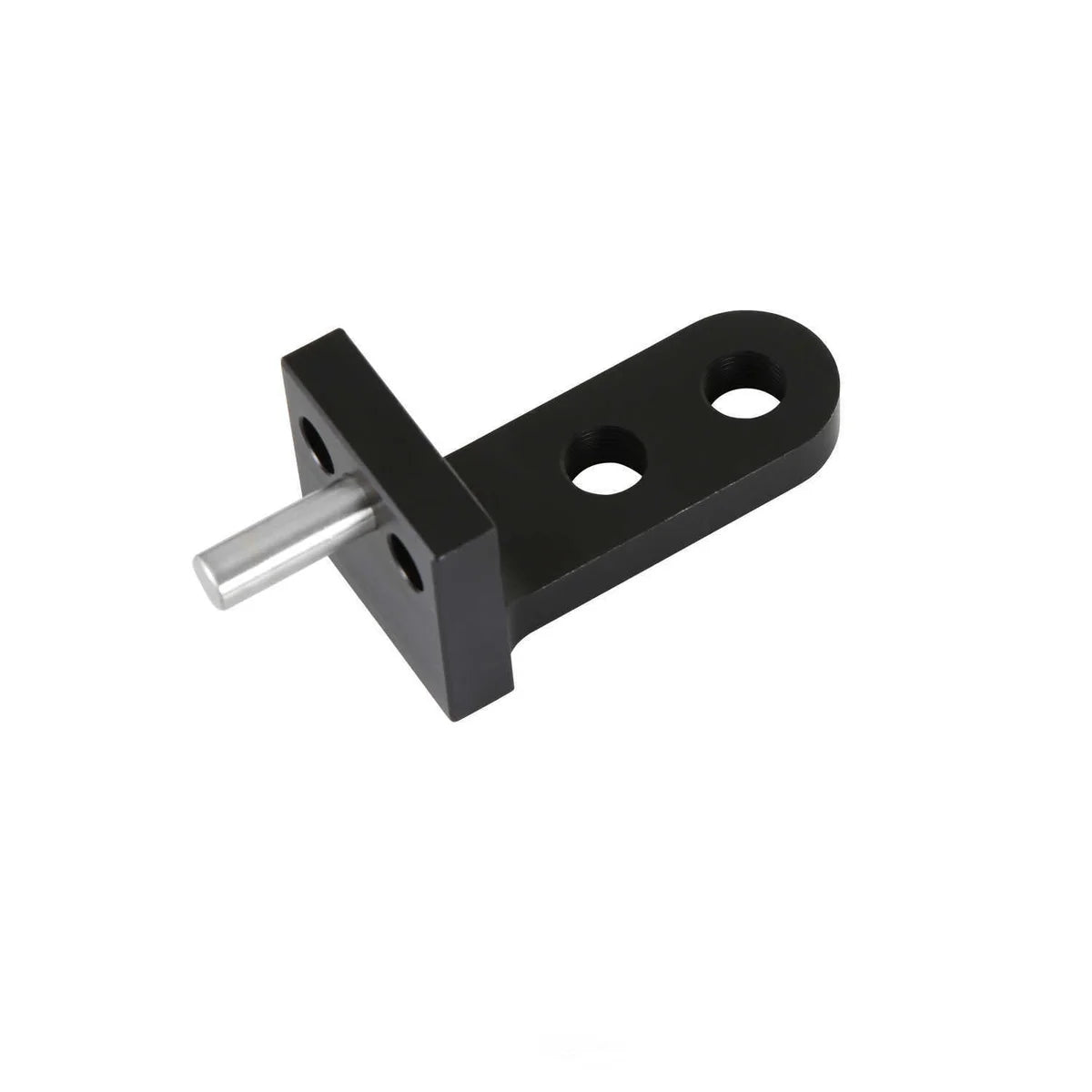

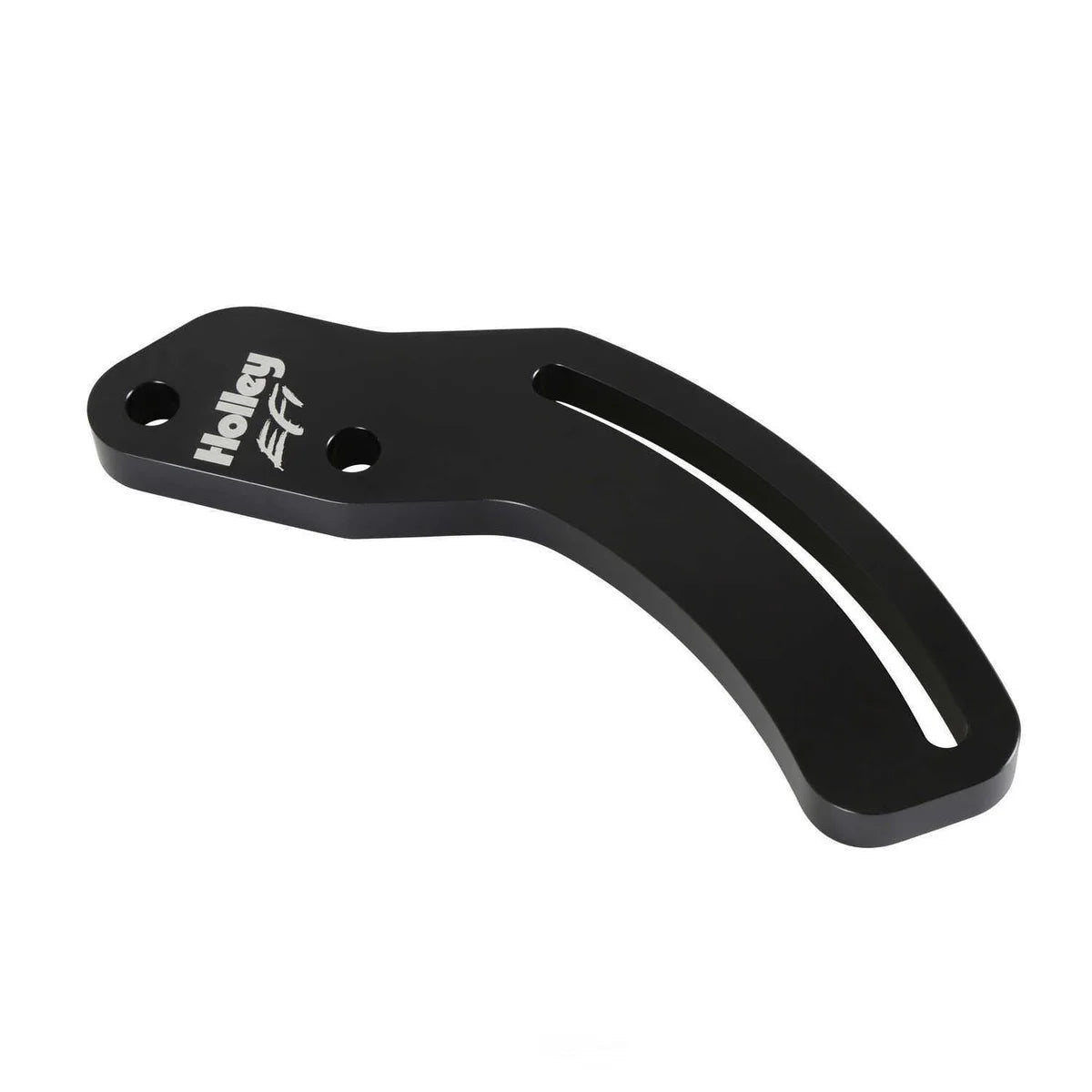

| Description_FAB | All billet, 6061-T6 aluminum sensor mounting brackets with “bright-dipped” black anodized finish & Laser etched Holley EFI logo |

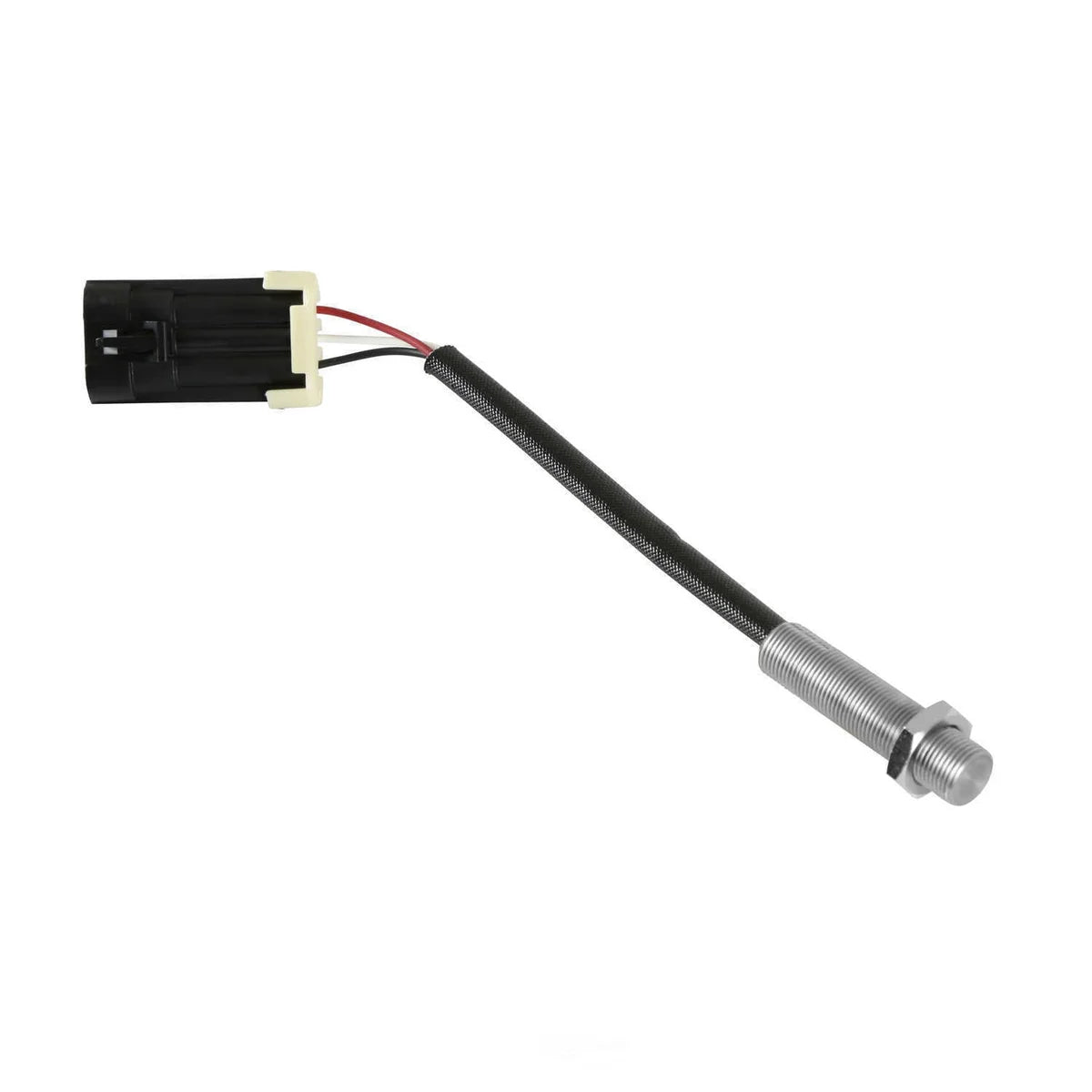

| Description_FAB | Custom 3-wire, ferrous-target, Hall-effect sensor with M12X1mm threads for finer gap adjustment |
| Description_FAB | All Grade 8 & Mil. Spec mounting hardware |
