Holley EFI - 7.25-Inch 12-1X Crank Trigger Kit, LS, Hall Effect - 556-175

Name: Holley EFI - 7.25-Inch 12-1X Crank Trigger Kit, LS, Hall Effect - 556-175
Brand: Holley EFI
SKU: GVMR_556-175
Price: 675.99 USD
Availability: InStock

Brand: Holley EFI

SKU: GVMR_556-175

availability: In stock

$760.95 USD $675.99 USD

Quantity

Subtotal: $675.99 USD

Quantity must be 1 or more

Description

Description

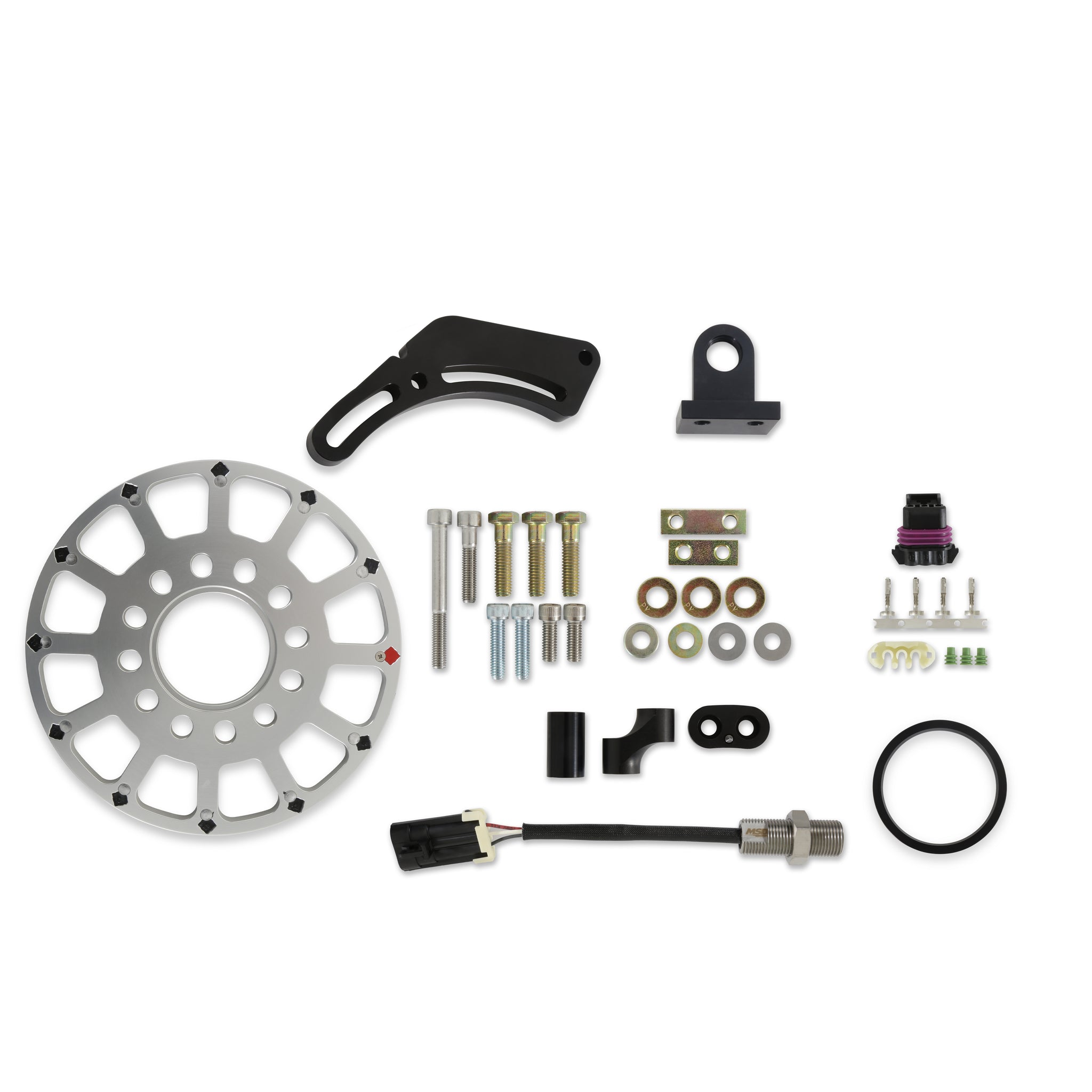

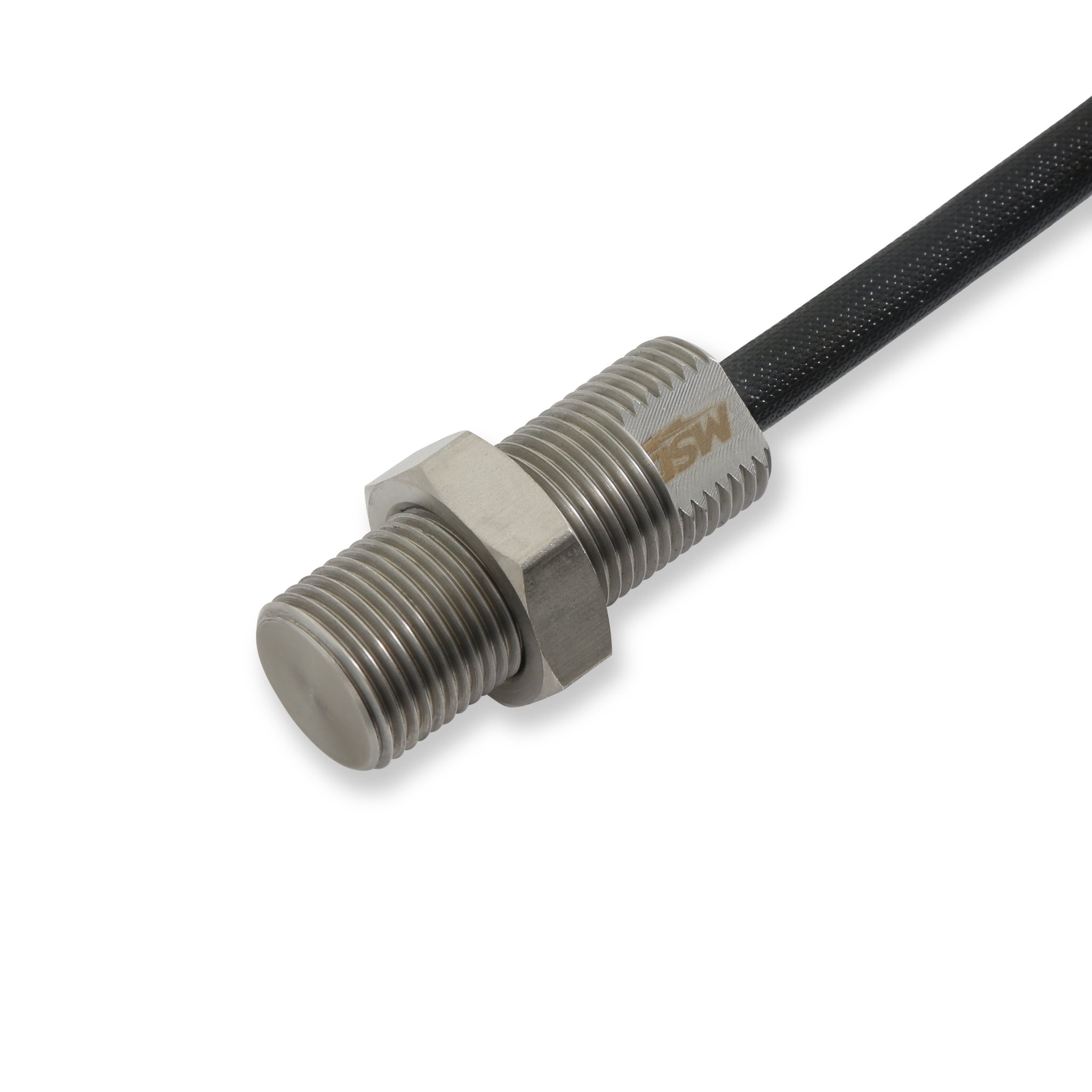

Upgrading to an MSD Flying Magnet Crank Trigger Kit will deliver the precise and reliable signal that a high performance engine requires. This kit gives you the ability to control timing electronically through a Holley EFI ECU (or other standalone engine management system / ignition controller). At the heart of the kit is the 3-wire Hall-Effect Sensor that is easier to set up, less susceptible to EMI/RFI interference/noise, and less likely to have false signals than other methods (Distributors and VR Magnetic Sensors). In addition, they are less prone to mechanical failure since there are no wear parts. With the included high quality timing pointer and the use of a direct bolt-on, degreed balancer (see below list for recommendations), you'll be able to adjust timing in the precise increments required for your engine. • Coyote 556-173 We recommend using ATI 918047-MSD but will also work with 918047N and 918047NA • LS 8 inch 556-174 Designed to work directly with ATI 917302, 918852, 917264 or 917242 • LS 7.28 inch 556-175 Designed to work directly with ATI 917777, 917211 or 917234 • LS 6.56 inch 556-176 Designed to work directly with ATI 917776 or 917215

Specifications:

2202	Black
732	Aluminum
Brand	Holley EFI
Category	Ignition
Color	Silver
Diameter	7.25-inch
Emission Code	4
3390	Performance
Make	Gen III and IV LS
part type	Ignition Crank Trigger Kit
1953	Yes
Product Type	Crank Trigger Kit
Sensor Type	Hall Effect
Sub Category	Sensors
5233	Silver
5232	Billet Aluminum
Trigger Wheel Outside Diameter	7.25 IN
Trigger Wheel Thickness	3/8 IN
Warning	California Proposition 65
Description_ABR	SNEFI ICTK
Description_SHO	7.25-Inch 12-1X
Description_INV	725IN121X CRANKTRIGGER KITLSHALLEFF
Description_DES	7.25-Inch 12-1X Crank Trigger Kit, LS, Hall Effect
Description_EXT	For Gen III and IV LS
Description_MKT	Upgrading to an MSD Flying Magnet Crank Trigger Kit will deliver the precise and reliable signal that a high performance engine requires. This kit gives you the ability to control timing electronically through a Holley EFI ECU (or other standalone engine management system / ignition controller). At the heart of the kit is the 3-wire Hall-Effect Sensor that is easier to set up, less susceptible to EMI/RFI interference/noise, and less likely to have false signals than other methods (Distributors and VR Magnetic Sensors). In addition, they are less prone to mechanical failure since there are no wear parts. With the included high quality timing pointer and the use of a direct bolt-on, degreed balancer (see below list for recommendations), you'll be able to adjust timing in the precise increments required for your engine. • Coyote 556-173 We recommend using ATI 918047-MSD but will also work with 918047N and 918047NA • LS 8 inch 556-174 Designed to work directly with ATI 917302, 918852, 917264 or 917242 • LS 7.28 inch 556-175 Designed to work directly with ATI 917777, 917211 or 917234 • LS 6.56 inch 556-176 Designed to work directly with ATI 917776 or 917215

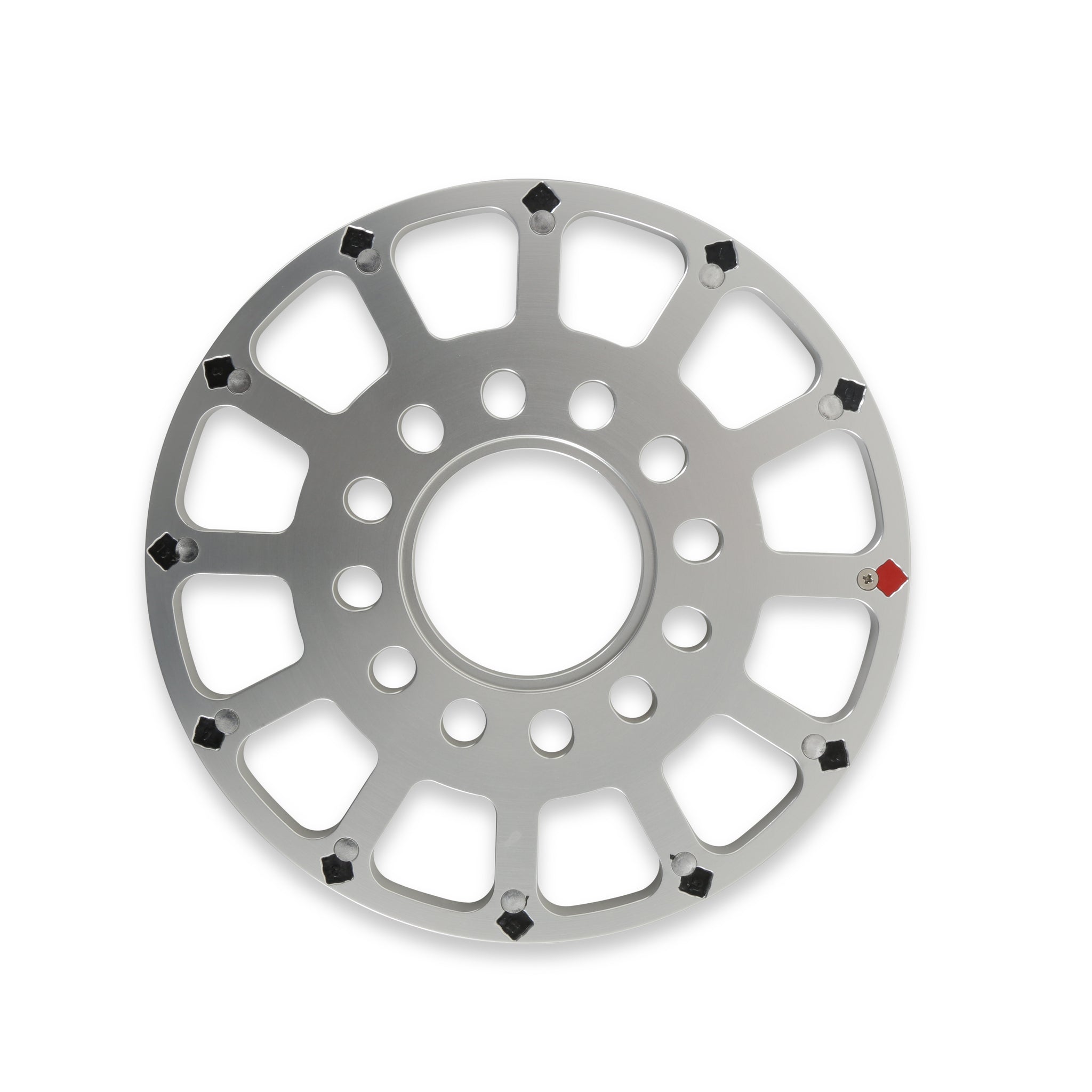

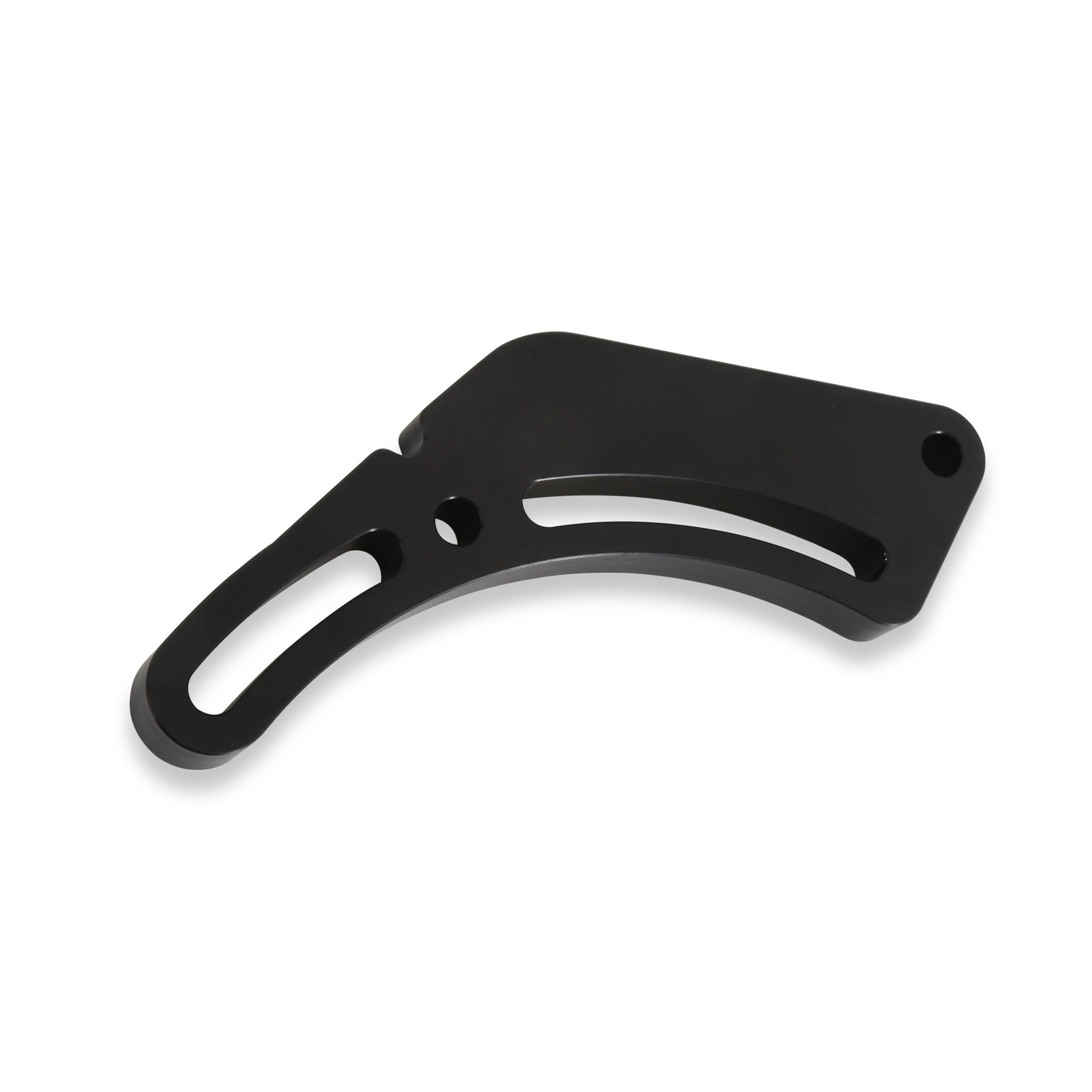

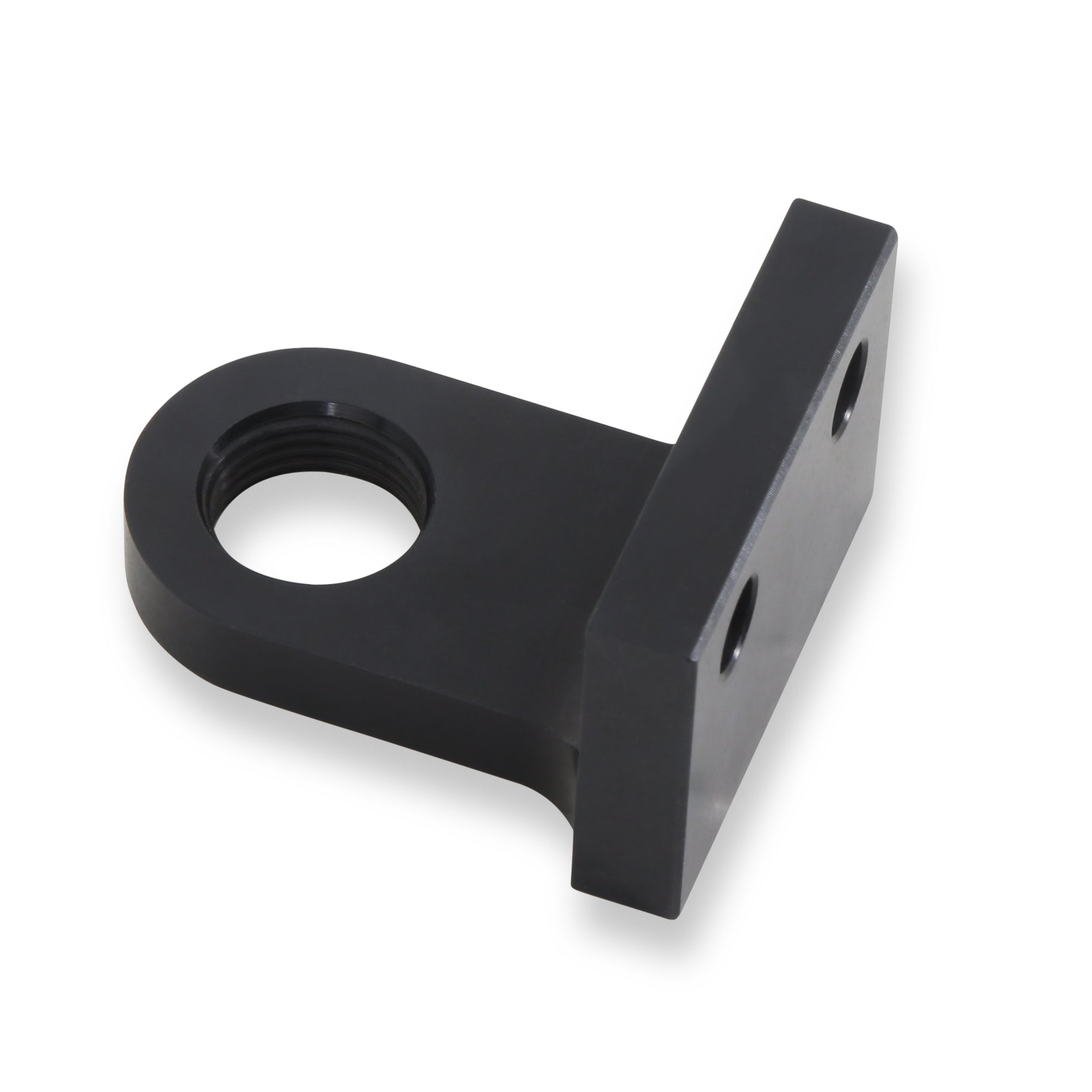

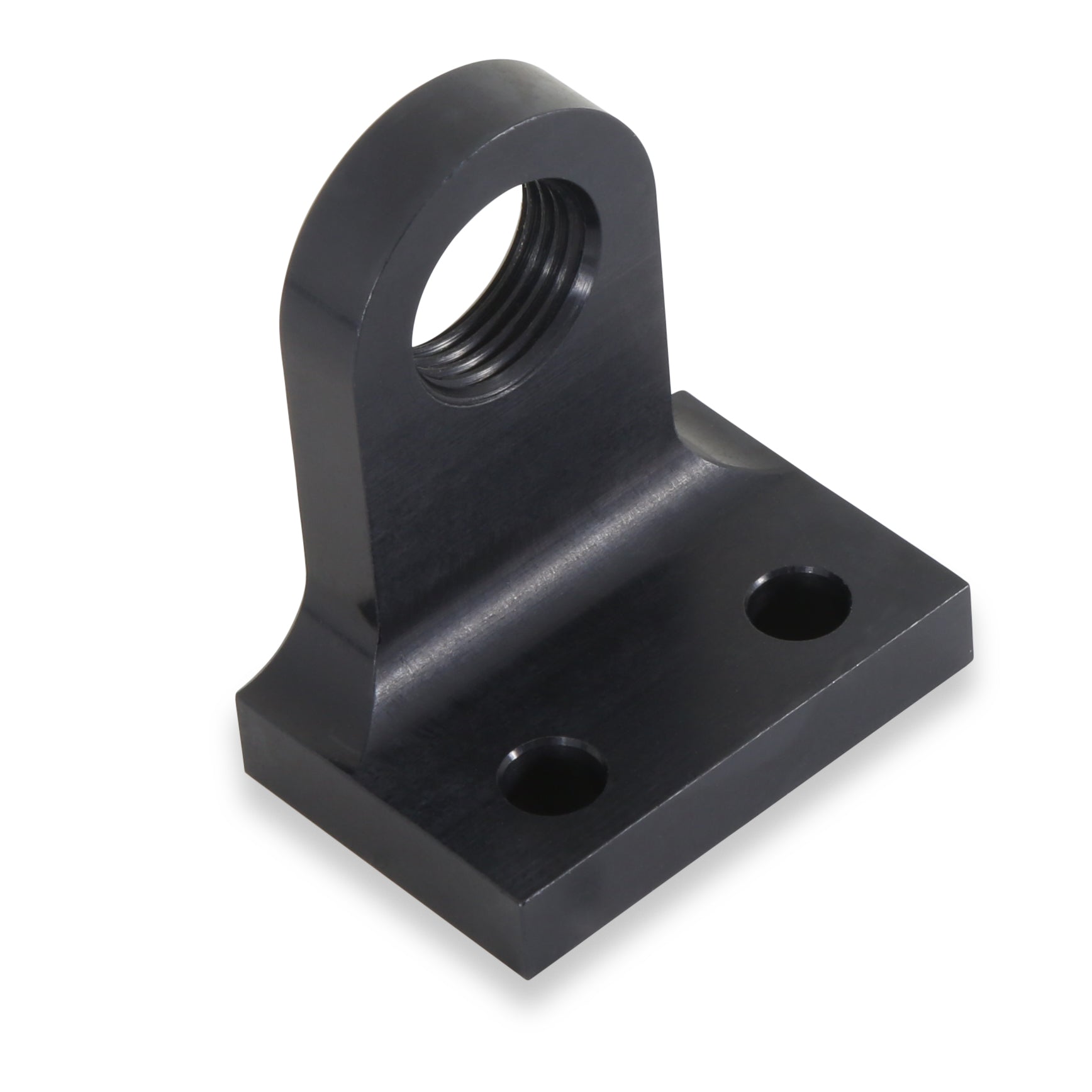

Description_FAB	Most accurate way to trigger your electronic fuel injection (EFI), can be installed as 12-1 or 12x Powerful magnets embedded in a 3/8-inch thick billet 6061-T6 aluminum trigger wheel 3-wire Hall-Effect Sensor that is not easily susceptible to EMI/RFI Interference Engine specific kits include a direct bolt-on billet aluminum pick up bracket Rigid mounting that will not flex and cause timing fluctuation Easy to install much like traditional MSD Crank Trigger Kits Included installation instructions cover mechanical setup and provide step-by-step Holley EFI Software Setup
