Holley EFI - 8.2" SBF Ford Hi-Ram EFI Manifold-Black - 300-272BK

Name: Holley EFI - 8.2" SBF Ford Hi-Ram EFI Manifold-Black - 300-272BK
Brand: Holley EFI
SKU: GVMR_300-272BK
Price: 1349.99 USD
Availability: InStock

Brand: Holley EFI

SKU: GVMR_300-272BK

availability: In stock

$1,518.95 USD $1,349.99 USD

Quantity

Subtotal: $1,349.99 USD

Quantity must be 1 or more

Description

Description

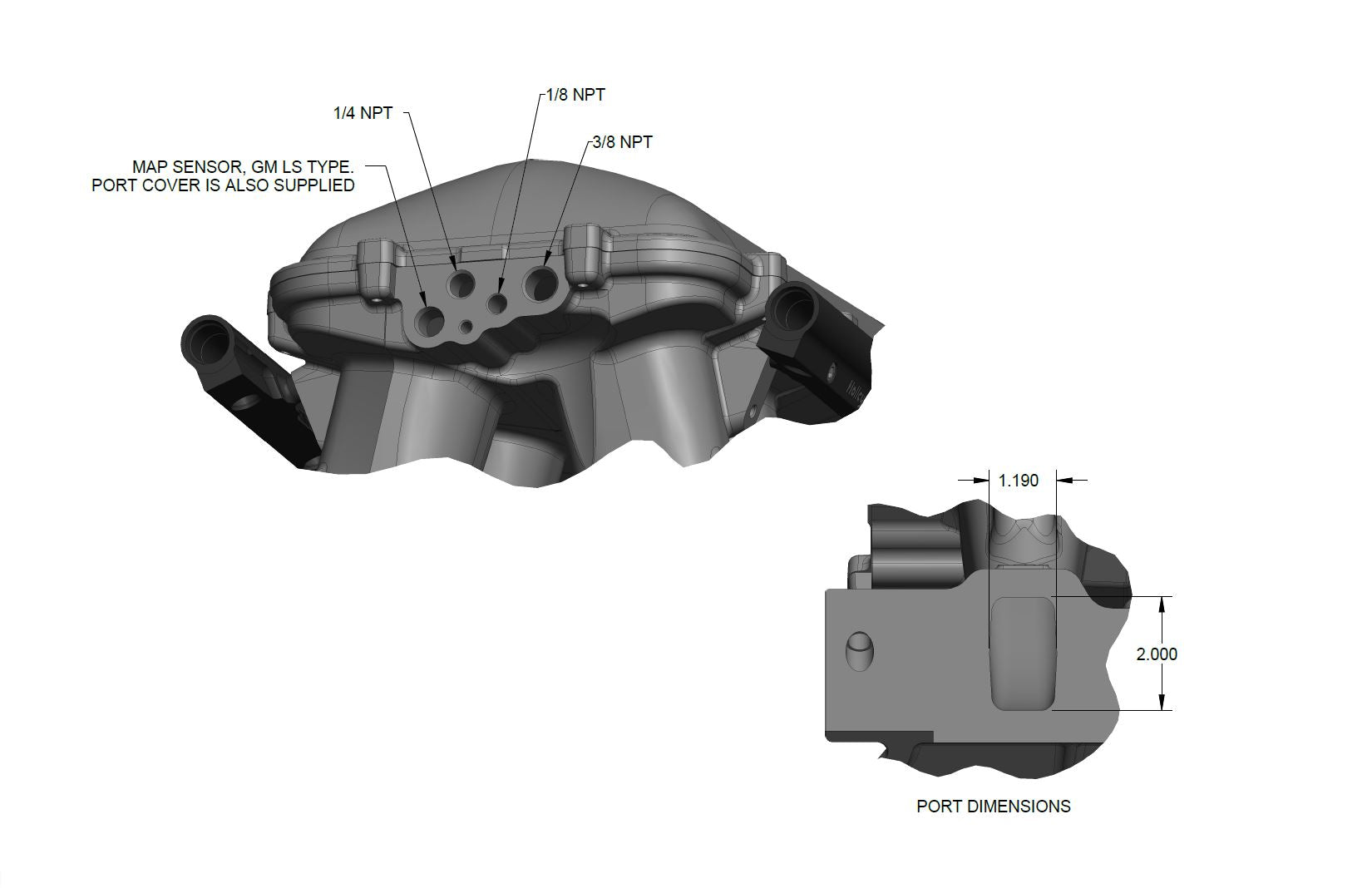

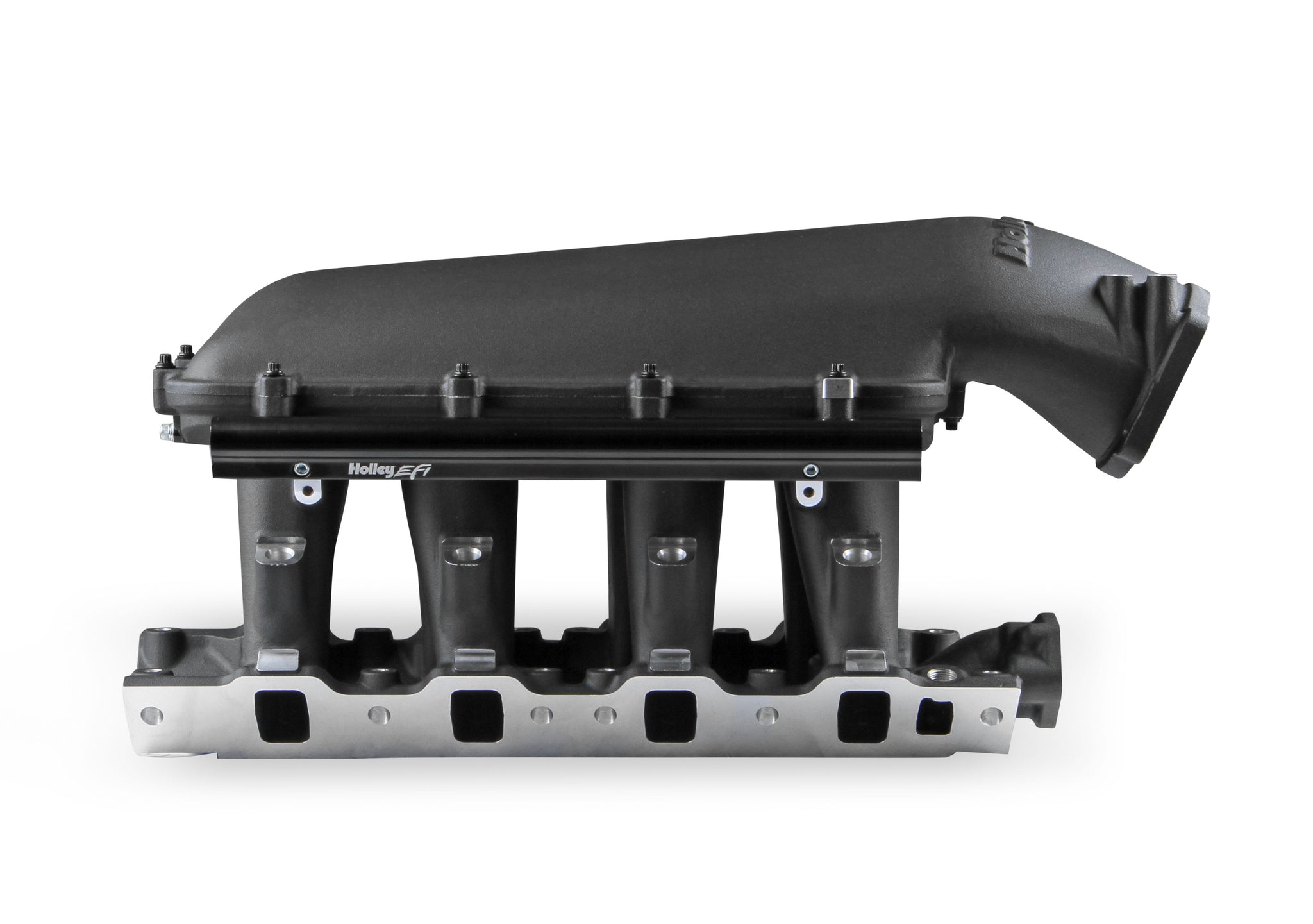

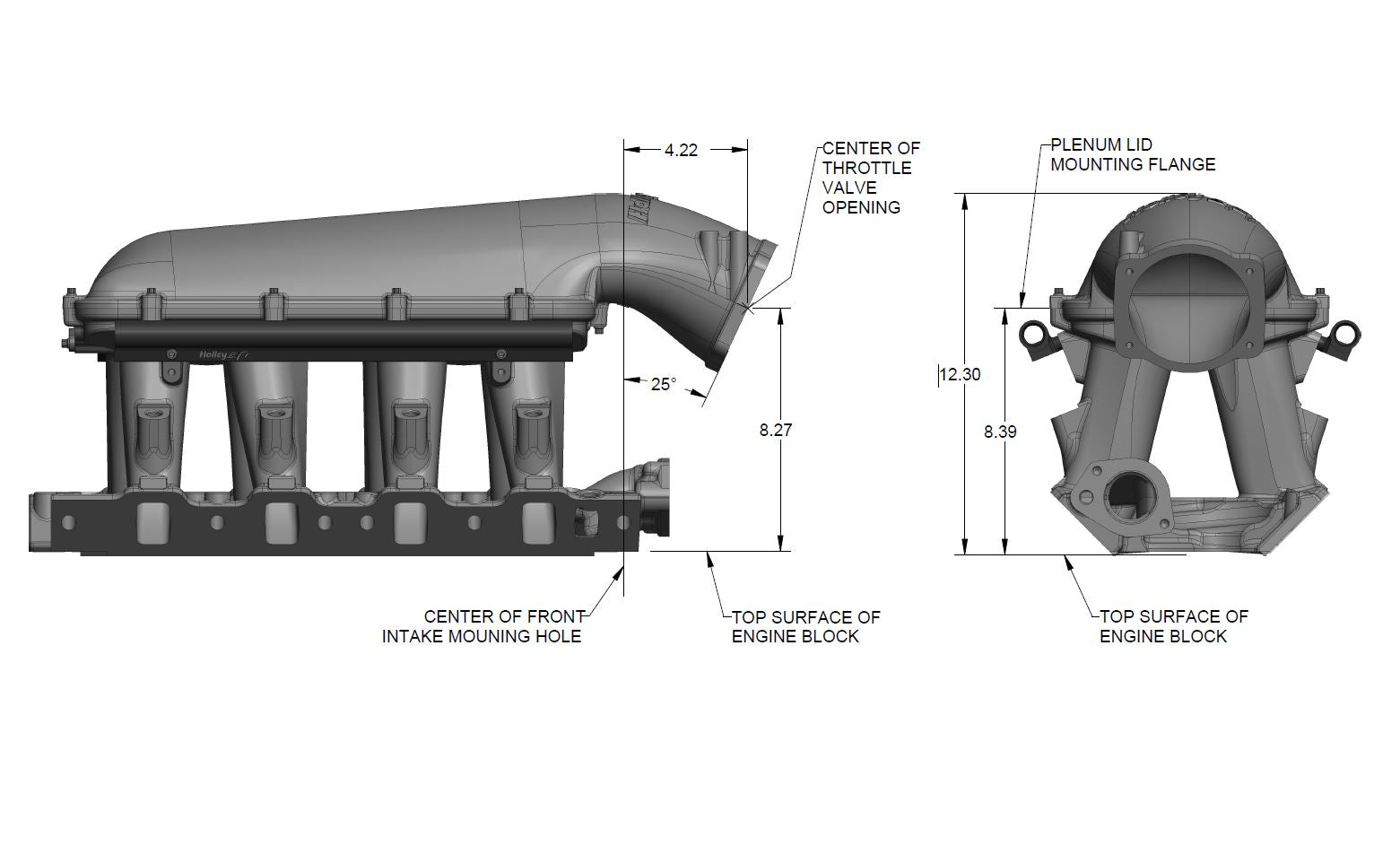

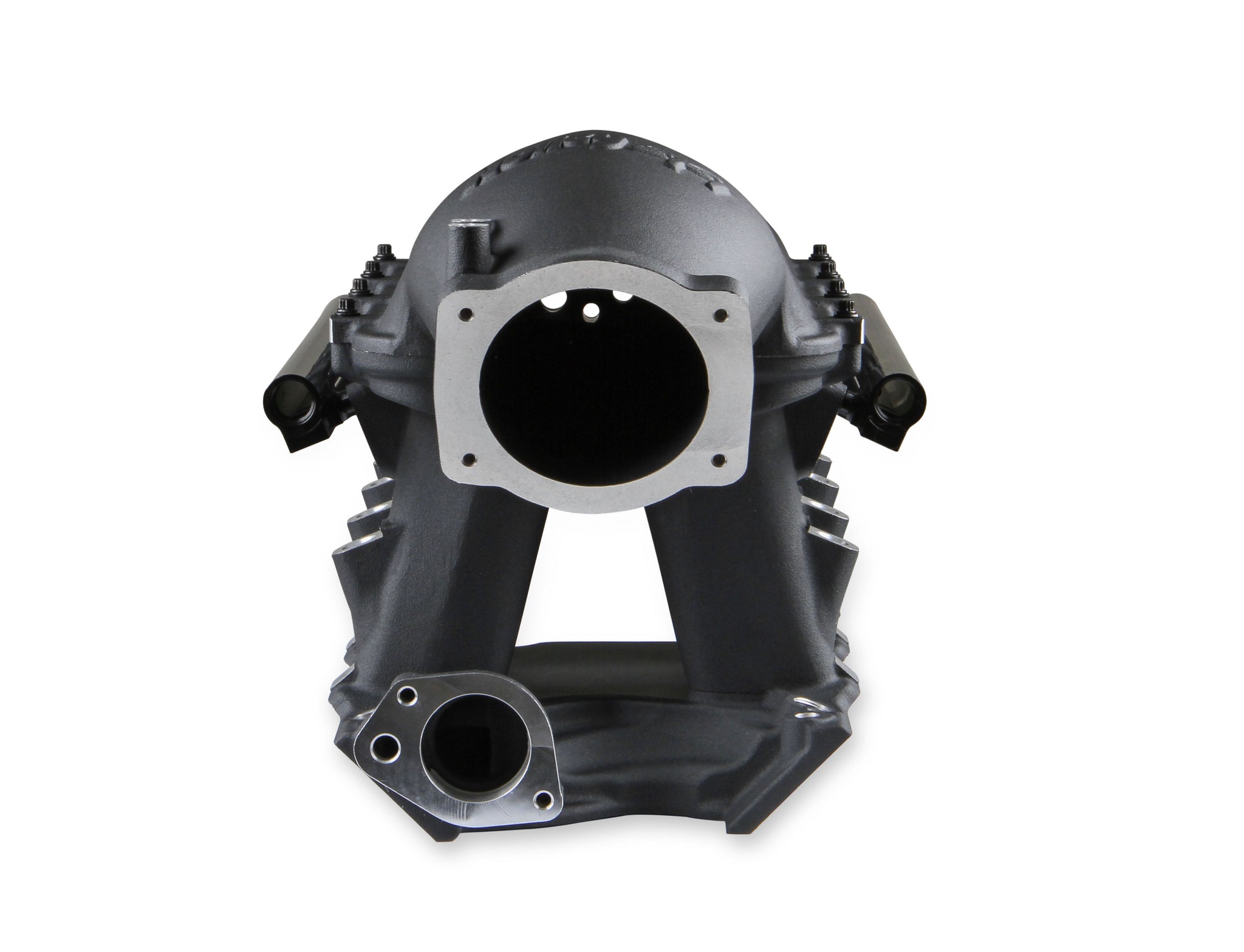

Manifold is designed for a 8.2" deck height. • Cast aluminum construction. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions. The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

Specifications:

Basic Operating RPM Range	1500-7000
Brand	Holley EFI
Carburetor Flange	N/A
Carburetor Quantity	N/A
Carburetor Studs Included	N/A
Category	Intake Manifolds
9063	No
17	Black
158	Cast
5337	Rectangle
6621	8.2
8095	No
Emission Code	3
Engine	Ford Small Block
Flange Style	EFI
906	No
10644	Yes
Fuel System Type	EFI
353	Yes
3390	Performance
10651	No
Manifold Type	Hi-Ram
10	Aluminum
10648	No
Plenum Finish	Black
Port Size	2.00" x 1.190"
Product Type	Intake Manifold
10645	No
10649	Yes
6642	Single Plane
Throttle Body Bore Diameter	95 MM

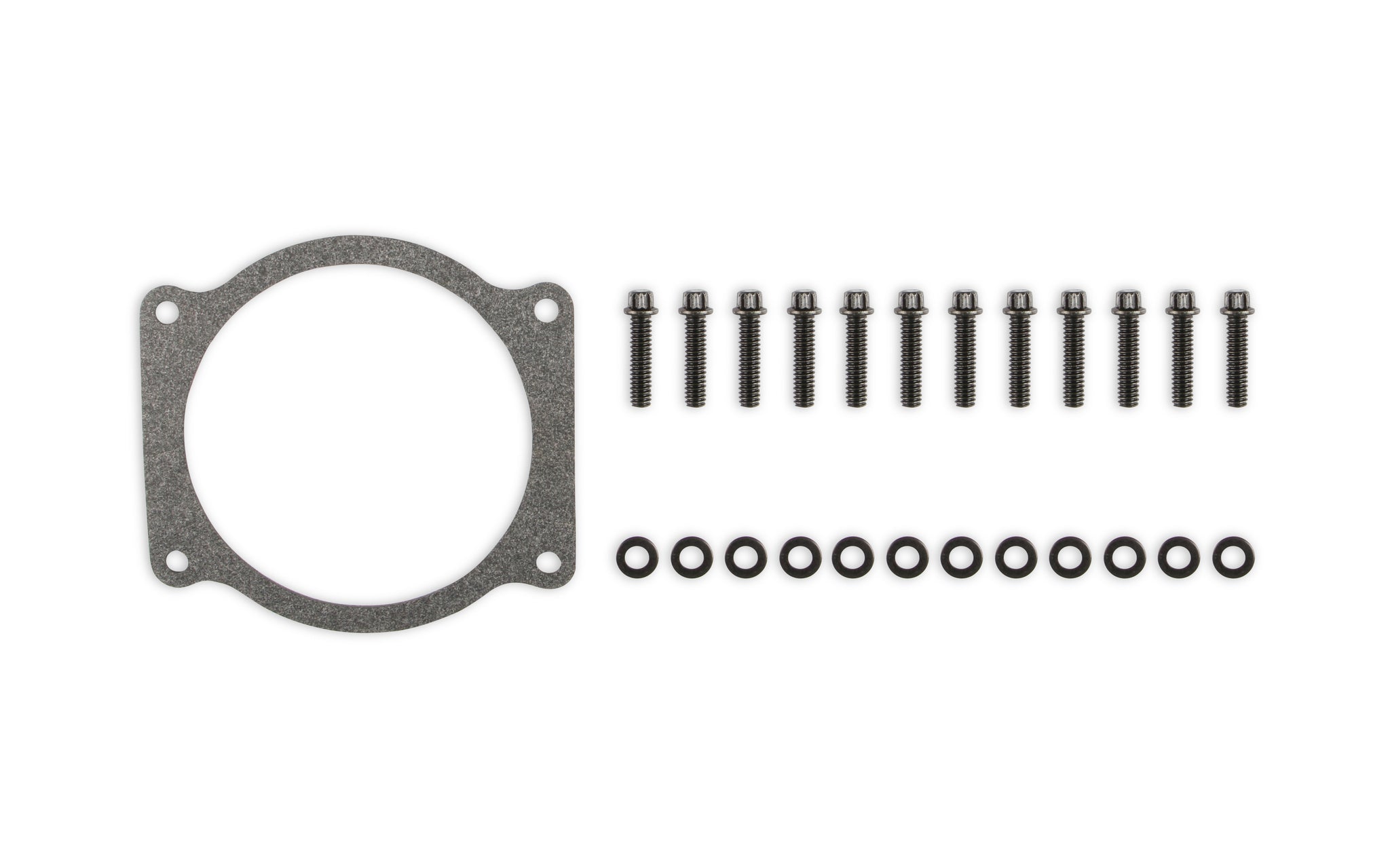

Throttle Body Gasket Included	Yes
10626	No
Throttle Bore	95mm
Vacuum Ports	Yes
Warning	California Proposition 65
Warranty	Manufacturer's Limited 90 Day Warranty
Description_ABR	SNEFI EIM
Description_SHO	8.2" SBF FORD HI-RAM
Description_INV	KIT BLACK 95MM EFI SBF 302 DECK HIRAM
Description_ASC	* This Holley Hi-Ram intake manifold series is designed for Ford Windsor engines with an 8.2” deck height. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions. * A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. Warning: Many Ford vehicle models were originally equipped with a heater core flow restrictor located at either the original heater hose fitting in the factory intake or inline in the inlet heater hose which protects the heater core from damage. If you are replacing the hoses between the engine and heater core or changing the factory fitting check to see if your application requires a flow restrictor. Failure to use the proper flow restrictor will likely result in a damaged or leaking heater core.
Description_DES	8.2" SBF Ford Hi-Ram EFI Manifold-Black

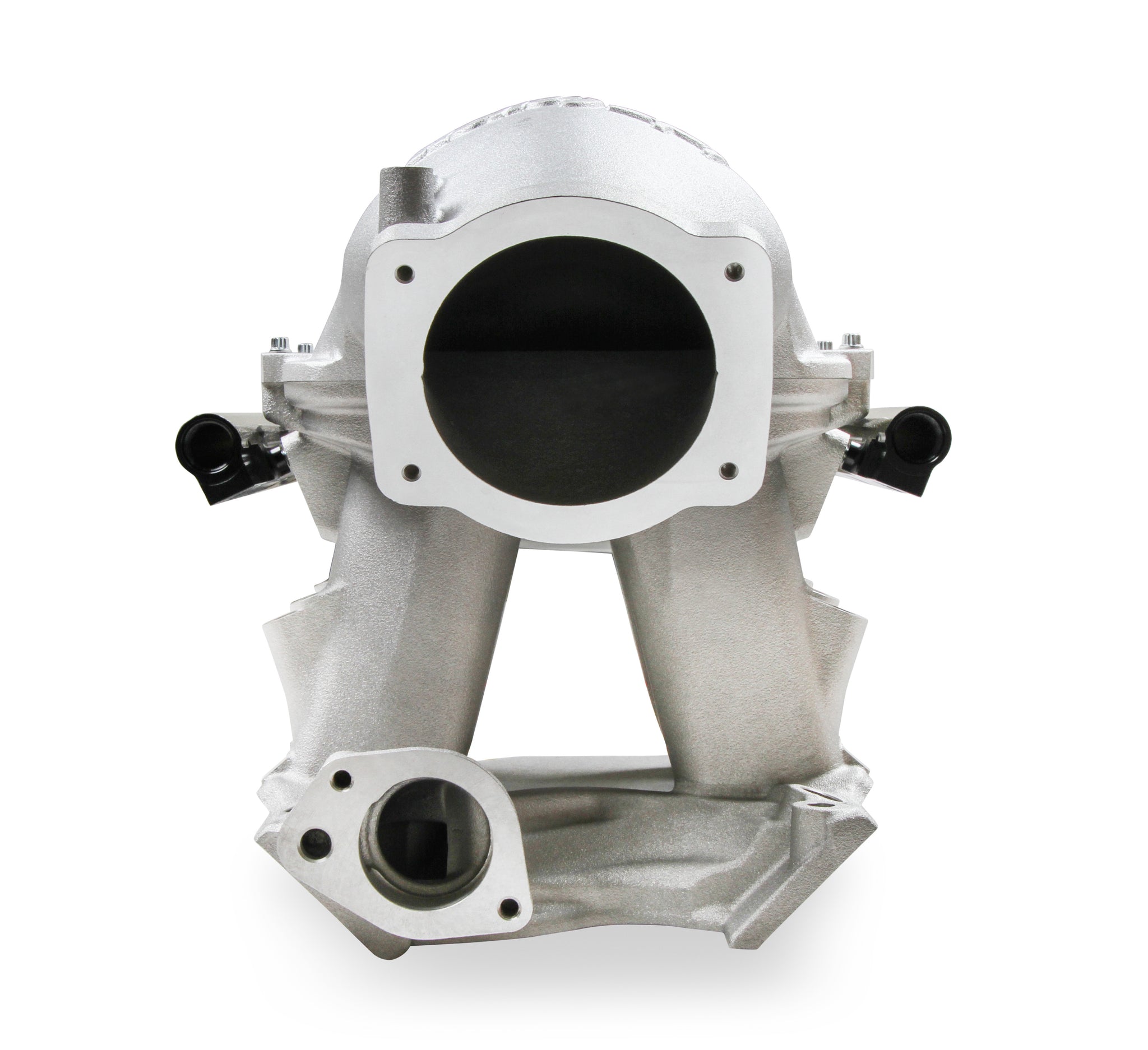

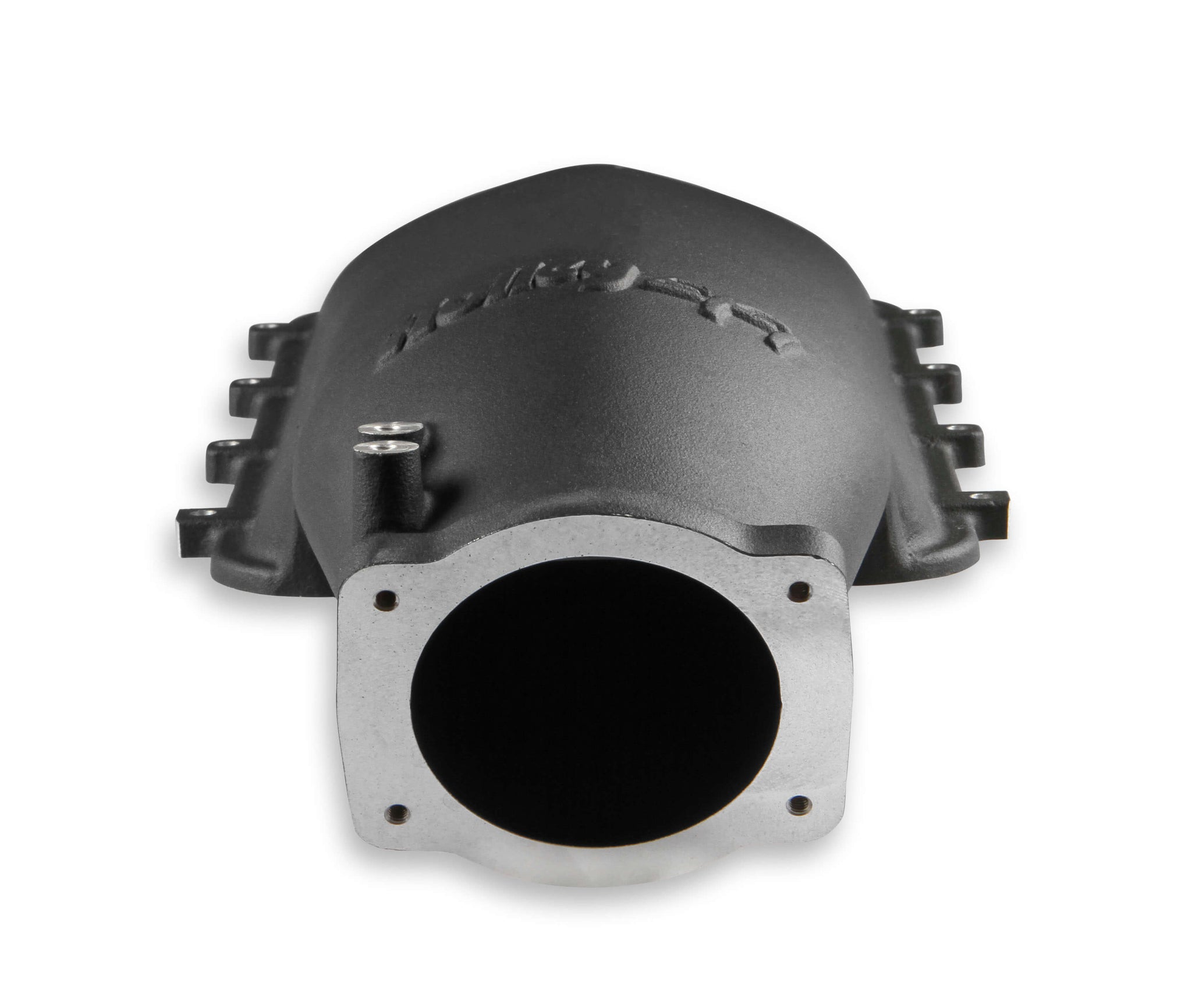

Description_EXT	8.2" SBF Ford Hi-Ram Intake Manifold with 95mm LS Throttle Body Flange Top. Black Finish
Description_MKT	Manifold is designed for a 8.2" deck height. • Cast aluminum construction. *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions. The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

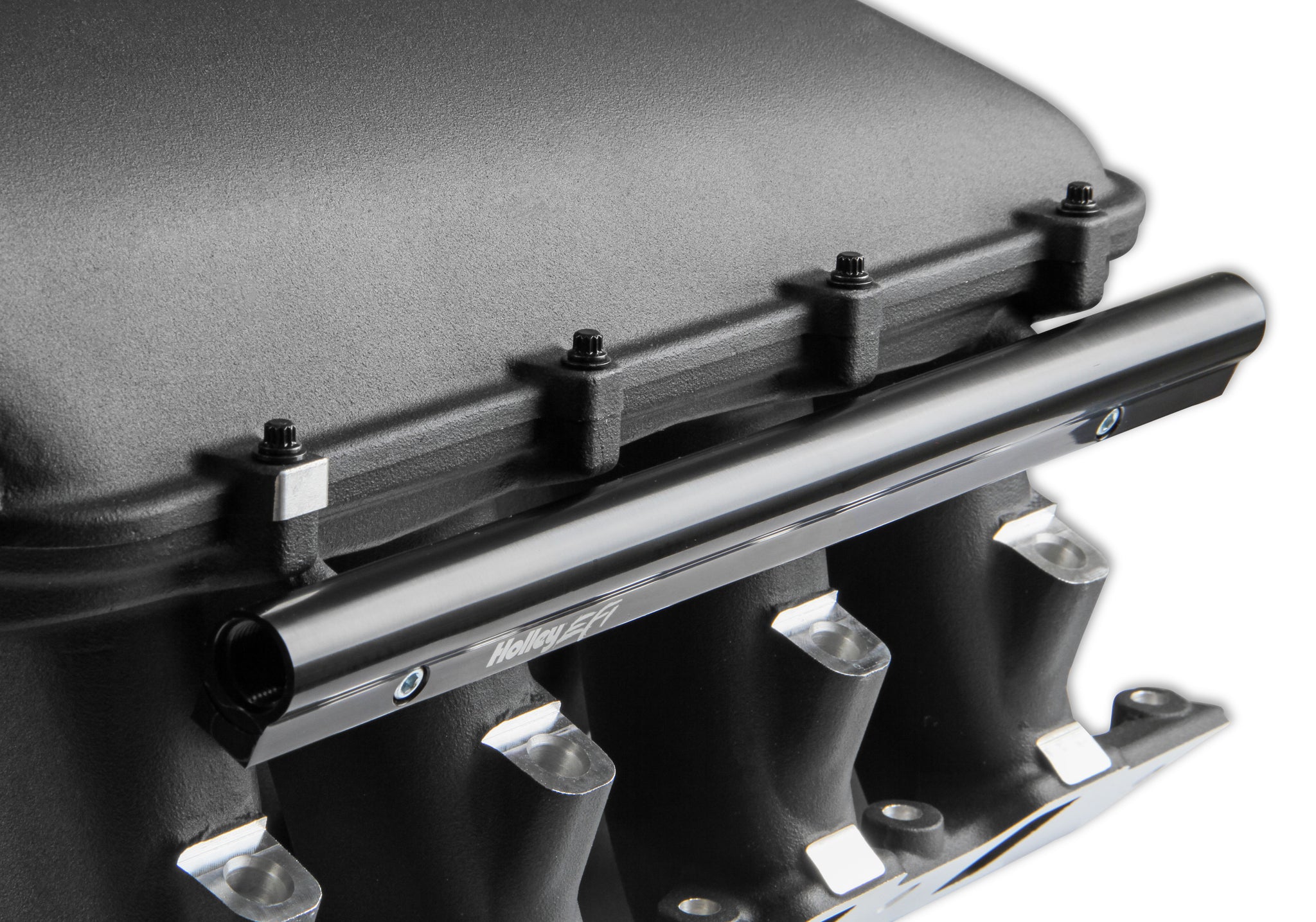

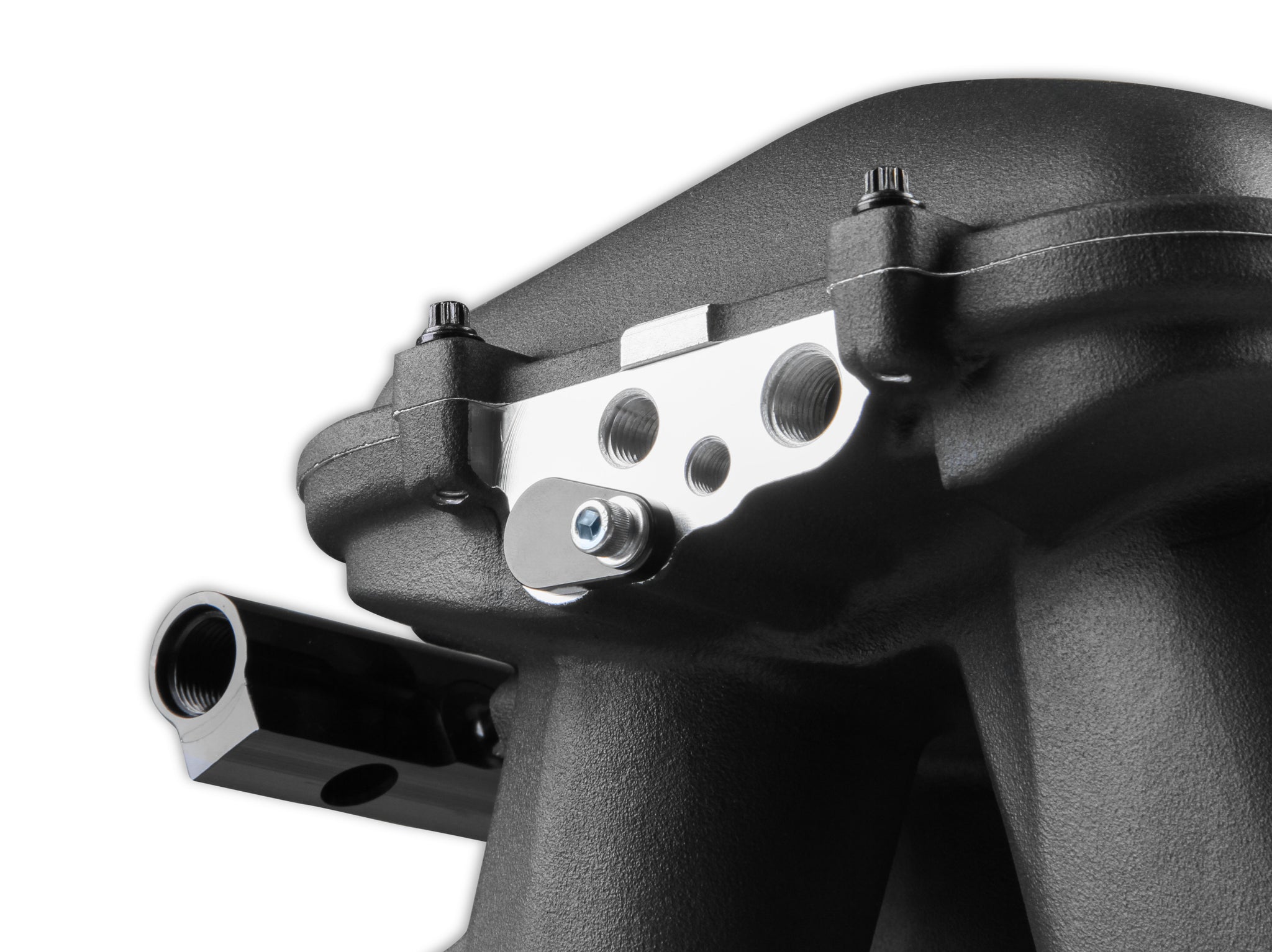

Description_FAB	The 8.2 SBF manifold is available to work with 95MM throttle bodies Plenum Top Gasket Type – 3/32” Round O-ring Cord EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. Manifold is designed for a 8.2" SBF deck height.
