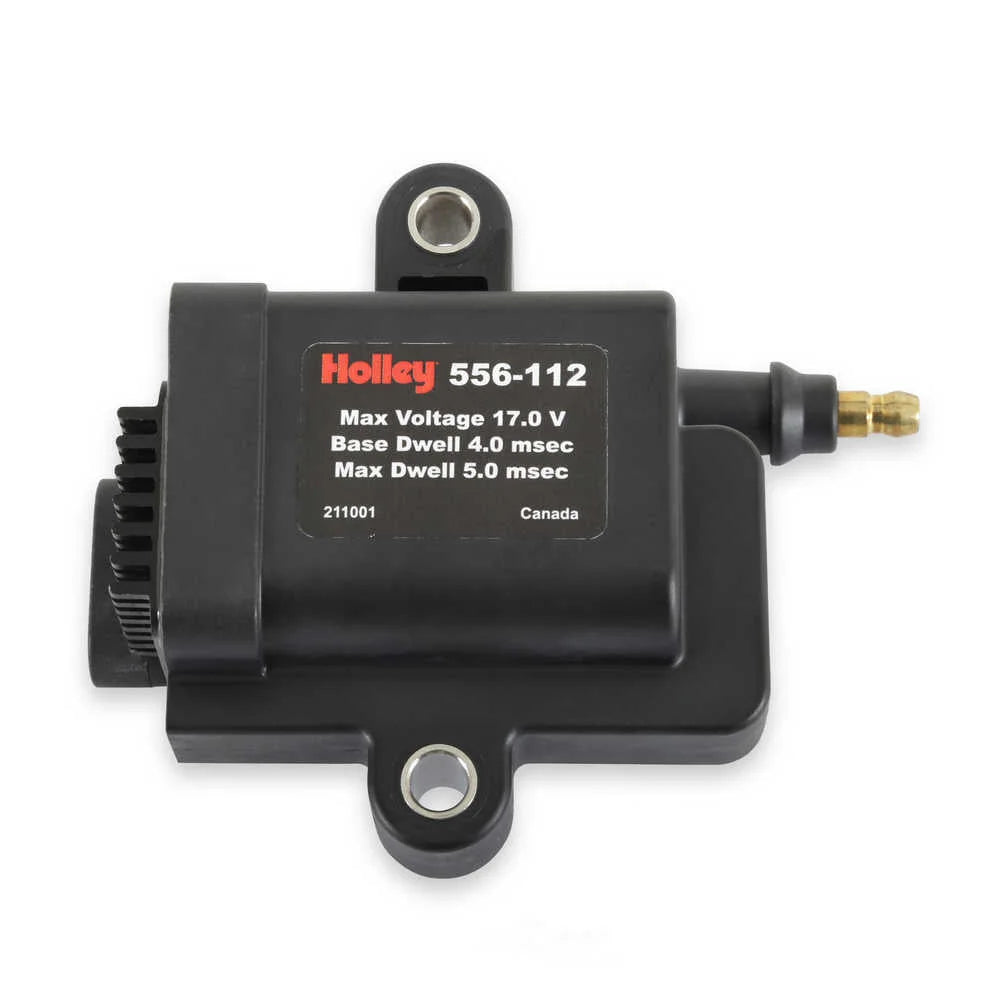

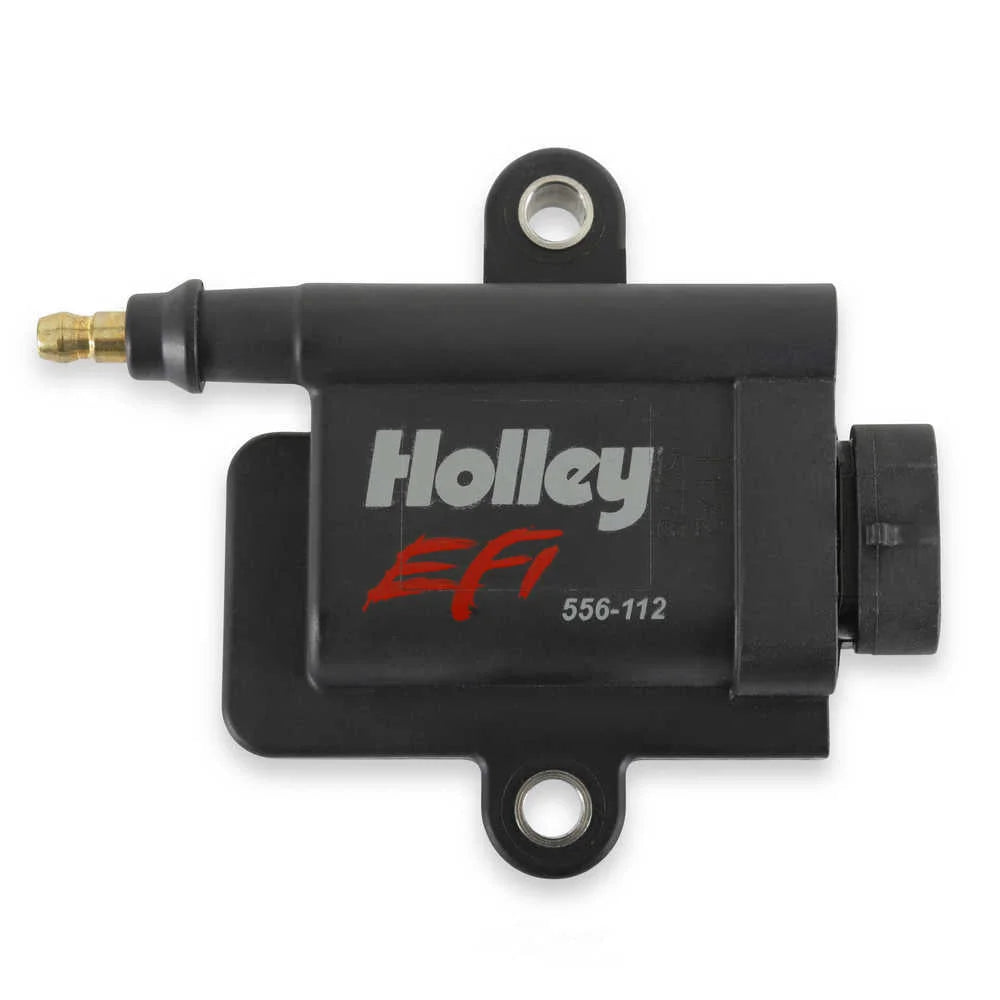

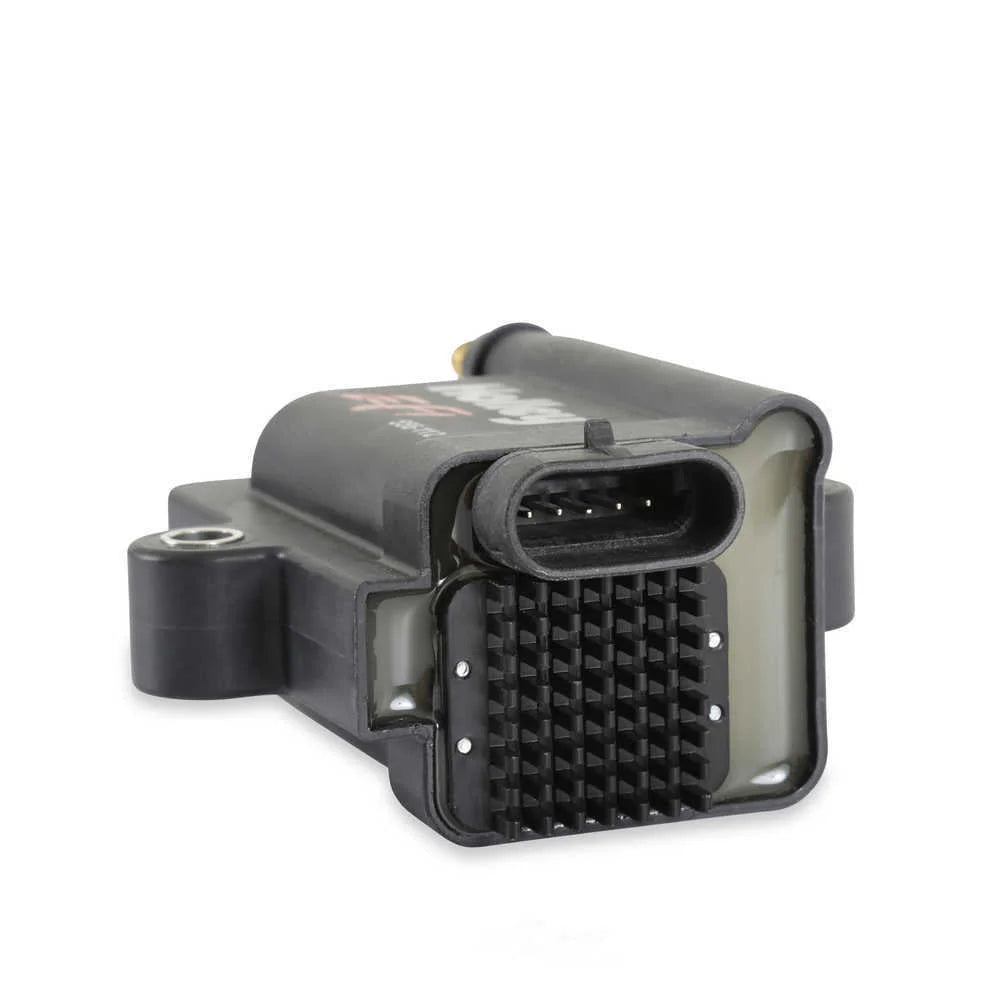

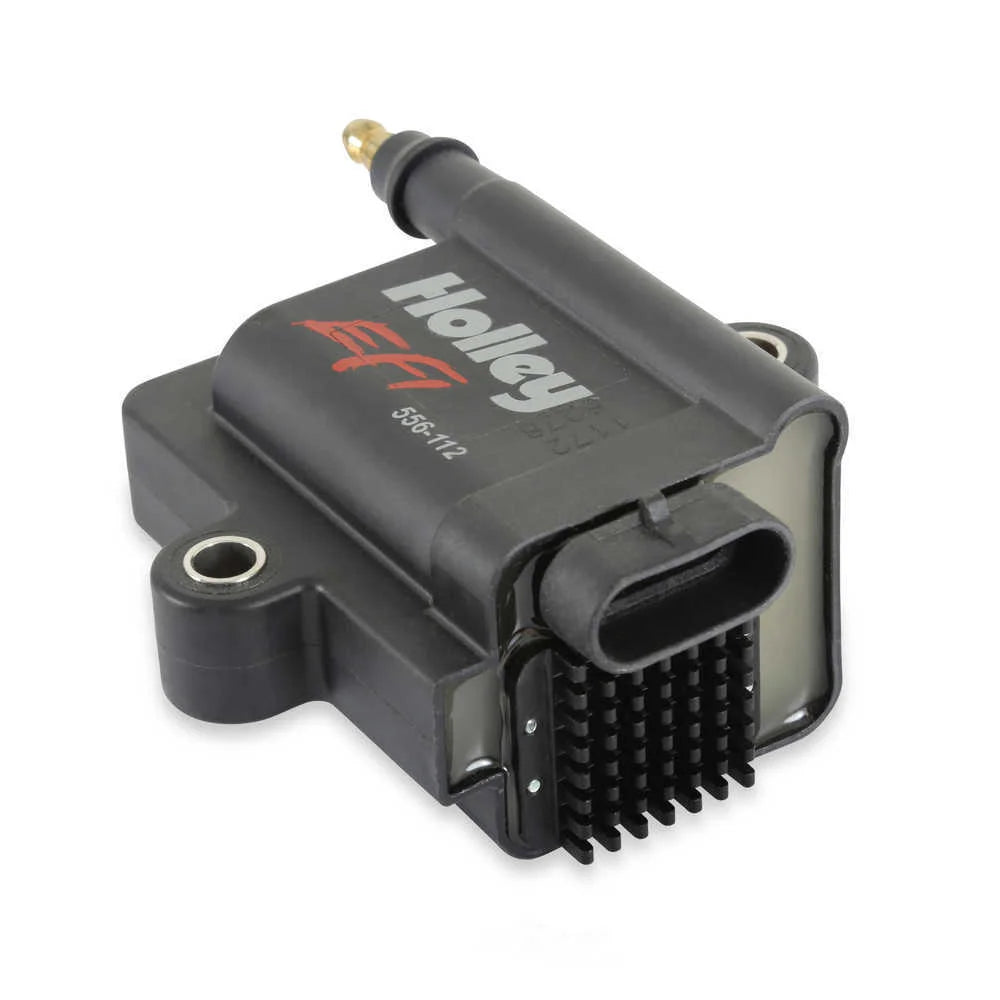

Holley EFI For Dominator, HP ECU's, and other EFI systems 556-112
$104.95
$99.99
This coil is designed for use with Holley HP and Dominator ECU's, as well other EFI systems that can drive "smart" ignition coils. Although it is designed for high powered race applications, it can be used on street driven vehicles as well.
Specifications:
| Brand | Holley EFI |
| Category | Ignition |
| 2251 | Holley SmartCoil |
| 2252 | No |
| 17 | Black |
| 43 | Female |
| Emission Code | 4 |
| 3390 | Performance |
| Height | 1.86" |
| Ignition Wire Terminal Type | HEI Style Tower |
| Mounting Bolt Pattern | 74mm |
| 92 | No |
| 30 | No |
| 356 | 2 |
| 2253 | No |
| Overall Length | 4.3" |
| part type | Direct Ignition Coil |
| Product Type | Distrutorless Ignition - DIS - smart coil |
| Sub Category | Ignition Coil |
| 44 | Male |
| Warning | California Proposition 65 |
| Width | 3.6" |
| Description_INV | HI-PERF C-N-P SMART COIL |
| Description_ASC | The wire must be fed through the back of the housing, out the front, and then the pin crimped. Pull the wire back in to seat it. Always use proper crimping tools to ensure a proper connection. |
| Description_DES | Coil-Near-Plug Smart Coil |
| Description_EXT | For Dominator, HP ECU's, and other EFI systems |
| Description_MKT | This coil is designed for use with Holley HP and Dominator ECU's, as well other EFI systems that can drive "smart" ignition coils. Although it is designed for high powered race applications, it can be used on street driven vehicles as well. |
| Description_FAB | Peak Voltage - 44,000V |
| Description_FAB | Peak Output - 102 Mj |
| Description_FAB | Maximum Battery Voltage - 17V |

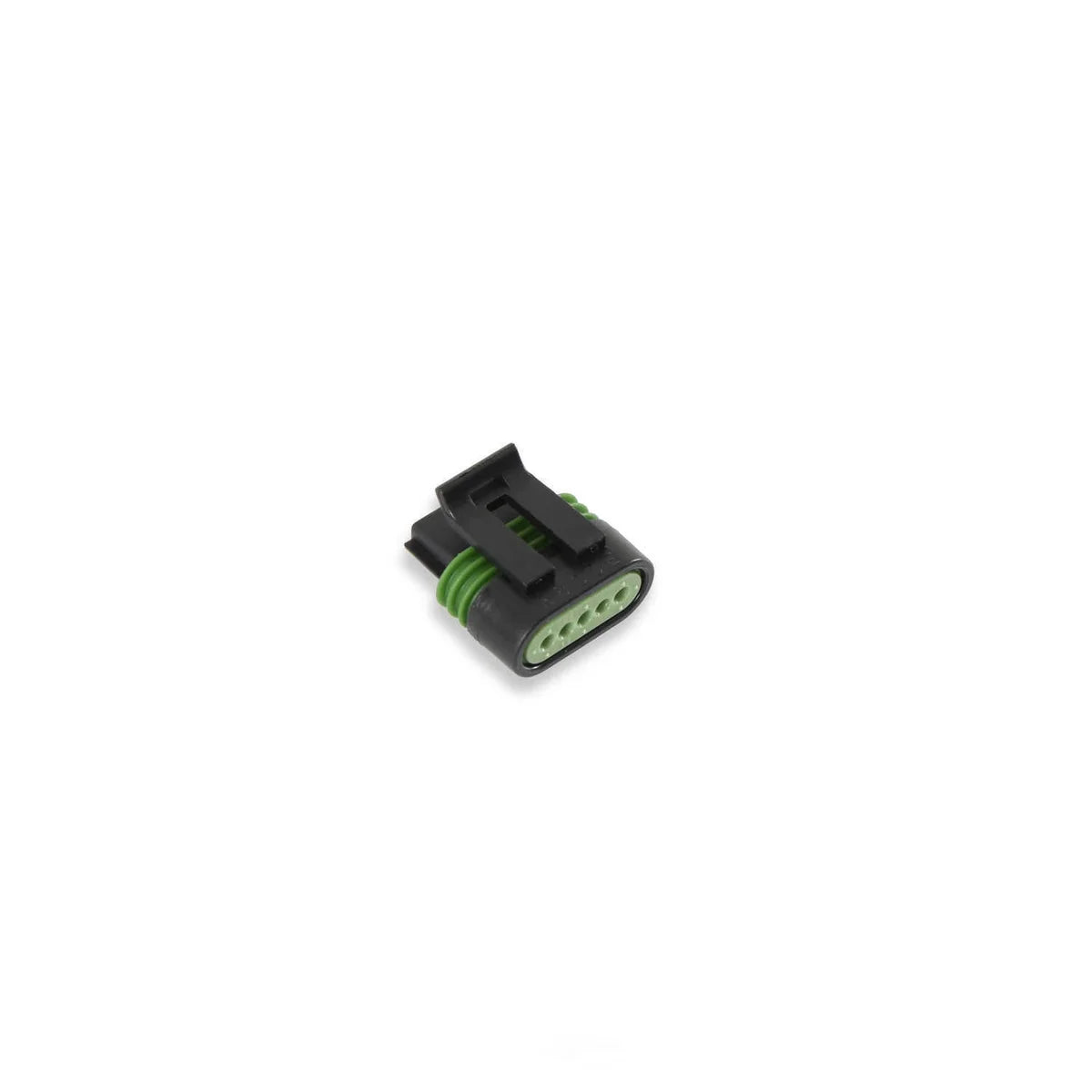

| Description_FAB | Mating Connector - Delphi P/N 12162825 “Pull to Seat” |
| Description_FAB | Connector Pin - Delphi P/N 12124075 “Pull to Seat” |
| Description_FAB | Includes mating connector and pins |
