Holley EFI - Holley EFI Terminator X Max - Ford MPFI Kit - 550-944

Name: Holley EFI - Holley EFI Terminator X Max - Ford MPFI Kit - 550-944
Brand: Holley EFI
SKU: GVMR_550-944
Price: 1698.99 USD
Availability: InStock

Brand: Holley EFI

SKU: GVMR_550-944

availability: In stock

$2,249.95 USD $1,698.99 USD

Quantity

Subtotal: $1,698.99 USD

Quantity must be 1 or more

Description

Description

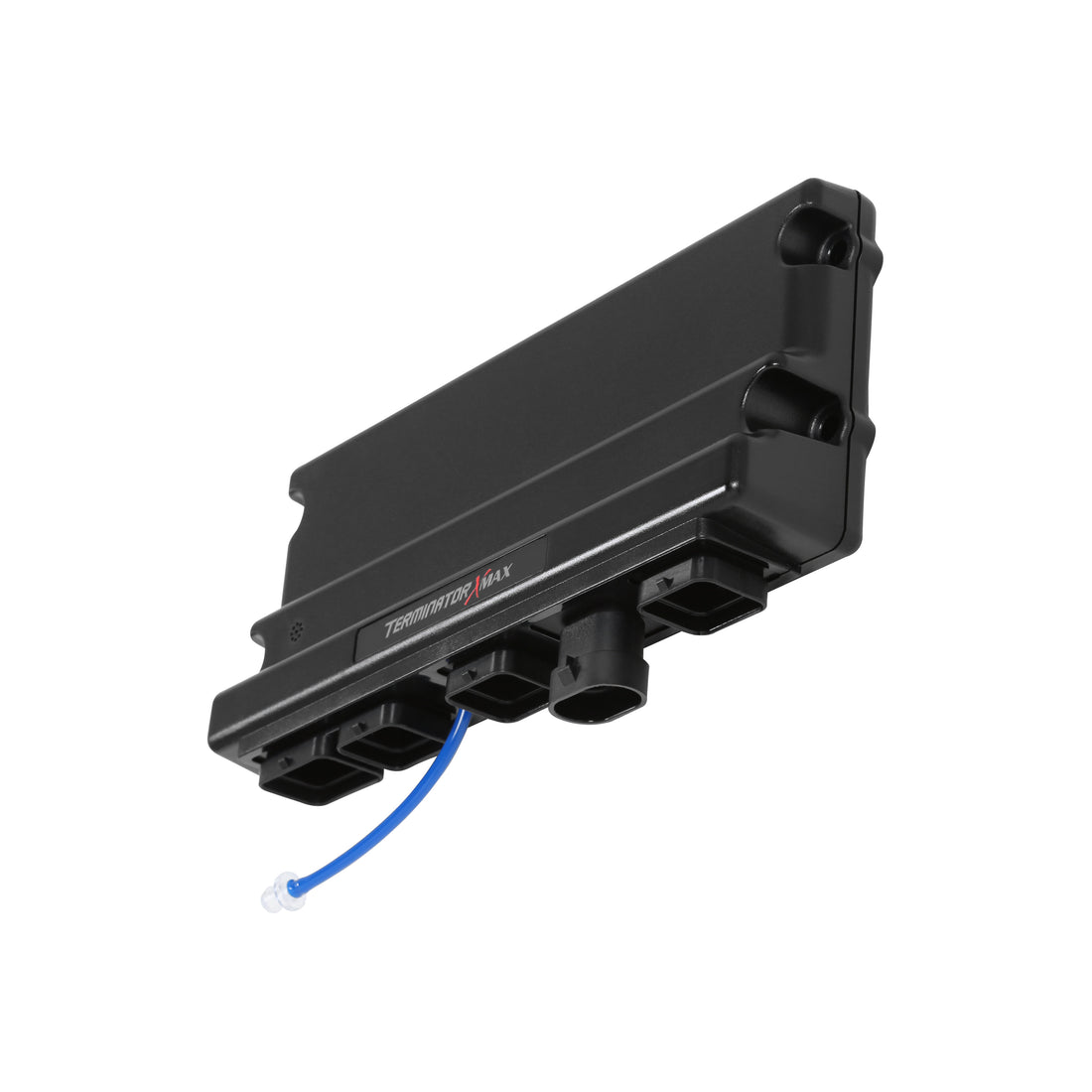

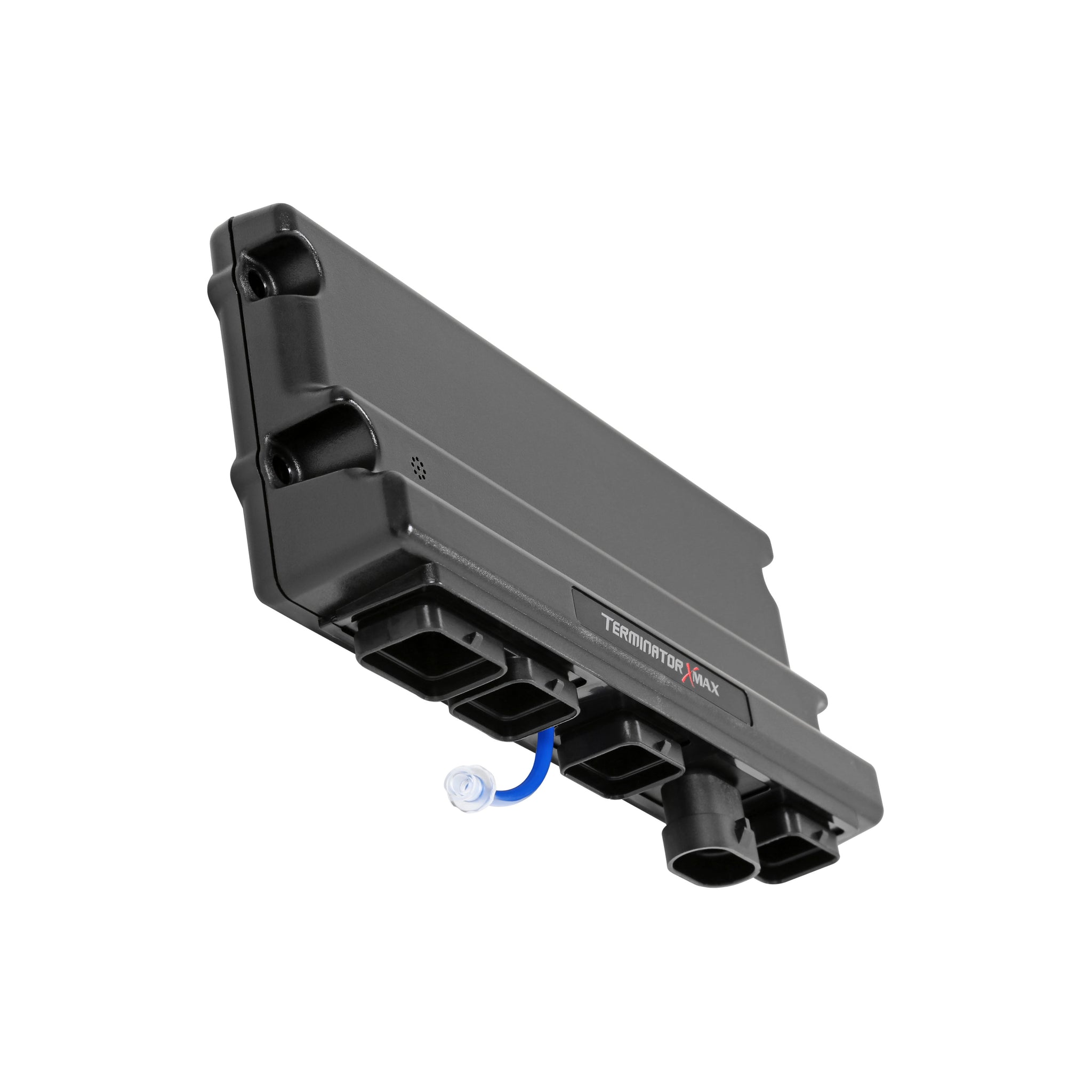

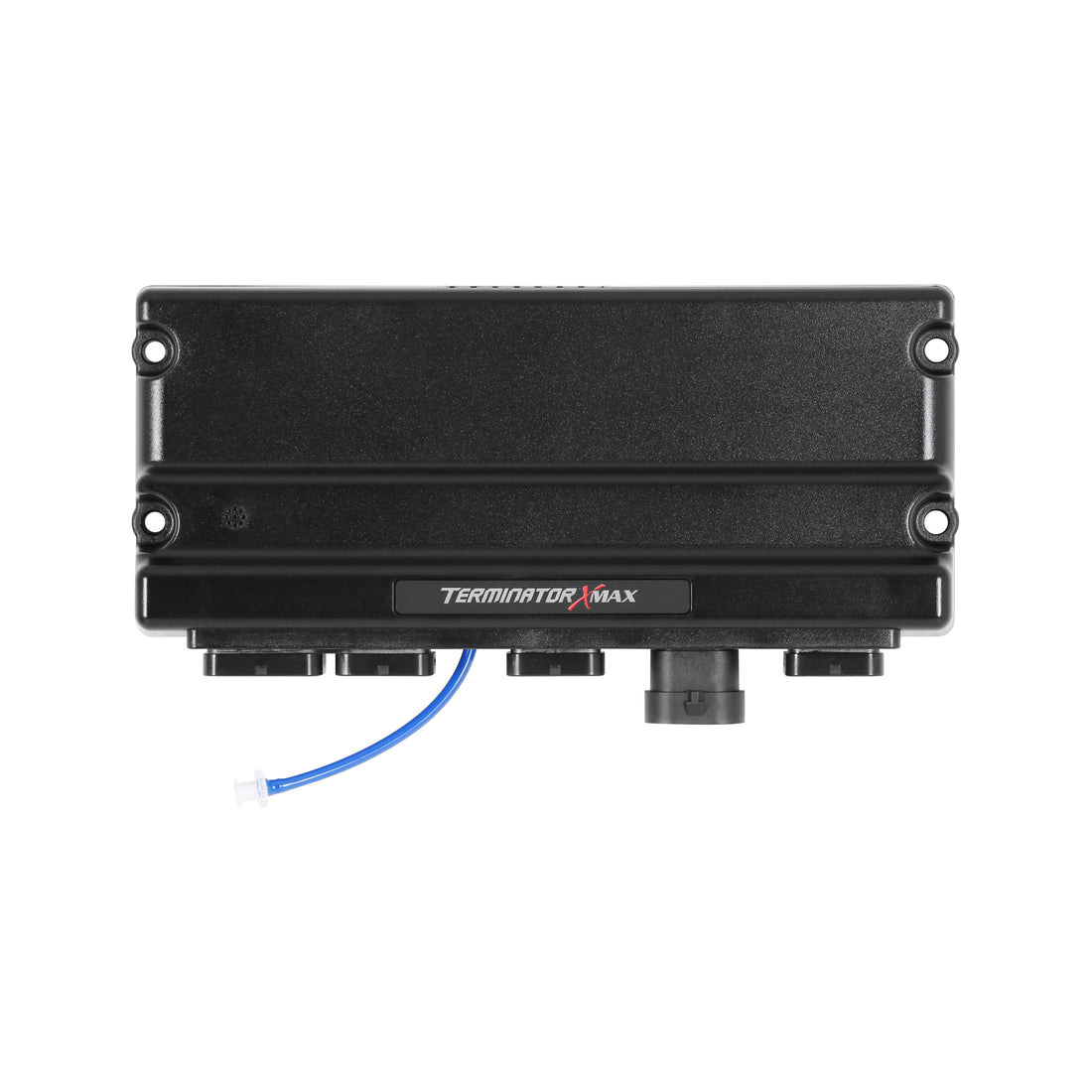

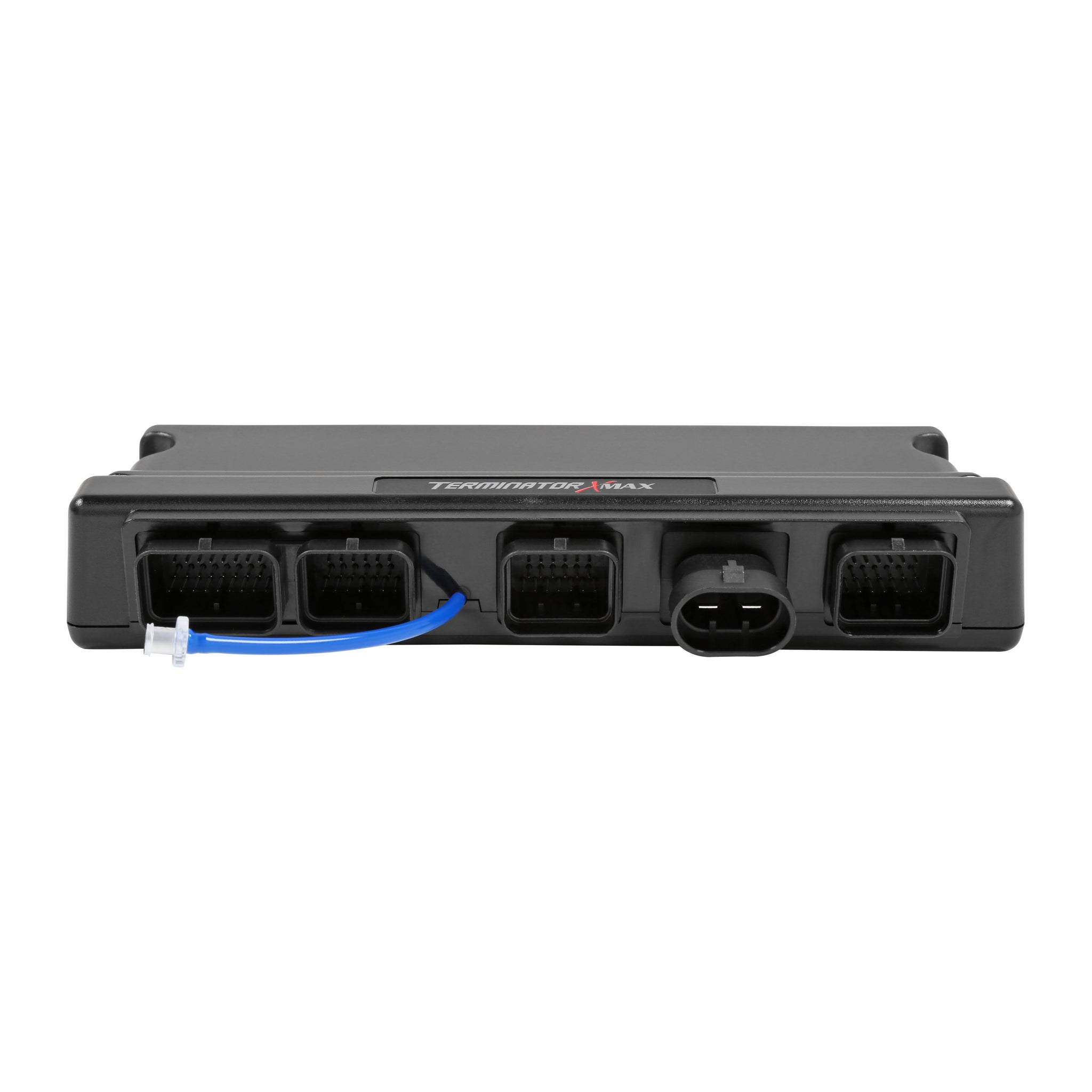

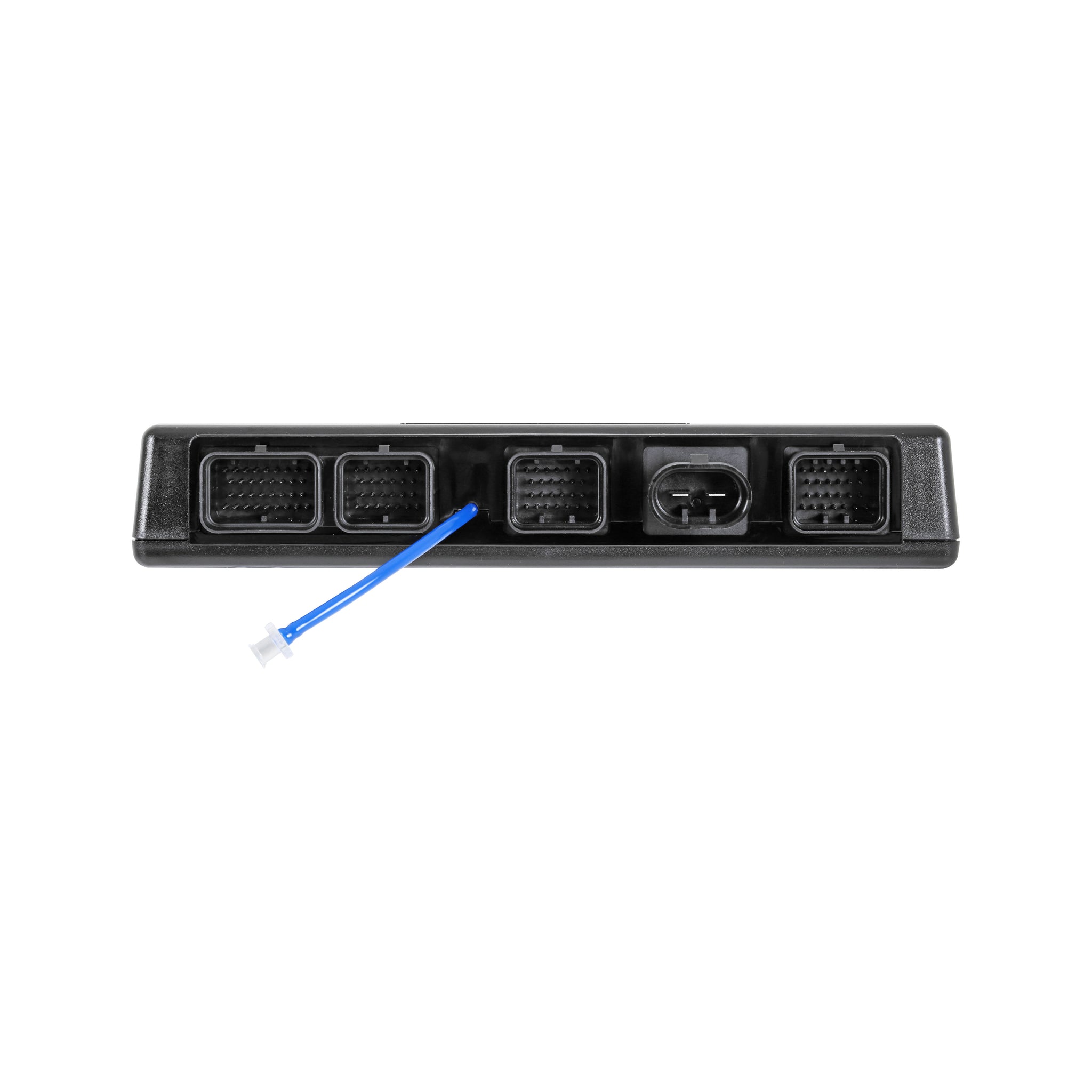

Take control of your conventional Ford engine with Terminator X! Don't settle for a factory ECU with a cumbersome tuning interface or pre-programmed tuning chip when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price! Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common V8 engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X has the features and technology you need at a price that won't break the bank!

Specifications:

10429	Yes
10431	Yes
Brand	Holley EFI
10423	Yes
Category	Air and Fuel Delivery
10438	Yes
Color	Black
10430	Yes
10437	No
10442	Yes
10418	Yes
10428	Yes
Emission Code	3
Finish	Textured
10433	Yes
7246	No
10417	No
906	No
10425	No
8922	No
3390	Performance
Handheld Included	Yes
909	No
10422	Yes
10432	Yes
Injector Connector	Jetronic/Minitimer (Bosch EV1)
9780	No
10427	Yes
MAP Sensor	1bar
30	No
10420	Yes
part type	Fuel Injection System
Product Type	EFI System
10421	Yes
10434	Yes
Sub Category	Fuel Injection System and Related Components
918	No
Transmission	4R70W
10435	Yes
Warning	California Proposition 65
10419	Yes
Description_ABR	SNEFI FIS
Description_SHO	Terminator X Max
Description_INV	TERMINATOR X MAX MPFI FORD W98 TRANS
Description_ASC	Terminator X ECU's are designed to be mounted with the LED's facing up. ECU is not recommended for marine applications, but can be used on off-road applications as long as you choose a safe location, keep it dry, protect from heat, and ensure proper wiring management.
Description_DES	Holley EFI Terminator X Max - Ford MPFI Kit

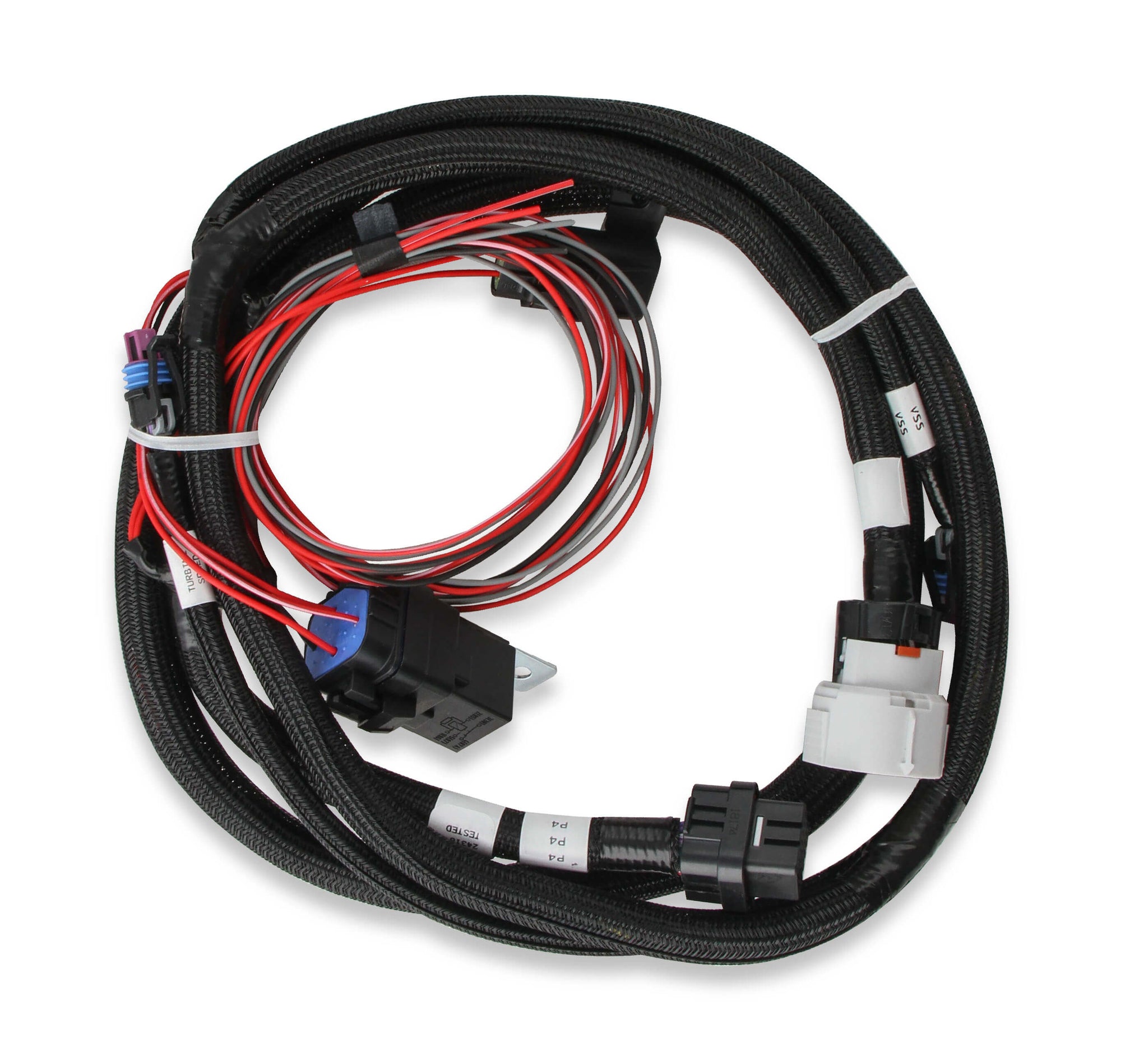

Description_EXT	Universal MPFI Main Harness - 98+ 4R70W Transmission Control - 3.5 in. Touchscreen
Description_MKT	Take control of your conventional Ford engine with Terminator X! Don't settle for a factory ECU with a cumbersome tuning interface or pre-programmed tuning chip when you can have complete control of your engine, self-learning fuel strategies and the proven, race-winning technology of Holley EFI at a budget-friendly price! Terminator X features real-time fuel learn, high impedance injector drivers, an integrated 1bar MAP sensor, and 4 programmable inputs and outputs. The inputs and outputs are ideal for electric fans, boost control solenoids, progressive nitrous control, and much more. Terminator X comes fully loaded with base maps for common V8 engine combinations to get you out of the garage and on the road/track fast. The 3.5" touch screen LCD handheld contains an easy to use calibration wizard as well as tuning and gauge display functions. Also included is Holley EFI's industry-leading, easy to use software suite that allows full laptop access for advanced users. Whether you are building a budget beater or a boosted race car, Terminator X has the features and technology you need at a price that won't break the bank!

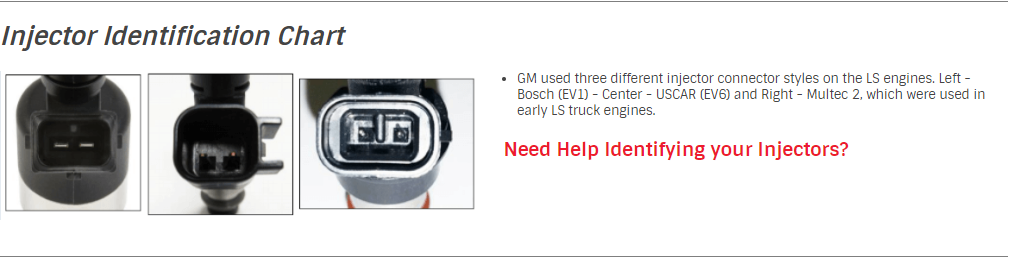

Description_FAB	Plug and play Ford V8 engine control, such as the 302w, 351w or 460 Big Block. Includes Ford Spaced EV1 Injector Harness Ford 4R70W Transmission Control Harness (Terminator X Max Only) Universal Engine Harness, some connectors such as the TPS and IAC may need to be changed to match your application. High Impedance Injector Drivers will safely power most Stock injectors, and Holley EFI Injectors. Injector support chart provided in the instructions (Will not control Low Impedance Injectors) All of the new Terminator X systems utilize the Bosch LSU 4.9 wideband to relay AFR information to the ECU for accurate reading and precise tuning control. Built in 1bar MAP Sensor, vacuum hose adapters included (1/8th – ¼ and 3/16ths) Boosted applications, you can disable the internal MAP sensor, and utilize an external MAP Sensor, the harness comes with the connector terminated, making the install MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths) Plug and plug ignition capability with Dual Sync and HyperSpark Distributors, adapter 558-323 required for HyperSpark Distributors. 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table, can be used for any custom tables you can dream up, such as Flex Fuel Sensor Offset Table, or a custom fuel or oil pressure safety! On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal –Cam Signal. Allow you to identify any Critical engine issues at a glance The included 3.5" Touchscreen Handheld contains a calibration wizard, that allows you to quickly build a base tune for any domestic V8 engine. Additionally the handheld provides internal data-logging and a fully customizable gauge display. The compact ECU size allows you to mount it virtually anywhere. Remember, diagnostic LEDS must face up! Plug and play compatible with multiple Holley EFI accessories including our gauges, shift lights, various modules, and digital and pro dashes (Holley P/N's 553-106, 553-111, and 553-112) Free EFI Tuning Software for complete control of your Terminator X power plant
