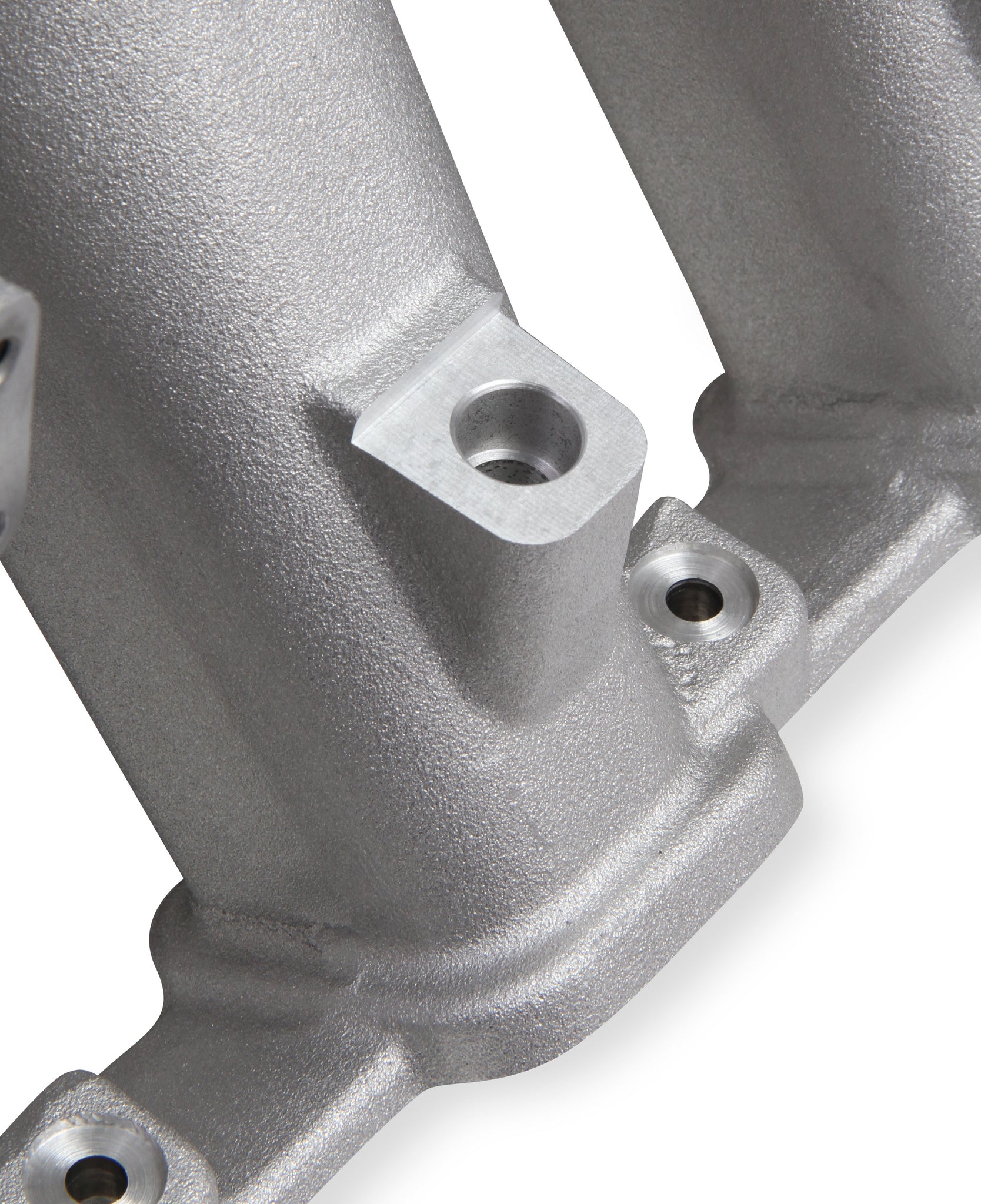

The new Holley EFI Hi-Ram intake provides the ultimate performance with the new GM direct injected Gen V 6.2L LT1 engine. The modular design of this manifold allows easy disassembly for custom porting, multiple tops, or custom induction systems. Each runner has a large radius where it meets the plenum, and optimized taper and cross-sectional area to perform in a wide variety of engine configurations. The optional injector bosses on the intake runners allow increased performance potential by using additional injectors along with the factory direct injection. When you look for the pinnacle of performance, price, and quality, look to Holley EFI.
Specifications:
| Basic Operating RPM Range |
3500-8000+ |
| Brand |
Holley EFI |
| Carburetor Flange |
N/A |
| Carburetor Quantity |
N/A |
| Carburetor Studs Included |
N/A |
| Category |
Engine |
| 9063 |
No |
| Color |
Natural |
| 158 |
Cast |
| 5337 |
Rectangle |
| 6621 |
9.24 |
| 8095 |
No |
| Emission Code |
4 |
| Engine |
GM Gen V LT1 |
| Flange Style |
EFI |
| 906 |
No |
| 10644 |
Yes |
| 353 |
Yes |
| 3390 |
Performance |
| 10651 |
No |
| Manifold Type |
Hi-Ram |
| 10 |
Aluminum |
| 10648 |
No |
| part type |
Engine Intake Manifold |
| Plenum Finish |
Natural |
| Product Type |
Intake Manifold |
| 10645 |
No |
| 10649 |
Yes |
| 6642 |
Single Plane |
| Sub Category |
Cylinder Block Components |
| Throttle Body Bore Diameter |
105 MM |
| Throttle Body Gasket Included |
Yes |
| 10626 |
No |
| Vacuum Ports |
Yes |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| Description_ABR |
SNEFI EIM |
| Description_SHO |
HOLLEY HI-RAM INTAKE |
| Description_INV |
MANIFOLD KIT LT1 HIRAM WITH PORT INJ |
| Description_ASC |

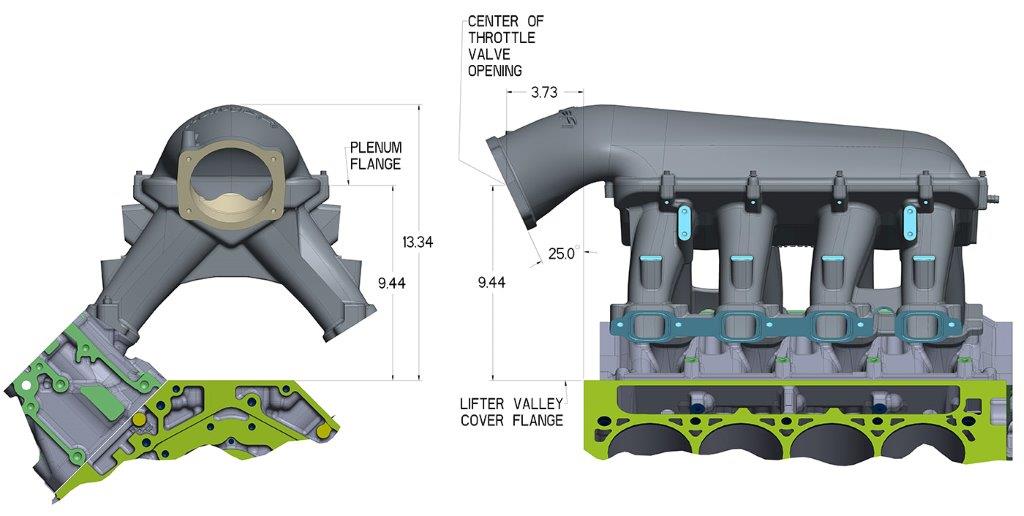

*** The front and rear height measurements listed in the Specs section are referencing the overall height with the top plate installed. Please see the diagrams in the product images for other dimensions. |
| Description_DES |
Holley Hi-Ram Intake Manifold - GM LT1 |
| Description_EXT |

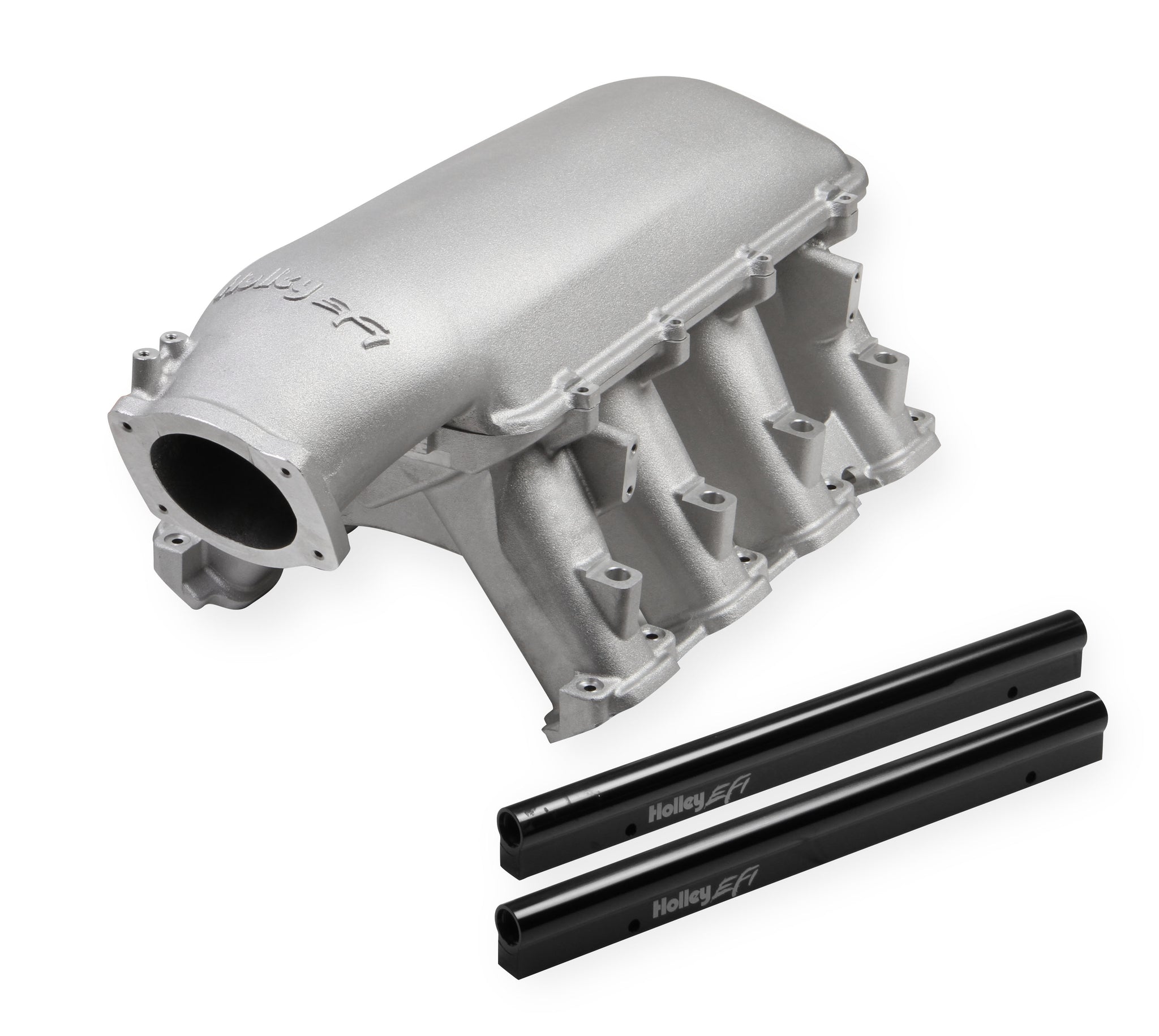

GM Gen V LT1 Hi-Ram, 1 x 105mm LS Throttle Body (Longitudinal Mount) w/Port EFI Provisions & Fuel Rails |
| Description_MKT |
The new Holley EFI Hi-Ram intake provides the ultimate performance with the new GM direct injected Gen V 6.2L LT1 engine. The modular design of this manifold allows easy disassembly for custom porting, multiple tops, or custom induction systems. Each runner has a large radius where it meets the plenum, and optimized taper and cross-sectional area to perform in a wide variety of engine configurations. The optional injector bosses on the intake runners allow increased performance potential by using additional injectors along with the factory direct injection. When you look for the pinnacle of performance, price, and quality, look to Holley EFI. |
| Description_FAB |
Height at Plenum Flange: 9.44” Injectors are 40mm Height measured O-Ring to O-Ring utilizing a 14mm O-Ring diameter, not for use in LS2/LS3/LSA applications without the use of a custom lower O-Ring Fuel Rails are Anodized, Laser Etched, and Machined for 8AN O-Ring Fittings at Each End A-B Height: 12.10” (w/ Carb Style Top - 2 x 4150 or 2 x 4500) – See Drawing Port Size: 2.06” Height x 1.53” Width Several Top Options: 1 x 95mm, 1 x 105mm, 2 x 4150, 2 x 4500, or Blank Flange for Custom Throttle Bodies Runner Length: Approx. 6.5” Available With or Without Injector Ports in the Runners Rear of Plenum Machined for MAP and 3 Vacuum Ports Increased Runner Wall Thickness for Custom Porting at the Plenum to Runner Entry on Each Runner Intakes w/ Injector Ports Include Fuel Rails w/ Dual Mounting (1.48” or 2.56” O-Ring to O-Ring injector length) Large Plenum Volume of 549 Cubic Inches (w/ 1 x 95mm or 1 x 105mm Throttle Body Top) O-Ring Seals at Cylinder Heads and Plenum Top Head Flange has Clearance for Fuel Supply to High Pressure Pump Easy Assembly w/ Top Mounted Screws on Plenum Top (all except front 2 screws) Overall Height: 13.34” (w/ EFI Top - 95mm or 105mm) – See Drawing Modular Design w/ Removable Top 3500-8000+ RPM Power Band |
