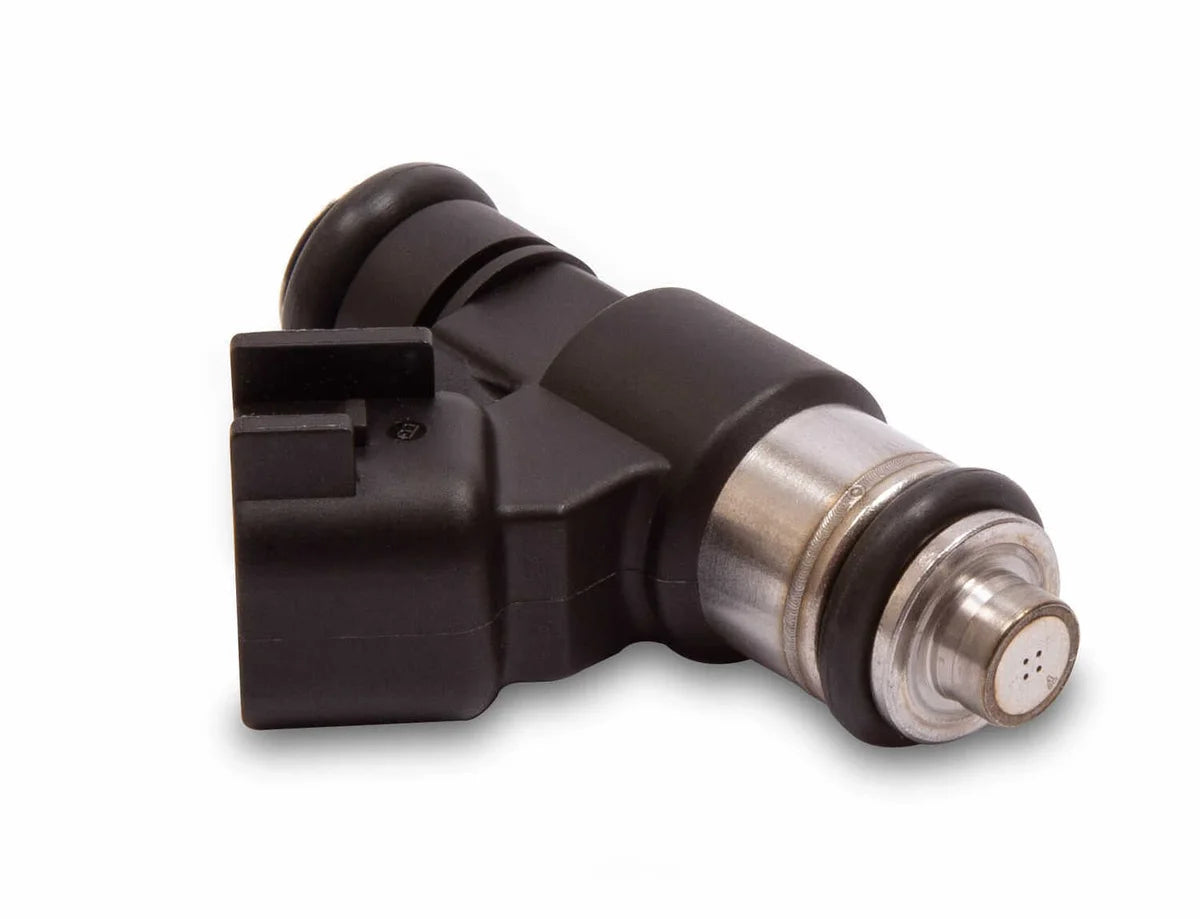

Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Specifications:
| Body Diameter |
0.65 |
| Body Length |
1.85" |
| Body Style |
EV6 |
| Brand |
Holley EFI |
| Category |
Air and Fuel Delivery |
| 17 |
Black |
| Connector Series |
EV6 |
| 344 |
EV6 |
| Emission Code |
4 |
| Flow Rate |
76 4U |
| 886 |
Port |
| Fuel Type |
E-85, Gasoline |
| 353 |
Yes |
| 3390 |
Performance |
| Impedance |
High (12.2 Ohm) |
| 30 |
No |
| O-Ring Quantity |
2 per injector |
| O-Ring to O-Ring |
1.421 |
| part type |
Fuel Injector |
| Product Type |
Fuel Injector |
| Rated Injector Flow |
76 lb/hr |
| 7409 |
No |
| Sub Category |
Fuel Injection System and Related Components |
| 44 |
Female |
| Warning |
California Proposition 65 |
| Description_INV |
KIT- FUEL INJECTOR 76 PPH, EIGHT PACK |
| Description_ASC |
Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment. |
| Description_DES |

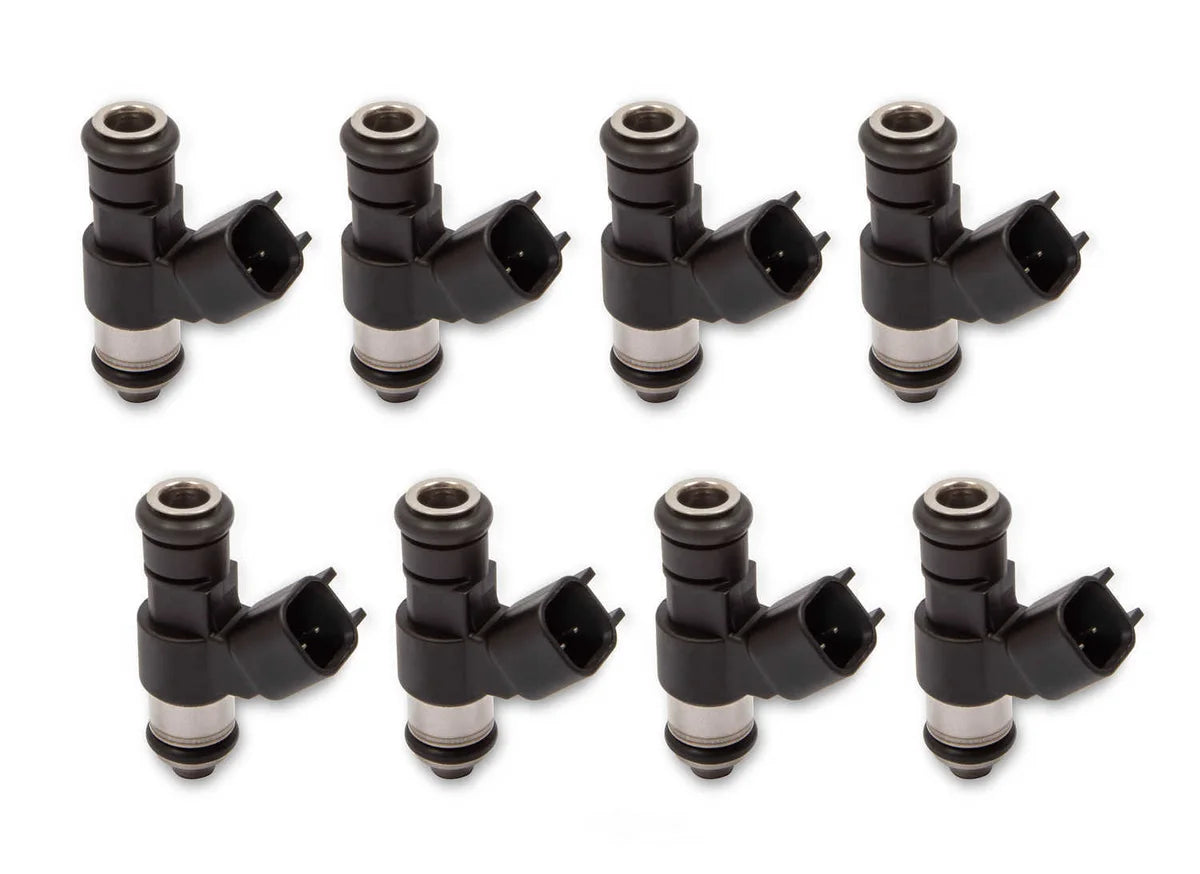

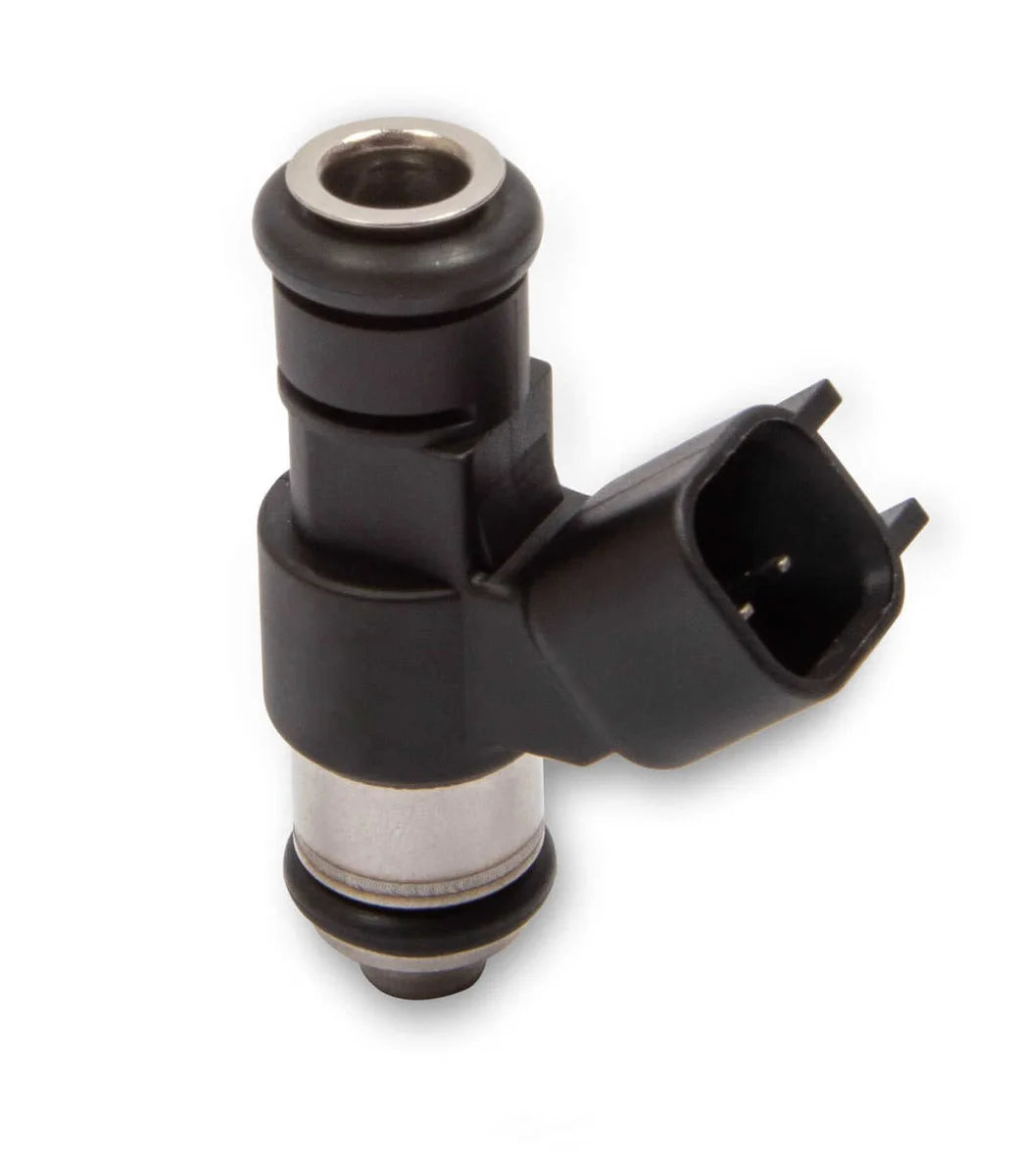

Holley Terminator X Fuel Injectors - Set of Eight |
| Description_EXT |
PICO/EV6 - 76 lb/hr - High Impedance |
| Description_MKT |
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers. |
| Description_FAB |
PICO/EV6 style performance injectors – sold individually or set of 8 |
| Description_FAB |
High impedance for use with saturated drivers |
| Description_FAB |
Rated injector flow: 76 lb./hr. at 60 PSI of base fuel pressure |
| Description_FAB |
USCAR injector connector |
| Description_FAB |
40mm o-ring to o-ring length |
