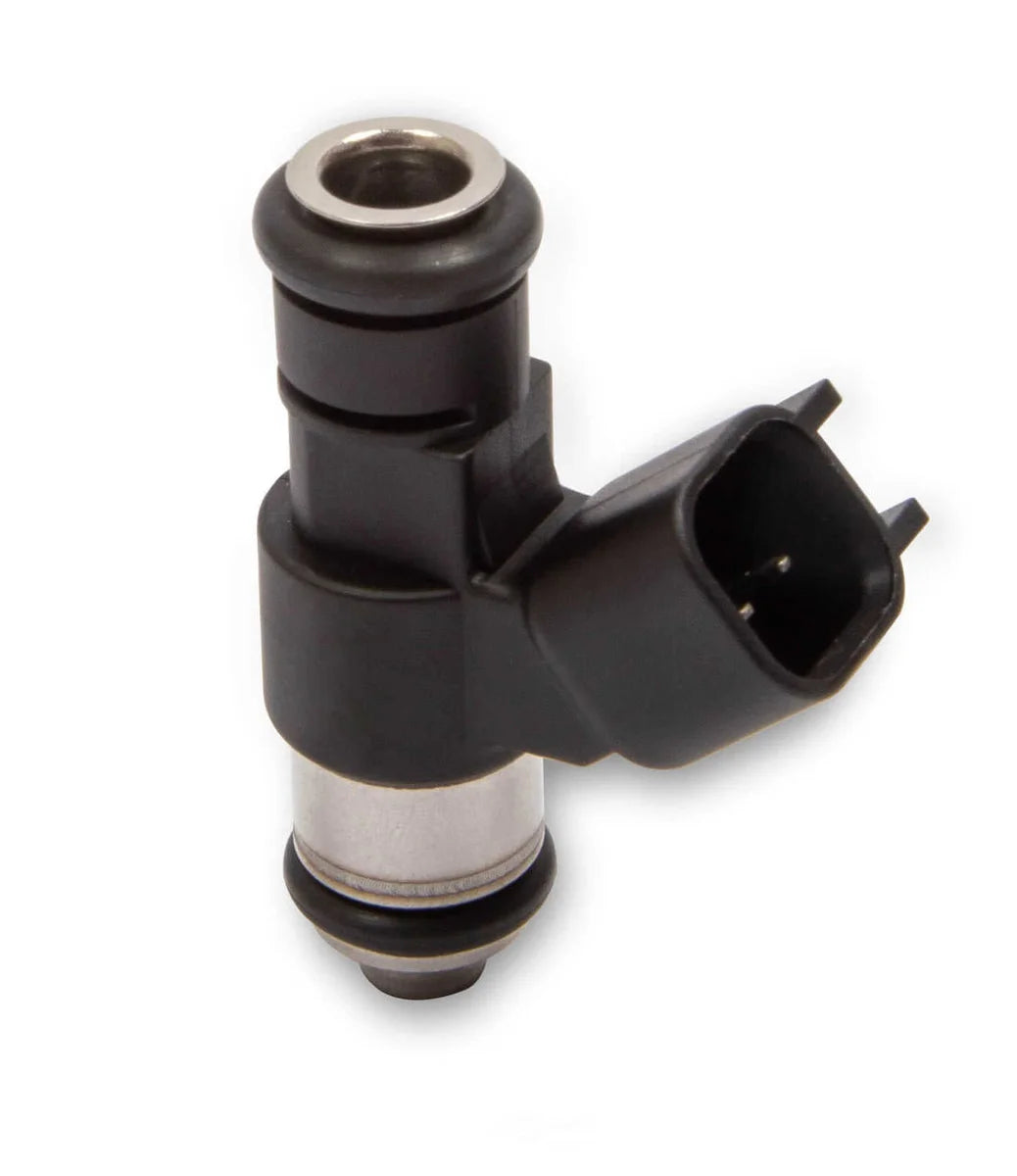

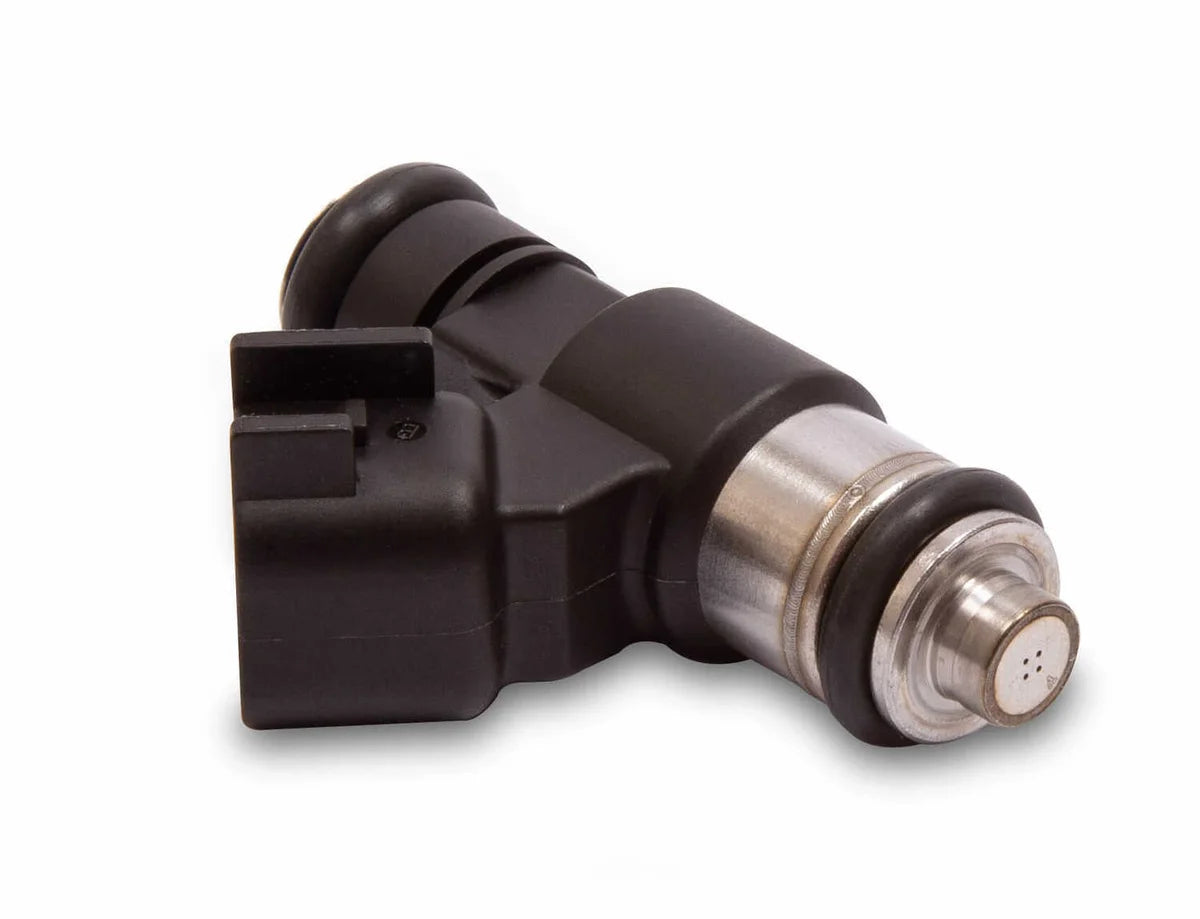

Holley EFI PICO/EV6 - 76 lb/hr - High Impedance - Flow Matched 522-768XFM
$787.95
$700.99
Terminator X Flow Matched High Impedance Fuel Injectors are dynamic flow matched within 1%, resulting in extremely precision and consistent injector characteristics. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.
Specifications:
| Body Diameter | 0.65 |
| Body Length | 1.85" |
| Body Style | EV6 |
| Brand | Holley EFI |
| Category | Air and Fuel Delivery |
| Connector Series | EV6 |
| Connector Series | USCAR - EV6 |
| Emission Code | 4 |
| Fuel Type | E-85, Gasoline |
| 3390 | Performance |
| Impedance | High (12.2 Ohm) |
| O-Ring to O-Ring | 1.421 |
| part type | Fuel Injector Set |
| part type | Fuel Injector Kit |
| Product Type | Fuel Injector |
| Rated Injector Flow | 76 lb/hr |
| Sub Category | Fuel Injection System and Related Components |
| 42 | 1 |
| 3145 | Universal |
| Warning | California Proposition 65 |
| Description_INV | KIT- FUEL INJECTOR 76 PPH, 8 PK, FM |
| Description_ASC | Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for Holley EFI Intake manifolds that include fuel rail brackets for shorter LS3/LS7 length injectors. However, when used in an intake manifold designed for factory LS3/LS7 injectors, the bottom o-ring needs to be replaced to ensure proper fitment. |

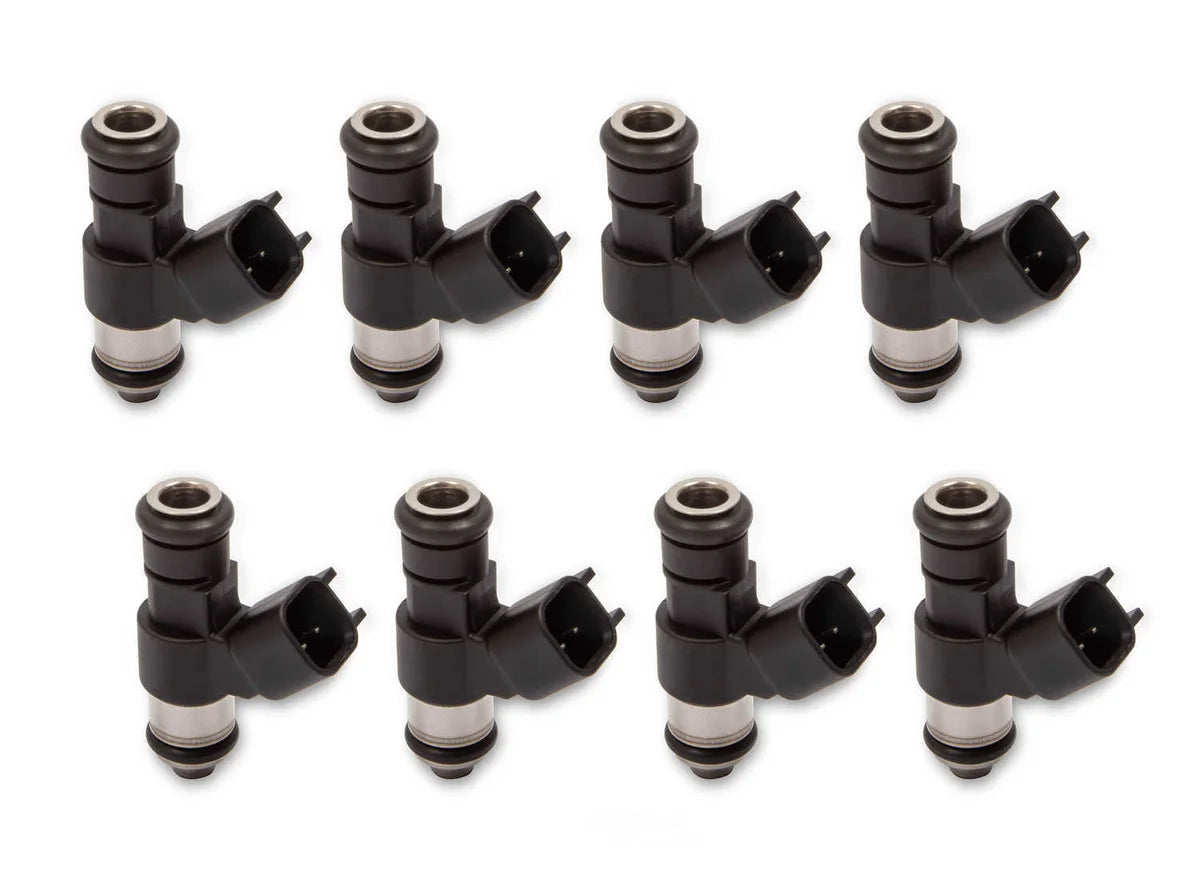

| Description_DES | Holley Terminator X Fuel Injectors - Set of Eight |
| Description_EXT | PICO/EV6 - 76 lb/hr - High Impedance - Flow Matched |
| Description_MKT | Terminator X Flow Matched High Impedance Fuel Injectors are dynamic flow matched within 1%, resulting in extremely precision and consistent injector characteristics. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers. |
| Description_FAB | PICO/EV6 style performance injectors – sold individually or set of 8 |
| Description_FAB | Dynamic Flow Matched within 1% |
| Description_FAB | High impedance for use with saturated drivers |
| Description_FAB | Rated injector flow from 42lb/hr to 120lb/hr for a wide array of applications, at 60psi base pressure, 220lb/hr injectors rated at 43psi base pressure |
| Description_FAB | 40mm o-ring to o-ring length |
| Description_FAB | Injector Off Time provided in the Holley EFI software |
