Regulator is suitable up to 110 GPH pump flowrate. In terms of pump models that would be a 525lph pump or smaller.
| 40 |
No |
| Application |
Universal |
| Brand |
Holley |
| Category |
Air and Fuel Delivery |
| Color |
Black |
| Emission Code |
5 |
| Fuel System |
EFI |
| Fuel Type |
Gasoline |
| Gauge Port |
No |
| 3390 |
Performance |
| Inlet Quantity |
1 |
| Inlet Size |
6 AN |
| 596 |
6 AN |
| Material |
Billet 6061 Aluminum |
| Mounting Hardware Included |
No |
| 90 |
Inline |
| Outlet Quantity |
1 |
| Outlet Size |
6 AN |
| 598 |
6 AN |
| part type |
Fuel Pressure Regulator |
| 890 |
3 |
| Pressure Range |
59.5 Pre-Set |
| Product Type |
Fuel Pressure Regulator |
| Return Size |
6 AN |
| Style |
Return Style |
| Sub Category |
Carburetion |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| 40 |
No |
| Application |
Universal |
| Brand |
Holley |
| Category |
Air and Fuel Delivery |
| Color |
Black |
| Emission Code |
5 |
| Fuel System |
EFI |
| Fuel Type |
Gasoline |
| Gauge Port |
No |
| 3390 |
Performance |
| Inlet Quantity |
1 |
| Inlet Size |
6 AN |
| 596 |
6 AN |
| Material |
Billet 6061 Aluminum |
| Mounting Hardware Included |
No |
| 90 |
Inline |
| Outlet Quantity |
1 |
| Outlet Size |
6 AN |
| 598 |
6 AN |
| part type |
Fuel Pressure Regulator |
| 890 |
3 |
| Pressure Range |
59.5 Pre-Set |
| Product Type |
Fuel Pressure Regulator |
| Return Size |
6 AN |
| Style |
Return Style |
| Sub Category |
Carburetion |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| Description_INV |
BILLET REGULATOR 58.5PSI 6AN IN/OUT |
| Description_DES |
Holley Billet EFI Return Style Fuel Pressure Regulator |
| Description_EXT |
EFI Return Style Regulator 59.5 PSI Black Finish |
| Description_MKT |

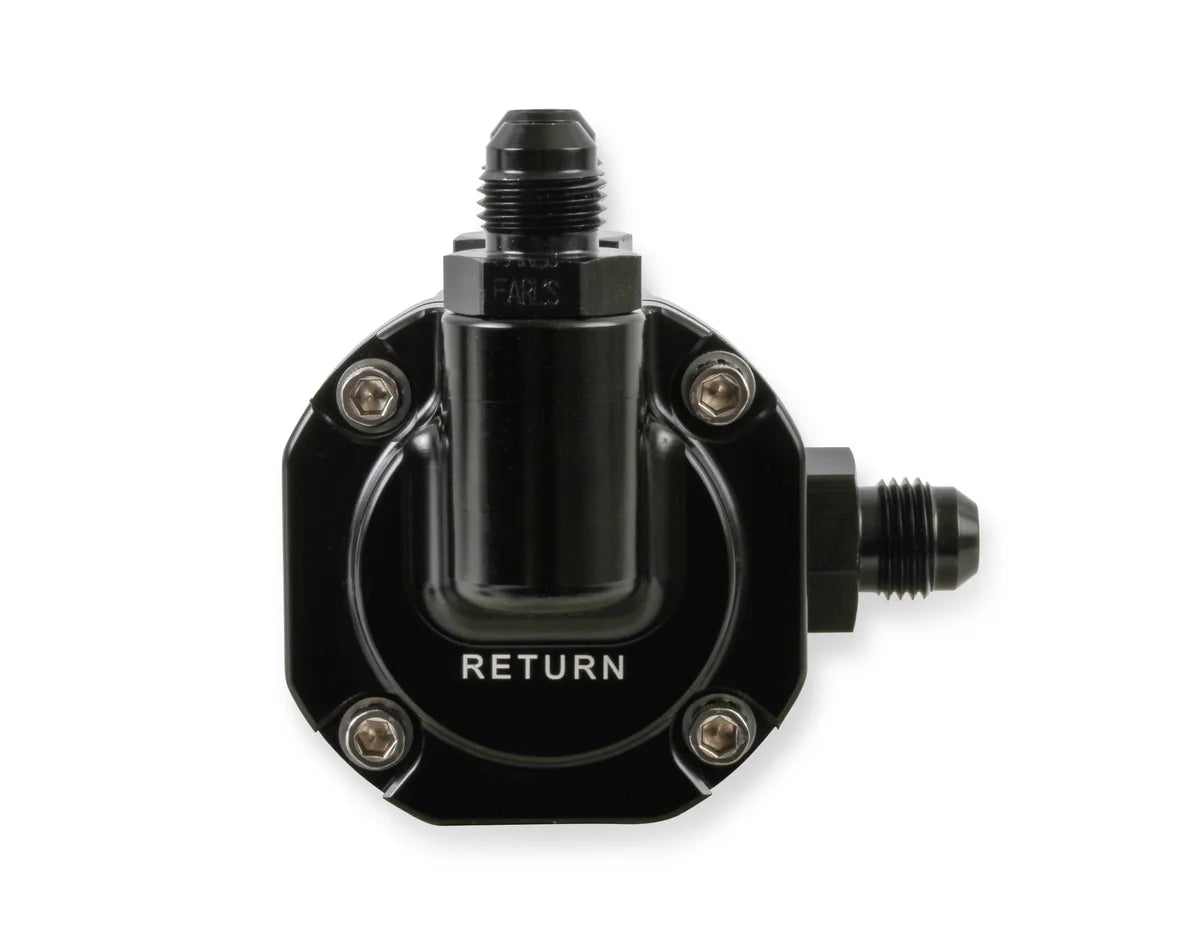

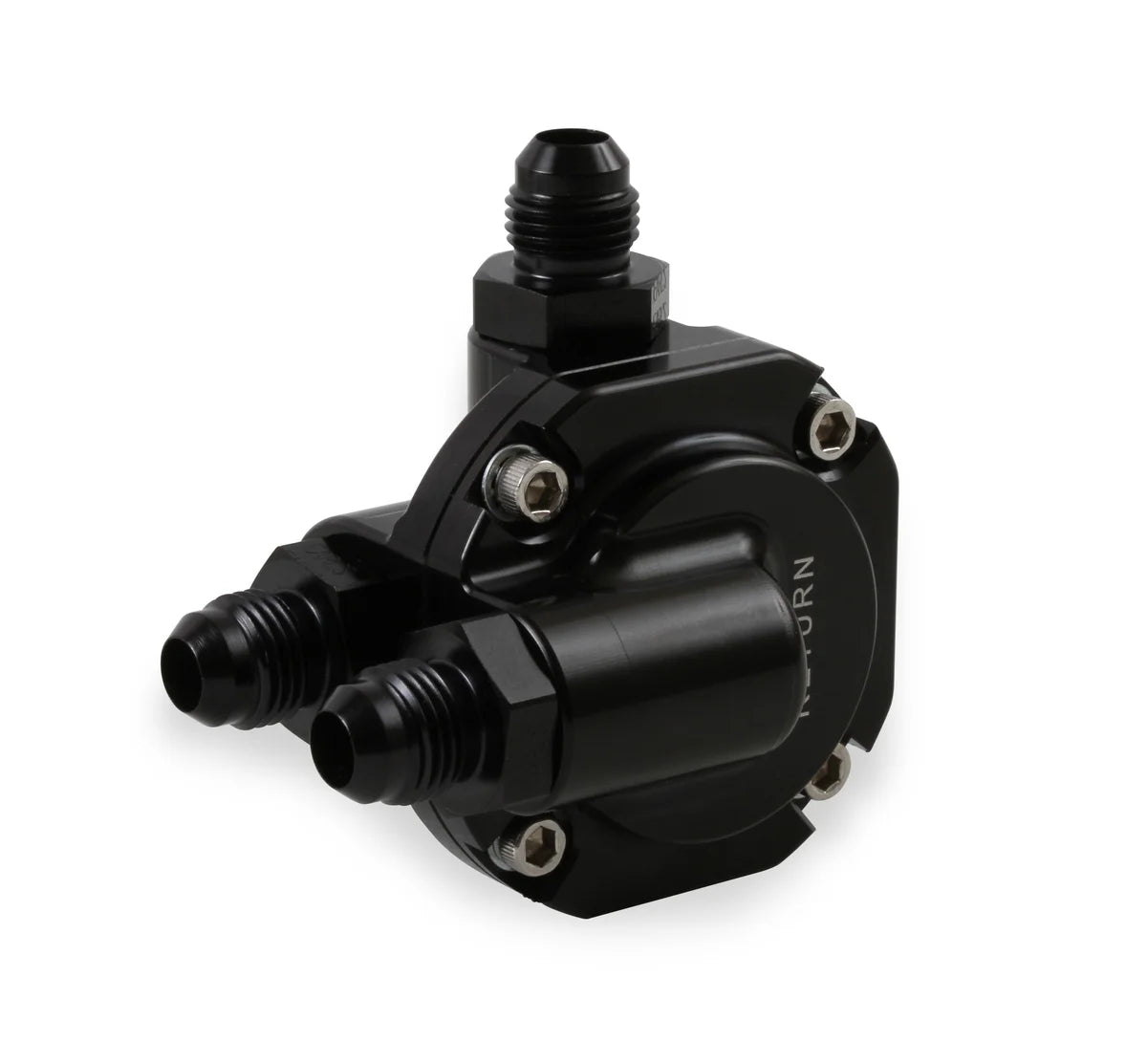

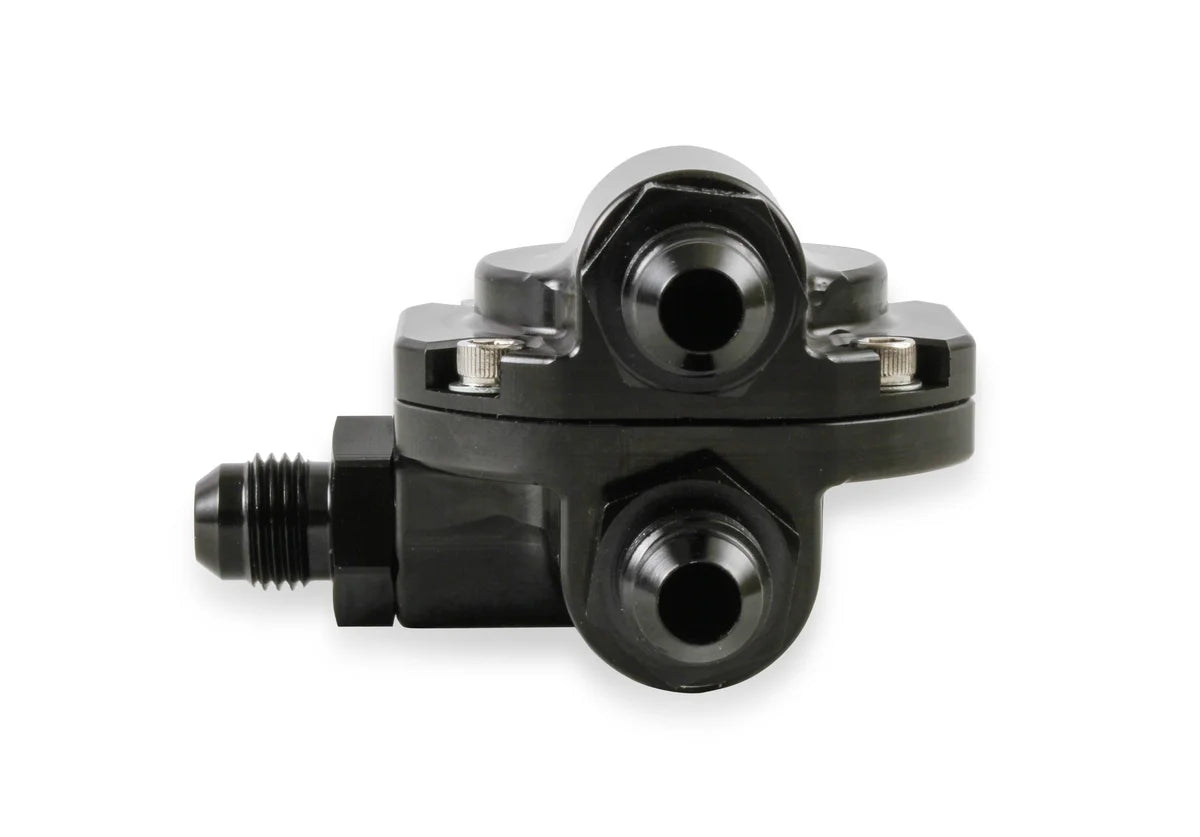

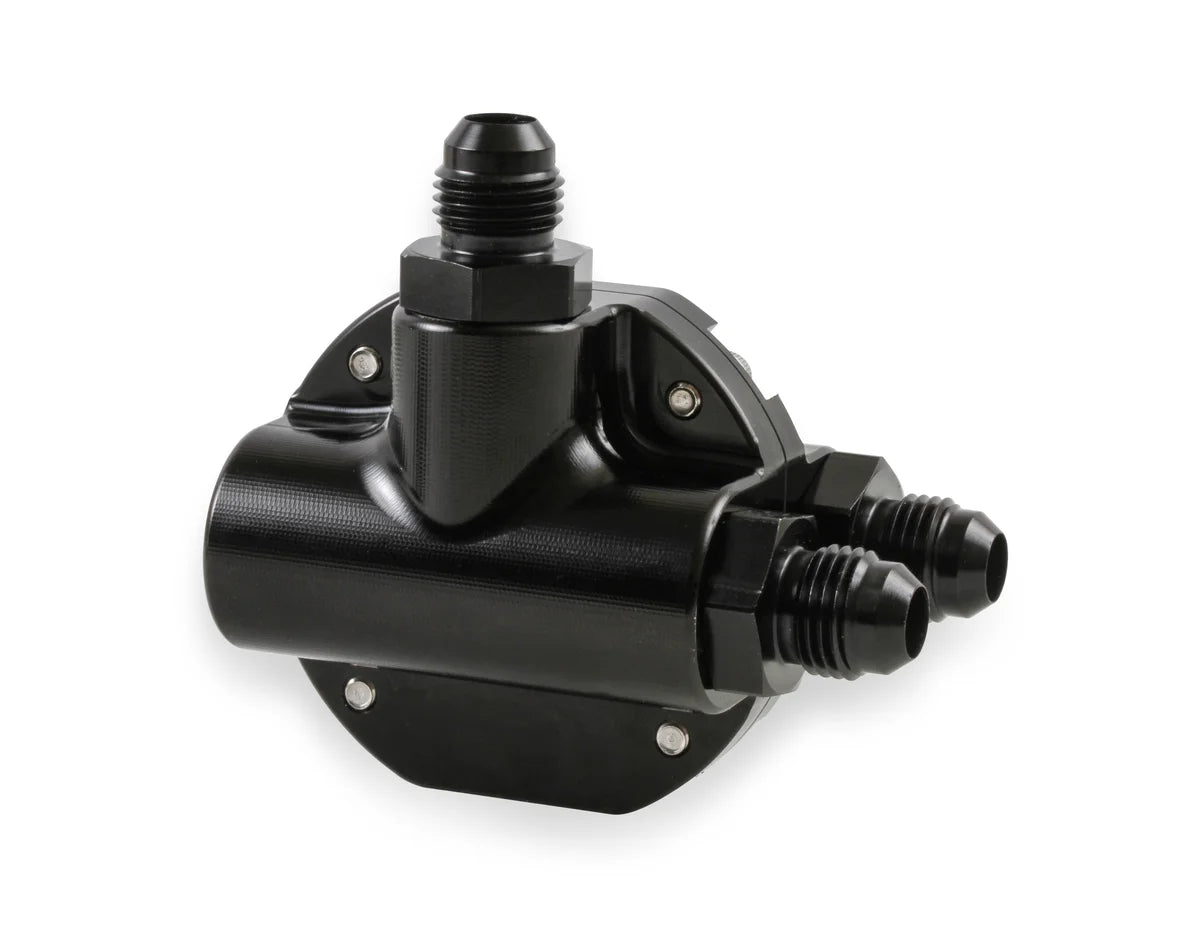

The billet EFI fuel pressure regulator is designed to be a space saving option when mounting on the end of the fuel rail or near the throttle body. The fuel pressure regulator is preset at 59.5 psi. The regulator cap can be removed and re-oriented to suit desired fuel routing. The billet 6061-T6 body has been machined for SAE6 ports and has three 6AN fittings and one extra plug included. An all black or black/clearcoat anodized finish is available. |
| Description_MKT |
These fuel pressure regulators are compatible with Holley Sniper or Sniper Stealth among other applications. |
| Description_MKT |
Regulator is suitable up to 110 GPH pump flowrate. In terms of pump models that would be a 525lph pump or smaller. |
| Description_FAB |
Constructed from Billet 6061-T6 Aluminum |
| Description_FAB |
Anodized in all black or black and clear |
| Description_FAB |
Machined for all SAE6 ports, with 3 6AN fittings included |
| Description_FAB |
Includes an extra plug to replace one fitting when installed post throttle body / fuel rail |
| Description_FAB |
Can be disassembled and re-oriented to suit desired fuel routing |
| Description_FAB |
Pre-set 59.5 psi |
| Description_FAB |
Compatible with Holley Sniper and Sniper Stealth among other applications |
| Description_FAB |
Regulator is suitable up to 110 GPH pump flowrate. In terms of pump models that would be a 525lph pump or smaller. |
| Description_INV |
BILLET REGULATOR 58.5PSI 6AN IN/OUT |
| Description_DES |
Holley Billet EFI Return Style Fuel Pressure Regulator |
| Description_EXT |
EFI Return Style Regulator 59.5 PSI Black Finish |
| Description_MKT |
The billet EFI fuel pressure regulator is designed to be a space saving option when mounting on the end of the fuel rail or near the throttle body. The fuel pressure regulator is preset at 59.5 psi. The regulator cap can be removed and re-oriented to suit desired fuel routing. The billet 6061-T6 body has been machined for SAE6 ports and has three 6AN fittings and one extra plug included. An all black or black/clearcoat anodized finish is available. |
| Description_MKT |
These fuel pressure regulators are compatible with Holley Sniper or Sniper Stealth among other applications. |
| Description_MKT |
Regulator is suitable up to 110 GPH pump flowrate. In terms of pump models that would be a 525lph pump or smaller. |
| Description_FAB |
Constructed from Billet 6061-T6 Aluminum |
| Description_FAB |
Anodized in all black or black and clear |
| Description_FAB |
Machined for all SAE6 ports, with 3 6AN fittings included |
| Description_FAB |
Includes an extra plug to replace one fitting when installed post throttle body / fuel rail |
| Description_FAB |
Can be disassembled and re-oriented to suit desired fuel routing |
| Description_FAB |
Pre-set 59.5 psi |
| Description_FAB |
Compatible with Holley Sniper and Sniper Stealth among other applications |
| Description_FAB |
Regulator is suitable up to 110 GPH pump flowrate. In terms of pump models that would be a 525lph pump or smaller. |
