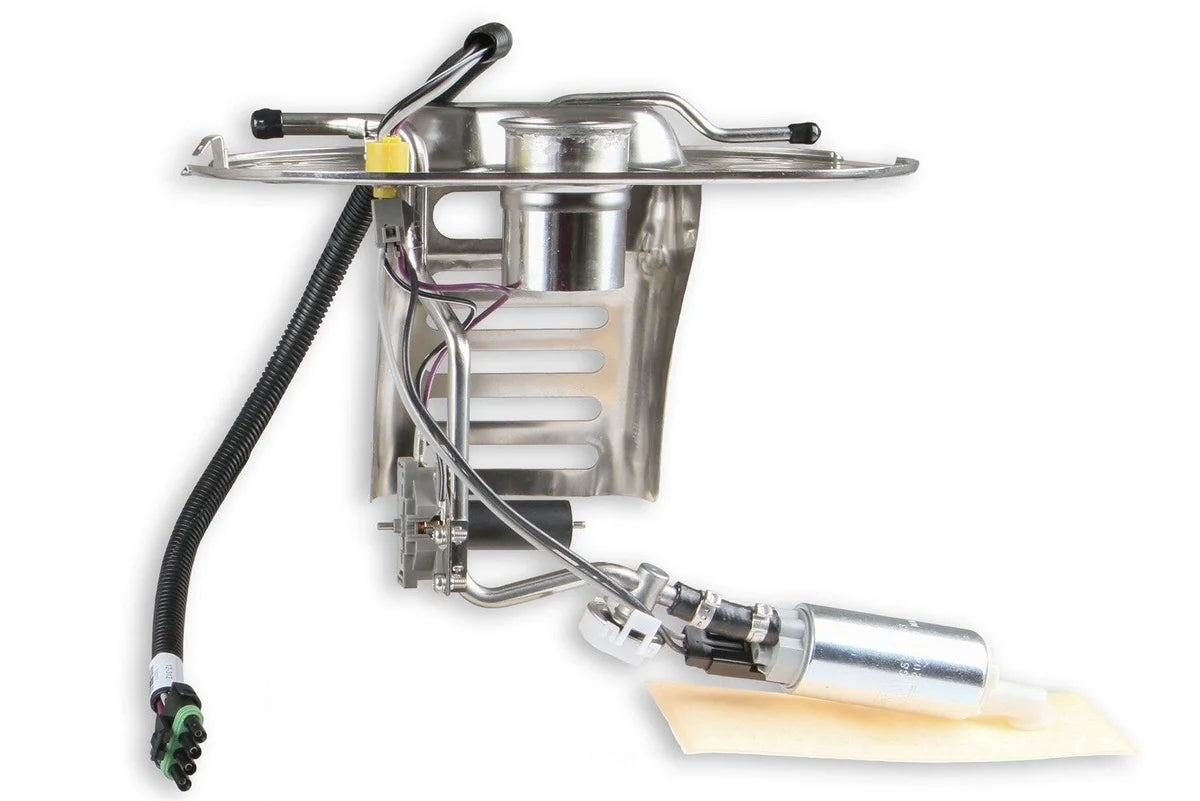

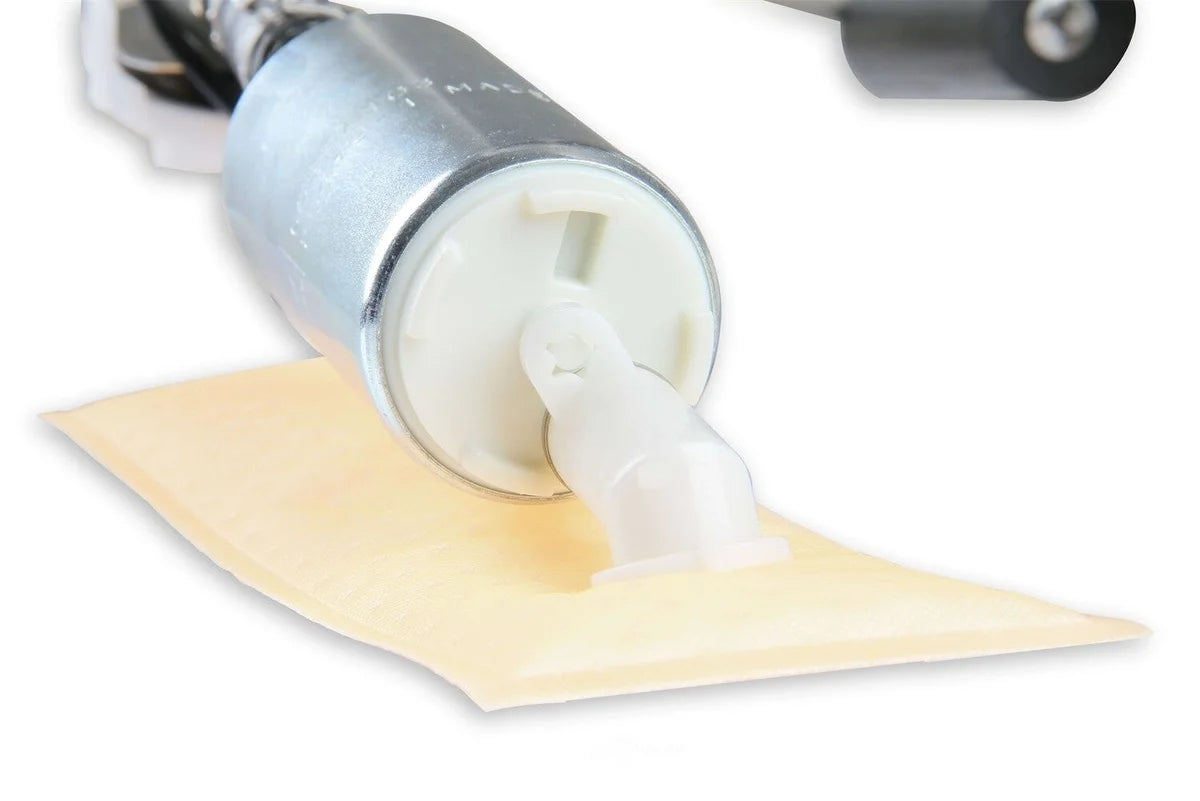

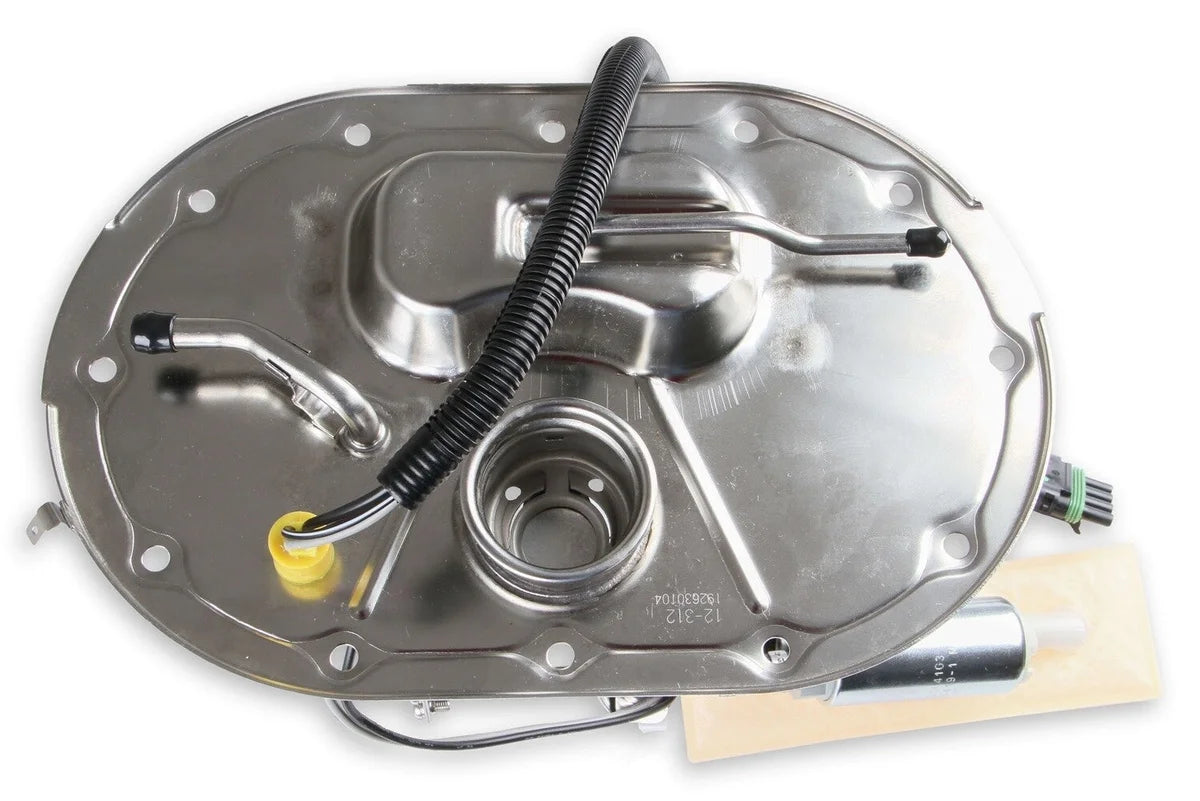

The fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1975-77 Corvette Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions.
| Application |
1975-1977 Chevrolet Corvette |
| Average Flow Rating |
255 LPH |
| Brand |
Holley Sniper EFI |
| Category |
Air and Fuel Delivery |
| 43 |
Male |
| Emission Code |
5 |
| Engine |
Chevrolet Small Block Gen I |
| Free Flow LPH |
255 |
| 7246 |
Yes |
| 1153 |
Yes |
| Fuel Sending Unit Ohms |
0-90 Ohms |
| 9103 |
No |
| Fuel Type |
Gasoline |
| 353 |
Yes |
| 3390 |
Performance |
| 7617 |
In Tank |
| Inlet Diameter (in) |
5/16 IN |
| Inlet Diameter (in) |
5/16" |
| Inlet Quantity |
One |
| 4284 |
Yes |
| Make |
Chevrolet |
| Material |
Steel and Plastic |
| Maximum Pressure |
58 PS |
| Model |
Corvette |
| 1154 |
Yes |
| Outlet Outside Diameter |
3/8 IN |
| Outlet Quantity |
One |
| part type |
Fuel Pump Module Assembly |
| Product Type |
Fuel Pump Module |
| 958 |
Electric |
| 235 |
Yes |
| Resistance Ohms Empty |
0 82 |
| Resistance Ohms Full |
90 82 |
| 518 |
Yes |
| Sub Category |
Fuel Pumps and Related Components |
| 3145 |
Specific |
| Vent Size |
N/A |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| 8934 |
Yes |
| Application |
1975-1977 Chevrolet Corvette |
| Average Flow Rating |
255 LPH |
| Brand |
Holley Sniper EFI |
| Category |
Air and Fuel Delivery |
| 43 |
Male |
| Emission Code |
5 |
| Engine |
Chevrolet Small Block Gen I |
| Free Flow LPH |
255 |
| 7246 |
Yes |
| 1153 |
Yes |
| Fuel Sending Unit Ohms |
0-90 Ohms |
| 9103 |
No |
| Fuel Type |
Gasoline |
| 353 |
Yes |
| 3390 |
Performance |
| 7617 |
In Tank |
| Inlet Diameter (in) |
5/16 IN |
| Inlet Diameter (in) |
5/16" |
| Inlet Quantity |
One |
| 4284 |
Yes |
| Make |
Chevrolet |
| Material |
Steel and Plastic |
| Maximum Pressure |
58 PS |
| Model |
Corvette |
| 1154 |
Yes |
| Outlet Outside Diameter |
3/8 IN |
| Outlet Quantity |
One |
| part type |
Fuel Pump Module Assembly |
| Product Type |
Fuel Pump Module |
| 958 |
Electric |
| 235 |
Yes |
| Resistance Ohms Empty |
0 82 |
| Resistance Ohms Full |
90 82 |
| 518 |
Yes |
| Sub Category |
Fuel Pumps and Related Components |
| 3145 |
Specific |
| Vent Size |
N/A |
| Warning |
California Proposition 65 |
| Warranty |
Manufacturer's Limited 90 Day Warranty |
| 8934 |
Yes |
| Description_INV |
OEM TANK HANGAR 75-77 CORVETTE |
| Description_ASC |
The pump is not compatible for use with PWM (Pulse-width Modulation) |
| Description_DES |
Holley EFI Fuel Tank Module - 255 LPH - 1975-1977 Corvette |
| Description_EXT |
In-tank fuel pump module for 1975-1977 Chevrolet Corvette. Supports Up To 550 Horsepower. |
| Description_MKT |

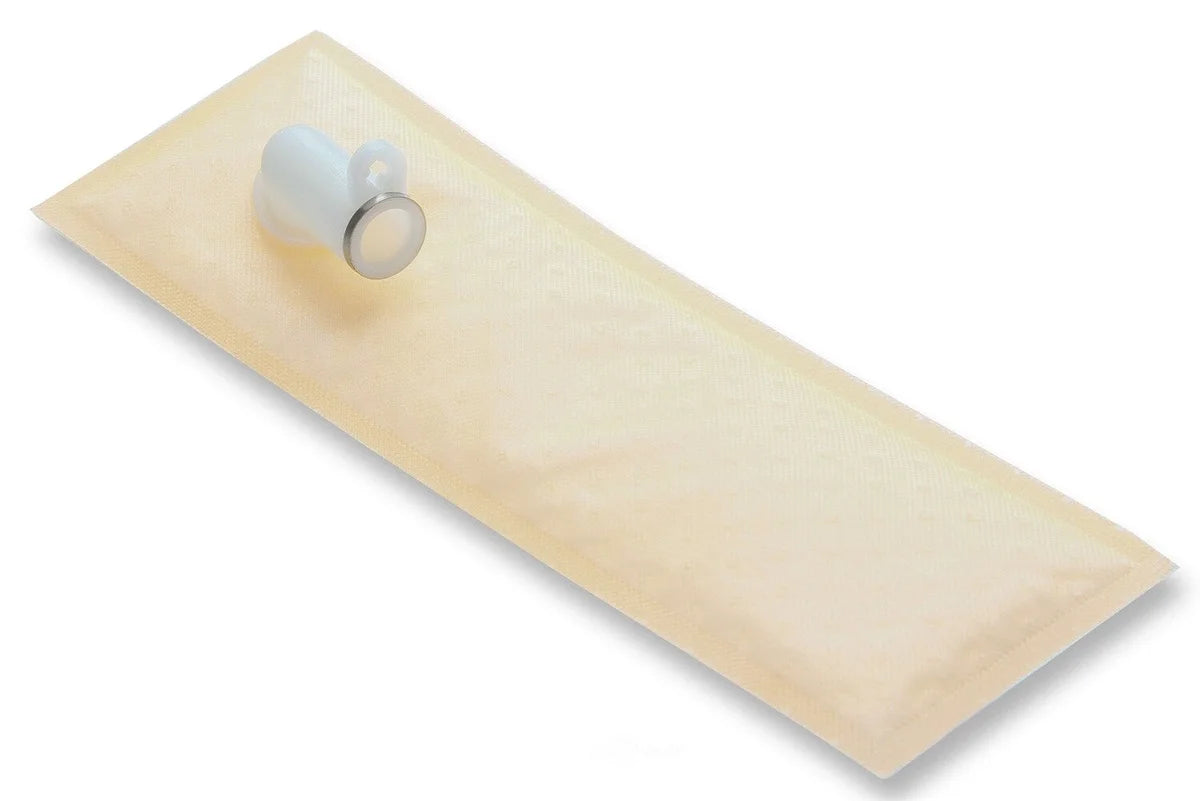

This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower. Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates |
| Description_MKT |
The fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1975-77 Corvette Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions. |
| Description_FAB |
Supports up to 550 horsepower (HP) |
| Description_FAB |
Flows 255 liters per hour (LPH) |
| Description_FAB |
Internally regulated to 58 PSI |
| Description_FAB |
Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues |
| Description_INV |
OEM TANK HANGAR 75-77 CORVETTE |
| Description_ASC |
The pump is not compatible for use with PWM (Pulse-width Modulation) |
| Description_DES |
Holley EFI Fuel Tank Module - 255 LPH - 1975-1977 Corvette |
| Description_EXT |
In-tank fuel pump module for 1975-1977 Chevrolet Corvette. Supports Up To 550 Horsepower. |
| Description_MKT |
This in-tank fuel pump module is a high-pressure unit that flows 255 liters per hour (LPH) and is capable of supporting electronic fuel injection (EFI) engines producing up to 550 horsepower. Featuring a pre-calibrated fuel-level sending unit designed to work with the factory fuel gauge for this application is included. This module also features a HydraMat filter which has a unique internal reservoir that keeps fuel available at the pick-up and also provides protection from contaminates |
| Description_MKT |
The fuel pressure is internally regulated to 58 psi eliminating the added expense and effort of purchasing and installing an external fuel pressure regulator - no separate return line is required because this module returns excess fuel right inside the tank! This 1975-77 Corvette Muscle Car EFI Fuel Pump module was designed as a direct replacement for your factory pick-up and sending unit. There is no need to purchase a custom EFI fuel tank. You can even retain the factory fuel hard line - just connect the outlet of the pump module to the hard line on your vehicle with EFI-rated fuel hose and hose clamps available in the Earls Vapor Guard line. This Muscle Car EFI Module includes a 255 LPH fuel pump and a Holley HydraMat. HydraMat is an amazing patent-pending fuel reservoir system that reduces fuel starvation issues that might otherwise occur while cornering, accelerating, stopping, traversing inclines, and during low fuel conditions. |
| Description_FAB |
Supports up to 550 horsepower (HP) |
| Description_FAB |
Flows 255 liters per hour (LPH) |
| Description_FAB |
Internally regulated to 58 PSI |
| Description_FAB |
Included HydraMat patent-pending fuel reservoir system that reduces fuel starvation issues |
