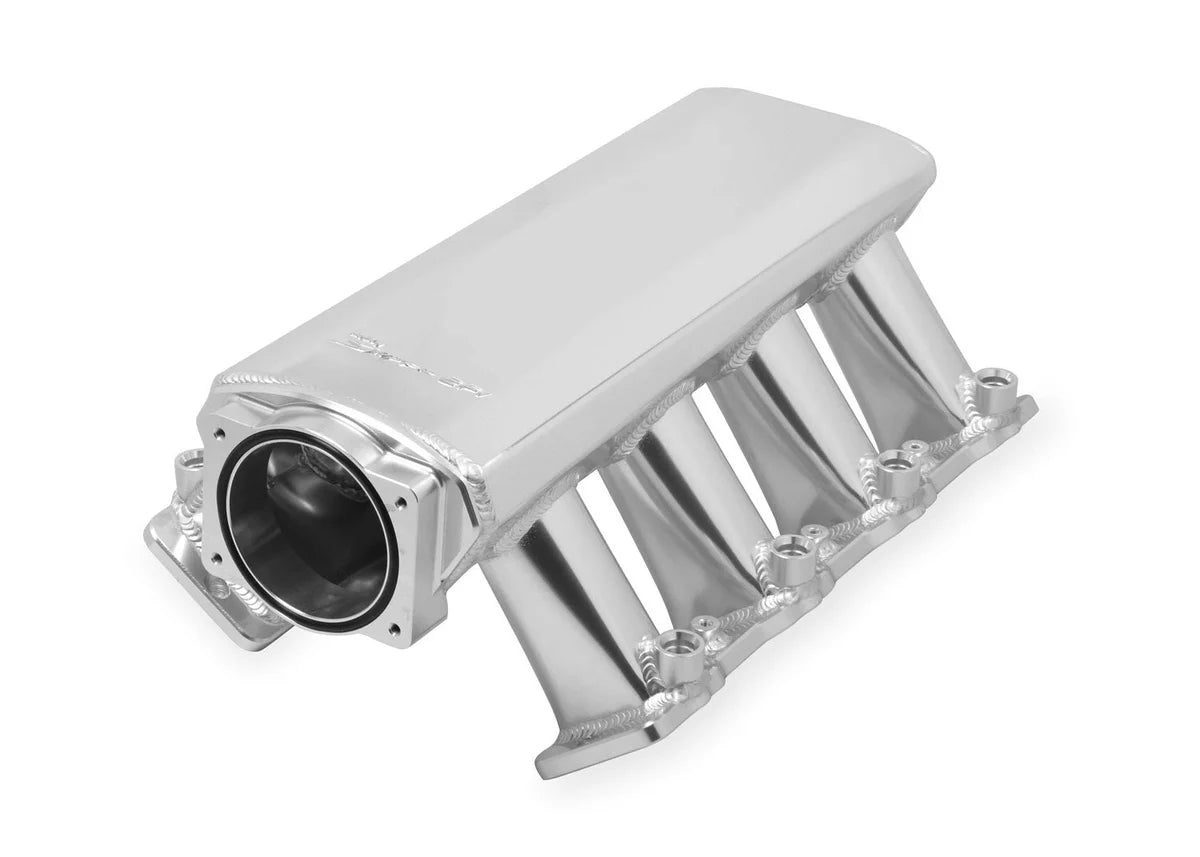

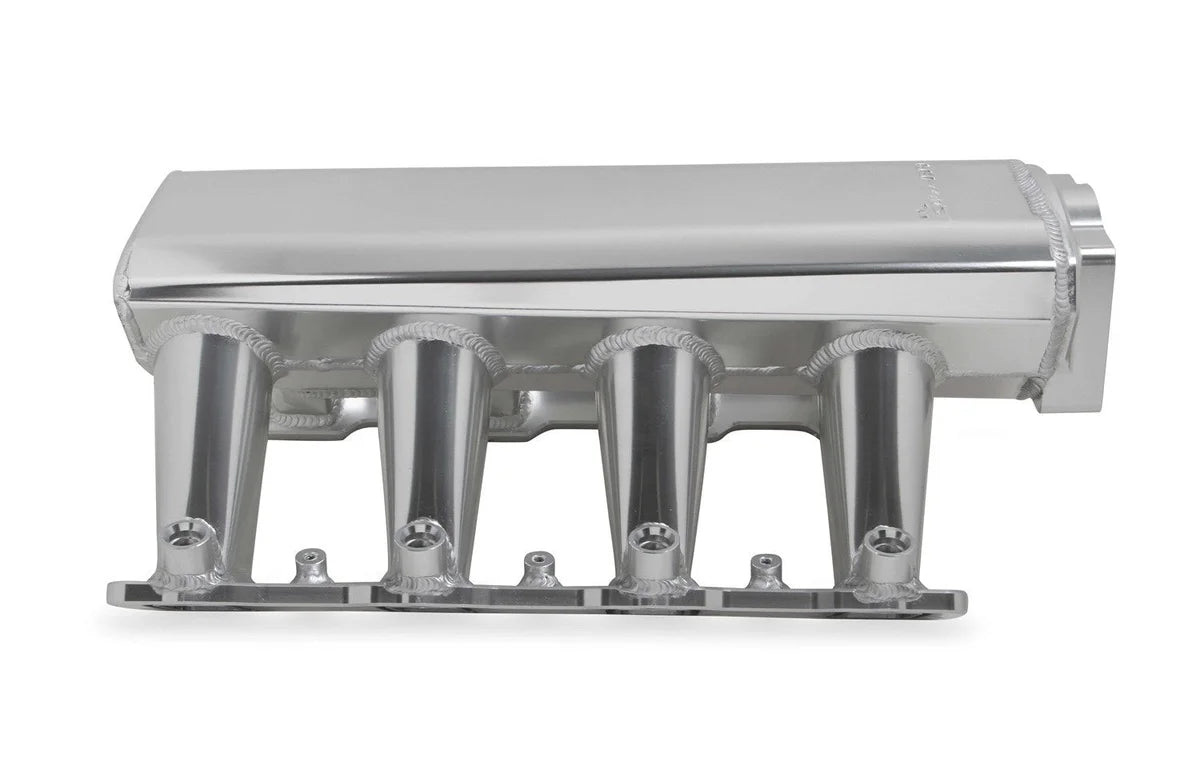

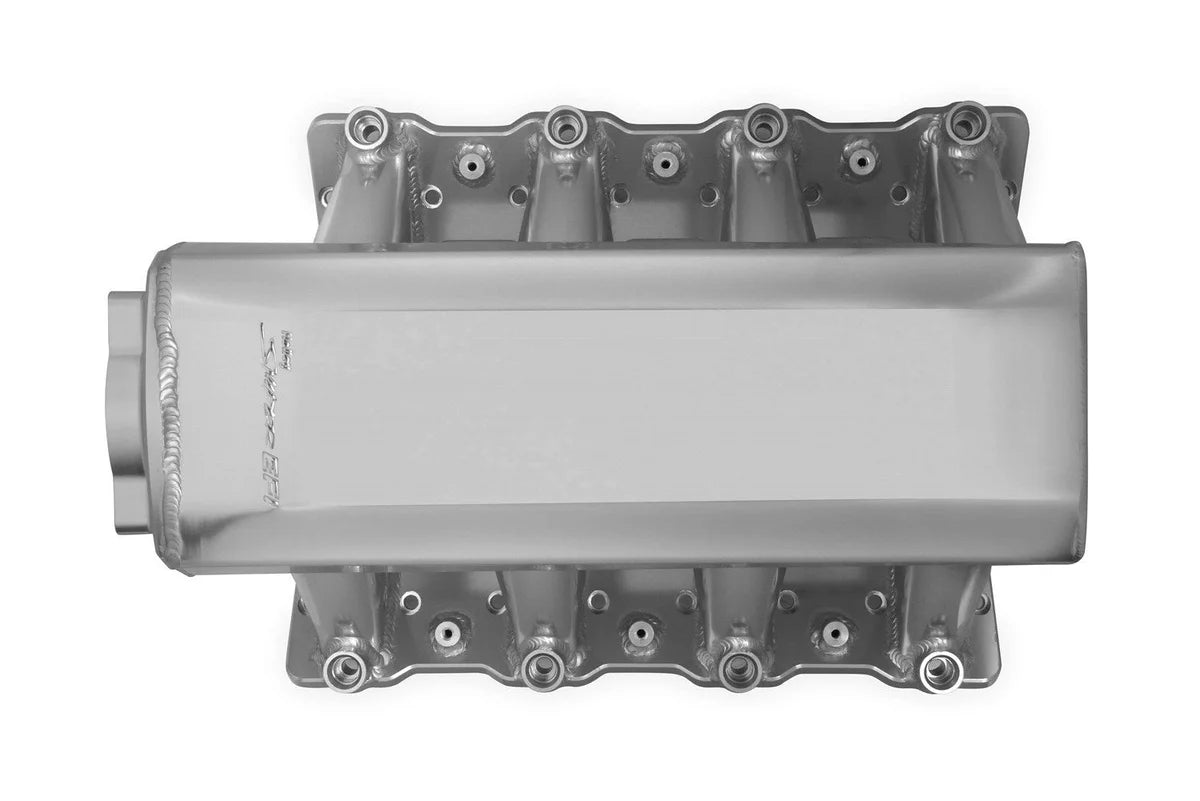

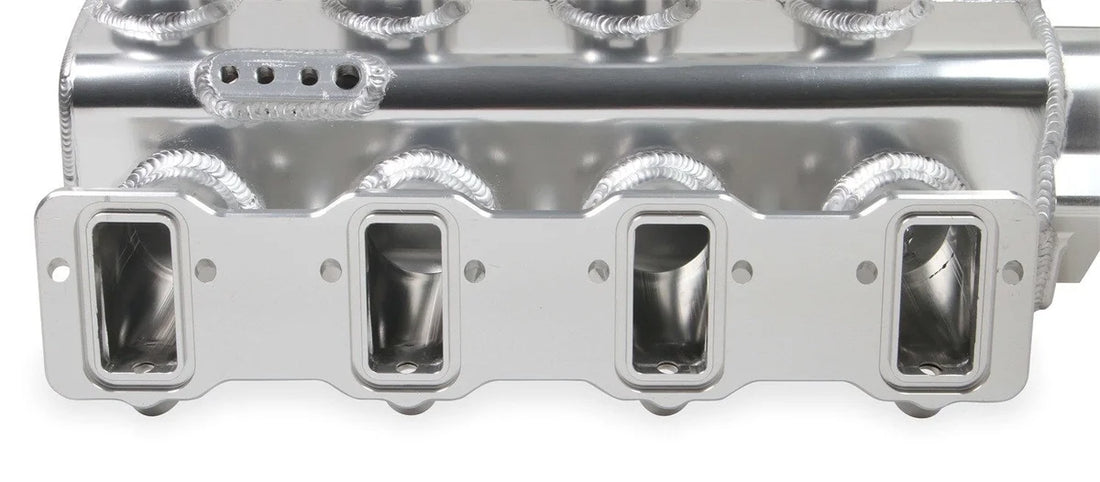

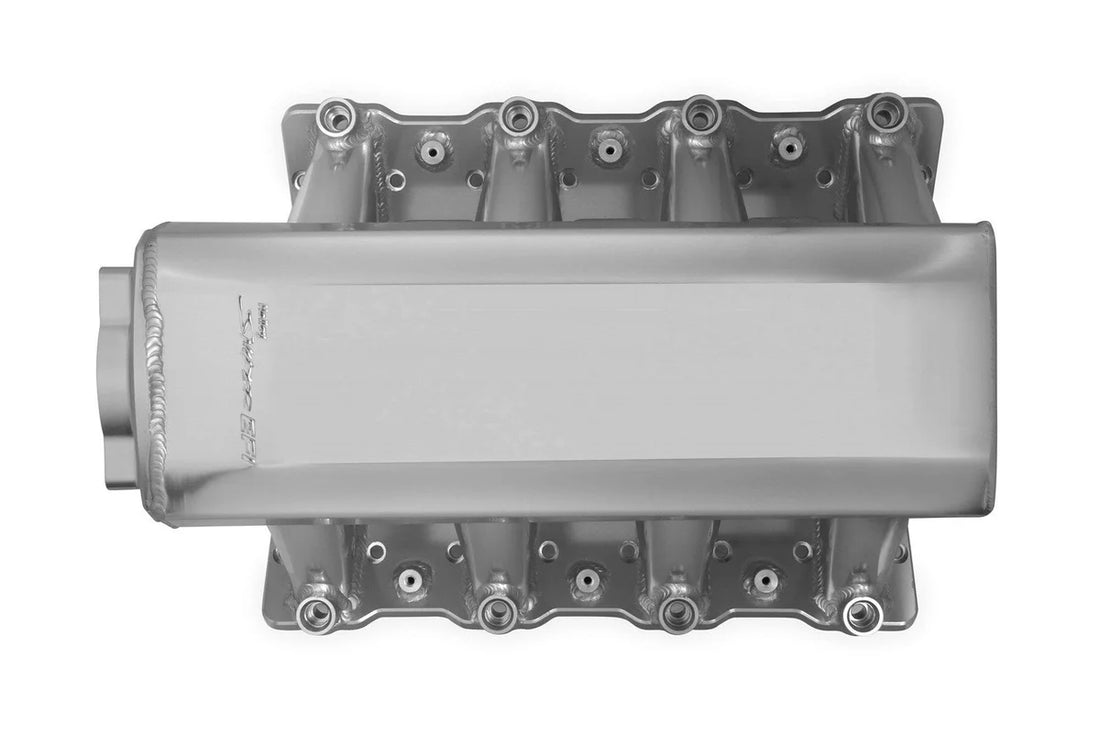

Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent.
| Basic Operating RPM Range |
2500-7000 |
| Brand |
Holley Sniper EFI |
| Carburetor Flange |
N/A |
| Carburetor Quantity |
N/A |
| 10652 |
No |
| Category |
Engine |
| 9063 |
No |
| 17 |
Silver |
| 158 |
Fabricated |
| 5337 |
Rectangle |
| 6621 |
9.24 |
| 8095 |
No |
| Emission Code |
4 |
| Engine |
GM LS3/L92 |
| Flange Style |
N/A |
| 6643 |
7.952 |
| 906 |
No |
| 10644 |
Yes |
| Fuel System Type |
EFI |
| 353 |
Yes |
| 3390 |
Performance |
| Injector Style Provision |
EV1 |
| 10651 |
Yes |
| Manifold Type |
Fabricated |
| 10 |
Aluminum |
| 10648 |
No |
| part type |
Engine Intake Manifold |
| Plenum Finish |
Silver |
| Product Type |
Intake Manifold |
| 6645 |
7.165 |
| Recommended Use |
Forced Induction |
| 10645 |
No |
| 10649 |
No |
| Runner Length |
5.512" (140mm) |
| Single Or Dual Plane Type |
Single |
| Style |
EFI |
| Sub Category |
Cylinder Block Components |
| 10646 |
92 |

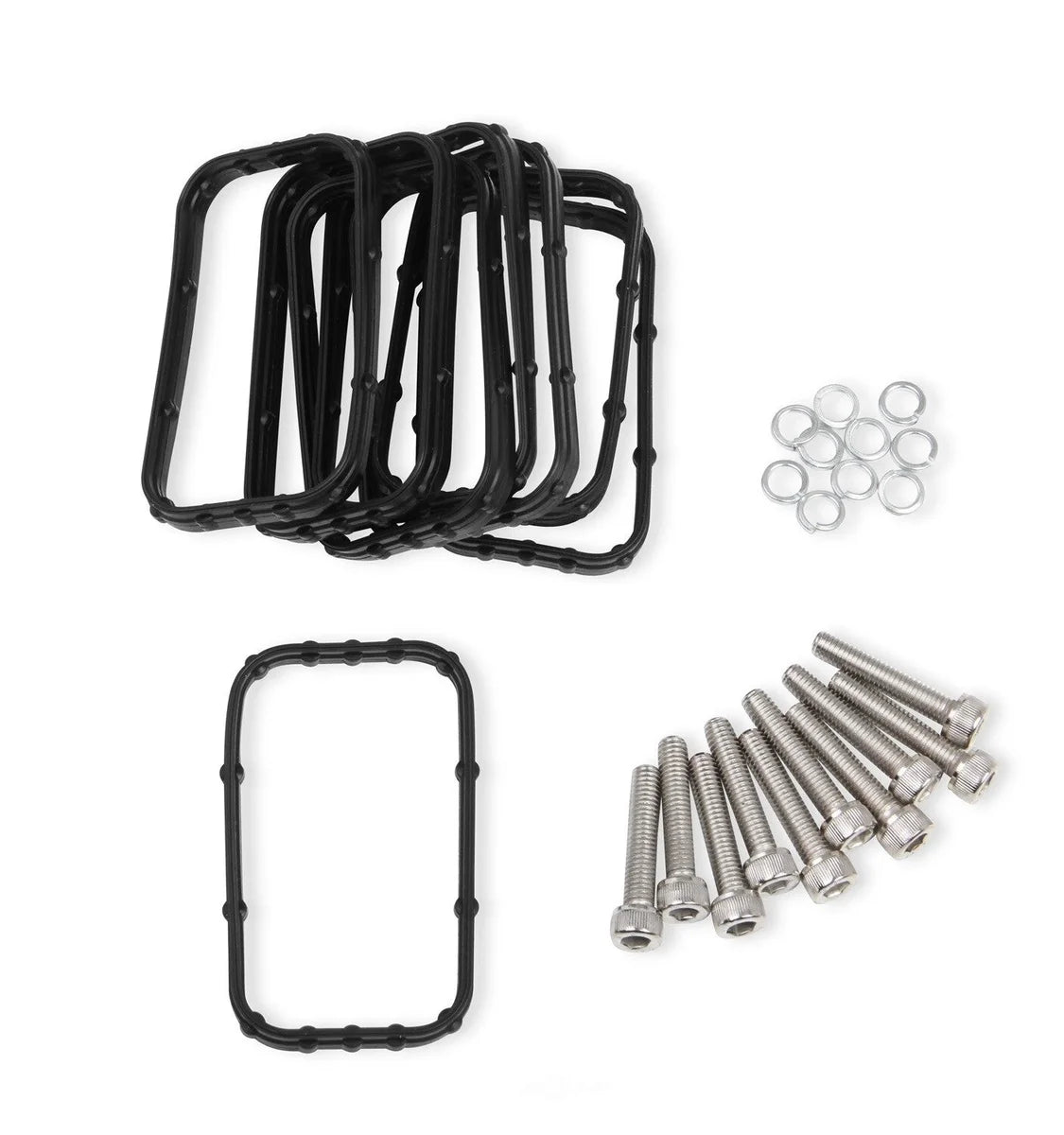

| Throttle Body Gasket Included |
Yes |
| 10626 |
No |
| Throttle Bore |
92mm |
| Vacuum Ports |
(3) 1/8"-28BSPT & (1) 1/4"-19BSPT |
| Warning |
California Proposition 65 |
| Description_ABR |
SNIPER EFI L |
| Description_SHO |
SNIPER EFI SHEET |
| Description_INV |
SNIPER EFI LS3/L92 FABR. IM, EFI, 92MM |
| Description_ASC |
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment *** |
| Description_DES |
Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS3/L92 |
| Description_EXT |
Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent. |
| Description_MKT |
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! |
| Description_FAB |
3mm (1/8") thick T6061 Sheet Aluminum construction, more durable than competitive intakes |
| Description_FAB |
The Sniper intake will only accept EV1 style injectors. |
| Description_FAB |
Provision for MAP sensor located on rear of plenum |
| Description_FAB |
Available in 92mm and 102mm bore Throttle Body Openings |
| Description_FAB |

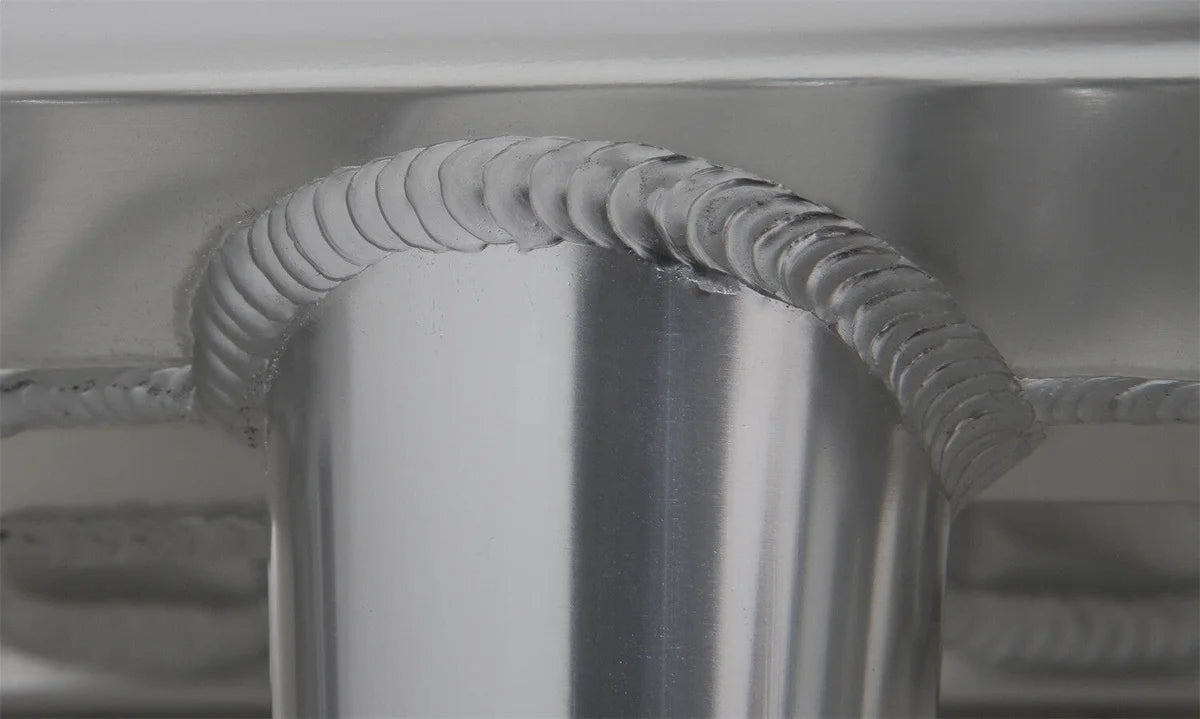

100% TIG welded |
| Description_FAB |
EFI Intakes include 3/8" Fuel rail kits (Sniper logo laser engraved) |
| Description_FAB |
Available for EFI and Carbureted applications with custom Holley Sniper logo |
| Description_FAB |
Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders |
| Description_ABR |
SNIPER EFI L |
| Description_SHO |
SNIPER EFI SHEET |
| Description_INV |
SNIPER EFI LS3/L92 FABR. IM, EFI, 92MM |
| Description_ASC |
*** This intake is designed to work with stock LS heads. The use of some aftermarket cylinder heads may result in port misalignment *** |
| Description_DES |
Sniper EFI Sheet Metal Fabricated Intake Manifold GM LS3/L92 |
| Description_EXT |
Hi-Ram Sheet Metal Fabricated Intake Manifold LS3/L92 92mm Throttle Body opening + Fuel Rail Kit Silver with Sniper EFI logo - Now includes mounting provision for MAP sensor on rear of Intake plenum. Use GM #12592525 or equivalent. |
| Description_MKT |
Holley is now offering budget friendly fabricated intake manifolds for LS, Small Block Chevy and Small Block Ford engines in carbureted and EFI versions! |
| Description_FAB |
3mm (1/8") thick T6061 Sheet Aluminum construction, more durable than competitive intakes |
| Description_FAB |
The Sniper intake will only accept EV1 style injectors. |
| Description_FAB |
Provision for MAP sensor located on rear of plenum |
| Description_FAB |
Available in 92mm and 102mm bore Throttle Body Openings |
| Description_FAB |
100% TIG welded |
| Description_FAB |
EFI Intakes include 3/8" Fuel rail kits (Sniper logo laser engraved) |
| Description_FAB |
Available for EFI and Carbureted applications with custom Holley Sniper logo |
| Description_FAB |
Runner lengths with tapered top on EFI intakes designed to increase velocity and more evenly distribute airflow to all 8 cylinders |
