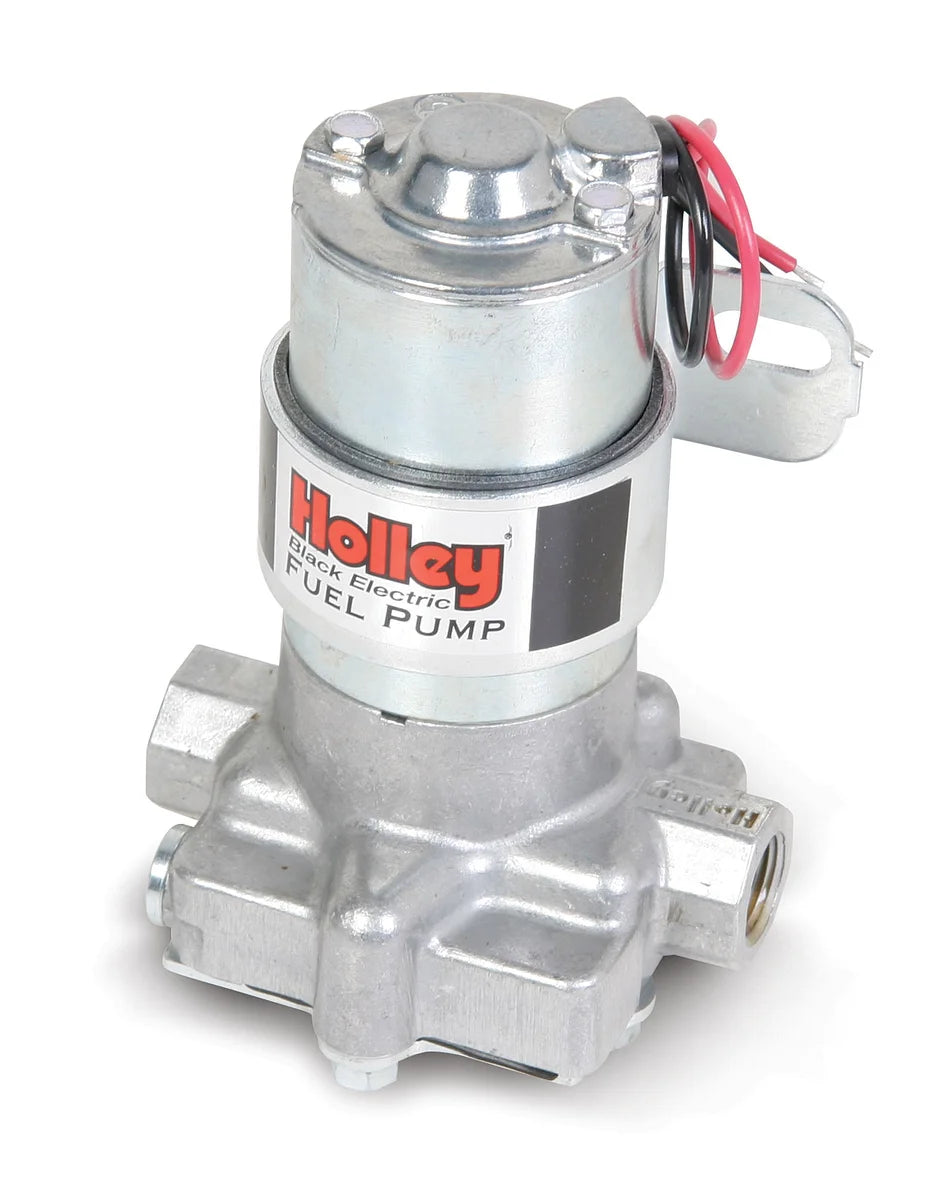

Holley Street/Strip Carbureted Applications Compatible with Gasoline Only 12-815-1
$399.93
$345.99
The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package.
Specifications:
| Application | Universal |
| Bracket Color | Silver |
| Brand | Holley |
| Category | Air and Fuel Delivery |
| Emission Code | 5 |
| Free Flow GPH | 140 |
| Free Flow LPH | 530 |
| 6806 | Carburetor |
| 1153 | No |
| Fuel System | Carbureted |
| Fuel Type | Gasoline |
| 353 | No |
| 3390 | Performance |
| Inlet Fitting Thread Size | 3/8 |
| Inlet Size | 3/8 inch NPT |
| 596 | NPT |
| 2183 | External |
| Material | Aluminum |
| 9050 | 4 |
| 517 | 140 |
| 280 | 14 |
| Motor Finish | Silver |
| 1154 | Yes |
| Outlet Fitting Thread Size | 3/8 |
| 623 | 1 |
| Outlet Size | 3/8 inch NPT |
| 598 | NPT |
| part type | Electric Fuel Pump |
| Product Type | Fuel Pump |
| Pump Body Color | Silver |
| 235 | No |
| Sub Category | Fuel Pumps and Related Components |
| 3145 | Universal |
| 123 | 12 |
| Warning | California Proposition 65 |
| Warranty | Manufacturer's Limited 90 Day Warranty |
| 338 | 2 |
| Description_INV | ELEC FUEL PUMP BLACK AUTO |

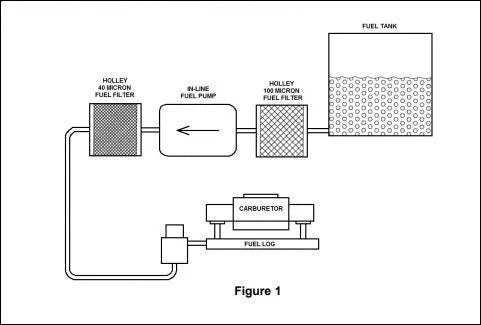

| Description_ASC | Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These should be used with 12 volt systems only. |
| Description_DES | 140 GPH Black® Electric Fuel Pump |
| Description_EXT | Street/Strip Carbureted Applications Compatible with Gasoline Only |
| Description_MKT | The world famous Red®, Blue® and Black® fuel pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 70's. Their time proven rotor/vane design is known to get the job done in an affordable package. |
| Description_FAB | Tumble polished billet look |
| Description_FAB | Lower housing casting designed for enhanced fuel flow |
| Description_FAB | Improved design for street/strip applications |
| Description_FAB | Distinctive “Black” logo |
| Description_FAB | Not designed for use on aircraft of any type. |

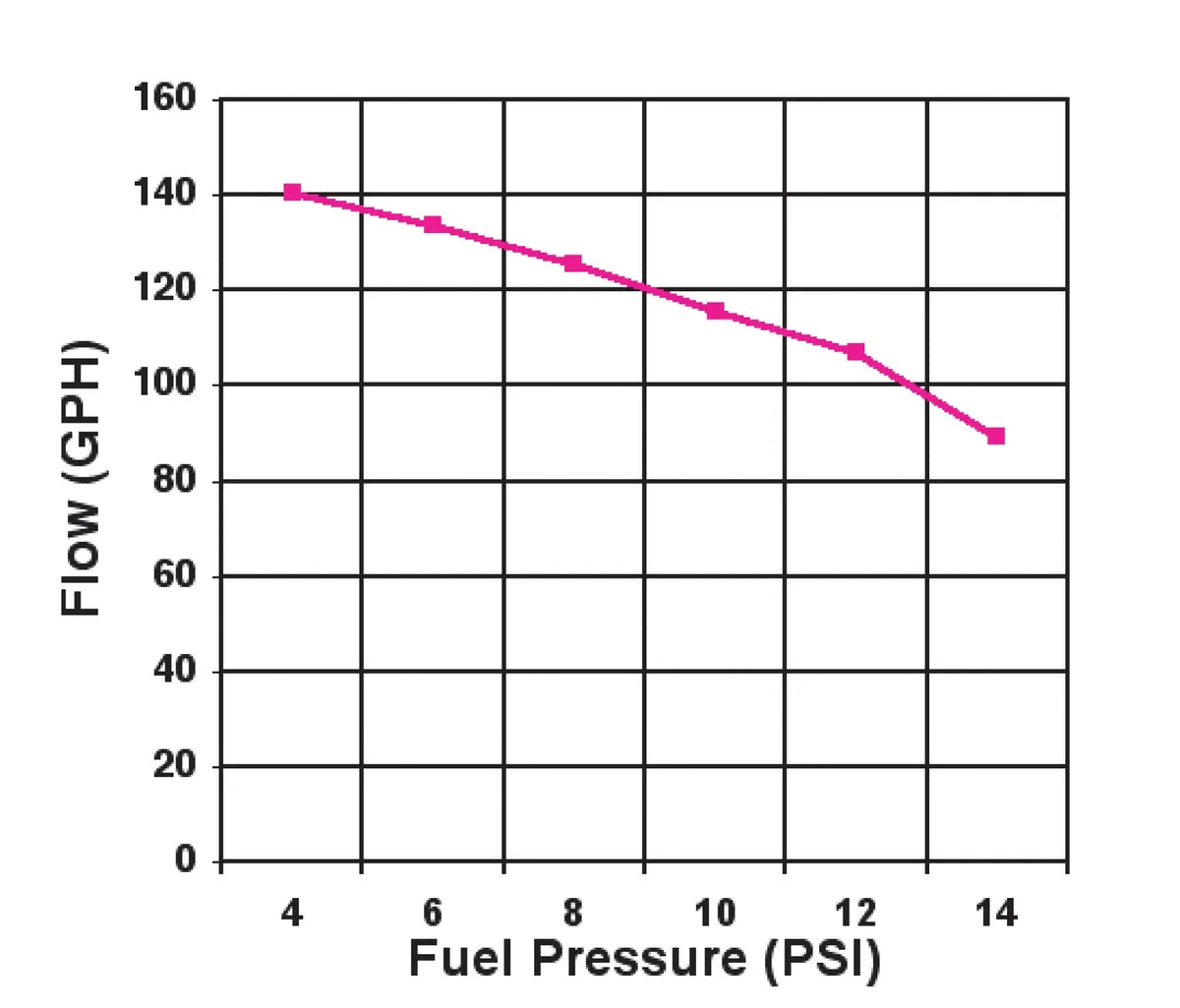

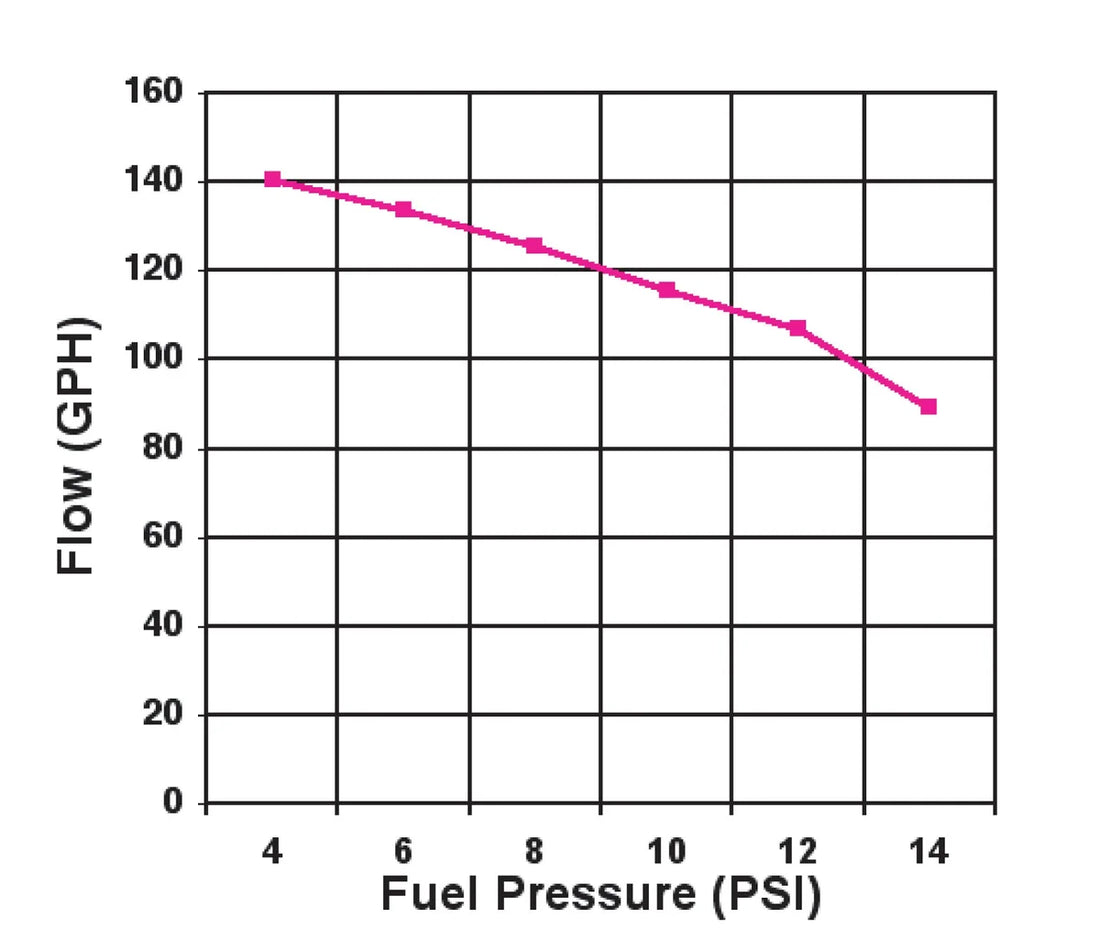

| Description_FAB | Flows 140 GPH (free flow) |
| Description_FAB | Flows 120 GPH at 9 psi |
| Description_FAB | Maximum pressure is 14 psi |
| Description_FAB | 3/8” NPT inlet and outlet ports |
| Description_FAB | Fuel pressure regulator is required (recommend Holley P/N 12-704 for gasoline) |
| Description_FAB | Motor draws only 4 amps current |
| Description_FAB | Relay kit P/N 12-753 & 7 1/2 amp fuse recommended |
| Description_FAB | Provides constant fuel flow with no pulsation |
| Description_FAB | Has externally accessible pressure relief valve (max 14 psi) |
| Description_FAB | Rotor/vane pump design is more tolerant of contaminated fuels |
| Description_FAB | Weighs only 3 lbs |
| Description_FAB | Includes mounting bracket |
| Description_FAB | Repair kits are readily available |
| Description_FAB | Can be serviced from the pump end |
| Description_FAB | Use of safety shut-off switch, P/N 12-810, strongly recommended |
| Description_FAB | Not designed or recommended for use with fuel injection systems |
