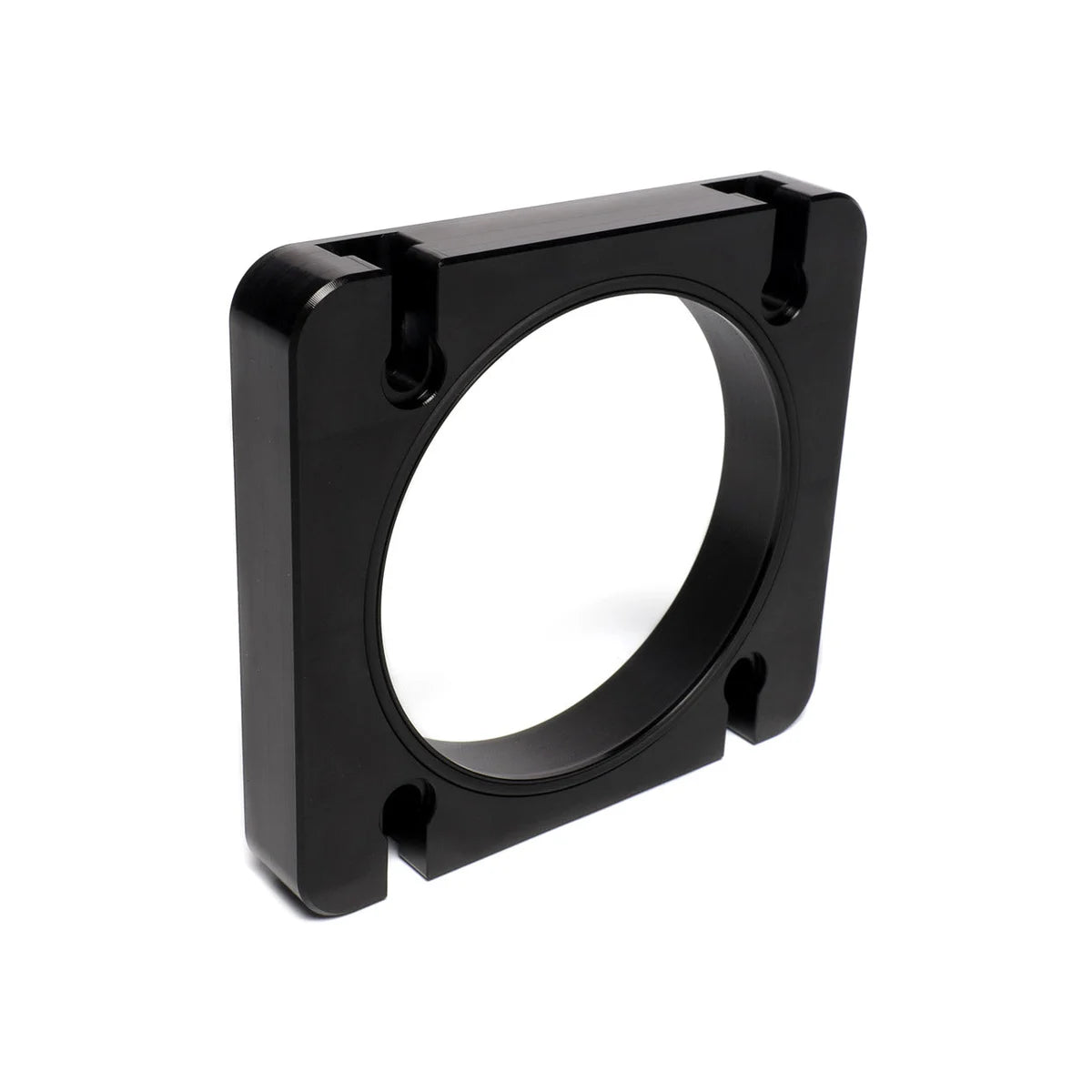

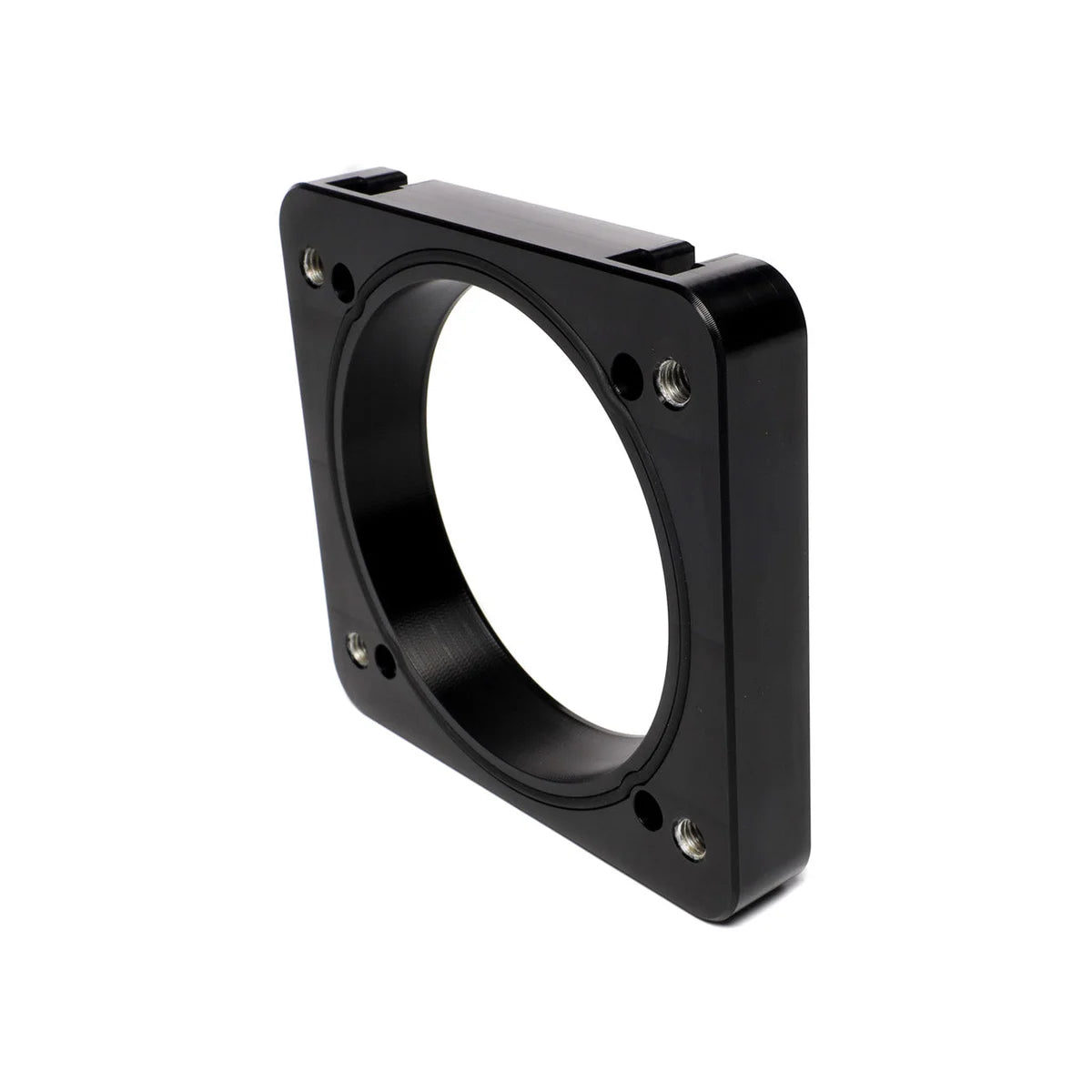

IAG Performance Big Bore 76mm Throttle Body Adapter for Process West Intake - Black IAG-AFD-2021BK
$126.99
In the hunt for more than 600 horsepower Subaru owners can be limited by their OEM throttle body. The OEM units just aren't big enough to meet the demands of larger upgraded turbochargers. For years those who were seeking to upgrade this component were forced to use inferior aftermarket alternatives. These aftermarket throttle bodies were prone to issues like sticking, poor idle quality, and difficult installation. IAG is pleased to announce that these owners are no longer forced to compromise drivability for horsepower. With the introduction of our new adapter plates owners are able to upgrade their OEM throttle bodies with a larger OEM quality unit that is sold separately.The Big Bore throttle body offers a 76mm bore which is nearly 25% larger over stock. Best of all, the installation is much easier than other options previously available. Simply drill out the rivets holding the motor to your OEM throttle body, remove the motor assembly, and install it to the Big Bore throttle body using the supplied rivets. No complicated disassembly, no springs, and the OEM connector is plug and play. The plates are machined from 6061 aluminum, and feature an O-ring sealing surface. Each adapter plate includes all the necessary hardware to complete the installation. The adapter plates are available in anodized black or natural silver finish and is designed to fit the Process West DBW Intake Manifolds.
This Part Fits:
| Year | Make | Model | Submodel | Notes |
|---|---|---|---|---|
| 2008 | Subaru | Forester | 2.5 XT | |
| 2008 | Subaru | Forester | Sports 2.5 XT | |
| 2004 | Subaru | Forester | XT | |
| 2005,2008 | Subaru | Forester | XT | |
| 2006 | Subaru | Forester | XT Limited | |
| 2007 | Subaru | Forester | XT Limited | |
| 2008 | Subaru | Forester | XT Limited | |
| 2005 | Subaru | Forester | XT Premium | |
| 2006 | Subaru | Impreza | WRX | |
| 2007 | Subaru | Impreza | WRX | |
| 2006 | Subaru | Impreza | WRX Limited | |
| 2007 | Subaru | Impreza | WRX Limited | |
| 2004 | Subaru | Impreza | WRX STI | |
| 2005 | Subaru | Impreza | WRX STI | |
| 2006 | Subaru | Impreza | WRX STI | |
| 2007 | Subaru | Impreza | WRX STI | |
| 2008 | Subaru | Impreza | WRX STI | |
| 2009 | Subaru | Impreza | WRX STI | |
| 2010 | Subaru | Impreza | WRX STI | |
| 2011 | Subaru | Impreza | WRX STI | |
| 2012 | Subaru | Impreza | WRX STI | |
| 2013 | Subaru | Impreza | WRX STI | |
| 2014 | Subaru | Impreza | WRX STI | |
| 2010 | Subaru | Impreza | WRX STI Special Edition | |
| 2006 | Subaru | Impreza | WRX TR | |
| 2007 | Subaru | Impreza | WRX TR | |
| 2012 | Subaru | WRX | STI | |
| 2013 | Subaru | WRX | STI | |
| 2014 | Subaru | WRX | STI | |
| 2015 | Subaru | WRX | STI | |
| 2016 | Subaru | WRX | STI | |
| 2013 | Subaru | WRX STI | Base | |
| 2014 | Subaru | WRX STI | Base | |
| 2015 | Subaru | WRX STI | Base | |
| 2016 | Subaru | WRX STI | Base | |
| 2017 | Subaru | WRX STI | Base | |
| 2018 | Subaru | WRX STI | Base | |
| 2019 | Subaru | WRX STI | Base | |
| 2020 | Subaru | WRX STI | Base | |
| 2021 | Subaru | WRX STI | Base | |
| 2020 | Subaru | WRX STI | Kanrai Edition | |
| 2015 | Subaru | WRX STI | Launch Edition | |
| 2015 | Subaru | WRX STI | Limited | |
| 2016 | Subaru | WRX STI | Limited | |
| 2017 | Subaru | WRX STI | Limited | |
| 2018 | Subaru | WRX STI | Limited | |
| 2019 | Subaru | WRX STI | Limited | |
| 2020 | Subaru | WRX STI | Limited | |
| 2021 | Subaru | WRX STI | Limited | |
| 2019 | Subaru | WRX STI | S209 | |
| 2016 | Subaru | WRX STI | Series.HyperBlue | |
| 2017 | Subaru | WRX STI | Sport | |
| 2018 | Subaru | WRX STI | Sport | |
| 2019 | Subaru | WRX STI | Sport | |
| 2020 | Subaru | WRX STI | Sport | |
| 2020 | Subaru | WRX STI | Sport-tech | |
| 2018 | Subaru | WRX STI | STI | |
| 2019 | Subaru | WRX STI | STI | |
| 2020 | Subaru | WRX STI | STI | |
| 2014 | Subaru | WRX STI | Tsurugi Edition | |
| 2018 | Subaru | WRX STI | Type RA |
Specifications:
| Prop 65 - Short Label | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Prop 65 (C, R or CR) | CR |
| Prop 65 Yes/No | Yes |
| Title | IAG Big Bore 76mm Throttle Body Adapter for Process West Intake Manifold; Black Finish. |
| 17 | Black |
| 10 | 6061 Aluminum |
| Hardware Included | Yes |
| Bore Size | 76 MM |
| 353 | Yes |
| 3390 | Performance |
| 890 | 1 |
| 356 | 8 |
| Description_LAB | Black |
| Description_DES | Big Bore 76mm Throttle Body Adapter for Process West Intake - Black |
| Description_APS | Subaru: Forester 2004 - 2008, Subaru: Impreza 2004 - 2014, Subaru: WRX 2012 - 2016, Subaru: WRX STI 2013 - 2021 |
| Description_EXT | IAG Big Bore 76mm Throttle Body Adapter for Process West Intake Manifold - Black Finish |
| Description_MKT | In the hunt for more than 600 horsepower Subaru owners can be limited by their OEM throttle body. The OEM units just aren't big enough to meet the demands of larger upgraded turbochargers. For years those who were seeking to upgrade this component were forced to use inferior aftermarket alternatives. These aftermarket throttle bodies were prone to issues like sticking, poor idle quality, and difficult installation. IAG is pleased to announce that these owners are no longer forced to compromise drivability for horsepower. With the introduction of our new adapter plates owners are able to upgrade their OEM throttle bodies with a larger OEM quality unit that is sold separately.The Big Bore throttle body offers a 76mm bore which is nearly 25% larger over stock. Best of all, the installation is much easier than other options previously available. Simply drill out the rivets holding the motor to your OEM throttle body, remove the motor assembly, and install it to the Big Bore throttle body using the supplied rivets. No complicated disassembly, no springs, and the OEM connector is plug and play. The plates are machined from 6061 aluminum, and feature an O-ring sealing surface. Each adapter plate includes all the necessary hardware to complete the installation. The adapter plates are available in anodized black or natural silver finish and is designed to fit the Process West DBW Intake Manifolds. |
| Description_FAB | Allows mounting of larger 76mm throttle body for increased airflow |
| Description_TLE | IAG Performance Big Bore 76mm Throttle Body Adapter for Process West Intake Manifold (Black) |
| Description_SHO | Throttlebody Adapter |
| Description_INV | IAG Throttle Body Adapter Plate |

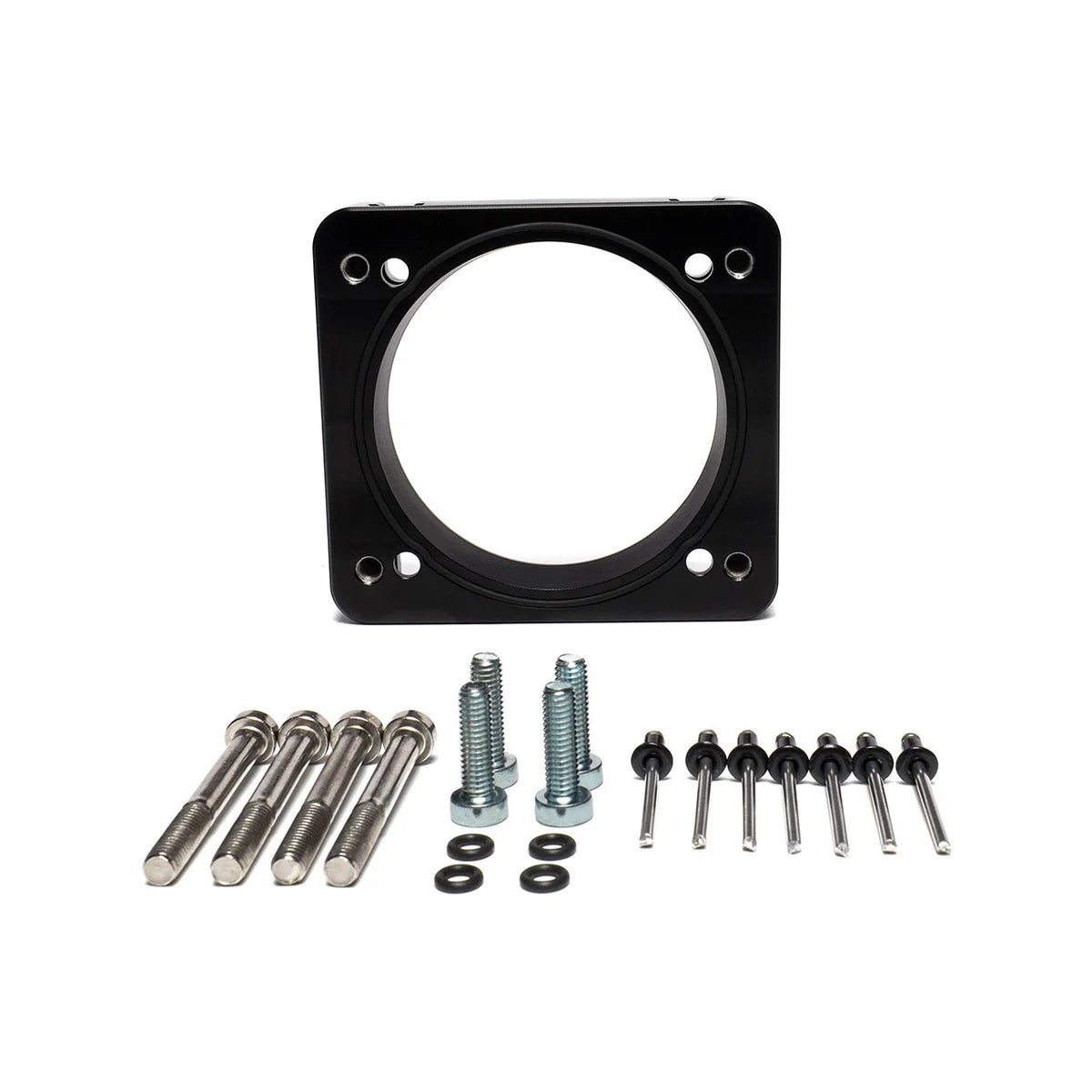

| Description_ASC | Adapter Kit Includes: (x1) IAG Black Aluminum Adapter Plate, (x4) M6x50mm Low Profile Socket Head Cap Screws, (x4) M6x20mm Low Profile Socket Head Cap Screws, (x4) Small O-rings, (x2) Large Adapter Plate O-rings, (x7) Rivets |
| Description_ASC | Fits 2004-21 Subaru STI, 2006-07 WRX, and the 2004-08 Forester XT. The 2004-05 STI requires a riveted throttle body. Confirm that a riveted throttle body style is being used and consult with your tuner before ordering. |
| Description_ASC | Fitment Notes: Intended for vehicles making 600+ HP with front mount intercoolers |
| Description_ASC | ECU calibration is required - Consult with your Tuner before ordering. |
| Description_ASC | Big Bore Throttle Body is not included with the kit. |
| Description_ASC | Installation requires a Subaru throttle body with rivets attaching the motor. Not compatible with clip style Subaru throttle body. |
| Description_ASC | Custom piping / fabrication may be required for installation |
| Description_ASC | Not compatible with OEM style MAP sensors |
| Description_KSW | IAG-AFD-2021,billet, 2004,2005,2006,2007,2008,2009,2010 |
| Description_KSW | 2011,2012,2013,2014,2015,2016,2017,2018,2019,2020,2021 |
| Description_KSW | impreza,forester,xt,wrx,sti |
| Description_LAB | Big Bore 76mm Throttle Body Adapter for Process West Intake |
| Description_DEF | Fuel Injection Throttle Body Adapter |
